USER MANUAL OT10 BREIL

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

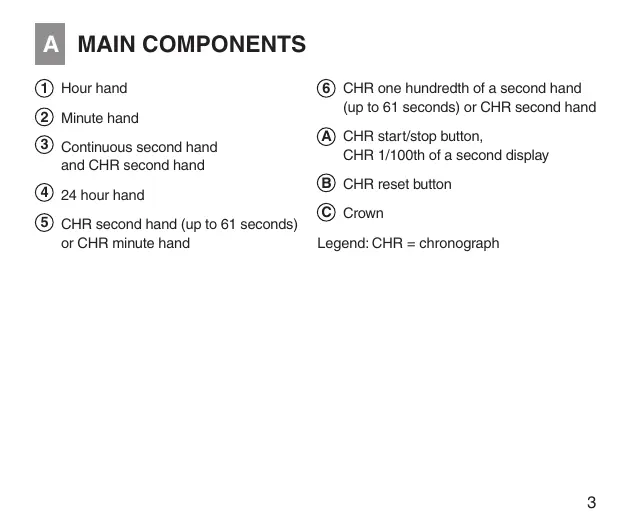

① Hour hand
② Minute hand
(3) Continuous second hand and CHR second hand
④ 24 hour hand
⑤ CHR second hand (up to 61 seconds) or CHR minute hand

6 CHR one hundredth of a second hand (up to 61 seconds) or CHR second hand

A CHR start/stop button, CHR 1/100th of a second display
B CHR reset button
Crown

Legend: CHR = chronograph

The chronograph can measure up to 60 minutes in 1/100th of a second intervals.

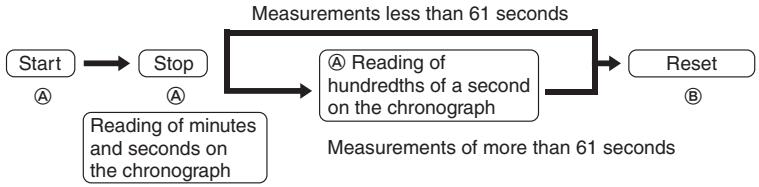

Standard measurement

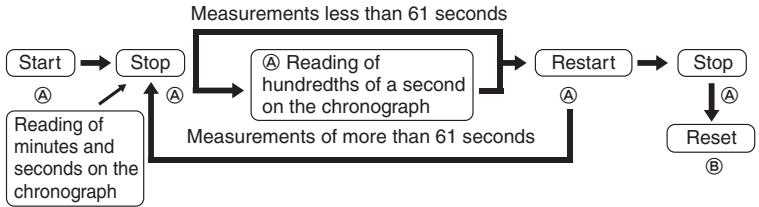

Accumulated elapsed time measurement

• Pressing button A repeats the accumulation.

The chronograph hundredths of a second hand ⑥

• The hundredths of a second hand moves for 61 seconds after the measurement has been started. After this time period, it stops at 0. The display will then change to show one rotation every minute.

To start the chronograph

• Press button A
• The small second hand ③ will move to zero at the same time as the chronograph is started and will start to count the seconds. Similarly, hand ⑤ will, after one minute and one second from the start of the chronograph, change to function as the minute hand of the chronograph.

To stop the chronograph

• Press button A
• When the measured time is less than 61 seconds, the minute hand, second hand and 1/100th of a second hand of the chronograph will stop at the measured time.
• When the measured time is more than 61 seconds, the minute and second hands of the chronograph will stop at the measured time. The 1/100th of a second hand of the chronograph will stop at zero. The minutes and seconds can be read from the chronograph display.

Subsequently, press button again to advance the 1/100th of a second hand of the chronograph to the measured time. It is then possible to read the time in hundredths of a second.

To reset the chronograph

Press button
- The second hand of the chronograph ③ will change its function to indicate the continuous seconds of the current time. The other hands, ⑤ and ⑥ will return to zero.

SETTINGTHE TIME

1. Unscrew the crown © and pull it out to position (2), the continuous second hand ③ will stop at "0".
2. Turn the crown to adjust the minute hand ①, hour hand ② and 24 hour hand ④ to the correct time.

NOTE:The 24 hour hand ④ is integral with the hour/minute hands ① / ②

1. Return the crown © to its original position (0) (a confirmation beep will be heard). The small second hand will start to move.

If the watch is not used for a long period of time, in order to save power, it is advisable to stop the watch by placing the crown © in position ②.

SETTING THE DATE

1. Pull out the crown © to position (1)

Rotate the crown anticlockwise until the required date appears.

1. Do not set the date between 9.00 p.m. and 1.00 a.m. as the automatic date change mechanism may not work correctly.
2. Push the crown back to position (0)

ADJUSTING THE CHRONOGRAPH

After replacing the battery or if the hands of the chronograph do not return to the "0" position when the chronograph is reset:

1. Pull the crown out to position (2)
2. Press button A or B to move the chronograph hands to the "0" position. Button A: moves the hundredths of a second hand ⑥ to "0".
3. Button ⑧: moves the second hand of the chronograph ③ to "0". The chronograph hands can be advanced rapidly by keeping buttons ⑧ and ⑧ pressed.
4. When the chronograph hands have been set to "0", reset the time or date as required (paragraphs C and D) and then move the crown back to position "0".

PRECAUTIONS AND USEFUL INFORMATION

Indication			Use in
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	-	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5bar)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10bar)	WATER RESISTANT	YES	YES
E	WATER RESISTANT 200M (20bar) or more	WATER RESISTANT	YES	YES
The words “WATER RESISTANT” may sometimes be abbreviated to “WATER RESIST”.

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.
• Contact with water may cause a deterioration in the quality of some leather straps.

Water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	Not water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving
YES	YES	Suitable for scuba diving
*Always keep the crown in its normal position. *Fully tighten crown screw lock.

• As the internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up. This phenomenon is purely temporary and should not create any problems. However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports such as golf and baseball. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Static electricity

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances. Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergents, adhesives etc.

Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass. Wearing the watch when the strap or back of the case is dirty can cause skin irritation. Keeping the watch clean also keeps shirt cuffs clean.

Cleaning the watch strap.

Metal bands: Use a toothbrush and soapy warm water to wash the dirt off.
- Plastic or rubber straps: Wash with water. Do not use solvents.
- Leather straps: Gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an authorised assistance centre once every 12 months or two years.

Keep batteries out of the reach of children

If a battery is accidentally swallowed, consult a doctor immediately.

TECHNICAL DATA

1. Type: Analog quartz watch
2. Calibre: Miyota OT10
3. Accuracy: ± 20 seconds per month at normal temperatures (5^ - 35^)
4. Quartz oscillation frequency: 32,768 Hz
5. Effective operating temperature range: -10^ to +60^

6. Additional characteristics:

7. Date

8. Chronograph: can measure up to 60 minutes in 1/100th of a second intervals
9. Battery life: Approximately 2 years (using the chronograph for 1 hour per day)
10. Battery: Type SR927

In order to improve the product, the technical specifications may be modified without prior notice.
