USER MANUAL FS41 BREIL

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

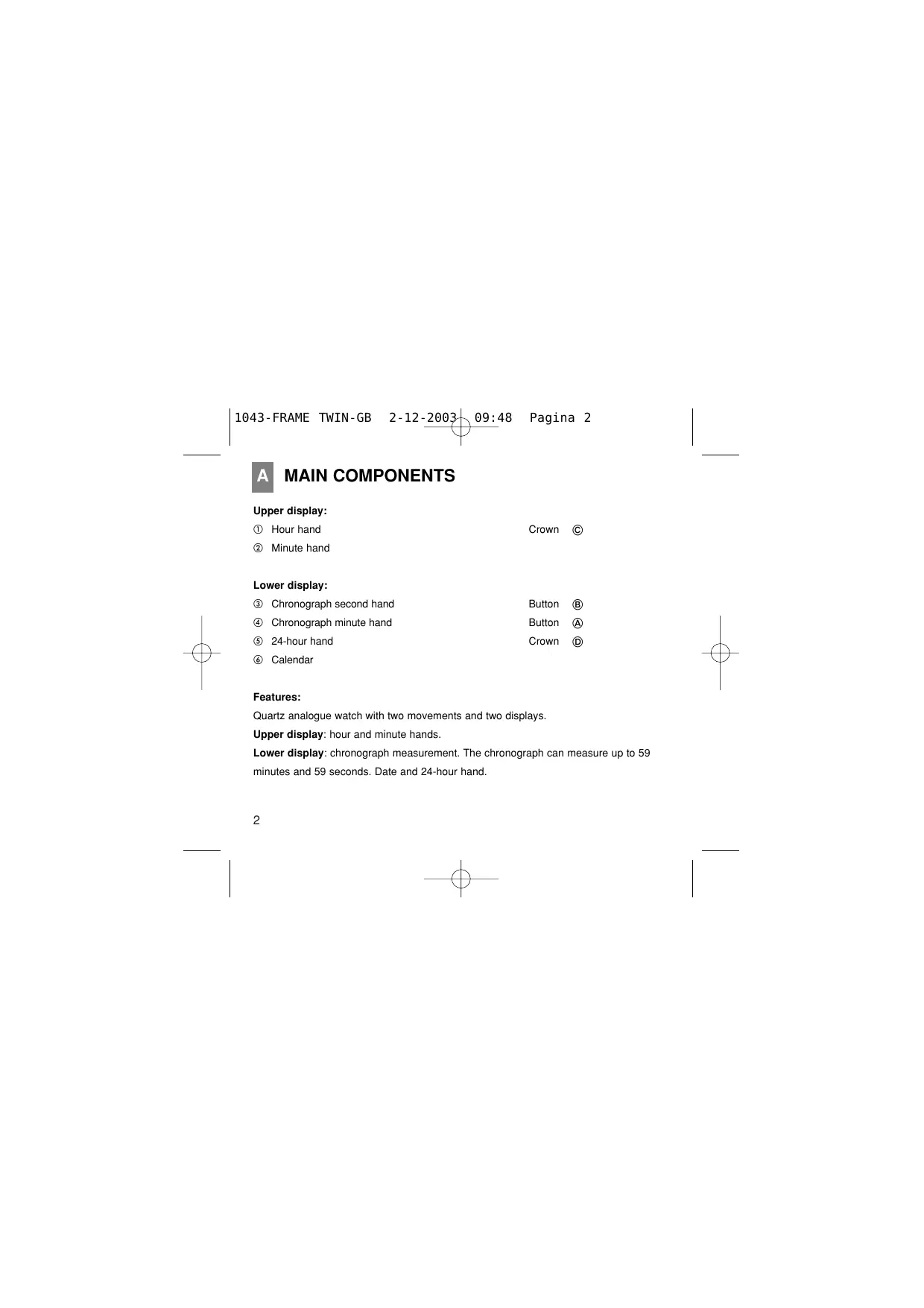

③ Chronograph second hand
④ Chronograph minute hand
⑤ 24-hour hand
⑥ Calendar

Button 8
Button A
Crown

Features:

Quartz analogue watch with two movements and two displays.

Upper display: hour and minute hands.

Lower display: chronograph measurement. The chronograph can measure up to 59 minutes and 59 seconds. Date and 24-hour hand.

SETTING THE TIME AND DATE

To set the time:

1. Pull out the crown ©.
2. Turn the crown © to set the hour and minute hands.
3. After the date has been set, push the crown back to the normal position.

To set the date:

1. Pull out the crown ⑨ to the 1st position (1).

2. Turn the crown clockwise to set the date.

3. If the date is set to an hour between 9:00 PM and 1:00 AM, the date may not change on the following day.

4. After the date has been set, push the crown back to the normal position.

C USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 1 hour.

Measuring time with the chronograph

1. The chronograph can be started and stopped each time button is pressed.
2. To reset, press button ⑧ and the chronograph second and minute hands return to their "0" positions.

CHRONOGRAPH RESET

(INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to the 0 second position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull out the crown ① to the 2nd position (2).
2. Press button A to set the chronograph second hand to the "0" position.
3. The chronograph hands can be advanced rapidly by continuously pressing button A.

4. Once the hands have been zeroed, reset the time and return the crown ⑥ to its normal position.

5. Do not return the crown to normal position while the chronograph second hand returns to 12:00 ("0" position). The hand stops on the way when the crown is returned to normal position and this position is recognized as 12:00 ("0" position).

Indication			Use
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	WATER RESISTANT 30M (3ATM)	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5ATM)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10ATM)	WATER RESISTANT	YES	YES
E	WATER RESISTANT 200M (20ATM) or more	WATER RESISTANT	YES	YES
"WATER RESISTANT" may sometimes be abbreviated to "WATER RESIST"

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.

in water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	Not water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving.
YES	YES	Suitable for scuba diving.
* Always keep the crown in its normal position. * Full tighten crown screw lock.

• Contact with water may cause a deterioration in the quality of some leather straps.
• As internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up.

This phenomenon is purely temporary and should not create any problems.

However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Static electricity

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances. Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergent, adhesives etc. Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass.

Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Cleaning the watch strap:

Metal bands: use a toothbrush and soapy warm to wash the dirt off.
- Plastic or rubber straps: wash with water. Do not use solvents.
- Leather straps: gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an Authorised Assistance Centre once every two years.

Keep batteries out of the reach of children

If a battery is accidentally swallowed, consult a doctor immediately.

TECHNICAL DATA

Calibre: FS41 and 5R21

Type: quartz analogue watch with time movement and chronograph

Frequency: 32.768Hz

Accuracy: +/-20 seconds per month at normal temperatures.

Time function

Hour: hour and minute hands

Chronograph function

Chronograph: Chronograph 1/1 sec. basis (Up to 59 min. 59 sec.)

Additional characteristics

Calendar: date display

24-hour hand

• In order to improve the product, the technical specifications may be modified without prior notice.
