Product Type	Car seat adapter
Brand	HARTAN
Model	AUTOSITZADAPTER 9904
Materials	Reinforced plastic, steel
Dimensions (approx.)	150 x 80 x 50 mm
Weight (approx.)	500 g
Car seat compatibility	Maxi Cosi, Römer Baby Safe Plus SHR
Chassis compatibility	Hartan strollers equipped with mounting rails
Usage	Attach a car seat to a stroller chassis
Mounting	Using supplied screws and Allen key
Safety	Audible click, check by lifting the seat
Maintenance	Clean with a damp cloth, avoid harsh products
Warranty	2 years
Country of manufacture	Germany (made in Germany)
Spare parts	Use only original Hartan parts

Frequently Asked Questions - AUTOSITZADAPTER 9904 HARTAN

How do I install the adapter on the stroller chassis?

Attach the adapter to the chassis mounting rail using the two slotted screws provided and the Allen key. Tighten the nuts well to ensure a secure fit.

Which car seats are compatible with this adapter?

The adapter is compatible with Maxi Cosi and Römer Baby Safe Plus SHR car seats. Consult the manual for more details.

How do I know if the car seat is correctly clicked in?

An audible click is heard when the seat locks onto the adapter. Test by lifting the seat to verify it is securely attached.

How do I remove the car seat from the adapter?

To remove the seat, simultaneously press the two push buttons located on either side of the adapter. For the Römer model, press one of the three triangular buttons on the carrying handle.

Can I use this adapter for jogging or rollerblading?

No, using it while jogging or rollerblading is dangerous and not permitted.

What should I do if the adapter does not attach properly?

Check that the screws are tightly fastened and that the adapter is correctly inserted into the rail. If the problem persists, contact your dealer.

How do I maintain the adapter?

Clean the adapter with a damp cloth and mild detergent. Do not use abrasive cleaners or solvents. Avoid excessive moisture.

Can I use non-Hartan spare parts?

For safety reasons, use only original Hartan spare parts.

What is the warranty period for this adapter?

The warranty is 2 years from the date of purchase from your dealer. Keep the warranty card and receipt.

Is my car seat suitable for use in a vehicle with this adapter?

This adapter is designed to attach the car seat to a stroller chassis, not for use in a vehicle. Follow your car seat instructions for in-car use.

USER MANUAL AUTOSITZADAPTER 9904 HARTAN

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purchased a Xanlan high-quality product. You have made an excellent choice.

SAFETY AND QUALITY LEADERSHIP THROUGH TECHNOLOGY

As a competent and recognized company in the European baby carriage industry, it has become our mission to deliver only fashionable top models, the most innovative technology and the best quality as well.

Made in Germany products manufactured with
the greatest possible care
- Constant rigorous quality control
- Content of harmful substances at as low a level as possible

Important for your child's safety!

Before using your child car seat adapter, please consult both the manual of your baby carriage and that of your adapter. The safety notes given in these manuals apply to the chassis/ car-seat combination as well.

Please do not use this adapter before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.

If you do not understand the instructions or if you require more detailed information, contact your dealer.

Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

WARNING!

Never leave your child unattended in the child car seat.
Before use, make sure all the catches are locked in place and the carriage top is secured properly.
Using this combination while jogging, skating, etc. can be dangerous and is therefore not allowed.
Use the safety belt for your child.
The carrying handle of the car seat is not suitable for carrying the child carriage.
For safety reasons, only use Hartan replacement parts.

Mounting instructions

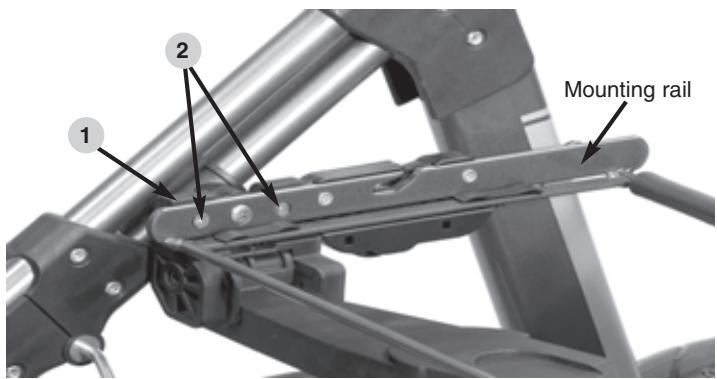

① The adapter is attached to the outside of the mounting rail.
② Secure the adapter by means of the two countersunk head screws using the Allen key provided. Tighten the screws properly; the adapter must fit tightly to the mounting rail.

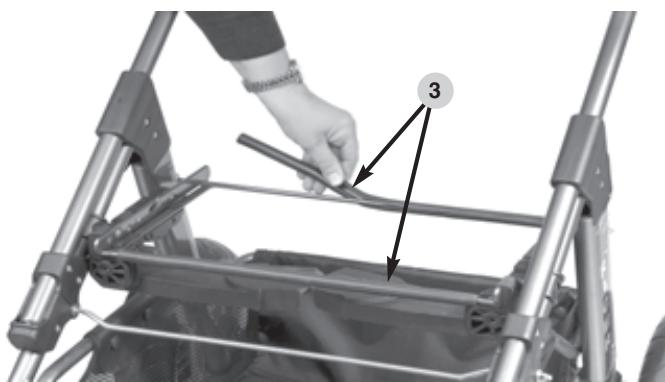

③ Put the two protective slit-hoses upon the crossbars of the chassis. Turn the hose in a way that the slots point downwards.

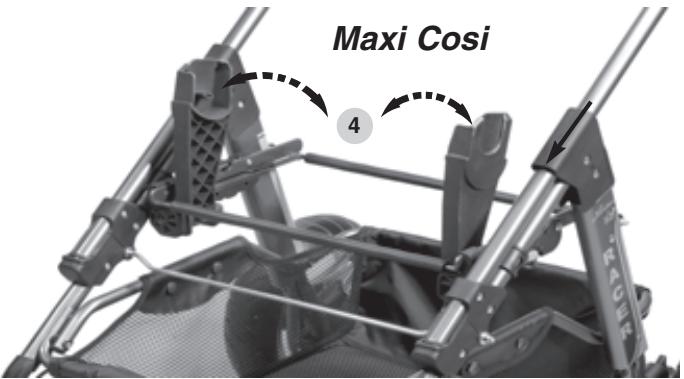

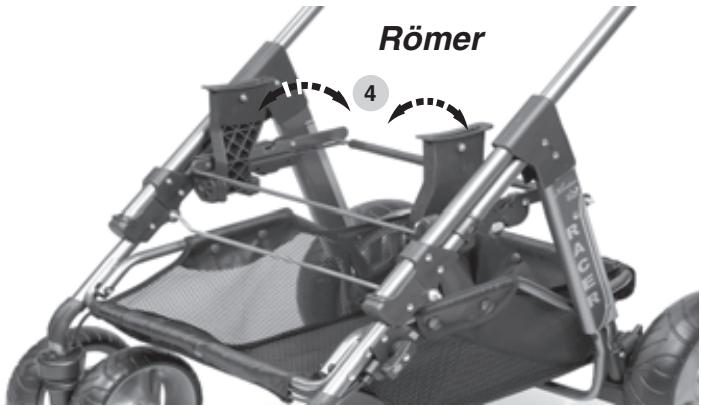

④ To attach the child car seat, fold up the two adapters into vertical position until they snap into place. To attach the stroller unit, bring the two adapters into horizontal position.

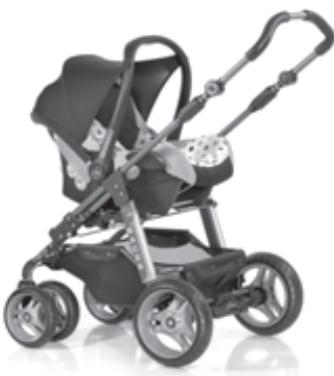

"Maxi Cosi" user guide

Never use the car seats "Maxi Cosi" and "Romer" with the child in it in driving direction.

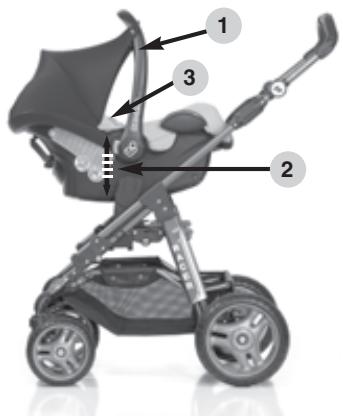

① To attach the child car seat to the chassis or to remove it from the chassis, fold up the carrying handle into vertical position until it snaps into place.
② The seat engages audibly onto the adapter, which is indicated by a click sound. Check by lifting to make sure it is engaged securely.
③ By depressing the two push buttons on both sides at the same time, the seat can be removed.

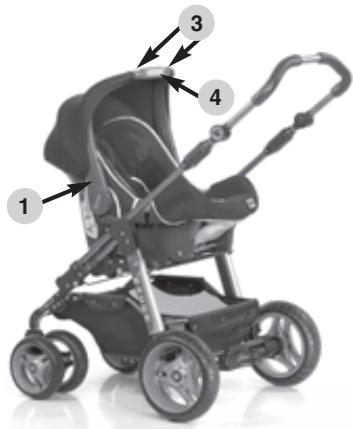

"Römer Baby Safe plus SHR" user guide

① To attach the child car seat to the chassis or to remove it from the chassis, fold up the carrying handle into vertical position until it snaps into place.

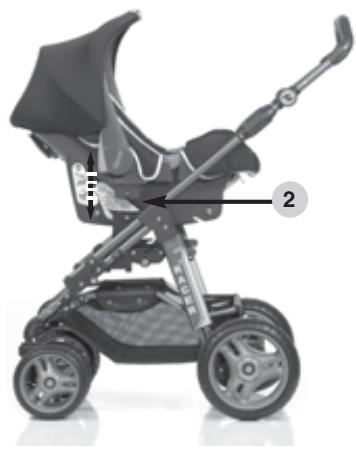

② The seat engages audibly into the adapter, which is indicated by a click sound. Check by lifting to make sure it is engaged securely.
The carrying handle has three triangular buttons. Press one of them and keep it depressed.
④ Press the release button of the carrying handle. The seat can now be removed.

2 YEARS WARRANTY

This product is guaranteed for a period of 2 years by your contract partner. For possible submission of proof, please keep your receipt, the completed warranty card as well as the handover check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

IN CASE OF WARRANTY CLAIM

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER ......

We disclaim liability for defects in the object of purchase that are beyond our control. This especially applies to:

■ natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
defects due to improper or inappropriate use (see Instructions)
defects due to incorrect assembly or operation
defects due to negligent handling or lack of maintenance of the product
defects due to improper alteration of the product.

Toutes nos félicitations

TAPAHTRBCJUYAEPEKJIAMAIIH.

IpaHTH OXBaTbIBaET BCE IIOLOMKH, CBZ3aHHbIe C MaTepeHaJOM HJIH C IPOH3BOIcTBOM, KOTOpbIe IIpHCyTCTBOBaJIH BO BpeMaH.

TAPAHTRHE PACIPOCTPAHRETCAHA...

IapahTTHa he paicnoctpaHaeTcH a HIOLOMKn H HeIOCTATKN IpoJAAHHORO TOBAPA B cJIyae, ecIn OHn He 6bln Bb3BaHbH hAMn. 3To paicnoctpaHaeTcOco6eHHa H NHe yka3AHHbE PYYKHTb

IIINH3NaKN HaTpyaJIbHOro H3Hoca H IIOJIOMKH, C8J3aHHbIe C Ype3MePHBIM HCIOJIb3O-BaHHem IPOJyKTA
HeIOJIaIKN, Cb3aHHbIe c TeM, YTO H aIOJOMKH/OIIH6KHe 6bIIO o6paIeHO BHNMaHHe h BCJIeCTBHe 3TO rpo60tI IIO pEmOHTy IpOdyKTu yCIOJHXJIHc
IIIOJOMKH, CB3aHHbIe C HeINPcHIOco6JIeHNbIM H HeINpABHbHbIM IIpHMHeHHem IPOJyKTA (cm. IHCTpyKTHIO IIO IIpHMHeHHIO)
IIOJOMKH, CB3aHHbIE C HIIpaBHLbHbIM MOHTaKOM H BBOJOM B DeICTBHe.
IIIOJOMKH, Bb3BaHHbIe He6peKHeIM HcIOJIb3OBAHHem HINH HeIOCTaTOHbIM yxODOM H 06cIyKHBAHHEM KUYIIeHHORo BaMH IpeIMeta
IIIOJOMKN, Cb3aHHbIe C HeKOMIeTeHTHbIM H3MeHeHHem KUJIeHHORI npOdykTa.
