DATADESK 90 - Office DICOTA - Free user manual and instructions

Product Type	Mobile desk / laptop and printer briefcase
Brand	DICOTA
Model	DATADESK 90
Power Supply	220 V via included power cable
Printer Compatibility	Canon i80 / iP90
Computer Compatibility	Laptops (list at www.dicota.com)
Included Accessories	1 220 V plug, 1 angled USB cable, 8 self-adhesive 3M Velcro strips, 4 plastic wedges for PC mounting, 2 keys
Storage Compartments	Printer compartment, CD/FDD compartment, printed paper compartment, cable and connector compartments
Main Functions	Simultaneous transport and use of a laptop and printer, organized accessory storage, wired or Bluetooth connection
Material	Durable plastic and metal
Care and Cleaning	Clean with a soft, dry cloth; avoid moisture, dust, and heat sources
Safety	Use on a stable, non-slip surface; open the lid before use; allow cooling after intensive use before closing
Spare Parts and Repairability	Spare parts available from the manufacturer
General Information	Manufacturer's warranty; for more information, refer to the complete instruction manual at notice-facile.com

Frequently Asked Questions - DATADESK 90 DICOTA

How to install the printer in the DATADESK 90?

Place the printer in the dedicated compartment at the bottom of the briefcase. Connect the power cable and the angled USB cable provided. Secure the power supply with the Velcro strips. Ensure that the cables run through the provided channels to avoid damage.

How to secure the laptop in the DATADESK 90?

Two options: 1) Use the 4 plastic wedges attached with Velcro strips to hold the computer. 2) Stick the Velcro strips directly onto the foldable cover and the sides of the computer. For transport, always secure the computer with the Velcro on top of the cover.

How to connect the power supply?

Connect the power cable to the briefcase and then to a 220 V socket. Open the DATADESK 90 before connecting the devices to allow charging. The power connectors for the computer and printer plug into the compartments at the bottom of the briefcase.

Can I use the DATADESK 90 without the top cover?

Yes, you can remove the top cover by opening it to 60-70 degrees and sliding it horizontally to the right. Then use the base as a workspace.

How to clean and maintain the DATADESK 90?

Clean it with a soft, dry cloth. Avoid moisture, dust, and intense heat sources. Do not close immediately after prolonged use to allow cooling.

What cables and accessories are included with the DATADESK 90?

The product comes with: 1 220 V plug, 1 adjustable angled USB cable, 8 self-adhesive 3M Velcro strips, 4 plastic wedges for PC mounting, and 2 keys for locking.

Is the DATADESK 90 compatible with other printers than the Canon i80/iP90?

The DATADESK 90 is specially designed for the Canon i80/iP90. For other printers, check dimensions and mounting. Contact your dealer or visit www.dicota.com for compatibility information.

How to store cables in the DATADESK 90?

Route the cables through the designated channels and compartments under the foldable cover. Ensure they do not obstruct the printer's paper output. Always store the cables before closing the briefcase to avoid pinching.

Can I transport the DATADESK 90 with the computer and printer installed?

Yes, but make sure the laptop is securely fastened with the Velcro strips on top of the foldable cover. Close the briefcase and lock it with the provided keys. Never transport the devices without securing them.

Where can I find spare parts for the DATADESK 90?

Spare parts are available from the manufacturer DICOTA. Visit www.dicota.com or contact customer service. You can also refer to the complete manual at notice-facile.com.

USER MANUAL DATADESK 90 DICOTA

We would like to thank you that you bought a DICOTA product. Before you use your DataDesk 80/90 for the first time please read the following user manual thoroughly. The DataDesk 80/90 is suitable for the currently available printer models Canon i80/iP90. Please consult your local dealer or the product detective at www.dicota.com to find out which Notebooks are suitable.

Table of contents

General information 5
- Work enviroment 5
- Operating voltage 5

Scope of supply 6

Interior equipment 6
-Case lid 6
- Case bottom 6

Installation of your printer 7

Installation of your Notebook 7
Connection: Notebook - printer 8

General information - DataDesk 80/90

Work enviroment

Please make sure that your DataDesk 80/90 is always operated on a steady, non-skid surface. Especially avoid working surfaces in dusty or damp environments!

→ When opening your DataDesk 80/90 attaché case, please make sure that the case shell with the case handle is upside!
→ If you would like to use your DataDesk 80/90 without the upper case shell, you can remove it as follows: Open the attaché case at an angle of approx. 60^ - 70^ .

At this angle you feel a slight resistance and you can detach the case lid by pulling it horizontally to the right.

Avoid the use of your DataDesk 80/90 near extreme heat sources (e.g. heaters). Protect your DataDesk 80/90 from direct sun irradiation!
→ For exact information regarding the temperature of the work environment, please refer to the user's guide of your Notebook or printer manufacturer.
The equipment should only be operated when the case is opened.
→ The case should not be immediately closed after the equipment has been used for a long period of time, so as to ensure a cooling-off period!

Operating voltage / recharging procedure

Please keep in mind that the line cord is to be attached to the case first, and then connected to the power source, when connecting with the power supply system!
→ The DataDesk 80/90 should always be opened during the recharging procedure of the equipment!

Scope of supply - DataDesk 80/90

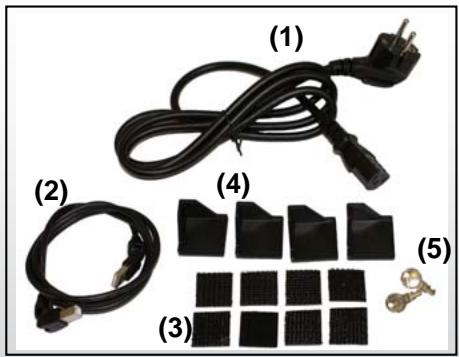

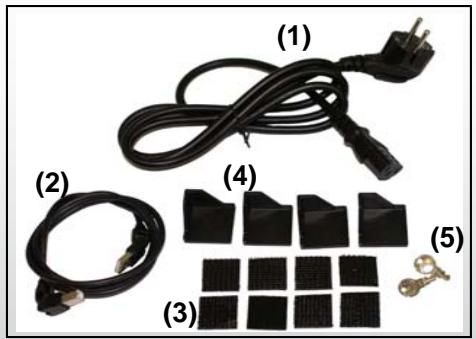

(1) 1 × 220 ~V - IEC plug
(2) 1 × USB printer cable (360° pivotable)
(3) 8 × 3M Velcro - pads (self-adhesive)
(4) 4 × Synthetic corners for Notebook fastening
(5) 2xkeys

Interior equipment - DataDesk 80/90

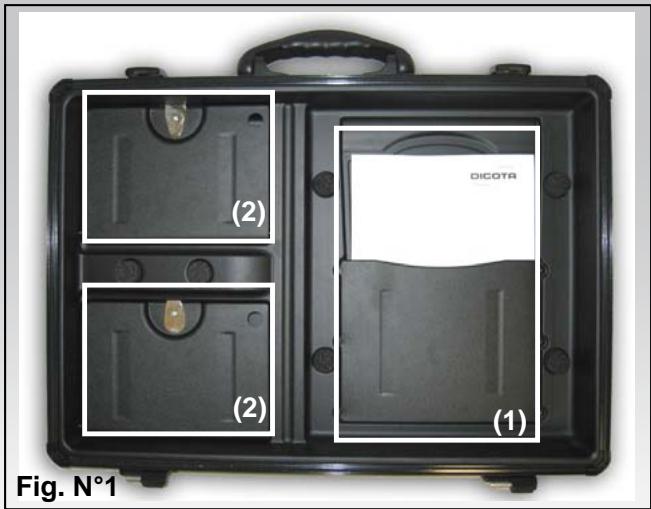

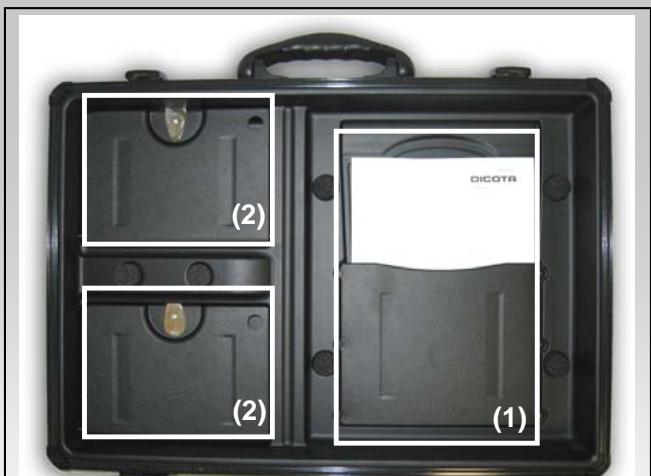

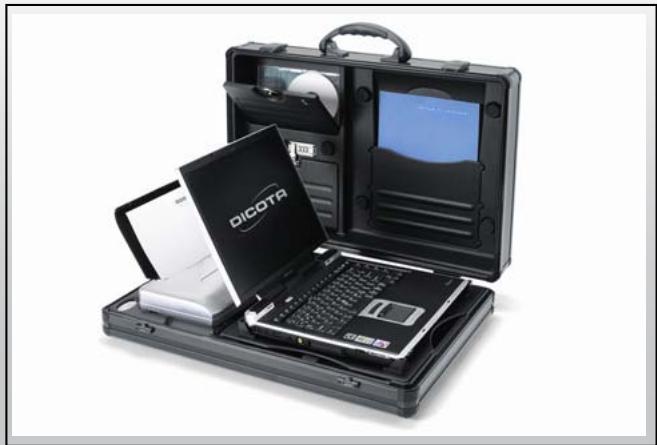

Case lid (Fig. 1)

(1) Document / printer paper compartment
(2) Accessory compartment

Fig. 1

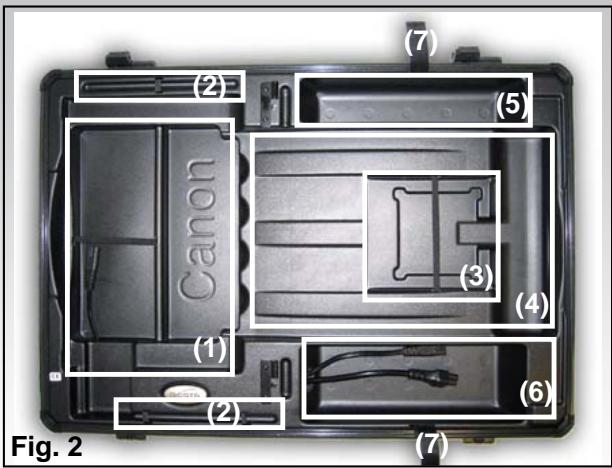

Case lid (Fig. 2)

(1) Fit for your printer (Canon i80/iP90)
(2) Cable routing help
(3) Stow-away pocket for CD-ROM, 3,5" FDD, etc.
(4) Stow-away pocket for printed paper
(5) Stow-away pocket for Notebook power supply with plug for a Euro 8-socket (with / without ground wire)
(6) Stow-away pocket for printer power supply with plug for a Euro 8-socket (with / without ground wire)
(7) Notebook strap
(8) Flap lid (not seen in Fig.2)

Installation of your mobile printer

Open your DataDesk 80/90.

1) Remove the flap lid from the bottom part of the case, which functions as your Notebook workspace.
2) Place the printer power supply in the front pocket of the bottom part of the case (Fig.2, pocket No. 6).
3) Now connect the Euro 8 plug with the 220V socket of the power supply (Fig.2, in pocket No. 6). Secure the printer power supply with the two Velcro straps!

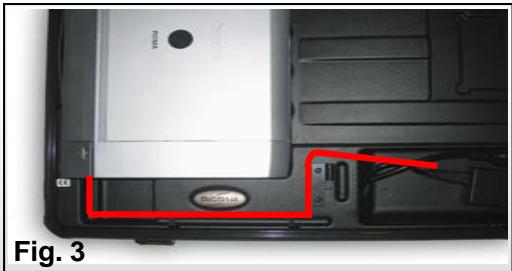

4) Route the printer power cable through the designated groove (under the flap lid) and sideways past the printer (Fig. 3).

Pay attention to a clean cable routing to prevent damaging the printer cable (e.g. by pinching it off)!

5) The power supply outlet plug is now connected to the printer.

Installation of your Notebook

1) Place the Notebook power supply in the rear pocket of the bottom part of the case.
2) Now connect the 220V plug with the Notebook's power supply.
3) Route the low voltage power supply outlet cable beneath the flap lid through the designated groove, so that the cable can not be damaged when the lid is closed!
4) The power supply outlet plug is now connected with the Notebook.

Now you have two options of fastening your Notebook:

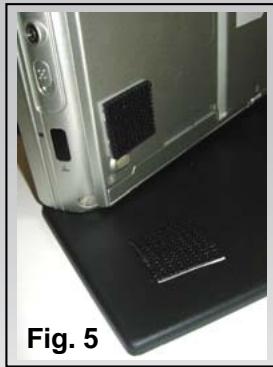

1) Either you use the four synthetic corners which are provided within the scope of supply and fasten them by using the eight self-adhesive 3M Velcro pads (Fig. 4) or
2) you use the self-adhesive 3M Velcro pads and adhere these in pairs directly onto the case lid and the bottom side of your Notebook (Fig. 5).

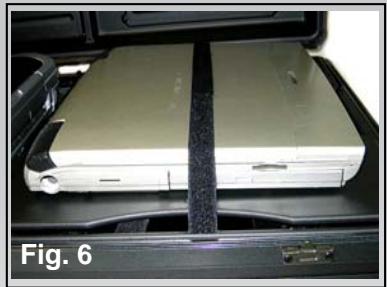

During transport always fasten your Notebook with the Velcro strap (transport protection) on the upper side of the flap lid (Fig. 6)

Connection: Notebook - printer

Two options of connecting Notebook and printer:

(1) Connect your Canon i80/iP90 and your Notebook by using the USB cable which is provided in the scope of supply.

Ensure a clean cable routing here as well! Either route the USB printer cable around or underneath the printer.
Furthermore, make sure that the USB printer cable does not interfere with the printer paper output, thus preventing paper jams!

2) Data transfer between printer and Notebook via Bluetooth: Bluetooth is a new radio standard for cableless data transfer. The Notebook establishes the data connection via Bluetooth through an internal interface or a PC card module. The printer can be connected with a compact flash module, for example.

CAUTION!

Make sure that no cables are pinched when closing the case!
