MIRANIT — The name for a new composite granite material MIRANIT, a new composite granite material, is a unique combination of strength and design capabilities used to create a new generation of wash- basins. This material is a stable com- pound consisting of approximately 80% natural minerals such as calci- um carbonate and quartz as well as approximately 20% of a high-quality unsaturated polyester resin. Due to its exceptional moulding properties, this resin-bonded mineral material can be formed into any shape, even when thin material thicknesses are required. With this material, MIRANIT washbasins offer a completely new approach to the design of wash areas, because in spite of their flat and elegant impression the washba- sins provide high durability. Small radii of just 2 mm underscore the clear and expressive shapes that the new MIRANIT wash solutions offer. A graceful and clean appearance with in-built strength — only MIRANIT, the mineral material specifically designed to meet the requirements of commer- cial and public sanitary facilities, can provide this combination. The stable and fracture-resistant material has a smooth, pore-free and high-gloss exterior skin. The Gelcoat layer that provides the Alpine White colour is easy to clean, impact resistant, non- abrasive and offers good resistance to alkalines and acids. Even water temperatures up to 80°C will not harm the Gelcoat surface.

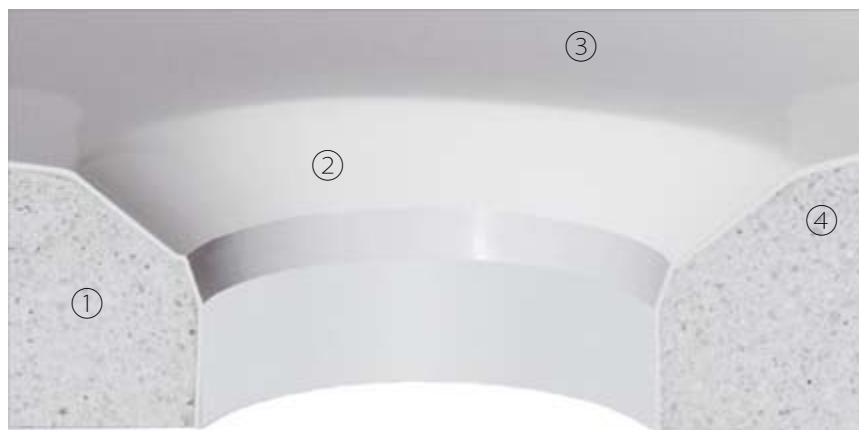

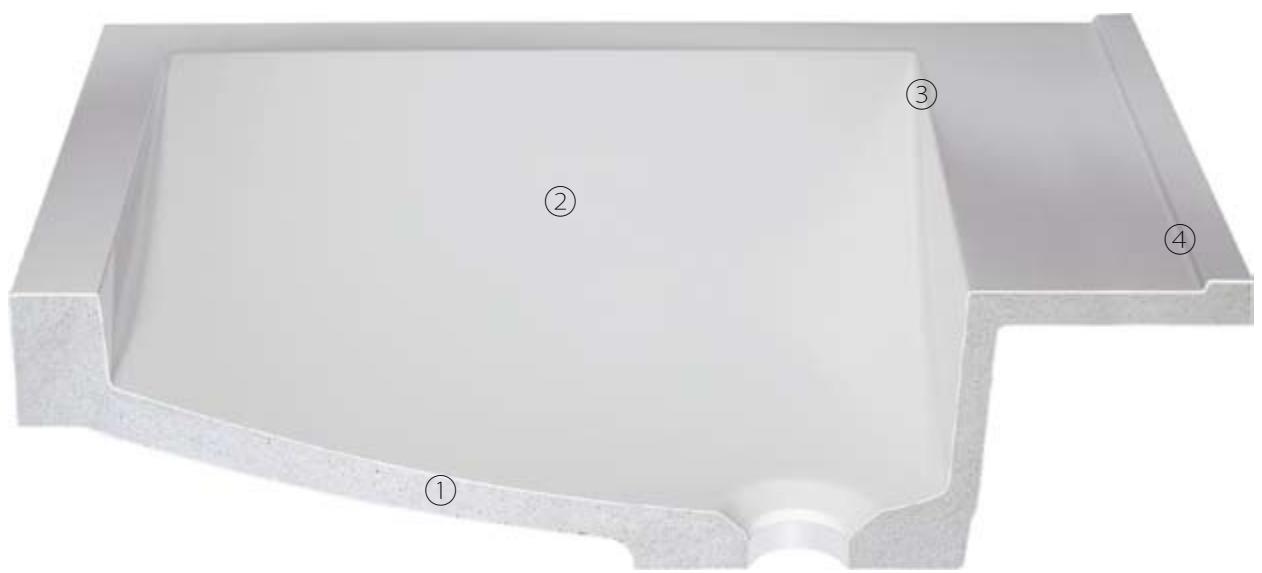

QD High stability with reduced material thickness @) Wash bowl has excellent shape retention @) Small radii for new design possibilities @] Clearly contoured rear edge QD MIRANIT- fracture-resistant compound made of natural minerals and unsaturated polyester resin @ Hygienic surface, temperature-resistant up to 80°C ©) Smooth, pore-free and high-gloss Gelcoat surface @) The installer can use a disc grinder to adaptthe length of niche washbasins.

This is the time for design and functionality The architectural requirements for equipment used in sanitary rooms that are frequented by many people vary considerably. However, the optimum use of space is always a key concern. Experience has shown that washbasin combina- tions of different lengths and having several wash bowls are well suited for commercial and public washroom designs. For this reason the standard unit width of the new single wash basin is 600 mm. Where there are several wash bowls in a multiple unit, the centre to entre distance ofthe bowls is 700 mm. The clear, functional lines of QUADRO multiple washbasins makes them very suitable for providing a modern design to sanitary rooms. The rectan- gular shape of the basin merges gra- cefully over into a flowing bowi, it's flat form offering particularly conveni- ent washing. The lightness and discre- teness of this shape reveals the design opportunities that mineral gra- nite offers. Washing room with two QUADRO multiple washbasins, each as a triple unit

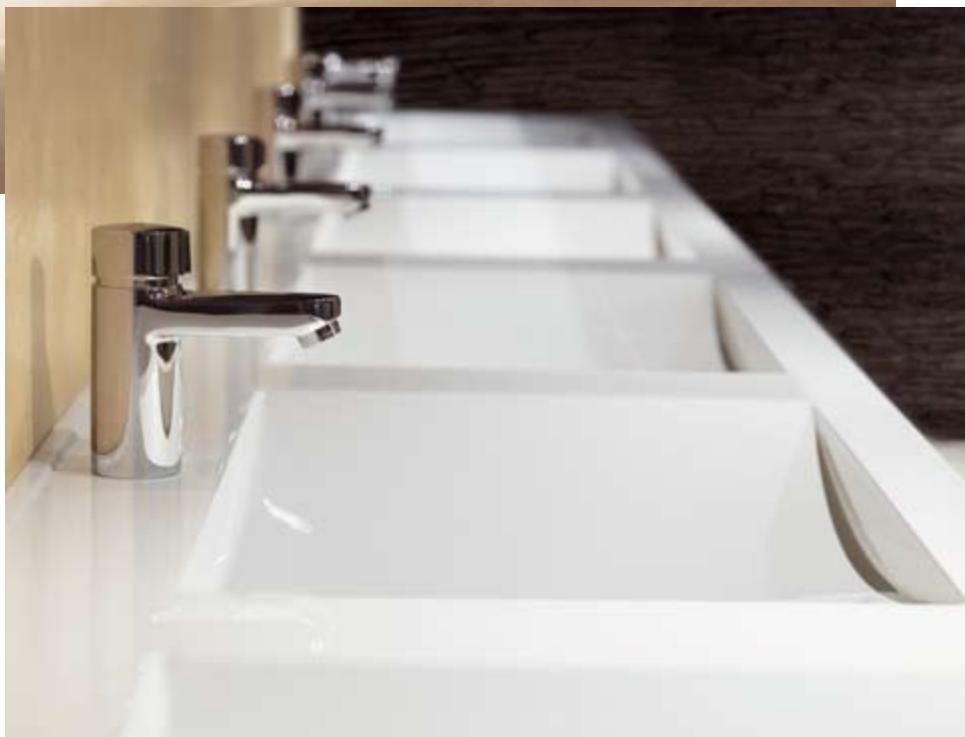

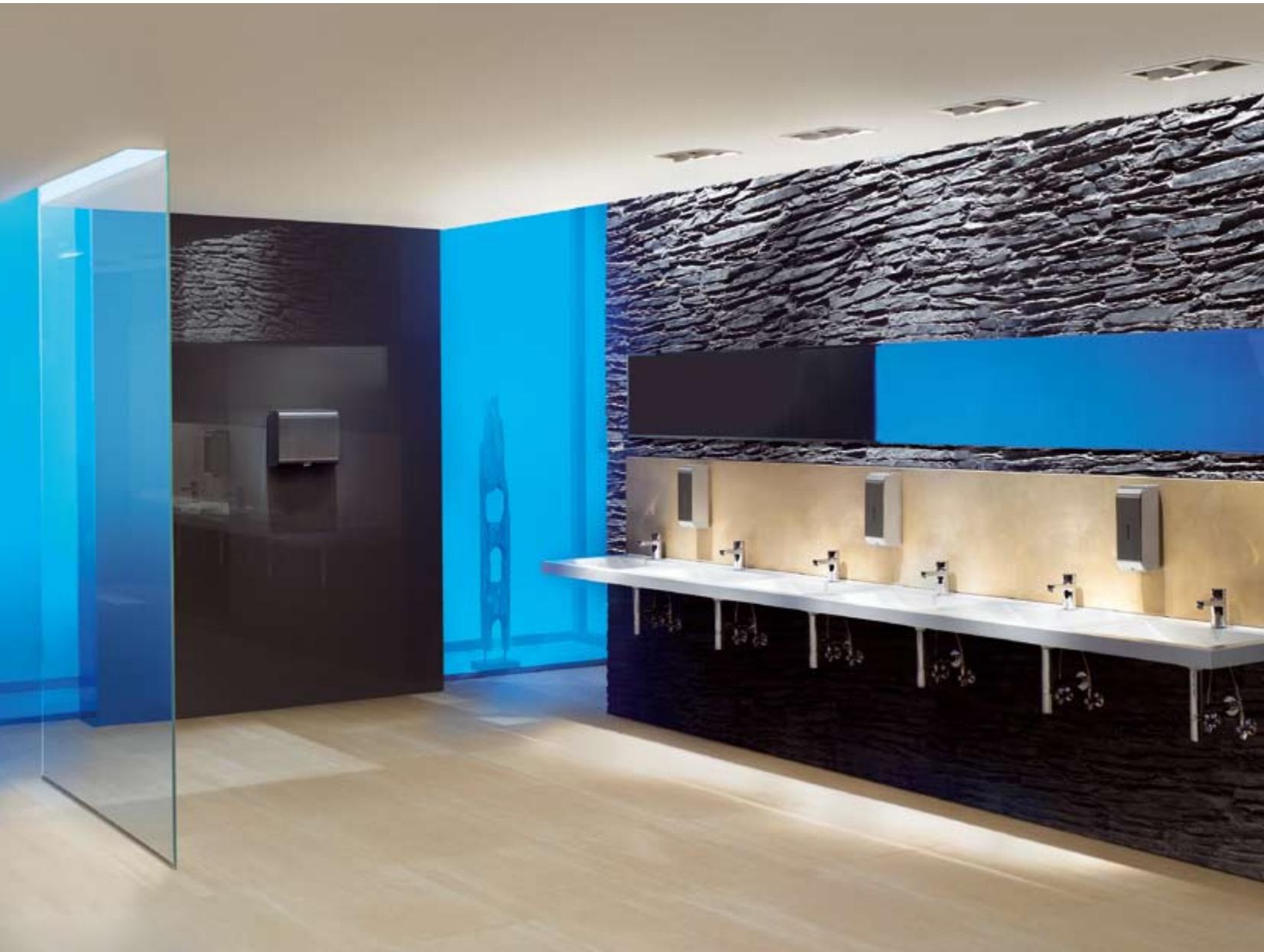

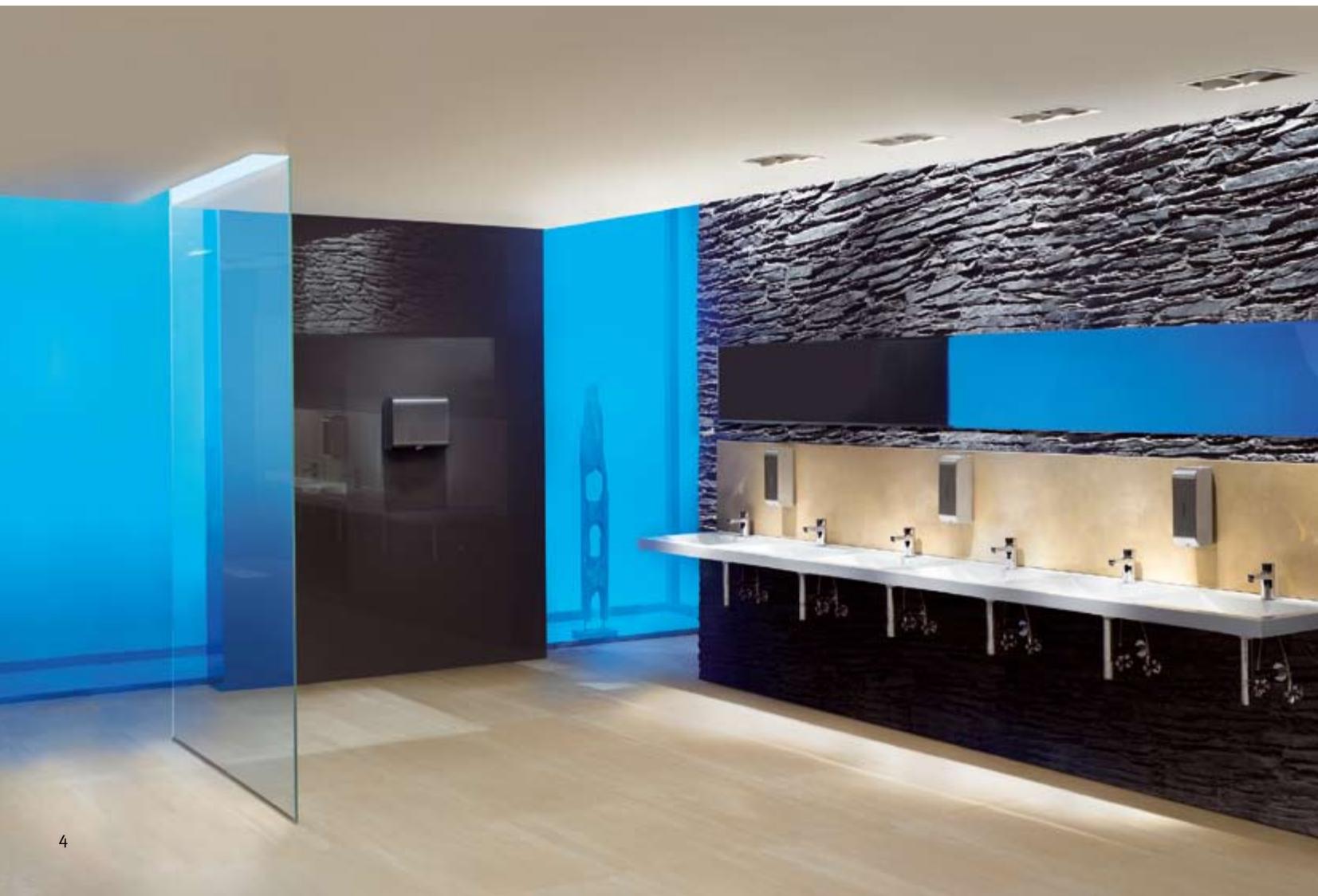

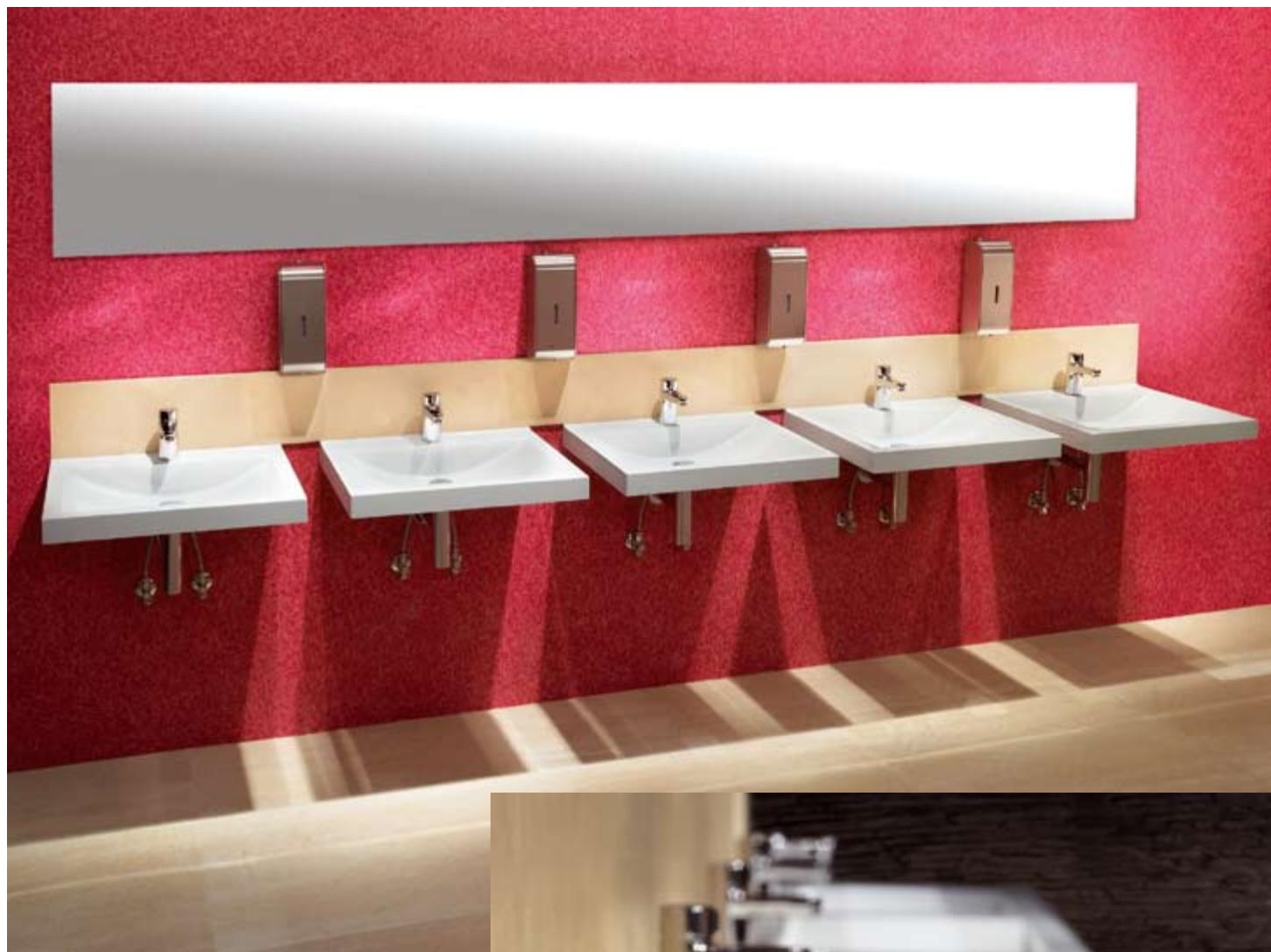

Multiple washing system with QUADRO single wash- basins, AQUAMIX-C self-closing fittings and XINOX® Touch free soap dispensers QUADRO multiple washbasins with self-closing single mixer AQUAMIX-C

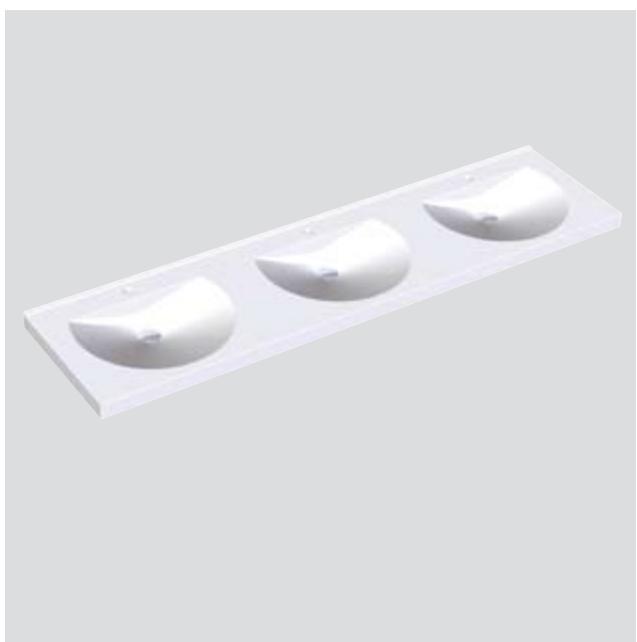

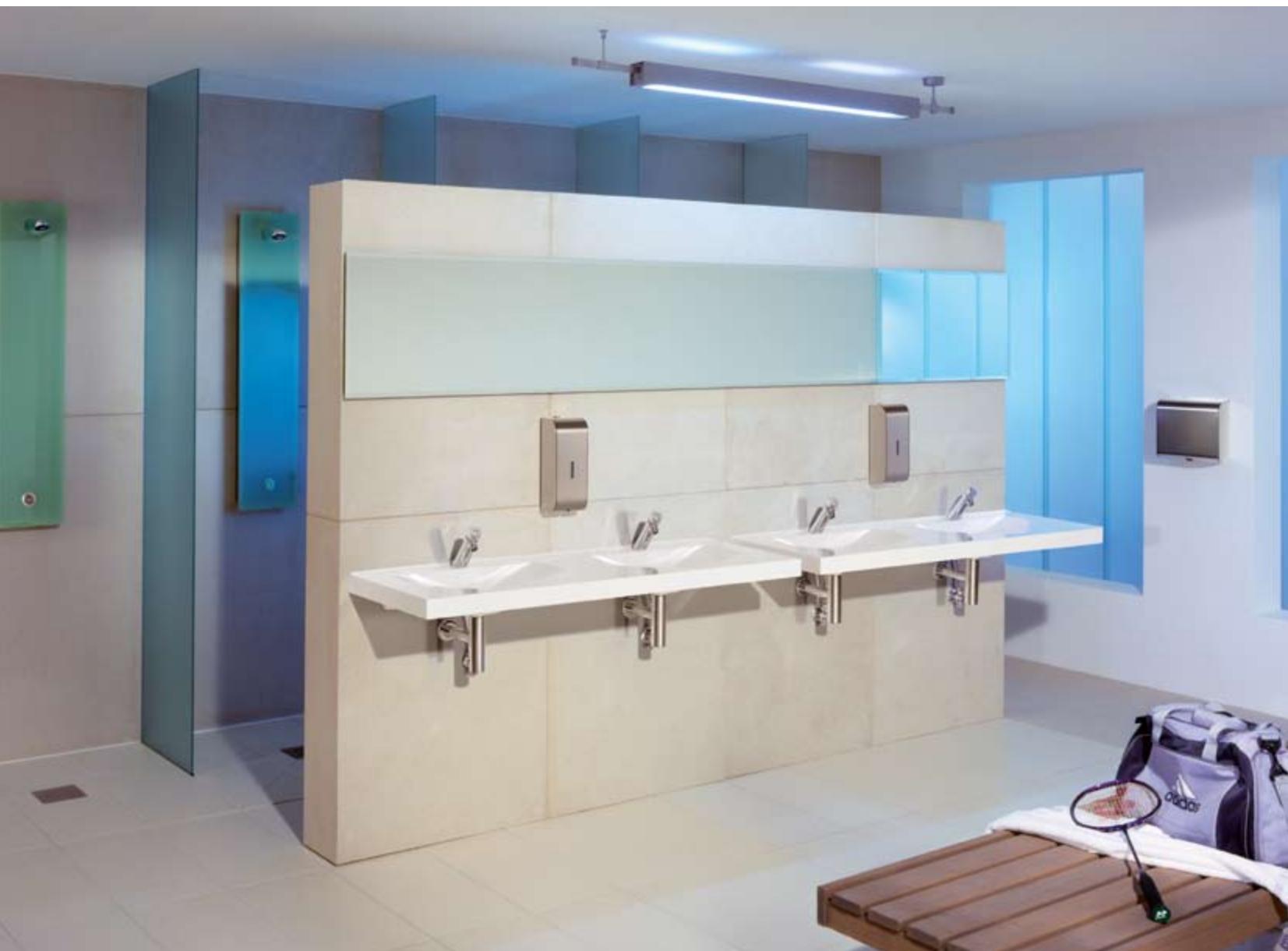

Modern sanitary room design RONDA — Harmonious design for every washroom The elegant shape of the Ronda bowl has a circular form with a flat back face that runs parallel to the wall. The optically pleasing design fits harmo- niously into every wash room while providing generous basin space to make washing easy for users. Due to the small contoured rear edge and an apron height of only 60 mm, the new multiple washing systems appear very modern and well proportioned. Depending on the installation require- ments, RONDA washbasins are availa- ble as single, double and triple units and can also be formed with extended flat areas to fit into recesses between two walls. Sport facility with two RONDA double washbasins with AQUAMIX:S self-closing single mixer, XINOX® accessory series

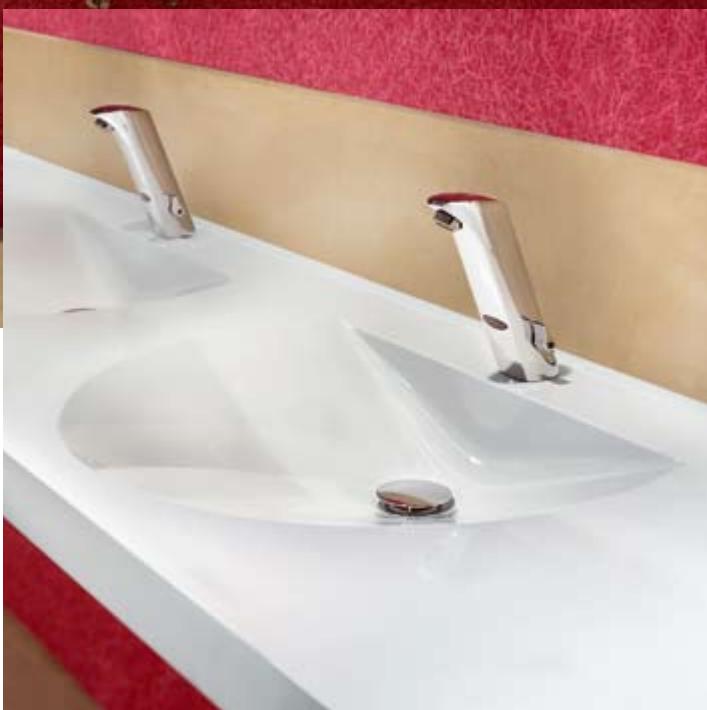

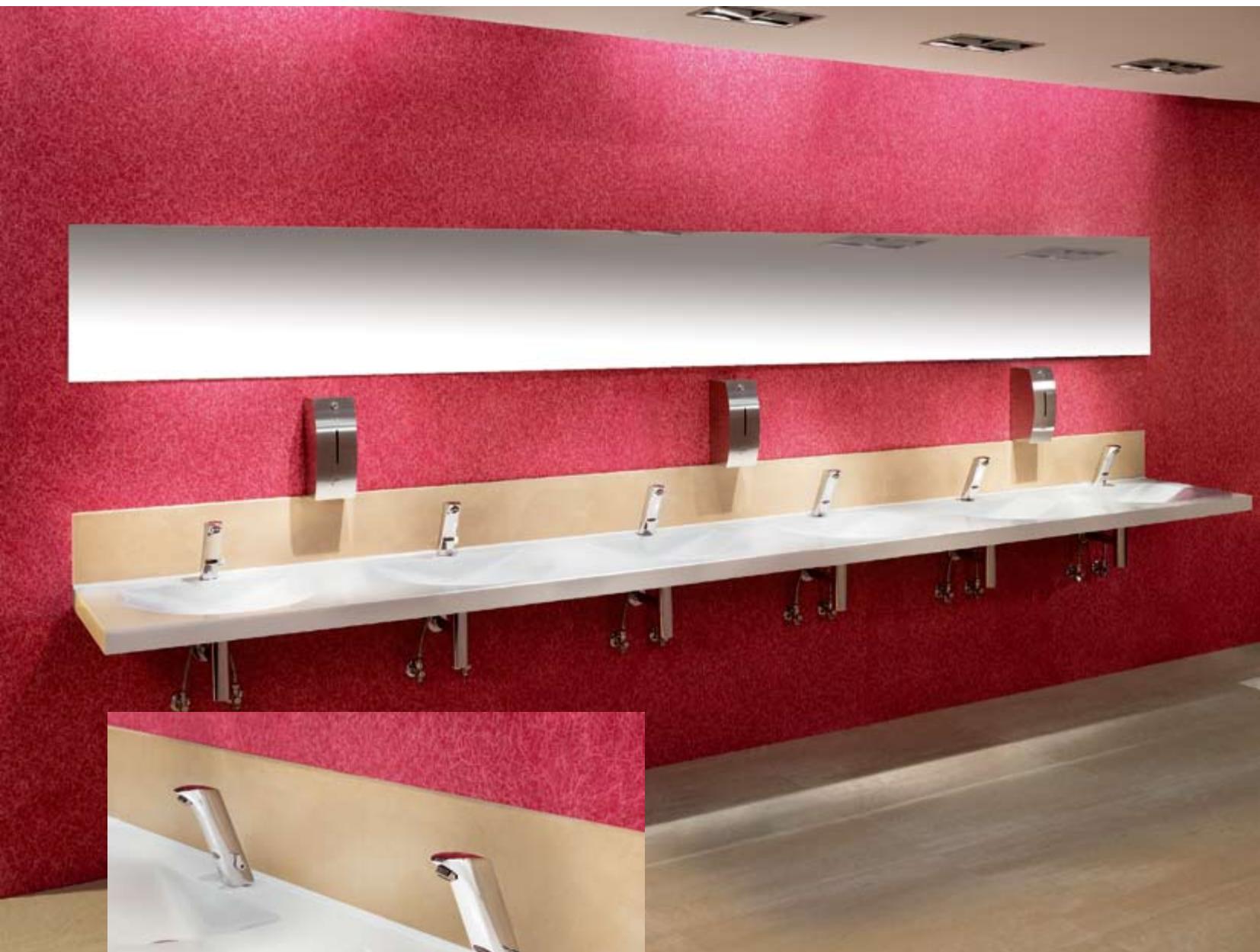

RONDA multiple washbasins fit exceptionally well into the architecture of modern designed sanitary rooms. Their timeless bowl form allows them to be combined + both with more classic as well as very modem designs. RONDA multiple washbasins with PROTRONICS electronic washbasin fittings

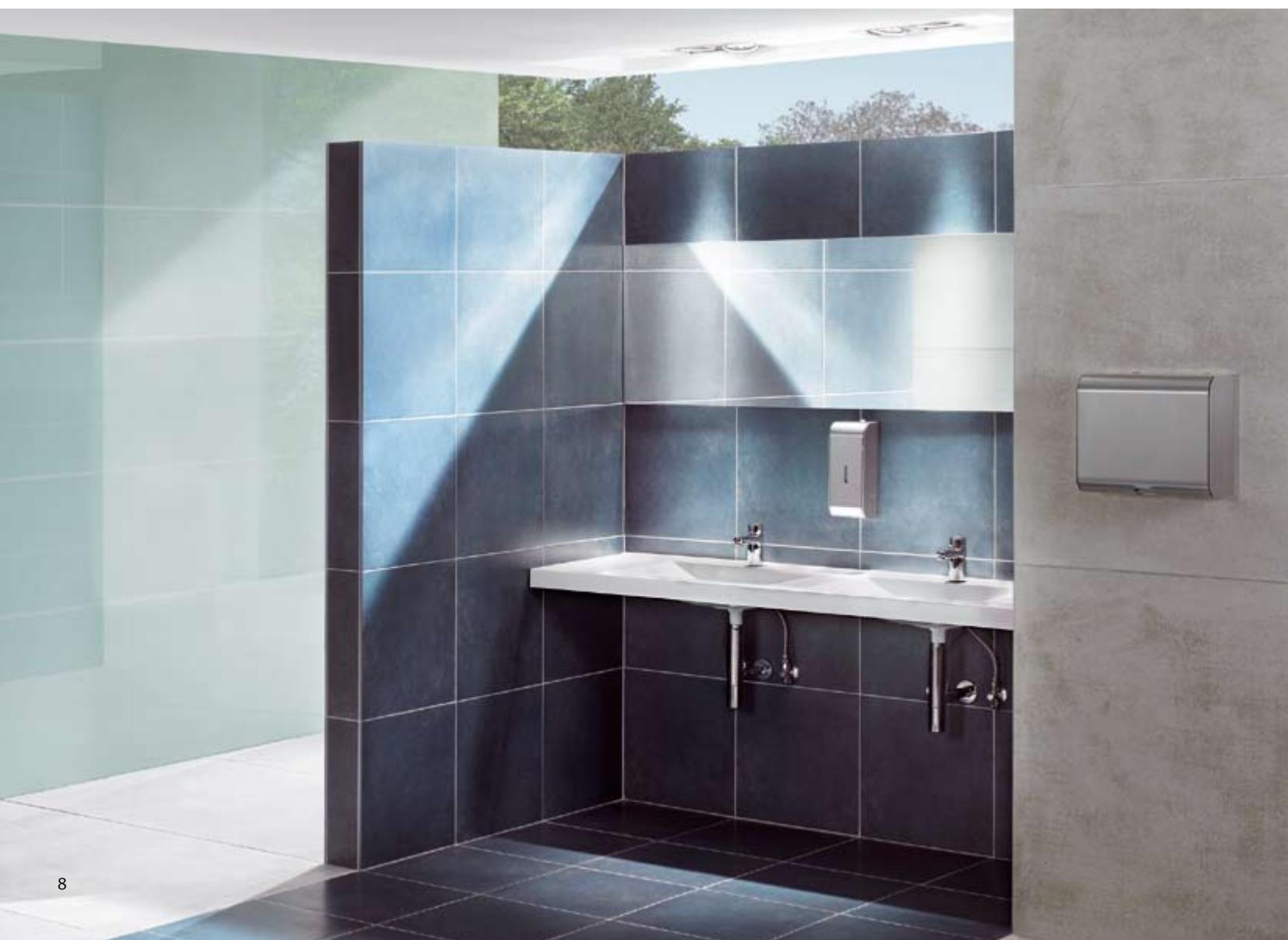

A clean solution, right into the last corner QUADRO niche washbasins - variable solutions Modern and individual washroom lay- middle, to the left or to the right, offer outs in new buildings or buildings to an especially large flat surface for the be refurbished can be a special issue convenience of users. The particular when custom-fitting washbasins are advantages that the MIRANIT material required. Variable niche washbasins offers become clear when installing offer custom-tailored solutions for niche washbasins between two walls. this purpose. The washbasins can In spite of its strength, the material have one or two bowls and are availa- can still be cut mechanically on site ble with a maximum length up to to adapt it to the space available. 2100 mm. Designs with only one washing bowl located either in the QUADRO niche washbasin with two bowls, AQUAMIX-C self-closing fitting, soap dispenser and hand dryer from the the XINOX® series of accessories.

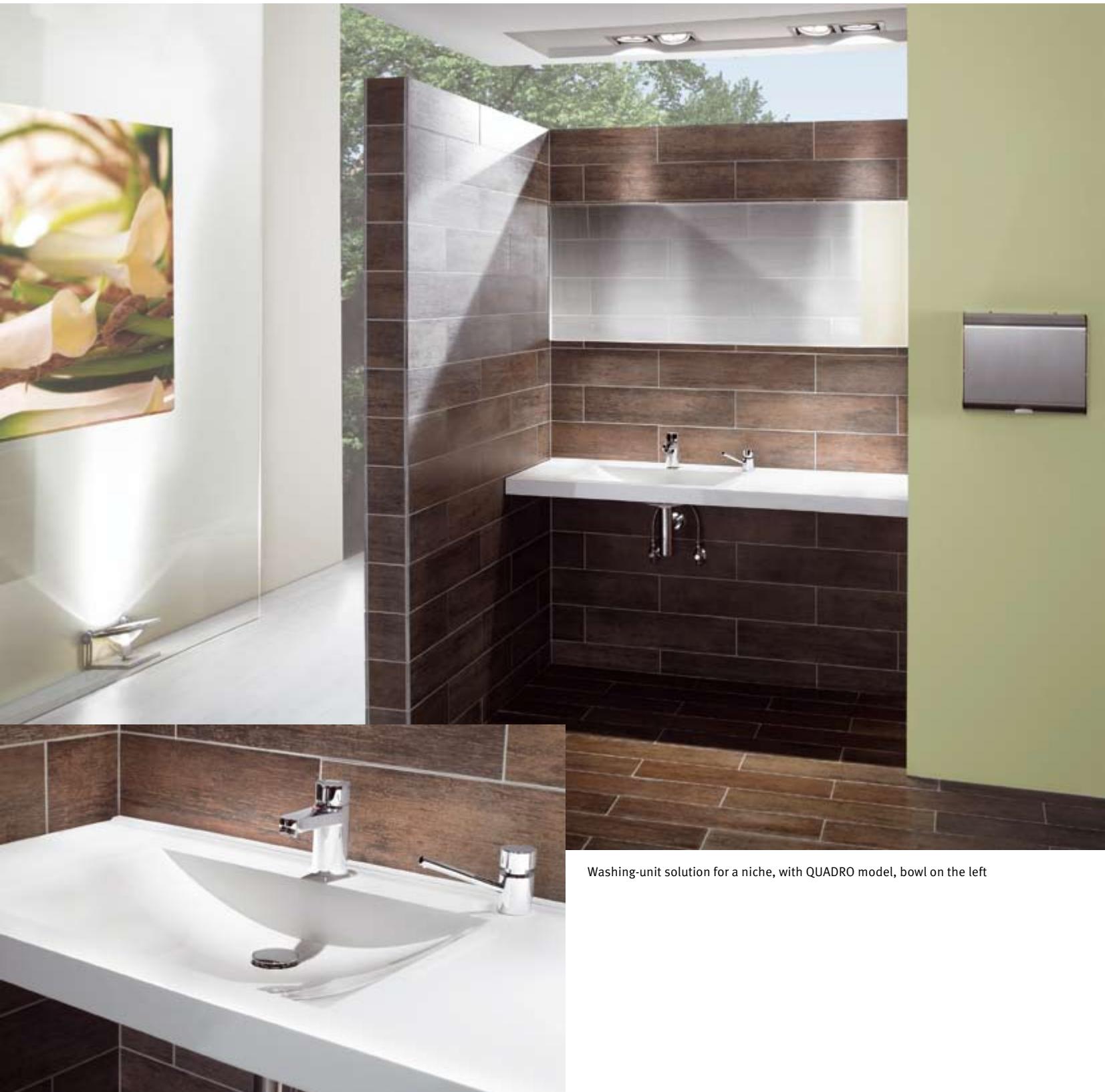

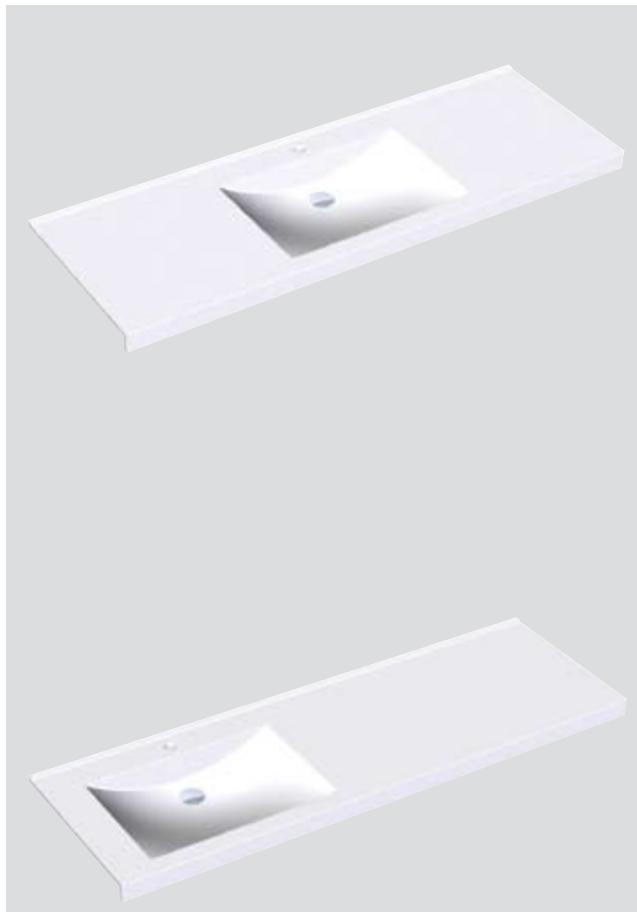

Washing-unit solution for a niche, with QUADRO model, bowl on the left

QUADRO niche washbasins with a bowl on the left in combination with AQUAMIX-C self-closing fitting and integrated CHRONOS soap dispenser

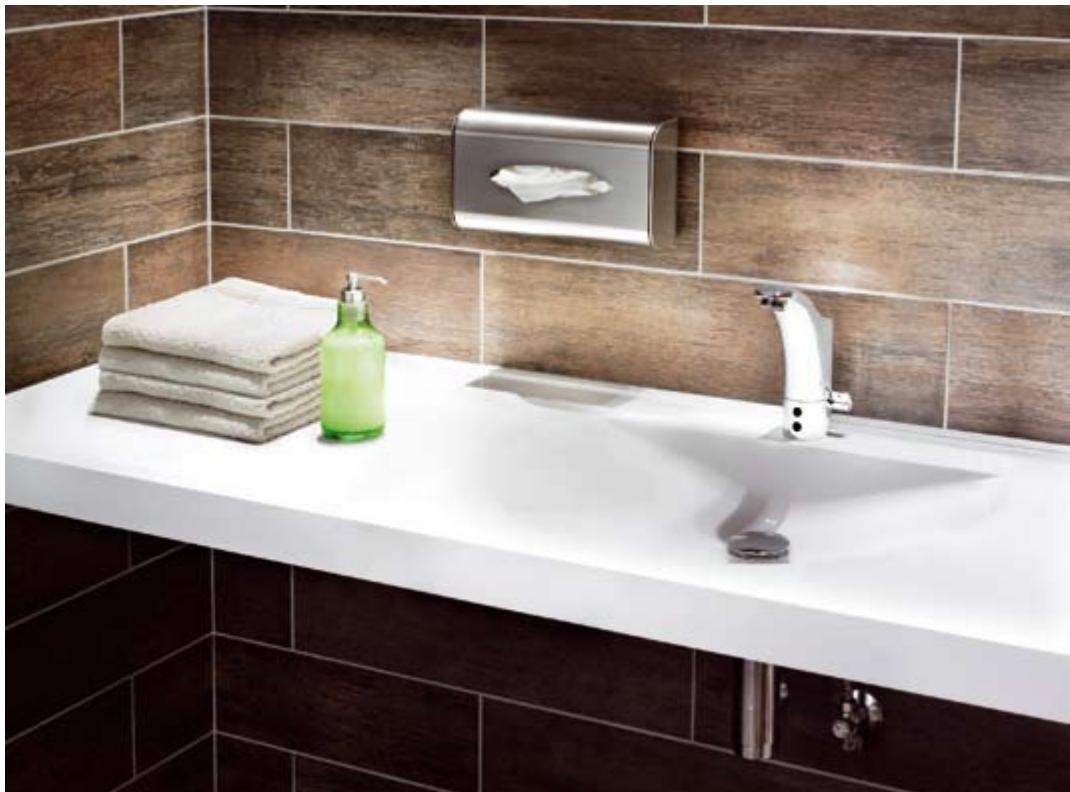

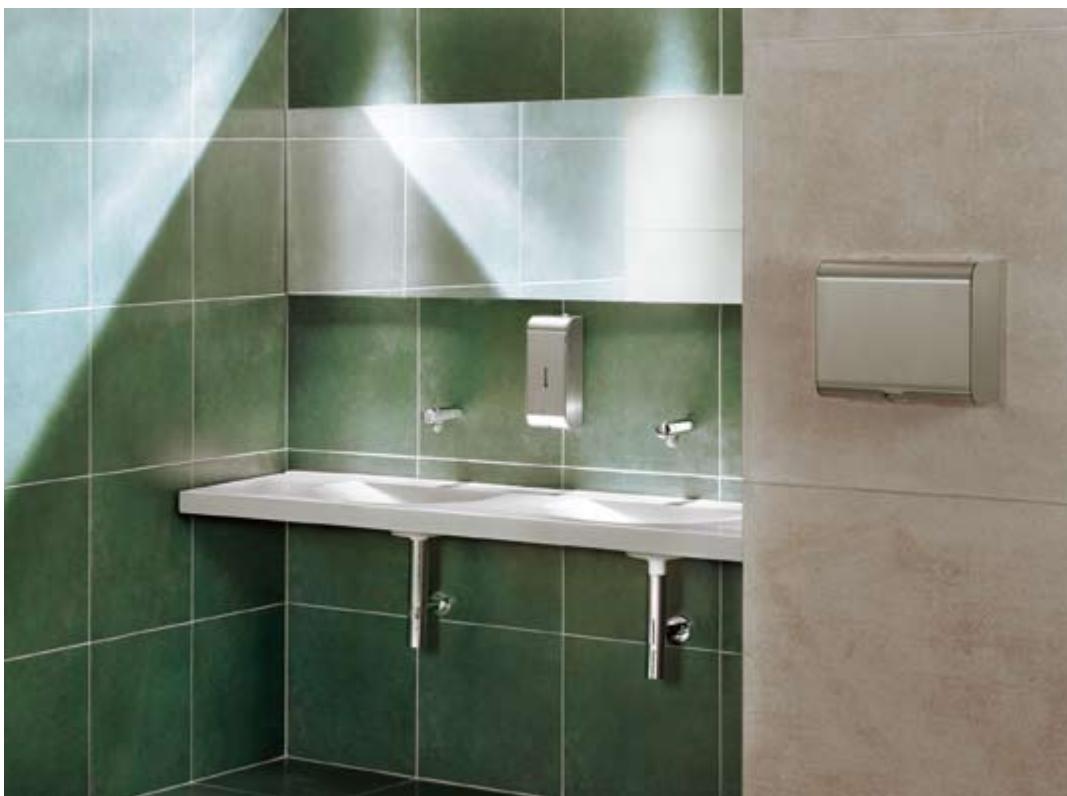

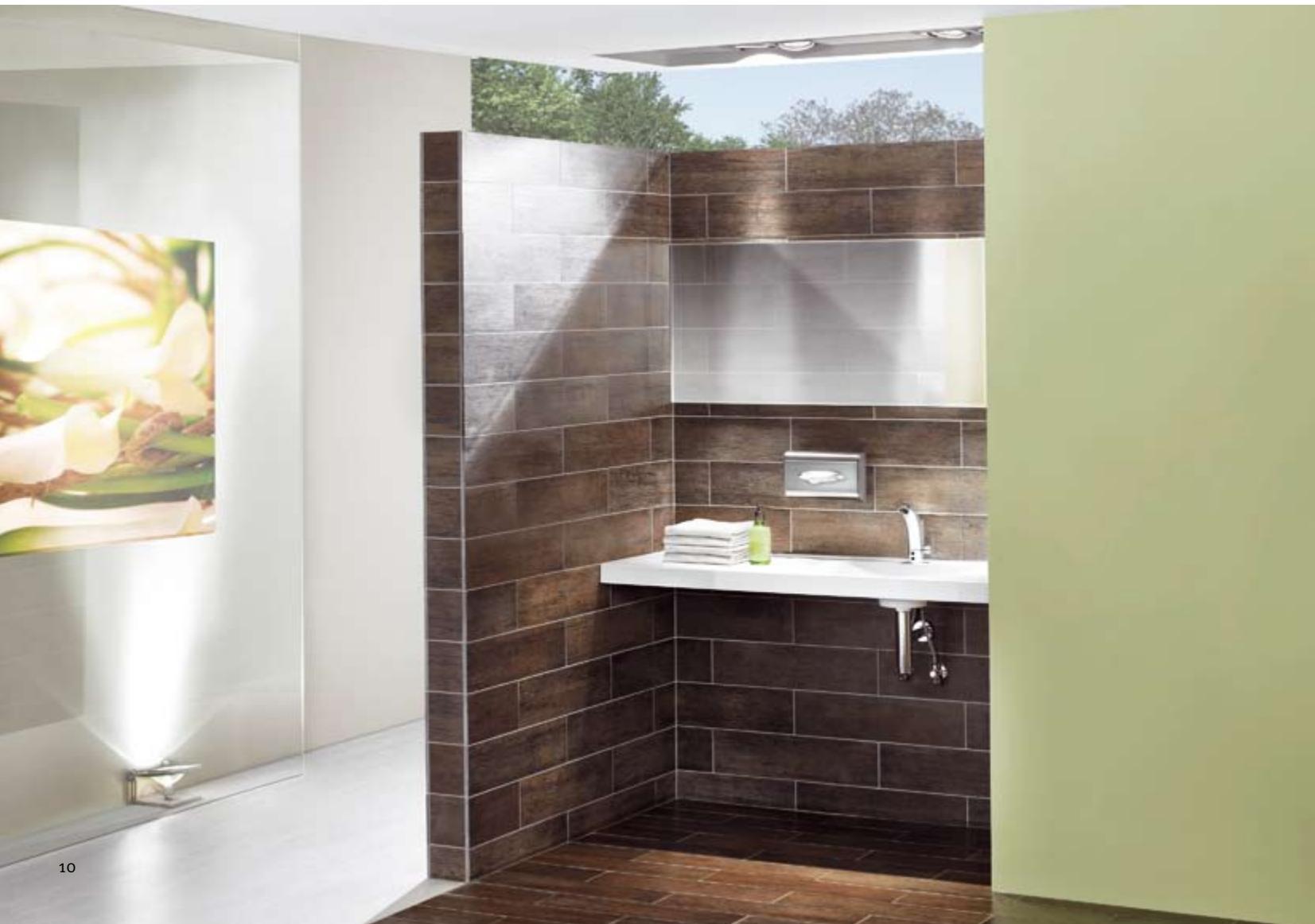

Niche washbasins -— easy to clean and hygienic RONDA -— timeless washbasin design Itis particularly the timeless and appealing design variation RONDA that develops a special attraction as a niche washbasin. The perfect and easy-to-clean surface that has no joints or seams provides a comfor- table environment for users to enjoy. Due to the large flat surfaces the niche models are particularly suitable for applications in hotels, leisure facili- ties or even in apartments or studios. Allwashbasin variations are opti- onally available with or without a taphole, and are very well suited for combining with manual self-closing or electronic taps also available in the Franke range of products. RONDA niche washbasin, bowl on right, opto-electronic PROTRONIC-C washbasin fitting

RONDA recess washbasins with two bowls, AQUALINES fittings, XINOX® accessories As a result of their modern and timeless design, RONDA niche washbasins are also well suited for applications in leisure centres and hotels as well as for up-market office buildings.

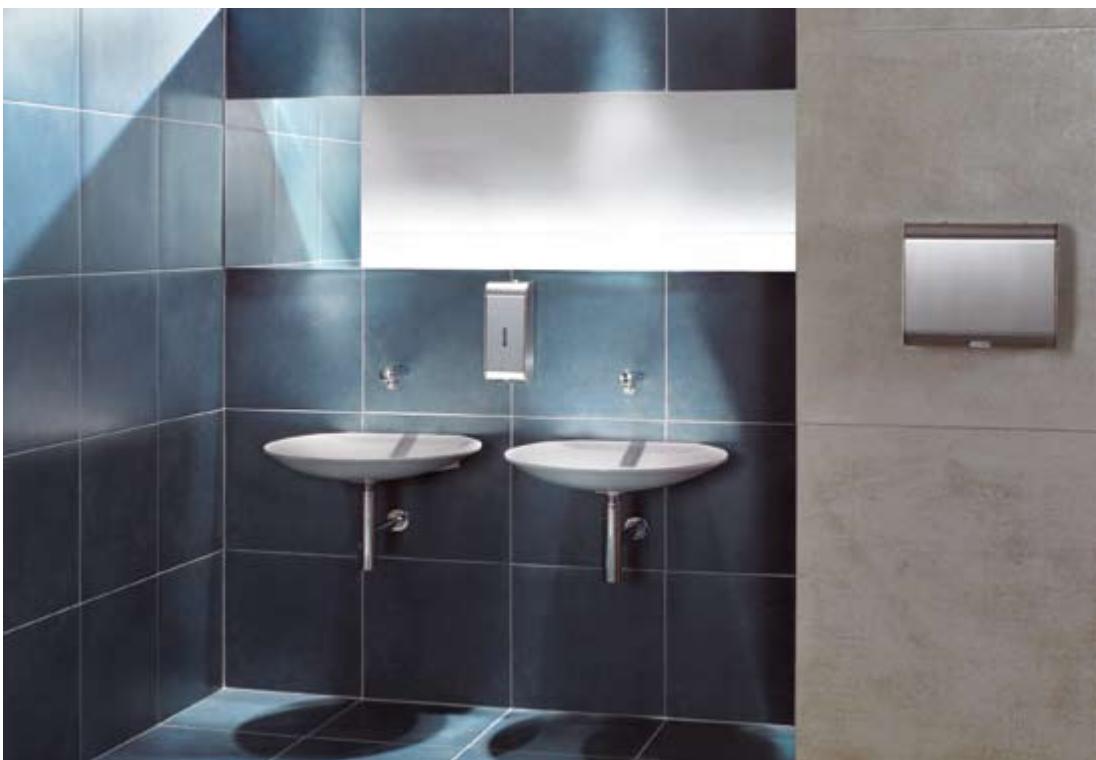

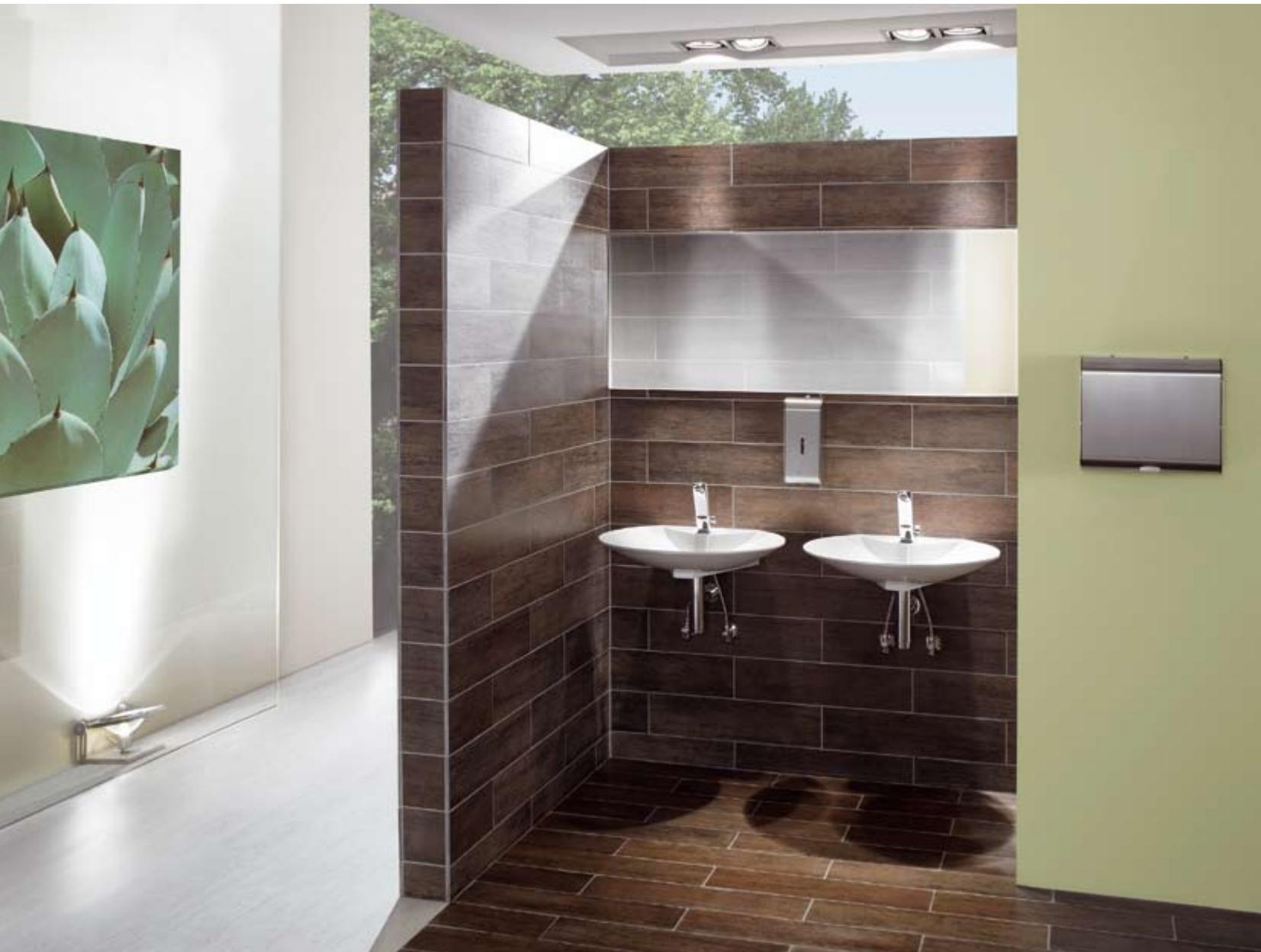

LOTOS -— A washbasin blossoms out The leaf of the lotus flower is reflected in the design of the LOTOS washba- sin. The simple proportions ofthe shape and the size of the bowl makes an attractive washroom even better. Just like the blossom, the almost deli- cate effect of LOTOS washbasins is underscored by the thin material thickness of only 10 mm and shows clearly the advantages that the MIRANIT material offers with respect to design and strength. LOTOS washbasins provide an optical highlight for room recesses in combi- nation with large mirrors. Ideally the washbasins are combined with auto- matically operating fittings to provide increased hygiene and water savings. LOTOS single washbasins with PROTRONICS electronic fittings

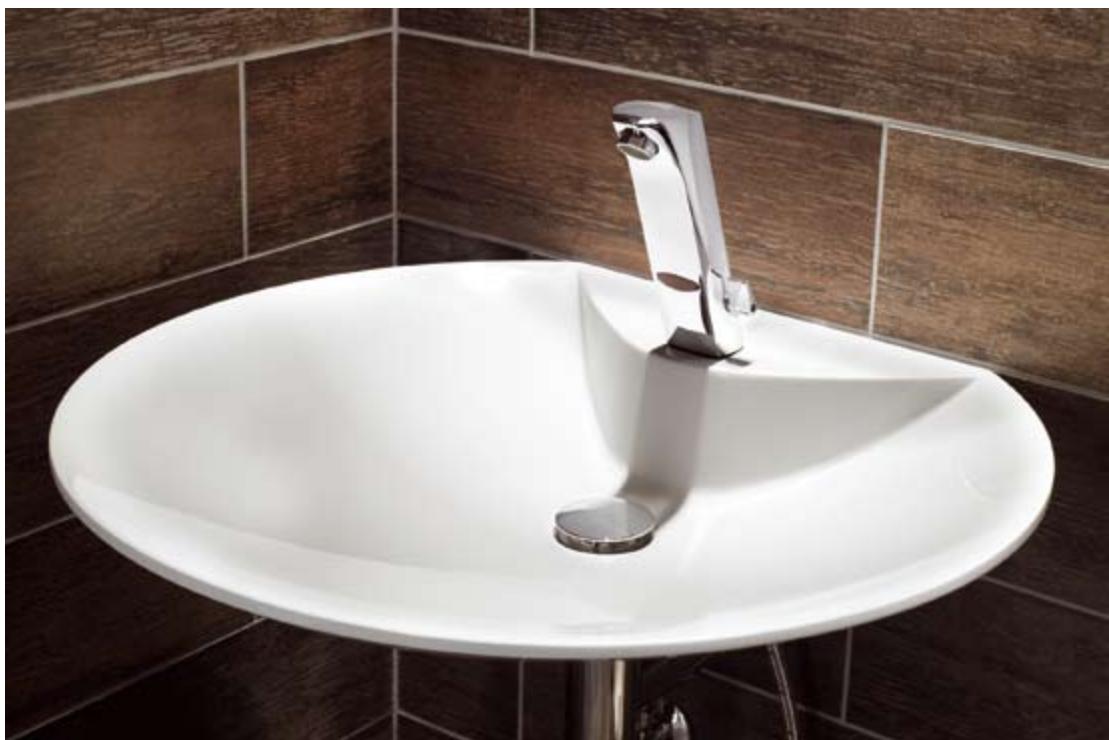

LOTOS washbasins without a tap landing are specially designed for applications with wall-mounted fittings. The ideal combination of function and design can be seen in the LOTOS washbasin combined with the new electronic fittings. The PROTRONIC-S washbasin fitting is specially suited for non-touch water control.

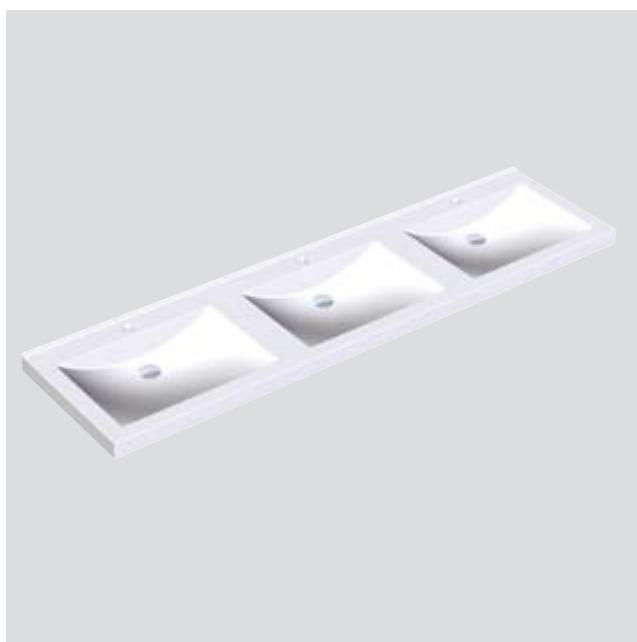

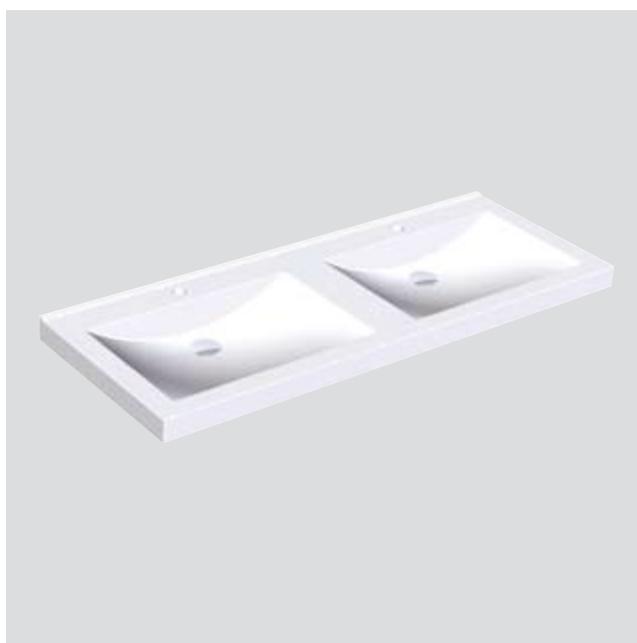

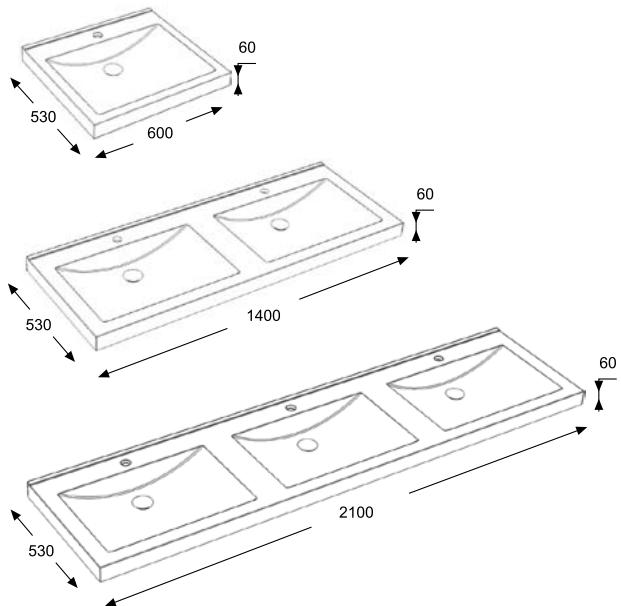

View | Type / Design | Code all measurements in mm QUADRO single washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With seamless rectangular bowl, without overflow. Integral back panel with inte- grated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts and dowels). Length of washbasin: 600 Bowl dimensions (LxWxH): 520x375x40/90 Three-sided apron 60 ANMW 411 with taphole 7612982099830 ANMW 410 without taphole 7612982099878 Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 QUADRO double washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With two seamless rectangular bowls, without overflow. Integral back panel with inte- grated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts and dowels). Length of double washbasin: 1400 Bowl dimensions (LxWxH): 580x360x40/90 Centre-to-centre distance of the bowls 700 Three-sided apron 60 ANMW 421 with tapholes 7612982099823 ANMW 420 without tapholes 7612982099861 Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 QUADRO triple washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With three seamless rectangular bowls, without overflow. Integral back panel with integrated brackets and holes for fixing. Rear contoured edge. Mounting mate- rial included (hanger bolts and dowels). Length of triple washbasin: 2100 Bowl dimensions (LxWxH): 580x360x40/90 Centre-to-centre distance of the bowls 700 Three-sided apron 60 ANMW 431 with tapholes 7612982099847 ANMW 430 without tapholes 7612982099854 Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 “Application: For washbasins without overflowr

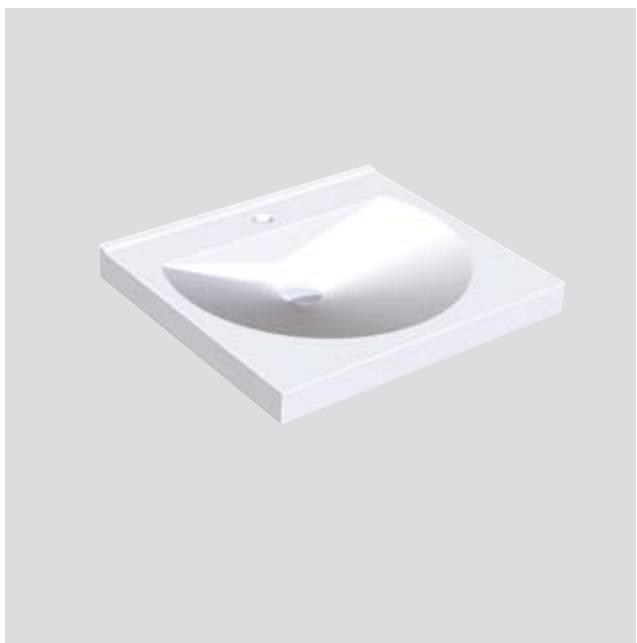

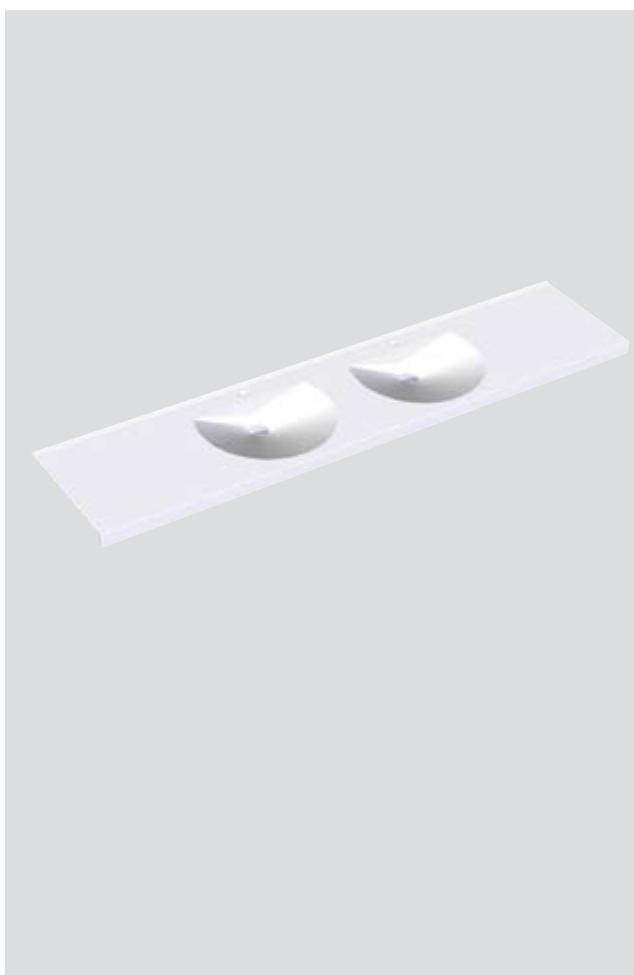

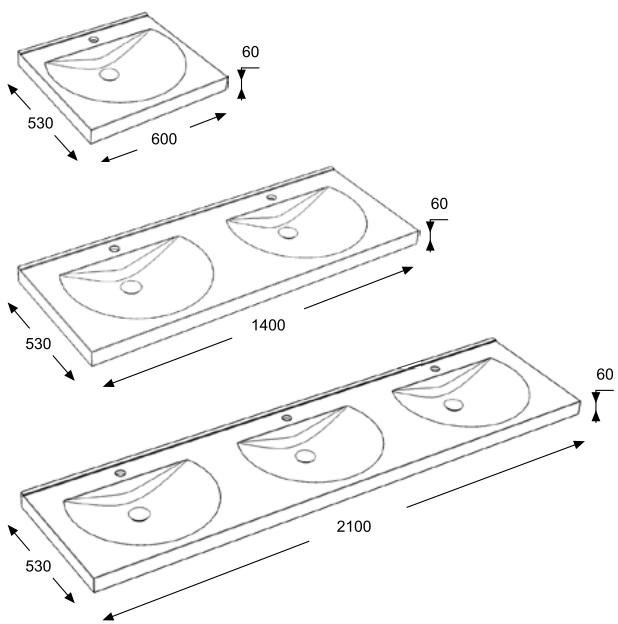

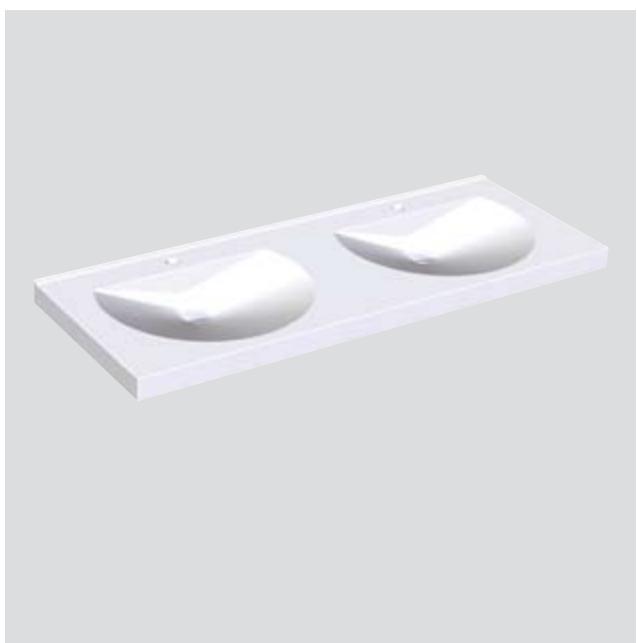

View | Type / Design | Code all measurements in mm RONDA single washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With seamless round bowl, flattened out at the rear, without overflow. Integral back panel with integrated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts and dowels). Length of washbasin: 600 Bowl dimensions (ZxWxH): 520x380x90 Three-sided apron 60 ANMW211 with taphole 7612982099885 ANMW210 without taphole 7612982099892 Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 RONDA double washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With two seamless round bowls, flattened out at the rear, without overflow. Integral back panel with integrated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts and dowels). Length of double washbasin: 1400 Bowl dimensions (ZxWxH): 540x380x90 Centre-to-centre distance of the bowls 700 Three-sided apron 60 ANMW221 with tapholes 7612982099908 nn — ANMW220 without tapholes 7612982099915 Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 RONDA triple washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With three seamless round bowls, flattened out at the rear, without overflow. Inte- gral back panel with integrated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts and dowels). Length of triple washbasin: 2100 Bowl dimensions (ZxWxH): 540x380x90 _ Centre-to-centre distance of the bowls 700 Three-sided apron 60 ANMW231 with tapholes 7612982099922 Æ ANMW230 without tapholes 7612982099939 Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 “Application: For washbasins without overflowr 15

View | Type / Design | Code all measurements in mm

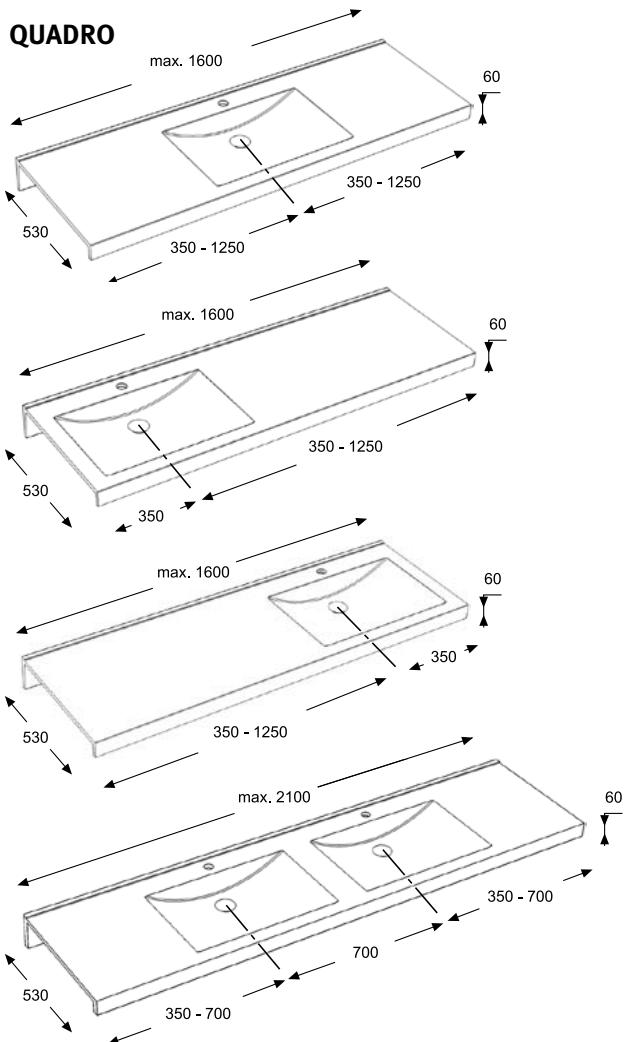

QUADRO niche washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With one centrally positioned, seamless rectangular bowl, without overflow. Integral back panel in the bowl area, with integrated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts, dowels and wall- connector brackets). The installer can use a disc grinder to adapt the length. Length of washbasin: 700 to 1600 Bowl dimensions (LxWxH): 580x360x40/90 Front apron 60 Length 1300 ANMW 511 with taphole 7612982106538 ANMW 510 without taphole 7612982106545 Length 1600 ANMW 515 with taphole 7612982106552 ANMW 516 _ without taphole 7612982106569 Laterally positioned bowl, precise measurement production and side edgings available on request. Length ofwashbasin 700 to 1600 mm. Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 Example of a niche washbasin with laterally positioned bowl QUADRO niche washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With two seamless rectangular bowls, without overflow. Integral back panel in the bowl area, with integrated brackets and holes for fixing. Rear contoured edge. Moun- ting material included (hanger bolts, dowels and wall-connector brackets). The installer can use a disc grinder to adapt the length. Length of washbasin: 1400 to 2100 Bowl dimensions (LxWxH): 580x360x40/90 Centre-to-centre distance of the bowls 700 Front apron 60 Length 2100 ANMW 521 with tapholes 7612982110108 ANMW 520 without tapholes 7612982106576 Precise measurement production and side edgings available on request. Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 “Application: For washbasins without overflowr

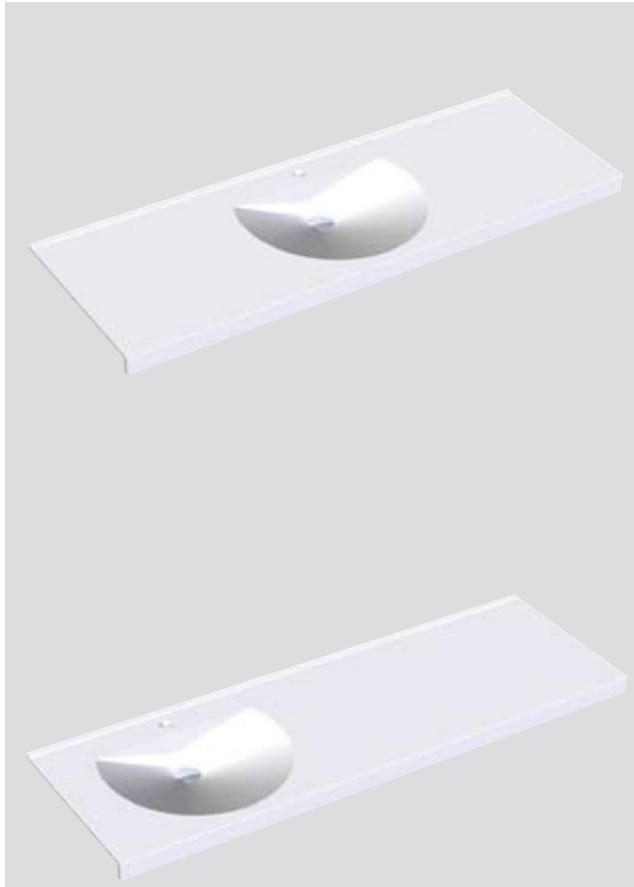

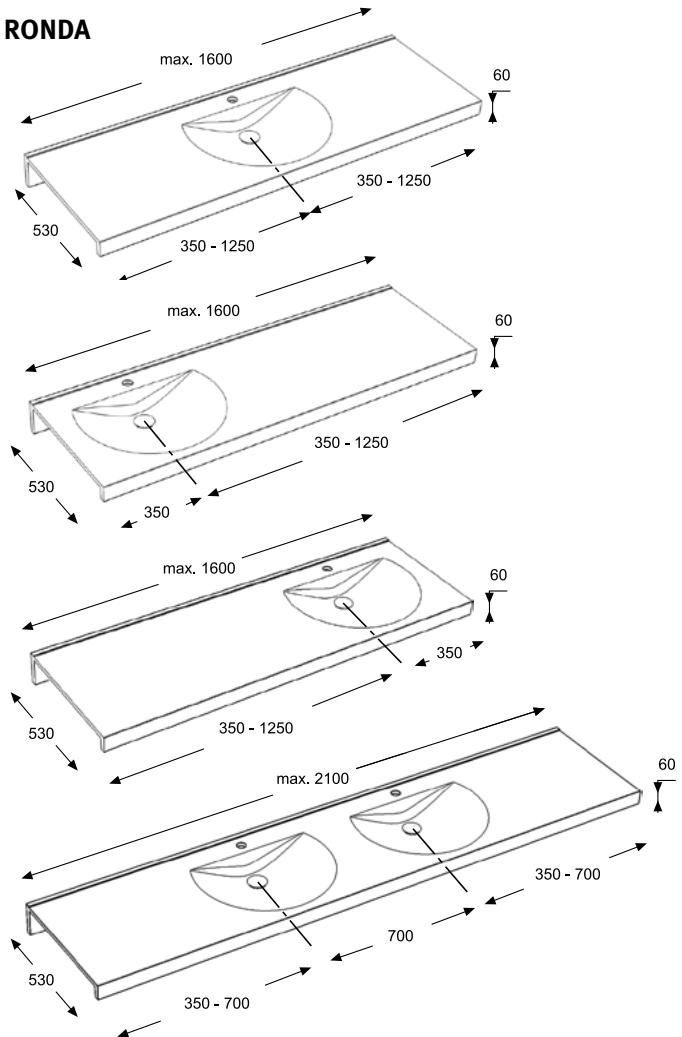

View | Type / Design | Code all measurements in mm RONDA niche washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With one centrally positioned, seamless round bowl, without overflow. Integral back panel in the bowl area, with integrated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts, dowels and wall- connector brackets). The installer can use a disc grinder to adapt the length. Length of washbasin: 700 to 1600 Bowl dimensions (ZxWxH): 540x380x90 Front apron 60 Length 1300 ANMW 551 with taphole 7612982106583 ANMW 550 without taphole 7612982106590 Length 1600 ANMW 555 with taphole 7612982106606 ANMW 556 without taphole 7612982106613 Laterally positioned bowl, precise measurement production and side edgings available on request. Length of washbasin 700 to 1600 mm. Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 Example of a niche washbasin with laterally positioned bowl RONDA niche washbasin made of MIRANIT resin-bonded mineral material, colour Alpine White. With two seamless round bowls, without overflow. Integral back panel in the bowl area, with integrated brackets and holes for fixing. Rear contoured edge. Mounting material included (hanger bolts, dowels and wall-connector brackets). The installer can use a disc grinder to adapt the length. Length of washbasin: 1400 to 2100 Bowl dimensions (ZxWxH): 540x380x90 Centre-to-centre distance of the bowls 700 Front apron 60 Length 2100 ANMW 561 with tapholes 7612982106620 ANMW 560 without tapholes 7612982106637 Precise measurement production and side edgings available on request. Accessories: Strainer waste DN 32 7612982100178 Dome waste DN 32 7612982100161 Pop-up waste and overflow set DN 32* 7612982097812 “Application: For washbasins without overflowr 17

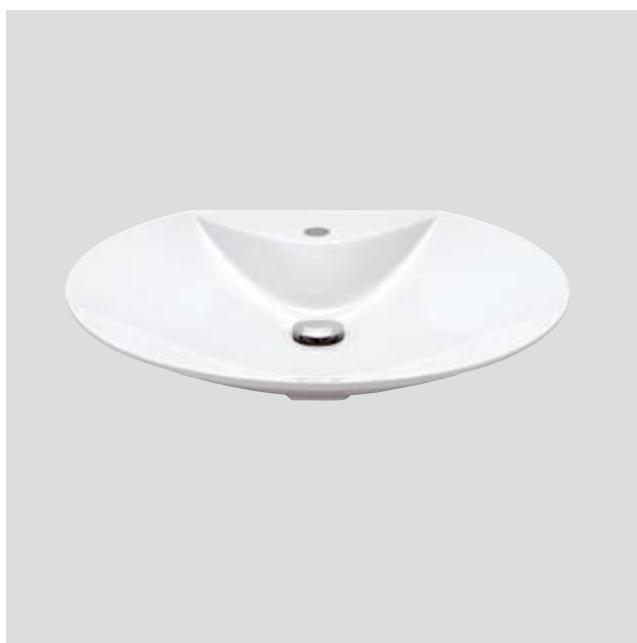

View | Type / Design | Code all measurements in mm LOTOS-R - single washbasin made of resin-bonded MIRANIT mineral material, colour Alpine White, for wall installation with screws and dowels. With seamless round bowil, without tap landing and overflow. Outlet with dome waste DN 32. Mounting material included. Dimensions (LxWxH): 600x547x100 RNDW 221 7612982098987 Accessories: Pop-up waste and overflow set DN 32* 7612982097812 LOTOS-R - single washbasin with tap landing and taphole 35 mm, made of resin-bonded MIRANIT mineral material, colour Alpine White, for wall installation with screws and dowels. With seamless round bowl form. Without overflow. Outlet with dome waste DN 32. Mounting material included. Dimensions (LxWxH): 600x547x120 RNDW 226 7612982109287 _—_—— Accessories: Pop-up waste and overflow set DN 32* 7612982097812 LOTOS-H - single washbasin made of resin-bonded MIRANIT mineral material, colour Alpine White, for wall installation with screws and dowels. With seamless hexagonal bowl, without tap landing and overflow. Outlet with dome waste DN 32. Mounting material included. Dimensions (LxWxH): 600x525x100 RNDW 220 7612982098994 = Accessories: Pop-up waste and overflow set DN 32* 7612982097812 “Application: For washbasins without overflowr
