USER MANUAL FSDR 330 V E FRANKE

FRANKE FreshZone FreshZone FreshZone

FSDR 330 V E

EN User and Installation manual Refrigerator

Line drawings of various hand tools including crad and base, screwdriver, pliers, and gloves (no text or labels)

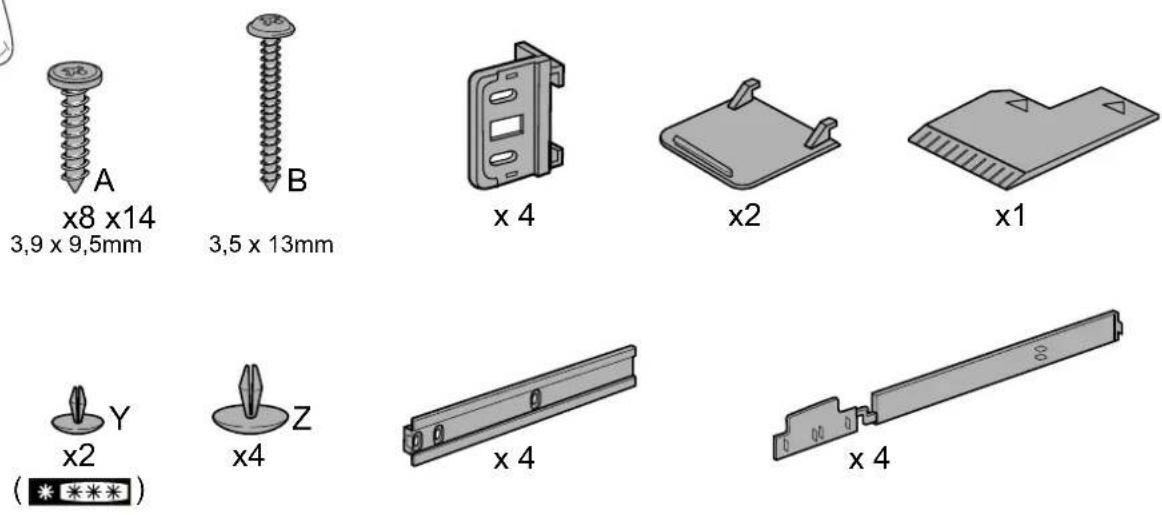

A x8 x14 3,9 x 9,5mm B 3,5 x 13mm x 4 x2 x1 X Y x4 Z x 4 x 4 (* * * *)

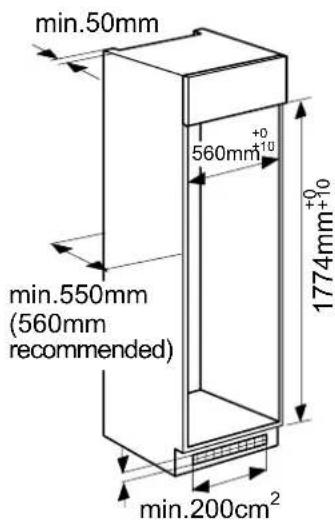

min.50mm 560mm+10 +0 min.550mm (560mm recommended) 1774mm+10 min.200cm²

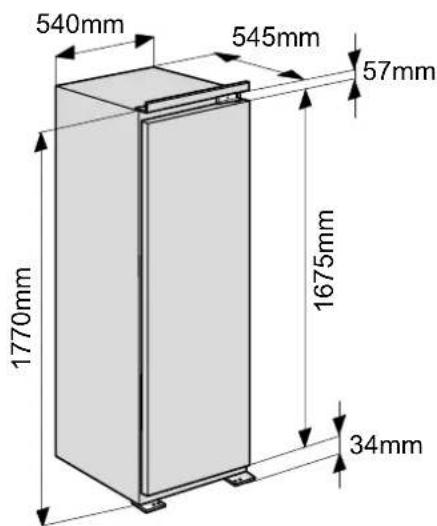

540mm 545mm 57mm 1770mm 1675mm 34mm

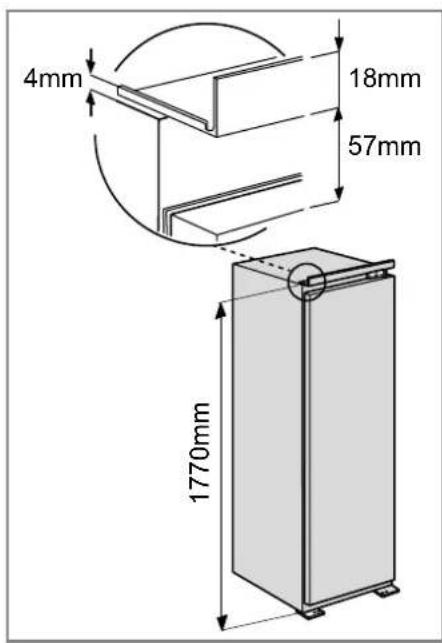

4mm 18mm 57mm 1770mm

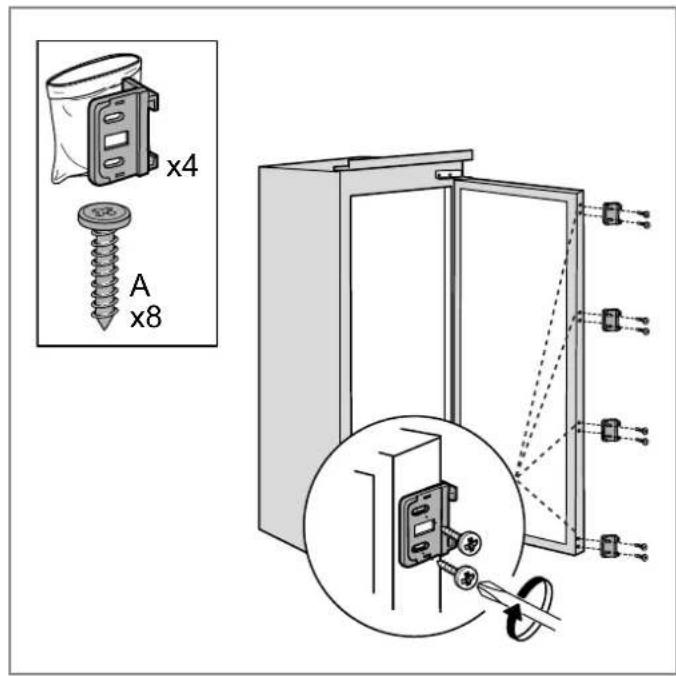

x4 A x8

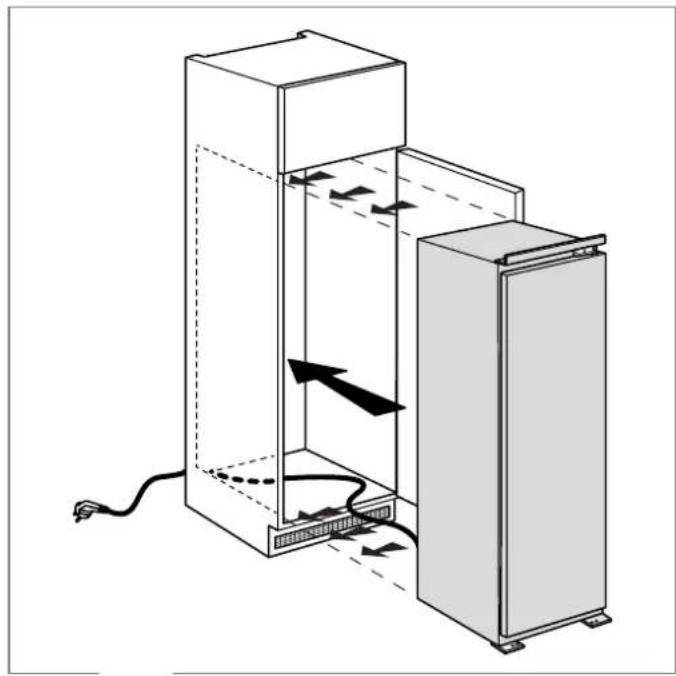

Diagram of a refrigerant or oven system with cooling unit and air flow arrows, no text or symbols present

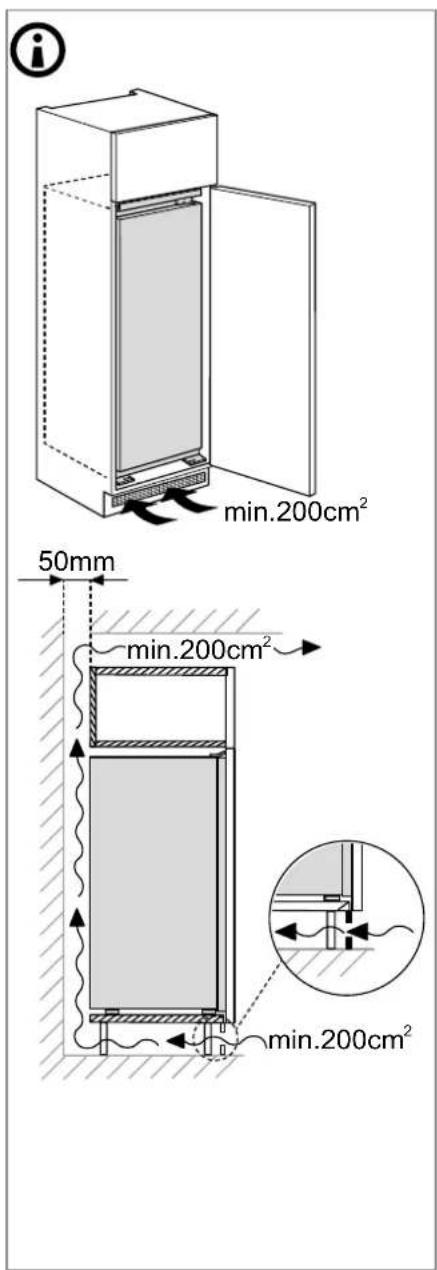

min.200cm² 50mm min.200cm² min.200cm²

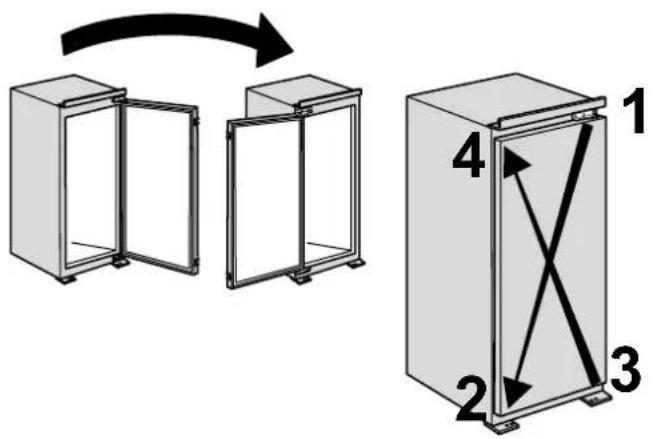

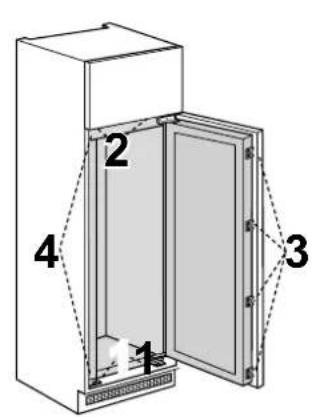

Diagram of a cabinet with numbered parts, showing open door and internal components

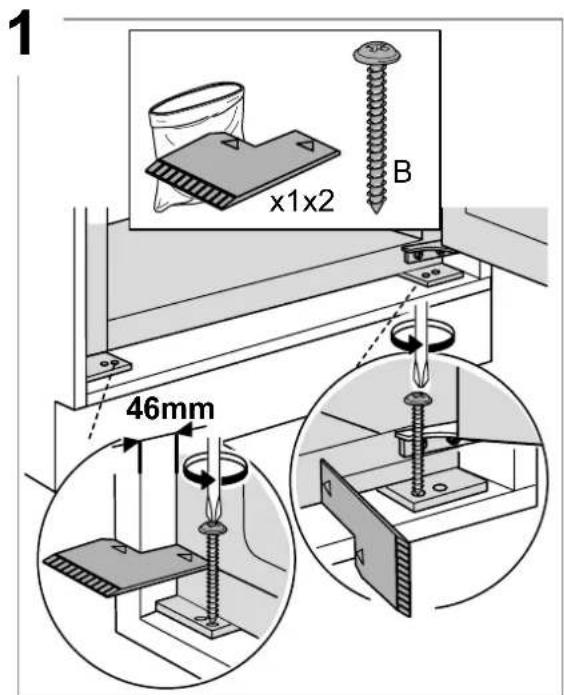

1 x1x2 B 46mm

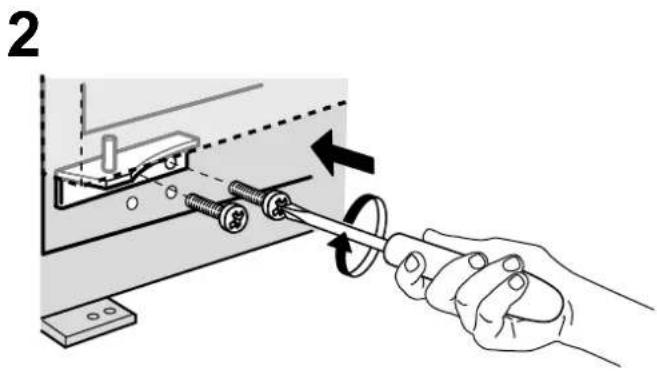

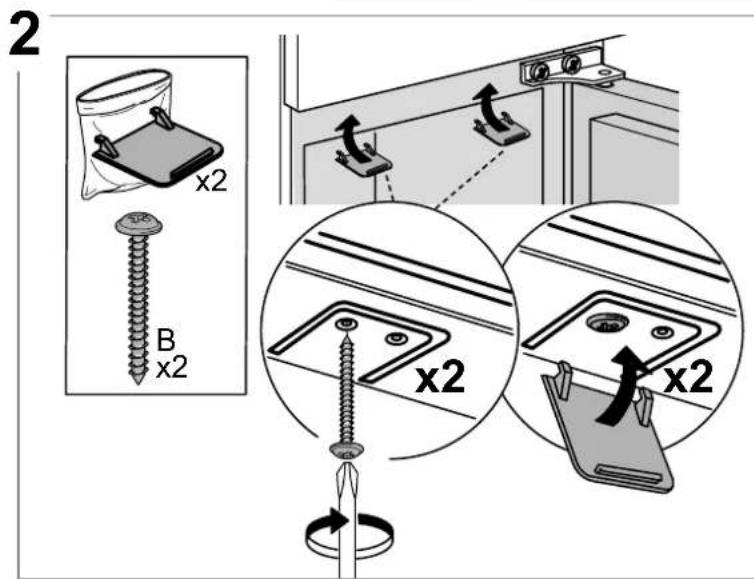

2 x2 B x2 x2 x2

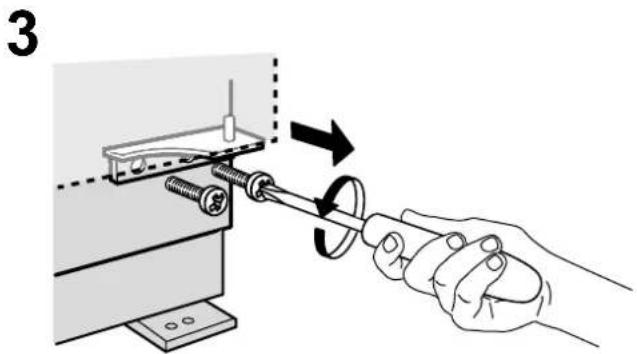

3

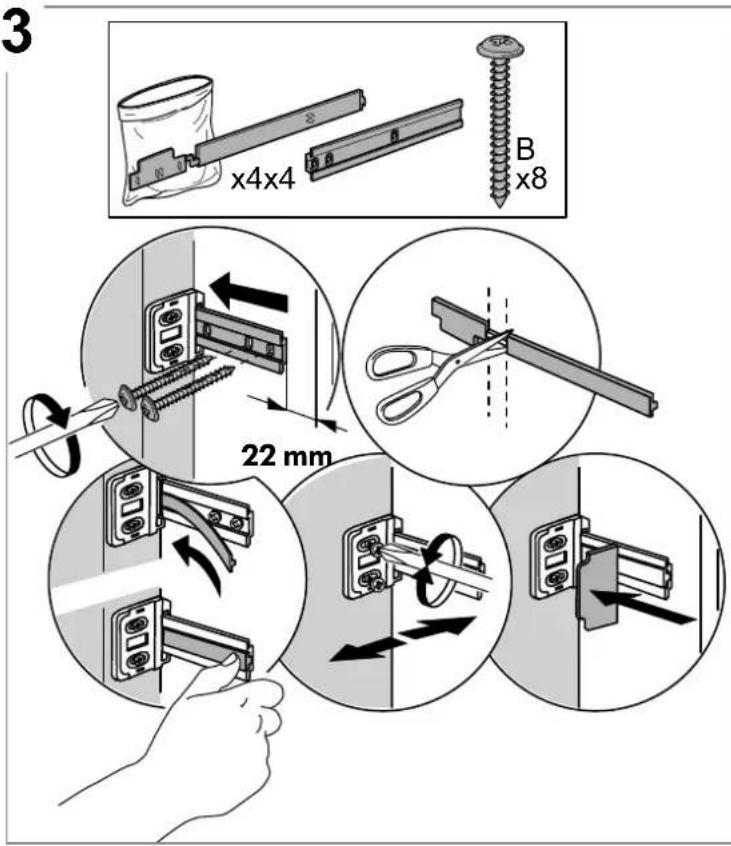

3 x4x4 B x8 22 mm

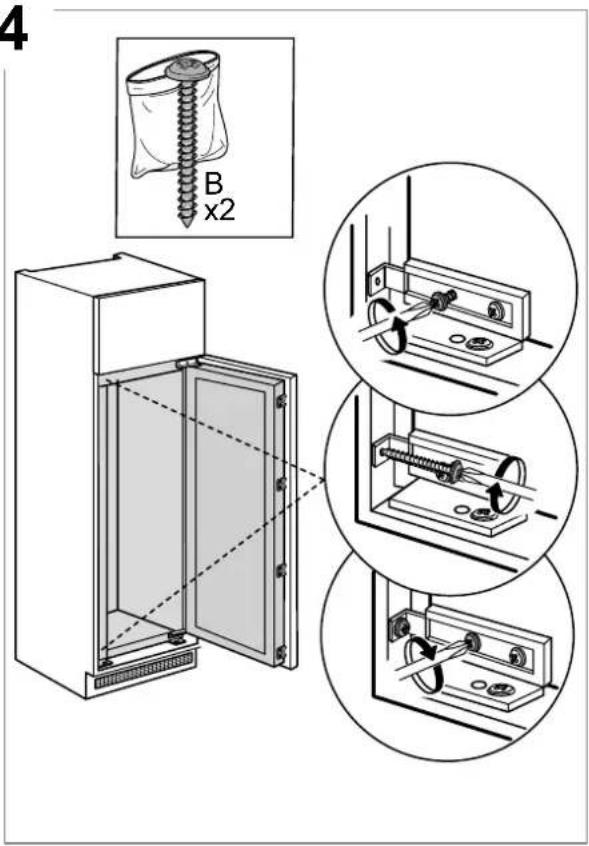

4

4 B x2

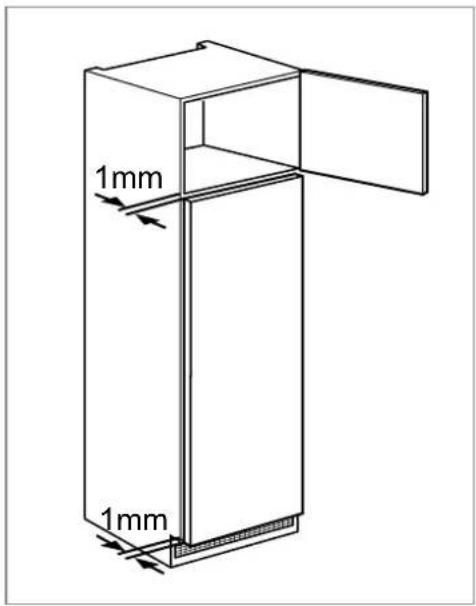

1mm 1mm

Diagram showing a device with four labeled components and directional arrows indicating assembly or transformation.

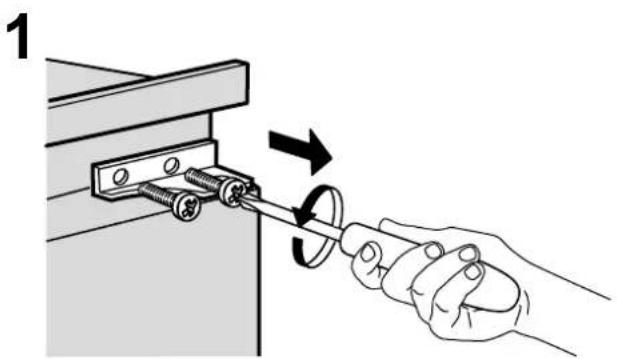

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

Illustration of a hand holding a tool with a spring, showing mechanical components and an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a tool interacting with a mechanical component, showing motion direction (no text or symbols)

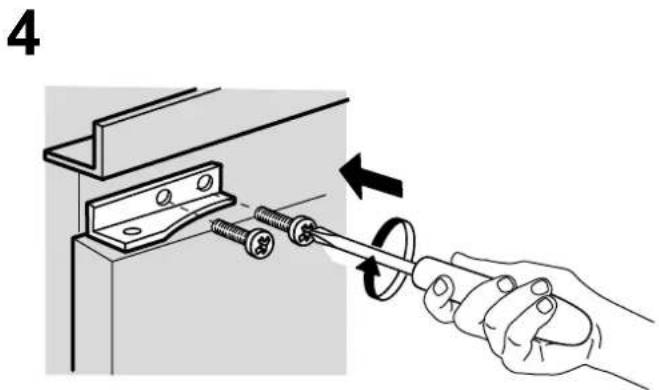

4

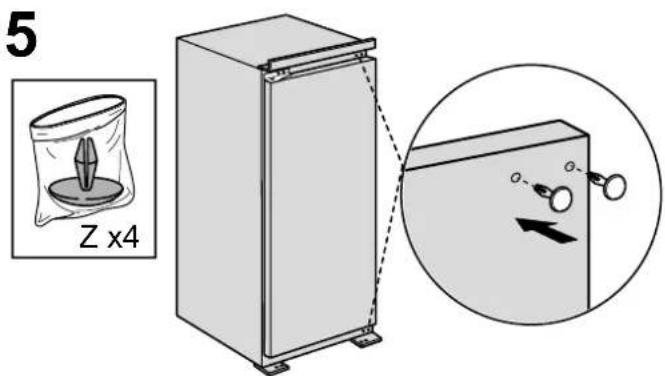

5 Z x4

TABLE OF CONTENTS

OVERVIEW 8

General Information 8

Control panel....8

OPERATION....9

First time use....9

Refrigerator compartment and food storage 9

How to store fresh food and beverages....10

Functional sounds....10

Recommendation in case of no use of the appliance....10

CLEANING AND MAINTENANCE....11

Refrigerator light....11

Shelves....11

Door....11

TROUBLESHOOTING 12

SUPPORT 13

OVERVIEW

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption.

CONTROL PANEL

7. 1.2. - - 3.0 °C +

3 sec. 功 ▲

6.5.3.

FAN\*

The Fan improves temperature distribution inside the refrigerator compartment, allowing better preservation of stored food.

The fan will start/stop working depending on the temperature and/or humidity level inside the fridge. If the appliance has the Fan it can be equipped with the antibacterial filter.

Note: the fan restarts automatically after a power cut or after turning off the appliance. Do not obstruct the air intake area with food items.

3 sec

ON/STAND-BY

To put the product in Stand-by, press and hold the On/ Stand By button. All the indicators turn off except On/Standby indicator.

In Stand-by mode the light in the refrigerator compartment does not turn on Press again to reactivate the appliance.

Note: this does not disconnect the appliance from the power supply.

TEMPERATURE DISPLAY

The display shows the refrigerator compartment temperature (between 2^ C and 8^ C).

To avoid food waste, please refer to the recommended setting and storage times found in the online user manual.

FRIDGE COMPARTMENT TEMPERATURE

To adjust the Fridge Temperature, press the + and - buttons. The Fridge Temperature can be adjusted between +2°C and +8°C, as shown by the Fridge

To avoid an increase of food waste, refer to recommended setting and Storage Time in OPERATION chapter

DISPOSAL

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

1. Temperature Display
2. Door open indicator
3. Turning off the sound alarm
4. On/Stand-by
5. Vacation mode indicator
6. Fast Cool
7. Refrigerator Temperature

Temperature display. Recommended setting for the refrigerator compartment is +4°C.

FAST COOL FUNCTION (FAST COOLING)

To quickly cool the refrigerator compartment, or 6 hours before putting a large quantity of food to be frozen in the freezer compartment, turn on the "Fast Cooling" function by pressing the fast-cooling button. The function automatically turns off after 30 hours for appliances with freezer compartment, after 10 hours for appliances without freezer compartment and the temperature returns to the previous setting when the function is turned on.

To turn the function off manually, press the button. Note: avoid a direct contact between the fresh food and the food that is already frozen.

TURNING OFF THE SOUND ALARM

To turn off the sound alarm, briefly press the △ button.

3 sec

VACATION

You can use this function in the event of a prolonged absence from home. Press the Fast cool button for 3 sec to engage Vacation Mode.

The display will show the temperature of the refrigerator compartment (+12°C) and the Vacation mode icon will light up. After activating this function, remove the food from the refrigerator compartment and keep door closed - the refrigerator will maintain a suitable temperature to prevent odours from forming. When you activate vacation mode, remember to remove food from the freezer compartment.

A deep clean (of both refrigeration and freezer compartment) is recommended before activating this function in order to prevent the spread of bacteria. Press again the same button for 3 sec to deactivate Vacation. Changing the setpoint will automatically deactivate the function.

OPERATION

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

REFRIGERATOR COMPARTMENT AND FOOD STORAGE

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

AIR VENTILATION

The ventilation air allows a better distribution of the temperatures inside the compartments and, consequently, better preservation of the food and reduction of excess humidity. Do not obstruct the ventilation area.

LIGHT SYSTEM (DEPENDING ON MODEL)

This product contains 2 lateral light sources of energy efficiency class F and a top light source of energy class G

HOW TO STORE FRESH FOOD AND BEVERAGES

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

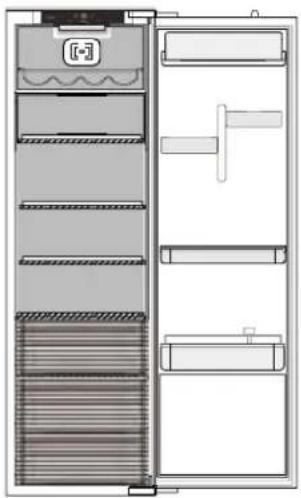

Front view diagram of a refrigerator with doors, shelves, and a door (no text or symbols)

Legend

TEMPERATE ZONE

Suggested for storage of tropical fruit, cans, drink, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for storage of cheese, milk, daily food, delicatessen, yoghurt

FRUIT & VEGETABLE DRAWER

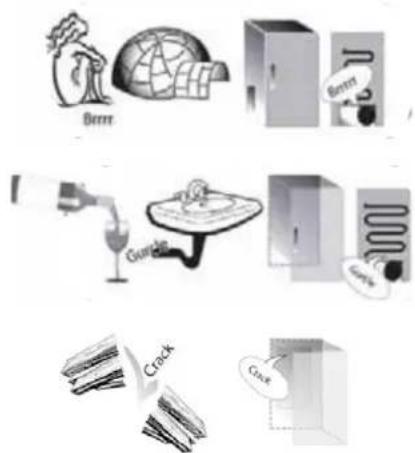

FUNCTIONAL SOUNDS

1. Check that the balconies on the inside of the refrigerator door, the shelves and the drawers in the refrigerator compartment are attached and positioned properly, to avoid possible vibrations.

2. Don't place glass containers (bottles, jars, etc.) in direct contact with each other, to avoid vibrations.

3. This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption. So it may happen that in certain situations (in summer or if large quantities of food are introduced) that the compressor increases the speed and therefore it is more noisy than usual.

4. A buzz generated by the compressor is normal while the product is working.

5. Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit, therefore these are normal noises.
6. It's possible to "hear" creaks when the compressor is active and inactive: it is a normal sound of the product's structure.

Berm Gurblad Crack Gave

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator.

To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided.

Hand holding a pen writing on a document (no text or symbols visible)

REFRIGERATOR LIGHT

The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption. Contact the Technical Assistance Service if you need a replacement.

Important: The refrigerator compartment light switches on when the refrigerator door is opened.

SHELVES

All of the drawers, door shelves and shelves can be removed.

DOOR

DOOR REVERSIBILITY

Note: The direction of door opening can be changed. If this operation is not performed by After-sales Service it is not covered by the warranty. Follow instruction in Installation chapter.

TROUBLESHOOTING

What to do if... Possible reasons Solutions
The control panel is switched off, the appliance does not work.	The appliance may be in On/Stand-bymode.There may be an appliance power supply problem.	Turn the appliance on pressing the On/Stand-by button. Check that:there is not a power outage;the plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e. allows the appliance to be powered);the household electrical system protection devices are efficient;the power cable is not damaged.
The inside light does not work.	The light may need to be replace.	Models with LED lights: contact the authorised Technical Assistance Service.
	The appliance may be in On/Stand-bymode.	Turn the appliance on pressing the On/Stand-by button.
The front edge of the appliance, at the door striker seal, is hot.	This is not a defect. It prevents condensation from forming.	No solution is necessary.
Door open alarm indicator and Alarm indicators blink, the acoustical alarm is activated.	Door open alarmThe door remained open for more than 2 minutes	Close the door or press the Stop Alarm to mute the acoustical alarm.
The Black Out Alarm icon blinks, the Alarm indicator blinks, the display shows the maximum temperature reached blinking	Blackout alarmProlonged power failure, able to cause the temperature inside the product to increase	Press the Stop Alarm button; the acoustical alarm stops. the long black-out alarm is canceled.
The temperature display blinks, the acoustical alarm is activated and the Alarm Indicator blinks	Freezer compartment temperature alarmThe temperature inside the product is not adequate i.e it is too warm	Press the Stop Alarm button to stop the acoustical alarm; the temperature display continues blinking and the Alarm Indicator remains on until the adequate temperature is restored

FRANKE.COM

© Franke Technology and Trademark Ltd, Switzerland

SUPPORT

In the event of any operation problems, contact a Franke Technical Service Centre.

Never use the services of unauthorized technicians.

Specify:

• the type of fault
• the appliance model (art./Code)
• the serial number (S.N.).

When contacting our Service Centre, please state the codes provided on your product's identification plate.

Technical diagram showing a door handle with a close-up of its internal components and labeled parts in Chinese.

INHALT

ÜBERSICHT....15

Allgemeine Informationen....15

Bedienfeld....15

FUNKTIONSWEISE 16

Front view diagram of a refrigerator with doors, shelves, and a door (no text or symbols)

Zeichenerklärung

TEMPERATURBEREICH

Hand holding a pen writing on a document (no visible text or symbols)

KÜHLSCHRANKLICHT

© Franke Technology and Trademark Ltd, Switzerland

SUPPORT

Technical diagram showing a device panel with labeled ports and a magnified view of its internal structure.

SOMMAIRE

APERÇU....22

Front view diagram of a refrigerator with doors, shelves, and a door (no text or symbols)

Légende

ZONE TEMPÉRÉE

Illustration of three abstract symbols: a figure with a globe, a globe-like structure, and a server unit (no text or labels)

Illustration of a wine bottle pouring into a glass, with a side view showing a refrigerator and a thermometer (no text or symbols)

NETTOYAGE ET ENTRETIEN

Hand holding a pen writing on a wooden surface (no text or symbols visible)

ÉCLAIRAGE DU RÉFRIGÉRATEUR

FR + (2) (1)

FRANKE.COM

© Franke Technology and Trademark Ltd, Switzerland

ASSISTANCE

Diagram showing a door with a close-up view of a control panel with text labels and annotations in Chinese.

INHOUDSOPGAVE

OVERZICHT 8

PROBLEEMOPLOSSING....12

ONDERSTEUNING 13

OVERZICHT

ALGEMENE INFORMATIE

FUNCTIE SNEL KOELEN (FAST COOLING)

Front view diagram of a refrigerator with doors, shelves, and a door (no text or symbols)

Legenda

GEMATIGDE ZONE

Illustration of three objects: a person with a hand, a globe, and a cabinet (no text or symbols)

Diagram illustrating a chemical process with labeled components: liquid being poured into a glass, connected to a device labeled 'Gugole', and finally to a paper-like container labeled '1000'.

REINIGEN EN ONDERHOUD

Hand holding a pen writing on a document (no visible text or symbols)

KOELKASTVERLICHTING

© Franke Technology and Trademark Ltd, Switzerland

ONDERSTEUNING

7. 1.2. - - 0.0 °C + 2 sec. 3 sec. 10 6.5.3.

Front view diagram of a refrigerator with doors, shelves, and storage compartments (no text or labels)

Legenda

ZONA TEMPERATA

Illustration of a hand holding a pen over a document or sheet (no text or symbols visible)

LUCE FRIGORIFERO

© Franke Technology and Trademark Ltd, Switzerland

ASSISTENZA

Technical diagram showing a door handle with a close-up of its internal components, including labels like 'C40号' and '11.06'.

ÍNDICE

Front view diagram of a refrigerator with doors, shelves, and a door (no text or symbols)

Leyenda

ZONA DE TEMPERATURA

Illustration of three objects: a globe with a hand holding a bag, a globe with a shield, and a server unit with a 'Berr' label (no text or symbols on objects)

Illustration of a glass tube connected to a stand with a bag, next to a door and a wall-mounted device (no text or symbols visible)

Illustration of a hand holding a pen over a document or sheet (no text or symbols visible)

LUZ DEL FRIGORÍFICO

© Franke Technology and Trademark Ltd, Switzerland

ASISTENCIA

Technical diagram showing a mechanical assembly with a magnified inset highlighting a specific component detail.

ÍNDICE

VISTA GERAL 43

Informação geral 43

Painel de controlo 43

FUNCIONAMENTO....44

Front view diagram of a refrigerator with doors, shelves, and a door (no text or symbols)

Legenda

ZONA TEMPERATURA

Recomendada para o armazenamento de frutas tropicais, latas, bebidas, ovos, molhos, picles, manteiga e compotas

ZONA FRESCA

Hand holding a pen writing on a document (no text or symbols visible)

LUZ DO FRIGORÍFICO

© Franke Technology and Trademark Ltd, Switzerland

SUPORTE

Front view diagram of a refrigerator with doors, shelves, and a door handle (no text or symbols)

Legenda

STREFA UMIARKOWANEJ TEMPERATURY

Bert Gurale OK Crack OK

CZYSZCZENIE I KONSERWACJA

Illustration of a hand holding a pen, writing on a document (no text or symbols visible)

OŚWIETLENIE CHŁODZIARKI

© Franke Technology and Trademark Ltd, Switzerland

WSPARCIE TECHNICZNE

Technical Service Centre.

Technical diagram showing a device with labeled components and a magnified view of its internal structure.

3MICT

ОГЛЯД....57

Front view diagram of a refrigerator with doors, shelves, and door (no text or symbols)

Умовні позначки

Bert Bert Gurale Gurale

Hand holding a pen writing on a wooden board, no text or symbols visible

© Franke Technology and Trademark Ltd, Switzerland

ПІДТРИМКА

Technical diagram showing a door handle with a magnified inset of its internal components, including labels like 'S10' and 'C10'.

franke.com
