USER MANUAL FSDF 330 NF E FRANKE

Illustration of a double-door refrigerator with open doors and labeled 'FRANKE' on the cabinet (no additional text or symbols)

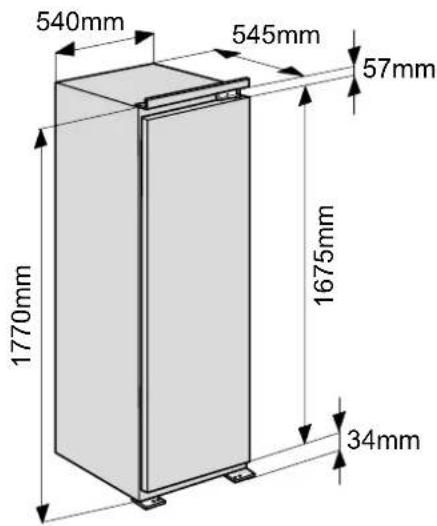

FSDF 330 NF E

EN User and Installation manual Freezer

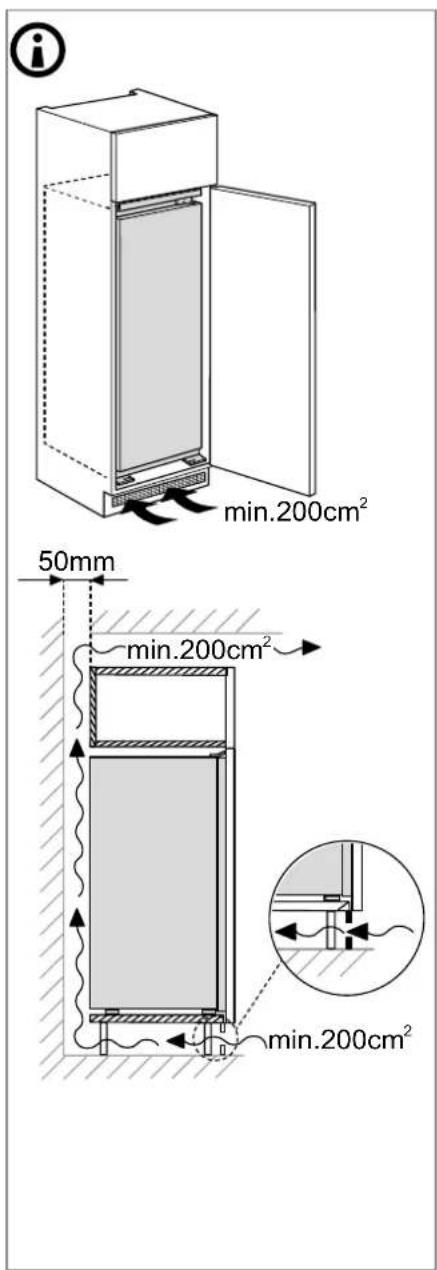

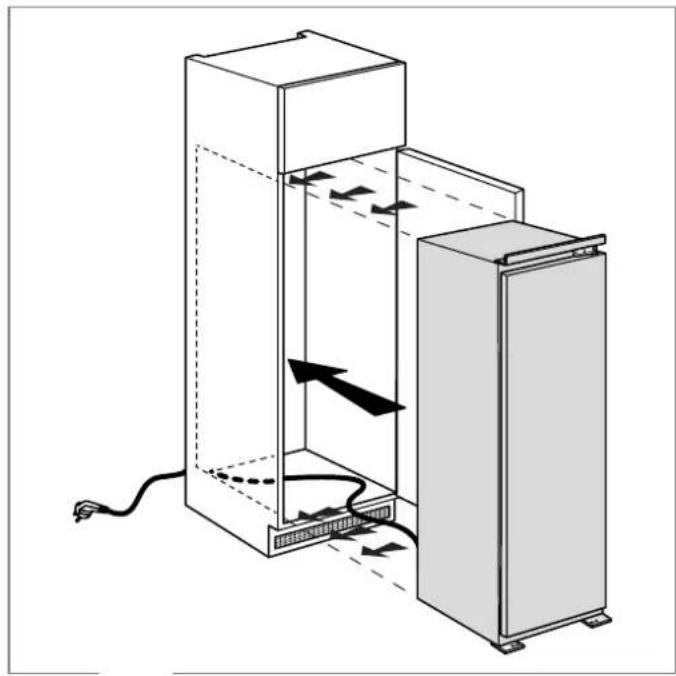

Diagram of a refrigerant or oven system with cooling unit and air flow arrows, no text or symbols present

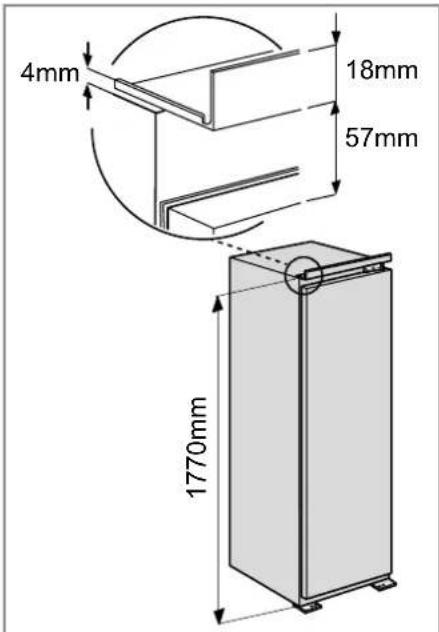

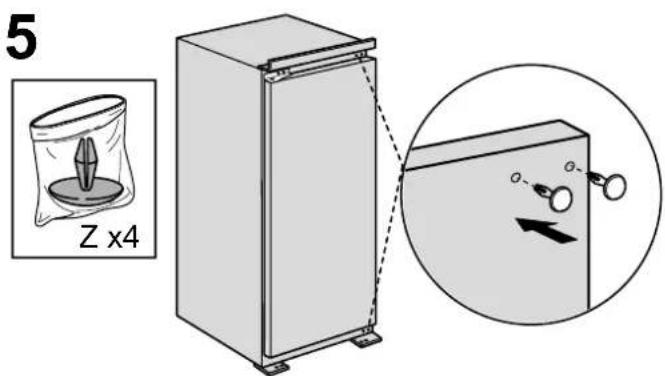

3

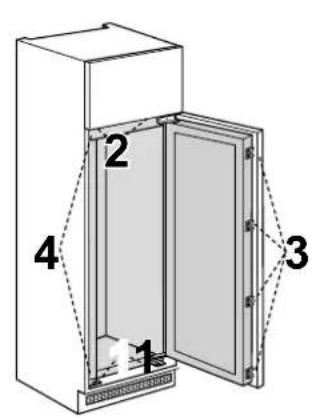

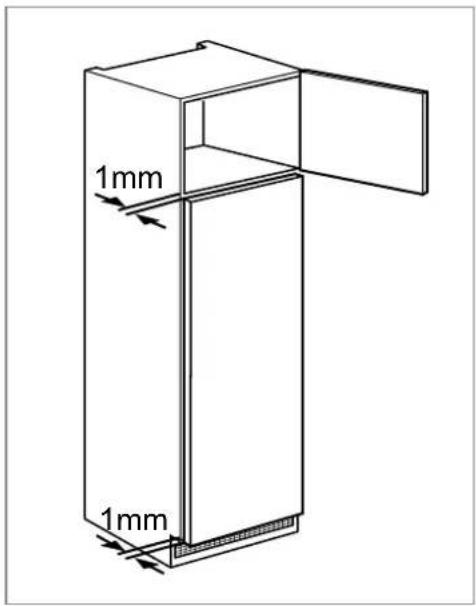

4

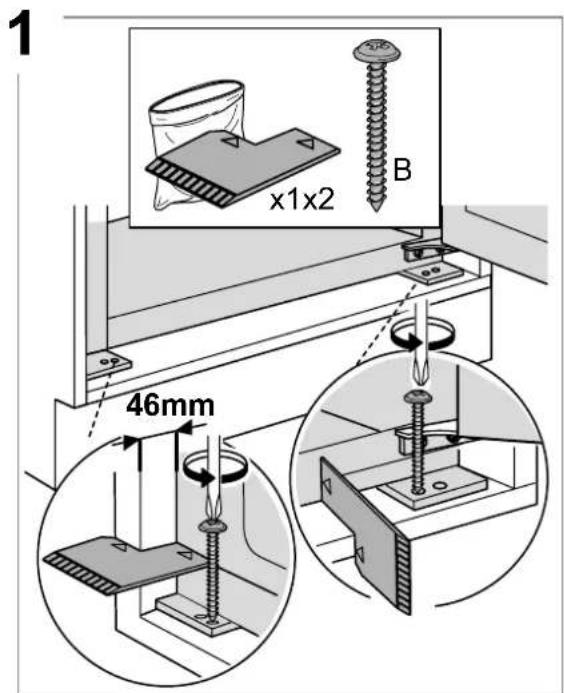

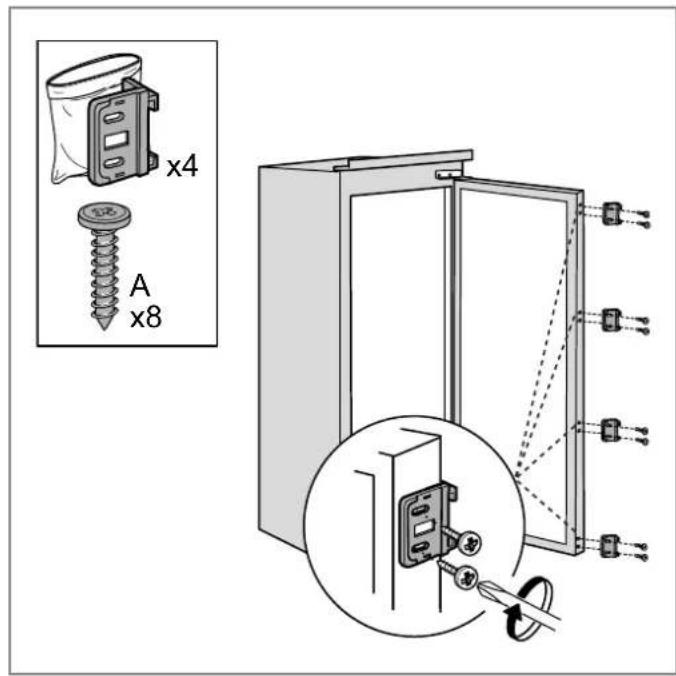

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

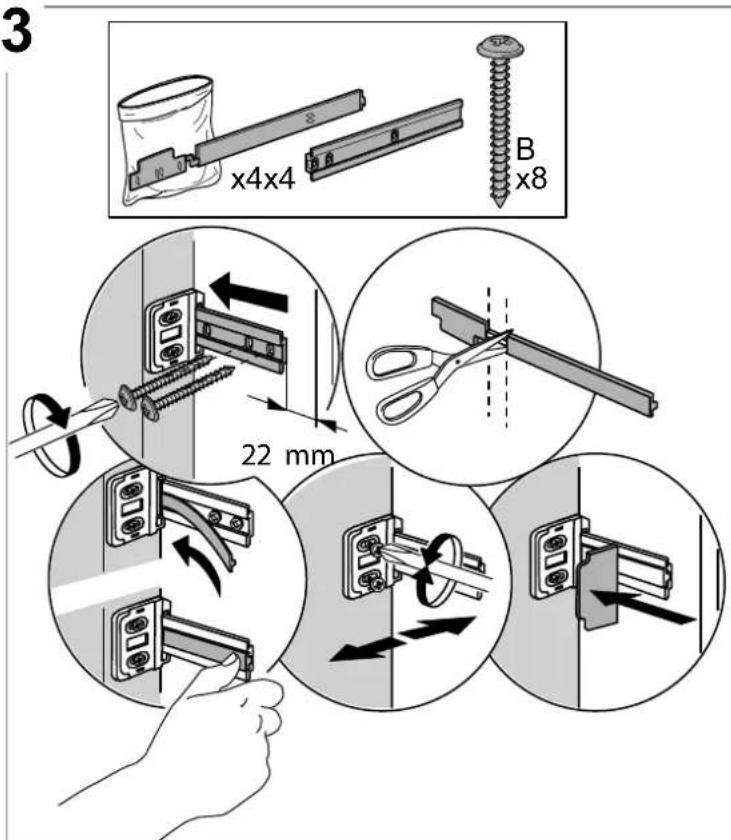

Illustration of a hand holding a tool interacting with a mechanical component, showing motion direction (no text or symbols)

TABLE OF CONTENTS

OVERVIEW 8

General Information 8

Control panel....8

OPERATION....9

First time use 9

Freezer compartment food storage 9

Storage times for home frozen foods 10

Functional sounds....10

Recommendation in case of no use of the appliance....10

CLEANING AND MAINTENANCE....11

Door....11

TROUBLESHOOTING 12

SUPPORT 13

OVERVIEW

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption.

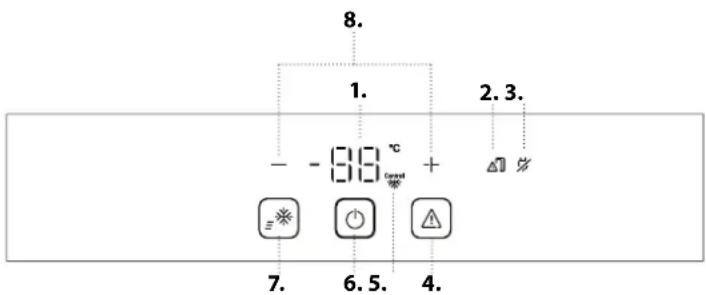

CONTROL PANEL

ON/STAND-BY

To put the product in Stand-by, press and hold the On/ Stand By button for 3 seconds. All the indicators turn off except On/Standby indicator. In Stand-by mode the light in the refrigerator compartment does not turn on Press again to reactivate the appliance.

TEMPERATURE DISPLAY

The display shows the temperature of the freezer. To avoid an increase of food waste, refer to recommended setting and Storage Time in User manual online.

TURNING OFF THE SOUND ALARM

To turn off the sound alarm, briefly press the button.

BLACK OUT ALARM

This alarm is triggered in the event of a prolonged power outage that has caused the temperature inside the freezer compartment to rise. The red indicator light flashes and an acoustic signal is triggered, which will remain active until the door is closed. The freezer compartment temperature indicators may flash. To turn the sound signal off, press the "Turn off alarm" button. If the freezer compartment has not yet reached the temperature for the optimal preservation of the food items, the

To avoid an increase of food waste, refer to recommended setting and Storage Time in OPERATION chapter

DISPOSAL

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

1. Temperature Display
2. Door open indicator
3. Black out alarm indicator
4. Turning off the sound alarm
5. Freezer control indicator
6. On/stand-by
7. Fast freeze
8. Freezer Temperature

temperature alarm may be triggered (see temperature alarm). Check the food before consuming it.

FREEZER COMPARTMENT TEMPERATURE

To adjust the Freezer Temperature, press + and - buttons. The Freezer Temperature can be adjusted between -16^ and -24^ , as shown by the Freezer Temperature display.

Recommended setting:

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended for the optimum freezing of fresh food.

24 hours before freezing fresh food, press the Fast Freeze button to activate the function. When activated, the Fast Freeze indicator turns on. After 24 hours place the fresh food to be frozen in the 3rd shelf from the top.

NOTE

The function is automatically disabled after 48 hours, or can be manually disabled by pressing Fast Freeze button again.

FREEZER CONTROL INDICATOR

CONTROL This is an advanced technology that reduces temperature fluctuations in the product.

Freezer burns are reduced and food preserves its original quality and color.

This function is automatically engaged when the freezer temperature set-point is between -22°C and -24°C.

If the function is engaged and the user modifies the freezer temperature out of the working range, the function is automatically switched off.

OPERATION

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

FREEZER COMPARTMENT FOOD STORAGE

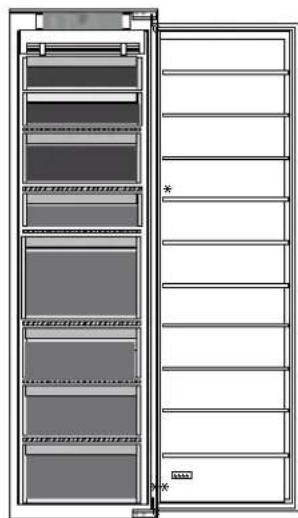

The freezer compartment - 100 allows long time storage of frozen food and freezing of fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around the food packages to allow air to circulate freely. It is advisable that you do not re-freeze food that has partially defrosted. It is important to wrap the food in a way that prevents the ingress of water, humidity or condensation.

Diagram of a vertical storage cabinet with multiple shelves and top panel (no text or labels)

Legend

FREEZER DRAWERS

FREEZING ZONE DRAWER

(Max cool zone)

Suggested to freeze fresh/cooked food

ICE CUBES

Fill 2/3 of the ice tray with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

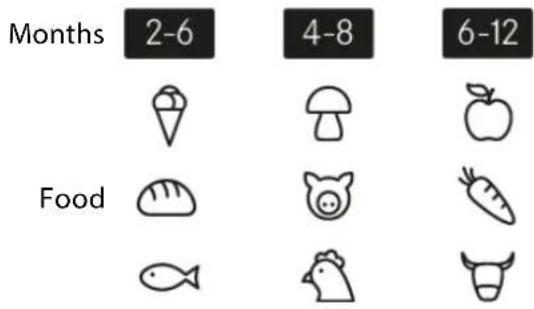

STORAGE TIMES FOR HOME FROZEN FOODS

Store Zone

FUNCTIONAL SOUNDS

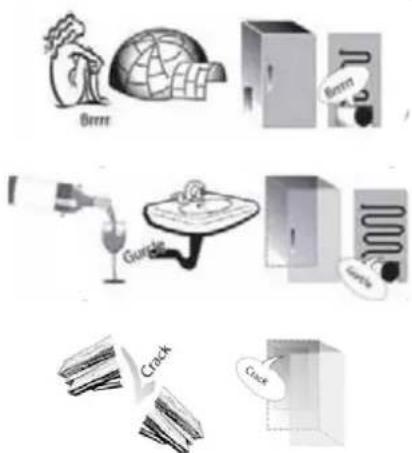

1. A buzz generated by the compressor is normal while the product is working.
2. Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit, therefore these are normal noises.
3. It's possible to "hear" creaks when the compressor is active and inactive: it is a normal sound of the product's structure.
4. Check that the balconies on the inside of the refrigerator door, the shelves and the drawers in the refrigerator compartment are attached and positioned properly, to avoid possible vibrations.
5. Don't place glass containers (bottles, jars, etc.) in direct contact with each other, to avoid vibrations.
6. This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption. So it may happen that in certain situations (in summer or if large quantities of food are introduced) that the compressor increases the speed and therefore it is more noisy than usual.

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean Freezer parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the freezer.

Light system (depending on model)

This product contains a top light source of energy efficiency class G

DOOR

DOOR REVERSIBILITY

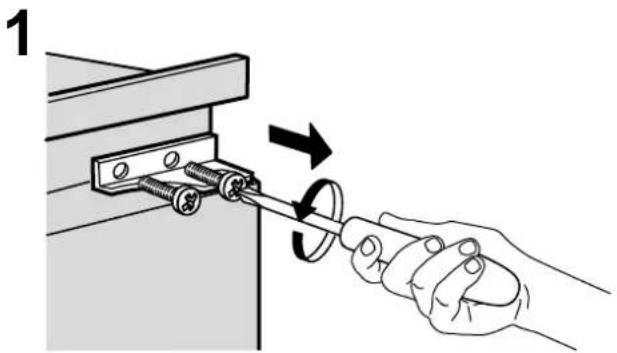

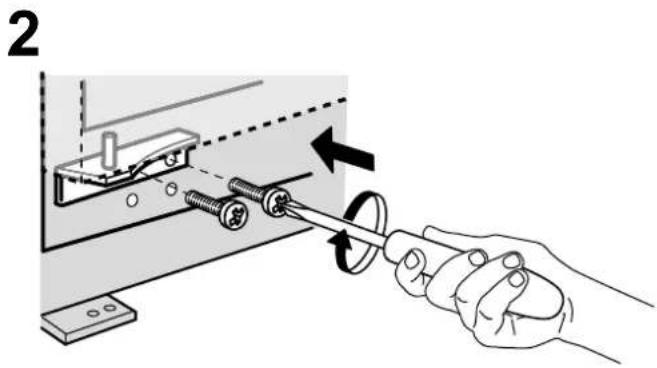

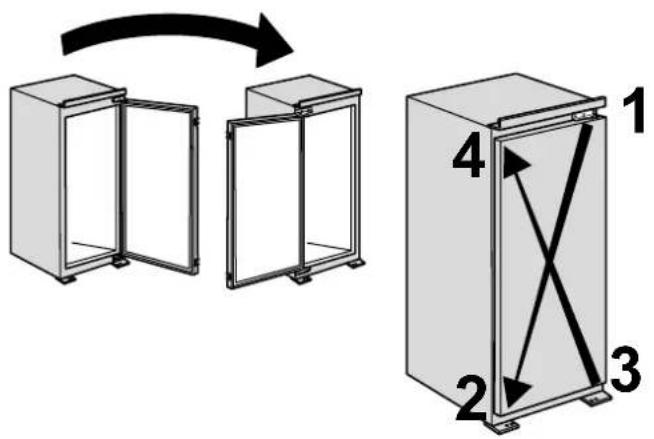

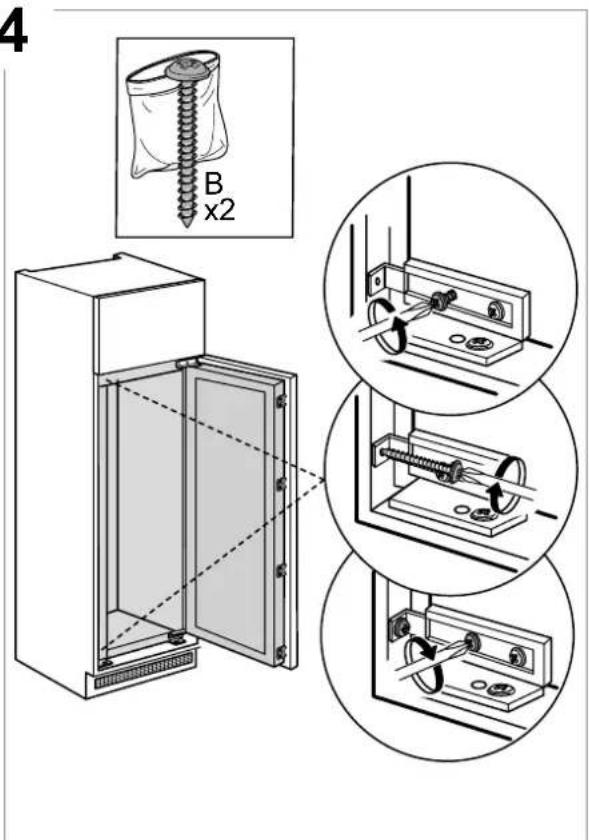

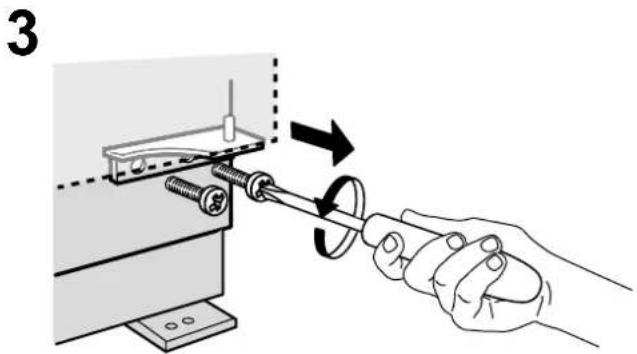

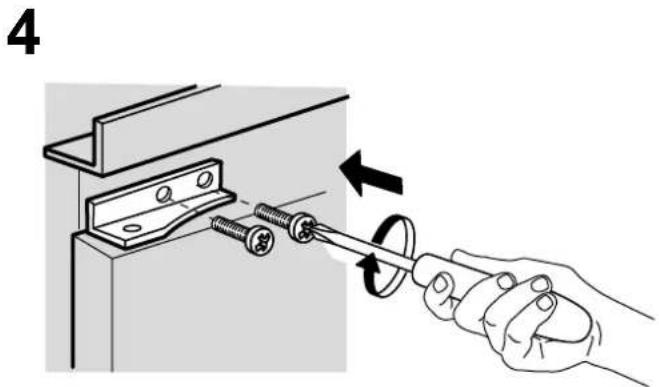

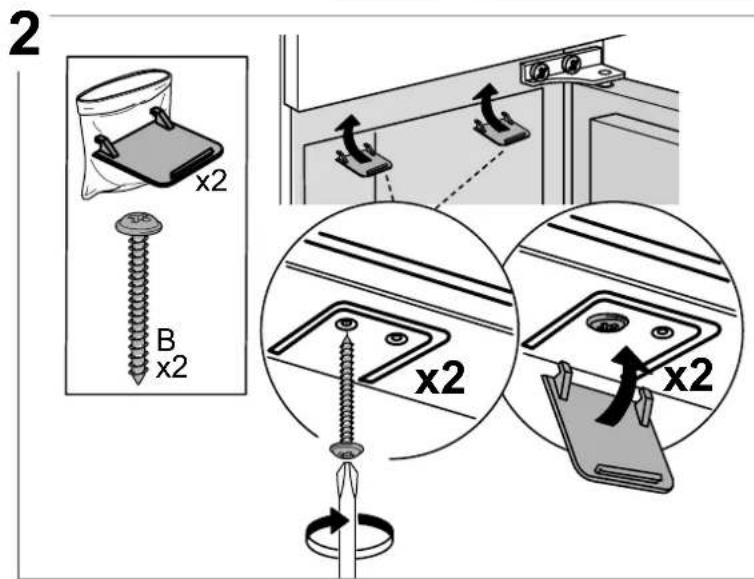

Note: The direction of door opening can be changed. If this operation is not performed by After-sales Service it is not covered by the warranty. Follow instruction in Installation chapter.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The control panel is switched off, the appliance does not work.	The appliance may be in On/Stand-bymode.There may be an appliance power supply problem.	Turn the appliance on pressing the On/Stand-by button. Check that:there is not a power outage;the plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e. allows the appliance to be powered);the household electrical system protection devices are efficient;the power cable is not damaged.
The inside light does not work.	The light may need to be replace.	Models with LED lights: contact the authorised Technical Assistance Service.
	The appliance may be in On/Stand-bymode.	Turn the appliance on pressing the On/Stand-by button.
The front edge of the appliance, at the door striker seal, is hot.	This is not a defect. It prevents condensation from forming.	No solution is necessary.
Door open alarm indicator and Alarm indicators blink, the acoustical alarm is activated.	Door open alarmThe door remained open for more than 2 minutes.	Close the door or press the Stop Alarm to mute the acoustical alarm.
The Black Out Alarm icon blinks, the Alarm indicator blinks, the display shows the maximum temperature reached blinking.	Blackout alarmProlonged power failure, able to cause the temperature inside the product to increase.	Press the Stop Alarm button; the acoustical alarm stops. the long black-out alarm is canceled.
The temperature display blinks, the acoustical alarm is activated and the Alarm Indicator blinks.	Freezer compartment temperature alarmThe temperature inside the product is not adequate i.e it is too warm.	Press the Stop Alarm button to stop the acoustical alarm; the temperature display continues blinking and the Alarm Indicator remains on until the adequate temperature is restored.

FRANKE.COM

© Franke Technology and Trademark Ltd, Switzerland

SUPPORT

In the event of any operation problems, contact a Franke Technical Service Centre.

Never use the services of unauthorized technicians.

Specify:

• the type of fault
• the appliance model (art./Code)
• the serial number (S.N.).

When contacting our Service Centre, please state the codes provided on your product's identification plate.
