Product type	Three-phase power distribution unit
Brand	BEGLEC
Model	BRITEQ PD-63A
Power supply	380-400 V / 50 Hz, 63 A (CEE 5-pin plug)
Maximum total power	44,160 W (3 × 63 A)
Maximum power per phase	14,490 W (63 A)
Maximum power per output	22,080 W (3 × 32 A)
Protection class	Class I (grounding mandatory)
Residual current protection	30 mA, 4-pole residual current circuit breaker
Circuit breakers per phase	2 × C32 (Iₙ=32 A, instantaneous tripping 5 × Iₙ)
Power cable	1.5 m, 5 × 10 mm² (H07RN-F 5G10)
Internal wiring	63 A conductors: 6 AWG (13.3 mm²); 32 A conductors: 10 AWG (5.2 mm²)
Weight	10 kg
Displays	3-digit digital voltmeters and ammeters for each phase
Number of outputs	4 three-phase CEE 32 A outputs (3P+N+E)
Max operating temperature	40 °C
Max altitude	2,000 m
Maintenance	Clean with a soft cloth; quarterly inspection by an expert
Safety	Indoor use only; do not open; disconnect before maintenance
Main functions	Three-phase distribution with 30 mA residual current protection, individual circuit breakers, digital measurements

Frequently Asked Questions - BRITEQ PD-63A BEGLEC

What is the maximum power of the BRITEQ PD-63A?

The maximum total power is 44,160 W (3 × 63 A). Per phase, the limit is 14,490 W (63 A), and per output, 22,080 W (3 × 32 A).

How to test the residual current circuit breaker?

Press the test button located above the residual current circuit breaker. This should immediately cut power to the outputs. Perform this test every 30 days to ensure proper operation.

Can I use the device outdoors?

No, the BRITEQ PD-63A is designed for indoor use only. Do not expose it to rain or moisture, as this poses a risk of electrocution or fire.

What to do in case of circuit breaker tripping?

Before resetting, identify the cause of tripping (overload or fault). Reduce the load on the affected phase. Never short-circuit a fuse. Replace fuses with identical models (C32).

How to clean the device?

Disconnect the device before cleaning. Use a soft cloth and standard glass cleaning products. Dry the parts thoroughly. Internal cleaning must be performed by qualified personnel.

What types of output sockets are available?

The PD-63A is equipped with 4 three-phase CEE 32 A outputs (3P+N+E). Variants with 16 A sockets exist for the PD-32A models.

What is the difference between PD-32A and PD-63A?

The PD-63A supports a maximum total power of 44,160 W (63 A input) versus 22,080 W for the PD-32A (32 A input). The PD-63A has 4 CEE 32 A outputs, while the PD-32A has one CEE 32 A output and six 16 A sockets.

Is the device user-serviceable?

No. Never open the device; it contains no user-serviceable parts. Have any repairs carried out by a qualified technician. Opening the device voids the warranty and poses an electrocution risk.

What accessories are included?

The package contains the PD-63A distributor and the instruction manual. The 1.5 m input cable is built-in.

What safety precautions are essential?

Installation must be carried out by a qualified electrician. Check that the supply voltage matches the specifications (380-400 V). Never exceed the indicated maximum powers. Test the residual current device every 30 days.

USER MANUAL BRITEQ PD-63A BEGLEC

Copyright © 2010 by BEGLEC NV

t Hofveld 2C B1702 Groot-Bijgaarden Belgium

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

CE

Version: 1.0

LIGHT RESEARCH

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this BriteQ® product. To take full advantage of all possibilities, please read these operating instructions very carefully.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• This 3-phase power distributor is designed to improve safety in both mobile, rental and fixed installations.
• Designed and build to the highest European and international safety standards.
• The 30mA, 4pole residual current circuit breaker prevents electrical shocks
• Oversized internal wiring for increased reliability!
• Accurate digital 3-digit voltmeters per phase
• Accurate digital 3-digit ampere meters per phase
• Two models are available:

PD-32A

• Two C16 (16A - 1P+N) automatic circuit breakers per phase
• 1,5m long mains input cable (3x 32A, 5wire), equipped with CEE (3P + N + E) 32A inlet plug
• CEE (3P + N + E) outlet socket (3x 32A, 5wire) for bypass

• 6x earthed 16A mains outlet sockets on the back panel (2 sockets per phase), 3 different models available:

• PD-32A/FR: French/Belgian 16A blue mains sockets

• PD-32A/GE: German 16A blue schukos (CEE 7/4)
• PD-32A/SA: South African 16A blue mains sockets

PD-63A

C32 (32A - 3P) automatic circuit breaker per output
- 1,5m long mains input cable (3x 63A, 5wire), equipped with CEE (3P + N + E) 63A inlet plug
- 4x CEE (3P+N+E) 32A outlet sockets (3x 32A, 5wire)

• Extremely robust 19”/3U metal housing

BEFORE USE

Check the contents:

Check that the carton contains the following items:

• PD-32A or PD-63A.
• User manual

Some important instructions:

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.
• To protect the environment, please try to recycle the packing material as much as possible.

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

This symbol means: Safety Class I appliance

The device is suitable for mounting on standard flammable surfaces. Standard flammable surfaces include building materials such as wood and wood-based materials more than 2mm thick.

• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• No naked flame sources, such as lighted candles, should be placed on the appliance.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• To be sure that the automatic circuit breakers work properly, the unit may not be used on altitudes above 2000m .
• This unit should be operated with an alternating voltage between 380V and 400V / 50Hz.
• Never exceed the maximum power indicated on this appliance!
• Never use or connect this appliance during thunderstorms: the unit can be destroyed due to overvoltage!
• Always unplug the unit when it is not used for a longer time or before you start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The socket inlet shall remain operable for disconnection from the mains.
• The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
• Never let the power-cord come into contact with other cables!
• This appliance must be earthed to in order comply with safety regulations.
• In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the appliance and contact your dealer immediately
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

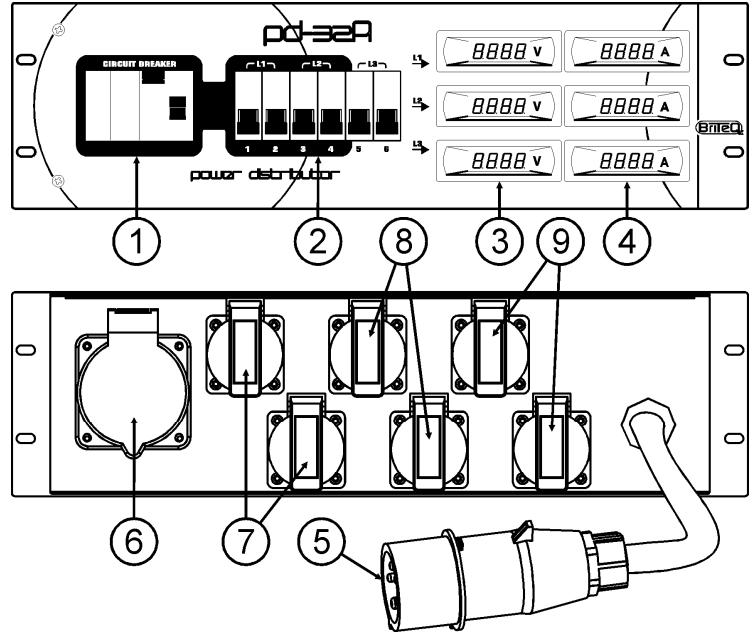

FUNCTIONS (PD-32A)

1. RESIDUAL CURRENT CIRCUIT BREAKER: this is a vital security device of the power distributor! When someone accidentally touches one of the mains conductors, a current leak through the body of this person could result in a lethal (deadly) shock. As soon as such current leakage in the installation is detected, the power distributor outputs will be disconnected. The maximum allowable current leakage is set to 30mA . Under normal working conditions the lever on the right should be in upward position. Important: the functions of this device should be tested every 30days by pushing the test button on top: as a result the outputs should be immediately disconnected from the mains.
2. INDIVIDUAL CIRCUIT BREAKERS: each of the 3 phases is secured by two C16 automatic circuit breakers. Under normal working conditions the lever should be in upward position.
3. VOLT METERS: each of the 3 phases have their individual 3-digit voltage meter.
4. AMPERE METERS: each of the 3 phases have their individual 3-digit ampere meter.
5. 32A INPUT: 1,5m long mains input cable (3x 32A, 5wire), equipped with CEE (3P + N + E) inlet plug.
6. 32A OUTPUT: CEE (3P+N+E) outlet socket (3x 32A, 5wire), can be used to feed-through up to 32A 3phase current. Make sure that the total input current will not be exceeded!
7. 16A OUTPUT PHASE1: two 230V/16A output sockets, connected to phase1 (L1)
8. 16A OUTPUT PHASE2: two 230V/16A output sockets, connected to phase2 (L2)
9. 16A OUTPUT PHASE3: two 230V/16A output sockets, connected to phase3 (L3)

FUNCTIONS (PD-63A)

1. RESIDUAL CURRENT CIRCUIT BREAKER: this is a vital security device of the power distributor! When someone accidentally touches one of the mains conductors, a current leak through the body of this person could result in a lethal (deadly) shock. As soon as such current leakage in the installation is detected, the power distributor outputs will be disconnected. The maximum allowable current leakage is set to 30mA . Under normal working conditions the lever on the right should be in upward position. Important: the functions of this device should be tested every 30days by pushing the test button on top as a result the outputs should be immediately disconnected from the mains.
2. INDIVIDUAL CIRCUIT BREAKERS: each of the 4 outputs (A, B, C, D) is secured by three C32 automatic circuit breakers. Under normal working conditions the lever should point to the right.
3. VOLT METERS: each of the 3 phases have their individual 3-digit voltage meter.
4. AMPERE METERS: each of the 3 phases have their individual 3-digit ampere meter.
5. 63A INPUT: 1,5m long mains input cable (3x 63A, 5wire), equipped with CEE (3P + N + E) inlet plug.
6. 32A 3PHASE OUTPUT A: CEE (3P+N+E) outlet socket (3x 32A, 5wire. This output is secured by the 3 C32 automatic circuit breakers marked "A" on the front panel.
7. 32A 3PHASE OUTPUT B: CEE (3P+N+E) outlet socket (3x 32A, 5wire. This output is secured by the 3 C32 automatic circuit breakers marked "B" on the front panel.
8. 32A 3PHASE OUTPUT C: CEE (3P+N+E) outlet socket (3x 32A, 5wire. This output is secured by the 3 C32 automatic circuit breakers marked "C" on the front panel.
9. 32A 3PHASE OUTPUT C: CEE (3P+N+E) outlet socket (3x 32A, 5wire. This output is secured by the 3 C32 automatic circuit breakers marked "D" on the front panel.

INSTALLATION GUIDELINES

DANGER TO LIFE:

This unit may only be installed and electrically connected by an authorized and qualified electrician!

Electrical installation should strictly follow all safety rules and technical norms for electrical installations in your country!

The complete installation should be approved by an authorized expert before it will be taken into operation! Each change to an existing installation should be re-approved as well!

• MAINS INPUT: the unit should be connected to the mains via a 5pole 380-400V 32A CEE socket. The maximum overall power is 22.080Watt which may never be exceeded!
• OUTPUTS: each phase is connected via 2 separate 16A output sockets. The maximum power per phase is 7.360Watt, each 16A output socket support maximum 3.680Watt which may never be exceeded!

MAINTENANCE

DANGER TO LIFE:

Switch the unit off and unplug the mains cable BEFORE servicing!

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.
• The unit and its installation conditions should be inspected and approved every 3 months by an authorized expert!

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

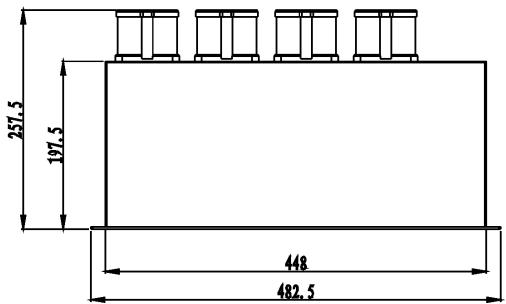

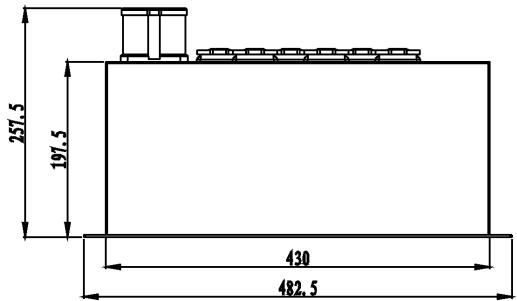

SPECIFICATIONS

PD-32A

Power Input:

IEC60309-standard, CEE-32A industrial plug

Maximum overall power:

380V-400V/50Hz, 3phase, 5wire (3P + N + E)

Maximum power per phase:

22.080Watt (3x 32A)

Maximum power per output:

7.360Watt (32A)

Protection class:

3.680Watt (16A)

Max. Leakage current:

class I (only to be connected to class I outlets)

Automatic fuses / phase:

30mA

Diameter Power cord:

5x 6mm² (H07RN-F 5G6)

Diameter internal wiring:

32A-wires: 10AWG (5,2mm^2) - 16A-wires: 14AWG (2,1mm^2)

Size:

see drawings

7,4 kg

PD-63A

Power Input:

IEC60309-standard, CEE-63A industrial plug

Maximum overall power:

380V-400V/50Hz, 3phase, 5wire (3P + N + E)

Maximum power per phase:

44.160Watt (3x 63A)

Maximum power per output:

14.490Watt (63A)

Protection class:

22.080Watt (3x 32A)

Max. Leakage current:

class I (only to be connected to class I outlets)

Automatic fuses / phase:

30mA

Diameter Power cord:

2x C32 (I_n = 32A , instantaneous tripping current = 5× I_n

Diameter internal wiring:

5x 10mm^2 (H07RN-F 5G10)

Size:

63A-wires: 6AWG (13,3mm²) - 32A-wires: 10AWG (5,2mm²)

Weight:

see drawings

10 kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.beglec.com

MODE D'EMPLOI

INSTALLATIE VOORSCHRIFTEN

LEVENSGEVAAR:

5x6mm² (H07RN-F 5G6)

Diameter interne bedrading:

Maximale Last pro Phase:

3680Watt (16A)

Maximale Last pro Phase:

14490Watt (63A)
