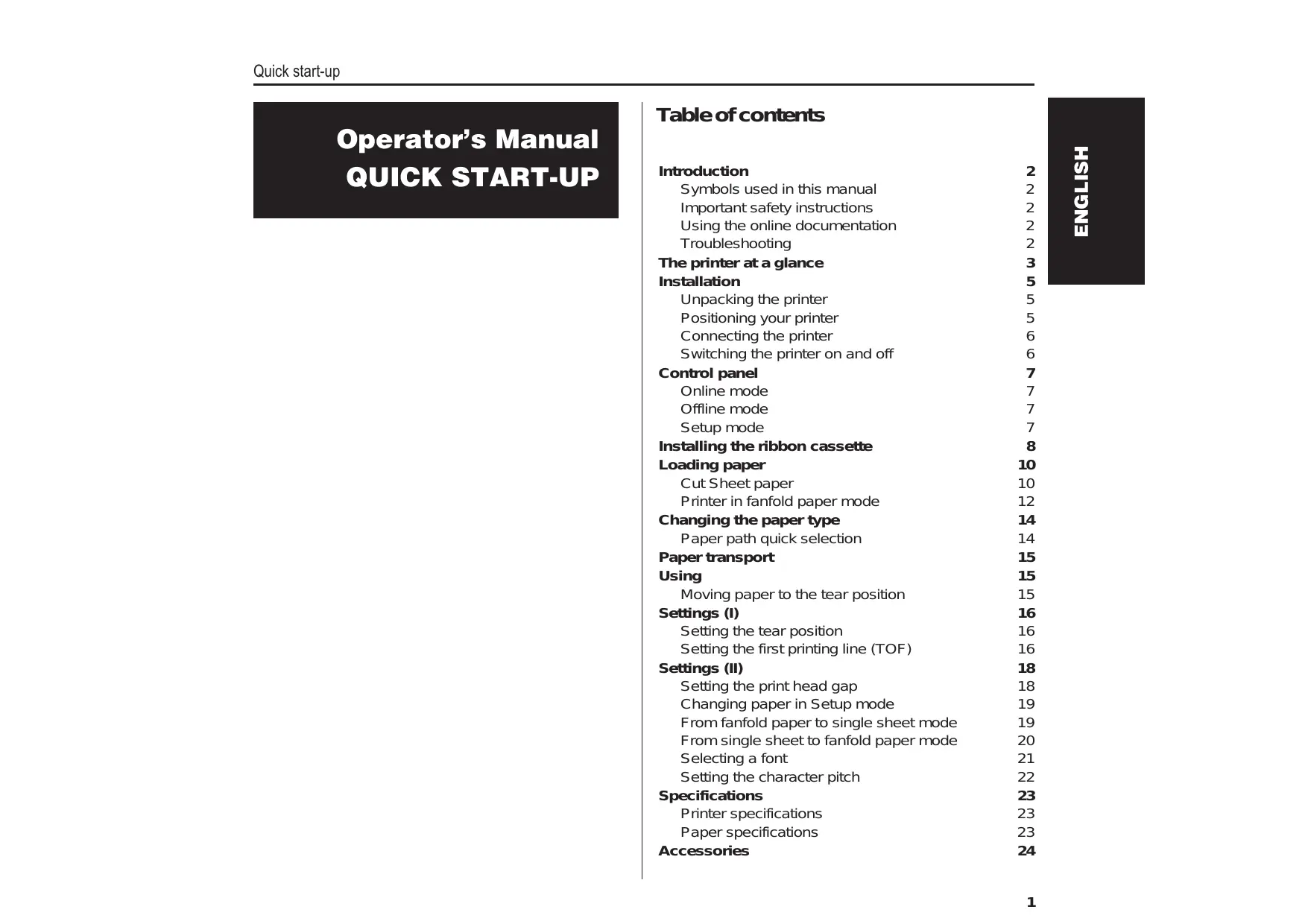

Quick start-up Table of contents Operator’s Manual QUICK START-UP Eee 2 Symbols used in this manual 2 Important safety instructions 2 Using the online documentation 2 Troubleshooting 2 The printer at a glance 3 Installation 5 Unpacking the printer 5 Positioning your printer 5 Connecting the printer 6 Switching the printer on and off 6 Control panel 7 Online mode 7 Offline mode 7 Setup mode 7 Installing the rbbon cassette 8 Loading paper 10 Cut Sheet paper 10 Printer in fanfold paper mode 12 Changing the paper type 14 Paper path quick selection 14 Paper transport 15 Using 15 Moving paper to the tear position 15 Settings (1) Setting the tear position 16 Setting the first printing line (TOF) 16 Settings (il) 18 Setting the print head gap 18 Changing paper in Setup mode 19 From fanfold paper to single sheet mode 19 From single sheet to fanfold paper mode 20 Selecting a font 21 Setting the character pitch 22 Specifications 23 Printer specifications 23 Paper specifications 23 Accessories 24

Introduction Quick start-up Introduction > Symbols used in this manual © > Important safety instructions

> Using the online documentation > Troubleshooting This Operator's Manual is intended as a quick introduction into working with the printer and is to enable also unexperienced users to handle the device properly. It describes the most important functions of the printer and contains the essential information for your everyday work with the printer. A more detailed description of the printer, its characteristic features and further informa- tion is contained in the reference manual on the online CD-ROM which is included at the back of this manual. Important information is highlighted in this manual by two symbols. CAUTION marks information which must be observed in order to prevent injuries to the user and damage to the printer. NOTE marks general or additional information about a specific topic Read the following instructions carefully before putting the printer into operation in order to protect yourself from injury and avoid damage to the printer. Keep this Operator's Manual always readily accessible. Place the printer on a stable surface so that it cannot fall down to the ground. Avoid exposing the printer to high temperature or direct sunlight. Keep all liquids away from the printer. Do not expose the printer to shock, impact or vibration. Never switch on the printer when it is not set to the correct voltage. Never try to carry out maintenance and repair work yourself; always call a qualified service technician. When you want to disconnect the printer from the mains power supply, always pull out the mains plug from the wall outlet. You will find additional safety information at specific places in the text. First install the A dobe A crobat Reader on your hard disk unless the program has already been installed. To install it, follow the steps described in the README file in the READER directory. To start the online documentation, call the File Manager (Windows 3.1) or Explorer (Win- dows 95/Windows 98/Windows NT) and double click on the START.PDF file. Then follow the instructions and menus on the screen. If your CD-ROM should be defective or missing, please consult your dealer. The online documentation is also available as a printed manual (for a small fee) and via the internet. Minimum hardware requirements: PC AT 486, 4 x CD-ROM, 15" monitor, mouse. The online documentation supplied on the CD-ROM contains detailed information on trouble- shooting.

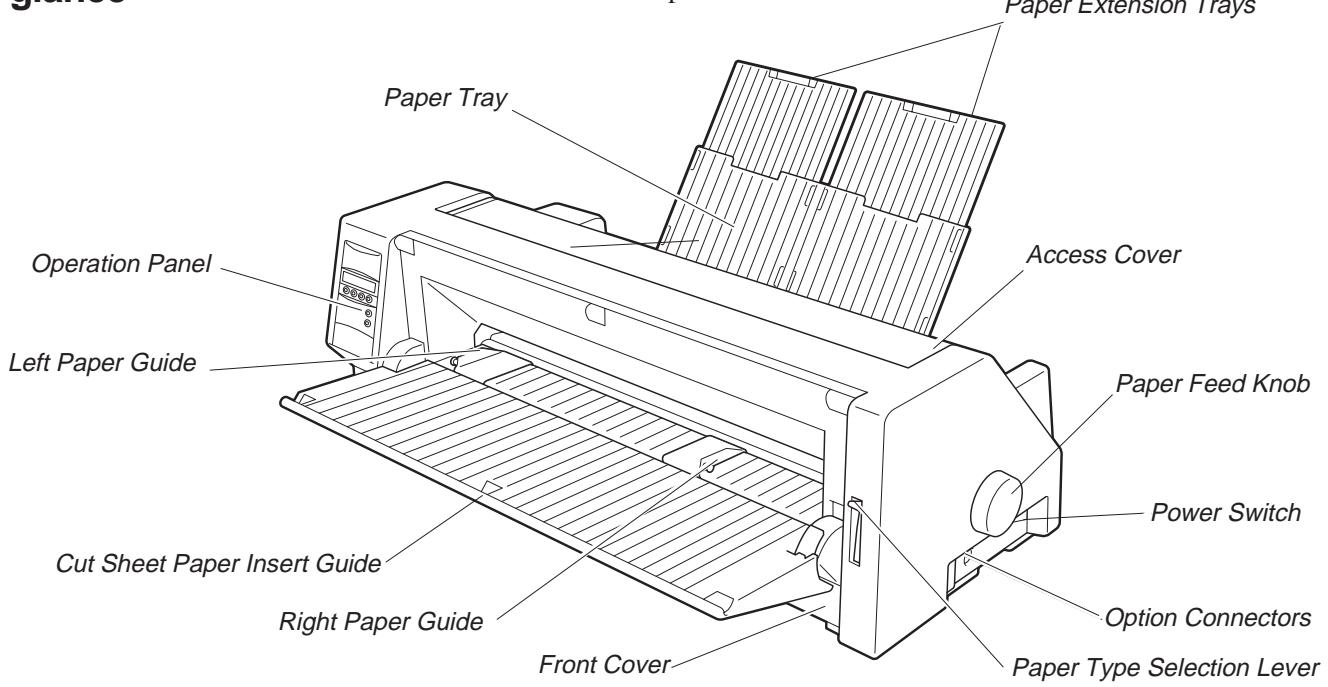

Quick start-up The printer at a glance The printer at a The following figures show the name of each printer part, and the table on the following page glance Shows the functions of each part. Paper Extension Trays Access Cover Operation Panel _ Left Paper Guide __ Paper Feed Knob -——— Power Switch Cut Sheet Paper Insert Guide” Right Paper Guide Option Connectors Front Cover Paper Type Selection Lever Perforated Line Cutter Paper Thickness Adjustment Lever Latch Lever Power Inlet — Interface Connector — Latch Lever

The printer at a glance Quick start-up Name Functions Operation Panel itindicates the printer status, and is used to change various settings. Paper Tray Itis used as a paper support for cut sheet paper already printed when the option “F-Eject” is set to OFF in the Initial Setting. Paper Extension Trays They are used for extending of the Paper Tray. Access Cover When the Ink-ribbon Cartridge is to be replaced or paper jams are to be removed, this cover is detached to allow access to the related parts. It also serves to protect operators from the mechanical movements of the printer. Paper Feed Knob itis used to manually feed paper forward or backward. Power Switch Itis used to tum ON or OFF the power of the printer. Option Connector Itis used to connect an Auto Sheet Feeder (ASF) or the Optional 2nd Tractor. Paper Type Selection | Itis used to select the appropriate type of paper to be used in the printer: Lever Cut Sheet Paper (upper position) Continuous Form Feed Paper (lower position) Front Cover Itis opened when Continuous Form Feed Paper is to be set This cover is detached when an Auto Sheet Feeder (ASF) or the Optional 2nd Tractor is to be attached. Right Paper Guide By aligning the right edge of the Cut Sheet Paper to this guide, an uneven feed can be prevented. Cut Sheet Paper Insert Guide Itis opened for inserting Cut Sheet Paper and is used as a paper support. Itis also used as a support for post-print Cut Sheet Paper when the option “F-Eject” is set to ASF, Single or ALL in the Initial Setting. Left Paper Guide itis used to adjust the left margin of the Cut Sheet Paper. Latch Lever By pulling this lever to the front, the latch is released and the Access Cover can be opened. Perforated Line Cutter Continuous Form Feed Paper will be cut atthis position. By pressing the Tear key after printing, paper feeds up to this position. Paper Thickness Ad- justment Lever itis used to adjust the paper-pinching strength of the printer in accordance with the thickness of the paper to be used. As for the adjustment ranges, see Paper Thickness Adjustment, page 18. Interface Connector Itis used to connect the 1/0 cable to the system unit. Power Inlet It connects to the power cord. Rear Cover Itis used to reduce noise. It must be removed when the paper tray is in upright position.

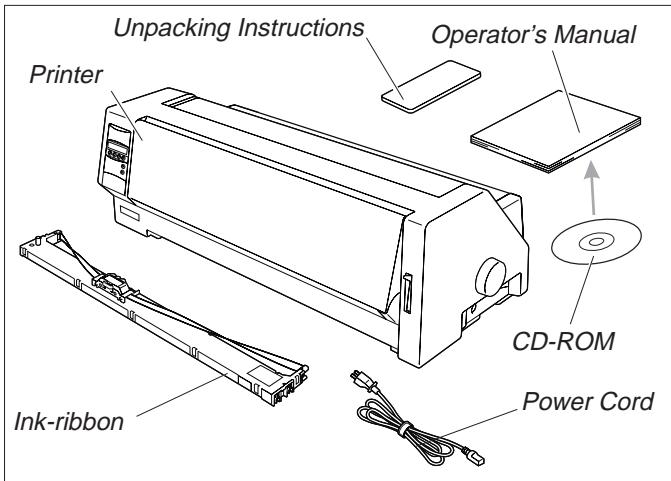

Quick start-up Installation Installation > Unpacking the printer Please open the printer package and check that all the following items are included. Unpacking Instructions Operators Manual If any itemis missingordamaged, please contactthestore where the product was purchased. Remove the transport protection elements as described in the unpacking instructions. Z The carton and the packing materials will be necessary for moving or transporting the printer. Please store them in a safe EI" CD-ROM __Power Cord > Positioning your Place the printer on a stable, flat and non-slip surface in such a way that it cannot fall down. printer Ensure easy access to the control panel and the paper feeders and leave sufficient space for the paper ejected. If fréquent forward and retum feed movements will be perfor- med with fanfold paper, you should position the printer as illustrated in the figure. Whenchoosingasuitable place for your printer, you should also observe the following: © Never place the printer near sources of easily in- flammable gas or explosive substances. BAvoid æxposing the printer to direct sunlight. If you cannot avoid placing the unit near a window, protect it from sunlight with a curtain. M Position the printer near the computer to which it will be connected. The distance must not exceed 2 m. Entre sufficient distance from radiators. Besse that the printer is not exposed to extreme variations in temperature or air humidity. Avoid exposure to dust.

Installation Quick start-up > Connecting the printer Mäke sure that the unit is set to the correct voltage (i.e. 230 V for Europe, 120 V for the USA). Refer to the type plate beside the power inilet on the rear side of the printer. If this is not the case, contact your dealer. Never switch on the printer when it is not set to the correct voltage since this could cause severe da- mage. Connect the power cable to the printer‘s power inlet as shown in the figure. Connect the power cable plug to a wall outlet. © Male sure that the printer and the computer are switched off. Connect the printer-end connector of the data cable to the female interface connector and secure it with tbe spring clips. Connect the other end of the cable to the computer. The power switch, which is used for switching tbe printer on and off, is located at the right side of the printer.

Quick start-up Control panel Control panel You can control printer operation using the control panel and the keys. Ô The first line of the display informs you about whether the printer is in Online or in Offline mode and about the paper path selected (Trac.1 or Single). > Online mode When switching on the printer, it automatically selects Online mode. It can receive data from the computer only in this mode. one © Sets the printer to Offline mode. Pr TE { G-0 © Sets the printer to Setup mode. {Setup @ Tear key: Activates the tear function when fanfold paper is loaded © © © @ | (see page 15). If Load is displayed above this key, no paper is loaded in NU the printer, press the key to feed paper to the printing position. > Offline mode Step feeds, line feeds and form feeds can be performed via the control panel only in this mode (see page 15). Online © Sets the printer to Offline mode. BR (D © Setsthe printer to Setup mode. ® If no paper is loaded: Load key (see above). If paper is loaded: Short keypress: Line feed (LF) Long keypress: Form feed (FF)

d @ Short keypress: Micro-step retum Long keypress: Constant paper feed return Short keypress: Micro-step forward Long keypress: Constant paper feed forward © Clear the paper path with paper loaded and activates paper path quick selection (see page 14).

> Setup mode en 1" Gharl LEE 6 © 6 0 Ô | Access to the other menu options is disabled by the manufacturer. For information on how to Sets the printer to Setup mode. In this mode, the following settings are available: Sets the font and the number of characters per inch (Char menu). Paper path (Paperway menu) Tear position and first printing line (A djust menu) Other menu settings (Menu) 6606 © enable access to these options as well as about the options available, refer to the online docu- mentation on the CD-ROM, chapter 1, Operation (Unlock the menu mode).

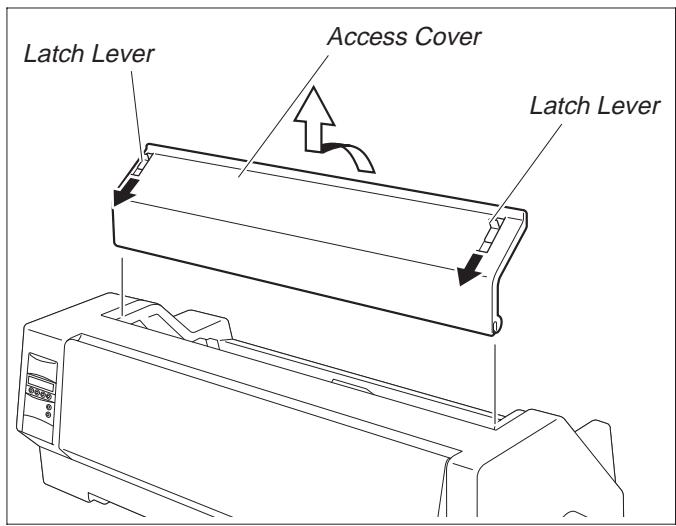

Installing the ribbon cassette Quick start-up Installing the ribbon cassette Remove any paper loaded into the printer. © | Before opening the cover, make sure that the printer is switched off. — Paper Thickness Adjustment Lever Access Cover Latch Lever Set the Paper Thickness A djustment Lever to the “8” position. Pull the Latch Levers near the right and left ends on the Access Cover to the front, and detach the entire Access Cover. Move the Print head to approximately the center. The Print Head may be hot. So please be careful not to touch the metal part of the Print Head.

Quick start-up Installing the ribbon cassette Ribbon Feed Knob Part 'A”(left side) Align the part “A” on the left side of the Ink-ribibon Cartridge to the two hooks of the printer, push the cartridge all the way until it clicks. If there is resistance, push it while tuming the Ribbon Feed Knob, Detach the Ribbon Guide from the Ink-ribbon Cartridge. Ô Do not détach the shiäd that has been attached to the Ribbon Guide; it is necessary to protect the ribbon. Put the Ribbon Guide between the Print Head and the Platen and push it all the way until it clicks. Ô When attaching the Ribbon Guide, be careful not to fold the ribbon. Also, pay attention to the shield so that it does not become damaged. Tum the Ribbon Feed Knob in the direction indicated by the arrow to remove any slack in the ribbon.

Loading paper Quick start-up Access Cover Loading paper When the Ink-ribbon Cartridge setting is complete, attach the Access Cover. Set the Paper Thickness A djustment Lever in accordance with the thickness of the paper to be used. Refer to page 18 (Setting the print head gap). Ô Only use paper which is suitable for this printer. For more information, refer to the online documentation on the CD-ROM, Appendix C (Specification). > Cut Sheet paper Cut Sheet Paper is to be inserted from the front of the printer. The post-print paper can be fed out from the rear or the front. Please refer to the online documentation on the CD-ROM, Chapter 1, Menu description table.

Tum the Power Switch of the printer ON (“|”). Adjust the Paper Thickness Lever according to the type of paper to be used. Refer to page 18 (Setting the print head gap). Stand the Paper Tray up in the direction indicated by the arrow. While holding the Paper Tray, pull up the Paper Extension Trays.

Quick start-up Loading paper Guide CutSheet Insert” Paper Type" Selection Lever Set the Paper Type Selection Lever to Cut Sheet Paper mode. Make sure that the printer is in Single Sheet mode. For how to select Single Sheet mode refer to page 14 (Paper path quick selection). Determine the left margin by moving the Left Paper Guide left or right. (The “[A” mark indicates the standard print start position.) Place a sheet of paperaligned to the Left Paper Guide, and adjust the Right Paper Guide to the right edge of the paper. Insert the paper between the Left and Right Paper Guides. The paper is automatically fed to the print start position and the printer is ready to print. The paper feed-out capacity is about 30 sheets in 0 case 55Kg-paper (ream) is used and the post-print paper is set to feed out to the rear side. When the post-print paper is set to feed out to the front, the paper must be removed sheet by sheet.

Loading paper Quick start-up > Printer in fanfold paper mode __ Front Cover Setthe Paper Thickness A djustment Leveraccording to the type of paper to be used. Refer to page 18 (Setting the print head gap). Set the Paper Type Selection Lever to Continuous Form Feed Paper mode. Open the Front Cover to its upright position until it snaps in. This prevents unexpected closing of the cover. Stand the Left and Right Tractor Fixing Levers up (in the direction indicated by the arrow), and release the locks. Open the Flaps of the Left and Right Tractors. Match the Left and Right Tractors to the paper width. Locate the Paper Plate in the center between the Left and Right Tractors.

Quick start-up Loading paper Paper Holes over Tractor Pins

Fixing lever With the printing side of the paper facing up, fit the feeding holes onthe left edge of the paper over the Left Tractor pins and close the Paper Flap. Fitthe feedingholes ontherightedge of the paperoverthe Right Tractor pins, and close the Paper Flap. 0 To avoid paper jams, ensure that the same left and right feding holes are used, and placed over trac- tor pins of the san level. After the paper is set, adjust the left margin by moving the Tractors left or right. The “LA” mark is the standard print start position. Push down the Left Tractor Fixing Lever to lock the Left Tractor. Move the Right Tractor to remove any paper slack, and then push doun the Fixing Lever to lock it in place.

Ifthe paper slack cannot be removed by moving the Right Tractor alone, adjust the position of the Left Tractor. Be careful not to stretch the paper so much that it tears. Switch on the printer. The active feeder (Trac.1) is displayed. Paper is automatically fed- when the printer is in Online status and receives data from the computer. Press the Load key to load paper before printing.

Changing the paper type Quick start-up > Paper path quick selection

©0006 ©0000 ©0006 ©0000 ©0600 Online Y ou can change the paper type (the paper path) either using the paper path quick selection feature or via the Setup menu. First cut the fed-out portion of a Continuous Form Feed Paper at the perforated line. To do this, proceed as follows. Make sure that the printer is in Offline status; press the Online key, if necessary. Press the Park key. If fanfold paperis in the printer it is transported to the tear position. “Tear paper off” appears on the display. Press any key. If a single sheet is Loaded in the printer, it is ejected. Select the desired paper path by pressing one of the I keys, in our example Single. 0 1f you do not male a selection within 5 seconds, the printer exits the menu. The printer retums to Offline mode. The display toggles between.… and... Setthe Paper Type Sdection Leverto Cut Sheet Papermode (see page 11 Loading paper). The display toggles between.… and... Stand the Paper Tray up in the direction indicated by the amow. While holding the Paper Tray, pull up the Paper Extension Trays. Determine the left margin by moving the Left Paper Guide left or right. Place a sheet of paper aligned to the Left Paper Guide, and adjust the Right Paper Guide to the right edge of the paper. Insert the paper between the Left and Right Paper Guides. The paperis automatically fed to the print start position (see page 11 Loading paper).

Quick start-up Paper transport (COnine Press the Online key to make the printer ready for operation.

6000 © Paper transport Loaded paper (fanfold paper/single sheëts) can be transported in the printer in different ways. {[Onine Make sure that the printer is in Offline status; press the Online key, if necessary. = © Short keypress: Line feed (LF) is initiated À © Long keypress: Form feed (FF) is initiated LS © Shotkeypress: Paperis transported downwards step by step Long keypress: Continuous transport down © Short keypress: Paperis transported upwards step by step Long keypress: Continuous transport up Fanfold paper can be transported to the tear position by pressing the Tear key. Free + LPE 066e Using ©0006 facon | [Onine Make sure that the printeris in Online status. Press the Tear key. The printer moves the perforation edge of the fanfold paper {seu to the tear edge. (@. The display toggles between.… (Onine

{seu 60000 © … £'onire Press the Exit key after having tom off the paper. The printer moves the paper < \ Setup ©00 e ©

Settings (1) Quick start-up Settings (1) > Setting the tear If the tear position of the paper is not aligned with the tear edge of the printer, you can adjust it. position pure mea e Press the Setup key. The printer changes to Setup mode. 0000 © Press the Adjust key. ©0000 c00e . {Online Press the < or > key to move the perforation to the appropriate position. / © Confimithe setting by pressing the Set key. The printer retums toits initial status. { seup ©6000 Ô The correction made (a maximumof approx. 2.5 cm 1"] in both directions) will be retained > Settingthe first You can use the TOF function to set the position of the topmost printing line individually for printing line (TOF) each paper source and each menu. Ô | You should adjust the tear position (see above) before using the TOF function (when using fan- fold paper). fus Paper [© Press the Setup key. The printer changes to Setup mode.

Quick start-up Settings (1) ©0006 ©0006 paperis transported to the tear edge B. The factory setting for the first printing position is 12/72". The bottom edge of the currently valid first printing line A of the F'Onine Press the < or > key to move the first printing line to the appropriate position. / © You canset values from O to 220/72" for fanfold paper, from 0 to 72/72" for single { seu sheets. ©6000 : Confinmthe setting by pressing the Set key. The printer retums to its initial status. DT Sonor prime TT 1277 SendaeT. ptine TO 1272 6 re) o! ol o! lo ol lol ol lo| el Newy set 1. print Ine [TI Q o : dl ol lo _ ol lol l l

‘The setting made will be retained after printer pouer-of. For more detailed information, refer to the online documentation on the CD-ROM, chapter 3 (Mechanical adjustments to the printer).

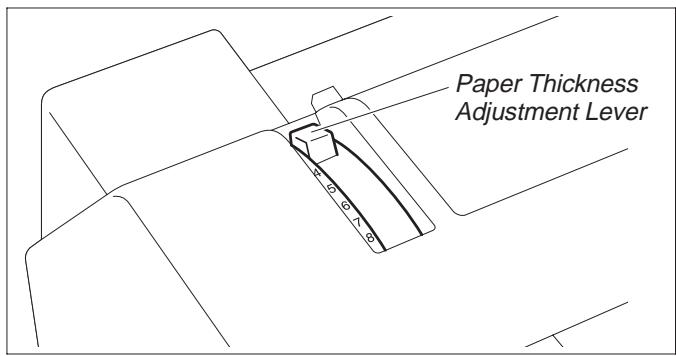

Settings (11) Quick start-up Settings (il) > Setting the print head gap The printer has been provided with a Paper Thickness A djustment Lever for adjusting the print head gap Toobtainoptimumprint quality, the gap between the Print Head and the Platen needs to be adjusted according to the thickness Paper Thickness of the paper to be used. Adjustment Lever The following table shows the adjustable range: Number of Copies/ Ream (kg) gmê Lever Position Thickness of Paper Original only Thin 45-55 50-65 1 Normal 55-77 65-90 1-2 Thick 77-110 90-130 2 Original +1 34/34 40/40 2-3 Original +2 34/34/34 40/40/40 2-4 Original +3 34/34/3434 40/40/40/40 3-4 Original +4 34/34/34/34/34 40/40/40/40/40 4-5 Original +5 34/34/34/34/34/34 40/40/40/40/40/40 5-6 Postal Card 110 130 3 Reserved _ _ 7-8

1. “Reant’ is a unit of paper thickness, indicating the weight in kg, of 1,000 cut sheets at 788

2. When printing the original sheet only, Cut Sheet Paper of 45 kg and thicker or Continuous

Form Feed Paper of 50 kg and thicker can be used.

3. When the Paper Thickness Adjustment Lever is set higher than appropriate, the printout

will appear scratchy and the print head and ribbon lives will be shortened.

Quick start-up Settings (11) > Changing paper in Setup mode > Fromfanfold paper When fanfold paper wes in use and you want to change over to single sheet mode, proceed as to single sheet mode _ described below. Ô | You do not need to remove the fanfold paper. ©6000 ©0006 ©6000

©6000 ©6000 Cut the fed-out portion of the Continuous Form Feed Paper at the perforated line. To do this, proceed as follows. Press the Setup key. The printer changes to Setup mode. Press the Paperway key. The printer changes to the paper path menu. Press < or > to change to Single (sheet) operating mode. The currently valid setting (Tractor 1) is marked by a “*”, Confirm the setting by pressing the Set key. The input is acknowledged by an acoustic signal and the fanfold paper is trans- ported to the tear position. Cut the fed-out portion of the Continuous Form Feed Paper at the perforated line. In the display appears. Press any key. The printer retums to its initial status and the fanfold paper is transported to the park position. The display toggles between.… and...

Settings (11) Quick start-up ©6000 ©0600 ©6000 > From single sheet to fanfold paper mode ©6000 ©0006 c000

Set the Paper Type Sdlection Lever to Cut Sheet Paper mode. In the display appears.… Stand the Paper Tray up and pull up the Paper Extension Trays (see page 10). Place a sheet of paper aligned to the Left Paper Guide, and adjust the Right Paper Guide to the right edge of the paper. Insert the paper between the Left and Right Paper Guides. The paperis auto- matically fed to the print start position (see page 11). Press the Online key to make the printer ready for operation. When single sheets were in use and you want to change over to fanfold paper mode, proceed as described below. Make sure that fanfold paper is loaded. Refer to page 12 (Loading Fanfold Paper) for details.

Pull down the Paper Extension Trays and fold the Paper tray down. Press the Setup key. The printer changes to Setup mode. Press the Paperway key. The printer changes to the paper path menu. Press < or > to change to Trac.1 (fanfold paper) mode. The currently valid setting (Single) is marked by a “*”.

Quick start-up Settings (11) [Onine” Confinn the setting by pressing the Set key. An acoustic signal acknowledges the

0000 © Park + EP (© Ce ©6000 and... [One Shiftthe Paper Type Sdlection Lever to the position needed. Ÿ The printer is now ready for printing fanfold paper. { Es Press the Online key to make the printer ready for operation. ©6000 © > Selecting a font You can use the Font key to select fonts in Setup mode. RE, (© Press the Char key. ©0006 © TOnine Press the Font key. Ë €:

Press the < or > key to select the desired font. Confirm your selection by pressing the Set key.

Press the Setup key. The printer retums to its initial status. You can also press the Online key. The printer changes directly in Online mode. ©0006

Settings (Il) Quick start-up lect a font permanently, refer to online documentation on the CD-ROM, chapter 1 (Menu Cor] The selection made will not be retained after printer power-off. For information on how to se- description table). > Setting the You can use the C PI key to set the character pitch in Setup mode. character pitch past pe) fl Online Press the Setup key. Press the Char key. © y c00e ©

{Online Press the CPI key. { Setup 60060 © {Online Press the < or > key to select the desired pitch. ENCRES Ê © Confirm your selection by pressing the Set key. Setup ce00c © (Online Press the Setup key. The printer returns to its initial status. You can also press the Online key. The printer changes directly in Online mode.

font permanently, refer to online documentation on the CD-ROM, chapter 1 (Menu description ro) The selection made will not be retained after printer power-off. For information on how to select a table).

Quick start-up Specifications Specifications > Printer specifications Printing method Print width Print speed (bidirectional) Character densities Graphics print density Ribbon life Acoustic noise levell Dimensions Weight Power supply Power consumption Operating environment Print head specifications Interface buffer Regulations serial printing with 9-pin matrix print head narrow printer 80 characters at 10 cpi wide printer 136 characters at 10 cpi LN-Draft 413 cps at 10 cpi Draft 310 cps at 10 cpi NLQ 77 cps at 10 cpi 5,6, 7.5, 8.6, 10, 12, 15, 17.1, 20 cpi (HS-Draft: 10, 12 cpi only) horizontal 240 dpi / vertical 144 dpi 4 million char. ca. 55 dB (A) narrow printer 485 x 206 x 272 mm (W x H x D) wide printer 625 x 206 x 272 mm (W x H x D) narrow printer 9 kg / wide printer 11 kg USA/Canada AC 120 V 10% / 60 Hz 3% Europe AC 230 V 10%/ 5 OHz 3% at 100% throughput < 60 VA in the Ready state < 10 VA 10°C to 40°C 20% to 80% Number of pins 9 Pin diameters 0,3mm Number of copies 1 original + 5 copies max. 64 kB UL 1950, VDE-GS, CE, FCC Class B, UL/Ulc Temperature Humidity

Accessories Quick start-up 0 For more information on printer specifications and paper specifications, refer to the online documentation on the CD-ROM. Accessories Ribbon cassettes Narrow printer: Part No. 044 829 Wide printer: Part No. 044 830 Demo page The demo page contains information on the firmware version, serial number, needle check, fonts, font attributes and bar codes/LCP. Hold down button 4 while switching on the printer to print the demo page. To terminate printing, switch off the printer.
