TRIAX C3 - Watch NIKE - Free user manual and instructions

Product type	Heart rate monitor watch
Brand	Nike
Model	TRIAX C3
Watch power supply	CR2032 3V Lithium battery
Watch battery life	Approximately 1.5 years depending on usage
Transmitter power supply	CR2032 3V Lithium battery
Transmitter battery life	Approximately 1 year for 1 hour use per day
Water resistance (watch)	30 meters (IPX8)
Water resistance (transmitter)	30 meters
Operating temperature	-5°C to 50°C
Case materials	Polycarbonate, stainless steel
Glass material	Mineral glass
Strap material	Polyurethane
Heart rate accuracy	±1% or ±1 bpm (whichever is greater)
Pulse measurement range	30 – 240 bpm
Stopwatch limit	23:59'59"
Main functions	Continuous heart rate, stopwatch, time, heart rate transmitter
Watch battery replacement	By an authorized Nike service center
Transmitter battery replacement	Open the cover with a coin, insert CR2032, do not touch the contacts
Cleaning and maintenance	Wipe the transmitter after use, do not store it with conductive materials
Safety	Consult a doctor before use for pacemaker wearers; keep batteries out of reach of children

Frequently Asked Questions - TRIAX C3 NIKE

How to properly wear the heart rate transmitter?

Place the transmitter around your chest, on the ribs just below the sternum. It should be in direct contact with the skin and tight enough not to slip during running. Generously wet the two grooved areas on the back of the transmitter to ensure good signal reception.

What to do if the watch does not display heart rate?

Check that the grooved sensors are sufficiently wet and that the transmitter is positioned correctly, flat against the skin. If the problem persists, replace the transmitter battery. Move away from sources of electromagnetic fields (household appliances, computers, power lines).

The displayed heart rate is irregular or stops, what to do?

This may be due to a low battery in the transmitter or electromagnetic interference. Replace the transmitter battery and change location. Also check that the transmitter is in good contact with the skin and that the electrodes are wet.

How to reset the watch if the display is frozen?

If the display freezes (e.g., after a static discharge or battery replacement), press and hold both buttons simultaneously. This clears the data in memory and restores factory settings.

Is the watch waterproof? Can I swim with it?

The watch is water-resistant up to 30 meters (IPX8) and can be used underwater. Caution: do not press the buttons underwater, as this could damage the watch.

What battery does the watch use and how to change it?

The watch uses a CR2032 3V Lithium battery. Replacement must be done by an authorized Nike service center to keep the warranty. The transmitter also uses a CR2032 battery; open the cover with a coin, insert the battery with the positive side visible without touching the contacts.

Can I use this watch if I have a pacemaker?

Consult your doctor before using the heart rate monitor. It is not recommended for wearers of pacemakers or other electronic implants without prior medical advice.

How to clean and maintain the transmitter?

Wipe the transmitter after each use. Do not store it near conductive materials. Avoid bending it or exposing it to extreme temperatures.

What is the accuracy of the heart rate measurement?

The accuracy is ±1% or ±1 bpm (whichever is greater) in steady state. For optimal measurement, wear the transmitter directly on the skin and wet the electrodes.

Where can I find the full manual?

The user manual is available for free download in PDF format on notice-facile.com or on the site www.nike.com/manuals.

USER MANUAL TRIAX C3 NIKE

Information is Power

By measuring intensity (heart rate) and duration (time) you can avoid over training, help prevent injury, and maximize your chances of achieving your goals.

triax c3 features

• Continuous heart rate
  Exercise timer
• Time of day

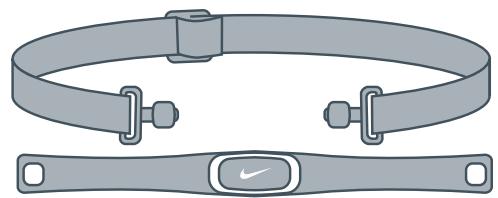

Heart Rate Transmitter

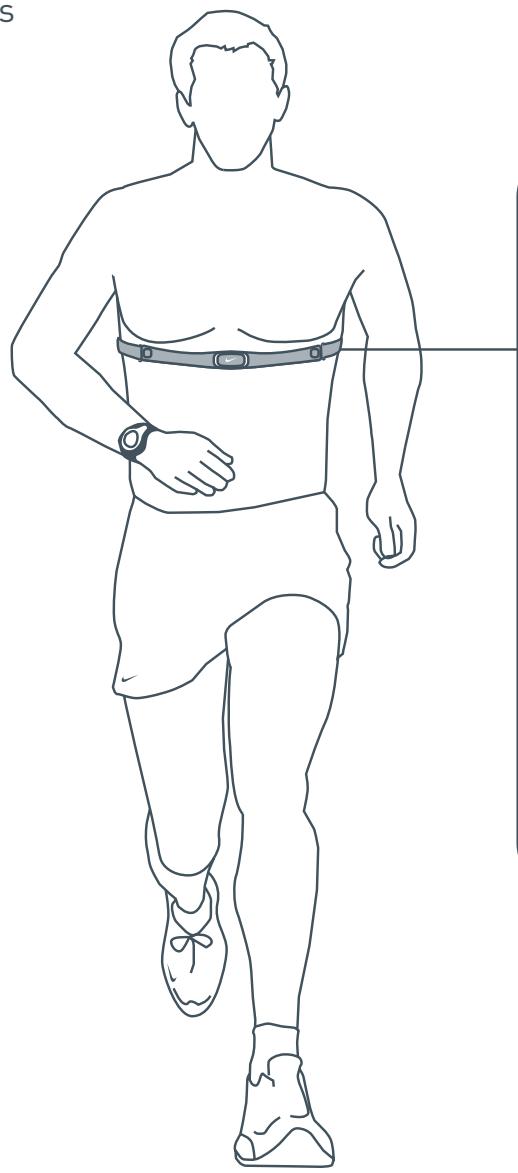

Your Heart Rate Transmitter reads the electrical impulses of your heart and transmits data to your watch. It is one of the most accurate ways to measure heart rate. The Transmitter will function automatically if it is worn correctly within a meter of the watch. The Transmitter is ergonomically designed to fit comfortably during all types of exercise.

ATTENTION: Anyone beginning an exercise regimen for the first time (especially users of pacemakers or other implanted devices) should consult their physician or health professional before using the heart rate monitor.

Contents

Positioning the Heart Rate Transmitter 3

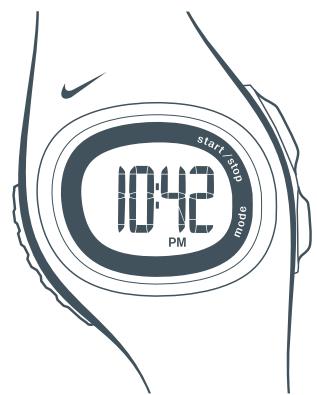

TIME mode

Set Time 4

CHRONOGRAPH mode

Using the Chronograph 5

PULSE mode

Viewing Heart Rate 6

Troubleshooting 7

Specifications 7

Battery 8

This document with updates is available online at www.nike.com/manuals

Printed on Wood Free Paper

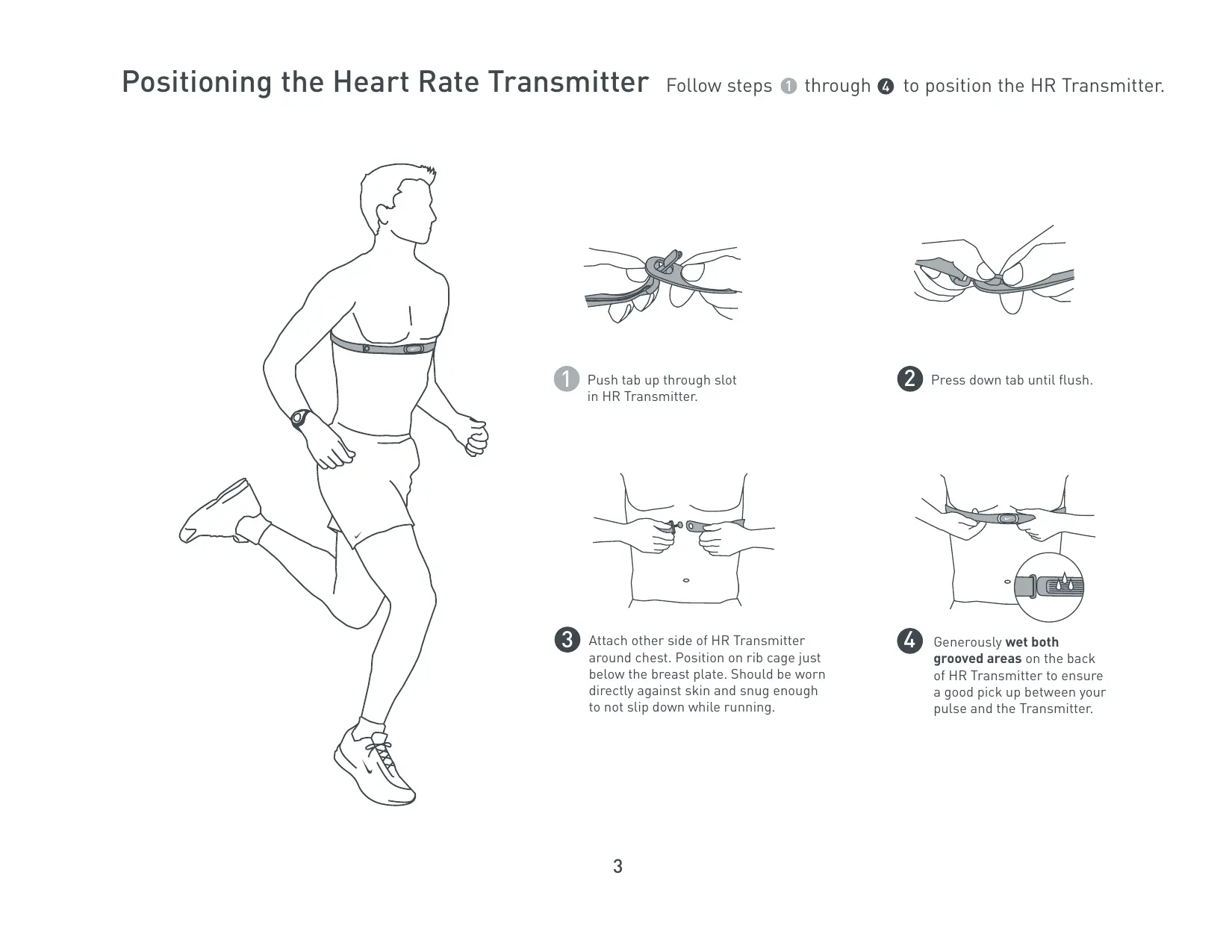

Push tab up through slot in HR Transmitter.

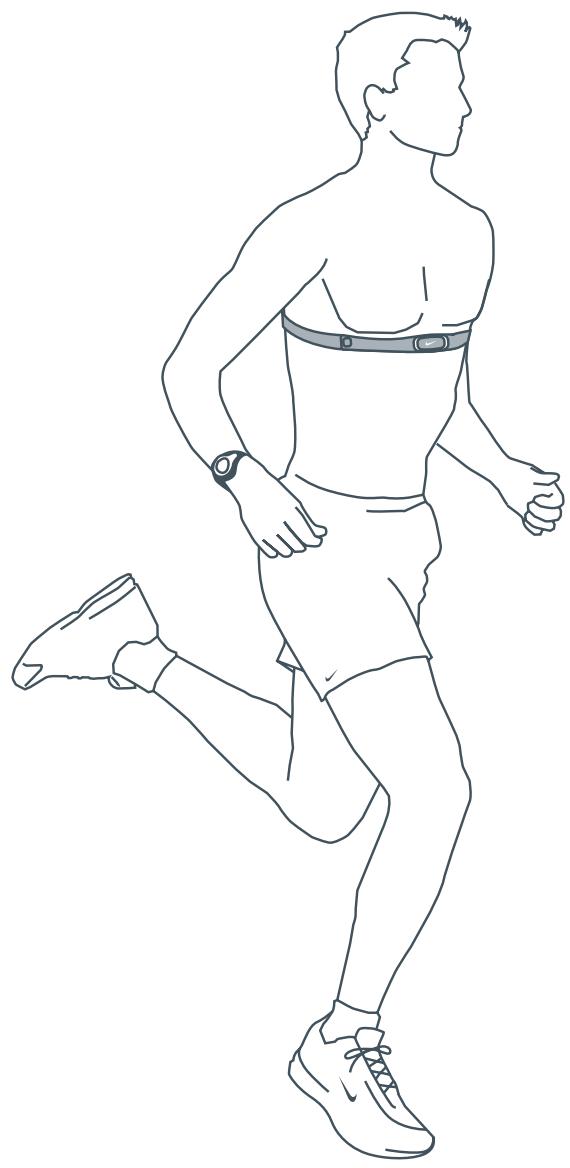

Attach other side of HR Transmitter around chest. Position on rib cage just below the breast plate. Should be worn directly against skin and snug enough to not slip down while running.

Press down tab until flush.

Generously wet both grooved areas on the back of HR Transmitter to ensure a good pick up between your pulse and the Transmitter.

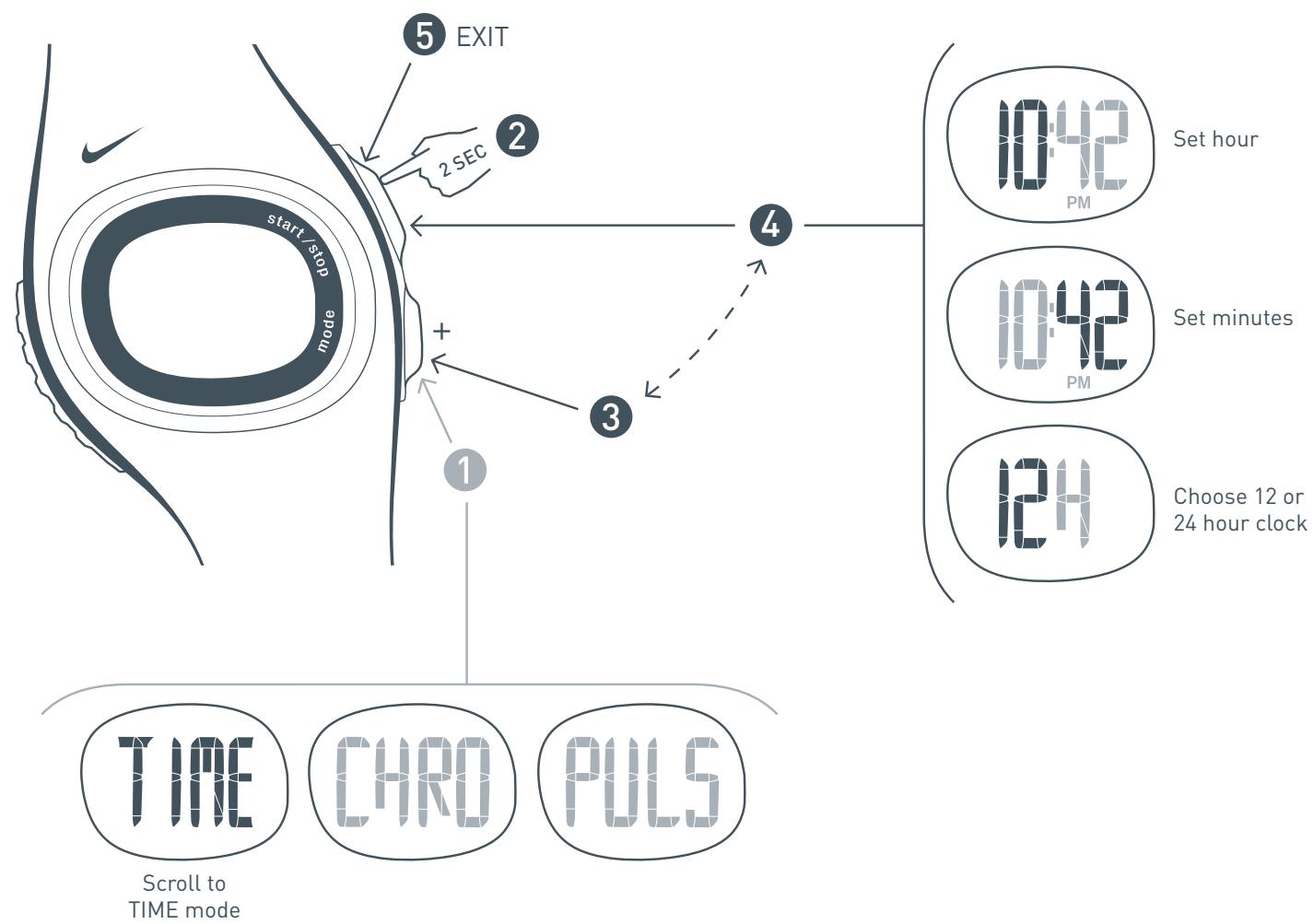

Follow steps 1 through 5 to set the time.

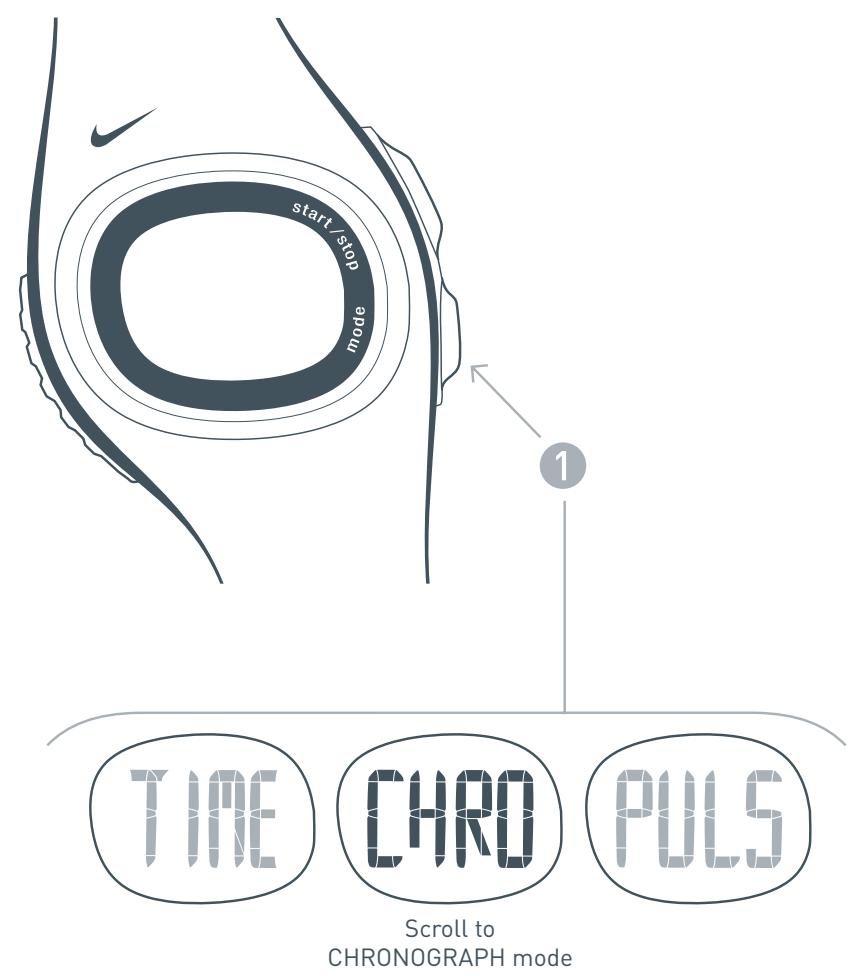

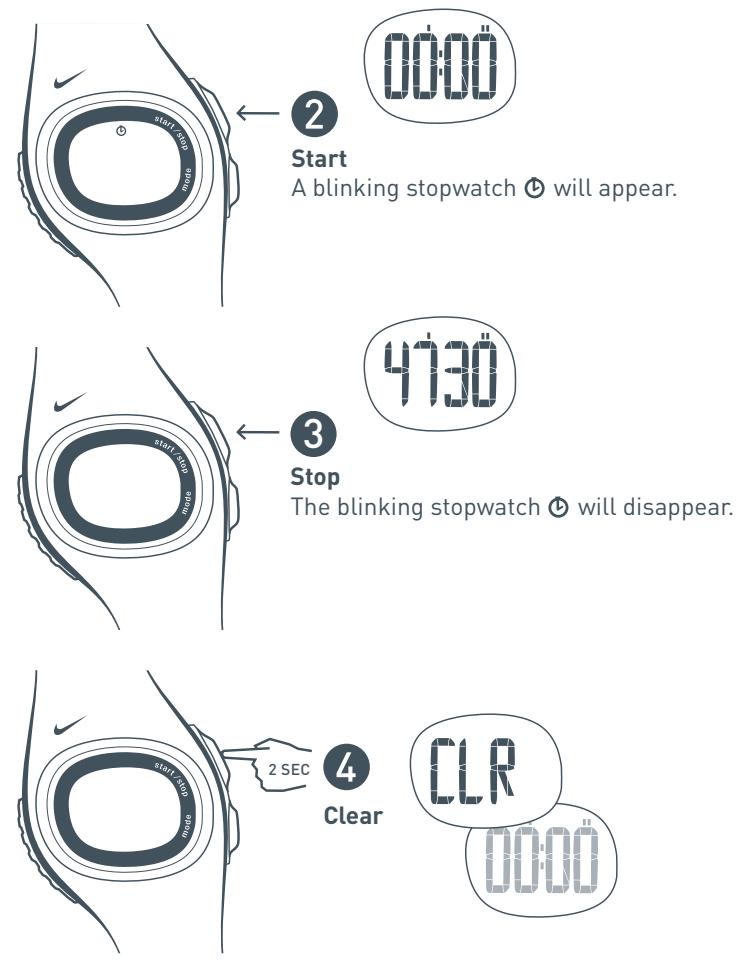

Follow steps ① through ④ to use the chronograph.

PUL5

Viewing Heart Rate

PULSE mode displays your current heart rate.

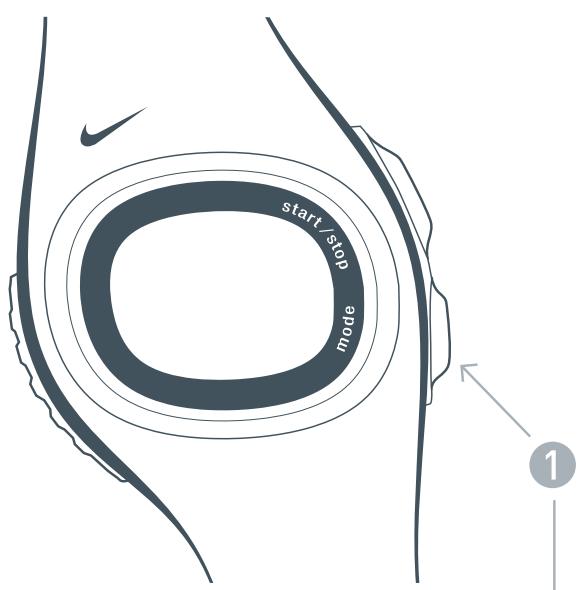

Scroll to

PULSE mode

No Heart Rate Displayed

If you see three blinking lines in the display, the watch is not receiving transmission from the Heart Rate Transmitter. See page 4 Positioning the Heart Rate Transmitter or page 8 Troubleshooting.

Heart Rate Displayed

The blinking heart will appear.

Troubleshooting

No heart rate displayed on watch:

The grooved sensors may not be wet enough. Wet and try again. It is recommended that you wear the Heart Rate Transmitter directly against your skin. If you are wearing the HR Transmitter over clothing, try getting the clothing wet also.

The HR Transmitter may not be positioned correctly.
Make sure the grooved sensors are flat against the skin.

Heart rate reading on watch is erratic or stops:

You may need to replace the battery in the HR Transmitter .

Sources of electromagnetic fields like appliances, computers and power lines can cause interference. Change your location.

This product complies with EN60601-1-2

Watch display is frozen:

The display of your watch may "freeze" due to static electricity or recent battery replacement. If this occurs, press and hold both buttons at the same time. This will erase the data in the memory and allow you to reset the watch to the factory settings.

Press and hold both buttons at the same time to reset the watch to the factory settings.

Specifications

IP code: IPX8

Applied Part: Type CF

Storage: Standard Conditions (within operating temperature)

Watch

Water Resistant up to 30 Meters:

Designed for underwater performance to a depth of 99 feet (30 m).

ATTENTION: Water damage will occur if watch buttons are pressed while underwater!

Operating Temperature: -5 to 50^ Celsius

Material Specifications:

Crystal: Mineral Glass

Case: Polycarbonate

Buckle: Stainless Steel

Bezel: Stainless Steel

Caseback: Stainless Steel

Strap: Polyurethane

Mode Limits:

Chronograph: 23:59'59"

Heart Rate: 30 - 240 bpm

Heart Rate Transmitter

Water Resistant up to 30 Meters:

Wipe dry after use. Do not store among conductive material.

Operating Temperature: -5 to 50^ Celsius

Accuracy: ± 1% or ± 1% bpm, whichever larger (steady state)

Material Specifications:

Case: Polycarbonate

Strap: Urethane

Band: Elastic

Battery

WARNING! Keep watch batteries away from children. If swallowed, contact a doctor immediately.

WARNING! Batteries contain chemical substances. They should be disposed of properly according to local regulations.

Watch

Battery Type: CR2032 3V Lithium

Battery Life:

The battery is estimated to last 1.5 years depending on frequency

and use of certain features.

Battery Replacement:

Do not open watch back. Battery replacement must be performed by a certified Nike service center to retain a valid warranty. In addition to battery replacement, the service center will test movement, gaskets, water resistance and hardware, to further ensure the long-term care of your watch.

Heart Rate Transmitter

Battery Type: CR2032 3V Lithium

Battery Life:

The battery is estimated to last 1 year if HR Transmitter is used one hour per day.

1 Open the battery lid on the HR Transmitter with a coin by turning counter-clockwise.

Insert a CR2032, 3V lithium battery with the writing facing you. Do not touch the 2 contacts.

3 Replace the battery lid.
