TRIAX ARMORED II - Watch NIKE - Free user manual and instructions

Product type	Chronograph watch
Brand	NIKE
Model	TRIAX ARMORED II
Power source	Battery: Chrono SR920SW (silver oxide), Super SR920SW, Regular SR621SW
Main functions	Chronograph with 60-second and 60-minute counters, time display, hands calibration
Water resistance	100 meters (10 ATM)
Glass	Mineral
Bracelet	Solid stainless steel
Case	Stainless steel
Case back	Stainless steel
Buckle	Stainless steel
Care and cleaning	Clean with a soft dry cloth; avoid chemicals; have the battery replaced by an authorized center
Safety	Keep batteries out of reach of children; if swallowed, consult a doctor immediately; dispose of used batteries according to local regulations
Repairability	Do not open the watch back; any intervention must be carried out by an authorized Nike service center to preserve the warranty
General information	Nike chronograph watch, model TRIAX ARMORED II, with reset and calibration functions

Frequently Asked Questions - TRIAX ARMORED II NIKE

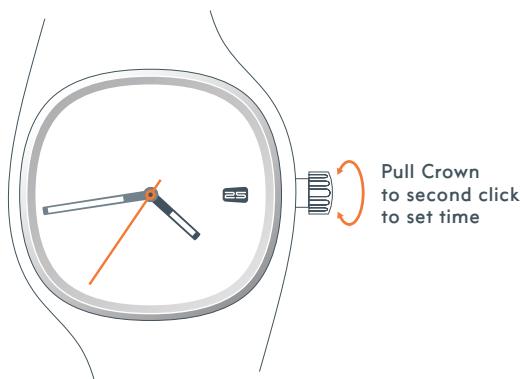

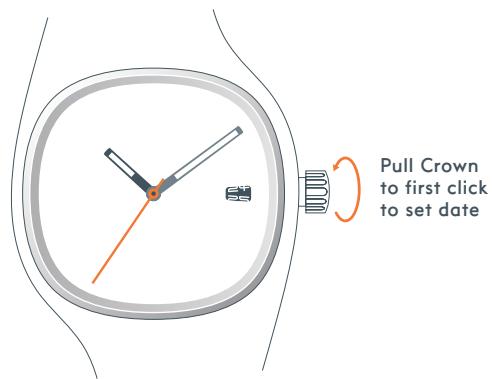

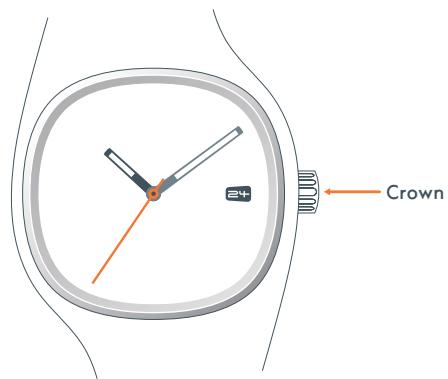

How to set the chronograph?

Pull the crown to the setting position (second click). Press the buttons to start/stop the chronograph. Use the pushers to reset if necessary.

How to reset the chronograph hands to zero?

If the hands do not return to zero, pull the crown to the second click to enter calibration mode. Press the buttons to adjust each hand individually.

What to do if the chronograph hands do not return to zero?

This indicates a need for calibration. Pull the crown to the second click, then use the pushers to reposition the hands to 12 o'clock.

How to change the battery?

Battery replacement must be carried out by an authorized Nike service center. Do not attempt to open the watch back yourself, as this will void the warranty and may damage the water resistance.

What is the battery life?

Battery life varies depending on usage, but a SR920SW (silver oxide) battery generally lasts 2 to 3 years for a chronograph.

Is the watch waterproof?

Yes, it is water resistant up to 100 meters (10 ATM). Suitable for swimming and snorkeling, but not for deep diving.

How to clean the watch?

Use a soft dry cloth to wipe the case and bracelet. Avoid chemical or abrasive products that could damage the mineral glass or steel.

Can I replace the battery myself?

No, it is not recommended to open the watch back. Replacement must be done by an authorized center to preserve water resistance and warranty.

What to do in case of battery ingestion?

Consult a doctor immediately. Batteries contain dangerous chemicals. Keep batteries out of reach of children.

Where can I get my watch repaired?

Contact an authorized Nike service center for any repairs or battery replacement. You can find a nearby center through the official Nike website.

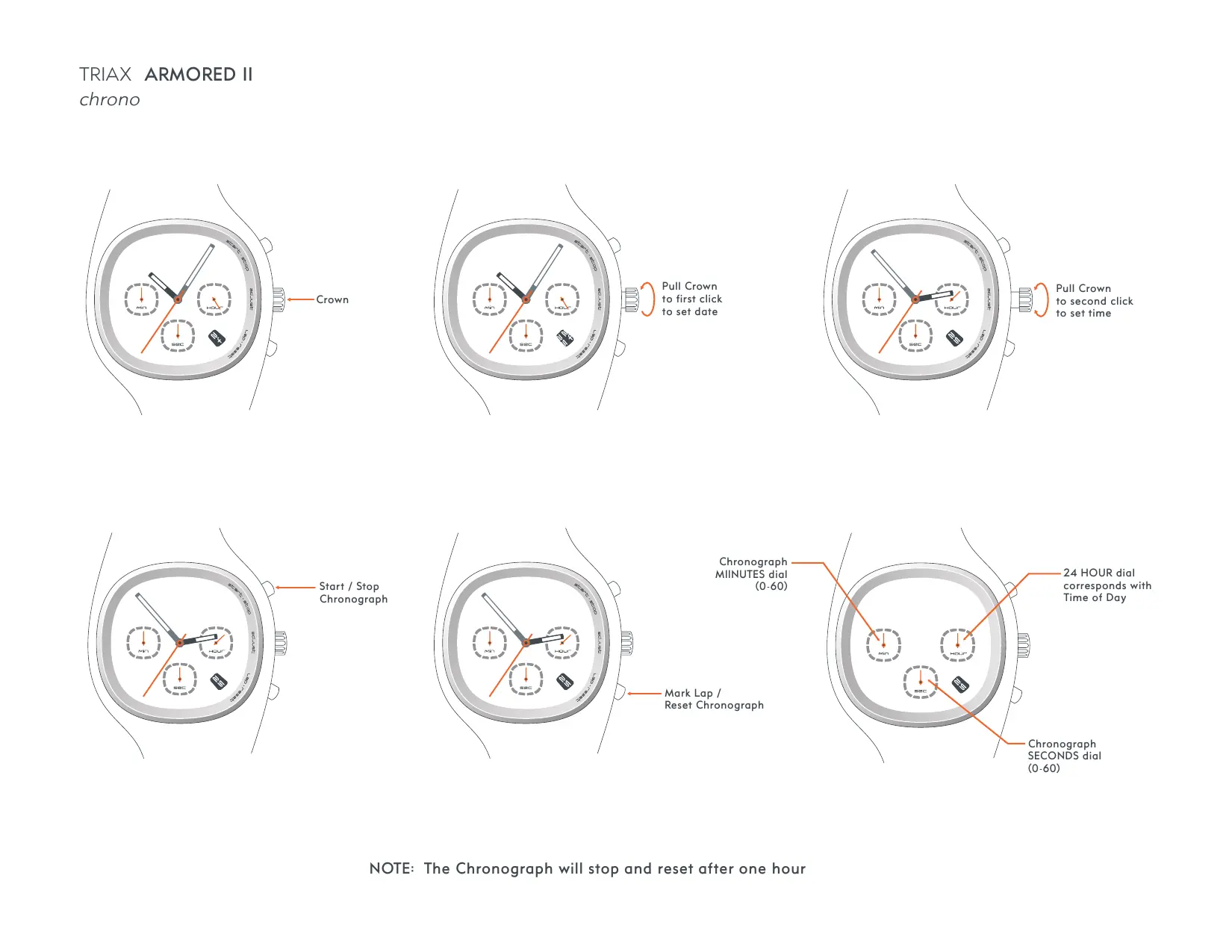

USER MANUAL TRIAX ARMORED II NIKE

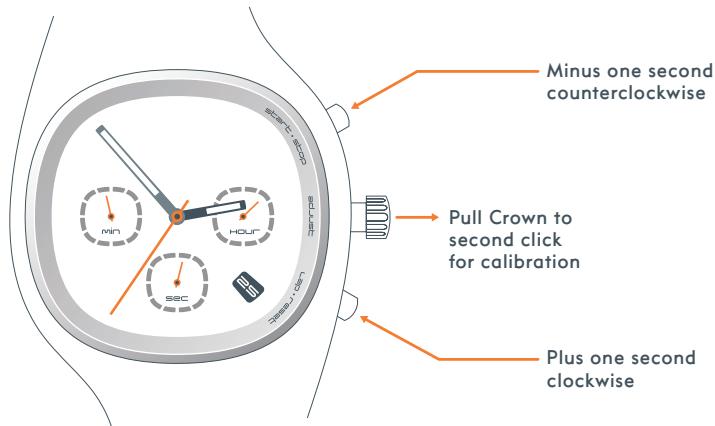

If the stopwatch dial hands do not return to "0" position, pull Crown to second click for calibration

NOTE: The MINUTES dial moves one minute for every 60 second revolution of the SECONDS dial

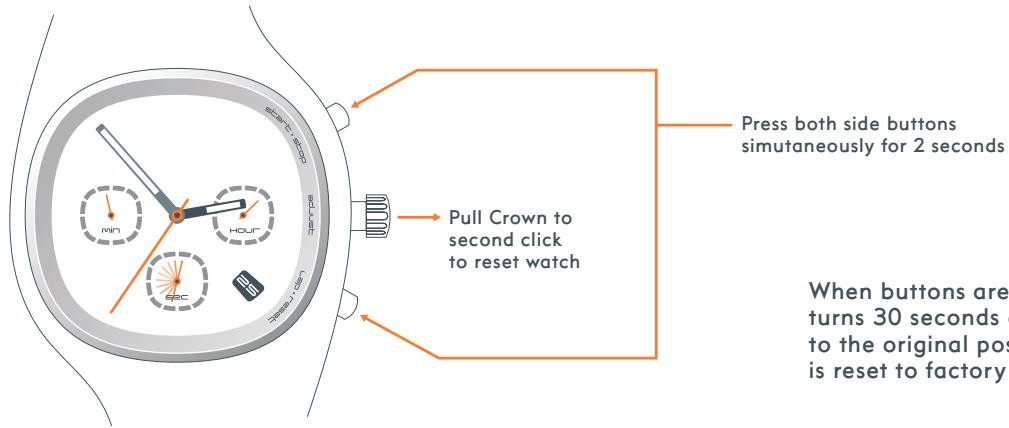

If the stopwatch dial hands move improperly, pull Crown to second click to reset watch

When buttons are released, the SECONDS dial turns 30 seconds counterclockwise and returns to the original position indicating the watch is reset to factory condition

H20 RESIST

100m

Material Specifications

CRYSTAL

Mineral Glass

STRAP

Solid Stainless Steel

CASE

Stainless Steel

CASEBACK

Stainless Steel

BUCKLE

Stainless Steel

Battery

CHRONO

SR920SW Silver Oxide

SUPER

SR920SW Silver Oxide

REGULAR

SR621SW Silver Oxide

Battery Replacement

Do not open watch back.

Battery replacement must be performed by a certified Nike service center to retain a valid warranty. In addition to battery replacement, the service center will test movement, gaskets, water resistance and hardware, to further ensure the long-term care of your watch.

Warning! Keep watch batteries away from children. If swallowed, contact a doctor immediately.

Warning! Batteries contain chemical substances. They should be disposed of properly according to local regulations.
