USER GUIDE SUPPLEMENT	R7 (782-810 MHz)
RENSEIGNEMENT SUPPLEMENTaires
BEDIENUNGSANLEITUNG ANHANG
INFORMATION ADICIONAL
INFORMAZIONI SUPPLEMENTARI

IMPORTANT!

The Shure UHF MK2 Series wireless systems meet the essential requirements of the European R&TTE Directive 99/5/E and are eligible to bear the CE marking.

Shure UHF components bearing the MK2 insignia are compatible with other Shure UHF Series wireless systems, but ARE NOT interchangeable with UHF Series components; i.e., a UHF MK2 Transmitter cannot be used with a U4 Receiver that lacks the MK2 insignia.

SPECIFICATIONS 2

UHF WIRELESS SYSTEM COMPATIBILITY GUIDE 7

MASTER LIST 57

CHARACTERISTIQUES TECHNIQUES 13

GUIDE DE COMPATIBILITÉ DU SYSTème UHF SANS FIL 19

LISTEMAITRESSE 57

SPEZIFIKATIONEN 25

KOMPATIBILITÄTSLEITFADEN FÜR UHF-R7-DRAHTLOSSYSTEM . 31

HAUPTLISTE 57

ESPECIFICACIONES 37

RF Carrier Frequency Range

782-810 MHz

Working Range

U1, U2: 152.4 m, minimum, under typical conditions; 487.6 m line of sight

NOTE: Actual working range depends on RF signal absorption, reflection and interference

Audio Frequency Response

50 to 15,000 Hz, ±2 dB.

NOTE: Overall system frequency response depends on the microphone element

Gain Adjustment Range

U1: 0 to 40 dB

U2:0 to 26 dB

Modulation

±15 kHz deviation compressor-expander system with pre-and de-emphasis

RF Power Output

U1, U2: 10 mW maximum

Dynamic Range

102 dB, A-weighted

RF Sensitivity

U4S	U4D
-110 dBm	-107 dBm
12 dB SINAD	12 dB SINAD
-105 dBm	-102 dBm
30 dB SINAD	30 dB SINAD

Image Rejection

90 dB typical

Spurious Rejection

75 dB typical

Ultimate Quieting (ref. 18 kHz deviation)

100 dB, A-weighted

Audio Polarity

Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 with respect to pin 3 of low impedance output and the tip of the high impedance 14 -inch output

System Distortion (ref. ± 18kHz deviation, 1kHz modulation)

0.3% Total Harmonic Distortion typical

Power Requirements

U1, U2: 1.5V AA alkaline battery (Duracell MN1500 recommended); Nicad optional

U4: 230 Vac, 50/60 Hz

Power Consumption:

U4S: 9.6 W min., 13.2 W max.

U4D: 12 W min.,16 W max.

UA840: 15 W min., 16 W max.

Battery Life (Typical)

U1, U2: 12 hours (with Duracell MN1500 1.5V AA alkaline battery)

Operating Temperature Range

-6to+49°C

NOTE: Battery characteristics may limit this range

U1 Transmitter Input (Figure 1)

Connector:	TA4F or LEMO connector (optional)
Input Configuration:	Unbalanced, active
Actual Impedance:	18 kΩ with lavalier microphone 1 MΩ with instrument cable
Maximum Input Level:	6 Vp-p (+7 dBV) for 1% THD at minimum gain setting using 1 kHz signal.
TA4F Connector Pin Assignments:	Pin 1: Tied to Ground Pin 2: Tied to +5 V Pin 3: Tied to Audio Pin 4: Tied thru 20kΩ Resistor to Ground. (On instrument adapter cable, Pin 4 floats)
LEMO Connector Pin Assignments:	Pin 1: Tied to Pin 3 and 10 kΩ to Ground Pin 2: +5V Pin 3: Tied to Pin 1 Pin 4: Tied to Shield (Ground for Positive Bias)
Voltage for Remote Power:	+5 V supplied to microphone cartridge

U1Transmitter Output

Connector:	SMA
Actual Impedance:	50 Ω
Nominal Output Level:	+10 dBm
Maximum Output Level:	+11 dBm
Pin Assignments:	Shell = Ground Center = Signal

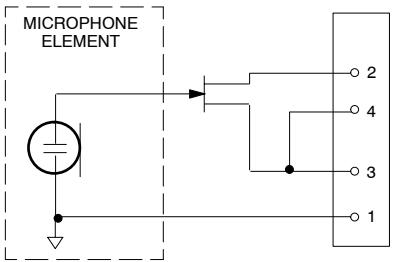

NOTE: Lavalier MIC TIES PINS 3 AND 4
TOGETHER; GUITAR CABLE DOES NOT.

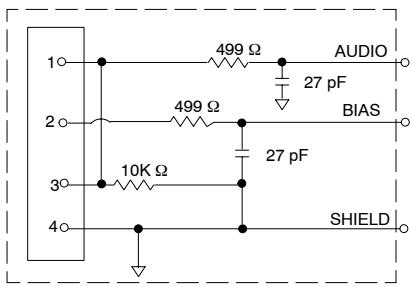

U1L (LEMO 4 PIN) MIC JACK BOARD

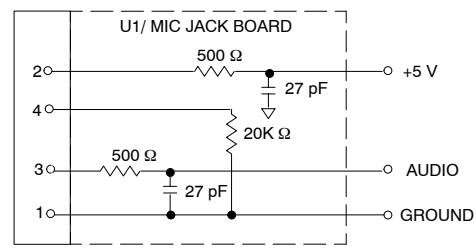

FIGURE 1

U2 Transmitter Input

Input Configuration:	Unbalanced, active
Actual Impedance:	20 kΩ
Maximum Input Level:	3 Vp-p (0.5 dBV) for 1% THD at minimum gain setting using 1 kHz signal.

U2 Transmitter Output

Connector:	SMA
Actual Impedance:	50 Ω
Nominal Output Level:	+10 dBm
Maximum Output Level:	+11 dBm
Pin Assignments:	Shell = Ground Center = Signal

U4S and U4D Receiver Input

Connector:	Antenna	Power Input	Network Interface
Connector Type:	BNC	IEC 320	25-Pin D
Actual Impedance:	50 Ω	—	—
Nominal Input Level:	-95 to -30 dBm	230 VAC, 50/60 Hz	CMOS Logic
Maximum Input Level:	+6 dBm (-20 dBm recommended)	254 VAC, 50/60 Hz	—
Pin Assignments:	Shell = Ground Center = Signal	IEC Standard	—
Voltage for Remote Power:	12 Vdc, 150 mA maximum	—	5V, 700 mA max.

U4S and U4D Receiver Output

Connector:	Monitor	Power Output	High Z Audio	Low Z Audio*	Network Interface
Output Configuration:	Unbalanced mono, 1/4 inch	—	Unbalanced	Balanced	See Appendix
Actual Impedance:	300 Ω	—	1 kΩ	30 Ω	See Appendix
Nominal Input Level:	—	230 VAC, 5A	—	—	CMOS Logic
Pin Assignments:	Tip = Hot Ring = Hot Sleeve = Gnd	IEC Standard	Tip = Hot Ring/ Sleeve = Gnd	1 = Ground 2 = Hot 3 = Hot	See Appendix
Voltage/ Current/ Phantom Power Protection?	Yes	—	Yes	Yes	5V, 700 mA resettable polyfuse

*Output Level: Microphone Level = Line Level - 30 dB

Overall Dimensions

U1: 92.2 mm L x 64.7 mm W x 24.2 mm D
U2/58:254 mm L x 50.8 mm Dia.
U2/BETA 58: 254 mm L x 53.2 mm Dia.
U2/87:228.6 mm x 49.2 mm Dia.
U2/BETA 87: 216 mm L x 50.8 mm Dia
U4S/U4D: 44.5 mm H x 482.6 mm W x 295.3 mm D

Net Weight

U1: 175.2 g without battery
U2/58, U2/BETA 58:375.6 g without battery
U2/87, U2/BETA 87:303.1 g without battery
U4S:3.30 kg
U4D: 3.85 kg

Certification

The Shure UHF series wireless systems meet the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking.

U1, U2: Conforms to European ETSI Standard EN 300 422 (Parts 1 and 2) and ETS 300445/A1.
U4, U4D: Conforms to European ETSI Standard EN 300 445/A1 and EN 60950.

THIS RADIO EQUIPMENT IS INTENDED FOR USE IN PROFESSIONAL ENTERTAINMENT (CLASS I) AND SIMILAR APPLICATIONS.

FURNISHED ACCESSORIES

Microphone Stand Adapter (U2) WA371
Zipper Bag (U1) 26A13
Zipper Bag (U2) 26A14
Screwdriver 80A498
Coaxial Antenna Cable (2 ft) UA802
1/2 Wave Antenna UA820A
Transmitter Carrying Case 65A8257
Carrying Case Insert 29B1577

OPTIONAL ACCESSORIES

Instrument Adapter Cable (U1) WA302, WA304
TA4F Female 4-Pin Connector (U1) WA330
In-Line Audio Switch (U1) . WA360
1.8 Meter (6 ft) Receiver-Mixer Cable (14 " phone to XLR) . WA410
7.6 Meter (25 ft) Antenna Extension Cable UA825
15.2 Meter (50 ft) Antenna Extension Cable UA850
30.4 Meter (100 ft) Antenna Extension Cable . UA8100
In-Line Active Remote Antenna Kit (782 - 810 MHz) UA830A
Antenna/Power Distribution System, 230 Vac UA845MA
Directional Antenna UA870A

REPLACEMENT PARTS

Hardware Kit (screwdriver, mounting feet, cable clamps) 90VL1371
Bulkhead Adapters for Front-Mounting Antennas 95A8647
230 VAC Power Cord (Schuko mains connector) 95A8247
304 mm (12 in.) Daisy-Chain Power Cord (230 V) 95A8678
SM58® Cartridge with Grille (U2/58) R158
BETA 58A Cartridge with Grille (U2/BETA 58) R179
SM87 Cartridge with Grille (U2/87) R165
BETA 87 Cartridge with Grille (U2/BETA 87) R166
Matte SilverGrille (U2/58) RK143G
Matte SilverGrille(U2/BETA58) RK265G
Matte SilverGrille (U2/BETA 87) RK313G
BlackGrille(U2/87) RK214G
BlackGrille(U2/BETA58) RK323G
BlackGrille(U2/BETA87) RK324G
Belt Clip (U1) 53A8247A
Antenna (U1) 95A8646
Antenna (U2) 95A2029

LICENSE INFORMATION

Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.

R&TTE CONFORMITY INFORMATION

IMPORTANT! Shure Models U1 and U2 Transmitters meet the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking. C∈ O682 ①

Shure Model U4 Receivers meet the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking. C€

THIS RADIO EQUIPMENT IS INTENDED FOR USE IN MUSICAL PROFESSIONAL ENTERTAINMENT AND SIMILAR APPLICATIONS.

NOTE: THIS RADIO APPARATUS MAY BE CAPABLE OF OPERATING ON SOME FREQUENCIES NOT AUTHORIZED IN YOUR REGION. PLEASE CONTACT YOUR NATIONAL AUTHORITY TO OBTAIN INFORMATION ON AUTHORIZED FREQUENCIES FOR WIRELESS MICROPHONEPRODUCTS IN YOU REGION

Frequency Range of Apparatus: 692 MHz - 862 MHz

Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements.

Shure Transmitters Models U1 and U2 may be used in the countries and frequency ranges listed in Table 1.

NOTE: Shure recommends that you maintain a 500 kHz separation between each receiver channel in the U4D dual channel receivers. Please contact the Shure Customer Service Department (1-800-434-3350) if you need additional information or assistance in frequency selection and setup.

TABLE 1

Country Code	U1-M3, U2-M3 (692 - 716 MHz)	U1-R3, U2-R3 (774 - 782 MHz)	U1-R7, U2-R7 (782 - 810 MHz)	U1-R6, U2-R6 (800 - 820 MHz)	U1-R2, U2-R2 (800 - 320 MHz)	U1-S2, U2-S2 (838 - 862 MHz)
A	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
B	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
CH	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
D	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
E	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
F	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	*
GB	692-716 MHz*	774-782 MHz*	782-810 MHz*	*	*	838-862 MHz*
GR	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
I	692-716 MHz*	774-782 MHz*	782-810 MHz*	*	*	*
IRL	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
L	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
NL	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
P	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
DK	*	*	800-810 MHz*	800-820 MHz*	800-830 MHz*	*
FIN	*	*	800,1-810 MHz*	800,1-819,9 MHz*	800,1-819,9 MHz*	*
N	*	*	800-810 MHz*	800-820 MHz*	800-830 MHz*	*
S	*	*	800-810 MHz*	800-814 MHz*	800-814 MHz*	*
All Other Countries	*	*	*	*	*	*

*Please contact your national authority for information on available legal frequencies for your area and legal use of the equipment.

UHF WIRELESS SYSTEM COMPATIBILITY GUIDE

Table 2 provides a convenient overview of frequency-compatible systems in the 782.000 to 810.000 MHz band. Each of the primary groups contains multiple channels which are all compatible with one another.

Up to 21 Shure UHF Wireless Systems can be operated simultaneously within the 782-810 MHz band if using the discontinued UHF MA versions, or a combination of MA and MK2 R7 versions. Up to 30 UHF MK2 systems can be operated simultaneously within the 782-810 MHz band.

Note: Combinations of Shure UHF transmitters and UHF MK2 receivers, and combinations of UHF MK2 transmitters and UHF receivers are NOT supposed to work together. Always use a transmitter-receiver combination of the same frequency version (R7 or MA).

Groups 1-9 MUST be chosen if the installation includes a pure setup of Shure UHF Wireless Systems (frequency version MA only) or a mixed setup of Shure UHF and Shure UHF MK2 Wireless Systems (frequency versions MA and R7)

Groups 1-9 CAN be chosen if the installation includes a pure setup of Shure UHF MK2 Wireless Systems (frequency version R7 only).

Groups 10-28 CAN ONLY be chosen if the installation includes a pure setup of Shure UHF MK2 Wireless Systems (frequency version R7 only).

Note: Contact your national frequency authority to get information on the available legal frequencies for your area and legal use of the equipment.

FREQUENCY GROUP CONTENTS

Groups 1-9*

Groups 1-3 provide the maximum number of compatible frequencies between 782 and 810 MHz.

Groups 4-5 comply with the French regulations for user group A.

Groups 6-7 comply with the French regulations for user group B.

Groups 8-9 comply with the French regulations for user group C.

Groups 10-28*

Groups 10-11 provide the maximum number of compatible frequencies between 782 and 810 MHz.

Groups 12-13 comply with the French regulations for user group A.

Groups 14-15 comply with the French regulations for user group B.

Groups 16-17 comply with the French regulations for user group C.

Group 18 complies with the new German RegTP regulations for public users ("Nutzergruppe 4") using TV channels 61 to 63.

Group19 complies with the new German RegTP regulations for public users ("Nutzergruppe 4") using TV channels 62 to 63.

Group 20 complies with the new German RegTP regulations for users of "Nutzergruppe 3A" using TV channels 61 to 63.

Group 21 complies with the new German RegTP regulations for users of "Nutzergruppe 3B" using TV channels 61 to 63.

Group 22 complies with the new German RegTP regulations for users of "Nutzergruppe 3C" using TV channels 61 to 63.

Group 23 complies with the new German RegTP regulations for users of "Nutzergruppe 3D" using TV channels 61 to 63.

Group 24 complies with the new German RegTP regulations for broadcast users of "Nutzergruppe 2" using TV channels 61 to 63.

Group 25 complies with the new German RegTP regulations for broadcast users of "Nutzergruppe 1" using TV channels 61 to 63.

Group 26 complies with the new German RegTP regulations for broadcast users of "Nutzergruppe 1" using TV channel 61.

Group 27 complies with the new German RegTP regulations for broadcast users of "Nutzergruppe 2" using TV channel 61.

Group 28 provides the maximum number of compatible frequencies between 782 and 790 MHz (TV channel 60).

• Contact your national frequency authority to get information on the available legal frequencies for your area and legal use of the equipment. Contact the Shure Customer Service Department if you need additional information on frequency selection and system setup.

R7 FREQUENCY BAND (782 - 810 / 782,1 - 819,3 MHz)

TABLE 2
SYSTEM COMPATIBILITY GUIDE

Channel	Group 1	Group 2	Group 3	Group 4	Group 5	Group 6	Group 7	Group 8
1	782.250	782.500	783.250	783.750	809.250	782.100	809.500	782.300
2	782.875	783.625	784.750	784.500	808.500	784.025	808.775	783.000
3	784.625	784.125	785.500	786.500	807.250	784.775	806.500	784.225
4	785.250	785.125	785.500	787.500	806.750	786.225	805.700	784.975
5	787.250	786.375	788.375	790.750	803.750	788.900	805.300	788.000
6	788.750	788.375	789.000	791.750	803.250	790.100	804.500	788.700
7	790.750	788.875	791.500	793.250	801.750	792.025	802.975	789.900
8	791.250	790.750	792.250	793.750	801.250	792.775	802.225	797.100
9	792.500	792.375	792.750	794.500	800.500	796.900	798.500	798.300
10	794.875	793.375	793.750	795.500	799.500	798.500	796.900	800.225
11	795.500	794.625	794.375	796.250	795.500	802.225	792.775	800.975
12	796.625	798.125	796.750	799.500	794.500	802.975	792.025	804.000
13	800.000	799.375	797.750	800.500	791.250	804.500	790.100	805.100
14	801.750	799.875	801.500	801.250	790.750	805.700	788.900	805.900
15	803.000	801.375	803.000	803.250	788.250	806.500	786.225	808.225
16	804.000	802.000	803.500	804.250	787.500	808.775	784.775	808.975
17	804.750	803.625	804.750	806.750	786.500	809.500	782.100
18	807.125	804.875	806.750	807.500	784.500
19	808.375	807.000	807.500	808.500	783.250
20	809.000	808.750	809.000	809.750	782.750
21	809.875	809.625	809.625
22
23
24
25
26
27
28
29
30
...	MA/R7	MA/R7	MA/R7	MA/R7	MA/R7	MA/R7	MA/R7	MA/R7
Channel	Group 9	Group 10	Group 11	Group 12	Group 13	Group 14	Group 15	Group 16
1	808.225	782.175	782.025	782.750	809.750	782.100	809.500	782.300
2	807.000	782.775	782.475	783.250	808.500	782.500	808.775	783.000
3	806.300	783.675	783.225	784.500	807.500	784.775	806.500	786.025
4	804.700	785.025	785.025	786.500	806.750	786.225	805.700	786.775
5	804.000	785.775	785.925	787.500	804.250	788.500	805.300	788.700
6	802.775	786.225	786.675	788.250	803.250	788.900	802.225	790.300
7	798.300	788.025	787.125	790.750	801.250	789.700	800.025	791.000
8	796.700	789.525	787.725	791.250	800.500	790.100	798.500	792.225
9	794.775	790.725	788.475	794.500	799.500	792.025	796.500	792.975
10	792.225	791.175	789.075	795.500	796.250	792.775	792.775	796.700
11	791.000	791.775	790.575	799.500	795.500	796.500	792.025	797.100
12	789.100	792.225	791.175	800.500	794.500	798.500	790.100	800.225
13	788.000	793.125	791.625	801.250	793.750	800.025	789.700	800.975
14	784.225	793.575	792.825	801.750	793.250	802.225	788.900	802.775
15	783.000	794.625	795.975	803.250	791.750	805.300	788.500	805.100
16	782.300	795.825	796.875	803.750	790.750	805.700	786.225	805.900
17		797.175	797.625	806.750	787.500	806.500	784.775	806.300
18		797.925	798.075	807.250	786.500	808.775	782.500	807.000
19		798.375	798.825	808.500	784.500	809.500	782.100
20		800.325	799.425	809.250	783.750
21		801.075	800.475
22		801.525	801.075
23		802.875	801.825
24		803.325	802.275
25		803.925	803.025
26		805.725	804.375
27		806.175	805.425
28		806.925	805.875
29		809.175	808.875
30		809.775	809.625
...	MA/R7	R7	R7	R7	R7	R7	R7	R7
Channel	Group 17	Group 18	Group 19	Group 20	Group 21	Group 22	Group 23	Group 24
1	808.975	790.925	798.900	791.200	790.300	790.350	790.400	790.400
2	808.225	791.400	799.475	791.900	791.250	790.750	790.800	790.800
3	807.000	792.525	800.625	792.325	791.950	791.300	791.350	791.350
4	806.300	793.100	801.125	792.900	792.375	792.425	792.475	792.475
5	804.700	793.425	801.450	793.725	792.950	793.000	793.875	793.050
6	804.000	793.925	801.925	794.825	793.775	793.825	794.975	793.875
7	802.775	795.05	803.050	795.350	794.875	794.925	795.500	794.975
8	798.300	795.675	803.575	796.100	795.400	795.450	796.725	795.500
9	797.100	800.600	804.800	796.575	796.150	796.675	797.700	796.725
10	794.775	801.150	806.850	801.725	796.625	797.650	799.350	797.700
11	794.025	802.025	807.475	802.825	798.700	801.825	803.500
12	792.975	802.325	808.650	803.350	801.775	803.450	805.700
13	792.225	803.075	809.175	804.100	803.400	805.650	806.400
14	789.900	804.825	809.475	804.575	804.150	806.350	806.800
15	788.700	805.200	809.975	807.200	804.625	806.750	808.475
16	784.225	805.800		807.900	806.700	807.300	809.050
17	783.000	806.950		808.325	807.250	808.425	809.875
18	782.300	807.475		808.900	807.950
19		809.425			808.375
20		809.950			808.950
21
22
23
24
25
26
27
28
29
30
...	R7	R7	R7	R7	R7	R7	R7	R7

Channel	Group 25	Group 26	Group 27	Group 28
1	790.100	790.100	790.100	782.100
2	790.500	790.500	790.600	782.400
3	791.050	791.050	791.575	783.300
4	791.750	791.750	792.050	783.600
5	792.175	792.175	792.800	784.050
6	792.750	792.750	793.325	784.350
7	793.575	793.575	794.425	784.950
8	794.675	794.675	795.250	785.250
9	795.200	795.200	795.825	787.050
10	795.950	795.950	796.250	787.350
11	796.425	796.425	796.950	787.950
12	797.400	797.400	797.500	788.250
13	797.900	797.900	797.900	788.700
14	803.200			789.000
15	806.100			789.600
16	806.500			789.900
17	807.050
18	807.750
19	808.175
20	808.750
21	809.575
22
23
24
25
26
27
28
29
30
...	R7	R7	R7	R7

CHARACTERISTIQUES TECHNIQUES

U1:92,2x64,7x24,2mm(L×Lr×P)

U2/58 : 254 x 50,8 mm (L x diam.)

U4S/U4D:44,5x482,6x295,3mm (H×Lr×P)

Poids net

ACCESSIONS EN OPTION

U2/58, L x Durchmesser: 254 mm x 50,80 mm

U2/58A,LxDurchmesser: 254~mm× 53,2mm

U2/87, L x Durchmesser: 228,6 mm x 49,2 mm

U2/BETA 87, L x Durchmesser: 216 mm x 50,8 mm

U4S/U4D: H x B x T: 44,5 mm x 482,6 mm x 295,3 mm

Nettogewicht

12 W min; 16 W max (U4D)

15 W min; 16 W max (UA840)

Antenna (U1) 95A8646

Antenna (U2) 95A2029

The Shure "Master List" (Groups A1-B3) is a comprehensive index of all system frequencies offered in the 782-810 MHz band, in 25kHz increments.

LISTEMAITRESSE

EU DECLARATION OF CONFORMITY

We, of

Shure Incorporated

222 Hartrey Avenue

Evanston, IL 60202-3696, U.S.A

Declare under our sole responsibility that the following products

Model: U1

Description:

Transmitter, Body-Pack

Model: U2

Description:

Transmitter, Hand-Held

Model: U4S, U4D

Description:

Receiver, MARCAD Diversity

to which this Declaration relates

are in conformity to European Low Voltage Directive 73/23/EEC

are in conformity to European EMC Directive 89/336/EEC

are in conformity to European R&TTE Directive 1999/5/EC

are in conformity to European CE Marking Directive 93/68/EEC

The products comply with the following product family, harmonized or national standards:

ETS 300 445:1996

ETS 300 422:12/95

ETS 300 445:1996

ETS 300 422:12/95

ETS 300 445:1996

Manufacturer: Shure Incorporated

Signed

Date

July 2, 2001

Name, Title

Craig Kozokar

Project Engineer, Corporate Quality, Shure Incorporated

European Contact: Shure Europe GmbH

Wannenacker Str. 28, 74078 Heilbronn, Germany

Phone: [phone], Fax: [phone]
