USER MANUAL R2 SHURE

USER GUIDE SUPPLEMENT

R2 (800-830 MHz)

RENSEIGNEMENT SUPPLEMENTAIRES

The Shure UHF MK2 Series wireless systems meet the essential requirements of the European R&TTE Directive 99/5/E and are eligible to bear the CE marking.

Shure UHF components bearing the MK2 insignia are compatible with other Shure UHF Series wireless systems, but ARE NOT interchangeable with UHF Series components; i.e., a UHF MK2 Transmitter cannot be used with a U4 Receiver that lacks the MK2 insignia.

SPECIFICATIONS 2

UHF WIRELESS SYSTEM COMPATIBILITY GUIDE 7

MASTER LIST 51

CHARACTERISTIQUES TECHNIQUES 11

GUIDE DE COMPATIBILITE DU SYSTème UHF SANS FIL 17

LISTEMAITRESSE 51

SPEZIFIKATIONEN 21

KOMPATIBILITÄTSLEITSFADEN FÜR UHF-R2-DRAHTLOSESSYSTEME .. 27

HAUPTLISTE 51

ESPECIFICACIONES 31

RF Carrier Frequency Range

800-830 MHz

Working Range

U1, U2: 152.4 m, minimum, under typical conditions; 487.6 m line of sight

NOTE: Actual working range depends on RF signal absorption, reflection and interference

Audio Frequency Response

50 to 15,000 Hz, ±2 dB.

NOTE: Overall system frequency response depends on the microphone element

Gain Adjustment Range

U1:0to40dB

U2: 0 to 26 dB

Modulation

±18 kHz deviation compressor-expander system with pre-and de-emphasis

RF Power Output

U1, U2: 10 mW maximum

Dynamic Range

102 dB, A-weighted

RF Sensitivity

U4S	U4D
-110 dBm	-107 dBm
12 dB SINAD	12 dB SINAD
-105 dBm	-102 dBm
30 dB SINAD	30 dB SINAD

Image Rejection

90 dB typical

Spurious Rejection

75 dB typical

Ultimate Quieting (ref. ± 18kHz deviation)

100 dB, A-weighted

Audio Polarity

Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 with respect to pin 3 of low impedance output and the tip of the high impedance 14 -inch output

System Distortion (ref. ± 18 kHz deviation, 1kHz modulation)

0.3% Total Harmonic Distortion typical

Power Requirements

U1, U2: 1.5V AA alkaline battery (Duracell MN1500 recommended); Nicad optional

U4: 230 Vac, 50/60 Hz

Power Consumption:

U4S: 9.6 W min., 13.2 W max.

U4D: 12 W min.,16 W max.

UA845: 15 W min., 16 W max.

Battery Life (Typical)

U1, U2: 12 hours (with Duracell MN1500 1.5V AA alkaline battery)

Operating Temperature Range

-6.7°C to +49°C

NOTE: Battery characteristics may limit this range

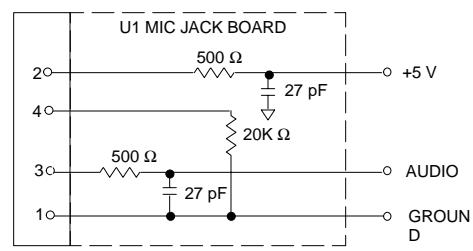

U1 Transmitter Input (Figure 1)

Connector:	4-pin miniature (TA4F) or LEMO
Input Configuration:	Unbalanced, active
Actual Impedance:	18 kΩ with lavalier microphone 1 MΩ with instrument cable
Maximum Input Level:	6 Vp-p (+7 dBV) for 1% THD at minimum gain setting using 1 kHz signal.
TA4F Connector Pin Assignments:	Pin 1: Tied to Ground Pin 2: Tied to +5 V Pin 3: Tied to Audio Pin 4: Tied thru 20kΩ Resistor to Ground. (On instrument adapter cable, Pin 4 floats)
LEMO Connector Pin Assignments:	Pin 1: Tied to Pin 3 and 10 kΩ to Ground Pin 2: +5V Pin 3: Tied to Pin 1 Pin 4: Tied to Shield (Ground for Positive Bias)
Voltage for Remote Power:	+5 V supplied to microphone cartridge

NOTE: LAVALIER MIC TIES PINS 3 AND 4 TOGETHER; GUITAR CABLE DOES NOT

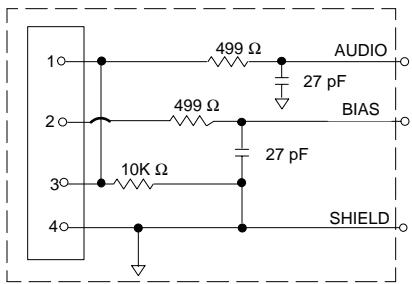

U1L (LEMO 4 PIN) MIC JACK BOARD
FIGURE 1

U1 Transmitter Output

Connector:	SMC
Actual Impedance:	50 Ω
Nominal Output Level:	+10 dBm
Maximum Output Level:	+11 dBm
Pin Assignments:	Shell = Ground Center = Signal

U2 Transmitter Input

Input Configuration:	Unbalanced, active
Actual Impedance:	20 kΩ
Maximum Input Level:	3 Vp-p (0.5 dBV) for 1% THD at minimum gain setting using 1 kHz signal.

U2 Transmitter Output

Connector:	SMC
Actual Impedance:	50 Ω
Nominal Output Level:	+10 dBm
Maximum Output Level:	+11 dBm
Pin Assignments:	Shell = Ground Center = Signal

U4S and U4D Receiver Input

Connector:	Antenna	Power Input	Network Interface
Connector Type:	BNC	IEC	25-Pin D
Actual Impedance:	50 Ω	—	—
Nominal Input Level:	-95 to -30 dBm	90–230 VAC, 50/60 Hz	CMOS Logic
Maximum Input Level:	+6 dBm (-20 dBm recommended)	230 VAC, 50/60 Hz	—
Pin Assignments:	Shell = Ground Center = Signal	IEC Standard	—
Voltage for Remote Power:	12 Vdc, 150 mA maximum	—	5V, 700 mA max.

U4S and U4D Receiver Output

Connector:	Monitor	Power Output	High Z Audio	Low Z Audio*	Network Interface
Output Configuration:	Unbalanced mono, 1/4 inch	—	Un-balanced	Balanced	See Appendix
Actual Impedance:	300 Ω	—	1 kΩ	30 Ω	See Appendix
Nominal Input Level:	—	90 to 230 VAC, 5A	—	—	CMOS Logic
Pin Assignments:	Tip = Hot Ring = Hot Sleeve = Gnd	IEC Standard	Tip = Hot Ring/ Sleeve = Gnd	1 = Ground 2 = Hot 3 = Hot	See Appendix
Voltage/ Current/ Phantom Power Protection?	Yes	—	Yes	Yes	5V, 700 mA resettable polyfuse

*Output Level: Microphone Level = Line Level - 30 dB

Overall Dimensions

U1: 92.2 mm L x 64.7 mm W x 24.2 mm D
U2/58:254 mm L x 50.8 mm Dia.
U2/BETA 58: 254 mm L x 53.2 mm Dia.
U2/87:228.6 mm x 49.2 mm Dia.
U2/BETA 87: 216 mm L x 50.8 mm Dia
U4S/U4D: 44.5 mm H x 482.6 mm W x 295.3 mm D

Net Weight

U1: 175.2 g without battery
U2/58, U2/BETA 58: 375.6 g without battery
U2/87, U2/BETA 87: 303.1 g without battery
U4S: 3.30 kg
U4D: 3.85 kg

Certification

The Shure UHF series wireless systems meet the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking.
U1, U2: Conforms to European ETSI Standard EN 300 422 (Parts 1 and 2) and ETS 300445/A1.
U4, U4D: Conforms to European ETSI Standard EN 300 445/A1 and EN 60950.
THIS RADIO EQUIPMENT IS INTENDED FOR USE IN PROFESSIONAL ENTERTAINMENT (CLASS I) AND SIMILAR APPLICATIONS.

FURNISHED ACCESSORIES

Microphone Stand Adapter (U2) WA371
Zipper Bag (U1) 26A13
Zipper Bag (U2) 26A14
Screwdriver 80A498
Coaxial Antenna Cable (2 ft) UA802
1/2 Wave Antenna UA820A
Transmitter Carrying Case 65A8257
Carrying Case Insert 29B1577

OPTIONAL ACCESSORIES

Instrument Adapter Cable (U1) WA302
Instrument Adapter Cable w/ right angle 1/4" plug (U1) WA304
TA4F Female 4-Pin Miniature Connector (U1) WA330
In-Line Audio Switch (U1) . WA360
1.8 Meter (6 ft) Receiver-Mixer Cable (^1 / _4 " phone to XLR) . WA410
7.6 Meter (25 ft) Antenna Extension Cable UA825
15.2 Meter (50 ft) Antenna Extension Cable UA850
30.4 Meter (100 ft) Antenna Extension Cable . UA8100
In-Line Active Remote Antenna Kit (800 - 830 MHz) UA830MB
Antenna/Power Distribution System, 230 Vac UA845MB
Directional Antenna UA870MB

REPLACEMENT PARTS

Hardware Kit (screwdriver, mounting feet, cable clamps) 90VL1371

Bulkhead Adapters for Front-Mounting Antennas 95A8647

230 VAC Power Cord (Schuko mains connector) 95A8247

304 mm (12 in.) Daisy-Chain Power Cord (230 V) 95A8678

SM58® Cartridge with Grille (U2/58) R158

BETA 58A Cartridge with Grille (U2/BETA 58) R179

SM87 Cartridge with Grille (U2/87) R165

BETA 87A Cartridge with Grille (U2/BETA 87) R166

BETA 87C Cartridge with Grille (U2/BETA 87) . RPW100

Matte SilverGrille (U2/58) RK143G

Matte SilverGrille (U2/BETA 58) RK265G

Matte Silver Grille (U2/BETA 87) RK313G

BlackGrille(U2/87) RK214G

BlackGrille(U2/BETA58) RK323G

BlackGrille(U2/BETA87) RK324G

Belt Clip (U1) 53A8247A

Antenna (U1) 95A8646

Antenna (U2) 95A2029

LICENSE INFORMATION

Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.

R&TTE CONFORMITY INFORMATION

IMPORTANT! Shure Models U1 and U2 Transmitters meet the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking. C€ O682 ①

Shure Model U4 Receivers meet the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking. C€

THIS RADIO EQUIPMENT IS INTENDED FOR USE IN MUSICAL PROFESSIONAL ENTERTAINMENT AND SIMILAR APPLICATIONS.

NOTE: THIS RADIO APPARATUS MAY BE CAPABLE OF OPERATING ON SOME FREQUENCIES NOT AUTHORIZED IN YOUR REGION. PLEASE CONTACT YOUR NATIONAL AUTHORITY TO OBTAIN INFORMATION ON AUTHORIZED FREQUENCIES FOR WIRELESS MICROPHONEPRODUCTS IN YOU REGION

Frequency Range of Apparatus: 692 MHz - 862 MHz

Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements.

Shure Transmitters Models U1 and U2 may be used in the countries and frequency ranges listed in Table 1.

TABLE 1

Country Code	U1-M3, U2-M3 (692 - 716 MHz)	U1-R3, U2-R3 (774 - 782 MHz)	U1-R7, U2-R7 (782 - 810 MHz)	U1-R6, U2-R6 (800 - 820 MHz)	U1-R2, U2-R2 (800 - 320 MHz)	U1-S2, U2-S2 (838 - 862 MHz)
A	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
B	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
CH	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
D	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
E	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
F	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	*
GB	692-716 MHz*	774-782 MHz*	782-810 MHz*	*	*	838-862 MHz*
GR	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
I	692-716 MHz*	774-782 MHz*	782-810 MHz*	*	*	*
IRL	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
L	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
NL	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
P	692-716 MHz*	774-782 MHz*	782-810 MHz*	800-820 MHz*	800-830 MHz*	838-862 MHz*
DK	*	*	800-810 MHz*	800-820 MHz*	800-830 MHz*	*
FIN	*	*	800,1-810 MHz*	800,1-819,9 MHz*	800,1-819,9 MHz*	*
N	*	*	800-810 MHz*	800-820 MHz*	800-830 MHz*	*
S	*	*	800-810 MHz*	800-814 MHz*	800-814 MHz*	*
All Other Countries	*	*	*	*	*	*

*Please contact your national authority for information on available legal frequencies for your area and legal use of the equipment.

UHF WIRELESS SYSTEM COMPATIBILITY GUIDE

Table 2 provides a convenient overview of frequency-compatible systems in the 800.000 to 830.000 MHz band. Each of the primary groups contains multiple channels which are all compatible with one another. Contact the Shure Customer Service Department if you need additional information on frequency selection and system setup.

Up to 22 Shure UHF Wireless Systems can be operated simultaneously within the 800-830 MHz band if using the discontinued UHF MB versions, or a combination of MB and MK2 R2 versions. Up to 31 UHF MK2 systems can be operated simultaneously within the 800-830 MHz band.

Note: Combinations of Shure UHF transmitters and UHF MK2 receivers, and combinations of UHF MK2 transmitters and UHF receivers are NOT supposed to work together. Always use a transmitter–receiver combination of the same frequency version (R2 or MB).

Groups 1-9 MUST be chosen if the installation includes a pure setup of Shure UHF Wireless Systems (frequency version MB only) or a mixed setup of Shure UHF and Shure UHF MK2 Wireless Systems (frequency versions MB and R2)

Groups 1-9 CAN be chosen if the installation includes a pure setup of Shure UHF MK2 Wireless Systems (frequency version R2 only).

Groups 10-25 CAN ONLY be chosen if the installation includes a pure setup of Shure UHF MK2 Wireless Systems (frequency version R2 only).

FREQUENCY GROUP CONTENTS

Groups 1-9*

Group 1 complies with the German RegTP regulations for public users ("Nutzergruppe 4^ ). It can also be used in Sweden

Groups 2-8 are for fixed indoor installations ("Nutzergruppe 5") in Germany (TV Channels 62-63).

Group 9 is limited to frequencies between 800.100 MHz and 819.900 MHz. (Due to Danish regulations, these frequencies are centered on 0.1 MHz frequencies).

Groups 10-25*

Groups 10-12 provide the maximum number of compatible frequencies between 800 and 830 MHz.

Groups 13-15 complies with the new German RegTP regulations for public users ("Nutzergruppe 4") in the new legal frequency range up to 814 MHz.

Group 16 complies with the new German RegTP regulations for users of "Nutzergruppe 3A" in the new legal frequency range up to 814 MHz (TV Channels 62-63).

Group 17 complies with the new German RegTP regulations for users of "Nutzergruppe 3B" in the new legal frequency range up to 814 MHz (TV Channels 62-63).

Group 18 complies with the new German RegTP regulations for users of "Nutzergruppe 3C" in the new legal frequency range up to 814 MHz (TV Channels 62-63).

Group 19 complies with the new German RegTP regulations for users of "Nutzergruppe 3D" in the new legal frequency range up to 814 MHz (TV Channels 62-63).

Group 20 complies with the new German RegTP regulations for broadcast users of "Nutzergruppe 2" in the new legal frequency range up to 814 MHz (TV Channels 62-63).

Group 21 complies with the new German RegTP regulations for broadcast users of "Nutzergruppe 1" in the new legal frequency range up to 814 MHz (TV Channels 62-63).

Groups 22 and 23 are preferred for use in Sweden and provide the maximum number of compatible frequencies between 800 and 814 MHz.

Groups 24 and 25 are preferred for use in the Netherlands and provide the maximum number of compatible frequencies between 806 and 814 MHz (European TV channel 63).

*Please contact your national frequency authority to get information on the available legal frequencies for your area and legal use of the equipment.

TABLE 2
SYSTEM COMPATIBILITY GUIDE R2 FREQUENCY BAND (800 - 830 MHz)

Channel	Group 1	Group 2	Group 3	Group 4	Group 5	Group 6	Group 7	Group 8
1	802.325	802.050	802.300	803.050	803.625	803.375	802.425	802.300
2	803.075	802.675	803.925	804.550	804.125	804.500	803.300	803.050
3	804.800	804.425	804.925	805.300	805.000	806.875	803.675	804.050
4	805.200	805.050	806.175	808.175	807.125	808.000	806.675	806.550
5	806.850	807.050	808.175	808.800	808.500	808.875	807.125	807.550
6	809.150	808.550	808.675	811.300	808.875	810.125	808.925	808.300
7	810.150	810.550	810.550	812.050	809.625	810.625	809.425	808.800
8	812.800	811.050	812.175	812.550	811.000	811.875	810.425	809.550
9	819.100	812.300	813.175	813.550	811.625	812.875	813.425	810.550
10	819.600	814.675	814.425	814.175	816.375	814.625	813.925	811.300
11	821.150	815.300	817.925	816.550	818.750	818.125	815.925	811.800
12	821.750	816.425	819.175	817.550	819.375	819.500	816.800	813.300
13	822.950	819.800	819.675	821.275	820.875	820.125	818.175	819.300
14	825.150	821.550	821.175	822.800	821.375	822.625	818.675	819.800
15	826.000	822.800	821.800	823.300	822.125	823.125	820.925	821.800
16	827.100	823.800	823.425	826.550	822.625	823.875	821.675	822.175
17	827.600	824.550	824.675	827.300	823.625	825.375	822.050	823.050
18	828.800	826.925	826.800	828.800	826.125	826.375	822.675	825.675
19		828.175	828.550		826.875	827.875	825.675	826.050
20		828.800			827.375	828.625	826.175	827.050
21		829.675			828.250	829.125	827.675	827.550
22					829.375	829.875	828.925	828.675
23
24
25
26
27
28
29
30
31
...	MB/R2	MB/R2	MB/R2	MB/R2	MB/R2	MB/R2	MB/R2	MB/R2

Channel	Group 9	Group 10	Group 11	Group 12	Group 13	Group 14	Group 15	Group 16
1	802.200	800.300	800.550	801.350	800.575	800.650	800.650	800.325
2	803.100	800.900	801.150	802.400	801.175	801.150	801.125	800.900
3	803.500	801.800	802.050	803.300	801.925	801.925	801.450	801.725
4	804.300	802.550	802.800	806.150	802.225	802.250	801.925	802.825
5	805.900	803.600	803.850	806.750	803.050	803.025	802.550	803.350
6	806.700	805.250	805.500	808.850	803.725	803.550	803.025	807.200
7	807.100	806.150	806.400	809.300	804.775	806.900	804.775	807.900
8	808.000	807.650	807.900	810.050	805.075	807.450	808.575	808.325
9	814.100	808.550	808.800	810.500	808.625	808.550	809.175	808.900
10	814.600	809.000	809.250	811.400	809.175	809.100	809.925	809.725
11	815.700	809.900	810.150	812.600	809.925	809.425	810.250	810.825
12	816.100	811.100	811.350	813.050	810.250	809.925	811.050	811.350
13	818.400	811.550	811.800	813.650	811.050	811.025	811.625	812.100
14	818.800	812.450	812.700	814.100	811.600	811.700	812.775
15	819.600	812.900	813.150	815.000	812.775	812.800	813.150
16		815.150	815.400	815.750	813.100	813.300	813.775
17		815.600	815.850	817.100	813.775
18		816.500	816.750	817.550
19		817.550	817.800	819.800
20		819.350	819.600	820.850
21		819.800	820.050	821.300
22		820.850	821.100	823.100
23		823.700	823.950	823.550
24		824.300	824.550	824.450
25		824.750	825.000	825.200
26		825.650	825.900	826.100
27		826.400	826.650	827.900
28		827.300	827.550	828.800
29		827.900	828.150	829.400
30		828.350	828.600	829.850
31		829.550	829.800
...	MB/R2	R2	R2	R2	R2	R2	R2	R2

Channel	Group 17	Group 18	Group 19	Group 20	Group 21	Group 22	Group 23	Group 24	Group 25
1	800.375	800.425	800.475	800.050	800.175	800.025	800.025	806.000	806.000
2	800.950	801.000	801.050	800.800	800.750	800.475	800.475	806.450	806.450
3	801.775	801.825	801.875	801.325	801.575	801.075	801.075	807.050	807.050
4	802.875	802.925	802.975	802.425	802.675	801.525	801.825	807.500	807.500
5	803.400	803.450	803.500	803.250	803.200	802.275	803.025	808.250	808.250
6	804.150	806.750	806.800	803.825	803.950	802.875	803.925	808.850	808.700
7	805.600	808.425	808.475	804.250	804.425	803.925	804.675	809.300	809.300
8	806.700	809.000	809.050	804.950	805.900	804.375	805.125	809.900	810.200
9	808.950	809.825	809.875	805.500	806.500	806.025	805.875	810.800	810.800
10	809.775	810.925	810.975	808.800	809.575	807.075	806.475	811.400	811.250
11	811.400	811.450	811.500	809.325	810.675	807.975	806.925	811.850	812.000
12	812.150	812.675	812.725	810.425	811.200	808.575	808.125	812.450	812.450
13	812.625	813.650	813.700	811.250	811.950	809.025	808.575	813.200	813.050
14	813.600			811.825	812.425	809.625	809.475	813.650	813.500
15				812.250	813.400	810.375	810.075
16				812.950	813.900	810.825	810.975
17				813.500		811.425	811.425
18						812.325	812.175
19						812.925	812.625
20						813.375	813.525
21						813.975	813.975
22
23
24
25
26
27
28
29
30
31
...	R2	R2	R2	R2	R2	R2	R2	R2	R2

CHARACTERISTIQUES TECHNIQUES

U1:92,2x64,7x24,2mm(LxLr×P)

U2/58: 254 x 50,8 mm (L x diam.)

U2/BETA 58A: 254 × 53,2 mm (L x diam.)

U2/87: 228,6 x 49,2 mm (L x diam.)

U2/BETA 87:216 x 50,8 mm (L x diam.)

U4S/U4D:44,5x482,6x295,3mm (H×Lr×P)

Poids net

U2/58, L x Durchmesser: 254 mm x 50,80 mm

U2/BETA 58A, L x Durchmesser: 254 mm x 53,2 mm

U2/87, L x Durchmesser: 228,6 mm x 49,2 mm

U2/BETA 87, L x Durchmesser: 216 mm x 50,8 mm

U4S/U4D: H x B x T: 44,5 mm x 482,6 mm x 295,3 mm

Nettogewicht

12 W min; 16 W max (U4D)

15 W min; 16 W max (UA845)

Antenna (U1) 95A8646

Antenna (U2) 95A2029

The Shure "Master List" (Groups A1-B4) is a comprehensive index of all system frequencies offered in the 800-830 MHz band, in 25 kHz increments.

LISTEMAITRESSE

EU DECLARATION OF CONFORMITY

We, of

Shure Incorporated 222 Hartrey Avenue

Evanston, IL 60202-3696, U.S.A.

Declare under our sole responsibility that the following products

Model: U1

Description:

Transmitter, Body-Pack

Model: U2

Description:

Transmitter, Hand-Held

Model: U4

Description:

Receiver, MARCAD Diversity

to which this Declaration relates

are in conformity to European Low Voltage Directive 73/23/EEC

are in conformity to European EMC Directive 89/336/EEC

are in conformity to European R&TTE Directive 1999/5/EC

are in conformity to European CE Marking Directive 93/68/EEC

The products comply with the following product family, harmonized or national standards:

ETS 300 445:1996

ETS 300 422:12/95

ETS 300 445:1996

ETS 300 422:12/95

ETS 300 445:1996

Manufacturer: Shure Incorporated

Signed

Date

July 2, 2001

Name, Title

Craig Kozokar

Project Engineer, Corporate Quality, Shure Incorporated

European Contact: Shure Europe GmbH

Wannenacker Str. 28, 74078 Heilbronn, Germany

Phone: [phone], Fax: [phone]
