BV 2300 - Garden vacuum ATIKA - Free user manual and instructions

Product Type	Vacuum/Blower/Leaf Shredder
Brand	ATIKA
Model	BV 2300
Motor Power	2300 W
Supply Voltage	230 V ~ 50 Hz
Rotation Speed (without adjustment)	13000 min⁻¹
Rotation Speed (with adjustment)	6000 – 13000 min⁻¹
Airflow in Blowing Mode	270 km/h
Air Volume in Suction Mode	840 m³/h
Measured Sound Power Level	100 dB(A)
Guaranteed Sound Power Level	101 dB(A)
Sound Pressure Level	80 dB(A)
Weight	4.4 kg
Collection Bag Capacity	35 / 45 L
Hand-Arm Vibration	< 2.5 m/s²
Intended Use	Private (gardens): leaves, grass, small branches, paper
Required Protective Equipment	Safety goggles, ear muffs, gloves, non-slip shoes
Electrical Protection	Residual current circuit breaker 30 mA, fuse 10 A
Collection Bag Maintenance	Empty after each use, hand wash with soapy water
Storage	Dry and locked place, out of reach of children
Warranty	2 years
Spare Parts	Original only

Frequently Asked Questions - BV 2300 ATIKA

How to start the BV 2300 vacuum?

Before starting, make sure the collection bag is properly installed and the zipper is closed. Plug the device into a grounded outlet with a 30 mA residual current circuit breaker. Set the switch to the suction or blowing position, then turn on the device.

What to do if suction is weak?

First check if the collection bag is full (empty it if necessary). Make sure the tube is not blocked. For models with speed adjustment, increase the speed. Also check that the extension cable has sufficient cross-section (at least 1.5 mm² for max 25 m).

Can I vacuum wet leaves?

It is not recommended to vacuum wet leaves as they are harder to pick up and may clog the device. It is better to collect leaves in dry weather as soon as they fall.

How to clean the collection bag?

Empty the bag after each use. Shake it and brush it. If heavily soiled, hand wash in soapy water (at least once a year). If the zipper is stiff, rub the teeth with dry soap. Replace the bag if damaged.

What is the warranty for the ATIKA BV 2300 vacuum?

The warranty is 2 years from delivery, covering defects in materials or workmanship. It does not cover damage due to misuse or normal wear (turbine, bag). Repairs must be carried out by the manufacturer or an authorized service center.

What types of debris can I vacuum or blow?

The device is designed for light, dry materials: leaves, grass, small branches, small pieces of paper. Never vacuum metal, stones, glass, liquids (especially flammable), burning or smoking objects.

How to adjust the speed of the vacuum?

The BV 2300 model allows progressive adjustment of the rotation speed between 6000 and 13000 min⁻¹. Use the adjustment knob to adapt the suction or blowing power as needed.

What safety precautions should I take?

Always wear safety goggles, ear muffs, gloves, and non-slip shoes. Do not wear loose clothing. Ensure no person or animal is within 5 meters. Never point the tube at people or animals. Unplug the device before any maintenance.

How to store the vacuum after use?

Unplug the device. Clean it with a cloth or brush (no water or solvents). Store in a dry, locked place out of reach of children. For long-term storage, perform a thorough cleaning.

Where to find spare parts for the BV 2300?

Use only original ATIKA spare parts. Contact the manufacturer or an authorized service center. Repairs must be carried out by the service center. Do not use non-original parts.

USER MANUAL BV 2300 ATIKA

Garden vac, blower, shredder

Operating Manual – Safety instructions – Spare parts

Black-and-white photo of a person holding a latika-branded tool against a leafy background (no text or symbols visible on the tool itself)

D		Elektrische Geräte gehören nicht in den Hausmüll. Geräte, Zubehör und Verpackung einer umweltfreundlichen Wiederverwertung zuführen.
GB		Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling.
F		Ne jamais jeter un appareil électrique aux ordures ménagères. Les appareils, les accessoires et les emballages doivent être recyclés de façon non-polluante.
CZ		Elektrospotřebiče nepatří do domácího odpadu. Zařízení, příslušenství a obal odevzdávejte k recyklaci šetřící životní prostředí.
DK		Elektriske apparater må ikke bortskaffes med dagrenovationen. Apparater, tilbehør og emballagen skal tilføres en miljøvenlig genanvendelse.
FIN		Sähkölaitteet eivät kuulu talousjätteisiin. Laitteet, lisälaitteet ja pakkausmateriaali on poistettava ympäristöystävälliseen kierrätykseen.
H		A tönkrement elektromos készülék nem való a háztartási hulladékba. A készüléket, tartozékait és csomagolását környezetkímélő módon juttassa hulladékba.
HR		Električni uređaji ne spadaju u kućni otpad. Uređaji, pribor i ambalažu odložite u skladu sa zaštitom okoliša.
I		Non gettare le apparecchiature elettriche tra i rifiuti domestici. Smaltire nel modo corretto apparecchiature, accessorii e imballaggio.
N		Elektriske apparater må ikke kastes sammen med husholdningsavfallet.Apparat, tilbehør og emballasje må innleveres for miljøvennlig gjenbruk.
NL		Elektrische toestellen behoren niet in de huisafval. Toestellen, toebehoren en verpakking naar een milieuvriendelijk recycling brengen.
PL		Urządzenia elektryczne nie nadają się do wyrzucania z odpadami domowymi. Urządzenia, osprzęt i opakowania należy poddawać ekologicznemu recyklingowi.
RUS		Электрические приборы не удалять в бытовой мусор. Устройства, принадлежности и упаковку направлять на утилизацию в соответствии с требованиями окружающей среды.
S		Elektriska apparater bör inte slängas i softunnan. Apparater, tillbehör och förpackning skall återvinnas på miljövänligt sätt.
SK		Elektrické prístroje nepatria do domového odpadu. Pre prístroje, príslušenstvo a balenie zaistite recykláciu, ktorá nezaťažuje životné prostredie.
SLO		Električni aparati ne spadajo med hišne odpadke. Aparate, pribor in embalažo posredujte ekološki reciklažni postaji.

Close-up of a handheld electric shock absorber with black wires and connector (no text or symbols visible)

Einschalten

Close-up of a black tool with circular features and an arrow indicating direction (no text or symbols)

Close-up of a mechanical tool with directional arrow indicating movement, surrounded by icons (no text or symbols)

max Xin min

Close-up of a black tool with circular features and an arrow indicating direction (no text or symbols)

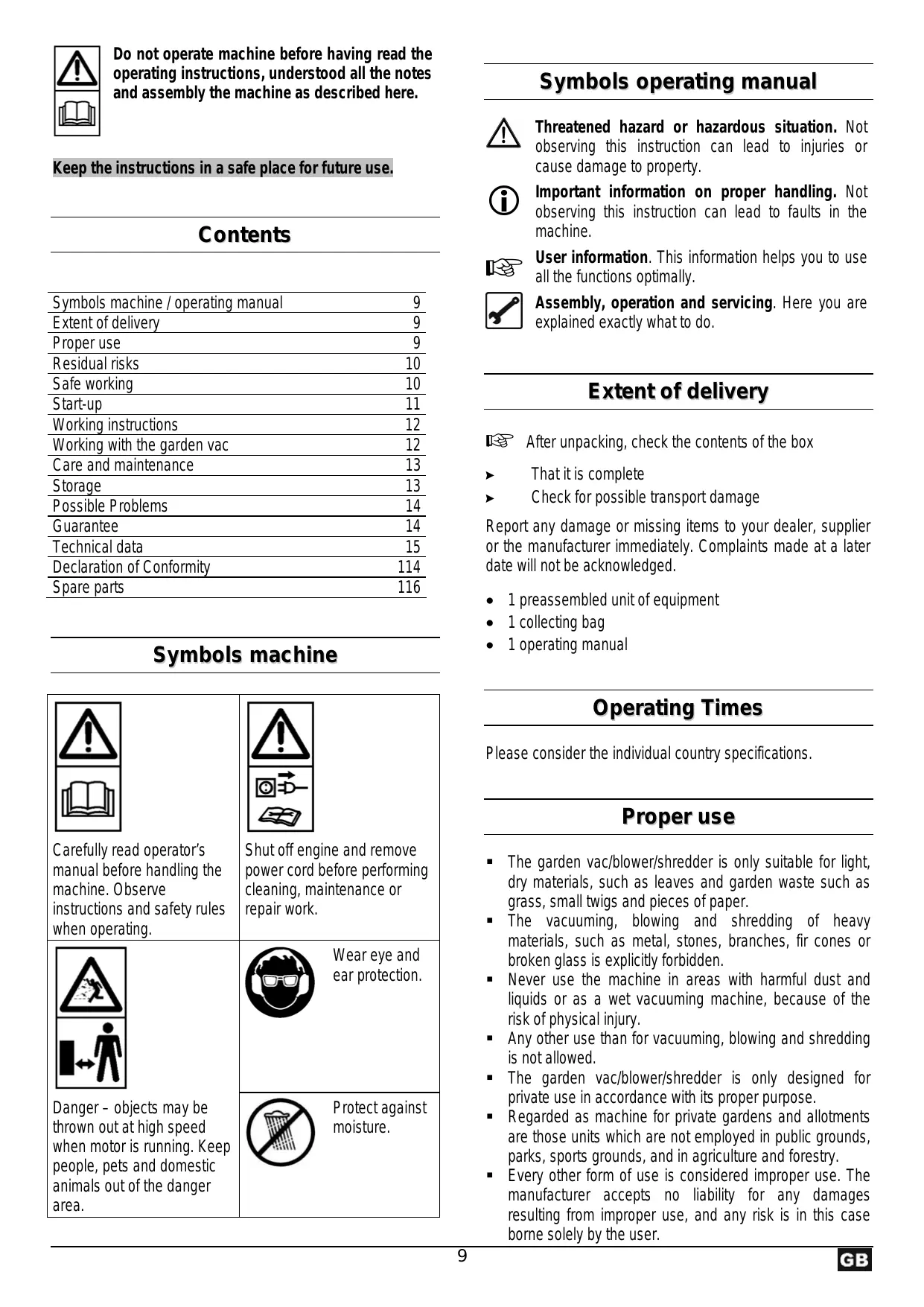

Do not operate machine before having read the operating instructions, understood all the notes and assembly the machine as described here.

Keep the instructions in a safe place for future use.

Contents

Symbols machine / operating manual	9
Extent of delivery	9
Proper use	9
Residual risks	10
Safe working	10
Start-up	11
Working instructions	12
Working with the garden vac	12
Care and maintenance	13
Storage	13
Possible Problems	14
Guarantee	14
Technical data	15
Declaration of Conformity	114
Spare parts	116

Symbols machine

Carefully read operator's manual before handling the machine. Observe instructions and safety rules when operating.	Shut off engine and remove power cord before performing cleaning, maintenance or repair work.
	[Wear eye and ear protection.]
Danger - objects may be thrown out at high speed when motor is running. Keep people, pets and domestic animals out of the danger area.	Protect against moisture.

Symbols operating manual

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling. Not observing this instruction can lead to faults in the machine.

User information. This information helps you to use all the functions optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

Extent of delivery

After unpacking, check the contents of the box

▶ That it is complete
▶ Check for possible transport damage

Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

• 1 preassembled unit of equipment
- 1 collecting bag
• 1 operating manual

Operating Times

Please consider the individual country specifications.

Proper use

• The garden vac/blower/shredder is only suitable for light, dry materials, such as leaves and garden waste such as grass, small twigs and pieces of paper.
• The vacuuming, blowing and shredding of heavy materials, such as metal, stones, branches, fir cones or broken glass is explicitly forbidden.
• Never use the machine in areas with harmful dust and liquids or as a wet vacuuming machine, because of the risk of physical injury.
• Any other use than for vacuuming, blowing and shredding is not allowed.
• The garden vac/blower/shredder is only designed for private use in accordance with its proper purpose.
• Regarded as machine for private gardens and allotments are those units which are not employed in public grounds, parks, sports grounds, and in agriculture and forestry.

• Every other form of use is considered improper use. The manufacturer accepts no liability for any damages resulting from improper use, and any risk is in this case borne solely by the user.

• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.

• The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.
  ■ Unauthorised modifications at the garden vac will exempt the manufacturer from any liability for damages of any kind arising from this.
• Only persons who are familiarised with the device and informed about possible risks are allowed to prepare, operate and service this device. Repair works may only be carried out by us or by a customer service agent nominated by us.
• The machine may not be used in a potentially explosive environment or be exposed to the rain.

Residual risks

⚠️ Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the "Safety information" and the "Intended usage" as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Failure to observe the safety precautions can lead to injury to the operator or damage to property.
  ■ Stones and soil may be thrown off.
• Risk from electricity, by using non-standard electrical connections.
  ■ Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safe working

When improperly handled a garden vac may be dangerous. If electrical tools are used, the fundamental safety precautions must be met to preclude the risks of fire, electric shock and injuries to persons.

Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Pass the safety instructions on to all persons who work with the machine.
Keep these safety instructions in a safe place.

■ Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.

- Do not use the machine for unsuitable purposes (see "Normal intended use" and "Working with the vacuum cleaner").

- Ensure that you have stand in a secure standing position and maintain your balance at all times. Do not bend forwards.

- Be observant. Attend to what you do. Start working with rationality. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.

■ Wear suitable work clothes:

• do not wear loose-fitting clothes or jewellery; they can catch in moving parts.
• Gloves and nonskid footwear
  – Trousers to protect the legs

■ Wear protective clothing:

- safety goggles

- ear protection (Sound intensity level at workplace can exceed 85 dB (A))

- Within his area of work the operator is responsible for third parties.

■ Children and youngsters less than 16 years of age and people who have not read the operating manual must not operate the machine.

- Keep children away form machine.

- Never operate the machine if other persons are in the immediate vicinity.

- The user is responsible for accidents with other people or their property.

■ Never leave the saw unattended.

- Do not overload the machine! You work better and safer in the given performance range.

- Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.

- Faulty or damaged parts in the device must be replaced immediately.

■ Do not spray machine with water (this is hazardous due to live components).

- Switch the machine off and remove the mains plug from the socket when

– carrying out repair works
- carrying out servicing and repair works, removal of faults
– checking the leads to see whether these are caught up or damaged
– changing over from vacuuming to blowing
- transporting
– leaving unattended (even during short interruptions)
– unusual noises and vibrations

■ Thoroughly maintain your garden vac:

• Make sure that the ventilation apertures are free.
• Keep handles dry and free of oils and grease.
• Follow the maintenance instructions and the instructions for spool exchange.

■ Check the machine for possible damage

• Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function
• Check whether the parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the saw
• Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
• Damaged or illegible safety warning labels should be replaced immediately.

■ Store the unused machine in a dry locked place away from the reach of children.

Electrical safety

■ Design of the connection cable according to IEC 60245 (H 07 RN-F) with a core cross-profile section of at least

• 3 x 1.5 mm ^2 for cable lengths up to 25m

• 3 x 2.5 mm ^2 for cable lengths over 25m

• Longer power supply cables will cause a drop in voltage. The motor will not be able to provide its maximum performance and the operation of the machine will be impaired.
  ■ The coupling in the connection lead must be splashproof.

• When laying the connecting attachments, be sure that they do get crushed or bent, and that the plug-and-socket connection does not get wet.
• Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
• Regularly check the extension cables and replace them if they are damaged.
  ■ Do not use any defective connection cables.
• When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use.
  ■ Do not set up any provisional electrical connections.
  ■ Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault-current circuit breaker (30 mA).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations – especially regarding protective measures – must be observed.

Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.

Use only original spare parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Start-up

• Check that the machine is completely and correctly assembled.
  ■ Before using the shredder, make sure each time that
  – there are no faulty connections (tears, cuts, etc.)
  – there are no damage at the machine
• all screws are tight
  – check the hydraulic system for any possible leaks

Mains connection

• Compare the voltage given on the machine model plate e.g. 230 V with the mains voltage and connect the machine to the relevant and properly earthed plug.
  ■ Only use connection cables with sufficient diameters.
  ■ Do not use any defective connection cables.
• Connect the machine via a 30 mA fault current safety switch.

Fuse protection: 10 A

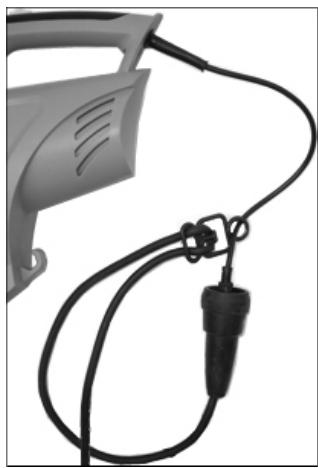

Mounting of the extension cable

1. Plug the female

connector of the extension cable on the male connector of the switch-connector combination.

1. Thread the extension cable through the pull relief device as a loop and hang it up.
2. Make sure that the extension cable has enough free motion.

Close-up of a handheld electric shock absorber with black cables and connector (no text or symbols visible)

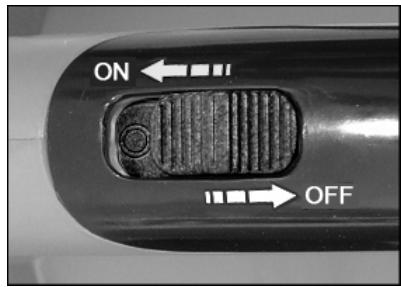

Switch on

Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

ON OFF

Working instructions

Before commencing work, ensure the following:

• The machine may only be operated by persons over the age of 16 years, and who have read and understood these operating instructions.
• Wear your safety gear (goggles/vizor, gloves) for protection from possible injuries.
  ■ Make sure to have a safe and tidied up work area. Remove from the working area objects which might be thrown off.

■ Before starting your work make sure that:
– no other persons or animals stay within the working area,
– you can always step back without any barriers,
– you have always a secure standing position.

- Never aim the suction/blowing pipe at people or animals. Never blow objects in the direction of people of animals.

■ Spectators must observe safety clearance of min. 5 m.

- Beware of swirling and flying objects. Be particularly aware of recoiling effects from brickwork or house walls (e.g. stones).

- Do not operate the machine with wet hands or during damp weather.

■ Always ensure that the connection lead runs back away from the machine. Otherwise there is a risk of stumbling, slipping or falling.

■ Never use the machine

- without the bag,

– without closing the zip fastener of the bag

■ Always keep the ventilation apertures free.

If persons who have blood circulation problems are too exposed to vibrations damages to the nervous system, blood vessels may occur.

You can reduce vibrations

- by thick and warm working gloves,

- shorter working time (have longer breaks).

See a doctor if your fingers swell, you don't feel well or your fingers become numb.

Switching on/off

Before using the machine, ensure that the bag has been d, is not damaged or worn and the zip fastener has been ed.

Instructions for using as vac/shredder

1. Move the changeover switch to the vac/shredding setting.

2. Hold the machine firmly at the handle and place the belt over your shoulder. Adjust the belt so that the machine can be carried comfortably and safely.

3. Switch the machine on.

4. Move the machine slowly and evenly over the material. Do not press it into the leaves.

5. The suction power decreases when the bag is full. Switch the machine off and disconnect from the mains. Open the zip fastener and empty the bag.

6. After finishing work, move the changeover switch to the blowing setting to remove any remains from the suction/blowing pipe.

Take up leaves in good time! – It is advisable to take up fallen leaves when the weather is dry and as soon as they have fallen. Wet leaves are a problem, together with leaves that have already begun to rot or are on big piles.

Instructions for use as blower

1. Move the changeover switch to the blowing setting.
2. Hold the machine firmly at the handle and place the belt over your shoulder.

Adjust the belt so that the machine can be carried comfortably and safely.

1. Switch the machine on.
2. Move the suction/blowing pipe in generous swaying movements uniformly a few centimetres over the ground, moving from one side to the other.

Close-up of a black mechanical component with circular features and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Garden vac with speed control

This version has adjustable motor speed and therefore adjustable vacuuming and blowing.

The speed is fully variable from 6000 rpm to 13000 rpm.

max Xth min

Working with the garden vac

What can I vacuum and blow?

YES

light, dry materials, e.g. dry leaves and garden waste such as grass, small twigs and pieces of paper

NO

heavy materials such as metal, stones, branches, fir cones or broken glass

Do not use the machine to vacuum or blow any burning, explosive or smoking items such as cigarettes, matches or hot ash.
Do not vacuum or blow any liquids, in particular flammable liquids such as fuel. Do not use the machine in the vicinity of such substances.

Care and maintenance

Before each maintenance and cleaning work :

• switch off device
• wait until the cutting thread is stationary.
• pull out main plug

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original parts. Other parts can result in unexpected damages and injuries.

Maintenance and repair work beyond this is only allowed to be carried out by the manufacturer or authorized service staff.

i Please proceed as follows to preserve the functioning ability of your garden vac.

■ Clean all movable parts on a regular basis.
■ Remove dust and dirt with a cloth or a brush.
- Do not clean the machine with running water or high-pressure cleaners.
- Do not use solvents for the synthetic parts (petrol, alcohol, etc.) as these can damage the synthetic parts.

Cleaning the bag

Empty the bag every time after it has been used.

1. Shake the bag thoroughly.
2. Turn it inside out and brush the bag out thoroughly.
3. Wash the bag when extremely soiled or at least once a year, by hand in mild soap suds.

i If the zip fastener is stiff, rub dry soap into the zip.

⚠ For your own safety, regularly check the bag for any signs of damage. Always replace a damaged bag immediately.

Storage

Remove the mains plug from the socket.

■ Store unused equipment in a dry, locked place out of the reach of children.
■ Place the protective cap (19) onto the thread knife (20).
■ Before a longer storage observe the following in order to prolongate the service life of the machine and to guarantee a smooth running operation:

– thoroughly clean the machine

Possible problems

Problem	possible cause	remedy
Motor won't start	⇒ No mains power (power failure)⇒ Connection lead defect⇒ Motor or switch defect	⇒ Check fuse (10 A)⇒ Replace lead or have lead checked (electrician)⚠️ Never use defect lead⇒ To solve the problem, contact the manufacturer or an authorised company (see customer service list)
Material is not sucked in properly (reduced vacuuming power)	⇒ Machine is clogged or blocked⇒ Bag too full⇒ Speed setting too low (only for garden vacs with fully variable speed control)⇒ Extension cable too long, or cross-section too small. Socket too far away from main connection, and cross-section of connection lead too small.	⇒ Empty bag⇒ Adjust to higher speed⇒ Extension cable at least 1,5 mm2, maximum 25 m long. Cross- section of at least 2,5 mm2in longer cables.

Guarantee

• The machine is guaranteed for a period of 2 years from the date of purchase/delivery against faults due to material or manufacturing errors.
• The guarantee is rendered invalid in the event of any damage caused due to improper use or handling, improper packaging when returning the machine or failure to observe the operating instructions.
• Faulty parts must be returned to our works carriage-paid. The decision on free replacement of faulty parts will be made at our discretion.
• The guarantee does not cover normal wear of the shredder turbine and bag.
• Any guarantee work will be carried out by the manufacturer. Our express approval must be obtained before having any such work carried out by another company.
• The guarantee only remains valid provided that original replacement parts are used.
• All plastic parts are marked for pure grade recycling. Please contact the manufacturer for recycling machines which can no longer be used. The manufacturer will inform you of the current recycling costs.
• We reserve the right to make technical changes in the course of technical progress.

Technical data

Model	2100	2200	2300	2400	2500
Motor power P_1	2100 W	2200 W	2300 W	2400 W	2500 W
Motor	AC-motor 230 V ~ 50 Hz
Speed n without speed control	13000 min^-1
Speed n with speed control	6000 - 13000 min^-1
Blowing air flow (max. air velocity)	270 km/h
Suction power (max. air flow)	840 m^3/h
Hand arm vibration (as per EN 1033/DIN 45675)	a_vhw = < 2,5 m/s^2
Bag (volume)	35 / 45 Liter
Weight	4,4 kg
Sound power level L_WA (as per 2000/14/EG)	measured sound pressure level 100 dB (A)guaranteed sound pressure level 101 dB (A)
Sound pressure level L_PA (as per 2000/14/EG)	80 dB (A)

Close-up of a white electric shock absorber with black cable and connector (no text or symbols visible)

Mise en marche

Close-up of a mechanical component with circular icons and directional arrows, no readable text or symbols present.

Diagram showing a mechanical component with directional arrows, no readable text or symbols present

Close-up of a handheld electrical outlet cable with black connectors (no text or symbols visible)

Zapnutí stroje

Close-up of a black mechanical component with directional arrow, surrounded by circular icons (no text or symbols)

Close-up of a handheld electrical outlet with coiled wires and connectors (no visible text or symbols)

Indkobling

Close-up of a mechanical lever with directional arrows and circular icons (no text or symbols)

Diagram showing a mechanical component with directional arrows, no readable text or symbols present

Close-up of a white industrial electrical outlet connected to black cables (no visible text or symbols)

Close-up of a mechanical tool with circular icons and an arrow indicating motion (no text or symbols)

Diagram showing a mechanical component with directional arrows and circular icons, no readable text or symbols present.

max Yin min

Close-up of a white electric shaver connected to black cables (no text or symbols visible)

Bekapcsolás

Close-up of a mechanical component with circular indicators and arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Close-up of a handheld electrical outlet with black cables and connector (no visible text or symbols)

Uključivanje

Close-up of a black mechanical component with circular icons and arrows indicating motion or movement (no text or symbols)

Diagram showing a mechanical component with directional arrows and circular icons, no readable text or symbols present.

Close-up of a black electrical plug with coiled cable and connector (no visible text or symbols)

Accensione

Close-up of a black tool with directional arrows indicating movement or change, surrounded by icons (no text or symbols)

Close-up of a white electric shaver connected to black cables (no text or symbols visible)

Slå på

Diagram of a mechanical device with directional arrows and circular icons, no readable text or symbols

Diagram showing a mechanical component with directional arrows and circular icons, no readable text or symbols present.

Løvsuger med omdreiningstallsregulering

Close-up of a hairdryer connected to a black cable with a connector (no text or symbols visible)

Inschakelen

Diagram of a mechanical device with directional arrows and circular icons, no readable text or symbols

Close-up of a mechanical component with circular icons and directional arrow, no visible text or symbols

Close-up of a handheld electrical outlet with black cables and connector (no visible text or symbols)

Włączenie

Close-up of a mechanical component with directional arrows indicating movement or change (no text or symbols)

Close-up of a white electric fan connected to black cables (no visible text or symbols)

Включение

Close-up of a mechanical tool with circular icons and directional arrows, no readable text or symbols present.

Diagram showing a mechanical component with directional arrows and circular indicators (no text or symbols)

Close-up of a handheld electrical outlet with black cables and connector (no visible text or symbols)

Inkoppling

Close-up of a black tool with circular icons and arrows indicating movement or change (no text or symbols)

Diagram showing a mechanical component with directional arrows and circular icons, no readable text or symbols present.

Close-up of a handheld electric shock absorber with black wires and connector (no text or symbols visible)

Zapnutie

Close-up of a black tool with circular icons and arrows indicating movement or interaction (no text or symbols)

Diagram showing a mechanical component with directional arrows and circular icons, no readable text or symbols present.

Close-up of a white electric shock absorber with black cable and connector (no text or symbols visible)

Vklop

Close-up of a mechanical tool with circular icons and arrows indicating motion or movement (no readable text or symbols)

Close-up of a mechanical component with directional arrows indicating movement or change (no text or symbols)

GB EC Declaration of Conformity according to Directive 98/37 EC

GB declare under our sole responsibility, that the product garden vac, blower, shredder

to which this declaration relates corresponds to the relevant basic safety and health requirements of the Directive 98/37/EC, and to the requirements for the other relevant Directives:

GB Measured level of the acoustic output L_WA 100 dB (A) and guaranteed level of the acoustic output L_WA 101 dB (A).

Black-and-white close-up of dense leafy plants with visible veins and growth (no text or symbols)

ATIKA GmbH & Co. KG

Schinkelstraße 97, 59227 Ahlen ● Postfach 21 64, 59209 Ahlen ● Germany

Telefon [phone] / 8 92 - 0 ● Telefax +49 (0) 23 82 / 8 18 12

E-mail: : [e-mail] ● Internet: www.atika.de
