USER MANUAL BIOPLUS 2400 ATIKA

Operating manual and spare parts

GB declare under our sole responsibility, that the products Garden Shredder type AH 402

to which this declaration relates corresponds to the relevant basic safety and health requirements of the Directive 98/37/EC, and to the requirements for the other relevant Directives:

GB Measured level of the acoustic output LwA 102 dB (A) and guaranteed level of the acoustic output LwA 103 dB (A).

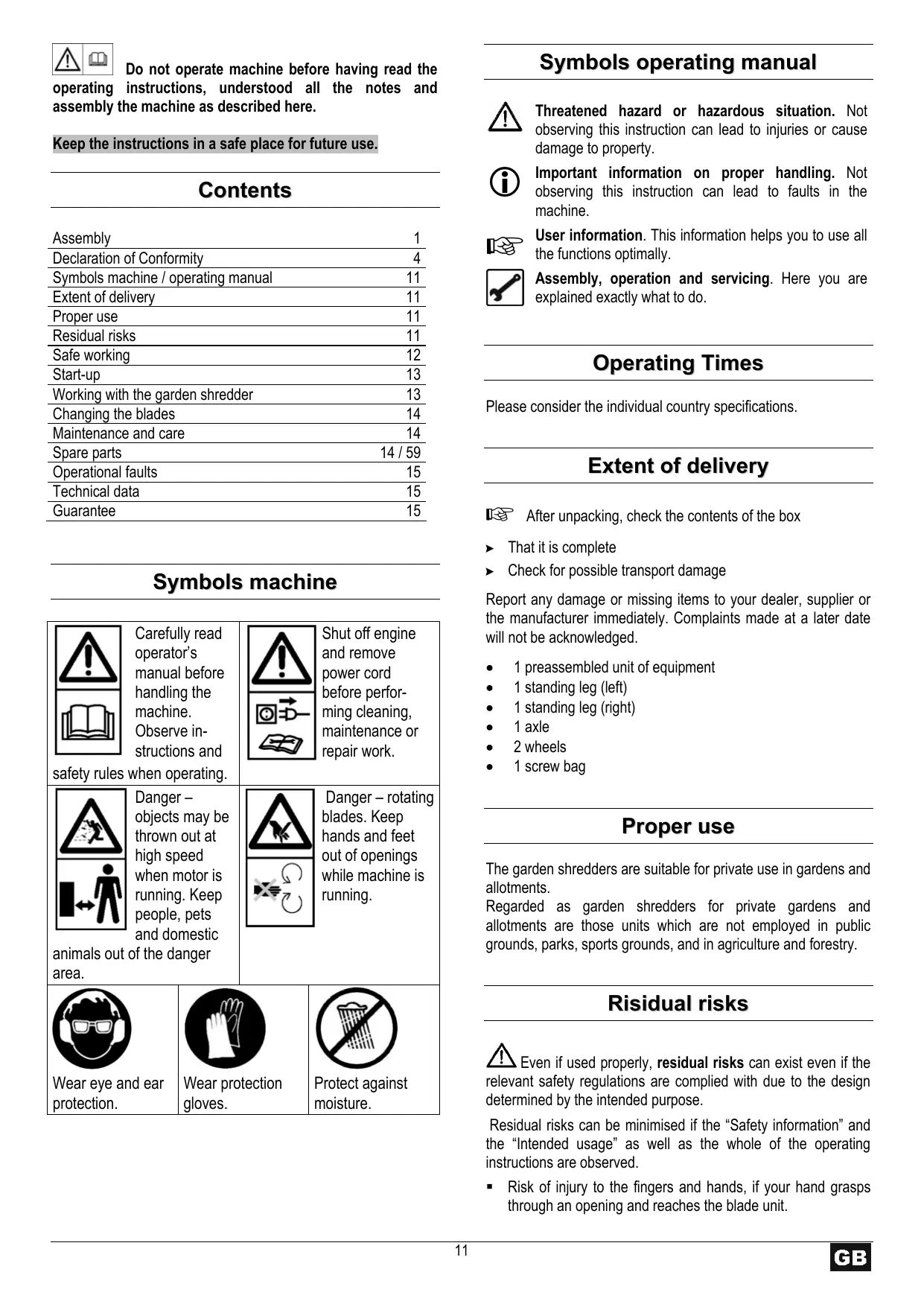

Keep the instructions in a safe place for future use.

Contents

Assembly 1

Declaration of Conformity 4

Symbols machine / operating manual 11

Extent of delivery 11

Proper use 11

Residual risks 11

Safe working 12

Start-up 13

Working with the garden shredder 13

Changing the blades 14

Maintenance and care 14

Spare parts 14 / 59

Operational faults 15

Technical data 15

Guarantee 15

Symbols machine

Carefully read operator's

manual before handling the machine.

Observe instructions and

safety rules when operating.

Danger - objects may be thrown out at high speed

when motor is running. Keep people, pets and domestic

animals out of the danger area.

Shut off engine and remove

power cord before performing cleaning, maintenance or repair work.

Danger - rotating blades. Keep hands and feet out of openings while machine is running.

Wear eye and ear protection.

Wear protection gloves.

Protect against moisture.

Symbols operating manual

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling. Not observing this instruction can lead to faults in the machine.

User information. This information helps you to use all the functions optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

Operating Times

Please consider the individual country specifications.

Extent of delivery

After unpacking, check the contents of the box

That it is complete
Check for possible transport damage

Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

1 preassembled unit of equipment
1 standing leg (left)
1 standing leg (right)
1 axle
2 wheels
1 screw bag

Proper use

The garden shredders are suitable for private use in gardens and allotments.

Regarded as garden shredders for private gardens and allotments are those units which are not employed in public grounds, parks, sports grounds, and in agriculture and forestry.

Residual risks

Even if used properly, residual risks can exist even if the ant safety regulations are complied with due to the design mined by the intended purpose.

Residual risks can be minimised if the "Safety information" and the "Intended usage" as well as the whole of the operating instructions are observed.

• Risk of injury to the fingers and hands, if your hand grasps through an opening and reaches the blade unit.

• Risk of injury to the fingers and hands, when carrying out assembly work and cleaning on the blade unit.

• Injury by the shredded material spinning away near the hopper.
• Risk from electricity, by using non-standard electrical connections.
• Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safe working

Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

(1)

Pass the safety instructions on to all persons who work with the machine.

i

Keep these safety instructions in a safe place.

(1)

Machine including safety cut-out

The safety cut-out, including an automatic motor brake, which is attached to the shredder is used for the safety of the machine, preventing the motor being started when the machine is open and the rotating knives could be reached by the operator's hand.

A

Repairs on the safety cut-out must be done by the producer or by a company designated by the producer.

• Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.
• Do not use the machine for unsuitable purposes (see 'Normal intended use' and 'Working with the garden shredder').
• Ensure that you have stand in a secure standing position and maintain your balance at all times. Do not lean forward over the machine. When placing material into the shredder, always stand on the same level as the machine.
• Be attentive. Be careful what you do. Behave sensibly when working. Do not use the saw if you are tired.
• Wear protective goggles, gloves and noise protection while working with the machine.

• Wear suitable work clothes!

• Do not wear loose-fitting clothes

• Slip-proof shoes

• Within his area of work the operator is responsible for third parties.

• The machine must not be operated by children or young people under 16 years of age.
• Keep children away from machine.
• Never operate the machine if other persons are in the immediate vicinity.
• Never leave the saw unattended.
• Keep your workplace in an orderly condition! Untidiness can result in accidents.

• Choose a working position alongside the equipment or behind it. Never stand near the ejection opening.

• Never reach into the filling or ejection opening.

• Keep your face and body away from the filling opening.
• Do not overload the machine! You work better and safer in the given performance range.
• Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.
• Do not alter the revolution speed of the motor, since this controls the safe maximum operating speed, and protects the motor and all rotating parts against damage due to excess speed.
• Do not operate without the funnel.
• Faulty or damaged parts in the device must be replaced immediately.
• Close machine properly before enabling motor.
• Do not spray machine with water (this is hazardous due to live components).
• Do not leave the machine standing in the rain or use when raining.
• Store the unused machine in a dry locked place away from the reach of children.
• To prevent danger of injury to fingers during assembly or cleaning operations hold the cutting mechanism (see. pic. p. 14) and wear protecting gloves.
• Switch the machine off and remove the mains plug from the socket when

carrying out repair works
- carrying out servicing and repair works, removal of faults
- changing the blades
- Transporting
- leaving unattended (even during short interruptions)

• Check the machine for possible damage

Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function
- Check whether the parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the saw
- Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
- Damaged or illegible safety warning labels should be replaced immediately.

A

Electrical safety

• Design of the connection cable according to IEC 60245 (H 07 RN-F) with a core cross-profile section of at least

1.5 mm² for cable lengths up to 25m
2.5 mm² for cable lengths over 25m

• When laying the connecting attachments, be sure that they do get crushed or bent, and that the plug-and-socket connection does not get wet.
• Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
• Regularly check the extension cables and replace them if they are damaged.
• Do not use any defective connection cables.

• When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use.

• Do not set up any provisional electrical connections.

• Never bypass protective devices or deactivate them.

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations - especially regarding protective measures - must be observed.

Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.

Use only original spare parts, accessories and special accessory parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Start-up

• Check that the machine is completely and correctly assembled.
• To avoid toppling, place the shredder on a firm horizontal surface.
• Do not place the equipment on ground which is paved or surfaced with gravel.

• The machine should only be operated in the open. Always maintain a safe distance (at least 2m ) from walls or other fixed objects.
  Before using the shredder, make sure each time that

• there are no faulty connections (tears, cuts, etc.)
  there are no damage at the machine
  all screws are tight

Mains connection

• Compare the voltage given on the machine model plate e.g. 230 ~V with the mains voltage and connect the machine to the relevant and properly earthed plug.

• Only use connection cables with sufficient diameters

• Fuse protection

			only UK / Switzerland
2400 W	16 A träge		13 A träge
2500 W

Switch on and off

Switching on

Press the green ① button.

Switching off

You can switch off the shredder by pressing the red ① button of the switch.

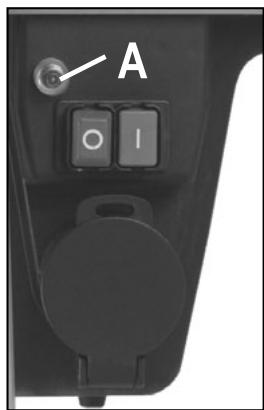

Lock in case of power outage

The equipment will switch off automatically if there is a power cut (zero-voltage initiator). Repress the green button to switch it on again.

Motor guard

The motor is equipped with a guard switch and it switches off automatically when overloaded. The motor can be switched on again after a cooling-down period (approximately 5 mins.). Repress

1. button (A)
2. button green ① to switch it on again.

Electrical mains supply impedance

When conditions in the electrical mains supply are unfavourable, voltage reductions for short periods can occur during the process of turning on the equipment, which can adversely affect other equipment (e.g., the flickering of a lamp).

No breakdowns are to be expected if the maximum, electrical mains supply impedances given in the table are met.

Power consumption P1 (watts)	Electrical mains supply impedance Zmax(Ω)
2400 – 2500	0,24

Working with the garden shredder

• Choose a working position alongside the equipment or behind it. Never stand near the ejecting opening.
• Never reach into the filling or ejection opening.
• Keep your face and body away from the filling opening.
• Never place hands, other parts of the body or clothing into the filler funnel, ejection channel or in the vicinity of other moving parts.
• Check that no shredded residues are in the filling hopper before switching on the equipment.
• Do not tip or tilt the machine when the motor is running.
• When filling, be careful that no pieces of metal, stones, bottles or other objects unintended for processing, enter the filling hopper.
• Immediately switch off the equipment and allow it to come to a stop, if foreign objects enter the filling hopper or if the equipment starts to make unusual noises or vibrates. Remove the mains plug and carry out the following checks:

inspect for damage,
- replace or repair damaged parts,
- check the equipment and tighten loose parts.

You must not repair the equipment yourself if you are unauthorized to do so.

What can I shred?

Yes:

organic household and garden waste

e. g. hedge and tree cuttings, dead flowers and vegetable kitchen waste.

No:

• glass, metal, plastic, plastic bags, stones, cloth, roots with soil, food left-overs, fish or meat.

Special informations on the shredding procedure:

• Branches, twigs and wood should be broken down immediately after they have been cut
• material of this kinds gets very hard when it is dry, and it therefore makers sense to reduce the maximum branch diameters, so that it is ready for shredding.
• Remove any side shoots from branches with a large number of twigs.

• How to shred garden and kitchen waste with hight water content and a tendency to clog

• to prevent the machine from clogging, alternate waste with wood containing material.

• Do not allow the shredded material to pile up too high in the area of the ejection opening. This can lead to shredded material blocking the ejection channel, and backing up to the filler opening.

• Clean out the filler opening and ejection channel thoroughly if the machine becomes blocked. Before doing this, switch the motor off and disconnect the machine from the mains power supply.
• Please do not exceed the maximum branch diameter specified for your appliance ( see p. 15).
• The blades largely pull the material into the machine by themselves.
• Strong branches may cause overloading. This can be avoided by pulling them back from time to time.
• If the machine is overloaded, a protective motor switch ensures that the machine turns itself off automatically

turn the shredder on again after about 5 minutes
during those five minutes you cannot turn the machine, see point „Operational faults".

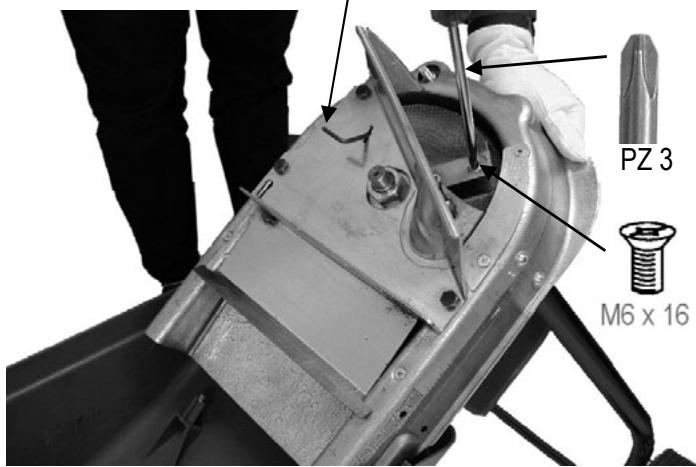

Changing the blades

Remove the mains plug before changing the blades.

Risk of injury to the fingers and hands when carrying out work on the blade unit. Wear protective gloves.

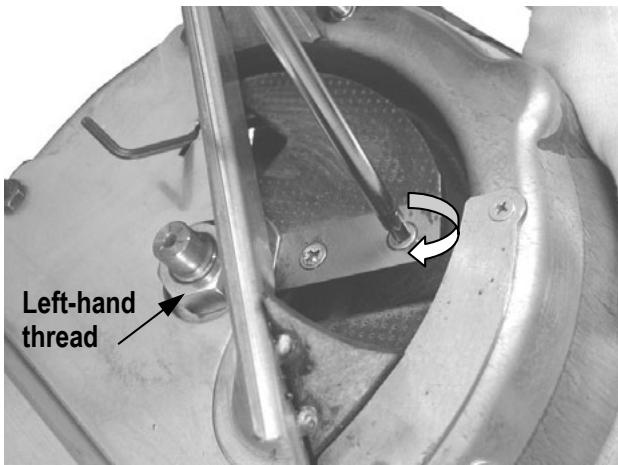

Fix the blade.

Reduced output

One edge of the knife has become blunt

Turn knife so that you can use the other edge

Both edge of the knives have become blunt

replace with sew set of knives (order-no. 384547)

Maintenance and Care

Remove the mains plug before maintenance and care.

Take care when maintaining the cutting equipment to ensure that the cutters can still be operated by the starter mechanism, even if the motor is not running because the cover has been unlocked.

Wear protective gloves.

Generally garden shredders require little maintenance.

To maintain their efficiency and a long life, observe the following:

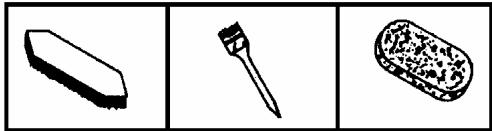

After shredding, the machine must be cleaned inside and outside

• Slightly grease polished metal components immediatley after use (to prevent rusting)

Spare parts

Please refer to the drawing and list for spare.

Ordering spare parts:

Available from the manufacturer
Orders must quote the following inforation:

Colour of appliance (for housing parts)
- Spare parts no.
Quantity required
Shredder model
Name of the garden shredder

Example: orange, 382062, 1, BioPlus 2450, AH 402

Operational faults

Problem	Possible cause	Elimination
Motor does not start	- no mains voltage - defective connection cable - enclosure top improperly closed - (safety shut-off is activated)	- check fuse - have it inspected (electrician) - close and bolt down enclosure top correctly, remove any dirt present
Motor turns over, but does not start	- cutters blocked - defective capacitor	- switch machine off, disconnect mains plug, and clean interior of machine - have machine repaired by manufacturer or approved company
Motor starts, but becomes blocked on encountering even slight pressure, and is switched off via motor safety switch.	Extension cable too long, or cross-section too small. Socket too far away from main connection, and cross-section of connection lead too small.	Extension cable at least 1,5 mm², maximum 25 m long. Cross- section of at least 2,5 mm² in longer cables.
Reduced output.	One edge of the knife or both edge of the knives have become blunt.	Turn the knife or replace it with a new set of knives.

Specifications

Model	2450	2550
Name	AH 402	AH 402
Motor	AC-Motor 230 V, 50 Hz, including automatic motor brake
Motorating P1S 6 – 40 %	2400 W	2500 W
Input voltage I	10,5 A	10,5 A
Rotational speed N	2800 min-1
On/off switch with:	motor protection switch, electrical safety cut-out, zero-voltage initiator
Weight	20 kg	20 kg
Acoustic pressure level at work LPA*	92 dB (A)
Acoustic capacity LwA*	measured level of the acoustic output 102 dB (A)guaranteed level of the acoustic output 103 dB (A)
Max. branch diameter (only for freshly cut wood)	40 mm	40 mm

Warranty

• The manufacturer will supply a two years warranty after supply of the machine from the dealer's store for faults in material and/or workmanship.
  Warranty claims, even during the warranty period, will not be accepted for damages due to incorrect handling or inadequate packaging during return of the devices or to a non-observation of the operating instructions.
• Faulty components should be returned to the factory, postage and freight paid. Discretion for the supply of replacements free of charge will remain with the manufacturer.
• The guarantee does not cover normal wear to: blade, counter blade and impellers, as well as the respectively associated fasteners.
• All warranty work will be carried out by the manufacturer. The handling of repairs by third parties shall require prior written consent of the manufacturer.
• The warranty will only apply of original spare parts are used.
• Subject to alterations due to further development.

Indkobling / Frakobling

Indkobling
