USER MANUAL LYNX LED JBSYSTEMS LIGHT

Copyright © 2009 by BEGLEC comm.v.a.

t Hofveld 2 ~ B1702 Groot-Bijgaarden ~ Belgium

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

CE

Version: 1.0

DANGER ~ GEVAAR ~ GEFAHR ~ PELIGRO ~ PERIGO

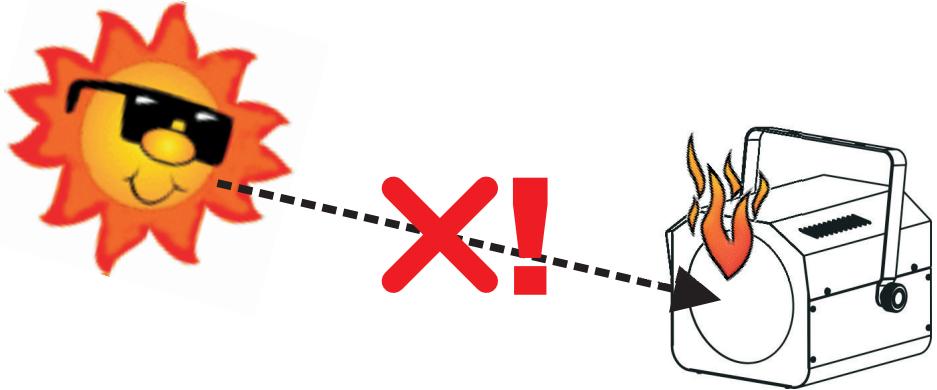

WARNING: DANGER! never expose the lens to direct sunlight, even for a short period. This may damage the light effect or even cause fire!

Dispos of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• Hi Tech, eye-catching, moving head for Pro DJ, renting companies and discotheques

• Based on 20WATT LED technology:

• Very low power consumption (money saving!)

• Extremely brilliant colors compared to units with halogen lamps
  No lamp replacements!
• Virtually no heat production

• Lightweight (no lamp transformers needed)

• Big light output and sharp gobos, thanks to excellent optics

• 0-100% dimming and ultra fast strobe function
  Excellent built-in programs for wonderful, ever changing, light shows:

• DMX-control: 6 channels (pan, tilt, colors, gobos, dimmer, strobe)

• Standalone: sound activated with internal mic

• Master/slave: wonderful synchronized shows

• 8 gobos + open, equipped with gobo shaking feature

• Independent color wheel (8 colors + white)
  Automatic X/Y re-positioning
• Optional CA-8 remote controller available

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

LYNX unit
- Clamp bracket + 2 bolts
- Operating instructions

SAFETY INSTRUCTIONS:

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 1 meters

• To protect the environment, please try to recycle the packing material as much as possible.

• A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears after some minutes.

• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.

• This unit is for indoor use only.

• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.

• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.

• Don't cover any ventilation openings as this may result in overheating.

• Prevent use in dusty environments and clean the unit regularly.

• Keep the unit away from children.

• Inexperienced persons should not operate this device.

Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.

• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.

• Always unplug the unit when it is not used for a longer time or when you start servicing.

• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.

• Check that the available voltage is not higher than the one stated on the rear panel of the unit.

• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Never let the power-cord come into contact with other cables!

• This fixture must be earthed to in order comply with safety regulations.

• Don't connect the unit to any dimmer pack.

• Always use an appropriate and certified safety cable when installing the unit.

• In order to prevent electric shock, do not open the cover. there are no user serviceable parts inside.

• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!

• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.

• The housing and the lenses must be replaced if they are visibly damaged.

• Please use the original packing when the device is to be transported.

• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering from epilepsy.

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.

• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.

• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.

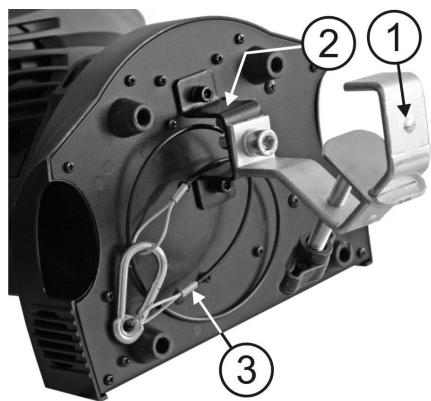

• Always use a certified safety cable (number 3 on the picture) that can hold 12 times the weight of the

device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.

• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.

• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

• Optional Clamp

• Special clamp bracket (included)
• Optional safety cable

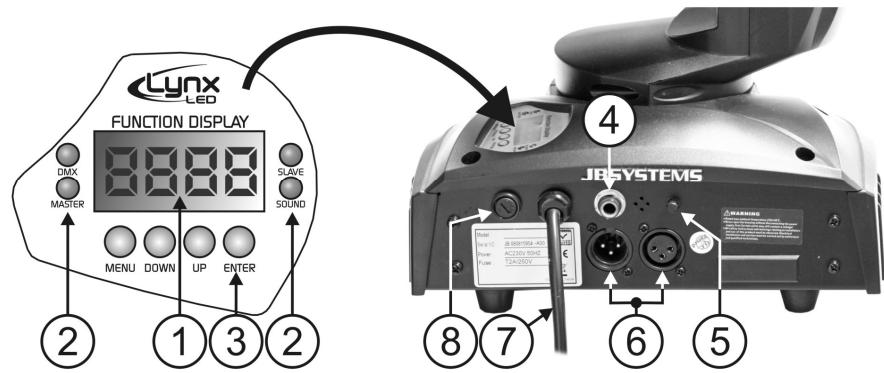

HOW TO SET UP THE UNIT CONTROL PANEL:

1. DISPLAY shows the various menus and the selected functions.
2. LEDs

DMX	On	DMX input present
MASTER	On	Master mode
SLAVE	On	Slave mode
SOUND	Flashing	Sound activation

1. BUTTONS

MENU	To select the programming functions
DOWN	To go backward in the selected functions
UP	To go forward in the selected functions
ENTER	To confirm the selected functions

1. REMOTE CONTROL INPUT: Used to connect a simple CA-8 hand controller while the unit is used in standalone or master/slave mode.

2. SENSITIVITY: Used to adjust the sensitivity of the micro when the unit is used in standalone or master/slave mode.

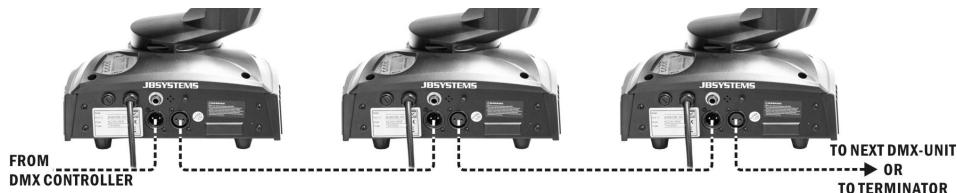

3. DMX INPUT/OUTPUT: used for DMX512 linking. Use good quality 3pin XLR M/F balanced cable to link the units together.
4. MAINS CABLE: double-check the mains voltage (should be 230V 50Hz) before inserting the cable!
5. MAINS FUSE: Always replace this fuse with a fuse that has the same characteristics! (250V/2A slow)

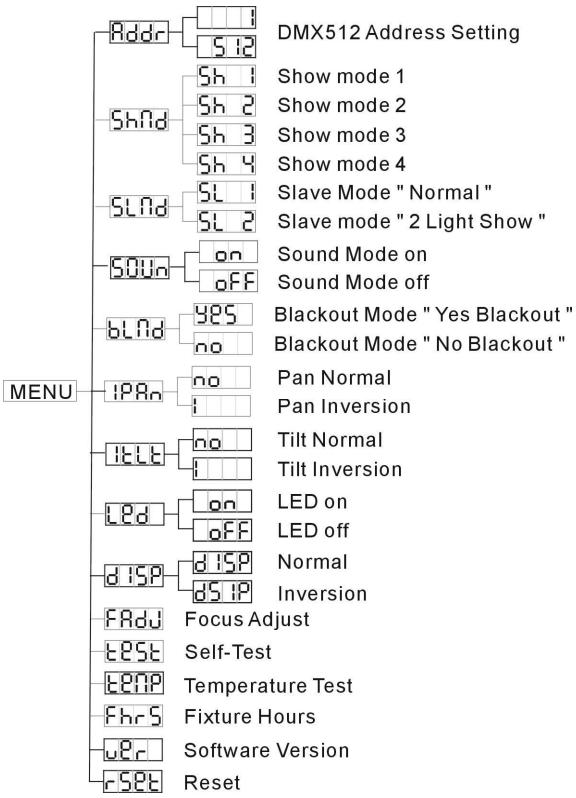

MAIN MENU:

• To select any of the functions, press the MENU button up to when the required one is shown on the display.
• Select the function with the ENTER button (the display blinks).
• Use DOWN and UP button to change the mode.
• Once the required mode is selected, press the ENTER button to confirm. After 8 seconds the display will automatically return to the main functions without any change. To go back to the functions without any change press the MENU button for about 2 seconds. The main functions are shown in the chart.

Addr

DMX512 Address Setting

Used to set the starting address in a DMX setup.

• Press the MENU button until Addr is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to change the DMX512 address.
• Once the correct address shows on the display, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds for about 2 seconds.

Shnd

Show Mode

Used to choose the Show mode when used in standalone or master/slave mode.

• Press the MENU button until ShnD is showing on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select one of the available shows:

Show 1: Fixture is placed on the floor. Tilt movement angle 210^
Show 2: Fixture is fixed under ceiling. Tilt movement angle 90^ .

Show 3: Fixture is placed on a podium, in front of the audience. The spot is always projecting to the audience's direction; i.e. in front of the stage. Pan movement angle (left to right to left): 160^ . Tilt movement angle: 90^ ( 60^ above horizon; 30^ below horizon.)
Show 4: Fixture is fixed under ceiling. The spot is mainly projecting in front of the stage. Pan movement angle (left to right to left): 160^ . Tilt movement angle: 90^ (vertically, front 75^ ; back 15^ )
- Once the right mode shows on the display, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
To go back to the functions without any change press the MENU button again for about 2 seconds.

SLAd Slave Mode

Used to make the slave unit work in opposite to the master or to work in complete sync.

• Press the MENU button until SLnd is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select SL (normal) or SL (2 light show) mode.
• Once the mode is selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds.

Sound Mode

The unit works to rhythm of the beat when used in standalone or master/slave mode

• Press the MENU button until SaUn is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select on or off mode.
• Once the mode has been selected, press the ENTER button save it.

(or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds.

BLND Blackout Mode

Blackout mode: when no DMX-signal is detected, the unit goes in blackout and waits for the DMX-signal.

No blackout mode: when no DMX-signal is detected, the unit automatically switches to standalone mode.

• Press the MENU button until bLnd is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select IEC5 (blackout on) or no (blackout off) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds.

Pan Inversion

Normal: Panning movement is not inversed.

Pan inversion: Panning movement is inversed

• Press the MENU button until Pan is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select no (normal) or pan inversion mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds.

Tilt Inversion

Normal: Tilt movement is not inversed.

Tilt inversion: tilt movement is inversed

• Press the MENU button until TLE is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select no (normal) or (tilt inversion) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds.

LED Led Display

Display on: display is always on.

Display off: display is off when not used.

• Press the MENU button until the display shows Ed.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select on (display always on) or OFF (display off when not used).
• Once the mode has been selected, press the ENTER button to save it

(or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds.

DISP Display Inversion

Display normal: display is readable when the unit is on the floor.

Display inversion: display is readable when the unit is mounted upside down.

• Press the MENU button until 12:59 is shown on the display. (normal display)
• Press the ENTER button to toggle between (normal display) and (display inversion).
• After about 8 seconds your choice is automatically saved.

FADJ Focus Adjust

Used to help you adjusting the focus of the light beam and gobos.

• Press the MENU button until FAdu is blinking on the display.
• Press the ENTER button so the unit goes to the "tilt 90^ " position.
• Press the ENTER button so the unit goes to the "pan 0^ " position.
• Press the ENTER button so the unit goes to the "pan 90^ " position.
• Press the ENTER button so the unit goes to the "pan 180^ " position.
• Press the ENTER button so the unit goes to the "pan 270^ " position.

In the Previous 5 steps you are able to adjust the focus with the UP/DOWN buttons on the unit (the display shows the current focus status).

Attention: please note that you can only set an "average focus" for all 5 positions, so it is not possible to set the focus perfectly sharp for all directions.

• To go back to the functions press the MENU button.

E5 Self-Test

Used to activate the internal "self-test" program which shows all possibilities of the unit.

• Press the MENU button until EPSE is blinking on the display.
• Press the ENTER button to start the internal self-test program
• To go back to the functions press the MENU button.

EAP Temperature inside the unit

Used to show the temperature inside the unit

• Press the MENU button until ENP is blinking on the display.
• Press the ENTER button and the temperature of unit will show on the display.
• To go back to the functions press the MENU button again.

Fhr5 Fixture Hours

Used to show the number of working hours of the unit.

• Press the MENU button until FhrS is blinking on the display.
• Press the ENTER button to show the number of working hours in the display.
• To go back to the functions press the MENU button.

UER Software version

Used to show the software version that is installed in the unit

• Press the MENU button until UER is blinking on the display.
• Press the ENTER button to show the software version on the display.
• To go back to the functions press the MENU button.

rSET Reset

Used to force a reset of the unit.

• Press the MENU button until FSEB is blinking on the display.
• Press the ENTER to reset all channels to their standard position.
• To go back to the functions press the MENU button.

Please also check the chapter about the DMX-channel configuration of the unit to find out how you can force a reset by DMX.

ELECTRICAL INSTALLATION + ADDRESSING

Important: The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.

Electrical installation for 1 standalone unit:

• Just insert the mains cable. The unit starts working immediately in stand-alone mode.

Remark1: You can connect a CA-8 remote controller to the unit if you want to have more control. Refer to "how to operate the unit" to learn how to do this.

Remark2: if there's no output, please make sure to set the unit in master mode and set the blackout mode to "NO" (see previous chapter)

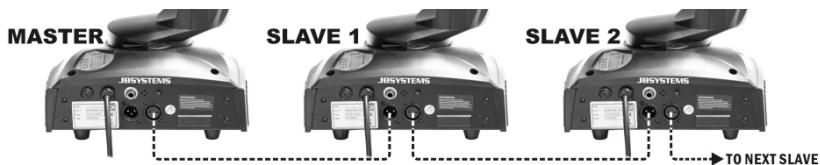

Electrical installation for two or more units in master/slave:

• Connect 2 to maximum 16 units together using good quality balanced microphone cables. The first unit in the chain will automatically act as master, the other units will act automatically as slaves.
• Make sure that all units are connected to the mains.
• Done!

Remark: You can connect a CA-8 remote controller to the master unit if you want to have more control over the master/slave operation

Electrical installation in DMX-mode:

• The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to "daisy chain" your DMX controller and all the connected units with a good quality balanced cable.
• Both XLR-3pin and XLR-5pin connectors are used, however XLR-3pin is more popular because these cables are compatible with balanced audio cables.

Pin layout XLR-3pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+)

Pin layout XLR-5pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+) ~ Pins4+5 not used.

• To prevent strange behavior of the light effects, due to interferences, you must use a 90 to 120 terminator at the end of the chain. Never use Y-splitter cables, this simply won't work!
• Make sure that all units are connected to the mains.
• Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses.
  0~120 ohms resistor

HOW TO SET THE RIGHT STARTING ADDRESS:

Refer to the previous chapter (DMX-512 address setting) to learn how to set the starting address on this unit. The starting address of each unit is very important. Unfortunately it is impossible to tell you in this user manual which starting addresses you have to set because this completely depends on the controller you will use... So please refer to the user manual of your DMX-controller to find out which starting addresses you must set.

DMX-CONFIGURATION OF LYNX:

DMX512 Configuration
Ch1	Ch2	Ch3	Ch4	Ch5	Ch6
Pan	Tilt	Strobe	Gobo	Color	Dimmer
540°	270°	248-255OpenRandom StrobeOpen	255 Rotation Fast	255 Rotation Fast	255 100%
		190-231Fast openslow close	128 Rotation Slow
		182-189Open	122-127SSSS
		140-181Slow openfast close	115-121SSSS
		132-139Open	108-114SSSS
		16-131Open	101-107SSSS
			093-100SSSS
			086-092SSSS
			079-085SSSS
			072-078SSSS
			064-071SSSS
			058-063SS
			051-057SS
			044-050SS
			037-043SS
			029-036SS
			022-028SS
		8-15OpenBlackout	015-021SS
			008-0140
			000-0070

HOW TO OPERATE THE UNIT

Every time you turn the unit on, it will show "MS20" on the display and move all the motors to their 'home' position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built-in programs.

YOU CAN OPERATE THE UNIT IN THREE WAYS:

Master/slave with built-in pre-programmed shows
With CA-8 easy controller
With universal DMX controller

- MASTER/SLAVE WITH BUILT-IN PRE-PROGRAMMED SHOWS:

Choose this function if you want an instant show. By linking the units in master/slave connection, the first unit controls the other units which results in an automatic, sound activated, synchronized light show. Its DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to the music.

Important! This function only works when the blackout mode in the menu of the master is set to OFF, otherwise nothing will happen! Read more about this option in the "Main Menu" paragraph.

• MASTER has 4 built-in shows: You can select (show 1), (show 2), (show 3) or (show 4) directly in the menu of the master.

• SLAVES have 2 working options: The other units are set to slave mode (slave-LED is constantly on). In order to create a great light show you can introduce contrast movements (pan/tilt of slave is inversed) In the menu of the slave units you can go to option Slfd and select:

Normal slave: slave works in sync with the master.
52 2 light show: slave works in opposite with the master.

BY EASY CONTROLLER

When used in Master/slave mode we strongly advice you to use the CA-8 "Easy controller" Just connect this small controller to the 1/4 jack of the master unit, and you will be able to control the following

FUNCTIONS:

Stand By	Blackout the unit
Function	1. Sync. Strobe 2. Two-light strobe 3. Sound Strobe	Select Show 1-4	1. Press shortly: change colors 2. Press for 1sec: change gobos
Mode	(LED OFF)	(LED blinks)	LED ON

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.

• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Mains Input: AC 230V, 50Hz

Max Power consumption: 55 Watt

Sound Control: Internal microphone

Pan/Tilt: 540^ / 270

Beam angle: 14°

DMX connections: 3pin XLR male / female

1 White LED 20Watt

Size:

Weight: 4,8 kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.beglec.com

MODE D'EMPLOI

Sound mode (mode son):
