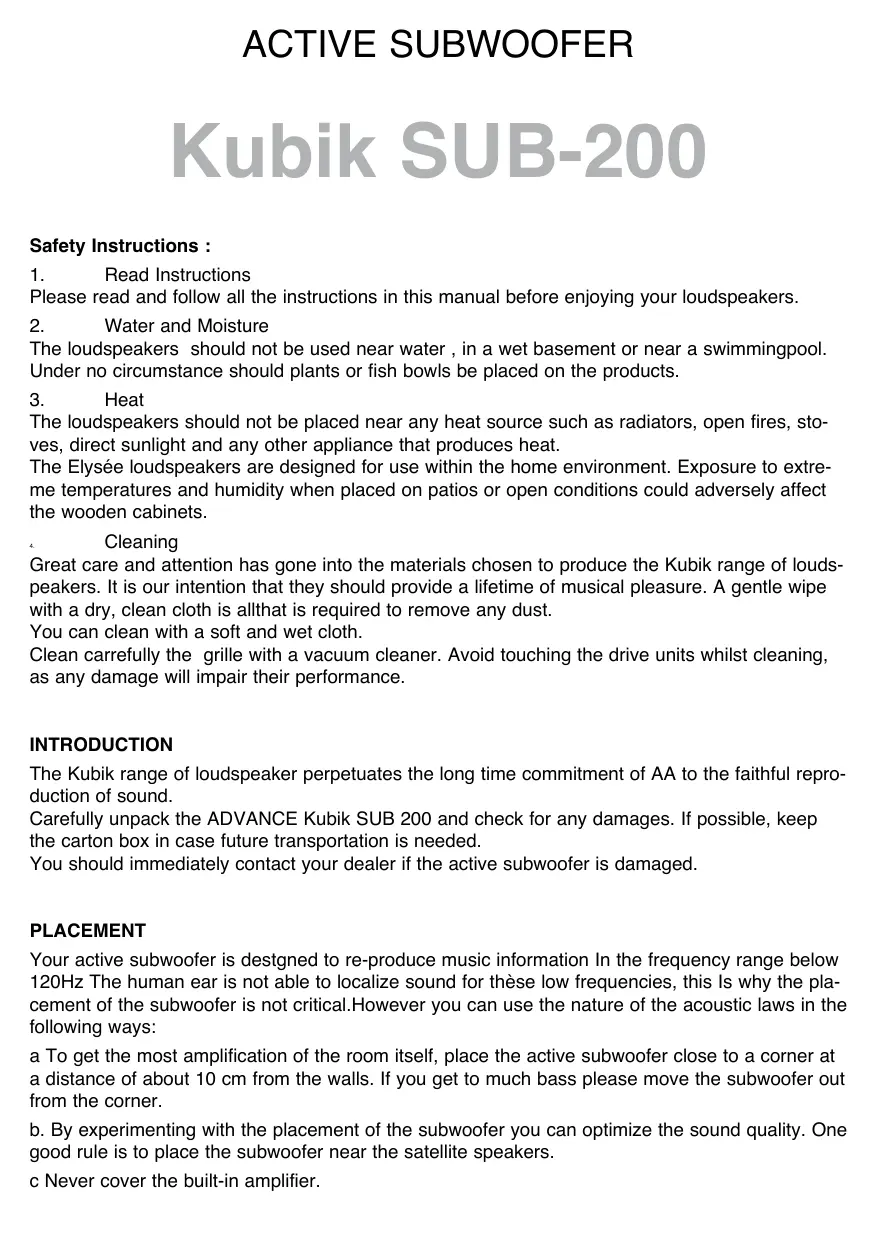

CAISSON DE GRAVES ACTIF SUBWOOFER

Kubik SUB-200

GUIDE DE L'UTILISATEUR

Please read and follow all the instructions in this manual before enjoying your loudspeakers.

1. Water and Moisture

The loudspeakers should not be used near water, in a wet basement or near a swimmingpool. Under no circumstance should plants or fish bowls be placed on the products.

1. Heat

The loudspeakers should not be placed near any heat source such as radiators, open fires, stoves, direct sunlight and any other appliance that produces heat.

The Elysée loudspeakers are designed for use within the home environment. Exposure to extreme temperatures and humidity when placed on patios or open conditions could adversely affect the wooden cabinets.

4 Cleaning

Great care and attention has gone into the materials chosen to produce the Kubik range of loudspeakers. It is our intention that they should provide a lifetime of musical pleasure. A gentle wipe with a dry, clean cloth is allthat is required to remove any dust.

You can clean with a soft and wet cloth.

Clean carefully the grille with a vacuum cleaner. Avoid touching the drive units whilst cleaning, as any damage will impair their performance.

INTRODUCTION

The Kubik range of loudspeaker perpetuates the long time commitment of AA to the faithful reproduction of sound.

Carefully unpack the ADVANCE Kubik SUB 200 and check for any damages. If possible, keep the carton box in case future transportation is needed.

You should immediately contact your dealer if the active subwoofer is damaged.

PLACEMENT

Your active subwoofer is designed to re-produce music information in the frequency range below 120Hz . The human ear is not able to localize sound for these low frequencies, this is why the placement of the subwoofer is not critical. However you can use the nature of the acoustic laws in the following ways:

a To get the most amplification of the room itself, place the active subwoofer close to a corner at a distance of about 10cm from the walls. If you get to much bass please move the subwoofer out from the corner.

b. By experimenting with the placement of the subwoofer you can optimize the sound quality. One good rule is to place the subwoofer near the satellite speakers.

c Never cover the built-in amplifier.

WARNING

To reduce the risk of electrnc shock, do not open or remove cover or back. Do not expose this appliance to

rain or moisture. In case of malfunction consult qualified service personnel

INSTALLATION

There are two ways to install Your new subwoofer ; below we w(H describe how:

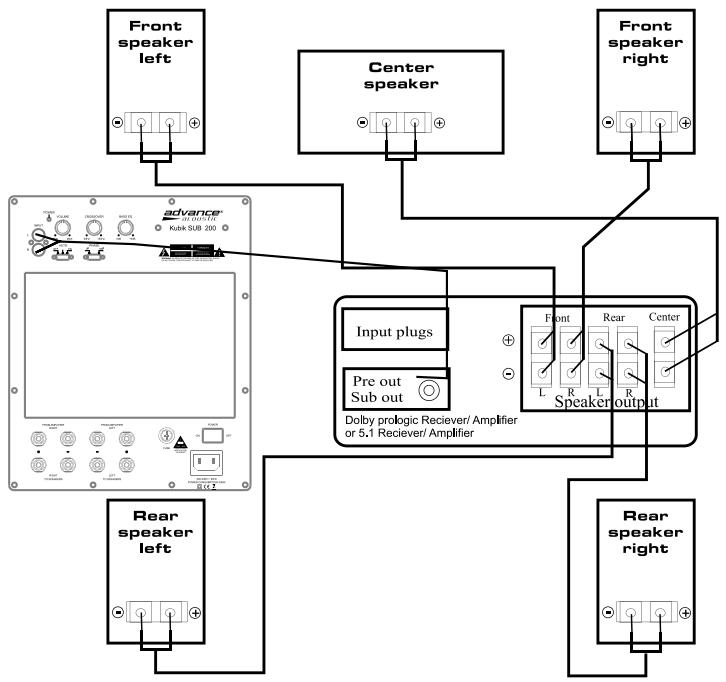

1. Front amplifier with pre out to subwoofer

Connect the signal cable RCA from the amplifier pre out to INPUT of your active subwoofer. Hereby the sound signal runs from amplifier subwoofer pre out to your active subwoofer. ( Fig 1)

Fig. 1

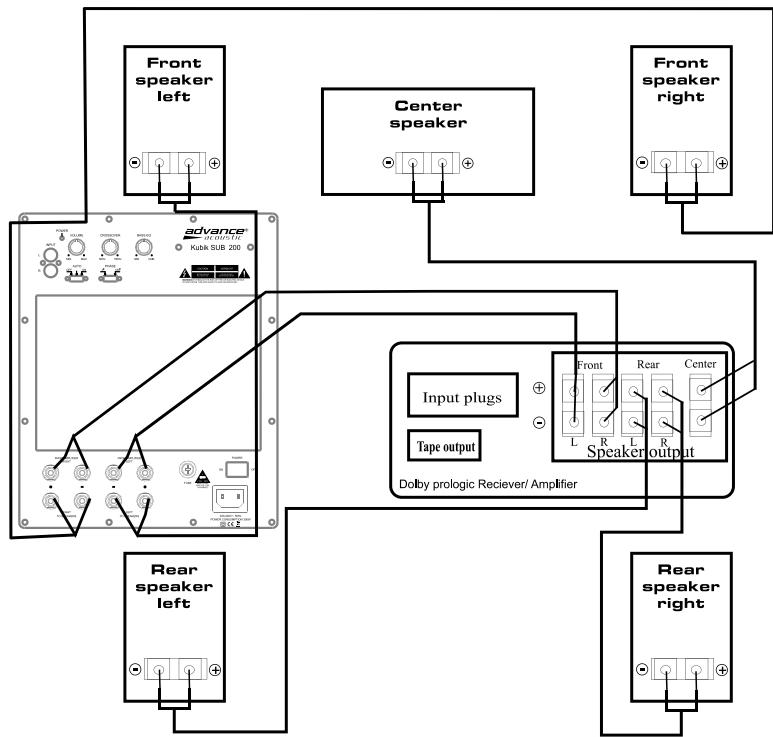

2. From amplifier speaker out to subwoofer:

Connect the speaker cords from the amplifier speaker terminations to INPUT In on Your active subwoo-fer. Make sure that the right channel on the amplifier is connected to the right channel on the subwoofer.

Repeat the same check for the left channels.

Next, connect the front speakers from OUTPUT on Your active subwoofer.

Make sure that the right channel on the subwoofer is connected to the right speaker.

Repeat the same check for the left channel (See Fig 2)

Fig. 2

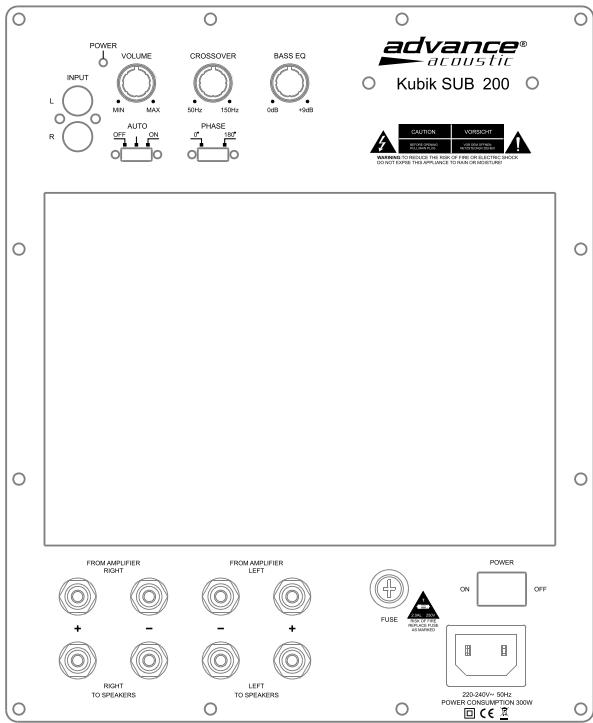

AUTO ON/OFF

Select AUTO to enable the auto mode of the subwoofer. The subwoofer will switch ON when signal arrive and switch OFF after several minutes when there is no more audio signal.

Volume

The sound level of the active subwoofer can be adjusted. Use the volume control carefully, remember that programme material may contain very high energy.

Phase

The phase is adjustable to 0 or 180 degrees Try both settings for preferred sound.

Crossover

It is possible to reduce the bass -adjustment from 40-120 Hz. Try different settings for preferred sound.

To get the service guarantee :

Please contact your authorised Advance Acoustic retailer

The guarantee service is only applied in the country of loudspeakers purchasing.

Those product are guaranteed against manufacturing defects for the period of five years from the date of purchase (of the first owner), provided that the product was supplied by an authorised Advance Acoustic dealer.

Advance Acoustic accepts no responsibility for defects arising from :

• Accident,
  Misuse,
  Modification or operation outside of that specified within this instruction manual, or due to repairs done by nonauthorised Advance Acoustic persons.
• Damage or loss occurring during transport
  Any complaints based on a false declaration from the authorised Advance Acoustic dealer
  Products sold » such as » either « final sale » or the cost due to the installation, the des installation or reinstallation of the product.
  The liability of advance Acoustic is limited to the repair or replacement of the defective parts ( at the discretion of Advance Acoustic) and under no circumstances extends to consequential losses , damage or accident.
• Advance Acoustoc can replace one model (if this is no more manufactured) by another model at the same cost.. Any device or component for replacement, may be new or refurbished.

SPECIFICATIONS ET PERFORMANCES PERFORMANCE SPECIFICATIONS

Kubik SUB-200

Amplifier: Digital Switch Mode Amplifier 300 Watts RMS

Voltage: 220-240 V/50 Hz

Freq. Response: 30~200Hz

Driver: 1 x 250mm (10 inch) paper cone driver 1 x 250mm (10 inch) paper cone radiator

Volume: Variable 0-10

Output: L/R speaker out

Dimensions : 398H x 320W x 360D (mm)

Weight : 18,4kg

Colour: Black or White
