USER MANUAL SE 300 B AKG

Table of Contents Table of Contents

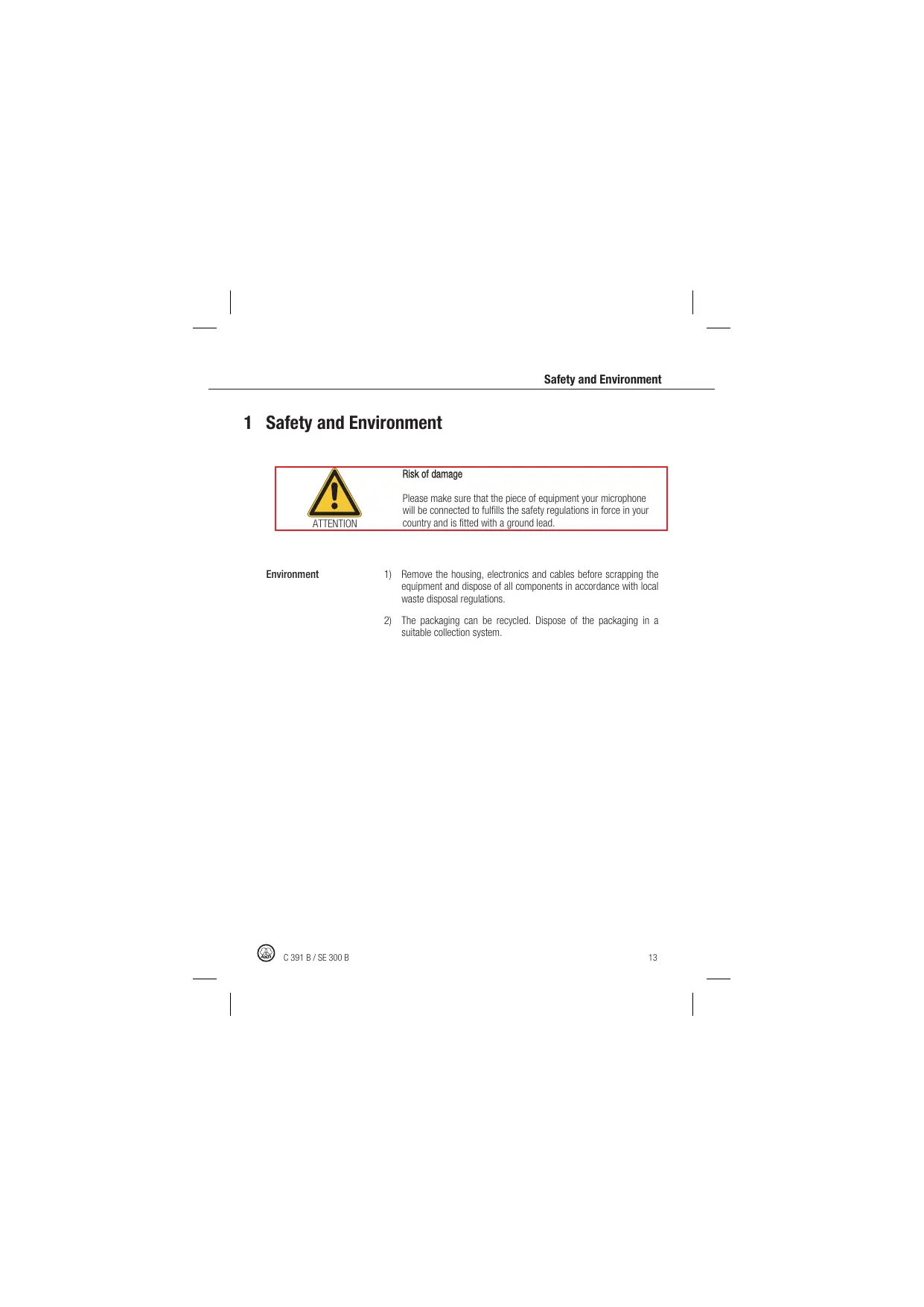

Safety and Environment ATTENTION Risk of damage Please make sure that the piece of equipment your microphone will be connected to full the safety regulations in force in your country and is fted with a ground lead Environment © camera

Remove the housing, electronics and cables before scrapping the equipment and dispose of ll components in accordance with local waste disposal regulations. The packaging can be recycled. Dispose of the packaging in a suitable collection system

Description Description Introduction Scope of supply Special features The C 391 B is a complete system that can be adapted in a very practical and lowr-cost manner to match he ever-changing requirements of the recording, broadcastng, sound reinforcement and flm industries. The sound engineer can choose from a range of microphone modules that can be mixed and matched to create customised studio-qualiy microphones for every … conceivable application. + SE 3008 powering/output module + CK 91 microphone capsule with frequency-independent, cardioid polar patte + W/90 foam wind guard + SA 60 universal tripod connector + Robust design + Minimal sef noise + Low power consumption + Ecremeyrelable + Lowimpedance capsule connection + Works without any problems up to 60°C and 95% relative humidity + Integrated, suitchable 10 dB attenuation of gain (see fig.) + Extremely durable + Transformerless output stage + Can by powered by anÿ phantom powering 2B:: device that complies with IEC 61938 ee ons + Low distortion, even at high sound pressure levels + Integrated bass filter with onset at approx. 100 Hz (see fig.) casses ©

Description Optional accessories © camera A 91: Articulated joint with swivel range of 90° from the microphone ais B 18: Battery power supply for one microphone H 30: Etastic suspension with very effective insultion ST 45: Smal table tipod ST 46: Smal table tipod for the fitted capsules ST 305: Large table tipod with cirular base and rubber lining to dampen structure-borne noise

Description Summary The C 391 B system consists of a universal powering/output module (SE 300 8), several microphone capsules and readiy-interchangeable accessories to sui all types of application. The microphone is virually unaffected by handling noise due to its fighieight diaphragm. Additional features include the al-metal housing, which makes i less susceptible to HF interference, as well as its trouble-free operation in almost al situations due to its conservative and relable design. The switchable 10 dB attenuation of the output signal is a major benefit at high sound pressure levels (Le. high-powered sound sources) and when the input stages of ampliiers or mixing desks have lower madmum input levels. M this option was not available, these connected stages would be overampiied without being able to fuly control the microphone. ‘The switchable bass cut filter of the microphone also helps to suppress low-frequency distorion, such as rumble or wind noises, that cannot be controlled. The filer slope is approx. 12 dB/octave with the comer frequency (-3 dB point) ing at approx. 75 Hz. casses ©

Application 3 Application Introduction CK 91 - Cardioid microphone capsule CK 92 - Omnidirectional microphone capsule © crosses The capsules are connected to the poweringloutput module by a simple bayonet mounting system. This allows he various capsules to be switched reliably, quickly and easily, even when they cannot be seen (e.g. in darkened rooms) The capsules and accessories can only be connected to the pouering module in one position. À short, sharp twist t the right (isten out for a distinct "click”) will secure the module in position (see fig. The capsule is removed just as easily with a Short twist to the left Our modules and system accessories are designed for use in a whole range of user-speciic applications. À brief selection of these are listed belou. KE \, Classic microphone capsule with a carcioid polar pattem. Suitable for all applications where good sound attenuation (180°) is required Microphone with sphercal polar pattem for use during ve commentaries or for choir and solo performer recordings in either a recording or television studio. The capsule has no distance-dependent frequency cuve (proxdimity effect - nommally an advantage in the applications mentioned above.

Application CK 93 - Hypercardioid microphone capsule CK 94 - Figure-eight microphone capsule CK 97C - Miniature cardioid microphone capsule CK 98 - Short shotgun capsule Similar to the CK 91 in design, but acousticaly the CK 93 capsule provides a uniform hypercardioid polar patte. The result is a higher front-to-random factor than with cardioid microphone capsules. This offers the advantage of better side separation in. muli-channel recording work and increased feedback protection in sound reinforcement applications. This microphone capsule provides exceptionally good suppression of off-ais sounds and is consequently well-suited for interviews or recording dramas. The CK 94 can be used as part of an MS combination in conjunction with a second microphone with a cardioid, hypercardioid or omnidirectional polar pattern. This miniature. microphone can be used in any situation where the microphone must be 25 inconspicuous as possible, or even hidden completely out of sight. The microphone polar patte ensures that recordings are free from overemphasised auditory source width and that sound reinforcement work can be completed with good feedback protection. This shoïgun capsule represents a good compromise between the tube length and the resulting directiviy. The capsule is best suited for sound recordings in the flm and television industries, as well as for on-stage and outdoor applications. It can also be used anywhere where clear separation between individual instruments is needed without additional acoustic partitions. casses ©

Cleaning 4 Cleaning Microphone Windscreen © camera Use a soft cloth moistened with water to clean the surface of the microphone body Wash the foam windscreen in soap suds. Do not use the windscreen before it has dried complete.

Specifications 5 Specifications Electrical working prnciple: Condenser microphone, setf-polarised Acoustic Working principle Pressure gradient receiver Polar pattern: Cardio Frequency range 20 to 20,000 Hz + 2 dB from nominal frequency cune Field open 100p gain (ensiiviy) at 100 H 10 mVPa - 40 dBVin re. to 1V/Pa Electrical Impedance £ 200 Onm Recommended load mpedance > 1000 Ohm Equivalent noise level acc, to 28 DIN 45405 (CCIR 468-2) Equivalent Sound pressure lever acc. 10 TT BA IEC 60268-4 [A-weïghted) SINraïo in re, 10 1 Pa (A-Welgnted) TE Sound pressure Ie 80 Pa (182 dB) or 1000 Hz Operating conditions: = Temperature -20°C to +60°C - Relative hurmidity 99% (+20°C), 95% (+60°0) Suppiy voltage 9 10 52 V phantom power acc. to IEC 61988 Current consumption <2mA Connector Type XLR-3 acc. 1OIEC External dimensions 9 rm 9 x 147 mm Weight approx. 115 g, net Housing mater Brass Housing surface: Mat grey This product conformes to the standards listed in the Declaration of Conformit. To order a free copy of the Declaration of Conformity, visit ttp:/law.akg.com or contact sales@akg.com cernes ©

Specifications Frequency Response Curve Polar Pattern 1 B/SE 300 8
