USER MANUAL HSC 150 SR AKG

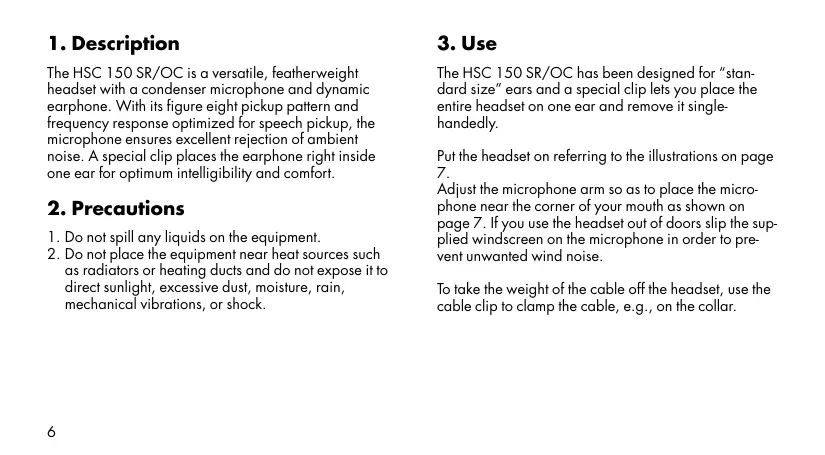

The HSC 150 SR/OC is a versatile, featherweight headset with a condenser microphone and dynamic microphone. With its figure eight pickup pattern and frequency response optimized for speech pickup, the microphone ensures excellent rejection of ambient noise. A special clip places the microphone right inside one ear for optimum intelligibility and comfort.

2. Precautions

1. Do not spill any liquids on the equipment.
2. Do not place the equipment near heat sources such as radiators or heating ducts and do not expose it to direct sunlight, excessive dust, moisture, rain, mechanical vibrations, or shock.

3.Use

The HSC 150 SR/OC has been designed for "standard size" ears and a special clip lets you place the entire headset on one ear and remove it single-handedly.

Put the headset on referring to the illustrations on page 7.

Adjust the microphone arm so as to place the microphone near the corner of your mouth as shown on page 7. If you use the headset out of doors slip the supplied windscreen on the microphone in order to prevent unwanted wind noise.

To take the weight of the cable off the headset, use the cable clip to clamp the cable, e.g., on the collar.

4. Cable

The HSC 150 SR/OC uses an unterminated cable. The microphone and earphone wires are color coded as follows:

Microphone

Red:	audio and supply voltage (1.5V to 10 V)
Shield:	ground

Earphone

White:	audio
Shield:	ground

5. Specifications

Environment

ETS 3000 19 EC7.3

Storage and operating temperature range: -40^ to +80^

Guaranteed drop height onto hard surface: 150 cm (59 in.)

System

Dimensions

Microphone arm length: 123 mm (4.8 in.)

Overall length: 169 mm (6.6 in.)

Weight: 15 g (0.53 oz.) less cable

Case material: ABS

Microphone Acoustical Data

SLR 46+/-4dB
Sensitivity -47dBV/1Pa
Polar pattern figure-of-eight
Impedance 2.2 Kohms
T.H.D. <2% at 16dBPa, 300 to 3,400Hz
Linearity +/-1 dB -40 to 17dBPa
Supply voltage 1.1 to 10V
Current consumption <0.5mA
S/N ratio >50dB

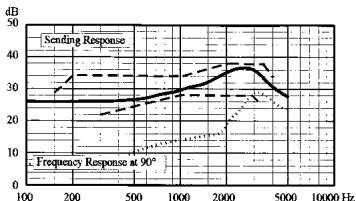

Microphone Frequency Response

Specifications subject to change. This product conforms to EN 50 082-1

Earphone Acoustical Data

RLR -12+/-4dB
Impedance 150 ohms
T.H.D. <3% at 17dPa, 300 to 3,400Hz
Linearity +/-1dB -40 to 16dPa
Magnetic stationary field <400A/cm at 2mm from front
Warning: Do not exceed 1.5 V rms = 124dBSPL

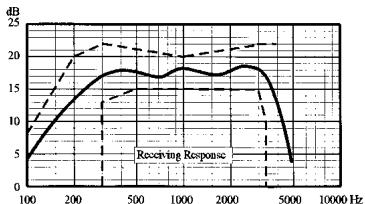

Earphone Frequency Response

1.Description
