USER MANUAL 398 DREMEL

DREMEL DIGITAL High Speed Rotary Tool Operating/Safety Instructions Model 398

HONESTLY NOW ... Have you read this OWNER'S MANUAL?

• Safety
  Assembly
  Operation
• Maintenance
• Accessory Information
  Warranty
• Accessory Kits List
  Service Parts

DREML

P.O.Box 1468

Racine, Wisconsin 53401

1-800-437-3635

http://www.dremel.com

Robert Bosch Tool

Corporation

1997

All Rights Reserved

Dremel brand products are manufactured and sold by the Dremel Division of Robert Bosch Tool Corporation

Power Tool Safety Rules

WARNING

Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

Keep by-standers, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

Double Insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double Insulation eliminates the need for the three wire grounded power cord and grounded power supply system. Before plugging in the tool, be certain the outlet voltage supplied is within the voltage marked on the nameplate. Do not use "AC only" rated tools with a DC power supply.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. If operating the power tool in damp locations is unavoidable, a Ground Fault Circuit Interruptions must be used to supply the power to your tool. Electrician's rubber gloves and footwear will further enhance your personal safety.

Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.

When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W." These cords are rated for outdoor use and reduce the risk of electric shock. Refer to "Recommended sizes of Extension Cords" in the Accessory section of this manual.

Personal Safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Keep handles dry, clean and free from oil and grease.

Avoid accidental starting. Be sure switch is "OFF" before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch "ON" invites accidents.

Remove adjusting keys or wrenches before turning the tool "ON". A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.

Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

Tool Use and Care

Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

Do not use tool if switch does not turn it "ON" or "OFF". Any tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.

Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control. Any alteration or modification is a misuse and may result in a dangerous condition.

Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. Develop a periodic maintenance schedule for your tool.

Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

Service

Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. For example: internal wires may be misplaced or pinched, safety guard return springs may be improperly mounted.

When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electric shock or injury. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Safety Rules for Rotary Tools

Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury.

Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator. If cutting into existing walls or other blind areas where electrical wiring may exist is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.

Do not operate the flexible shaft with a sharp bend. Over bending the shaft can generate excessive heat on the jacket or hand piece. The recommended minimum is 6^ radius.

Always disconnect the power cord from the power source before making any adjustments or attaching any accessories. You may unexpectedly cause the tool to start leading to serious personal injury.

Be aware of the switch location, when placing the tool down or when picking the tool up. You may accidentally activate the switch.

Always hold the hand piece firmly in your hands during the start-up. The reaction torque of the motor, as it accelerates to full speed, can cause the shaft to twist.

Always wear safety goggles and dust mask. Use only in well ventilated area. Using personal safety devices and working in safe environment reduces risk of injury.

After changing the bits or making any adjustments, make sure the collet nut and any other adjustment devices are securely tightened. Loose adjustment device can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

Do not reach in the area of the spinning bit. The proximity of the spinning bit to your hand may not always be obvious.

Allow brushes to run at operating speed for at least one minute before using wheel. During this time no one is to stand in front or in line with the brush. Loose bristles or wires will be discharged during the run-in time.

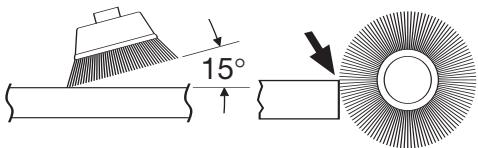

Wire and bristle brushes must never be operated at speeds greater than 15,000/min. Direct the discharge of the spinning wire brush away from you. Small particles and tiny wire fragments may be discharged at high velocity during the "cleaning" action with these brushes and may become imbedded in your skin. Bristles or wires will be discharged from the brush at high speeds.

Wear protective gloves and face shield with wire or bristle brushes. Apply wire or bristle brushes lightly to the work as only the tips of the wire/bristles do the work. "Heavy" pressure on bristles will cause the wire or bristle to become overstressed, resulting in a wiping action and will cause the bristles/wire to be discharged.

Carefully handle both the tool and individual grinding wheels to avoid chipping or cracking. Install a new wheel if tool is dropped while

Safety Rules for Rotary Tools - (cont.)

grinding. Do not use a wheel that may be damaged. Fragments from a wheel that bursts during operation will fly away at great velocity possibly striking you or bystanders.

Never use dull or damaged bits. Sharp bits must be handled with care. Damaged bits can snap during use. Dull bits require more force to push the tool, possibly causing the bit to break.

Use clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use. Allow for sufficient space, at least 6^ , between your hand and the spinning bit. Round material such as dowel rods, pipes or tubing have a tendency to roll while being cut, and may cause the bit to "bite" or jump toward you. Clamping a small workpiece allows you to use both hands to control the tool.

Inspect your workpiece before cutting. When cutting irregularly shaped workpieces, plan your work so it will not slip and pinch the bit and be torn from your hand. For example, if carving wood, make sure there are no nails or foreign objects in the workpiece. Nails or foreign objects can cause the bit to jump.

Never start the tool when the bit is engaged in the material. The bit cutting edge may grab the material causing loss of control of the cutter.

Avoid bouncing and snagging the wheel, especially when working corners, sharp edges etc. This can cause loss of control and kick-back.

The direction of feed with the bit into the material when carving, routing or cutting is very important. Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Feeding the tool in the wrong direction, causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed.

If the workpiece or bit becomes jammed or bogged down, turn the tool "OFF" by the switch. Wait for all moving parts to stop and unplug the tool, then work to free the jammed material. If the switch to the tool is left "ON" the tool could restart unexpectedly causing serious personal injury.

Do not leave a running tool unattended, turn power off. Only when tool comes to a complete stop it is safe to put it down.

Do not grind or sand near flammable materials. Sparks from the wheel could ignite these materials.

Do not touch the bit or collet after use. After use the bit and collet are too hot to be touched by bare hands.

Regularly clean the tool's air vents by compressed air. Excessive accumulation of powdered metal inside the motor housing may cause electrical failures.

Do not allow familiarity gained from frequent use of your rotary tool to become commonplace. Always remember that a careless fraction of a second is sufficient to inflict severe injury.

Do not alter or misuse tool. Any alteration or modification is a misuse and may result in serious personal injury.

This product is not intended for use as a dental drill, in human or veterinary medical applications. Serious personal injury may result.

When using the steel saws, cutoff wheels, high speed cutters or tungsten carbide cutters, always have the work securely clamped. Never attempt to hold the work with one hand while using any of these accessories. The reason is that these wheels will grab if they become slightly canted in the groove, and can kickback causing loss of control resulting in serious injury. Your second hand should be used to steady and guide the hand holding the tool. When a cutoff wheel grabs, the wheel itself usually breaks. When the steel saw, high speed cutters or tungsten carbide cutter grab, it may jump from the groove and you could lose control of the tool.

WARNING

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol	Name	Designation/Explanation
V	Volts	Voltage (potential)
A	Amperes	Current
Hz	Hertz	Frequency (cycles per second)
W	Watt	Power
kg	Kilograms	Weight
min	Minutes	Time
s	Seconds	Time
∅	Diameter	Size of drill bits, grinding wheels, etc.
n0	No load speed	Rotational speed, at no load
.../min	Revolutions or reciprocation per minute	Revolutions, strokes, surface speed, orbits etc. per minute
0	Off position	Zero speed, zero torque...
1, 2, 3, ...I, II, III,	Selector settings	Speed, torque or position settings. Higher number means greater speed
0	Infinitely variable selector with off	Speed is increasing from 0 setting
→	Arrow	Action in the direction of arrow
~	Alternating current	Type or a characteristic of current
---	Direct current	Type or a characteristic of current
~	Alternating or direct current	Type or a characteristic of current
回	Class II construction	Designates Double Insulated Construction tools.
÷	Earthing terminal	Grounding terminal
!	Warning symbol	Alerts user to warning messages
	Ni-Cad RBRC seal	Designates Ni-Cad battery recycling program

This symbol designates that this tool is listed by Underwriters Laboratories.

This symbol designates that this tool is listed to Canadian Standards by Underwriters Laboratories.

This symbol designates that this tool is listed by the Canadian Standards Association.

This symbol designates that this tool is listed by Underwriters Laboratories, and listed to Canadian Standards by Underwriters Laboratories.

This symbol designates that this tool complies to NOM Mexican Standards.

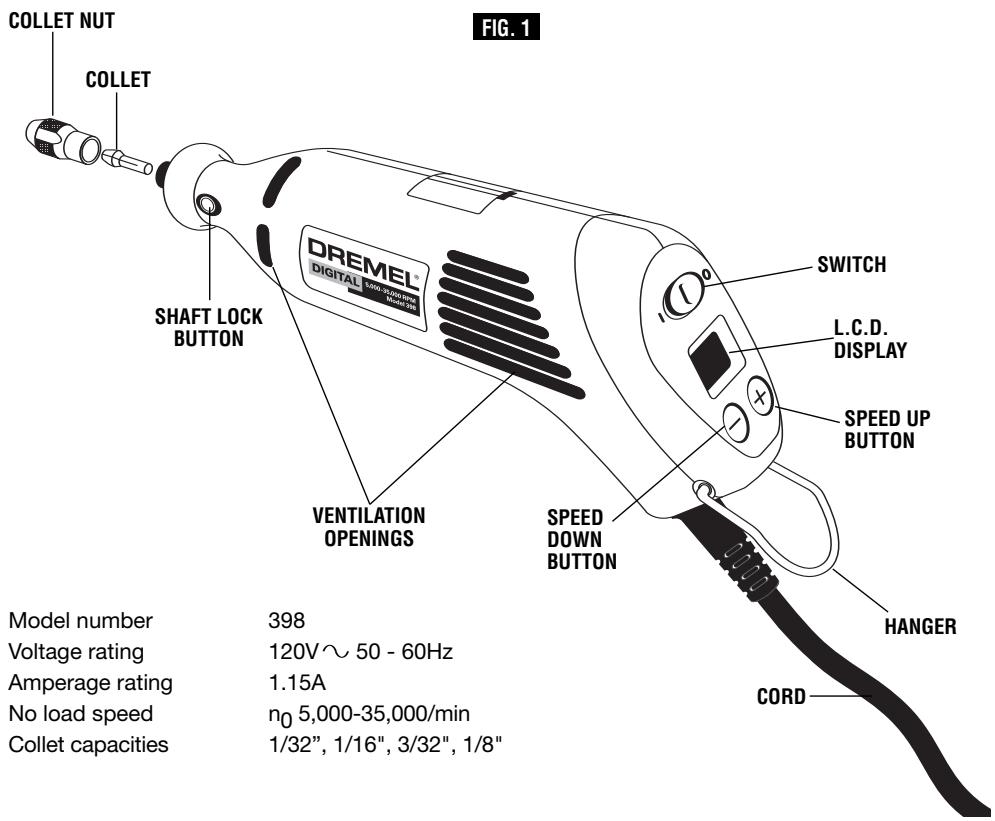

Functional Description and Specifications

WARNING

Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the

tool accidentally.

Rotary Tool

Assembly

WARNING

Always unplug Rotary Tool before changing accessories, changing your Rotary Tool.

collets or servicing your Rotary Tool.

CAUTION

COLLET

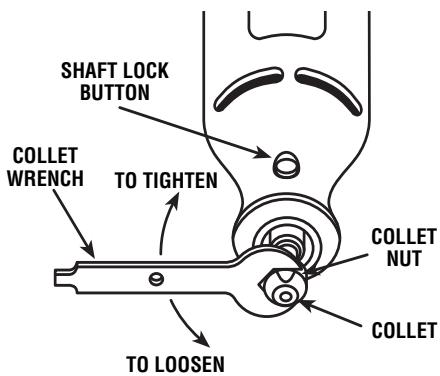

To loosen, first press shaft lock button and rotate the shaft by hand until the lock engages the shaft preventing further rotation.

Do not engage lock while the Rotary Tool is running.

With the shaft lock engaged use the collet wrench to loosen the collet nut if necessary. Change accessories by inserting the new one into the collet as far as possible to minimize runout and unbalance. With the shaft lock engaged, finger tighten the collet nut until the accessory shank is gripped by the collet. Avoid excessive tightening of the collet nut.

COLLETS

Four different size collets (see illustration), to accommodate different shank sizes, are available for your Rotary Tool. To install a different collet, remove the collet nut and remove the old collet. Insert the unslotted end of the collet in the hole in the end of the tool shaft. Replace collet nut on the shaft. Always use the collet which matches the shank size of the accessory you plan to use. Never force a larger diameter shank into a collet.

BALANCING ACCESSORIES

For precision work, it is important that all accessories be in good balance (much the same as the tires on your automobile). To true up or balance an accessory, slightly loosen collet nut and give the accessory or collet a 1/4 turn. Retighten collet nut and run the Rotary Tool. You should be able to tell by the sound and feel if your accessory is running in balance. Continue adjusting in

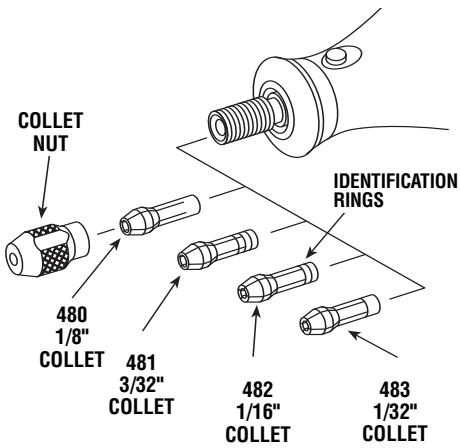

COLLET IDENTIFICATION CHART — Collet sizes can be identified by the rings on the back end of collet.

1/32" Collet has one (1) ring.
1/16" Collet has two (2) rings.
3/32" Collet has three (3) rings.
1 / 8 Collet has no rings.

CAUTION

this fashion until best balance is achieved. To maintain balance on abrasive wheel points, before each use, with the wheel point secured in the collet, turn on the Rotary Tool and run the 415 Dressing Stone lightly against the revolving wheel point. This removes high spots and trues up the wheel point for good balance.

The hanger is provided for the use of hanging your tool while using the flex-shaft or for storage. If you do not use the hanger, remove it from the tool and snap it back into place underneath the cord so it will be out of the way while the tool is in use.

Flex-shaft to Rotary Tool installation

WARNING

Not for use with router bits. Use with router bits will cause

kickback.

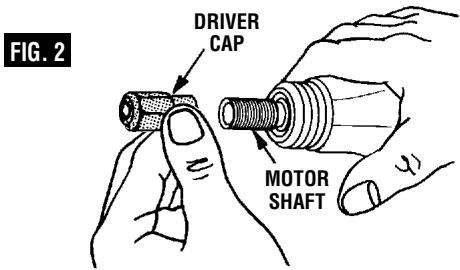

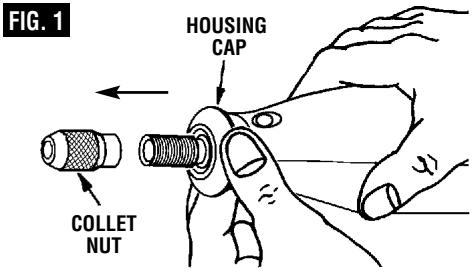

To attach the 225 flex-shaft (sold separately) to the Rotary Tool press the shaft lock and remove the collet nut, then remove the collet and housing cap as shown in Figure 1. Install the driver cap on the motor shaft as shown in Figure 2 and tighten.

To prevent damage to tool, do not overtighten driver cap. Tighten

the driver cap finger tight and then tighten an additional 1/3 turn with the wrench. (Wrench included with your Rotary Tool kit).

Assembly - (cont.)

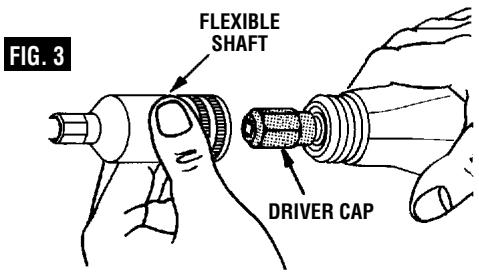

Screw the flexible shaft onto the Rotary Tool housing being sure that the square end of the center core engages the square hole socket in the driver cap Figure 3.

Do not pull out center core to engage into driver cap. This could cause disengagement of center core from handpiece. If tool stops when shaft is bent, center core may be lodged in driver cap. Loosen shaft and remove core from driver cap. Then screw flexible shaft onto rotary tool housing again.

Flex-Shaft Collet Assembly

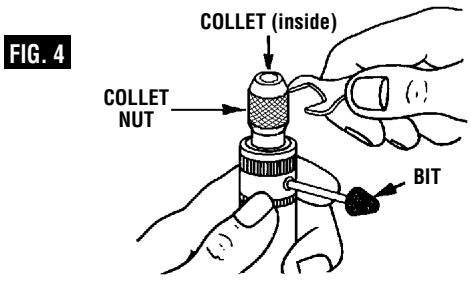

The collet assembly consists of a collet nut and collet. To change bits use the wrench and a bit. Insert the shank portion of any bit (1/8" shank recommended) through the opening in the flex-shaft hand piece to lock the shaft. With the shaft secured, use the wrench to loosen or tighten the collet nut as shown in Figure 4. With the collet nut loose, insert an accessory or bit as deeply as possible to avoid wobble during use. Retighten the collet nut.

Collet Removal and Replacement

Four different size collets to accommodate different shank sizes, are available for your flex-shaft. To install a different collet, remove the collet nut and remove the old collet. Insert the unslotted end of the collet in the hole in the end of the flex-shaft. Replace collet nut on the shaft. Always use the collet which matches the shank size of the accessory you plan to use.

Never force a larger diameter shank into a collet.

Flexible Shaft Lubrication

The flexible shaft should be lubricated after every 25-30 hours of use. To lubricate, unscrew the flexible shaft assembly from the motor housing. Pull the center core out of the flexible shaft assembly. Wipe a very thin film of a good quality, high temperature grease on to the center core.

To prevent damage to tool do not over grease shaft. Too much

grease will cause the unit to overheat. Automotive wheel bearing grease should be used.

Reattach the flex-shaft to the rotary tool.

Do not operate the flexible shaft with a sharp bend (A). This can

generate excessive heat and will reduce tool and flex-shaft life. The recommended minimum is 6^ radius (B).

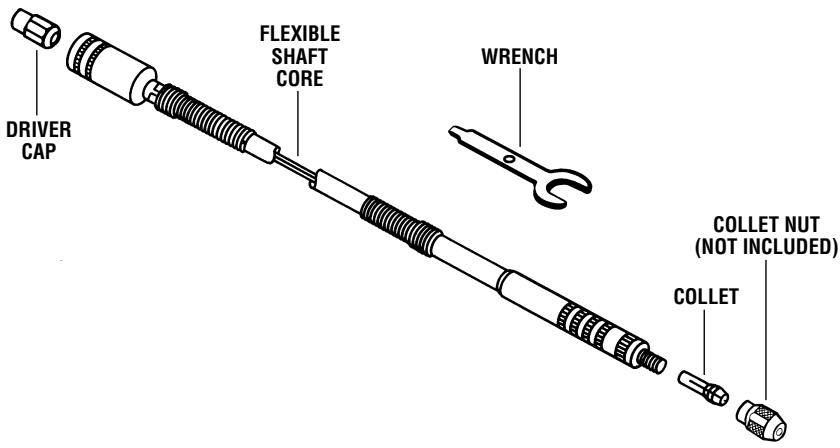

Contents of 225 Flex-shaft Attachment

Qty. Description

1 Flex-Shaft Assembly (42" long)
1 Driver Cap

A.

B.

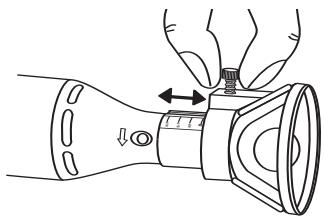

Cutting Guide Installation

The cutting guide 565 (sold separately) comes completely assembled and ready to use. For use in a variety of materials up to 3/4 thick. Match the bit type to material to be cut. Always hold the tool firmly, using slow steady pressure to make cuts.

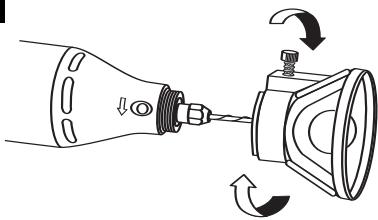

To attach, follow the four steps shown below.

FIG.1

FIG. 2

FIG. 3

FIG. 4

Operating Instructions for Cutting Guide Attachment

560

Drywall Cutting Bit

For use in drywall.

• When inserting the #560 bit into your MultiPro tool, make sure that the bit has been inserted as far as possible.
• When making freehand cuts in drywall, example repairing a hole in drywall, use the Multipurpose bit #561, cutting in a clockwise direction. When using a template (outlet box) behind the drywall, use the drywall bit #560, cutting in a counter-clockwise direction.

561

Multipurpose Cutting Bit

For use in wood, plastics, drywall, fiberglass, vinyl or aluminum siding, acoustical tile and laminates.

• When inserting the #561 bit into your MultiPro tool, make sure that the bit has been inserted as far as possible.
• When making freehand cuts in Drywall, example repairing a hole in drywall, use the Multipurpose bit

561, cutting in a clockwise direction. When using a template (outlet box) behind the drywall, use the drywall bit #560, cutting in a counter-clockwise direction.

• When using #561, Multipurpose Cutting Bit, and #562, Tile Cutting Bit, start the bit into the material at a 45 degree angle and then slowly bring it to a 90 degree angle to begin the cut.

562

Tile Cutting Bit

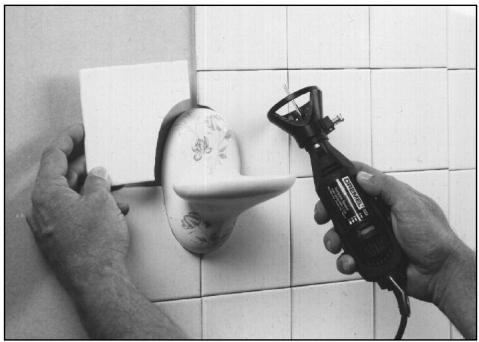

For use on wall tile, cement board and plaster

• When inserting the #562 bit into your MultiPro tool, it is very important that 1/16" - 1/8" of smooth shank remains visible above the collet.
• When using #561, Multipurpose Cutting Bit, and #562, Tile Cutting Bit, start the bit into the material at a 45 degree angle and then slowly bring it to a 90 degree angle to begin the cut.
• NOT FOR USE ON FLOOR TILE

Operating Instructions for Rotary Tool and Flex-Shaft Attachment

The following operation applies to the Rotary Tool and Flex-Shaft attachment, except the pictures depict the Rotary Tool.

The Rotary Tool is a handful of high-speed power. It serves as a carver, grinder, polisher, sander, cutter, power brush, drill and more.

The Rotary Tool has a small, powerful electric motor, is comfortable in the hand, and is made to accept a large variety of accessories including abrasive wheels, drill bits, wire brushes, polishers, engraving cutters, router bits, and cutting wheels. Accessories come in a variety of shapes and permit you to do a number of different jobs. As you become familiar with the range of accessories and their uses, you will learn just how versatile the Rotary Tool is. You'll see dozens of uses you hadn't thought of before.

The real secret of the Rotary Tool is its speed. To understand the advantages of its high speed, you have to know that the standard portable electric drill runs at speeds up to 2,800 revolutions per minute. The Rotary Tool operates at speeds up to 35,000 revolutions per

minute. The typical electric drill is a low-speed, high torque tool; the Rotary Tool is just the opposite - a high-speed, low torque tool. The chief difference to the user is that in the high speed tools, the speed combined with the accessory mounted in the collet does the work. You don't apply pressure to the tool, but simply hold and guide it. In the low speed tools, you not only guide the tool, but also apply pressure to it, as you do, for example, when drilling a hole.

It is this high speed, along with its compact size and wide variety of special accessories, that makes the Rotary Tool different from other power tools. The speed enables it to do jobs low speed tools cannot do, such as cutting hardened steel, engraving glass, etc.

Getting the most out of your Rotary Tool is a matter of learning how to let this speed work for you.

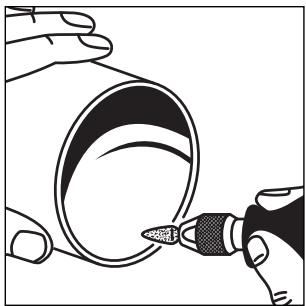

Sharpen Tools

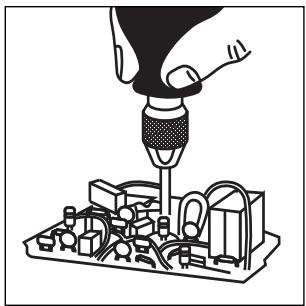

Precise Drilling

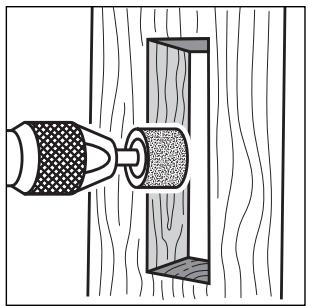

Shape Wood

Carve Wood

Deburr Metal

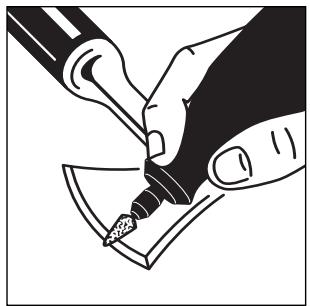

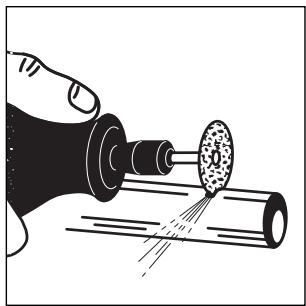

Cut Metal

Using the Rotary Tool

The first step in learning to use the Rotary Tool is to get the "feel" of it. Hold it in your hand and feel its weight and balance. Feel the taper of the housing. This taper permits the Rotary Tool to be grasped much like a pen or pencil.

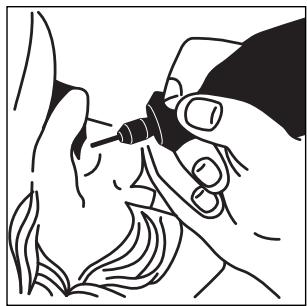

When you turn on the tool for the first time, hold it away from your face. Accessories can be damaged during handling, and can fly apart as they come up to speed. This is not common, but it does happen.

Practice on scrap materials first to see how the Rotary Tool cuts. Keep in mind that the work is done by the speed of the tool and by the accessory in the collet. You should not lean on or push the tool into the work.

Instead, lower the spinning accessory lightly to the work and allow it to touch the point at which you want cutting (or sanding or etching, etc.) to begin. Concentrate on guiding the tool over the work using very little pressure from your hand. Allow the accessory to do the work.

Usually, it is best to make a series of passes with the tool rather than attempt to do all the work in one pass. To make a cut, for example, pass the tool back and forth over the work, much as you would a small paint brush. Cut a little material on each pass until you reach the desired depth. For most work, the gentle touch is best. With it, you have the best control, are less likely to make errors, and will get the most efficient work out of the accessory.

Questions or Problems ? Call 1- 800- 437- 3635 or check our website at www.Dremel.com

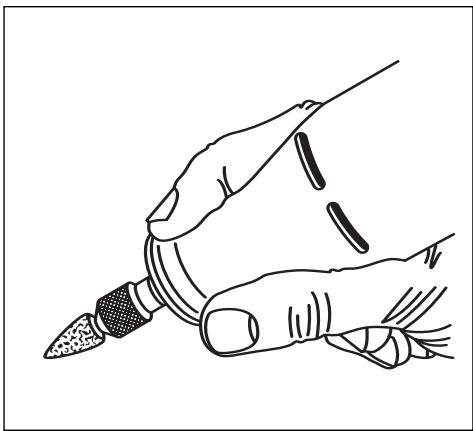

For best control in close work, grip the Rotary Tool like a pencil between your thumb and forefinger.

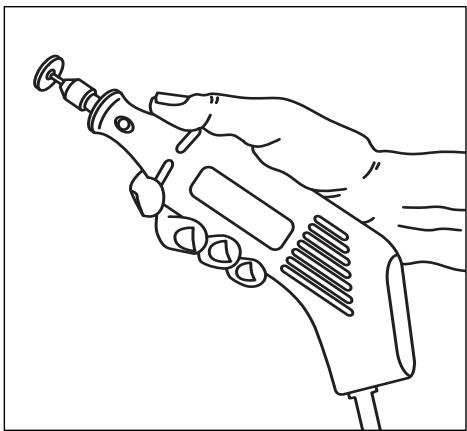

The "handgrip" method of holding the tool is used for operations such as grinding a flat surface or using cutoff wheels.

CAUTION Whenever you hold the tool, be careful not to cover the air vents with your hand. This blocks the air flow and causes the motor to overheat.

Operating Speeds for Accessories

Electronic Feedback Circuitry (EFC)

Your tool is equipped with a internal electronic feedback system that provides a "soft start", which will reduce the stresses that occur from a high torque start. The system also helps to keep the pre-selected rotating speed virtually constant between no-load and load conditions.

Set the speed indicator to fit the job; to achieve the best job results when working with different materials, the speed of the Rotary Tool should be regulated. Model 398 Rotary Tool has an integral speed control.

CAUTION

An external speed control should never be used with this

tool.

To select the right speed for each job, use a practice piece of material. Vary speed to find the best speed for the accessory you are using and the job to be done.

NOTE: Speed is affected by voltage changes. A reduced incoming voltage will slow the RPM of the tool, especially at the lowest setting. If your tool appears to be running slowly increase the speed setting accordingly.

Digital Speed Selector Switch

Your rotary tool features a digital speed selector switch which displays an L.C.D. reading of the tool's RPM. The speed can be selected from 5,000 RPM to 35,000 RPM in 1,000 RPM increments by simply depressing the positive or negative buttons on the switch.

TO TURN TOOL "ON": slide ON/OFF switch to the "ON" position.

TO TURN TOOL "OFF": slide ON/OFF switch to the "OFF" position.

TO INCREASE SPEED: depress button with + sign.

TO DECREASE SPEED: depress button with - sign.

Needs for Slower Speeds

Certain materials, however, (some plastics, for example) require a relatively slow speed because at high speed the friction of the accessory generates heat and causes the plastic to melt.

Slow speeds (15,000 RPM or less) usually are best for polishing operations employing the felt polishing accessories. They may also be best for working on delicate projects as "eggery" work, delicate wood carving and fragile model parts. All brushing applications require lower speeds to avoid wire discharge from the holder.

Higher speeds are better for carving, cutting, routing, shaping, cutting dadores or rabbets in wood.

Hardwoods, metals and glass require high speed operation, and drilling should also be done at high speeds.

The point to remember is this: You can do the great majority of work at its regular speed of 35,000 RPM. But for certain materials and types of work, you need slower speeds — which is the reason the variable speed models were developed.

To aid you in determining the optimum operational speed for different materials and different accessories, we have constructed a series of tables that appear on page 13, 14, and 15. By referring to these tables, you can discover the recommended speeds for each type of accessory. Look these tables over and become familiar with them.

Ultimately, the best way to determine the correct speed for work on any material is to practice for a few minutes on a piece of scrap, even after referring to the chart. You can quickly learn that a slower or faster speed is more effective just by observing what happens as you make a pass or two at different speeds. When working with plastic, for example, start at a slow rate of speed and increase the speed until you observe that the plastic is melting at the point of contact. Then reduce the speed slightly to get the optimum working speed.

Some rules of thumb in regard to speed:

1. Plastic and materials that melt at low temperatures should be cut at low speeds.
2. Polishing, buffing and cleaning with a wire brush must be done at speeds below 15,000 RPM to prevent damage to the brush.
3. Wood should be cut at high speed.
4. Iron or steel should be cut at top speed if using tungsten carbide accessory, but at slower speeds if using high speed steel cutters. If a high speed steel cutter starts to chatter - this normally means it is running too slow.
5. Aluminum, copper alloys, lead alloys, zinc alloys and tin may be cut at various speeds, depending on the type of cutting being done. Use paraffin or other suitable lubricant on the cutter to prevent the cut material from adhering to the cutter teeth.

Increasing the pressure on the tool is not the answer when it is not cutting as you think it should. Perhaps you should be using a different cutter, and perhaps an adjustment in speed would solve the problem. But leaning on the tool seldom helps.

• Speed for light cuts, caution burning on deep grooves.
  • Depending on cutting direction relative to grain.
  Use only Dremel Tested, High Performance Accessories.

CATALOG NUMBER	SOFT WOOD	HARD WOOD	LAMINATES PLASTIC	STEEL	ALUMINUM, BRASS, ETC.	SHELL/ STONE	CERAMIC	GLASS
HIGH SPEED CUTTERS
100, 121, 131, 141	25,000-35,000	25,000-35,000	12,000-17,000	9,000-11,000	18,000-24,000
114, 124, 134, 144	25,000-35,000	12,000-17,000	9,000-11,000	5,000-9,000	9,000-11,000
189, 190	25,000-35,000	25,000-35,000	9,000-11,000	18,000-24,000	25,000-35,000
118, 191, 193	25,000-35,000	25,000-35,000	9,000-11,000	12,000-17,000	25,000-35,000
192, 194	25,000-35,000	25,000-35,000	9,000-11,000	12,000-17,000	25,000-35,000
116, 117, 125, 196	25,000-35,000	12,000-17,000	9,000-11,000	9,000-11,000	9,000-11,000
115, 178	25,000-35,000	25,000-35,000	9,000-11,000	5,000-9,000	5,000-9,000
197	18,000-24,000	9,000-11,000	9,000-11,000	5,000-8,000	12,000-17,000
198	18,000-24,000	9,000-11,000	9,000-11,000	9,000-11,000	12,000-17,000
199	18,000-24,000	9,000-11,000	5,000-11,000	9,000-11,000	9,000-11,000
ENGRAVING CUTTERS
105, 108	25,000-35,000	25,000-35,000	18,000-24,000	18,000-24,000	12,000-17,000
106, 109	25,000-35,000	25,000-35,000	12,000-17,000	18,000-24,000	12,000-17,000
107, 110	25,000-35,000	25,000-35,000	12,000-17,000	18,000-24,000	9,000-11,000
111	25,000-35,000*	25,000-35,000*	18,000-24,000*	18,000-24,000	12,000-17,000
112	25,000-35,000*	25,000-35,000*	12,000-17,000*	18,000-24,000	12,000-17,000
113	25,000-35,000*	25,000-35,000*	12,000-17,000*	18,000-24,000	9,000-11,000
RUBBER POLISHING POINT
425, 427				9,000-11,000	5,000-8,000
CUTTING ACCESSORIES
409, 420, 426, 540			5,000-9,000	25,000-35,000	25,000-35,000	25,000-35,000	25,000-35,000
560, 561, 562	12,000-25,000	12,000-25,000	5,000-9,000	25,000-35,000	25,000-35,000	25,000-35,000	25,000-35,000
HIGH SPEED ROUTER BITS (Use with cutting guide or shaper/rodtable)
610	12,000-17,000	12,000-17,000
612, 613, 614, 632, 640	12,000-17,000	9,000-11,000*
650, 652	25,000-35,000	25,000-35,000*
654	25,000-35,000	9,000-11,000*

SPEED SETTINGS

• Speed for light cuts, caution burning on deep grooves.
• Depending on cutting direction relative to grain.
  Use only Dremel Tested, High Performance Accessories.

CATALOG NUMBER	SOFT WOOD	HARD WOOD	LAMINATES PLASTIC	STEEL	ALUMINUM, BRASS, ETC.	SHELL/ STONE	CERAMIC	GLASS
DIAMOND WHEEL POINTS
7103, 7105, 7117, 7120, 7122, 7123, 7134, 7144	18,000-24,000	18,000-24,000				18,000-24,000	18,000-35,000	18,000-35,000
ALUMINUM OXIDE GRINDING STONES
541, 915, 923, 924, 945, 997, 8153	25,000-35,000	25,000-35,000	5,000-8,000	18,000-24,000	5,000-11,000	5,000-17,000	25,000-35,000
913, 914, 943, 953, 954, 963, 964, 974, 992 8160, 8162, 8163	25,000-35,000	25,000-35,000	5,000-8,000	18,000-24,000	5,000-11,000	5,000-17,000	25,000-35,000
\( 904, 922, 932 \) 941, 952, 984, 8173, 8174, 8175	25,000-35,000	25,000-35,000	5,000-8,000	18,000-24,000	5,000-11,000	5,000-17,000	25,000-35,000
9l11, 921, 962 973, 8184	25,000-35,000	25,000-35,000	5,000-8,000	18,000-24,000	5,000-11,000	5,000-17,000	25,000-35,000
903, 971, 8193	25,000-35,000	25,000-35,000	5,000-8,000	18,000-24,000	5,000-11,000	5,000-17,000	25,000-35,000
881, 8200, 8202	25,000-35,000	25,000-35,000	5,000-8,000	18,000-24,000	5,000-11,000	5,000-17,000	25,000-35,000
8215	25,000-35,000	25,000-35,000	5,000-8,000	18,000-24,000	5,000-11,000	5,000-17,000	25,000-35,000
SILICON CARBIDE GRINDING STONES
83322, 83642, 83702, 86442			12,000-17,000	25,000-35,000	5,000-11,000	5,000-8,000	9,000-11,000	5,000-11,000
83142, 84382			12,000-17,000	25,000-35,000	5,000-11,000	5,000-8,000	12,000-25,000	12,000-25,000
84922			12,000-17,000	25,000-35,000	5,000-11,000	5,000-8,000	12,000-25,000	12,000-25,000
85422			12,000-17,000	25,000-35,000	5,000-11,000	5,000-8,000	12,000-25,000	12,000-25,000
85562			12,000-17,000	25,000-35,000	5,000-11,000	5,000-8,000	12,000-25,000	12,000-25,000
85342, 85602			12,000-17,000	25,000-35,000	5,000-11,000	5,000-8,000	12,000-25,000	12,000-25,000
85622			12,000-17,000	25,000-35,000	5,000-11,000	5,000-8,000	12,000-25,000	12,000-25,000
TUNGSTEN CARBIDE CUTTERS
9901, 9902, 9903, 9904, 9905, 9906, 9912	18,000-24,000	18,000-24,000	5,000-8,000	9,000-11,000	12,000-17,000	5,000-9,000	18,000-25,000	18,000-25,000
9909, 9910, 9911						5,000-9,000	18,000-25,000	18,000-25,000

• Speed for light cuts, caution burning on deep grooves.
• Depending on cutting direction relative to grain.
  SPEED SETTINGS
  Use only Dremel Tested, High Performance Accessories.

CATALOG NUMBER	SOFT WOOD	HARD WOOD	LAMINATES PLASTIC	STEEL	ALUMINUM, BRASS, ETC.	SHELL/ STONE	CERAMIC	GLASS
SANDING ACCESSORIES
407, 408, 432	5,000-25,000	5,000-25,000	5,000-12,000	25,000-35,000	25,000-35,000	5,000-25,000	5,000-25,000
430, 431, 438	5,000-25,000	5,000-25,000	5,000-12,000	25,000-35,000	25,000-35,000	5,000-25,000	5,000-25,000
439, 440, 444	5,000-25,000	5,000-25,000	5,000-12,000	25,000-35,000	25,000-35,000	5,000-25,000	5,000-25,000
POLISHING ACCESSORIES
461, 462, 463, 464, 465				25,000-35,000	25,000-35,000	25,000-35,000	25,000-35,000	25,000-35,000
466, 414,429, 422, 423				25,000-35,000	25,000-35,000	25,000-35,000	25,000-35,000	25,000-35,000

Maintenance

Service

A WARNING

Preventive maintenance performed by unauthorized person

nel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Dremel Service Facility.

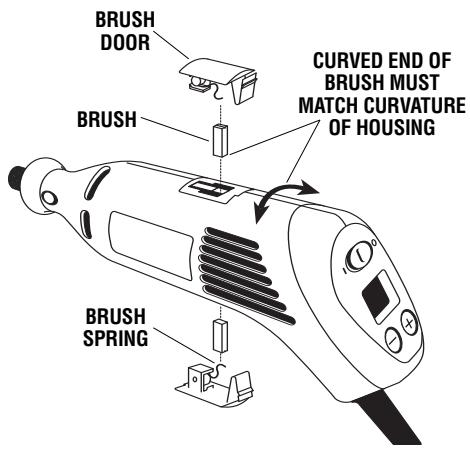

CARBON BRUSHES

The brushes and commutator in your tool have been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend every two to six months the brushes be examined. Only genuine Dremel replacement brushes specially designed for your tool should be used.

MAINTENANCE OF REPLACEABLE BRUSHES MODEL 398

The brushes should be inspected frequently when tools are used continuously. If your tool runs sporadically, loses power, makes unusual noises or runs at a reduced speed, check the brushes. To continue using the tool in this condition will permanently damage your tool.

To Remove Brush Door

Disconnect the tool from the power supply. Each brush door is held in place by a snap latch. To disengage latch, place screwdriver end of wrench (included) in slot at rear of door and pry up as shown in Figure 1. With latch disengaged, using a little force, pull up rear of door and lift away brush door and spring assembly from housing, Figure 2.

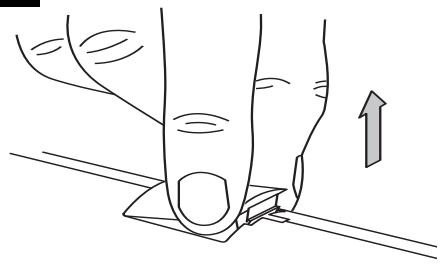

Check Both Brushes

Turn tool so the brush falls out of holder and check each brush. If the brush is less than 1/8 long and the end surface of the brush that contacts the commutator is rough and/or pitted, they should be replaced. Check

FIG.1

FIG. 2

both brushes. Usually the brushes will not wear out simultaneously. If one brush is worn out, replace both brushes. Make sure the brushes are installed as illustrated. The curved surface of the brush must match the curvature of the commutator.

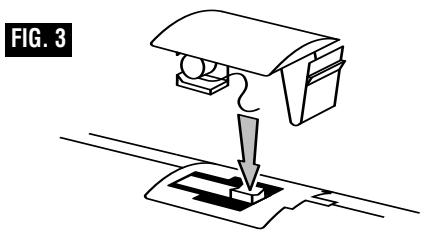

To Replace Brush Door

Rest squared underside of brush door on the squared cavity openings. Check to be sure the spring rests on the V groove of the brush, Figure 3. Push front of door down into the slot, Figure 4, then push down and snap the rear latch into it's slot, Figure 5.

After replacing brushes the tool should be run at no-load; place it on a clean surface and run it freely for 5

Any Questions Call 1-800-437-3635 (1-800-4-DREMEL)

FIG. 4

FIG.5

minutes before loading (or using) the tool. This will allow the brushes to "seat" properly and will give you more hours of life from each set of brushes. This will also extend the total life of your tool since the commutator surface will "wear" longer.

BEARINGS

Model 398 has ball bearing construction. Under normal use no additional lubrication is required.

Cleaning

CAUTION

To avoid accidents always disconnect the tool from the power

supply before cleaning or performing any maintenance. The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through openings.

CAUTION

Certain cleaning agents and solvents damage plastic parts.

Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

Extension Cords

WARNING

If an extension cord is necessary, a cord with adequate

size conductors that is capable of carrying the current necessary for your tool must be used. This will prevent excessive voltage drop, loss of power or overheating. Grounded tools must use 3-wire extension cords that have 3-prong plugs and receptacles.

RECOMMENDED SIZES OF EXTENSION CORDS 120 VOLT ALTERNATING CURRENT TOOLS

Tool's Ampere Rating	Cord Size in A.W.G.				Wire Sizes in mm2
	Cord Length In Feet				Cord Length In Meters
	25	50	100	150	15	30	60	120
3-6	18	16	16	14	.75	.75	1.5	2.5
6-8	18	16	14	12	.75	1.0	2.5	4.0
8-10	18	16	14	12	.75	1.0	2.5	4.0
10-12	16	16	14	12	1.0	2.5	4.0	—
12-16	14	12	—	—	—	—	—	—

NOTE: The smaller the gauge number, the heavier the cord.

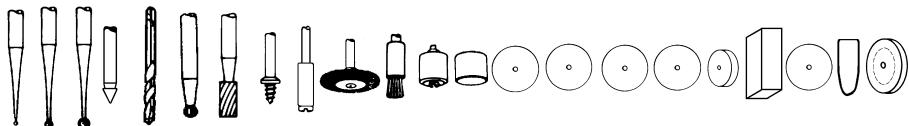

Dremel Accessories

WARNING

Use only Dremel Tested, High Performance Accessories. Other accessories are not designed for this tool and may lead to personal injury or property damage.

The number and variety of accessories for the Rotary Tool are almost limitless. There is a category suited to almost any job you might have to do — and a variety of sizes and shapes within each category which enables you to get the perfect accessory for every need.

Refer to the DREMEL ACCESSORY ORDER FORM for illustrations of the accessories available. These accessories may be found at your local hardware, hobby or home center dealers.

Collets

If you expect to use a variety of accessories, we recommend that in the beginning you purchase a complete set of four collets. Store these so that you will have the proper size of collet for any accessory or drill bit you want to use. Currently, the 1/8", 3/32", 1/32" and 1/16" collets accommodate all of the available Dremel accessories. 1/8" collets are included in most rotary tool kits.

Mandrels

A mandrel is a shank with a threaded or screw head, which are required when you use polishing accessories, cutting wheels, sanding discs, and polishing points. The reason mandrels are used is that sanding discs, cutting wheels and similar accessories must be replaced frequently. The mandrel is a permanent shank, allowing you to replace only the worn head when necessary, thus saving the expense of replacing the shaft each time.

Screw Mandrel No. 401

This is a screw mandrel used with the felt polishing tip and felt polishing wheels. 1/8" shank.

Small Screw Mandrel No. 402

This is a mandrel with a small screw at its tip, and is used with emery and fiberglass cutting wheels, sanding discs and polishing wheels. 1/8" shank.

Threaded Tip Mandrel No. 424

This is a mandrel with a threaded tip which threads into the polishing point accessory No. 427. 1/8" shank.

High Speed Cutters

Available in many shapes, high speed cutters are used in carving, cutting and slotting in wood, plastics and soft metals such as aluminum, copper and brass. These are the accessories to use for freehand routing or carving in wood or plastic, and for precision cutting. Made of high quality steel. 1/8'' shank.

Tungsten Carbide Cutters

These are tough, long-lived cutters for use on hardened steel, fired ceramics and other very hard materials. They can be used for engraving on tools and garden equipment. 1/8" shanks.

Engraving Cutters

This group has a wide variety of sizes and shapes, and are made for intricate work on ceramics (greenware), wood carvings, jewelry and scrimshaw. They often are used in making complicated printed circuit boards. They should not be used on steel and other very hard materials but are excellent on wood, plastic and soft metals. 3/32" shank.

Structured Tooth Tungsten Carbide Cutters

Fast cutting, needle-sharp teeth for greater material removal with minimum loading. Use on fiberglass, wood, plastic, epoxy and rubber. 1/8" and 1/4" shank.

Aluminum Oxide Grinding Stones (red/brown)

Round, pointed, flat — you name the shape and there is one available in this category. These are made of aluminum oxide and cover virtually every possible kind of grinding application. Use them for sharpening lawn mower blades, screwdriver tips, knives, scissors, chisels and other cutting tools. Use to remove flash from metal castings, deburring any metal after cutting, smoothing welded joints, grinding off rivets and removing rust. These grinding stones can be resharped with a dressing stone. In machine shops, high speed drills and cutters normally are ground with aluminum oxide wheels. 1/8'' shank.

Silicon Carbide Grinding Stones (blue/green)

Tougher than aluminum oxide points, these are made especially for use on hard materials such as glass and ceramics. Typical uses might be the removal of still marks and excess glaze on ceramics and engraving on glass. 1/8" shank.

Diamond Wheel Points

Excellent for fine detail work on wood, jade, ceramic, glass and other hard material. Bits are covered with diamond particles. 3/32" shanks.

WireBrushes

Three different shapes of wire brushes are available. Never use wire brushes at speeds greater than 15,000 RPM. Refer to Operating Speeds section for proper tool speed setting. The three shapes come in three different materials: stainless steel, brass and carbon wire. The stainless steel perform well on pewter, aluminum, stainless steel, and other metals, without leaving "after-rust". Brass brushes are non sparking, and softer than steel; making them good for use on soft metal like gold, cooper and brass. The carbon wire brushes are good for general purpose cleaning.

Bristle Brushes

These are excellent cleaning tools on silverware, jewelry and antiques. The three shapes make it possible to get into tight corners and other difficult places. Bristle brushes can be used with polishing compound for faster cleaning or polishing.

Brushing Pressure

1. Remember, the tips of a wire brush do the work. Operate the brush with the lightest pressure so only the tips of the wire come in contact with the work.
2. If heavier pressures are used, the wires will be overstressed, resulting in a wiping action; and if this is continued, the life of the brush will be shortened due to wire fatigue.
3. Apply the brush to the work in such a way that as much of the brush face as possible is in full contact with the work. Applying the side or edge of the brush to the work will result in wire breakage and shortened brush life.

CORRECT:
Wire tips doing the work.
INCORRECT:

Excessive pressure can cause wire breakage.

Polishing Accessories

These include an impregnated polishing point and an impregnated polishing wheel for bringing metal surfaces to smooth finish; a felt polishing tip and felt polishing wheel, and cloth polishing wheel, all used for polishing plastics, metals, jewelry and small parts. Also included in this group is a polishing compound (No. 421) for use with the felt and cloth polishers.

Polishing points make a very smooth surface, but a high luster is obtained using felt or cloth wheels and polishing compound. For best results polishing accessories should be used at speeds not greater than 15,000 RPM. Refer to Operating Speeds section for proper tool speed setting.

No polishing compound is needed when using the 425 Polishing Wheel or 427 Polishing point.

Aluminum Oxide Abrasive Wheels

Use to remove paint, deurr metal, polish stainless steel and other metals. Available in fine and medium grits. 1/8" shank.

Sanding Accessories

Sanding discs in fine, medium and coarse grades are made to fit mandrel No. 402. They can be used for nearly any small sanding job you might have, from model making to fine furniture finishing. In addition, there is the drum sander, a tiny drum which fits into the Rotary Tool and makes it possible to shape wood, smooth fiberglass, sand inside curves and other difficult places, and other sanding jobs. You replace the sanding bands on the drum as they become worn and lose their grit. Bands come in fine and coarse grades. Flapwheels grind and polish flat or contoured surfaces. They are used most effectively as a finishing sander after heavier surface sanding and material removal is completed. Flapwheels come in fine and coarse grades. Buffs are a great finishing accessory for cleaning and light sanding. They work effectively on metal, glass, wood, aluminum and plastics. Coarse and medium buffers are sold together. 1/8" shank.

Grinding Wheel

Use for deburring, removing rust, and general purpose grinding. Use with Mandrel #402.

Dremel Accessories - (Cont.)

Cutting Wheels

These thin discs of emery or fiberglass are used for slicing, cutting off and similar operations. Use them for cutting off frozen bolt heads and nuts, or to reslot a screw head which has become so damaged that the screwdriver won't work in it. Fine for cutting BX cable, small rods, tubing, cable and cutting rectangular holes in sheet metal.

Drywall Cutting Bit

Gives you fast, clean cuts in drywall.

Tile Cutting Bit

Cuts ceramic wall tile, cement board, and plaster.

Spiral Cutting Bit

Cuts through all types of wood and wood composites.

High Speed RouterBits

For routing, inlaying, and mortising in wood and other soft materials. Use only with Dremel No. 330 Router attachment or No.231 Shaper/Router table.

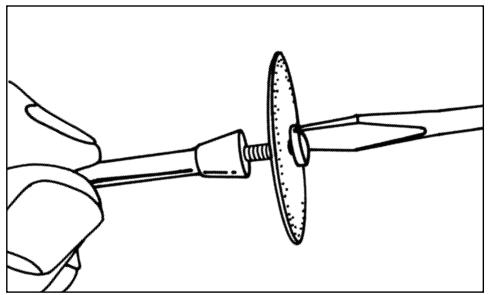

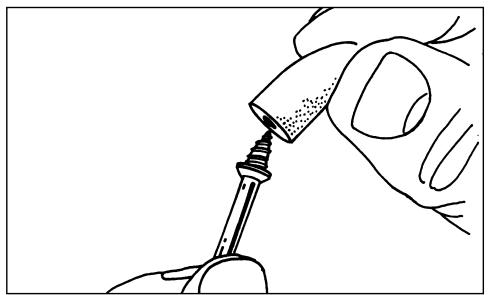

Mandrel No. 401 is used with the felt polishing tip and wheels. Thread the tip on to the screw carefully. The felt tip must thread down straight on the screw Mandrel, and be turned all the way to the collar.

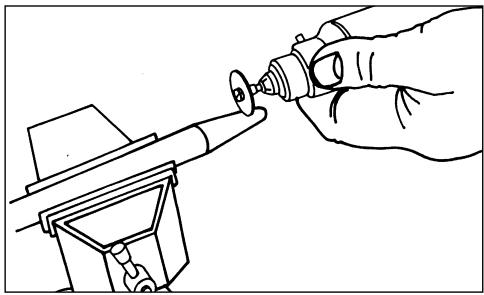

Mandrel No. 402 has a small screw at its tip, and is used with emery cutting wheels and sanding discs. Higher speeds, usually maximum, are best for most work, including cutting steel. Which is shown here.

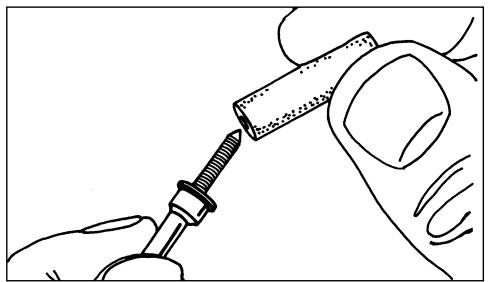

The machine-screw threading on Mandrel No. 424 threads into polishing point No. 427. This and other threaded mandrels must be screwed firmly down to the collar before being used.

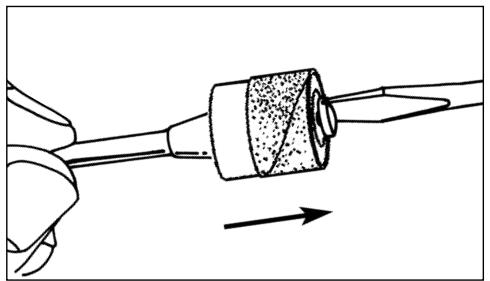

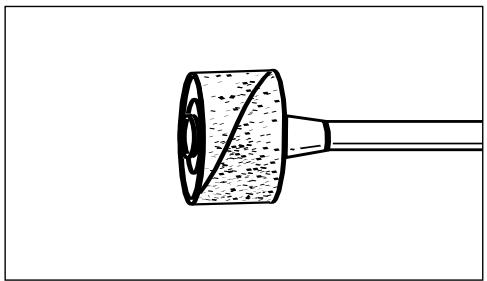

To replace a band on the Drum Sander, loosen the screw without removing it to contract the drum then slide the old band off. Slide the new sanding band on and then expand the drum by tightening the screw once again.

WARNING

Before each use, check to make certain that all components are assembled to accessory shank and that the drum is sufficiently expanded to secure the band during use. If sanding

band is loose on the drum during operation it may "fly" off and strike you or bystanders.

Dremel Attachments

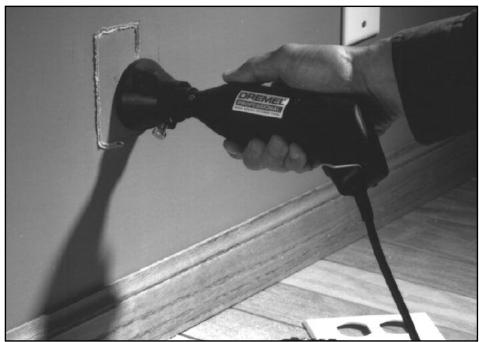

565 Multipurpose Cutting Kit

• Includes 2 drywall cutting bits (560) and 1 spiral cutting bit (561)
• Cuts fiberglass, wood & drywall easily

566 Tile Cutting Kit

• Includes 1 ceramic tile cutting bit (562)
• Cuts ceramic wall tile to any shape

Questions or Problems? Call 1-800-437-3635

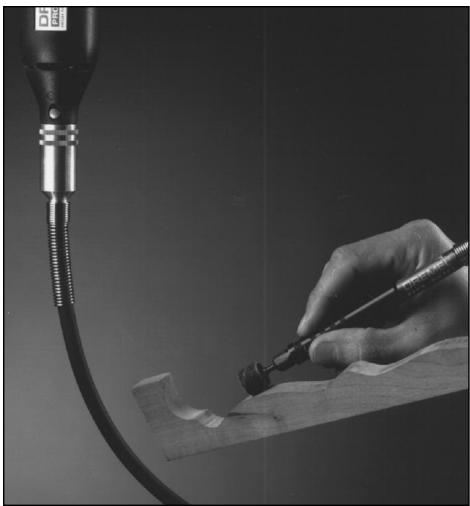

Dremel Attachments

Add these Dremel attachments to your compact workshop and make your Rotary Tool more versatile.

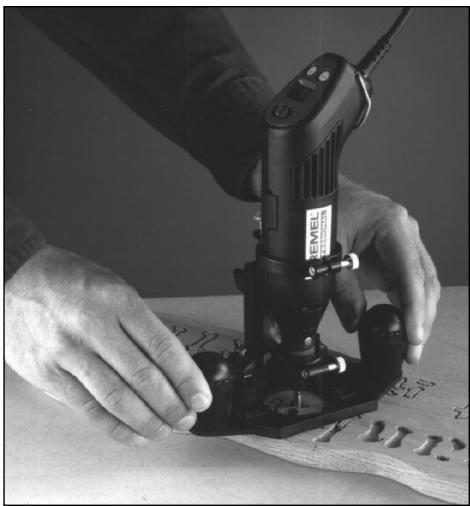

Model 330 RouterAttachment

Shapes, edges, chamfers, cuts, rabbets, dadoes, etc. Adjustable edge guide can be easily removed for freehand routing. The Model 330 can be used with Models 270, 275, 280, 285, 380, 395, 398, and 850.

Model 225 Flex-Shaft

Allows finger-tip control for tight corners and hard-to-reach areas. 36" long cable attaches to Models 275, 285, 395, 398, and 850. Pencil-like 1/2 diameter hand piece is cool-running and ideal for light duty wood carving and other uses.

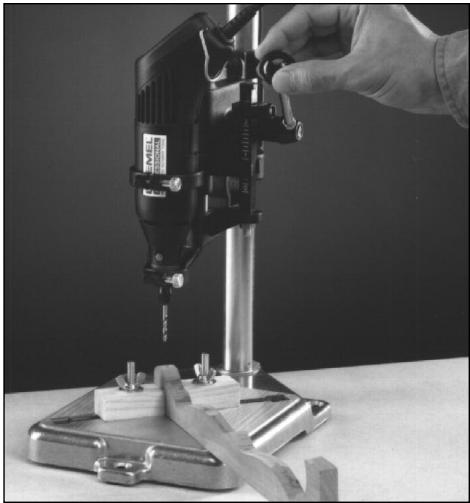

Model 212 Drill Press

For precision drilling, routing, grooving, 6^ square work surface, 0^ to 3^ throat depth. Table slotted for guides, hold downs. Holds Models 275, 285, 395, 398, and 850.

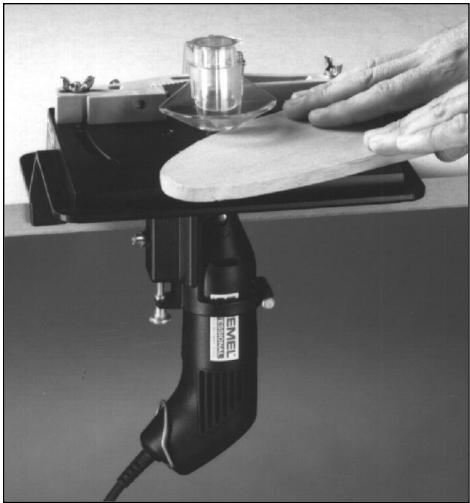

Model 231 Shaper/Router Table

Converts the Rotary Tool into a bench mounted wood shaper. Clamp it to a workbench and perform professional quality slotting, edge trimming, grooving and sanding of irregular shapes accurately and with ease. Large 8^ × 6^ worktable. Use with Models: 270, 275, 280, 285, 370, 380, 395, 398, and 850.

Dremel Limited Warranty

Your Dremel Rotary Tool is warranted against defective material or workmanship for a period of five years from date of purchase. In the event of a failure of a product to conform to this written warranty, please take the following action:

1. DO NOT return your product to the place of purchase.
2. Carefully package the product by itself, with no other items, and return it, freight prepaid, along with:

A. A copy of your dated proof of purchase (please keep a copy for yourself).
B. A written statement about the nature of the problem.
C. Your name, address and phone number to:

UNITED STATES

Dremel Service Center

4915 Twenty-First Street OR

Racine, Wisconsin 53406

1-800-437-3635

Dremel Service Center

4631 E. Sunny Dunes

Palm Springs, CA 92264

1-800-275-2052

CANADA

Giles Tool Agency

6520 Lawrence Av. East

Scarborough, Ont.

Canada M1C 4A7

1-888-285-3476

OUTSIDE

CONTINENTAL UNITED STATES

See your local distributor or write

to Dremel, 4915 Twenty-First St.

Racine, Wisconsin 53406

We recommend that the package be insured against loss or in transit damage for which we cannot be responsible.

This warranty applies only to the original registered purchaser. DAMAGE TO THE PRODUCT RESULTING FROM TAMPERING, ACCIDENT, ABUSE, NEGLIGENCE, UNAUTHORIZED REPAIRS OR ALTERATIONS, UNAPPROVED ATTACHMENTS OR OTHER CAUSES UNRELATED TO PROBLEMS WITH MATERIAL OR WORKMANSHIP ARE NOT COVERED BY THIS WARRANTY.

No employee, agent, dealer or other person is authorized to give any warranties on behalf of Dremel. If Dremel inspection shows that the problem was caused by problems with material or workmanship within the limitations of the warranty, Dremel will repair or replace the product free of charge and return product prepaid. Repairs made necessary by normal wear or abuse, or repair for product outside the warranty period, if they can be made, will be charged at regular factory prices.

DREMEL MAKES NO OTHER WARRANTY OF ANY KIND WHATEVER, EXPRESSED OR IMPLIED, AND ALL IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE ABOVE MENTIONED OBLIGATION ARE HEREBY DISCLAIMED BY DREMEL AND EXCUSED FROM THIS LIMITED WARRANTY.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. The obligation of the warrantor is solely to repair or replace the product. The warrantor is not liable for any incidental or consequential damages due to any such alleged defect. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to you.

For prices and warranty fulfillment in the continental United States, contact your local Dremel distributor.

Exportado por: Robert Bosch Tool Corporation Mt. Prospect, IL 60056 -2230, E.U.A.

Importado en Mexico por: Robert Bosch, S.A. de C.V., Calle Robert Bosch No. 405, Zona Industrial, Toluca, Edo. de Mexico, C.P. 50070, Tel. [phone]

Robert Bosch Tool Corporation

1997

Dremel Service Center

4915 Twenty-First Street

Racine, Wisconsin 53406

1-800-437-3635

0U

Dremel Service Center

4631 E. Sunny Dunes

Palm Springs, California 92264

1-800-275-2052

CANADA

Giles Tool Agency

6520 Lawrence Av. East

Scarborough, Ontario

Canada M1C 4A7

1-888-285-3476

A L'EXTÉRIEUR DU TERRITOIRE

CONTINENTAL DES ÉTATS-UNIS

4915 Twenty-First St.

Racine, Wisconsin 53406

Dremel Service Center

4915 Twenty-First Street

Racine, Wisconsin 53406

1-800-437-3635

0

Dremel Service Center

4631 E. Sunny Dunes

Palm Springs, California 92264

1-800-275-2052

CANADA

Giles Tool Agency

6520 Lawrence Av. East

Scarborough, Ont.

Canada M1C 4A7

1-888-285-3476

oswana a Dremel, 4915 Twenty-First St.

Racine, Wisconsin 53406

Recomendamos que el paquete sea asegurado contra perdida o daños durante el transporte por los cuales no≦los≧no≦los≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧no≧ no≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦ns≦NS

Dremel may substitute accessories of equal value.

425 Emery Polish Wheel 1" Meule de polissage d'émeri 25,4 mm Rueda de pulir de esmeril de 25,4 mm

425	Ethy Polish Wheel 1"	Meule de polissage d'ehret 25,4 mm	Rueda de pulir de esmeni de 25,4 mm
426	Cut-Off Wheel	Meule à tronçonner	Rueda de corte	1	1
427	Polishing	polissage	para pulir
428	Wire Brush	Brosses métallique	Cepillos de alambre	1	1
429	Felt Polish Wheel 1"	Meule de polissage en feutre 25,4 mm	Rueda de pulir de fieltro de 25,4 mm	1
430	Drum Sand 1/4"	Ponceuse à tambour 6,4 mm	Tambor de lijar de 6,4 mm
431	Sand Band 1/4" Coarse	Bande de ponçage 6,4 mm grain grossier	Cinta de lijar de 6,4 mm gruesa
432	Sand Band 1/2" Fine	Bande de ponçage 13,0 mm grain fin	Cinta de lijar de 13,0 mm fina	2	1
438	Sand Band 1/4" Fine	Bande de ponçage 6,4 mm grain fin	Cinta de lijar de 6,4 mm fina
481	3/32" Collet	Douille 2,4 mm	Portaherramienta 2,4 mm		1
482	Collet w/two rings	Douille avec deux anneaux	Portaherramienta con dos anillas
540	Cut-Off Wheel	Meule à tronçonner	Rueda de corte	1
560	Drywall cutting bit	Mèche pour coupe de murs secs	Broca para cortar en pared de tipo seco		1
561	Multipurpose cutting bit	Mèche pour coupe polyvalente	Broca de corte de uso general		1
562	Tile cutting bit	Mèche pour coupe de carrelage	Broca para cortar losetas		1
932	Alum Oxide	Oxyde d'aluminium	Oxido de aluminio	1	1
952	Alum Oxide	Oxyde d'aluminium	Oxido de aluminio
953	Alum Oxide	Oxyde d'aluminium	Oxido de aluminio
8193	Alum Oxide	Oxyde d'aluminium	Oxido de aluminio		1
83702	Silicon Carbide	Carbure de silicium	Carburo de silicio
84922	Silicon Carbide	Carbure de silicium	Carburo de silicio
85422	Silicon Carbide	Carbure de silicium	Carburo de silicio
85602	Silicon Carbide	Carbure de silicium	Carburo de silicio	1	1
Total				28	10

DESCRIPTION Collet Nut (Not included)

1/8" Collet available as Accessory (Not included)

3/32* Collet available as Accessory (Not included)

1/16" Collet available as Accessory (Not included)

1/32" Collet available as Accessory (Not included)

529410970 Flexible Shaft Core

Wrench Available as Accessory

(Not included)

529417870Driver

2615302049 Guide

2615302102 Guide insert

Screw spring & nut
