USER MANUAL TAP TREMOLO LINE 6

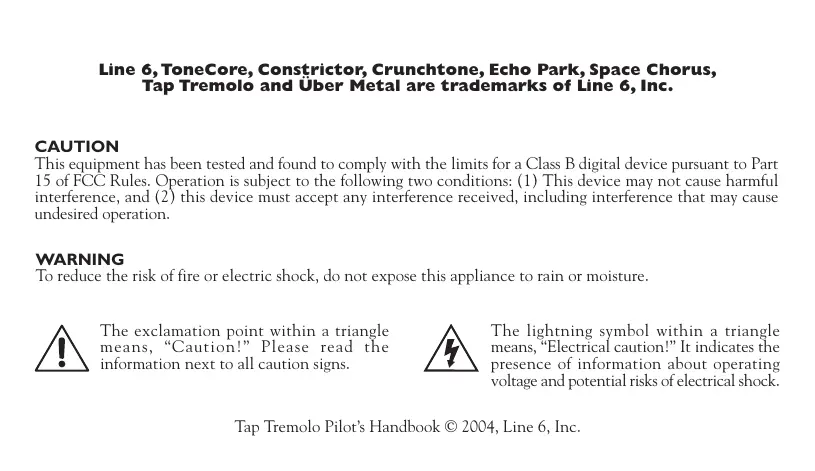

Electrophonic Limited Edition available @ www.line6.com Rev D Line 6, ToneCore, Constrictor, Crunchtone, Echo Park, Space Chorus, Tap Tremolo and Über Metal are trademarks of Line 6, Inc. CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. The exclamation point within a triangle means, “Caution!” Please read the information next to all caution signs. The lightning symbol within a triangle means, “Electrical caution!” It indicates the presence of information about operating voltage and potential risks of electrical shock. Tap Tremolo Pilot’s Handbook © 2004, Line 6, Inc. You should read these Important Safety Instructions. Keep these instructions in a safe place. Before using your ToneCore, carefully read the applicable items of these operating instructions and the safety suggestions.

1. Obey all warnings on the pedal and in the ToneCore Pilot's Handbook.

2. Connect optional power supply only to AC power outlets rated 100-120V or 200-240V 47-63Hz (see indications on optional power supply). 3. Do not perform service operations beyond those described in the ToneCore Pilot's Handbook. Service is required when the apparatus has been damaged in any way, such as: power-supply cord or plug is damaged liquid has been spilled or objects have fallen into the apparatus the unit has been exposed to rain or moisture the unit does not operate normally or changes in performance in a significant way the unit is dropped or the enclosure is damaged.

4. Do not place near heat sources, such as radiators, heat registers, or appliances which produce heat.

5. Guard against objects or liquids entering the enclosure. Do not use or place unit near water.

6. Unplug the power supply when not in use for extended periods of time. Unplug the power supply during lightning storms.

7. Clean only with a damp cloth.

8. Only use attachments/accessories specified by the manufacturer.

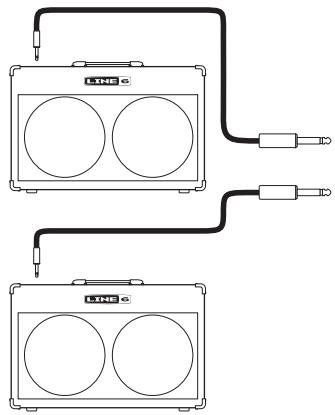

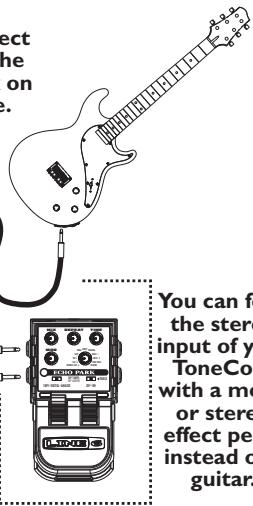

9. Prolonged listening at high volume levels may cause irreparable hearing loss and/or damage. Always be sure to practice “safe listening.” Tap Tremolo Pilot’s Handbook Output your effects mono to a standard amplifer, or to a stereo setup. Be sure to connect your guitar to the mono input jack on your ToneCore. SPEED DEPTH PEAK SHAPE OFF

SWELL SWEEP DUCKING

SLAP MULTI 1 MULTI 2 TAP TAP PING PONG REVERSE NORMAL (TAP )

TAPE • DIGITAL • ANALOG

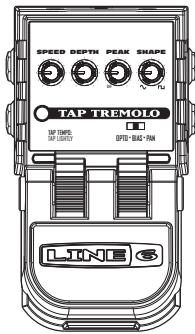

TRAILS OFF • ON You can feed the stereo input of your ToneCore with a mono or stereo effect pedal instead of a guitar. Connections and Power Indicator Light Greetings and salutations! Thank you for inviting the Line 6 Tap Tremolo pedal into your life. Effect On-Off / Power Indicator Light The Power Indicator Light on your ToneCore uses three colors to indicate the pedal’s state:

• GREEN (flashing)– Effect is engaged (on). Light is flashing to show modulation speed
• AMBER (flashing)– Effect is in bypass (off). Light is flashing to show modulation speed
• RED (flashing) – Batteries need replacing This low power indication will override all other states. Power Jack Connect an optional ToneCore-compatible Line 6 power supply like the DC-1, and you'll never need a 9-volt battery again! In Jacks Use a standard guitar cable to connect your guitar, or the output of another effect to use in combination with your ToneCore. If you’re feeding a mono signal to your Tap Tremolo, use the MONO/L jack. Like most pedals, inserting a plug into this jack will turn on the power to your ToneCore. Disconnect from both input jacks when the ToneCore is not being used. Out Jacks Use a standard guitar cable to connect to the inputs of a guitar amp, or the inputs of another effect that will feed your amp. For mono, use the MONO/L jack. Foot Switch Stomp on this to turn the effect sound processing on and off. See the Tap Tempo section to learn how to set speed with your feet. Tap Tremolo Pilot’s Handbook Speed Adjusts the speed of the tremolo pulse from slow to fast. (See Tap Tempo to do this with your feet.) SPEED DEPTH PEAK SHAPE Peak A peak follower changes your effect’s speed so it goes faster as you play louder, and slower as you play softer. As a note decays, you’ll hear the tremolo speed slow to match the setting of the speed knob. Set the knob off (fully counter clockwise) to disable the peak follower. OFF Depth At low settings, you’ll get a variation of your guitar volume from your pedal. At high settings, your volume will dip to silence with each pulse.

OPTO • BIAS • PAN

Shape Turn the knob toward the left for a smooth sine wave tremolo that gradually varies your volume up and down, or right for a hard-chopping square wave that dramatically switches from loud to silent. Controls Model Switch Give this a flick to reconfigure the virtual circuitry inside your Tap Tremolo, and enjoy three distinctly different sound “flavors”: Opto Here’s a vintage opto circuitry style tremolo sound like you’d find built into mid-60’s American amplifiers. Bias This model creates a vintage bias circuitry style tremolo sound you’d find in late 50’s British amplifiers. Pan This model makes your sound pan back and forth between left and right outputs. When used with stereo inputs and a mono output, the two inputs will cross-fade between each other at the output. If you run a mono input and a mono output, this model will sound like tremolo instead of pan. Tap Tempo Put your foot to work and get your tremolo in the groove! Using the innovative ToneCore double-action footswitch, you can tap a couple times and have your tremolo match your tempo. Here’s what you need to know:

• Whether the effect is active or bypassed, you can tap the footswitch lightly to set your effect speed. Your first two taps establish the tempo. Any additional taps within 3 seconds will be averaged in.
• Taps will be ignored if the footswitch is pressed all the way down to turn the effect processing on/off.
• Any time the Tap Tempo switch is used to alter speed, the tapped value overrides the current setting of the Speed knob. Whenever the Speed knob is turned, it overrides the last value entered with the Tap Tempo switch.
• The indicator light flashes to match tempo; it’s green when the effect is on, and amber when the effect is off. Battery Access Instructions

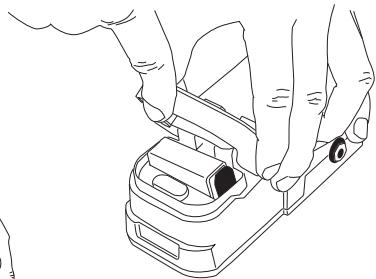

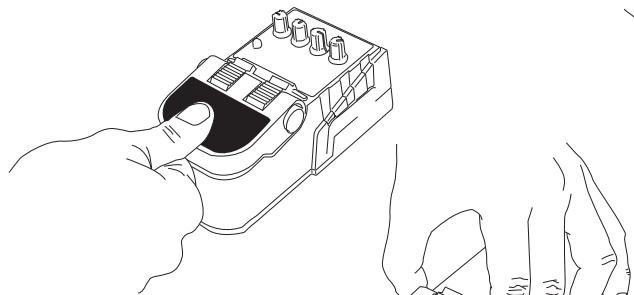

3) Squeezing hinge,

raise pedal to reveal battery.

1) Depress pedal fully.

2) While holding pedal,

squeeze both sides of hinge as shown. Battery Access Instructions Power Supply Connect an optional Line 6 DC-1 power supply and you'll never need a 9-volt battery again! It is also compatible with most popular 9 Volt DC stomp boxes. Using the power supply will disconnect the battery. Supply Current @ 9.6 VDC 40mADC 60mADC 100mADC

0.4 Watt

0.6 Watt

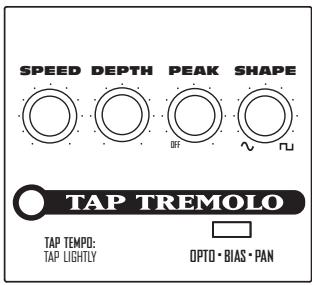

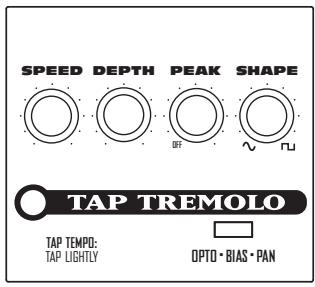

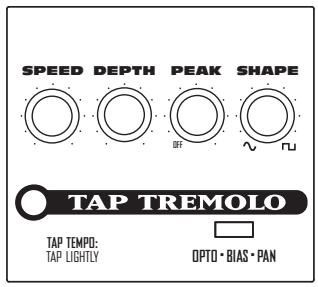

1 Watt Mark the knob and switch settings for your favorite tones above.

OPTO • BIAS • PAN

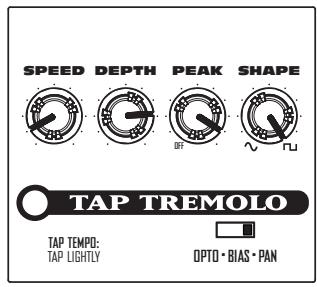

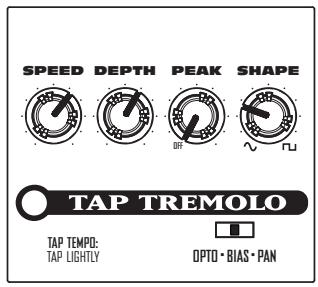

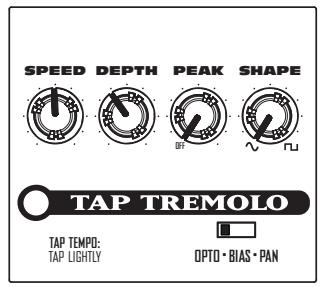

Example Tones SPEED DEPTH PEAK SHAPE SPEED DEPTH OFF 60’s California Surf Cowabunga, dude. Here’s a cool tremolo reminiscent of that classic 60’s surf sound. Tube Tremolo Here’s a tasty slice of warm and throbbing tube tremolo tone! Last Chord Try using this setting when playing the last chord of a song. The Peak Follower will make the speed incredibly fast, and as the chord decays the tremolo speed will slow down. People will be impressed. Tap Tremolo Pilot’s Handbook Please register your purchase now at www.line6.com/register. Or fill out and send in the included registration card. Once you’re registered, we can handle problems faster and inform you of advance information, upgrades and other news. Thanks in advance for registering, and good luck in your music! Line 6, Inc. (hereinafter “Line 6”) warrants that your new Line 6 product, when purchased at an authorized Line 6 dealer in the United States of America (“USA”) or Canada, shall be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. Please contact your dealer for information on warranty and service outside of the USA and Canada. During the warranty period, Line 6 shall, at its sole option, either repair or replace any product that proves to be defective upon inspection by Line 6. Line 6 reserves the right to update any unit returned for repair and to change or improve the design of the product at any time without notice. Line 6 reserves the right to use reconditioned parts and assemblies as warranty replacements for authorized repairs. This warranty is extended to the original retail purchaser. This warranty can be transferred to anyone who may subsequently purchase this product provided that such transfer is made within the applicable warranty period and Line 6 is provided with all of the following items: (i) all warranty registration information (as set forth on the registration card) for the new owner, (ii) proof of the transfer within thirty (30) days of the transfer purchase, and (iii) a photocopy of the original sales receipt. Warranty coverage shall be determined by Line 6 in its sole discretion. This is your sole warranty. Line 6 does not authorize any third party, including any dealer or sales representative, to assume any liability on behalf of Line 6 or to make any warranty for Line 6. Warranty Information Line 6 may, at its option, require proof of original purchase date in the form of a dated copy of original authorized dealer’s invoice or sales receipt. Service and repairs of Line 6 products are to be performed only at the Line 6 factory or a Line 6 authorized service center. Line 6 may require advanced authorization of repairs to authorized service centers. Unauthorized service, repair or modification will void this warranty.
