USER MANUAL OTTO FILTER LINE 6

Pilot's Handbook for Otto Filter

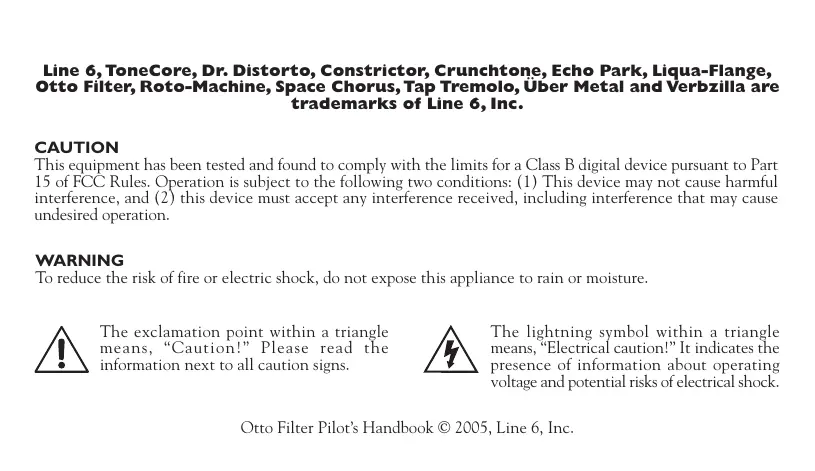

Line 6, ToneCore, Dr. Distorto, Constrictor, Crunchtone, Echo Park, Liqua-Flange, Otto Filter, Roto-Machine, Space Chorus, Tap Tremolo, Uber Metal and Verbzilla are trademarks of Line 6, Inc.

CAUTION

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

The exclamation point within a triangle means, "Caution!" Please read the information next to all caution signs.

The lightning symbol within a triangle means, "Electrical caution!" It indicates the presence of information about operating voltage and potential risks of electrical shock.

You should read these Important Safety Instructions. Keep these instructions in a safe place.

Before using your ToneCore, carefully read the applicable items of these operating instructions and the safety suggestions.

1. Obey all warnings on the pedal and in the ToneCore Pilot's Handbook.
2. Connect optional power supply only to AC power outlets rated 100-120V or 200-240V 47-63Hz (see indications on optional power supply).

3. Do not perform service operations beyond those described in the ToneCore Pilot's Handbook. Service is required when the apparatus has been damaged in any way, such as:

4. power-supply cord or plug is damaged
   liquid has been spilled or objects have fallen into the apparatus
   the unit has been exposed to rain or moisture
   the unit does not operate normally or changes in performance in a significant way
   the unit is dropped or the enclosure is damaged.

5. Do not place near heat sources, such as radiators, heat registers, or appliances which produce heat..

6. Guard against objects or liquids entering the enclosure. Do not use or place unit near water.
7. Unplug the power supply when not in use for extended periods of time. Unplug the power supply during lightning storms.
8. Clean only with a damp cloth.
9. Only use attachments/accessories specified by the manufacturer.
10. Prolonged listening at high volume levels may cause irreparable hearing loss and/or damage. Always be sure to practice "safe listening."

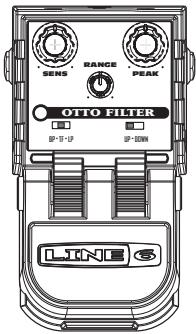

Otto Filter Pilot's Handbook

Output your ToneCore to your amplifier, or route it through another pedal.

Connect your guitar using a standard cable.

You can, of course, feed your ToneCore with another effect pedal instead of a guitar.

Greetings and salutations! Thank you for inviting the Line 6 Otto Filter auto wah pedal into your life.

Effect On-Off / Power Indicator Light

The Power Indicator Light on your ToneCore uses two colors to indicate the pedal's state:

Light not lit - Effect is bypassed (off)
GREEN - Effect is engaged (on)
- RED (flashing) - Batteries should be replaced
This low power indication will override all other states

Connections and Power Indicator Light

In Jack

Here's where it all begins. Use a standard guitar cable to connect your guitar, or the output of another effect to use in combination with your ToneCore. Like most pedals, inserting a plug into this jack will turn on the power to your ToneCore. Disconnect the plug from this jack when the ToneCore is not being used.

Out Jack

Use a standard guitar cable to connect to the input of a guitar amp, or the input of another effect that will feed your amp.

Power Jack

Connect an optional ToneCore-compatible Line 6 power supply like the DC-1, and you'll never need a 9-volt battery again!

Foot Switch

Stomp on this to turn Otto Filter's effect sound processing on and off.

Otto Filter Pilot's Handbook

Sens

The Sensitivity knob controls how the filter responds to the dynamics of your playing. Higher sensitivity settings (clockwise rotation) make it easier to get the filter in motion during quiet passages of your playing. At low sensitivity settings (counterclockwise rotation) you must play harder (louder) to get the filter moving.

Range

The Range knob tells the filter how far up or down the frequency spectrum (depending on the MODE switch) you want the filter to travel. Low range settings (counterclockwise rotation) will accentuate lower frequencies; increased range (clockwise rotation) will accentuate higher frequencies.

Peak

The Peak knob controls the filter's shape. Increase Peak (clockwise) to narrow the filter for a more dramatic effect. Decrease Peak to widen the filter, for a milder effect.

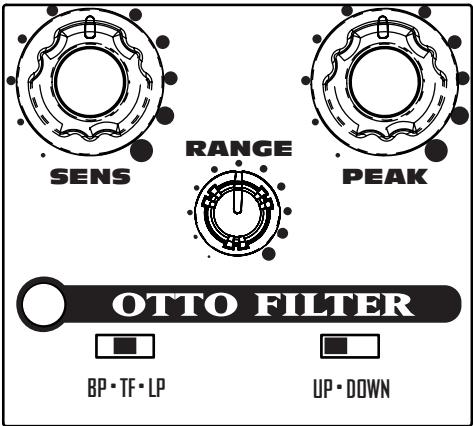

Controls

Filter Switch

This control is used to select the pedals filter type used.

BP - Band Pass

Low frequencies and high frequencies are cut, leaving only the frequencies in between. The center frequency of the band moves in response to the dynamics of your playing.

TF-Twin Filter

Two band pass filters moving in opposite directions of each other. One band moves from high to low frequencies, the other from low to high. The center frequency of each band moves in response to the dynamics of your playing.

LP - Low Pass

Low frequencies are passed while high frequencies are cut. The cutoff frequency of the band moves in response to the dynamics of your playing.

Up/Down

Selects if the filter moves Up or Down the frequency spectrum in response to your playing.

Up

The filter travels from low frequencies (when your playing soft) to higher frequencies (when you play louder).

Down

The filter travels from high frequencies (when playing soft) to low frequencies (when playing louder).

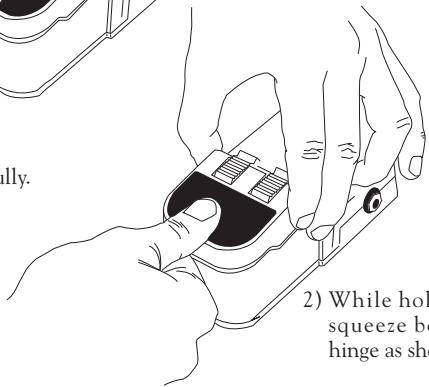

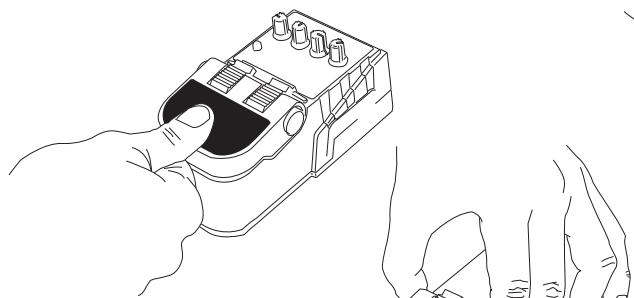

Battery Access Instructions

1) Depress pedal fully.

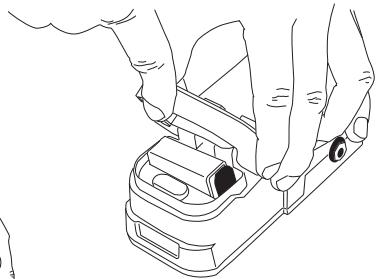

3) Squeezing hinge, raise pedal to reveal battery.

2) While holding pedal, squeeze both sides of hinge as shown.

Battery Access Instructions

Power Supply

Connect an optional Line 6 DC-1 power supply and you'll never need a 9-volt battery again! It is also compatible with most popular 9 Volt DC stomp boxes. Using the power supply will disconnect the battery.

POWER REQUIREMENTS

	Min	Nominal	Max
Supply Voltage	6 VDC	9.6 VDC	16 VDC
Supply Current @ 9.6VDC	40mADC	60mADC	100mADC
Power @ 9.6VDC	0.4 Watt	0.6 Watt	1 Watt

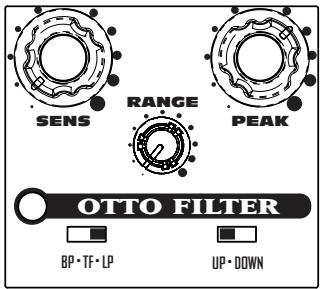

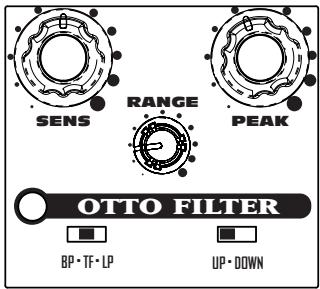

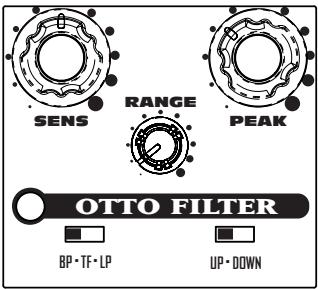

Example Tones

Funkster!

Smooth, slow auto filter wah effect. Adjust SENS control according to the output level of your guitar for the best response.

Taking Pedal

For vocal formant type effects... Select your neck pickup and turn your guitar's tone knob down to reduce treble.

Synth Lead

Playing very light staccato notes will produce a synth like sound. Try it in front of a distortion pedal.

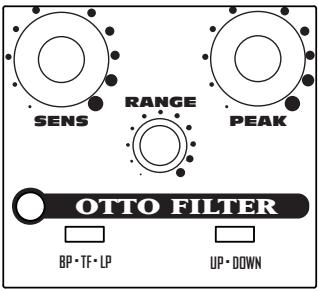

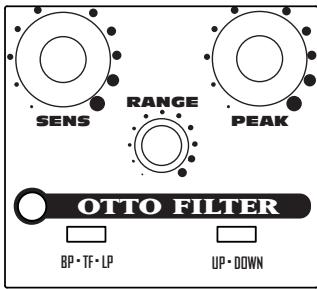

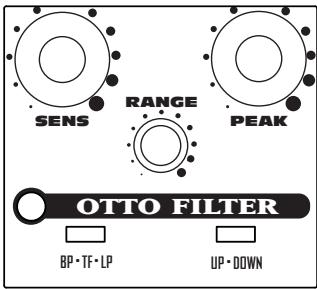

Your Tone Settings

Mark the knob and switch settings for your favorite tones above.
