Product type	Built-in electric oven
Brand	TEKA
Model	HA-900 / HA-935
Installation type	Built-in (cabinet fixing)
Number of functions	10
Cooking functions	Conventional, Conventional with fan, Grill, Maxigrill, Maxigrill with fan, Fan, Defrost, Bottom heat, Bottom heat with fan, Grill + bottom heat
Timer	Mechanical (120 minutes) or programmable electronic
Clock	Electronic with LED display
Programming	Buzzer, Duration, End of cooking, Duration and end
Interior light	Yes, automatic during cooking
Control type	Rotary selectors (function, temperature, timer) and keys for clock
Maximum temperature	250 °C (estimated)
Power	2.5 kW (estimated)
Power supply	220-240 V, 50/60 Hz
Included accessories	Grid, Roasting pan, Telescopic guide, Fold-down grill element
Door material	Glass (not specified, estimated)
Cleaning	Clean after each use; do not use abrasive cleaners
Installation	Provide a cooling air outlet; cabinet fixing required
Note	In case of power failure, the clock programming is erased

Frequently Asked Questions - HA-900 - INSTALLATION MANUAL TEKA

How to set the electronic clock?

When first powered on, the display flashes '00:00'. Press the '+' or '-' keys until the desired time, then confirm with the OK key. You will hear two confirmation beeps.

How to use the oven in manual mode?

Turn the timer to the 'Off' position (to the left). Select a function and temperature. To turn off, set the controls to the [] position.

How to set the mechanical timer?

Turn the timer knob clockwise to the '120' position, then turn back to the desired duration. An audible signal sounds at the end.

How to program the cooking duration with the electronic clock?

Press the + or - keys until the 'Duration' symbol lights up, confirm with OK. Select the duration with +/-, confirm. Then choose a function and temperature. The oven turns off automatically.

How to program the end of cooking time?

Press + or - until the 'End' symbol lights up, confirm with OK. Set the end time with +/-. Select function and temperature. The oven stops at the set time.

How to program both duration and end time?

First set the duration ('Duration' symbol), then the end ('End' symbol). The oven starts automatically to finish at the chosen time. 'Auto' is displayed.

Which function to use for cakes?

Use the Conventional function for uniform heat, ideal for cakes and pies. The Conventional with fan is recommended for roasts and pastries.

How to use the Grill or Maxigrill function?

For gratinating and browning, use Grill (small surfaces) or Maxigrill (large surfaces). The Maxigrill with fan allows roasting and browning simultaneously. The door must remain closed.

What to do in case of a power cut?

All clock programming is erased and '00:00' flashes. You must reset the clock and reprogram the functions if necessary.

How to maintain the oven?

Regularly clean the interior and door with a damp cloth and mild dish soap. Avoid abrasive products. The lamp stays on during all cooking.

USER MANUAL HA-900 - INSTALLATION MANUAL TEKA

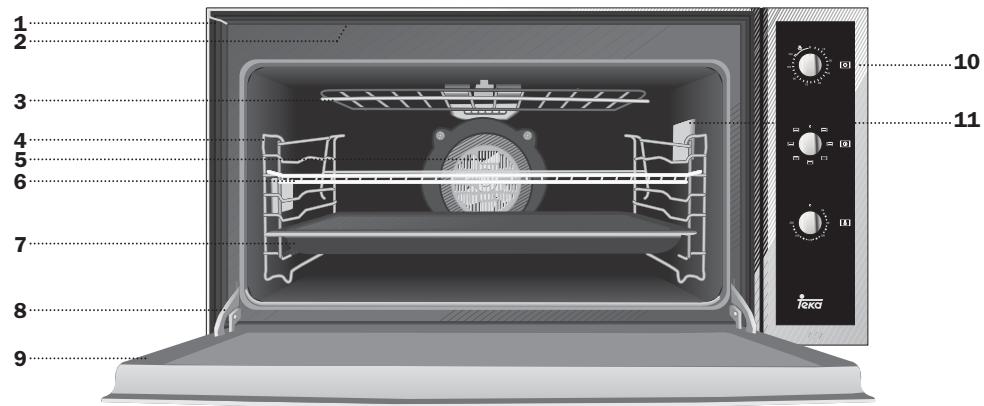

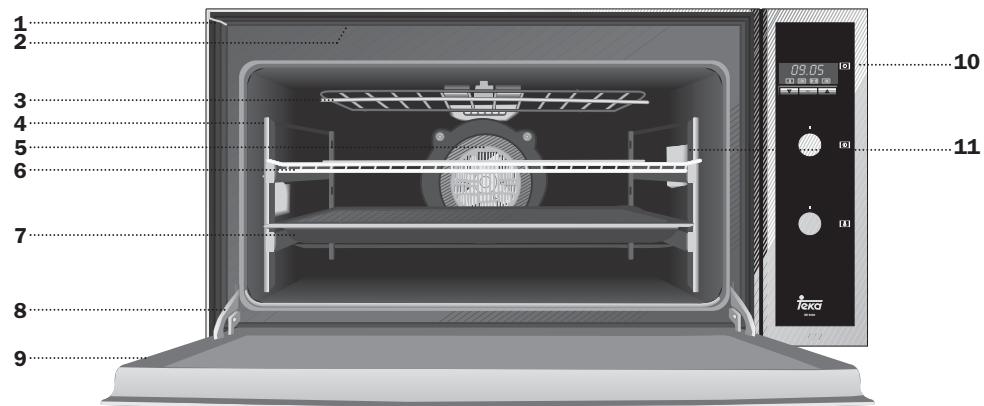

1 Fixing to Unit
2 Air Outlet
3 Fold-down Grill element
4 Chromed Support/ Telescopic Guide

5 Fan
6 Grid
7 Roasting Tray
8 Hinge
9 Door

10 Control Panel
11 Light

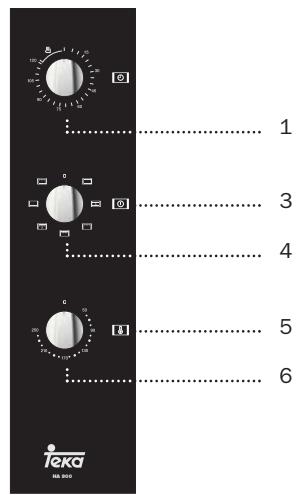

Model HA-900

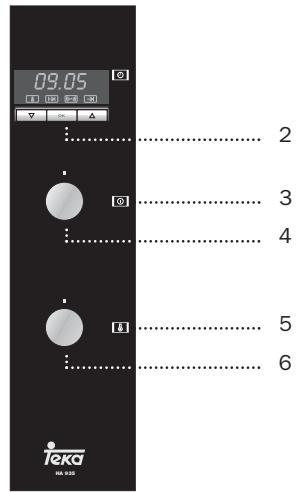

Model HA-935

1 Minute timing switch.
2 Electronic timer.
3 Oven pilot light.
4 Function selector.

5 Heating indicator light. Indicates that heat is being passed to the food and it goes out when the set temperature is reached.
6 Temperature selector.

Model HA-900

□/□/□/□

Model HA-935

□/□/□/□

Switch off oven

Conventional

It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture.

Conventional with fan

Appropriate for roasts and cakes. The fan spreads the heat uniformly inside the oven.

Grill

For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast.

MaxiGrill

Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food.

MaxiGrill with fan

Allows uniform roasting at the same time as surface browning. Ideal for grills. Special for large volume pieces, such as poultry, game etc.

It is recommended to put the item on a rack with a tray beneath to collect the stock and juices.

Caution

While using the Grill, MaxiGrill or MaxiGrill with fan, the door must be kept closed.

Turbo

The fan distributes the heat produced by an element located at the rear of the oven. Due to the uniform heat distribution, it allows roasting and baking to take place at two heights at the same time.

This cooking mode allows defrosting of food. To do this, set the temperature selector to position.

Lower element

Heats only from beneath. Suitable for heating dishes and raising pastry and similar.

Lower element with fan

It distributes the heat from the lower part of the oven and is ideal for cakes with jam or fruit filling, which only require heating from beneath. Pre-heating is always necessary.

Grill and Lower element

Special for roasts. It can be used for any piece, whatever its size.

Note

The pilot light remains on in any cooking function.

Use of the Oven

Model HA-900

Manual use of the oven

1 Turn the timing switch to the left to the position [3][·] .
2 Select a temperature and a cooking function.
3 Set the controls in position to switch off the oven.

Using the timer switch

Allows cooking during a pre-established time. To do this,

1 Select the function and the cooking temperature.
2 Turn the timer control clockwise as far as the position "120 minutes" and then turn it backwards to the required cooking period.
3 When the time has finished, there will be an acoustic signal and the oven will stop heating.
4 Set the controls to the position to switch off the oven.

Model HA-935

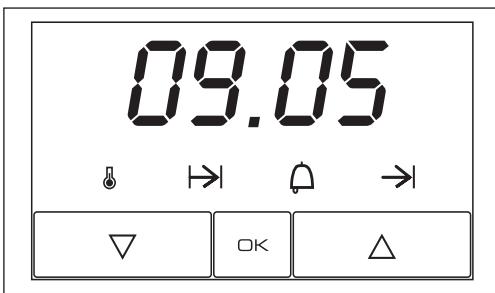

Setting the time on the Electronic Clock

When the oven is connected to the power supply, the indication 00:00 flash on the display. Press or to set the time on the clock. The clock beeps twice to confirm the selected time.

If you wish to modify the time, press or until the current time flash on the screen. Press . Then press or to modify the time. The clock beeps twice to confirm the modification.

Manual Operation

The oven is ready to be used when the clock has been set. Select a cooking function and a temperature.

When you begin cooking, symbol lights up to indicate that the oven is heating the contents; the symbol goes out when the selected temperature is reached.

Set the controls to to turn the oven off.

Functions of the Electronic Clock

Alarm: Creates an alarm signal when the period of time finishes; the oven does not need to be in use in order to use this function.

Cooking Time: To cook for a selected length of time; the oven turns itself off automatically when the time finishes.

End Cooking Time: To cook until a set time; the oven turns itself off automatically when the time finishes.

Cooking time and End Cooking Time: To cook for a selected length of time and end at a set time. When this function is set, the oven comes on automatically at the time required in order to cook for the set length of time (Cooking time) and end automatically at the indicated time (End Cooking Time).

Programming the Alarm

1 Press until symbol lights up. Press OK.
2 Set the period of time after which you wish the alarm to sound by pressing or .

3 The clock beeps twice, the countdown to the alarm is displayed and symbol flashes.
If you wish to modify the time set, press OK and keep it pressing in until the current time appears. Press until symbol lights up permanently and press OK. Then use and to change the set time.
4 When the set period of time comes to an end, the alarm sounds and symbol starts to flash faster.
5 Press any button to turn the alarm off.

Setting the Cooking Time

1 Press or until symbol lights up. Press K .
2 Select the period of time you wish to cook for by pressing or .
3 The clock beeps twice, the countdown to the end of the cooking time is displayed and symbol lights up permanently.

If you wish to modify the time set, press or until the current time appears and symbol starts to flash. Press OK. The time can then be adjusted by pressing or .

4 Select a cooking function and a temperature.
5 When the cooking time comes to an end, the alarm sounds, End is displayed on the screen and symbol starts to flash.
6 Press any button to stop the alarm. The oven turns itself back on again.
7 Set the controls to to turn the oven off.

Setting the End Cooking Time

1 Press or until symbol lights up. Press .
2 Select the time you wish the cooking process to finish at by pressing or .
3 The clock beeps twice, the countdown to the end of the cooking time is displayed and symbol lights up permanently.

If you wish to modify the time set, press or until the current time appears and symbol starts to flash. Press OK. The time can then be adjusted by pressing or .

4 Select a cooking function and a temperature.
5 When the cooking time comes to an end, the alarm sounds, End is displayed on the screen and symbol starts to flash.
6 Press any button to stop the alarm. The oven turns itself back on again.
7 Set the controls to to turn the oven off.

Setting the Cooking Time and the End Cooking Time

1 Press or until symbol lights up. Press OK.
2 Select the period of time you wish to cook for by pressing or .
3 The clock beeps twice, the countdown to the end of the cooking time is displayed and symbol lights up permanently.
4 Press or until symbol lights up. Press OK.
5 Select the time you wish the cooking process to finish at by pressing or .
6 The clock beeps twice, Auto is displayed on the screen and symbols and light up permanently. The clock is set and the oven remains off.

If you wish to modify the cooking time, press or until the current time appears and symbol starts to flash. If you wish to modify the end cooking time, press or until the current time appears and symbol starts to flash.

Press OK. The time selected can then be adjusted by pressing or .

7 Select a cooking function and a temperature.
8 When the time to start cooking is reached, the oven starts up and the remaining time is displayed on the screen.
9 When the time to end cooking is reached, the oven turns itself off, the alarm sounds, End is displayed on the screen and symbols and start to flash.
10 Press any button to stop the alarm. The oven turns itself back on again.
11 Set the controls to [] to turn the oven off.

Important

In the event of a power cut, all the electronic clock settings are deleted and the indication 00:00 flashes on the display. It is necessary to set the time and programme the clock again.
