USER MANUAL CRC800E CUISINART

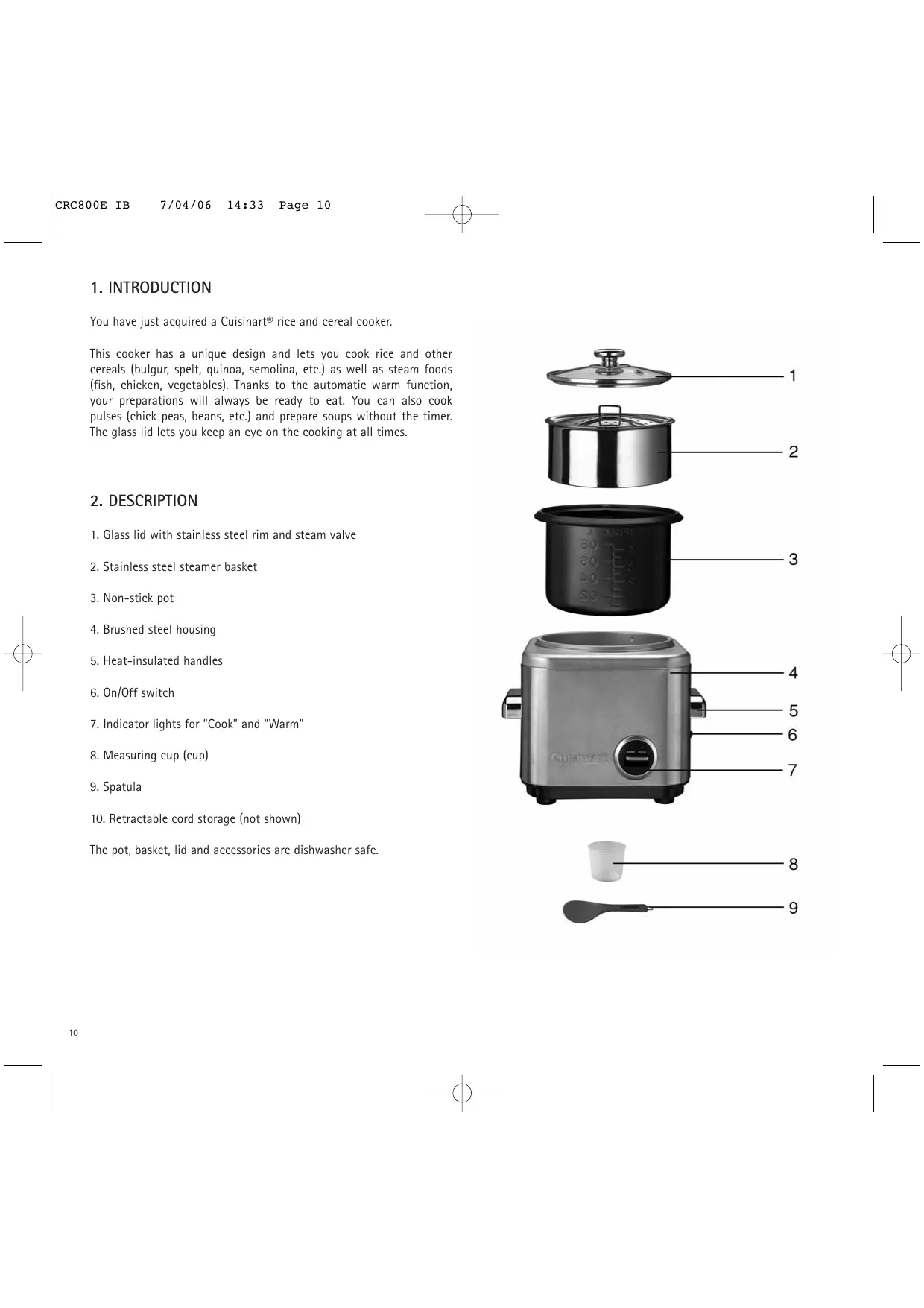

1. INTRODUCTION

You have just acquired a Cuisinart® rice and cereal cooker. This cooker has a unique design and lets you cook rice and other cereals (bulgur, spelt, quinoa, semolina, etc.) as well as steam foods (fish, chicken, vegetables). Thanks to the automatic warm function, your preparations will always be ready to eat. You can also cook pulses (chick peas, beans, etc.) and prepare soups without the timer. The glass lid lets you keep an eye on the cooking at all times.

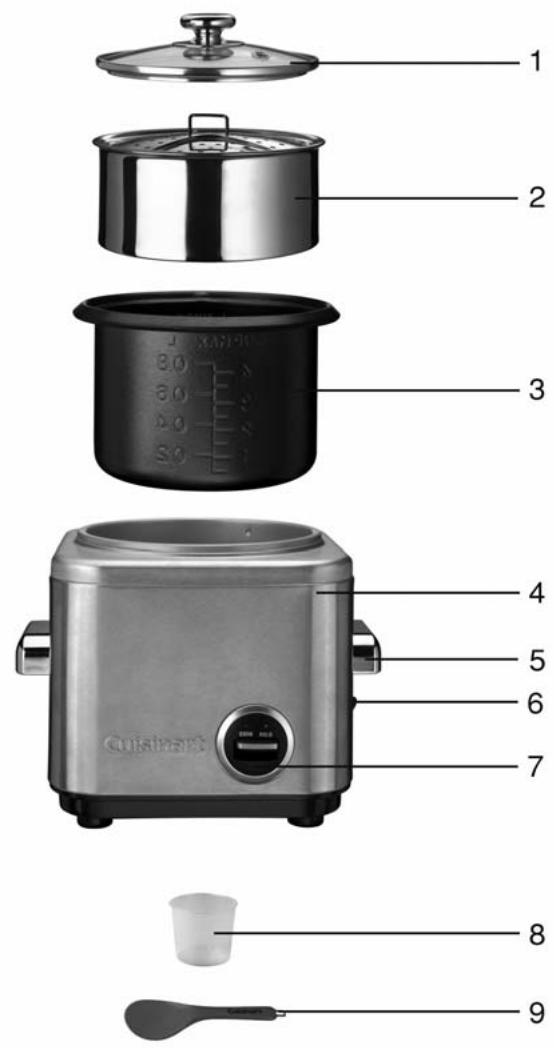

2. DESCRIPTION

1. Glass lid with stainless steel rim and steam valve

2. Stainless steel steamer basket

3. Non-stick pot

4. Brushed steel housing

5. Heat-insulated handles

6. On/Off switch

7. Indicator lights for “Cook” and “Warm”

8. Measuring cup (cup)

9. Spatula

10. Retractable cord storage (not shown)

The pot, basket, lid and accessories are dishwasher safe.

CRC800E IB

7/04/06 14:33 Page 11

3. USE OF THE APPLIANCE

A. ASSEMBLY Before using the Cuisinart® rice and cereal cooker for the first time, wipe the housing of the appliance with a damp cloth. Wash the lid, the steamer basket, the cooking pot, the measuring cup and the spatula in warm, soapy water or in the dishwasher. Read the section on “cleaning and storage” for more information.

COOKING RICE, CEREALS AND PULSES

Measure about 50 g of rice per person for an accompaniment and 100 g of rice for a main course. Measure the amount of rice using the glass measuring cup and poor into the pot. Add water to the corresponding mark (e.g.: 4 cups rice = level 4 for water). The markings in litres refer to amounts of water. Put On/Off switch into the “I” position and press the control at the base: the red indicator light for the “Cook” function will light. The cooking begins… Cooking table for long-grain white rice

B. OPERATING THE APPLIANCE

The levels printed on the walls of the pot refer only to cooking rice. The word “cup” refers to the measuring cup. Conversion table for the cup Cup Liquids Rice

160 ml 130 g 3/4 120 ml 100 g 1/2 80 ml 65 g 1/4 40 ml 30 g Long white rice Cups Cups water Servings 260 g

10 to 12 Automatic Warm When cooking has finished, the rice cooker will detect the total water absorbed and automatically switches to “warm”. The control returns to the high position and the “warm” indicator light goes on. The rice is, thus, always ready to eat. The rice cooker remains in the “warm” setting until the On/Off switch is put into the “O” position. It is possible to activate the “warm” setting by raising the control and this can be used to reheat food. Cooking table for various kinds of rice To cook other kinds of rice perfectly, here are the appropriate amounts of water: Basmati, Thai, Surinam rice Cups Cups water Servings 260 g

CRC800E IB

7/04/06 14:33 Page 12 Round grain sushi rice, sticky rice Cups Cups water Servings 260 g

10 to 12 Cooking table for various pulses When cooking pulses, the automatic stop function cannot be used because the pulses must soak in their cooking juices to prevent them from drying out. Some pulses should soak in water for 6 to 8 hours before cooking to rehydrate. For the following tables, the pulses were measured in cups before rehydration. It is better to cook them without the rice cooker lid on to prevent boiling over resulting from the scum produced during cooking. Wild rice, arborio rice Cups Cups water Servings 260 g

50 min 8 to 10 780 g

10 to 12 White haricot coco beans Cups Cups water Cooking time Servings 260 g

8 to 10 Cooking table for various cereals Soft wheat, bulgur, quinoa Cups Cups water Servings 300 g

10 to 12 Semolina Cups Cups water Servings 240 g

10 to 12 N.B. Add one soupspoon of olive oil per cup of semolina.

CRC800E IB

7/04/06 14:33 Page 13 STEAMING Pour the desired amount of water into the inner pot. The amount of water determines the cooking time for steaming. (See table opposite) Put the food in the steamer basket and place this on top of the inner pot. The vegetables should be washed and peeled first. Place the lid on top, put the On/Off switch into the “I” position and press the control at the base (as described for cooking rice). When the water has evaporated, the appliance will automatically switch to “warm” and the indicator light will turn on. Use oven gloves to lift the steamer basket. It is possible to steam food while cooking rice. This does require keeping an eye on the food. Steaming table The amount of water in the pot determines the cooking time. As a guide, for 160 ml water (1 cup), the cooking time will be about 30 minutes, for 80 ml (1/2 cup), it will be 15 minutes, etc. Food Amount Notes Cups water Cooking time Asparagus 250 g In 12 cm lengths 50 ml 12 min Broccoli 250 g Florets 40 ml 10 min Carrots 500 g Cut in pieces 80 ml 15 min Cauliflower 500 g Florets 80 ml 15 min Courgettes 400 g Cut in pieces 50 ml 12 min Green beans 300 g Whole, fine 80 ml 15 min Potatoes 600 g Cut in half 100 ml 20 min Peas 500 g Fresh or frozen 80 ml 15 min Leeks 300 g In 10 cm lengths 100 ml 20 min Artichoke 500 g Medium sized-hearts 100 ml 20 min Fish 500 g Average-sized fillets 80 ml 15 min Shellfish 500 g Cockles, clams,... 100 ml 20 min Scallops 500 g Fresh 60 ml 10 min Shrimp, gambas 400 g Shelled 80 ml 15 min Hard-boiled eggs 9 eggs Fresh, medium 80 ml 15 min Soft-boiled eggs 9 eggs Fresh, medium 40 ml 7 min Chicken 500 g Escalopes, filets 100 ml 20 min Sausage, black pudding 700 g Fresh, whole 160 ml 30 min Chinese ravioli 300 g Fresh 80 ml 15 min

CRC800E IB

7/04/06 14:33 Page 14

4. CHEF'S TIPS AND HINTS

5. QUESTIONS/ANSWERS

What do I do if... Answers : the preparation boils over durMake sure the ingredients do not ing cooking? exceed the maximum level in the pot.

• Cooking time for steaming may vary slightly depending on the size of the food. The amount of water will therefore need to be adjusted.
• If the steaming ends before the food is cooked properly, add some cold water to the inner pot, replace the food and cover.
• Smaller foods cook more quickly than larger. We recommend that you cook food of the same size together for even cooking.
• Carefully wash the rice several times in water and drain. Cooking will be perfect. the food isn’t cooked enough? There is not enough water for cooking. Add water and begin cooking again. the rice cooker is still warm after several hours? As long as the cooker is plugged in, the “warm” function stays on. Unplug the rice cooker after each use. Make sure the appliance is plugged in my rice cooker doesn’t work? and that the pot is in its base, then that the “cook” function is properly engaged. The pot was lifted or taken out while my rice cooker stopped during the appliance was operating. Re-set to cooking? “cook”.

• At the end of cooking, when the rice is done and the “warm” setting is on, stir the rice and leave in the automatic cooker a few minutes longer for perfect cooking.
• To flavour and add taste to the preparations, add onion, thyme, bay leaves, cloves when cooking white haricot beans, lentils, etc.

6. CLEANING AND STORAGE

When you have finished cooking, put the On/Off switch into the “O” position, unplug the cord and allow the appliance to cool completely before cleaning.

• The pot, steamer basket and lid may be washed in warm, soapy water or in the dishwasher.
• If food sticks to the sides, fill the pot and bowl with warm, soapy water and allow to soak before cleaning. Do not use scouring pads or abrasive soaps that could damage the coating.
• To clean the appliance housing, use a damp cloth and a little soft detergent. Do not use scouring pads or abrasive soaps. DO NOT IMMERSE THE APPLIANCE HOUSING IN WATER OR ANY OTHER LIQUID.

CRC800E IB

7/04/06 14:33 Page 15

7. SAFETY INSTRUCTIONS

• Do not use outdoors.

• When using the appliance, wear protective or oven gloves to handle it.

• This appliance is for household use only.

• Handle the cooking bowls with care when they are filled with hot liquids.
• Never place the appliance on or near a source of heat. Do not place it on heat-sensitive surfaces or near inflammable materials.
• Never place anything on the appliance when it is in use.
• The cooker generates steam. Leave enough space between the cooker and walls or furniture. Do not place the cooker below wall-mounted kitchen elements.
• Do not allow the cord to hang over the side of the counter or come in contact with hot surfaces.
• Do not immerse in water or any other liquid.

DISCARDING END-OF-LIFE ELECTRICAL AND ELECTRONIC EQUIPMENT

In everybody's interest and to participate actively in protecting the environment:

• Do not discard these items with your household waste.
• Use return and collection systems available in your country. Some materials can in this way be recycled orrecovered.

• Always unplug the appliance after use and before cleaning. Never leave the appliance plugged in and unattended. To unplug, pull on the plug, never on the cord.
• Be particularly careful if the appliance is used in the presence of children. Store outside the reach of children. Do not let children use the cooker.
• Do not use the appliance if it has fallen or if it appears to have been damaged. NOTES

• Stop using the appliance immediately if the cord is damaged. The cord must be replaced by a professional.
• Do not repair any part of the appliance yourself.
• Any use of accessories not recommended or not sold by Cuisinart® may cause fire, electrocution and risk of injury.
• This appliance meets the standards recommended under Directives 89/336/EEC (electromagnetic compatibility) and 73/23/EEC (safety of domestic electrical equipment), as amended by Directive 93/68/EEC (CE marking).
• Only use this appliance for cooking, following the instruction in this booklet.
