USER MANUAL PNEUMATIC SEAC

FUCILI PNEUMATICI | PNEUMATIC SPEARGUNS | ARBALÈTES PNEUMATIQUES FUSILES NEUMÁTICOS | PNEUMATISCHE HARPUNEN

Congratulations on having chosen the quality and reliability of a SEAC product.

The equipment you have purchased was made with selected and tested materials. Development and constant research allow us to evolve continually. Innovative production processes, constant controls and testing, as well as testing under real conditions, as conducted in our research centre, guarantee the reliability that all SEAC products are known for.

- WARNING

Read the entire instruction handbook before using this equipment! This usage manual must be preserved for the whole life of the product.

In order to use the speargun correctly, please read this manual carefully.

If you have any problems or questions, please contact your authorized retailer or SEAC directly.

Repairs and maintenance operations must be conducted exclusively at SEAC authorized laboratories.

GENERAL WARNINGS

Before using the speargun you must be familiar with all applicable safety standards. Carefully read all the instructions provided in the manual and strictly abide by

all applicable local and national standards. In this particular case, comply with all regulations concerning the allowable minimum age limits, correct procedures for use and transport, areas allowed, signaling devices, etc. Improper use of diving equipment, and spearguns in particular, can be dangerous and cause serious or even fatal injury to divers and their companions.

In assembling and tuning the speargun, every step was taken to ensure a product that will be highly reliable over time.

However, these measures can be rendered ineffective if the speargun is not used correctly and if adequate maintenance is not performed.

CHARACTERISTICS

Anatomical handle, designed to provide proper aim in every position. The angle between the grip and the barrel is designed to prevent fatigue to the wrist after prolonged use.

In the Caccia HF and Caccia series, the grip is made in two materials. The section that rests against the palm is made of soft thermoplastic rubber to increase comfort and provide a better grip.

The handle on the Asso UP model is entirely covered in thermoplastic rubber. The Caccia HF series has an aluminium canister manufactured using Hydroforming technology that makes it possible to create a shape with a unique design, conceived to further improve horizontal traverse and noticeably increase the capacity of stored compressed air. This gives the Caccia HF more power and greater range than other cylindrical-canister weapons of the same length.

OPERATION

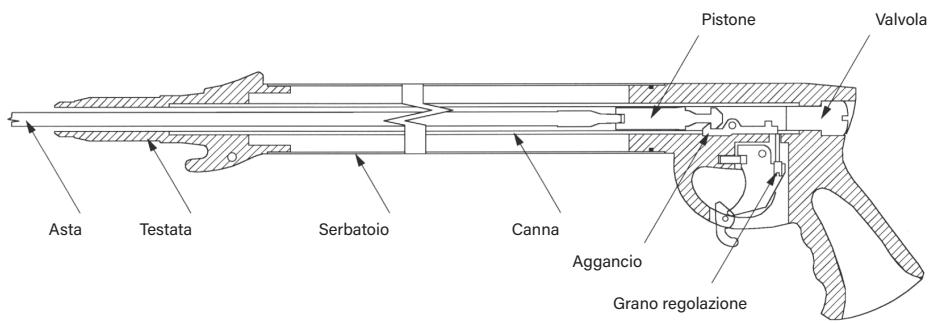

A compressed air speargun uses chambered energy during loading operations. The propulsion strength increases proportionally to the internal pressure in the weapon, which can be increased using the special pump, or decreased by releasing excess air from the loading valve.

(See table at the end of the manual.)

The speargun is furnished already at the correct pressure for each model/size.

- WARNING

When reloading, never exceed 25 bar in pressure for any reason.

Exceeding this value can cause explosions and serious accidents.

To load the gun, rest the grip on your thigh or foot depending on the length of your model. After inserting the shaft tail into the muzzle, press the shaft toward the grip until the piston engages the catch hook (you can tell when it has engaged by listening for the hook to click).

The gun is now ready to fire. The gun is fired by pressing the trigger.

MODELS WITH POWER REGULATOR

The Asso UP, Asso and Hunter models are available with or without power regulator, while the Caccia and Caccia HF are only available with power regulator.

Weapons that feature a power regulator offer two different shots, at maximum or minimum power. In addition, moving the regulator to minimum power (fully forward) makes the weapon easier to load.

When the power regulator is set to minimum power it is easier to load, since less force is required to insert the shaft.

To empty the weapon for maintenance, move the regulator level to maximum power so that all the air can be released.

IMPORTANT WARNINGS

Although this pneumatic speargun has been designed in accordance with the maximum safety criteria, if used improperly it can be extremely dangerous for the user and others. Therefore it is crucial that you comply with the following instructions:

- Never load the gun out of the water; never fire the gun out of the water. Before firing, make sure the shaft is inserted: if the shaft exits accidentally (for example, if a worn tailpiece fails to engage the piston properly), do not fire, because without the weight of the shaft, this action will damage the piston and the shock absorber bushing. In this event, reinsert the shaft and fire normally. After every hunt, empty the gun in the water before getting out.

- Never point the gun at others, even with the safety engaged.

- When loading, keep a firm grip on the muzzle of the gun to prevent unexpected swerves.

- Do not leave the gun in the sun or near sources of heat.

- If the muzzle has been in contact with sand, never insert the shaft under any circumstances; doing so would irreparably damage the barrel and the piston.

- Rinse the weapon in freshwater after every use.

- The pump should only be used when pressure is insufficient, not every time you use the weapon. Use the side holes to check that the piston is at the end of the barrel and not hooked to the catch hook. Make sure that the threading on the pump and the valve are clean and in good condition, and that the pump gasket sits properly in its housing.

- When transporting the weapon by air, all internal pressure in the weapon must be released in advance.

- WARNING

Never remove or tamper with the safety catch, because it can compromise your safety and that of others. SEAC declines all responsibility for any harm to persons or things caused by products that have been tampered with or used improperly, or resulting from lack of proper maintenance.

- WARNING

The following operations can only be performed by authorized personnel.

For routine maintenance (replacing oil, piston, etc.), the weapon must be emptied in advance in the maximum power position. Disassembling the speargun without having fully discharged the internal pressure can cause accidents, even serious ones.

Procedure for releasing the internal pressure from the weapon: after having left the gun in a vertical position for a few minutes with the muzzle pointing downward, simply unscrew the valve cover and press on the sphere in the inflation valve, holding the weapon vertical and away from the eyes to avoid any sprays of nebulized oil.

The spare parts list is available in the downloads section of www.seacsub.com

ARBALÈTES HYDROPNEUMATIQUES

SEAC warrants the proper and efficient functioning of the Product this warranty is enclosed to. The rights provided under this warranty can be only exercised on the conditions and within the limits hereunder stated:

1. The warranty is valid for two (2) years starting from the time the product is purchased at a SEAC authorized dealer, and requires no prior formal validation.
2. This warranty is only garanted to the original purchaser from an authorised retailer, being strictly personal and not transferable unless express authorisation by SEAC.
3. The warranty only covers malfunctions due to:

- inherent defects of materials.

• faulty designing, workmanship or assembly of the Product.
• errors or inadequacy in the operating manual or precautionary instructions.
• This warranty expires automatically and immediately in case of repairs, modifications, transformation, adjustment or any other kind of tampering with the Product not previously authorised by SEAC or anyway carried out by unauthorised personnel.
• This warranty entitles to free repair as soon as possible or to immediate free replacement (at SEAC's unquestionable option) of the Product SEAC find defective because of any of the defects definitely stated under foregoing point 3).
• This warranty may also be exercised by shipping the product believed to be defective to SEAC through an authorized SEAC dealer, who much obtain a return/replacement authorization from SEAC. Products returned directly by private persons are not accepted. To exercise this warranty the Product must be accompanied by a proof of purchase (e.g. a cash voucher, an invoice or another equivalent document of tax registration showing the name of the authorised retailer and the date of purchase).

In this case SEAC receives a Product which:

• is not accompanied by a document of tax registration having the aforesaid characteristics.
• is in such conditions to determine the expiry of warranty as stated under foregoing point 4).
• present defects due to causes different from those definitely stated under foregoing point 3).

It abstains from making any repair, and informs the sender immediately.

If the sender wants to have the Product anyway repaired, he must demand so to SEAC within the following fifteen days, also declaring expressly he will undertake all the relevant costs (including costs of labour, replacements and transport). Otherwise SEAC will give the Product back at the sender's expense and risk.

NUMERO DI POMPATE - NUMBER OF PUMPS - NOMBRE DE MOUVEMENT DE POMPE - NÚMERO DE BOMBEOS - PUMPENZAHL - APIΘΜΟΣ ΔΙΑΔΡΟΜΩΝ ΑΝΤΛΙΑΣ - ΚΟЛИЧЕСТВО ΚΑЧКОВ

MODEL	16 BAR	18 BAR	20 BAR
ASSO UP 30 S/R	65	75	85
ASSO UP 40 S/R	125	145	165
ASSO UP 50 S/R	215	245	285
ASSO UP 65 S/R	295	345	400
ASSO UP 75 S/R	355	405	470
ASSO UP 50 C/R	205	240	290
ASSO UP 65 C/R	315	370	420
ASSO UP 75 C/R	355	420	485
ASSO UP 90 C/R	500	565	635
ASSO UP 115 C/R	655	675	770
ASSO UP 135 C/R	800	910	1080

MODEL	16 BAR	18 BAR	20 BAR
ASSO 30 S/R	55	65	75
ASSO 40 S/R	115	135	155
ASSO 50 S/R	215	255	285
ASSO 65 S/R	275	320	365
ASSO 75 S/R	355	410	465
ASSO 50 C/R	195	225	260
ASSO 65 C/R	300	340	385
ASSO 75 C/R	345	400	455
ASSO 90 C/R	485	560	645
ASSO 115 C/R	635	655	760
ASSO 135 C/R	790	895	1000

MODEL	16 BAR	18 BAR	20 BAR
HUNTER/ALLIGATOR 30 S/R	65	75	85
HUNTER/ALLIGATOR 40 S/R	125	145	165
HUNTER/ALLIGATOR 50 S/R	215	245	285
HUNTER/ALLIGATOR 65 S/R	295	345	400
HUNTER/ALLIGATOR 75 S/R	355	405	470
HUNTER/ALLIGATOR 50 C/R	205	240	290
HUNTER/ALLIGATOR 65 C/R	315	370	420
HUNTER/ALLIGATOR 75 C/R	355	420	485
HUNTER/ALLIGATOR 90 C/R	500	565	635
HUNTER/ALLIGATOR 115 C/R	655	675	770
HUNTER/ALLIGATOR 135 C/R	800	910	1080

MODEL	18 BAR	20 BAR	22 BAR	24 BAR
CACCIA 50 C/R	250	295	335	370
CACCIA 65 C/R	355	410	465	520
CACCIA 75 C/R	455	520	585	650
CACCIA 90 C/R	480	555	630	705
CACCIA 115 C/R	680	705	800	905
CACCIA 135 C/R	825	950	1075	1200
CACCIA 75 HF C/R	525	590	645	720
CACCIA 90 HF C/R	545	620	685	775
CACCIA 115 HF C/R	605	710	815	940

Note
