Product Type	Active crossover 3-way stereo / 5-way mono
Brand	Peavey
Model	PV 35XO
Frequency Response	20 Hz - 20 kHz ±1 dB
Total Harmonic Distortion (THD)	0.005% (20 Hz - 20 kHz)
Signal-to-Noise Ratio	-92 dB
Filter Slope	24 dB/octave
Crossover Frequency Ranges	80 Hz - 900 Hz or 800 Hz - 9 kHz (selectable x10)
Inputs	2x balanced XLR female (channels 1 and 2)
Outputs	6x balanced XLR male (Low, Mid, High per channel); in mono mode: Low, Mid-Low, Mid, Mid-High, High
Controls	Input gain, crossover frequencies (2 per channel), output levels (Low, Mid, High), mute, mode selector (stereo/mono), low frequency coupling
Indicators	Clip LED, frequency range selection LED, mode LED, mute LED
Power	IEC connector, internal fuse, mains voltage (not specified but typical 230 V / 50 Hz or 120 V / 60 Hz)
Dimensions (approx.)	48.3 x 4.4 x 20.3 cm (19" x 1.75" x 8") – 1U rack format
Weight (approx.)	2.3 kg (5 lb)
Maintenance and Cleaning	Unplug the device before cleaning; use a dry cloth; do not use liquids or aerosols.
Safety	Do not expose to rain or moisture; do not open the enclosure (risk of electric shock); refer repairs to a qualified Peavey technician; use with a grounded outlet.
Spare Parts and Repairability	User-replaceable fuse (same specifications); for any other repairs, contact an authorized Peavey service center.
General Information	The PV 35XO is a versatile active crossover designed for professional sound reinforcement systems, enabling 3-way stereo or 5-way mono filtering.

Frequently Asked Questions - PV 35XO PEAVEY

How to choose between 3-way stereo and 5-way mono mode?

Use the mode selector (11) on the front panel. The red LED lights up in mono mode. In stereo mode, you have two independent channels with Low, Mid, High outputs. In mono mode, only one input channel is used (channel 1) and the outputs are Low, Mid-Low, Mid, Mid-High, High.

How to adjust crossover frequencies?

Use the frequency controls (3, 5, 15, 17) and the x10 selectors (4, 6, 16, 18). The range is 80 Hz to 900 Hz without the x10 multiplier, and 800 Hz to 9 kHz with the x10 multiplier activated (red LED lit). Adjust according to your speaker specifications.

What to do if the Clip indicator lights permanently?

Reduce the input gain (control 1 or 13) until the Clip indicator lights only occasionally. Continuous clipping can damage the sound system.

How to use the low frequency coupling function?

In stereo mode, activate the 'Low Output Couple' selector (12). The Low outputs of both channels are then combined on a single output (channel 1 Low). This allows using a single amplifier for the bass in stereo.

Can I use the PV 35XO with passive speakers?

Yes, the PV 35XO is an active crossover designed to be placed before power amplifiers. The outputs must be connected to the inputs of amplifiers that power the different speaker channels.

What type of cable to use for connections?

Use balanced XLR cables for inputs and outputs to minimize noise. Inputs are female, outputs are male.

How to replace the fuse?

Unplug the device from the mains. Remove the fuse holder located in the IEC connector. Check the fuse; if blown, replace it with a fuse of the same rating and type. If the problem persists, contact an authorized Peavey service center.

What does the red LED on the x10 selector mean?

The red LED indicates that the frequency range multiplied by 10 is active, meaning the crossover frequency is between 800 Hz and 9 kHz instead of 80 Hz to 900 kHz.

How to clean the device?

Unplug the device. Use a soft, dry cloth to wipe the surface. Never use solvents, abrasive products, or liquids that could penetrate inside.

The device does not turn on, what to do?

Check that the power cord is properly connected and that the mains outlet is live. Check the fuse as described above. If everything seems correct and the device still does not turn on, contact a qualified Peavey technician.

USER MANUAL PV 35XO PEAVEY

STOCKED OH MAX VCC P/WR VCC V-WR VX VARE A24 MA3000 LAVES LAWS LAVE WM MOND COMMUNICATION A24-VC HIVES WM VCH HIVS WM METH STOCKED OH MAX VCC VCC P/WR VCC P/WR V-WR VX VARE WM FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT FAT

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

CE

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

1. Only use attachments/accessories provided by the manufacturer.
2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
3. Unplug this apparatus during lightning storms or when unused for long periods of time.
4. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
5. Never break off the ground pin. Write for our free booklet “Shock Hazard and Grounding.” Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
6. If this product is to be mounted in an equipment rack, rear support should be provided.
7. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours	Sound Level dBA, Slow Response
8	90
6	92
4	95
3	97
2	100
112	102
1	105
1/2	110
1/4 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

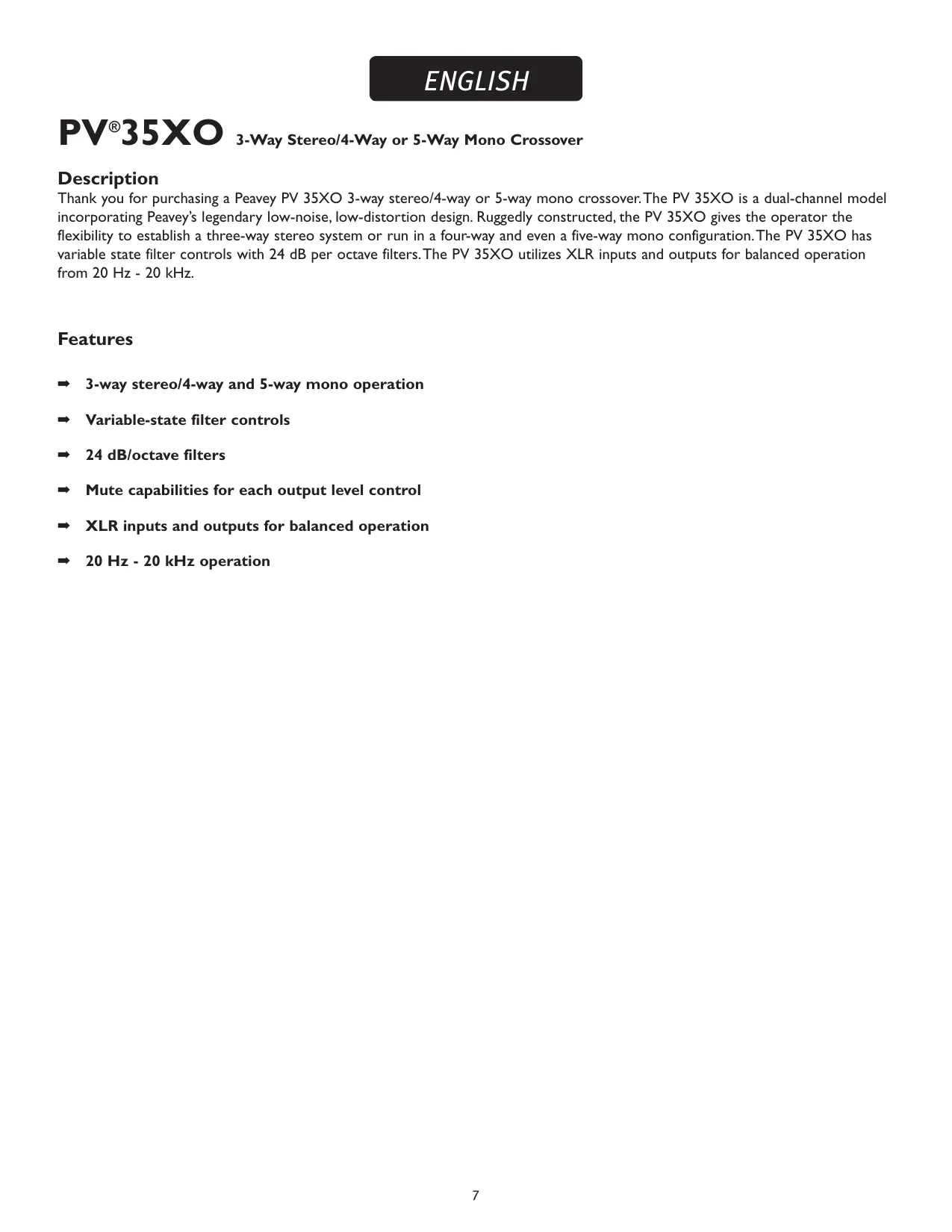

Thank you for purchasing a Peavey PV 35XO 3-way stereo/4-way or 5-way mono crossover. The PV 35XO is a dual-channel model incorporating Peavey's legendary low-noise, low-distortion design. Ruggedly constructed, the PV 35XO gives the operator the flexibility to establish a three-way stereo system or run in a four-way and even a five-way mono configuration. The PV 35XO has variable state filter controls with 24 dB per octave filters. The PV 35XO utilizes XLR inputs and outputs for balanced operation from 20 Hz - 20 kHz.

Features

→ 3-way stereo/4-way and 5-way mono operation
→ Variable-state filter controls
→ 24 dB/octave filters
→ Mute capabilities for each output level control
→ XLR inputs and outputs for balanced operation
→ 20 Hz - 20 kHz operation

FRONT PANEL

INPUT GAIN CONTROL (Channel I) (I)

This control is used to optimize channel I gain between the mixer and the power amps for channel I. The control range is between -12 dB and +12 dB.

CLIP INDICATOR (Channel I) (2)

When illuminated, the red Clip indicator located to the upper right of the Input Gain control indicates that the signal is clipping. This clipping may be heard as distortion. While there should be no problem if this indicator flashes occasionally, it should never flash constantly or stay illuminated. This could result in impaired system performance and possible loudspeaker damage.

CROSSOVER SELECTOR CONTROL (Channel I lows/mids) (3)

This allows users to choose their desired crossover points for lows and the low side of the mids for channel I. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (Channel I lows/mids) (4)

This switch multiplies the value indicated on the Crossover Selector control for the lows and the low side of the mids times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9 kHz. Range x10 is indicated by the illumination of the red LED above the switch.

CROSSOVER SELECTOR CONTROL (Channel I mids/highs) (5)

This allows users to choose their desired crossover points for the high side of the mids and the highs for channel I. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (Channel I mids/highs) (6)

This switch multiplies the value indicated on the Crossover Selector control for the high side of the mids and the highs times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9 kHz. Range x10 is indicated by the illumination of the red LED above the switch.

LOW GAIN CONTROL (Channel I) (7)

This controls the output level of channel I low frequency signal (signal below the selected low/mid crossover point) present at the channel I low output XLR.

MTURSO CH1 10 12 14 16 8 9 11 13 15

MID GAIN CONTROL (Channel I) (8)

This controls the output level of the channel I mid frequency signal (signal above the selected low/mid crossover point and below the selected mid/high crossover point) present at the channel I mid output XLR.

HIGH GAIN CONTROL (Channel I) (9)

This controls the output level of the channel I high frequency signal (signal above the selected mid/high crossover point) present at the channel I high output XLR.

OUTPUT MUTE SWITCHES (Channel I) (10)

This mutes the output of the associated level controls. The Mute function will be indicated by the illumination of the red LED located above the associated switch.

MODE SWITCH (II)

This switch selects between stereo 3-way operation and mono 5-way operation. The red LED above the Mode switch indicates mono mode. When this switch is engaged, the crossover is in mono operation.

SUBS OUT SUMMED SWITCH (12)

This switch combines the sub frequencies of both channel 1 and channel 2 into a single output, which allows you to use half as many amplifiers as you would with two channels of subs. The Summed function will be indicated by the illumination of the red LED above the switch.

INPUT GAIN CONTROL (Channel 2) (13)

This control is used to optimize the channel 2 gain between the mixer and the power amps for channel 2. The control range is between -12 dB and +12 dB.

CLIP INDICATOR (Channel 2) (14)

When illuminated, the red Clip indicator located to the upper right of the Input Gain control indicates that the signal is clipping. This clipping may be heard as distortion. While there should be no problem if this indicator flashes occasionally, it should never flash constantly or stay illuminated. This could result in impaired system performance and possible loudspeaker damage.

CROSSOVER SELECTOR CONTROL (Channel 2 lows/mids) (15)

This allows users to choose their desired crossover points for lows and the low side of the mids for channel 2. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (Channel 2 lows/mids) (16)

This switch multiplies the value indicated on the Crossover Selector control for the lows and the low side of the mids times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9 kHz. Range x10 is indicated by the illumination of the red LED above the switch.

NTURIO CH1 18 22 17 19 20 21 23

CROSSOVER SELECTOR CONTROL (Channel 2 mids/highs) (17)

This allows users to choose their desired crossover points for the high side of the mids and the highs for channel 2. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (Channel 2 mids/highs) (18)

This switch multiplies the value indicated on the Crossover Selector control for the high side of the mids and the highs times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9 kHz. Range x10 is indicated by the illumination of the red LED above the switch.

LOW GAIN CONTROL (Channel 2) (19)

This controls the output level of the channel 2 low frequency signal (signal below the selected low/mid crossover point) present at channel 2 low output XLR.

MID GAIN CONTROL (Channel 2) (20)

This controls the output level of the channel 2 mid frequency signal (signal above the selected low/mid crossover point and below the selected mid/high crossover point) present at channel 2 mid output XLR.

HIGH GAIN CONTROL (Channel 2) (21)

This controls the output level of channel 2 high frequency signal (signal above the selected mid/high crossover point) present at channel 2 high output XLR.

OUTPUT MUTE SWITCHES (Channel 2) (22)

This mutes the output of the associated level controls. The Mute function will be indicated by the illumination of the red LED located above the associated switch.

POWER SWITCH (23)

This 2-position rocker switch applies mains power to the unit when in the ON position. Power ON is indicated by red LED located above of the Power switch.

WARNING THE ON/OFF SWITCH IN THIS APPARATUS DOES NOT BREAK BOTH SIDES OF THE MAINS. HAZARDOUS ENERGY MAY BE PRESENT INSIDE THE ENCLOSURE WHEN THE POWER SWITCH IS IN THE OFF POSITION.

9 8 7 6 5 4 3 2 1

INPUT (Channel I) (I)

This XLR female 3-pin connector provides a balanced input for channel I.

LOW OUTPUT (Channel I) (2)

This XLR male 3-pin connector provides a balanced output for the low frequencies for channel I.

MID OUTPUT (Channel I) (3)

This XLR male 3-pin connector provides a balanced output for the mid frequencies for channel I.

HIGH OUTPUT (Channel I) (4)

This XLR male 3-pin connector provides a balanced output for the high frequencies for channel I.

INPUT (Channel 2) (5)

This XLR female 3-pin connector provides a balanced input for channel 2.

LOW OUTPUT (Channel 2) (6)

This XLR male 3-pin connector provides a balanced output for the low frequencies for channel 2.

MID OUTPUT (Channel 2) (7)

This XLR male 3-pin connector provides a balanced output for the mid frequencies for channel 2.

HIGH OUTPUT (Channel 2) (8)

This XLR male 3-pin connector provides a balanced output for the high frequencies for channel 2.

IEC MAINS CONNECTOR (9)

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton.

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the equalizer and all associated equipment is properly grounded.

Incorporated into this IEC MAINS CONNECTOR is the MAINS FUSE HOLDER. If for any reason you are unable to power up this unit, remove the fuse by pulling out the holder. Check to see if the fuse is operational. If not, then replace with a fuse of the appropriate value and rating. If the fuse continues to fail contact your nearest Certified Peavey Service Center.

FRONT PANEL

2 4 6 1 3 5 7 NTURIO CH1 XCMH LV-4 V2.1 HV-4 XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMM XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH XCMH

INPUT GAIN CONTROL (I)

This control is used to optimize the gain between the mixer and the power amps. The control range is between -12 dB and +12 dB.

CLIP INDICATOR (2)

When illuminated, the red Clip indicator located to the upper right of the Input Gain control indicates that the signal is clipping. This clipping may be heard as distortion. While there should be no problem if this indicator flashes occasionally, it should never flash constantly or stay illuminated. This could result in impaired system performance and possible loudspeaker damage.

CROSSOVER SELECTOR CONTROL (lows/low-mids) (3)

This allows users to choose their desired crossover points for lows and the low side of the low-mids. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (lows/low-mids) (4)

This switch multiplies the value indicated on the Crossover Selector control for the lows and the low side of the low-mids times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9kHz. Range x10 is indicated by the illumination of the red LED above the switch.

CROSSOVER SELECTOR CONTROL (low-mid/mids) (5)

This allows users to choose their desired crossover points for the high side of the low-mids and the low side of the mids. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (low-mid/mids) (6)

This switch multiplies the value indicated on the Crossover Selector control for the high side of the low-mids and the low side of the mids times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9 kHz. Range x10 is indicated by the illumination of the red LED above the switch.

LOW GAIN CONTROL (7)

This controls the output level of the low frequency signal (signal below the selected low/low-mid crossover point) present at low output XLR.

This controls the output level of the low-mid frequency signal (signal above the selected low/low-mid crossover point and below the selected low-mid/mid crossover point) present at low-mid output XLR.

HIGH GAIN CONTROL (Channel I) (9)

This function is non-operational in MONO mode.

OUTPUT MUTE SWITCHES (Channel I) (10)

This mutes the output of the associated level controls for lows and low-mids signals. The Mute function will be indicated by the illumination of the red LED located above the associated switch.

MODE SWITCH (II)

This switch selects between stereo 3-way operation and mono 5-way operation. The red LED above Mode switch indicates mono mode. When the switch is engaged, the crossover is in mono operation.

SUBS OUT SUMMED SWITCH (12)

This function is non-operational in MONO mode.

INPUT GAIN CONTROL (Channel 2) (13)

This function is non-operational in MONO mode.

CLIP INDICATOR (Channel 2) (14)

This function is non-operational in MONO mode.

CROSSOVER SELECTOR CONTROL (mids/high-mids) (15)

This allows users to choose their desired crossover points for the high side of the mids and the low side of the high-mids. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (mids/high-mids) (16)

This switch multiplies the value indicated on the Crossover Selector control for the high side of the mids and the low side of the high-mids times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9 kHz. Range x10 is indicated by the illumination of the red LED above the switch.

MTORD CH1 X1000 18 22 17 19 20 21 23

CROSSOVER SELECTOR CONTROL (high-mids/highs) (17)

This allows users to choose their desired crossover points for the high side of the high-mids and the highs. The control range is between 80 Hz and 900 Hz or 800 Hz and 9 kHz, depending on the position of the Range switch.

RANGE (x10) SWITCH (high-mids/highs) (18)

This switch multiplies the value indicated on the Crossover Selector control for the high side of the high-mids and the highs times 10. When engaged, the range will change from 80 Hz - 900 Hz to 800 Hz - 9 kHz. Range x10 is indicated by the illumination of the red LED above the switch.

MID GAIN CONTROL (19)

This controls the output level of the mid frequency signal (signal above the selected low-mid/mid crossover point and below the selected mid/high-mid crossover point) present at mid output XLR.

HIGH-MID GAIN CONTROL (20)

This controls the output level of the high-mid frequency signal (signal above the selected high-mid/mid crossover point and below the selected high crossover point) present at high-mid output XLR.

HIGH GAIN CONTROL (21)

This controls the output level of high frequency signal (signal above the selected high-mid/high crossover point) present at high output XLR.

OUTPUT MUTE SWITCHES (Channel 2) (22)

This mutes the output of the associated level controls. The Mute function will be indicated by the illumination of the red LED located above the associated switch.

POWER SWITCH (23)

This 2-position rocker switch applies mains power to the unit when in the ON position. Power ON is indicated by red LED located above the Power Switch.

WARNING! THE ON/OFF SWITCH IN THIS APPARATUS DOES NOT BREAK BOTH SIDES OF THE MAINS. HAZARDOUS ENERGY MAY BE PRESENT INSIDE THE ENCLOSURE WHEN THE POWER SWITCH IS IN THE OFF POSITION.

9 8 7 6 5 4 3 2 1

INPUT (I)

This XLR female 3-pin connector provides a balanced input.

LOW OUTPUT (2)

This XLR male 3-pin connector provides a balanced output for the low frequencies.

LOW-MID OUTPUT (3)

This XLR male 3-pin connector provides a balanced output for the low side of the mid frequencies.

HIGH OUTPUT (Channel I) (4)

This function is non-operational in MONO mode.

INPUT (Channel 2) (5)

This function is non-operational in MONO mode.

MID OUTPUT (6)

This XLR male 3-pin connector provides a balanced output for the mid frequencies.

HIGH-MID OUTPUT (7)

This XLR male 3-pin connector provides a balanced output for the high side of the mid frequencies.

HIGH OUTPUT (8)

This XLR male 3-pin connector provides a balanced output for the high frequencies.

IEC MAINS CONNECTOR (9)

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton.

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the equalizer and all associated equipment is properly grounded.

Incorporated into this IEC MAINS CONNECTOR is the MAINS FUSE HOLDER. If for any reason you are unable to power up this unit, remove the fuse by pulling out the holder. Check to see if the fuse is operational. If not, then replace with a fuse of the appropriate value and rating. If the fuse continues to fail contact your nearest Certified Peavey Service Center.

PV®35XO

3-Way Stereo/4-Way or 5-Way Mono Crossover SPECIFICATIONS

Bandwidth: 20 Hz - 20 kHz

Frequency Response: 20 Hz - 20 kHz +/- 1 dB

THD: 20 Hz - 20 kHz .005 dB %

Signal to Noise: -92 dB

Filter Type: 24 dB/Octave

Variable State Control Range:

	Stereo Mode	Mono Mode
Low/Mid	Range x1 = 80 Hz - 900 HzRange x10 = 800 Hz - 9 kHz
Mid/High	Range x1 = 80 Hz - 900 HzRange x10 = 800 Hz - 9 kHz
Low/Low-Mid		Range x1 = 80 Hz - 900 HzRange x10 = 800 Hz - 9 kHz
Low-Mid/Mid		Range x1 = 80 Hz - 900 HzRange x10 = 800 Hz - 9 kHz
Mid/High-Mid		Range x1 = 80 Hz - 900 HzRange x10 = 800 Hz - 9 kHz
High-Mid/High		Range x1 = 80 Hz - 900 HzRange x10 = 800 Hz - 9 kHz

DEUTSCH

PV®35XO

LOW OUTPUT (Kanal I) (2)

LOW OUTPUT (Kanal 2) (6)

TecN1 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V 1238888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888

9

IEC-NETZSTECKER (9)

LOW OUTPUT (Kanal I) (2)

LOW OUTPUT (Kanal 2) (6)

TecN1 100V/450V/450V 100V/450V/450V 100V/450V/450V 100V/450V/450V 100V/450V/450V 100V/450V/450V 100V/450V/450V 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450M/450M 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450W/450W 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450N/450N 100V/450N/452N 1.688888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888

(9)

IEC-NETZSTECKER (9)

CONTROLE DE GAIN D'ENTREE (Canal I) (I)

ENTREE (Canal I) (I)

ENTREE (Canal 2) (5)

TecN1 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456V/457V 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456S/457S 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456N/457N 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V/456W/457W 100V 12388888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888

(9)

CONNECTEUR D'ALIMENTATION IEC (9)

2 4 6 1 3 5 7 STUDIO CH1 AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU

CONTROLE DE GAIN D'ENTREE (I)

ENTREE (Canal 2) (5)

CONNECTEUR D'ALIMENTATION IEC (9)

	Mode Stereo	Mode Mono
Graves/Médium	Position x1 = 80 Hz - 900 HzPosition x10 = 800 Hz - 9 kHz
Médium/Aigues	Position x1 = 80 Hz - 900 HzPosition x10 = 800 Hz - 9 kHz
Grave/Médium-Graves		Position x1 = 80 Hz - 900 HzPosition x10 = 800 Hz - 9 kHz
Médium-Graves/Médium		Position x1 = 80 Hz - 900 HzPosition x10 = 800 Hz - 9 kHz
Médium/Médium-Aigues		Position x1 = 80 Hz - 900 HzPosition x10 = 800 Hz - 9 kHz
Médium-Aigues/Aigues		Position x1 = 80 Hz - 900 HzPosition x10 = 800 Hz - 9 kHz

ESPAÑOL

PV®35XO

INTERRUPTOR DE RANGO (x10) (Canal 2 mids/highs) (18)

ENTRADA (Canal I) (I)

FENET I/O 9

CONECTOR PRINCIPAL DE CORRIENTE (9)

2 4 6 1 3 5 7 STUDIO CH1 AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU AVU

CONTROL DE GANANCIA DE ENTRADA (I)

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category	Duration
Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers	2 years *(+ 3 years)
Drums	2 years *(+ 1 year)
Enclosures	3 years *(+ 2 years)
Digital Effect Devices and Keyboard and MIDI Controllers	1 year *(+ 1 year)
Microphones	2 years
Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories	1 year
Tubes and Meters	90 days

[*Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR
(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone] / Peavey Canada Ltd. at [phone].

FEATURES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Stylized logo with stylized Chinese characters and a registered trademark symbol

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301

[phone] • FAX [phone] • www.peavey.com

EX000009
