USER MANUAL PV 23XO PEAVEY

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

C E

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

1. Only use attachments/accessories provided by the manufacturer.
2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time.

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
2. Never break off the ground pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
   If this product is to be mounted in an equipment rack, rear support should be provided.
3. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours	Sound Level dBA, Slow Response
8	90
6	92
4	95
3	97
2	100
1 1/2	102
1	105
1/2	110
1/4 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

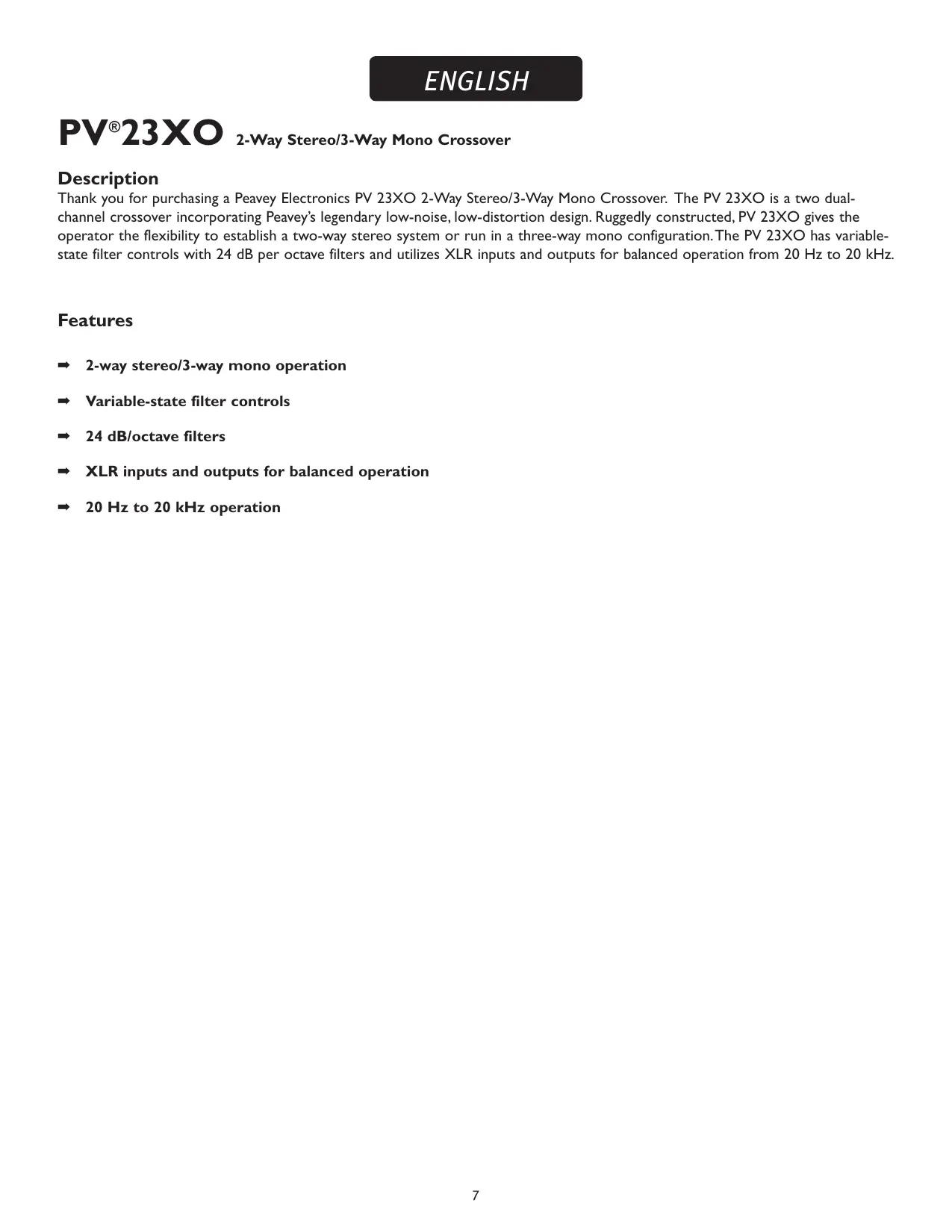

Thank you for purchasing a Peavey Electronics PV 23XO 2-Way Stereo/3-Way Mono Crossover. The PV 23XO is a two dual-channel crossover incorporating Peavey's legendary low-noise, low-distortion design. Ruggedly constructed, PV 23XO gives the operator the flexibility to establish a two-way stereo system or run in a three-way mono configuration. The PV 23XO has variable-state filter controls with 24 dB per octave filters and utilizes XLR inputs and outputs for balanced operation from 20 Hz to 20 kHz.

Features

2-way stereo/3-way mono operation
Variable-state filter controls
24 dB/octave filters
XLR inputs and outputs for balanced operation
20 Hz to 20 kHz operation

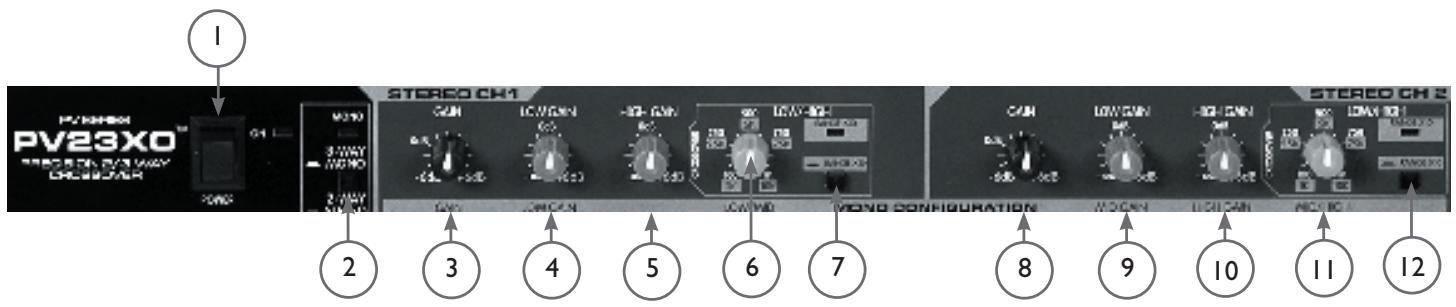

FRONT PANEL

POWER SWITCH (I)

This 2-position rocker switch applies mains power to the unit when in the ON position. The red LED located to the right of the Power switch indicates that power is ON.

MODE SWITCH (2)

WARNING

THE ON/OFF SWITCH IN THIS APPARATUS DOES NOT BREAK BOTH SIDES OF THE MAINS. HAZARDOUS ENERGY MAY BE PRESENT INSIDE THE ENCLOSURE WHEN THE POWER SWITCH IS IN THE OFF POSITION.

This switch selects between stereo 2-way operation and mono 3-way operation. The red LED above the Mode switch indicates mono mode.

INPUT GAIN CONTROL (Channel I) (3)

This control is used to optimize the channel I gain between the mixer and the power amps for channel I. Control range is between 0 dB and +12 dB.

LOW GAIN CONTROL (Channel I) (4)

Controls output level of channel I low frequency signal (signal below the selected crossover point) present at channel I low output XLR.

HIGH GAIN CONTROL (Channel I) (5)

Controls output level of channel I high frequency signal (signal above the selected crossover point) present at channel I high output XLR.

CROSSOVER SELECTOR CONTROL (Channel I Lows/Highs) (6)

Allows user to choose their desired crossover point for lows and highs for channel I. Control range is between 100Hz and 1kHz or 1kHz and 10kHz depending on the position of the Range Switch.

RANGE (x10) SWITCH (Channel I lows/highs) (7)

This switch multiplies the value indicated on the Crossover Selector Control times 10. When engaged, the range will change from 100Hz to 1kHz through 1kHz to 10kHz . Range × 10 is indicated by illumination of the red LED above the switch.

INPUT GAIN CONTROL (Channel 2) (8)

This control is used to optimize the channel 2 gain between the mixer and the power amps for channel 2. Control range is between 0 dB and +12 dB.

LOW GAIN CONTROL (Channel 2) (9)

Controls output level of channel 2 lows signal (signal below the selected crossover point) present at channel 2 low output XLR.

HIGH GAIN CONTROL (Channel 2) (10)

This controls output level of channel 2 highs signal (signal above the selected crossover point) present at channel 2 high output XLR.

CROSSOVER SELECTOR CONTROL (Channel 2 lows/highs) (II)

This allows users to choose their desired crossover point for lows and highs for channel 2. The control range is between 100Hz and 1kHz or 1kHz and 10kHz , depending on the position of the Range switch.

RANGE (x10) SWITCH (Channel 2 lows/highs) (12)

This switch multiplies the value indicated on the Crossover Selector Control times 10. When engaged, the range will change from 100Hz to 1kHz through 1kHz to 10kHz . Range × 10 is indicated by the illumination of the red LED above the switch.

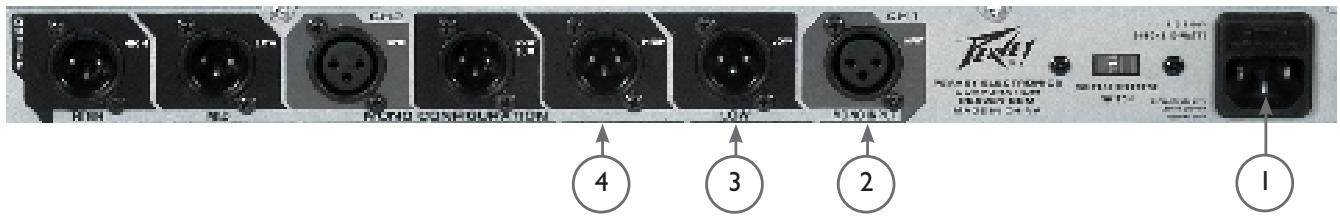

REAR PANEL

IEC MAINS CONNECTOR (I)

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton.

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the equalizer and all associated equipment is properly grounded.

Incorporated into this IEC MAINS CONNECTOR is the MAINS FUSE HOLDER. If for any reason you are unable to power up this unit, remove the fuse by pulling out the holder. Check to see if the fuse is operational. If not, then replace with a fuse of the appropriate value and rating. If the fuse continues to fail contact your nearest Certified Peavey Service Center.

INPUT (Channel I) (2)

This XLR female 3-pin connector provides a balanced input for channel I.

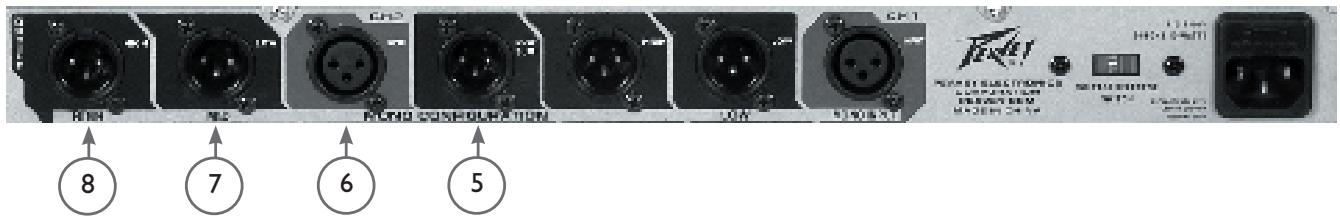

LOW OUTPUT (Channel I) (3)

This XLR male 3-pin connector provides a balanced output for the low frequencies for channel I.

HIGH OUTPUT (Channel I) (4)

This XLR male 3-pin connector provides a balanced output for the high frequencies for channel I.

LOW SUM OUTPUT (5)

This XLR male 3-pin connector provides a balanced output for the low frequencies for both channel I and channel 2, which been summed (added) together.

INPUT (Channel 2) (6)

This XLR female 3-pin connector provides a balanced input for channel 2.

LOW OUTPUT (Channel 2) (7)

This XLR male 3-pin connector provides a balanced output for the low frequencies for channel 2.

HIGH OUTPUT (Channel 2) (8)

This XLR male 3-pin connector provides a balanced output for the high frequencies for channel 2.

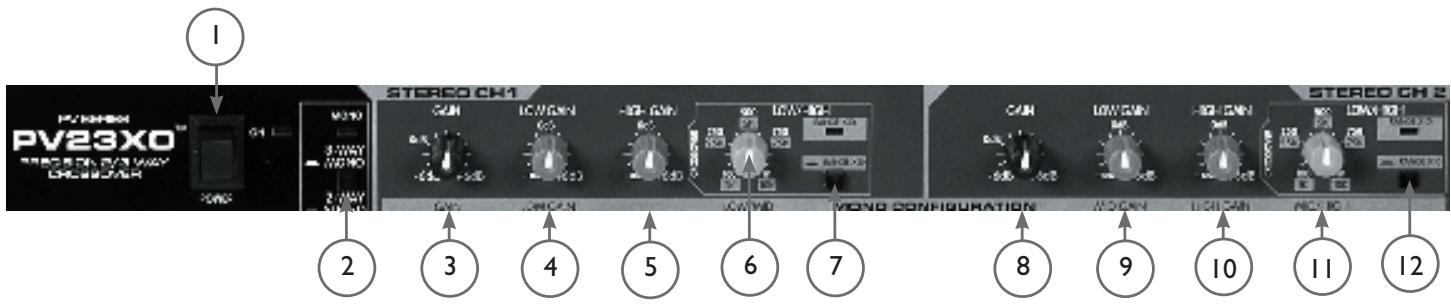

FRONT PANEL

POWER SWITCH (I)

This 2-position rocker switch applies mains power to the unit when in the ON position. The red LED located to the right of the Power switch indicates that Power is ON.

MODE SWITCH (2)

WARNING

THE ON/OFF SWITCH IN THIS APPARATUS DOES NOT BREAK BOTH SIDES OF THE MAINS. HAZARDOUS ENERGY MAY BE PRESENT INSIDE THE ENCLOSURE WHEN THE POWER SWITCH IS IN THE OFF POSITION.

This switch selects between stereo 2-way operation and mono 3-way operation. The red LED above the Mode switch indicates mono mode.

INPUT GAIN CONTROL (3)

This control is used to optimize the gain between the mixer and the power amps. The control range is between 0 dB and +12 dB.

LOW GAIN CONTROL (4)

This controls the output level of low frequency signals (those below the selected crossover point) present at the low output XLR.

HIGH GAIN CONTROL (Channel I) (5)

This function is non-operational in MONO Mode.

CROSSOVER SELECTOR CONTROL (lows/mids) (6)

This allows the user to choose their desired crossover point for lows and mids. Control range is between 100 Hz and 1 kHz or 1 kHz and 10 kHz depending on the position of the Range Switch.

RANGE (×10) SWITCH (lows/mids) (7)

This switch multiplies the value indicated on the Crossover Selector Control times 10. When engaged, the range will change from 100Hz to 1kHz through 1kHz to 10kHz . Range × 10 is indicated by the illumination of the red LED above the switch.

INPUT GAIN CONTROL (Channel 2) (8)

This function is non operational in MONO Mode.

MID GAIN CONTROL (9)

This controls the output level of mid signals (those below the selected crossover point) present at mid output XLR.

HIGH GAIN CONTROL (10)

This controls the output level of the highs (signals above the selected crossover point) present at high output XLR.

CROSSOVER SELECTOR CONTROL (mids/highs) (II)

This allows users to choose their desired crossover point for mids and highs. The control range is between 100 Hz and 1 kHz or 1 kHz and 10 kHz, depending on the position of the Range switch.

RANGE (×10) SWITCH (mids/highs) (I2)

This switch multiplies the value indicated on the Crossover Selector Control times 10. When engaged, the range will change from 100Hz to 1kHz through 1kHz to 10kHz . Range x10 is indicated by the illumination of the red LED above the switch.

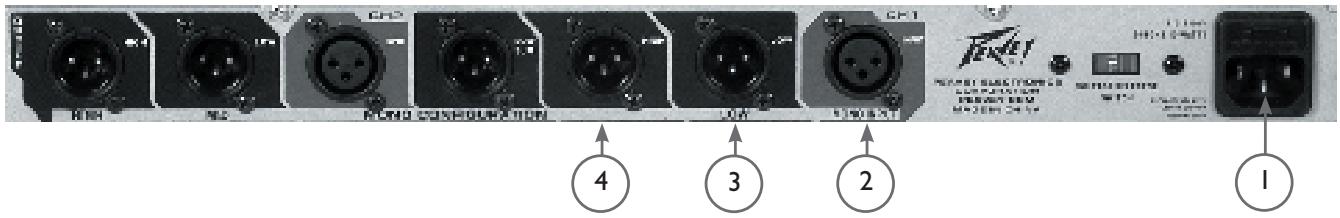

REAR PANEL

IEC MAINS CONNECTOR (I)

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton.

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the equalizer and all associated equipment is properly grounded.

Incorporated into this IEC MAINS CONNECTOR is the MAINS FUSE HOLDER. If for any reason you are unable to power up this unit, remove the fuse by pulling out the holder. Check to see if the fuse is operational. If not, then replace with a fuse of the appropriate value and rating. If the fuse continues to fail contact your nearest Certified Peavey Service Center.

INPUT (2)

This XLR female 3-pin connector provides a balanced input.

LOW OUTPUT (3)

This XLR male 3-pin connector provides a balanced output for the low frequencies.

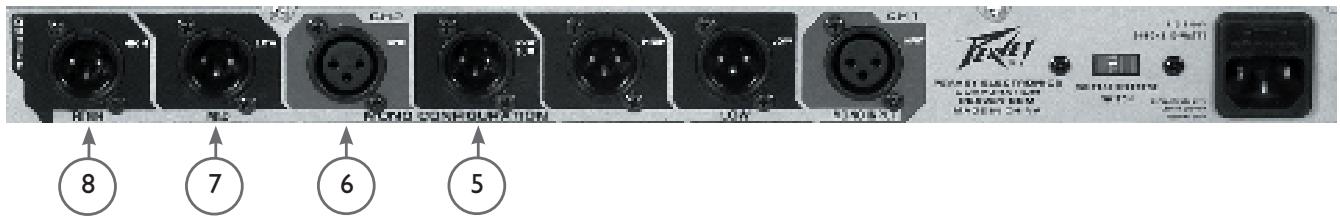

HIGH OUTPUT (Channel I) (4)

This function is non-operational in MONO Mode.

LOW SUM OUTPUT (5)

This function is non-operational in MONO Mode.

INPUT (Channel 2) (6)

This function is non-operational in MONO Mode.

MID OUTPUT (7)

This XLR male 3-pin connector provides a balanced output for the mid frequencies.

HIGH OUTPUT (8)

This XLR male 3-pin connector provides a balanced output for the high frequencies.

PV®23X0

2-Way Stereo/3-Way Mono

SPECIFICATIONS

CONTROLS AND SWITCHES

Channel Gain Control: 0 to +12 dB

Low Frequency Level Control: - to +6 dB

High Frequency Level Control: - to +6 dB

Low Frequency to High Frequency crossover: 100 Hz to 1 Khz x10 range: Changes Low Frequency

to Mid Frequency from (100 Hz to 1 kHz) to (1kHz to 10 kHz)

2-way stereo/3-way mono changes the unit from

2-way stereo or 3-way mono

FREQUENCY RESPONSE

Each output is -3 dB at the selected crossover frequency value. Outputs are essentially flat within their relative passbands.

Distortion: Less than 0.02% THD @ +4 dBu, @ 1 kHz

Hum and Noise: Crossover controls set @ 1 kHz, all level controls set at 0 dB; 22 Hz to 22 kHz, unweighted gain @ 0dB(ref +4dBu) - 90dB

Low Frequency Output: -86 dBu below 80 dB

High Frequency Output: -84 dBu below -78 dB

Maximum Input Level: +14 dBu, (channel gain @ 0 dB input level controls set at 0 dB) +22 dBu

Maximum Output Level: +22 dBu, unbalanced +28 dBu, balanced

Input Impedance: 10 k ohms unbalanced

CONNECTORS

Inputs: XLR Balanced

Outputs: XLR Balanced

Power Requirements: 120V AC, 50/60 Hz, 20 watts (domestic model)

DEUTSCH

PV®23XO

2-Wege Stereo/3-Wege Mono Frequenzwichte

Beschreibung

This XLR female 3-pin connector provides a balanced input for channel I.

LOW OUTPUT (Kanal I) (3)

LOW OUTPUT (Kanal 2) (7)

CONNECTEUR D'ALIMENTATION IEC (I)

ENTREE (Canal I) (2)

ENTREE (Canal 2) (6)

CONNECTEUR D'ALIMENTATION IEC (I)

ENTREE (Canal 2) (6)

Distortion: Moins de 0.02% THD @ +4 dBu, @ 1 kHz

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category	Duration
Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers	2 years * (+ 3 years)
Drums	2 years * (+ 1 year)
Enclosures	3 years * (+ 2 years)
Digital Effect Devices and Keyboard and MIDI Controllers	1 year * (+ 1 year)
Microphones	2 years
Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories	1 year
Tubes and Meters	90 days

[Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR
(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHEATHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone] / Peavey Canada Ltd. at [phone].

FEATURES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301

[phone] • FAX [phone] • www.peavey.com

EX00008
