Congratulations on wisely choosing the PageMatrixª system for your current and future paging projects. Used in conjunction with our highly-acclaimed MediaMatrix¨ digital audio system, PageMatrix provides an integrated and flexible approach to all serious paging applications. MediaMatrix serves as the central processing unit for an entire project, controlling the entire system from signal routing to managing the paging system. The PageMatrix system provides multiple paging stations that are easily configured to just about any page/zone requirement. Plus, these paging stations are portable, meaning that the wall plug/port contains the identity of the paging station connected to it. The PageMatrix hardware components include the 2-rack space PageMatrix Controller and three types of paging stations. The PageMatrix controller supports up to 16 paging stations in any combination and connects to MediaMatrix Break Out Boxes (BoBs) for audio and to the MediaMatrix frameÕs RS-232 serial port for control data. Three paging stations are available including the Station Four-Wª Wall Mount, Station Fourª Desktop, and Station Tenª Desktop. The software components include:

PageMatrix Software MediaMatrix view files MediaMatrix PASHAª paging files (corresponds to the appropriate view file) The PageMatrix application provides a graphical way to program the zone preset buttons of each attached station. Once the configuration is finalized, it is simply downloaded to the PageMatrix Controller for operation. It is not necessary to access the PageMatrix application again until the time comes to update the configuration. Features

Any combination of four or ten button stations can be used.

All stations feature multi-color LEDs which indicate zone preset status.

Controller features a station power input for remote +24V DC operation.

Phoenix connectors are used to connect paging audio to MediaMatrix BoBs.

Controller supports up to four MediaMatrix systems.

Controller offers 16 front panel station LEDs which indicate station status.

The PageMatrix controller is the heart of the system. It is connected via an RS-232 serial port to the MediaMatrix frame running MediaMatrix and PageMatrix software. In fact, one PageMatrix controller can control up to four separate MediaMatrix systems (four control data ports are provided). In addition to the control ports, a single program port is available to receive data from the PageMatrix software. Typically, the PageMatrix configuration is designed and downloaded to the controller, then disconnected from the program port. The PageMatrix controller supports up to 16 unique paging stations including any combination of the Station Four-Wª, Station Fourª, and Station Tenª.

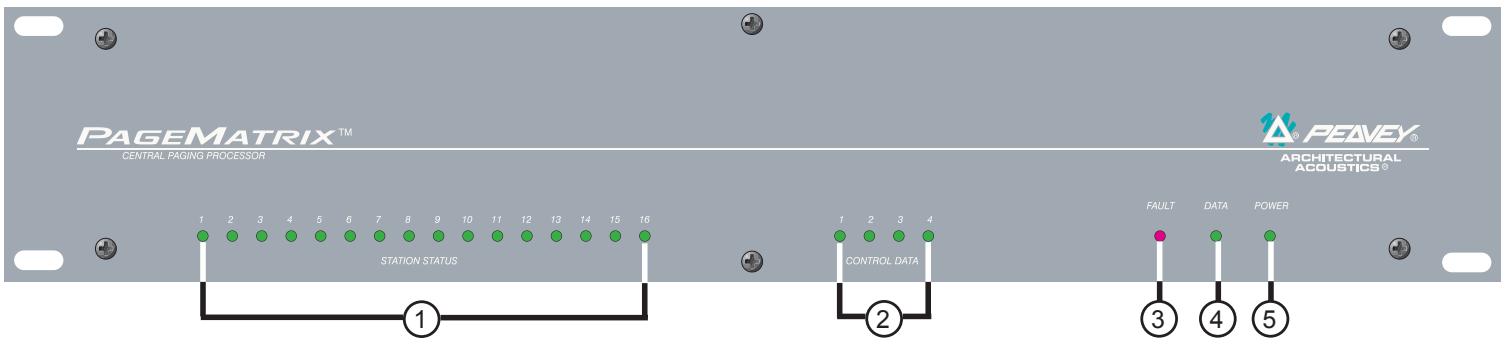

Station Status LEDs: (16) Displays green after software activation.

Control LEDs: (4) Lights up green when the control data ports are in use.

Fault LED: Download error indication when downloading the PageMatrix configuration to the PageMatrix controller. When this message occurs, download the configuration again.

Data LED: Indicates a data transfer to the unit or that valid data exists in memory at power up.

Power : Indicates that the unit is on.

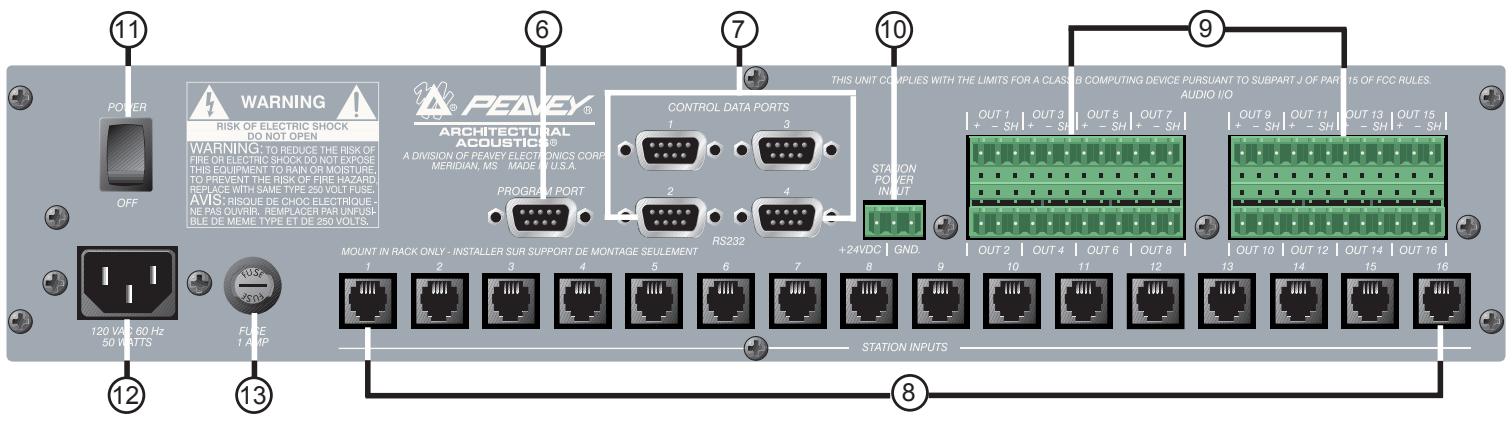

Control Data Ports (4 RS-232 jacks): Allows connection and control of up to four MediaMatrix systems.

Station Inputs (16 RJ45 jacks): All stations are connected to one of the sixteen station inputs using standard CAT 5 cable. The cable carries audio from the station and control data to and from the station, as well as power for the station. Note: This is not a network connection.

Audio Outputs: Four removable ÒPhoenixÓ style connectors are provided for connection of audio to MediaMatrix Break out Box. Note: Two BoBs (8 channels each) are required for 16 stations.

Station Power Input: +24V DC input for emergency station power. Note: In the event of a power loss to the paging controller, the station power input will power only the stations to allow audio to pass in an emergency situation. In this case, the stations will be unable to communicate with the controller, and the controller will be unable to send control information to the MediaMatrix unit. In the event of a power loss, the MediaMatrix view file must be configured to route the audio without control input from the PageMatrix controller. In order for both the controller and stations to remain active, the controller must be connected to some form of power backup system, such as a UPS.

Power Switch: Use to turn the unit on or off.

Fuse: 1A at 100V/120V AC~, T1A/250V 500 mA at 230V AC~, T500mA/250V

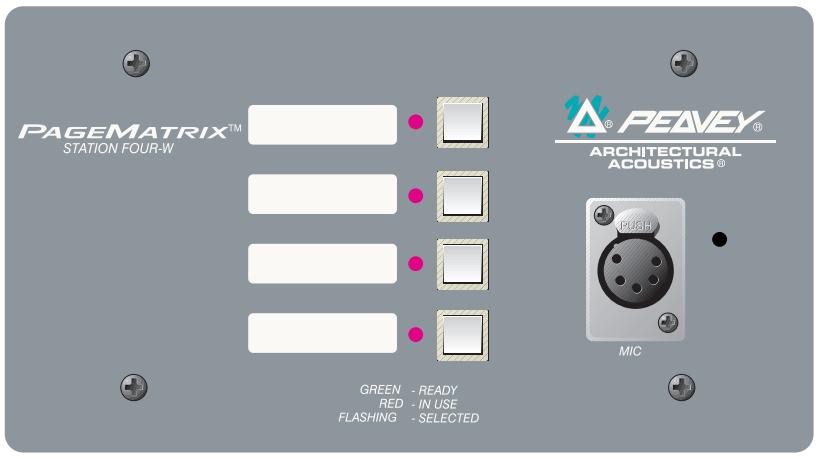

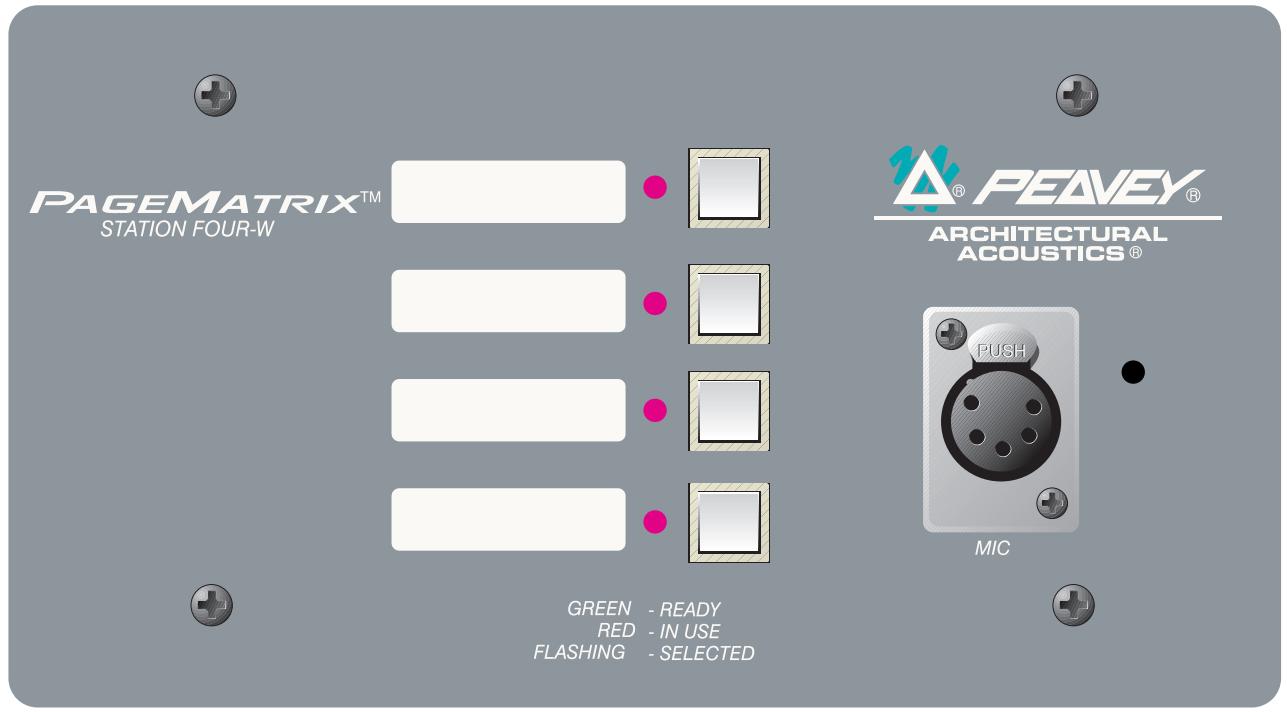

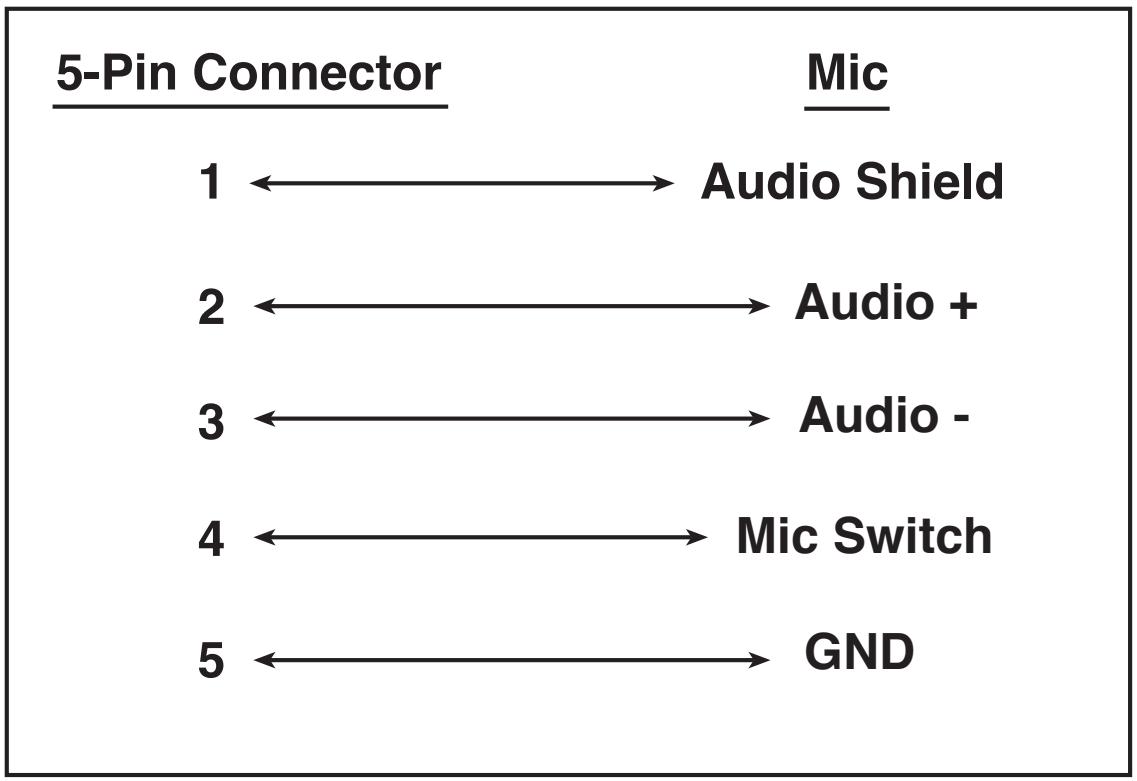

2.2. Station Four-W ™ Wall-Mount Paging Station Station Fourª-W is a four button wall mount station that includes a hand-held (5-pin) microphone with a push-to-talk switch. Each of the four zone presets are defined and programmed by the PageMatrix software. Front Panel Zone Preset buttons w/LEDs(4): Used to select any of the four zone presets. A green LED indicates the zone is available, while a red LED indicates it is in use by another station. The LED will blink to confirm the selection. Five-pin Mic Input: Used to connect the supplied 5-pin handheld microphone. Mic Volume: Recessed to the right of the microphone input, use a small screwdriver to adjust the mic gain. Rear Panel 3-Pin Connector: This is the analog audio signal output to be connected to the PageMatrix controller. See the wiring diagram, Appendix 5.3. 4-Pin Connector: This connects the control data to and from the PageMatrix controller and also the power for the station. See the wiring diagram, Appendix 5.3.

Station Four-W Operation

LED color indicates status of each of the four Zone presets. Green indicates the zone is available and not in use by another station. Red indicates the zone is in use. When the microphone ÒTalkÓ button is pressed, the selected zone preset LED turns orange to confirm that it is active. Other stations connected to the system will indicate RED to confirm that this particular zone is in use. Press any Zone Preset button to select. The LED will blink confirming the selection. At power-up, the unit defaults to zone one and after one minute of inactivity reverts back to zone one. Hand-held 5-pin mic input is activated by pressing the ÒtalkÓ button. Zone presets can be labeled in the appropriate white boxes. If all LEDs flash red at power up, this indicates the station has not been programmed. If all LEDs flash green at power up, this indicates the station has been programmed. About Zone Presets MediaMatrix defines the zones which can represent single outputs or groups of outputs. PageMatrix software is used to program the button assignments on the paging stations which enables them to access one or more zones per button. We refer to the button assignments as zone presets, since these settings are set initially. They are then downloaded to the PageMatrix controller where they become active. About Priority With PageMatrix, there are no inherent priority settings. Any microphone may be used at any time and the ÒbusyÓ LED indication identifies when a zone preset is in use by another station. However, extensive priority levels can be configured and designed within MediaMatrix.

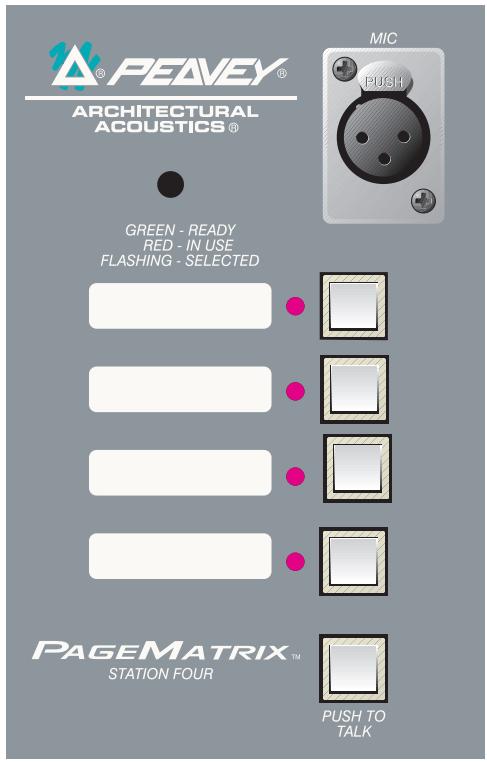

2.3. Station Four ™ Desktop Paging Station Station Fourª is a four button desktop station that includes an electret condenser microphone. Each of the four button zone presets are defined and programmed by the PageMatrix software. Front Panel Push To Talk button: Press and hold to enable the microphone for the selected zone preset. The selected LED will turn orange to denote active status while the other zone preset LEDs become red. Zone Preset buttons w/ LED(4): Used to select any one of the four zone presets. A green LED indicates the zone is available, while a red LED indicates it is in use by another station. The LED will blink to confirm selection. XLR Mic Input: Phantom powered microphone input Mic Volume: Recessed mic gain adjustment Rear Panel 5-pin Aux Mic Input For connection of a remote microphone with a push-to-talk feature. See the wiring diagram, Appendix 5.4. The aux mic is automatically routed to zone preset one. Station Four Operation

LED color indicates status of each of the four Zone presets. Green indicates the zone is available and not in use by another station. Red indicates the zone is in use. When the Push To Talk button is pressed, the selected zone preset LED turns orange to confirm that it is active. Other stations connected to the system will indicate RED to confirm that this particular zone preset is in use. Press any zone preset button to select. The LED will blink confirming the selection. At power-up, the unit defaults to zone one and after one minute of inactivity reverts back to zone one. Zone presets can be labeled in the appropriate white boxes. If all LEDs flash red at power up, this indicates the station has not been programmed. If all LEDs flash green at power up, this indicates the station has been programmed. The Aux mic input (rear panel) is always routed to zone preset one.

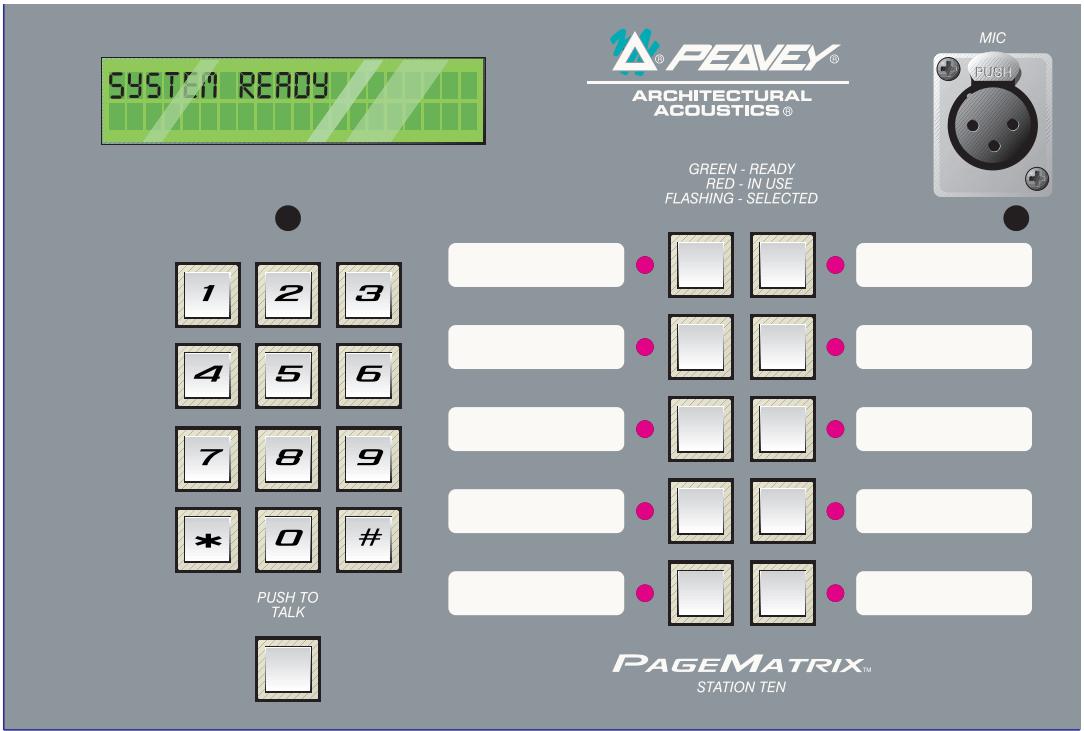

2.4. Station Ten ™ Desktop Paging Station Station Tenª is a ten button desktop station that includes an electret condenser microphone. Each of the ten zone presets are defined and programmed by the PageMatrix software. In addition, a 12 button Òtelephone styleÓ key pad and 20 x 2 LCD panel are provided for selection and indication of up to 99 ÒvirtualÓ zones. The ten buttons are unique for each station; however, the additional 89 ÒvirtualÓ dial-up zones are the same (global) for each Station Ten unit connected to the PageMatrix controller. Each of these zone presets are defined and programmed by the PageMatrix software. Front Panel Push To Talk button: Press to activate the microphone for the selected zone preset. Zone Preset buttons w/ LED(10): Used to select any of the ten zone presets. A green LED indicates the zone is available, while a red LED indicates it is in use. The LED will blink to confirm selection. XLR Mic Input: Phantom powered microphone input. Mic Volume: Recessed mic gain control. Rear Panel Aux Mic Input (5-pin): For connection of a remote microphone with a ÒPush-To-TalkÓ feature. See wiring diagram, Appendix 5.4. The aux mic is automatically routed to zone preset one. RJ45 Connector: For connection to the PageMatrix controller.

Station Ten Operation

LED color indicates status of each of the ten zone presets. Green indicates the zone is available and not in use by another station. Red indicates the zone is in use. When the Push To Talk button is pressed, the selected zone preset LED turns orange to confirm that it is active. Other stations connected to the system will indicate RED to confirm that the zone preset is in use. Press any Zone Preset button to select. The LED will blink confirming the selection. At power-up, the unit defaults to zone one. Aux Mic input (5-pin) on the back panel is programmed for zone preset one. For direct zone preset access, the key pad can be used. Simply enter a one or two digit number, then press # to select. The selected zone name (user nameable up to 16 characters within the PageMatrix software) will be displayed on the 20 x 2 LCD in addition to status (ready/busy/paging) The upper line of the display provides the station name and status. The second line provides the zone name. Zone presets can be labeled in the appropriate white boxes. If all LEDs flash red at power up, this indicates the station has not been programmed. If all LEDs flash green at power up, this indicates the station has been programmed. At power-up, the unit defaults to zone one and after one minute of inactivity reverts back to zone one. About Zone Presets MediaMatrix defines the zones which can represent single outputs or groups of outputs. PageMatrix software is used to program the button assignments on the paging stations which enables them to access one or more zones per button. We refer to the button assignments as zone presets, because these settings are set initially then downloaded to the PageMatrix controller where they become active. About Priority With PageMatrix, there are no inherent priority settings. Any microphone may be used at any time and the ÒbusyÓ LED indication identifies when a zone preset is in use by another station. However, extensive priority levels can be configured and designed within MediaMatrix.

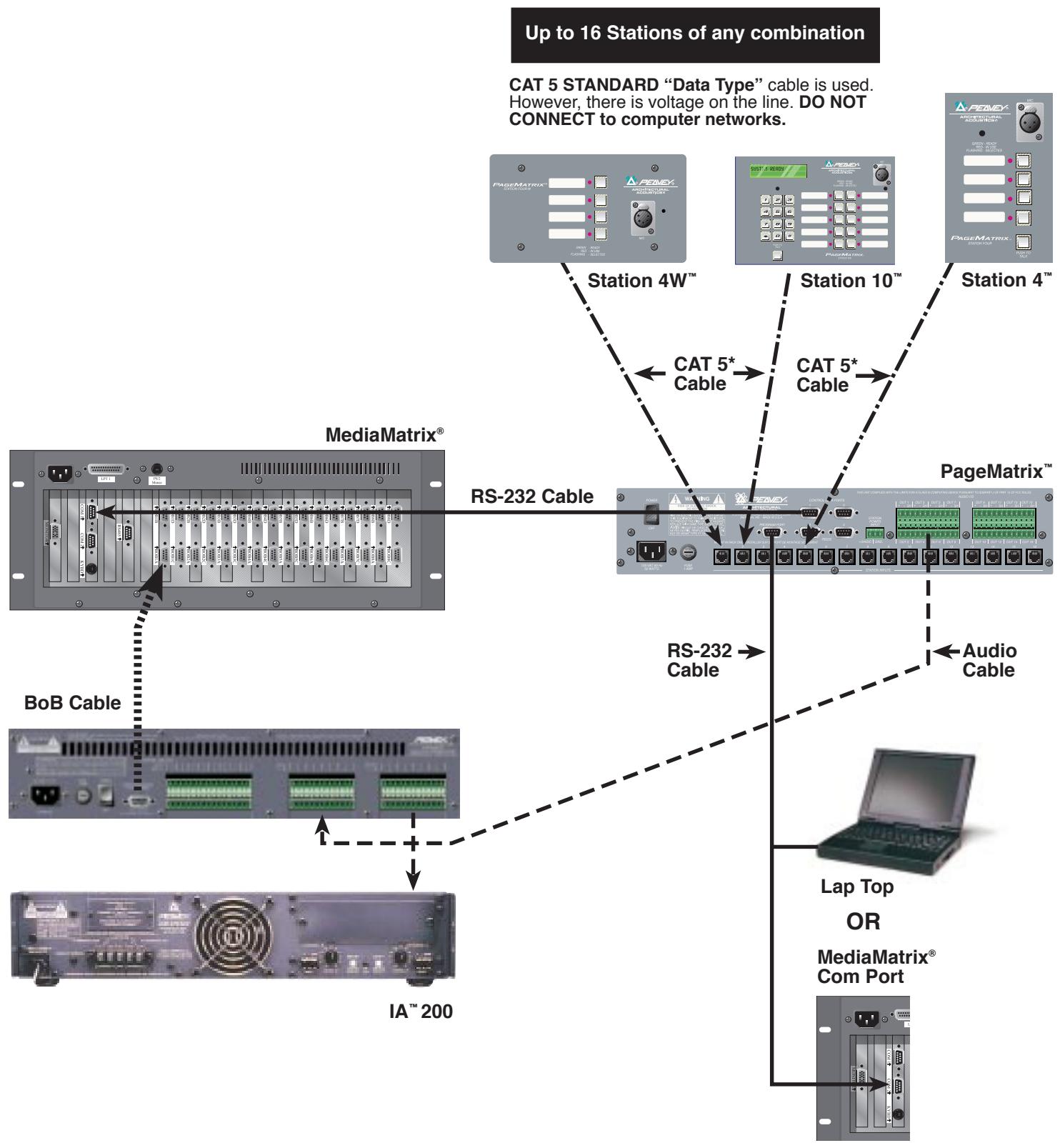

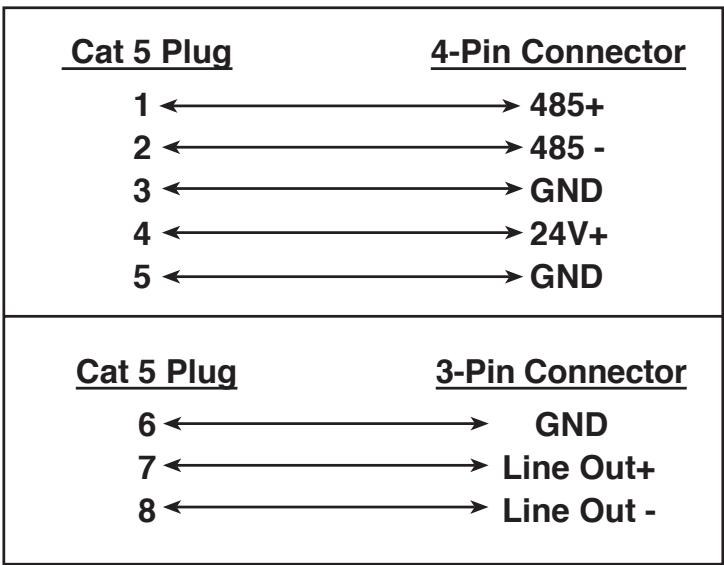

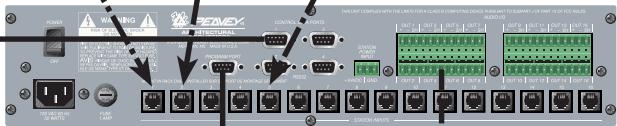

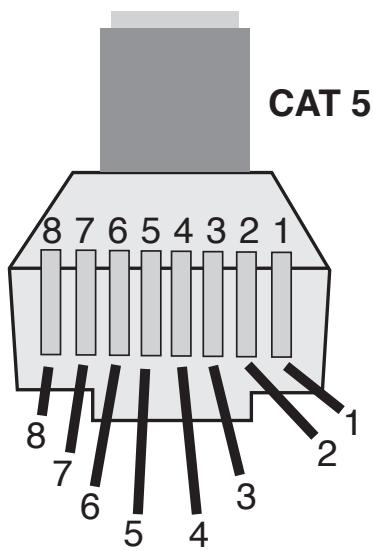

2.4. Typical PageMatrix Connection Up to 16 Stations of any combination CAT 5 STANDARD ÒData TypeÓ cable is used. However, there is voltage on the line. DO NOT CONNECT to computer networks. Station 4Wª CAT 5* Cable Station 10ª Station 4ª CAT 5* Cable MediaMatrix¨ PageMatrixª RS-232 Cable RS-232 Cable Audio Cable BoB Cable Lap Top

3.1. Computer Requirements Minimum: 486DX-100 or faster PC with Windows 3.1 / 95 / NT4 or later, 8-16Mb RAM and one available Com Port. 3.2. Software Installation Note: With MediaMatrix Mainframe systems shipped since 1999, the PageMatrix application is already installed. The instructions below only apply to systems prior to this time. The complete PageMatrix software system includes:

2. MediaMatrix view files and PASHAª files (Floppy Disk 2)

Step One: Installing the PageMatrix software (files in parentheses indicate defaults) A. Insert Disk One (PageMatrix Installation) into the floppy drive. B. Run ÒA:\setup.exeÓ. C. Will prompt for an installation directory (c:\pagemtrx) and a program group name (PageMatrix). Installs files in that directory and creates program group. When installation window says ÒInstallation Complete!Ó in red, click the Finish button or cancel button (if there is no finish button). You do not need to restart your computer after installation. Step Two: Installing the MediaMatrix view files: Note: When installing the PageMatrix view files and devices, you will need to know what directory your MediaMatrix software is in (if it is in a different directory than the factory defaults). A. Insert Disk Two (MediaMatrix view Files) into the floppy drive. B. Run ÒA:\views.exeÓ. C. This is a self-extracting zip file that will ask you for a directory to place the unzip files. These files can go anywhere on your hard drive, but it is recommended that you install them in the View directory in your MediaMatrix root directory(c:\peavey\views). D. Once the directory is confirmed, click Unzip. E. Click Close when finished. Step Three: Installing the MediaMatrix devices A. Insert Disk Two (MediaMatrix view Files) into the floppy drive. B. Run ÒA:\devices.exeÓ. C. This is a self-extracting zip file that will ask you for a directory to place the unzip files. These files MUST go in the Devices directory in your MediaMatrix root directory (c:\peavey\devices\standard\paging) If your root directory is different from the default, enter the proper root directory followed by Òdevices\standard\pagingÓ. D. Once the directory is confirmed, click Unzip. E. Click Close when finished.

1. Under the Start menu, select Programs.

2. Find the PageMatrix directory and select it.

3. Locate PageMatrix , and select it.

1. Find the PageMatrix Program Group within the Program Manager

2. Doulbe click the group, then double click the PageMatrix Icon.

Note: For systems that are not pre-loaded with PageMatrix, the MediaMatrix Program Launcher can be used. This is found under the MediaMatrix Device/Miscellaneous menu. See appendix 5.2.

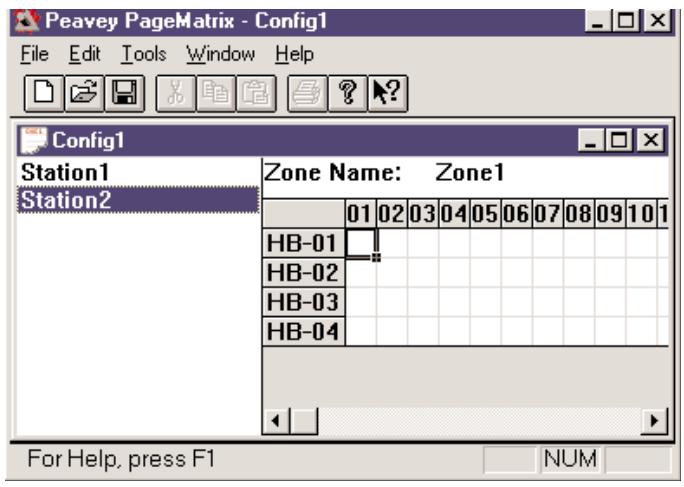

3.2.2. Stations and Zones

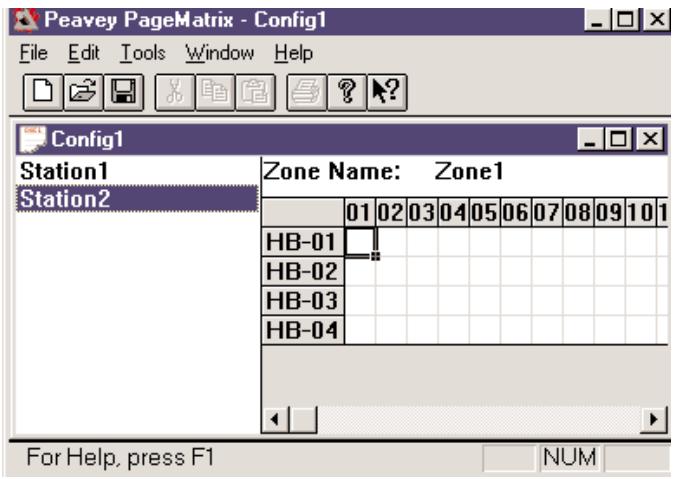

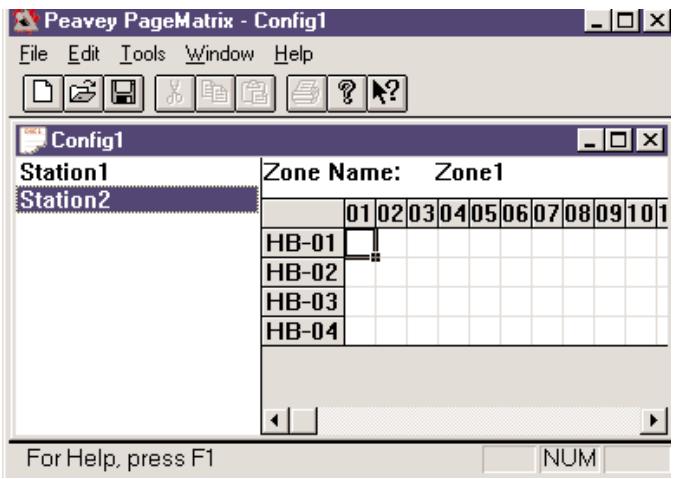

The PageMatrix application simplifies the process of programming the remote stations. A grid matrix is presented that lists each button for the selected station. HB stands for hardware button and the following number signifies the specific button on the station. Station buttons are displayed in rows and potential zone assignments in columns. To assign the button, simply left-click the desired zone to select it (a bold outline appears around the selection), then right-click to confirm (turns red). Zones represent physical locations and outputs connected via MediaMatrix BoB outputs, amplifiers, and speakers. Note: If you only use one BoB, a maximum of 8 zones will be available. Programming the Paging Stations with the PageMatrix application [note: see the next chapter (Menu Bar) for additional information] Use the ÒInsert StationÓ or ÒAdd StationÓ (Edit Menu) as necessary to include your hardware stations in the programming. After setting up the PageMatrix application, the layout on the left displays a column listing all the connected paging stations. To the right is a matrix list of zones at the top and columns of buttons by number. Select the station you wish to program first, then use the mouse to activate zones for each button. When finished, download the configuration to the Pagematrix controller (File menu). Now your page station buttons are programmed and ready for use. Naming Zone Presets When Using the Station Ten With the Station Ten, a 20 x 2 display is provided for viewing the zone presets. The zone presets are named within the PageMatrix application. When a 10 button station is inserted (Edit/Insert Station), the LCD Text option appears at the top of the screen. Simply select a virtual button, then highlight the default title and rename as you wish up to 16 characters.

New Selecting New opens a new configuration set to factory defaults. Open Brings up the standard file open dialog that allows you to open an existing file (*.pmx). Close Closes the active configuration. Save Save the current configuration and any edits you have made. Save As Brings up the standard file save dialog and allows you to rename the file before you save it. Print Not active at this time. Print Preview Not active at this time. Print SetupÉ Not active at this time. Download ConfigurationÉ This option allows you to send your configuration settings to the PageMatrix controller. Since this will replace the current configuration loaded into the controller, a ÒDo you wish to continue?Ó dialog gives you the opportunity to cancel. Recent File List This area of the menu lists the most recent configurations. These configurations may be opened directly from the list. Exit Closes PageMatrix.

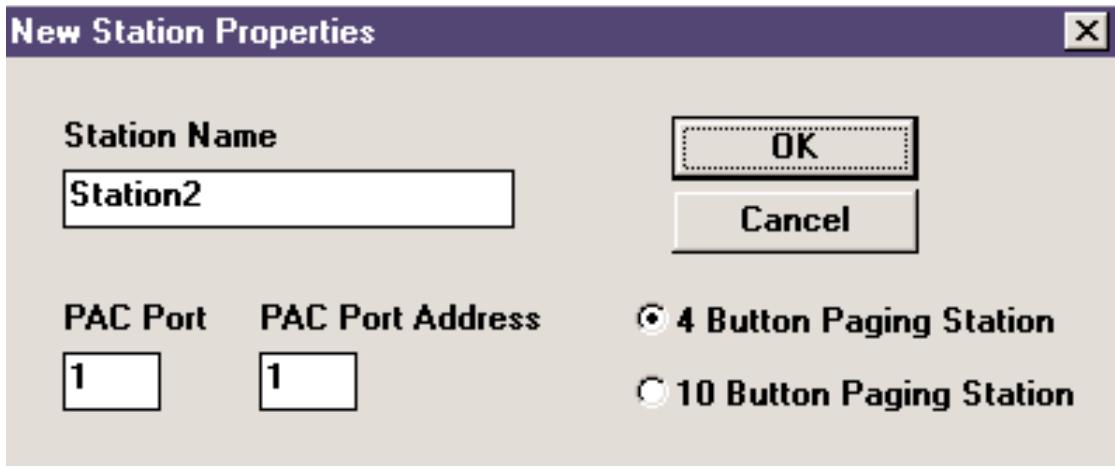

Undo Not active at this time Cut Not active at this time Copy Not active at this time Paste Not active at this time Insert Station Creates a new paging station that is available for editing. It is placed in the list before the currently selected station. Selecting this option opens the ÒNew Station PropertiesÓ dialog and allows the following edits: Station Name: Up to 16 characters. Number of buttons: 4 or 10. PAC Port: Identifies the specific port (1-16) where the station is connected to the PageMatrix Controller. PAC Port Address: Currently, always set to one. Add Station Creates a new paging station that is available for editing. It is placed at the end of the list. Selecting this option opens the ÒNew Station PropertiesÓ dialog and allows the following edits: Station Name: Up to 16 characters. Number of buttons: 4 or 10. PAC Port: Identifies the specific port (1-16) where the station is connected to the PageMatrix controller. PAC Port Address: Currently, always set to one. Delete Station Removes the currently selected station. The ÒAre You SureÓ dialog opens for confirmation.

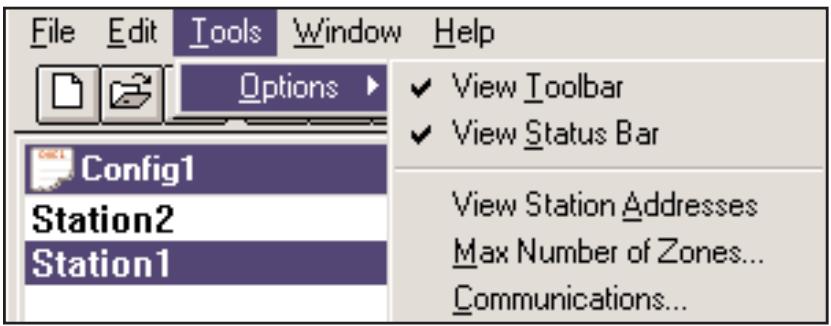

View Toolbar Show or hide the screen toolbar. View Status Bar Show or hide the status bar at the bottom of the window. View Station Addresses Displays the station address in front of the station name. Max Number of Zones Use this parameter to set the maximum number of zones used in your system. Communications Used to set the upload/download port. In addition to COM 1-4, an Offline Programming option is available when working remotely.

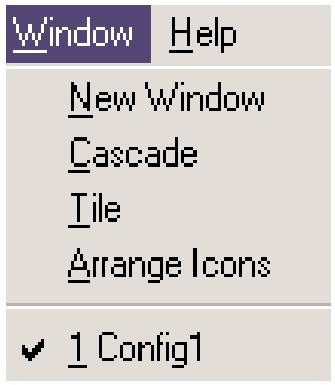

About PageMatrix Displays the PageMatrix start-up screen.

4.0. Typical PageMatrix Operation 4.1. Overview

4.1.1. The components

PageMatrix / MediaMatrix paging systems consist of five primary components: ▲ At least one PageMatrix paging station connected to the PageMatrix controller via the proper category five cabling ▲ PageMatrix controller with the appropriate configuration file loaded ▲ PageMatrix application software ▲ A MediaMatrix audio system with PASHA running ▲ A proper PASHA.ini file configured for the ÒView FileÓ compiled

Paging stations connect to the PageMatrix controller via CAT 5 cabling. This cable carries three ÒsignalsÓÐ the analog audio from the microphone, the voltage required to power the remote paging station, and the serial control data which will determine where the microphoneÕs audio signal will be routed by MediaMatrix. The analog microphone signals from all paging stations are individually connected from their outputs on the rear of the PageMatrix Controller to the signal inputs of MediaMatrix break out boxes (ÒBoBsÓ). One of the serial outputs on the rear of the PageMatrix Controller connects to one of the Com Ports on the rear of the MediaMatrix frame.

4.1.3. The Desktop Paging Stations (Station Four and Station Ten)

There is no local switching of the ÒPush-to-TalkÓ microphone connected to the paging station. In all models the microphone is active or ÒonÓ at all times. Pressing station buttons results in activity of the serial communication to the PageMatrix Controller only.

4.1.4. The PageMatrix Controller

There are three functions of this device: 1: To provide power to the Paging stations. 2: To pass the analog microphone signals from the paging stations to the inputs of the MediaMatrix systemÕs BoBs.

3: To interpret the proprietary control data from the paging stations and convert it to standard serial strings which can be forwarded to MediaMatrix. Microphone signals from the paging stations are not acted upon by the PageMatrix Controller, but are simply passed through the box as received. Any switching or routing is done within MediaMatrix.

4.1.4. The MediaMatrix system and PASHA

Among many other tasks, the MediaMatrix system receives the analog audio from the Paging Stations via the PageMatrix controller, converts it to digital and performs all processing of those signals, including the routing of these signals to the various ÒzonesÓ. These routing functions are accomplished by special PageMatrix devices within the systemÕs ÒView FileÓ which are controlled from the PageMatrix Controller via PASHA.

4.1.5. Push-to-talk switchÐWhat happens?

1: Pressing a stationÕs zone preset button selects the configured zones in MediaMatrix. 2: When the push-to-talk switch is pressed, the PageMatrix Controller immediately sends the proper serial command to the MediaMatrix Com port. (The serial command sent is pre determined by the PageMatrix configuration file which has been downloaded and is running in the controller.) 3: This serial command is interpreted by MediaMatrix (via PASHA) and ÒpressesÓ the appropriate router buttons in the MediaMatrix view file to send the audio to the zone or combination of zones selected by the paging station. 4: Audio passes to the zone(s) through MediaMatrix as long as the push-to-talk button on the station remains pressed. 5: Functions such as paging priorities, signal source ducking, zone equalization, etc. are all functions of the MediaMatrix system and are not directly acted upon by the PageMatrix components.

4.1.6. Operation within MediaMatrix

Paging devices can be complicated systems consisting of multiple Òmixing routers.Ó For example, programming a paging device which consists of 8 stations and 32 buttons requires that a PASHA file be written addressing each of the matrix locations (256 parameters). Since programming your own Pasha files would require extensive time, we have provided a variety of view files and associated PASHA.INI files to simplify the task. We highly recommend you use the files weÕve provided on floppy disk and edit them for your specific application.

Basic OperationÐHere we go...

1. Find the appropriate .txt file for the device you wish to use.

2. Rename this file to pasha.ini and place in the Peavey directory (mediamatrix\views).

Note: If you wish to keep the original pasha.ini file, just rename it.

3. Open MediaMatrix (if not already launched).

4. From the Device menu select ÒPagingÓ to view the available devices.

5. Select an existing device and wire it accordingly.

6. Test the routings and zones.

Example: Suppose we want to use the 1632.pav file. Rename the 1632.txt file to pasha.ini. Move this newly created pasha.ini to the MediaMatrix root directory. 4.2. Troubleshooting 101

Remember, the view file must be compiled. Make sure Pasha.com(pasha.com1, pasha.com2, pasha.com3, or pasha.com4) is launched and matches the same com port used for PageMatrix. Be sure to launch PageMatrix and program a test file. In MediaMatrix, check the view file visual monitors to determine if the system is responding. Finally, check cable type, connection, and port settings.

5.1. Factory Support Peavey provides customer support and service direct from the factory. If you need further assistance or information, donÕt hesitate to call us. You can reach us 8 a.m. - 5 p.m. CST at [phone] or [phone]. The address for correspondence/literature on current or new products is: Peavey Electronics Corp. ¥ MediaMatrix Support Group ¥ 711 A St. ¥ Meridian, MS 39301 You can also access helpful tips, specifications, FAQs, sample files, application notes and other Peavey Architectural Acoustics equipment product information 24 hours a day, seven days a week at our site on the World Wide Web. The URL is: http://www.peavey.com/division/arch/index.html In order to provide you with the best technical support, it will probably be necessary to see your view file so we can accurately diagnose your problem. This also helps to streamline your work and make your system more efficient. Using the Internet and e-mail, we can quickly get you up and running. Please direct your mail and attached view file to: George Douglas, National Sales Manager [e-mail] Ken Valentine, Central District Manager [e-mail] Will Roland, Western District Manager [e-mail] Joel Moak, Southeastern District Manager [e-mail] Levin Culpepper, Internal Tech Support Coordinator [e-mail] Brent Harshbarger, Product Manager [e-mail] If you need emergency assistance after business hours or on the weekend, you may reach one of us on our SkyPager at [phone]. When you hear the prompt tone, enter the PIN 113-4326. Please reserve this for true MediaMatrix emergencies or weekend use. A R C H I T E C T U R A L A C O U S T I C S¨ 711 A Street ¥ Meridian, MS 39301

[phone] ¥ FAX [phone]

http://www.peavey.com ¥ ©1998 Features and specifications are subject to change without notice.

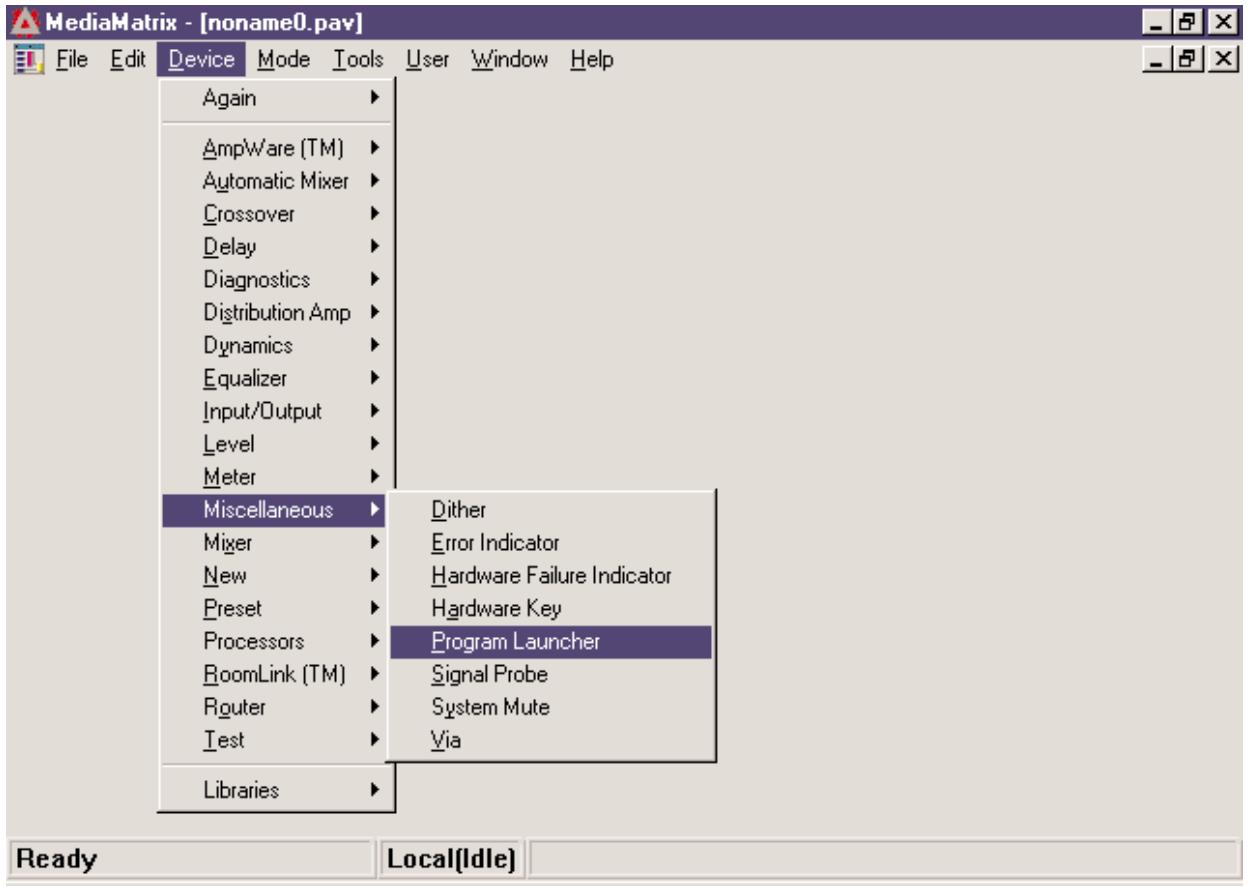

5.2. Using the MediaMatrix Program Launcher The Program Launcher is found in the Device/Miscellaneous Menu. It is used to make it easy to open another Windows application while you are using MediaMatrix. You can label the Program Launcher block and include it in any window of a MediaMatrix design. The Program Launcher device can either launch another Windowsª application or switch to that application if it is already running. The Object Properties dialog for this object has a field titled ÒRun this programÓ that contains the complete path and file name and optional command line arguments of the program you want to run. You can browse the applications that are currently running by pressing the ÒWindow Title...Ó button, and you can browse for executables (*.exe) by pressing the ÒFile Name...Ó button. The object can perform its action, either running or switching to the other application, on either a single mouse click or on a double-click as determined by the settings of the ÒRun program onÓ radio buttons. In Edit Mode, the action is always on a double-click.

NOTE: This is not a network connection.

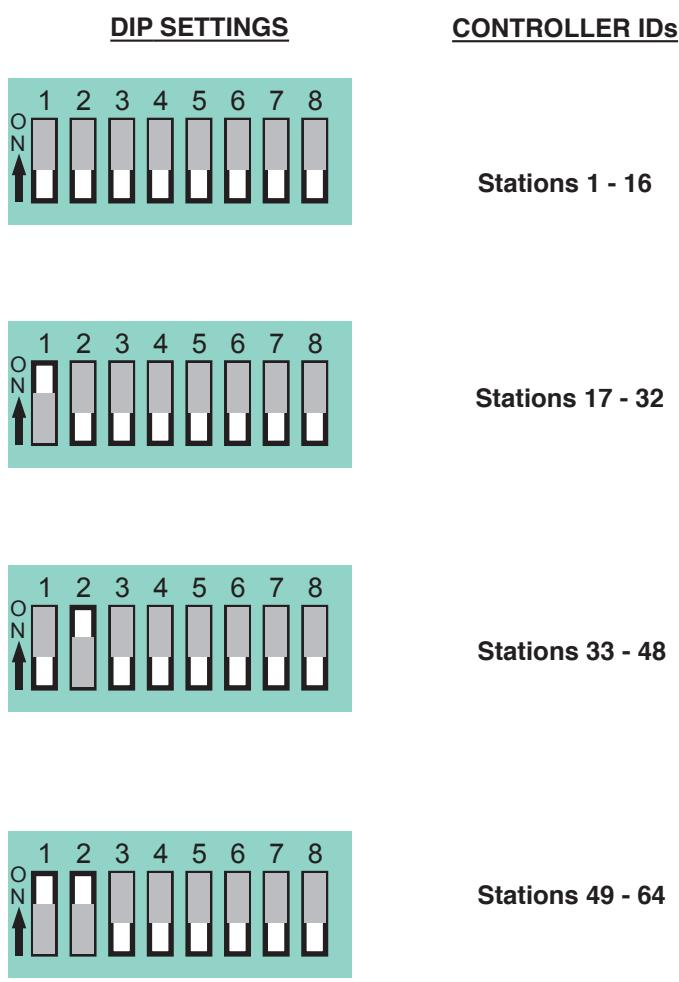

5.5. Configuring the PageMatrix Controller As mentioned previously, the PageMatrix controller supports up to sixteen paging stations simultaneously. In larger applications where multiple controllers are necessary, the various PageMatrix units must be configured for IDs beyond the default 1-16 setting. This is accomplished by changing the DIP switch settings inside the unit.

1. Remove top plate of the controller (six screws).

2. Now viewing the inside of the unit, find the DIP switch (labeled SW100) located at the front left

3. You will only adjust switches 1 and 2 according to the chart below.

4. Switches 3 through 8 are inactive.

5.6. Specifications PageMatrix Controller Power Requirements: Domestic: 120V AC~, 60 Hz, 50W Export: 100V AC~, 50/60 Hz, 50W 230V AC~, 50/60 Hz, 50W Category 5 cable length Maximum 1,000 ft Note: Standard Òdata typeÓ cable is used; however, there is voltage on the line. DO NOT connect to computer networks. Included Accessories: IEC Line Cord (4) 12 position Phoenix-type connectors (1) 3 position Phoenix-type connector Station Four-W Mounting Station 4-W Wallmount does not come with a back panel. It is recommended to use a standard 4 Gang Electrical box with these dimensions: 3.75" H x 7.5" W x 2.0" (Min) D. Dimensions and Weight: 3.5" H x 19" W x 11.69" D (excluding connectors)

Paging Stations Maximum Input Level: Station 4 Wallmount: -22 dBu Station 4 Desktop: -22 dBu Station 10 Desktop: -22 dBu Total Harmonic Distortion: Station 4 Wallmount:Less than 0.01% at 1 kHz Station 4 Desktop: Less than 0.01% at 1 kHz Station 10 Desktop: Less than 0.01% at 1 kHz Maximum Output Level: Station 4 Wallmount: +25 dBu Station 4 Desktop: +25 dBu Station 10 Desktop: +25 dBu Signal-to-Noise Ratio: Station 4 Wallmount: Greater than 88 dB Station 4 Desktop: Greater than 85 dB Station 10 Desktop: Greater than 84 dB Input Impedance: Station 4 Wallmount: 2.2K ohms Station 4 Desktop: 2.2K ohms Station 10 Desktop: 2.2K ohm Output Station Station Station Phantom Power: Station 4 Wallmount: +48V DC Station 4 Desktop: +48V DC Station 10 Desktop: +48V DC Impedance: 4W Wallmount: 200 ohms 4 Desktop: 200 ohms 10 Desktop: 200 ohms Power Requirements: Station 4 Wallmount: 48mA at +24V DC Station 4 Desktop: 55mA at +24V DC Station 10 Desktop: 92mA at +24V DC Dimensions: Station 4 Wallmount: 4.5" H x 8.2" W x 1" D Station 4 Desktop: 4.0" H x 5.2" W x 7.1" D Station 10 Desktop: 4.0" H x 10.4" W x 7.1" D Frequency Response: Station 4 Wallmount: 20Hz to 20 kHz (+0, -2 dB) Station 4 Desktop: 20Hz to 20 kHz (+0, -2 dB) Station 10 Desktop: 20Hz to 20 kHz (+0, -2 dB)

NOTE: This is not a network connection.

NOTE: This is not a network connection.

2.4. Typical PageMatrix Connection Up to 16 Stations of any combination CAT 5 STANDARD ÒData TypeÓ cable is used. However, there is voltage on the line. DO NOT CONNECT to computer networks. Station 4Wª CAT 5* Cable Station 10ª Station 4ª CAT 5* Cable MediaMatrix¨ PageMatrixª RS-232 Cable RS-232 Cable Audio Cable BoB Cable Lap Top

NOTE: This is not a network connection.
