USER MANUAL AUDITION 110 PEAVEY

A Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

A Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock - DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance, read the operating guide for further warnings.

The input jack will accept signals from all types of guitar pickups.

VOLUME (2)

Controls the volume level of the Clean channel.

CHANNEL SELECT SWITCH (3)

Allows selection of the Lead or Clean channel. The "in" position of the switch selects the Lead channel and the "out" position selects Clean.

NOTE: Channels may also be selected with the remote footswitch. If remote selection is desired, the channel switch must be in the "in" (Lead) position.

PRE GAIN (4)

Controls the input gain of the Lead channel.

POST GAIN (5)

Controls the overall volume level of the Lead channel. The final level adjustment should be made after the desired sound has been achieved.

CD/TAPE INPUT (6)

The CD/Tape input can be used to route the Headphone Out signal of a CD player, tape player, etc. into the CD/Tape input. Connect the CD or tape headphone output using a shielded cable to the CD/Tape input jack. This signal is mixed with the guitar signal but is not affected by the EQ.

LOW, MID, & HIGH EQ (7)

Passive tone controls that regulate the low, mid, and high frequencies of both the Clean and Lead channels.

REVERB (8)

Controls the overall reverb level.

HEADPHONE JACK (9)

This stereo jack allows signal to flow to both sides of any stereo headset for private listening. A monaural headset may be used, but is not recommended.

REMOTE SWITCH (10)

Provided for the connection of the optional remote footswitch. The footswitch is used to select the Lead or Clean channel.

NOTE: The Channel Select switch must be in the "in" position in order for the footswitch to function properly.

POWER LED (11)

Illuminates when AC power is being supplied to the amp.

POWER SWITCH (12)

Depress the switch to the "on" position. The red LED will illuminate indicating that power is being supplied to the unit.

WARNING: THIS UNIT IS CONNECTED TO THE MAINS POWER, EVEN IF THE POWER SWITCH IS OFF.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT.

BACK PANEL FEATURES

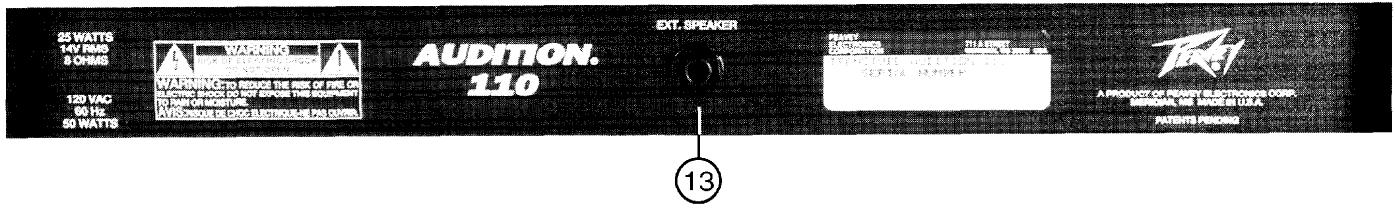

EXTERNAL SPEAKER JACK (13)

Provided for connection of external speaker cabinet. Minimum total impedance is 8 ohms.

Disconnects internal speaker when used.

SPECIFICATIONS

POWER AMP

Rated Power & Load:

25 W RMS into 8 ohms

Power @ Clipping: (typically)

(5% THD, 1 kHz, 120 V AC line)

25 W RMS into 8 ohms

Total Harmonic Distortion:

Less than 0.5% , 100 mW to IO W RMS, 60 Hz to

10 kHz, 4 ohms (typically below 0.2% )

Power Consumption:

Domestic: 50 W, 60 Hz, 120 V AC

Export: 50 W, 50/60 Hz, 220-230/240 V AC

Dimensions and Weight:

16.125" H x 18.125" W x 9.25" D

19.6 lbs.

PREAMP

The following specs are measured @ 2 kHz with the controls preset as follows:

Channel Select Normal (out)

Low& High @ 10

Mid @ 0

Pre Gain & Post Gain @ 10

Reverb @ 0

Nominal Levels are with Normal Gain @ 5

Minimum Levels are with Normal Gain @ 10

Preamp Input:

(normal channel)

Impedance: High-Z, 1 M ohm

Nominal Input Level: -6 dBV, 500 mV RMS

Minimum Input Level: -23 dBV, 70 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

CD/Tape Input:

Input Impedance: 100 K ohms

Nominal Input Level: 0.5 V RMS, -6 dBV

(Stereo jack designed for use with stereo headphone outputs on

CD/Tape players)

Headphone Output:

Load Impedance: 4 ohms or greater

Nominal Power Output: 20 mW into 4 ohms

(Stereo jack, monaural signal, disconnects internal speaker when

phone plug is inserted)

System Hum & Noise

@ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

62 dB below rated power

Equalization:

Special low, mid, & high passive type EQ

Due to our efforts for constant improvements,

and specification listed herein are subject to change without

Flow Chart

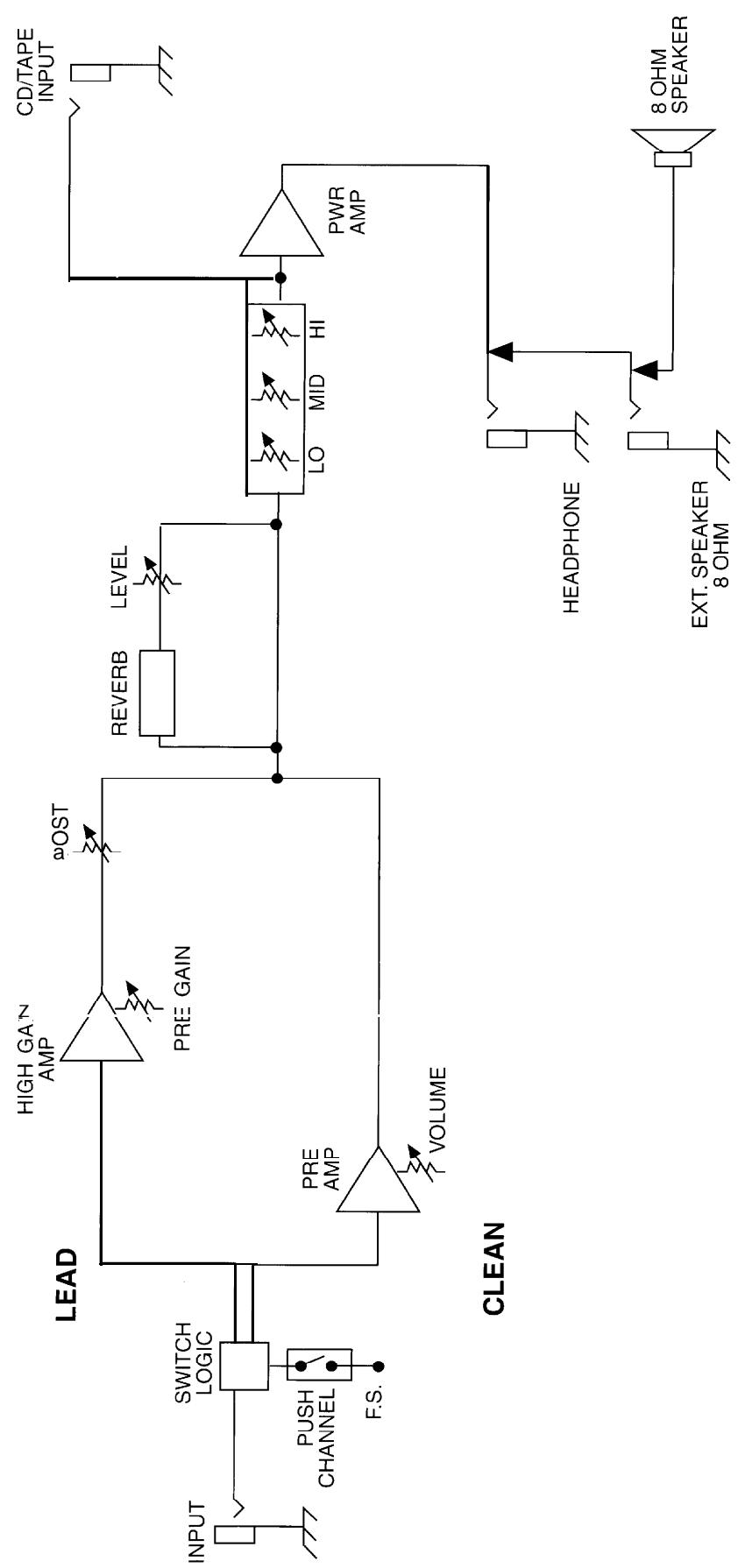

This flowchart shows signal flow within the unit. In order to thoroughly understand
the unit's functions, please study this diagram carefully.

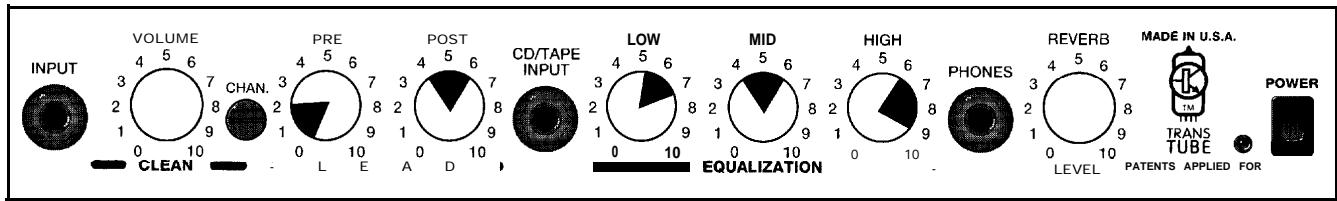

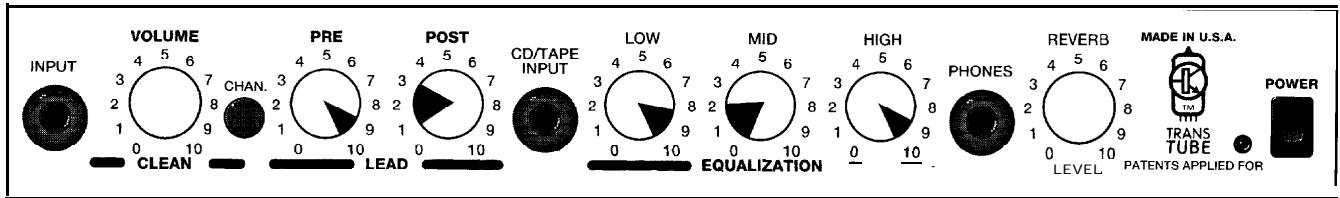

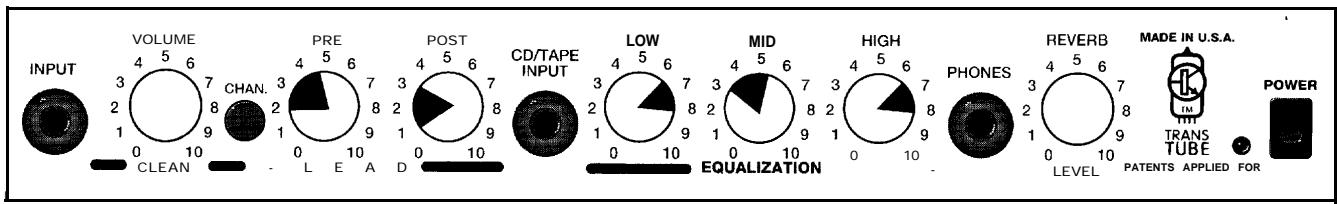

TONE SETTINGS
