(GB) Instructions VIVANCO UR 820 LCD remote control for almost all TV, audio, video and other infraredcontrollable appliances Inserting the batteries Open the battery flap on the back of the remote control, press the flap lightly downwards, then insert 2 alkaline AAA batteries. Check that the polarity markings on the batteries and in the

battery compartment are correctly lined up

(+=+), then close the flap carefully. – Always use undamaged batteries. Adapting to appliances In order to control your appliances you must adapt or set the remote control to them. There are three ways of doing so: direct control code entry, code search or learn.

UR 820 LCD UNIVERSAL CONTROLLER Direct control code entry

See also Ï Fig. 1. Example: setting the remote control for a Philips TV set: 1. Switch on your device, e.g. the TV, set to any station. 2. To prepare code entry, press the SET button and the required device button, e.g. TV. A brand and a code number appear, see diagram. – You cannot enter a new code if you have activated the code entry lock.

Select the brand of your device, in this example Philips, with ▲ or ▼. The first available code in the device list is displayed. 4. Press a few buttons to determine whether you have found a suitable code. When the code corresponds to your device, press OK and the setting for this device is completed. 5. If the code you have found does not work at all or not properly, try another code by selecting the next code for the brand using the ► or ◄ button, then test the code as described above under 4. and, if successful, confirm with OK. 6. To set the remote control for other devices, proceed in the same way. Instead of the TV device button, press another button, e.g. DVB (DTT, CBL, SAT) VCR, DVD, CD, TAPE, TUNER, AUX). - Before setting a code and performing the subsequent test for recording or playback devices, please insert a medium (tape, CD, cassette, DVD, etc.).- You can interrupt code entry at any time by pressing EXIT.

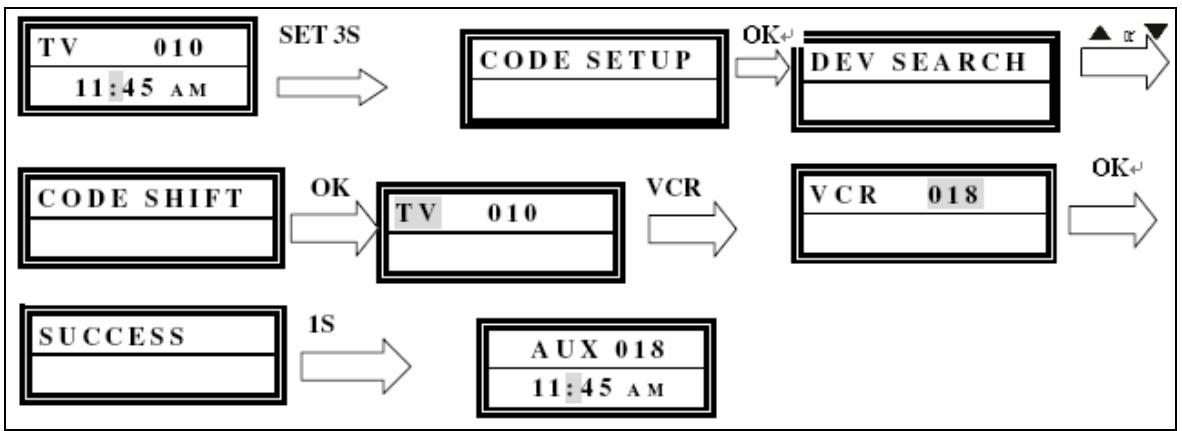

See also Ï Fig. 2. If the brand of your appliance is not in the list or none of the codes given fits, we recommend the automatic code search. Your remote control finds the correct control settings almost automatically in a few seconds: 1. Switch on the device to be controlled. For example, a program number appears in the display of your satellite receiver. 2. To start the code search, press and hold the SET button for approx. 3 seconds. CODE SETUP appears in the display. Confirm this function by pressing OK. 3. DEV SEARCH then appears in the display. Confirm this function by pressing OK.– If DEV SEARCH does not appear you can set the function with the ▲ or ▼button.

Press the device button of the device to be controlled, e.g. DVD and confirm the function by pressing OK. 5. Then point the remote control at the device to be controlled while the remote control emits a different ON/OFF signal every 2 seconds. The respective code number is shown in the display.

When your device reacts, press a few buttons to determine, whether you have found a suitable code. If the code corresponds to your device, press OK. SUCCESS appears in the display, then you press the device button, e.g. DVD, to confirm the entry. The setting for this device is now completed. 7. If the code you have found does not work at all or not properly, press EXIT and DEV SEARCH appears again. Then proceed again as described under 3. Please note: - You can reverse the search direction with the ▲ or ▼ button if you have reacted too slowly to a response from the device. – The Menu buttons cannot by used for testing. - Before setting a code and performing the subsequent test for recording or playback devices, please insert a medium (tape, CD, cassette, DVD, etc.).- You can interrupt code search at any time by pressing EXIT.

Learning, Programming, of Missing Control

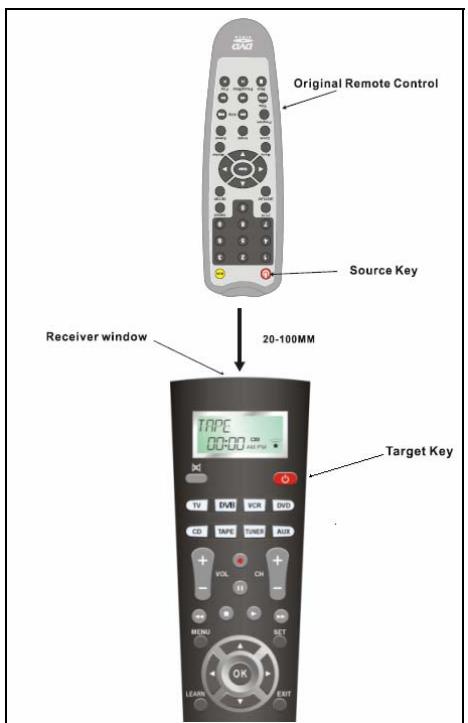

Functions See also Ï Fig. 3 & 4. The LEARN function is used to supplement the preprogrammed codes. The standard code may provide most of functions needed, but you may miss some key functions. Or you didn´t find any functioning preprogrammed code for a device. You can capture upto 100 key funtion codes, max 40 per device. The last captured function will overwrite the previous. learnt. Please proceed as follows: 1. Press the device key of to be controlled device, e.g. TV. 2. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed. 3. Select LEARNING by pressing ▲ or ▼ key. 4. Press OK, LEARN KEY will be displayed and place the remotes top by top as shown in Fig. .. Distance appr. 30 mm. 5. Press OK, SELECT KEY will be displayed. Then press the target key, e.g. POWER, which you like to reprogram. WAITING will be displayed. 6. Press and hold the to be learnt key, e.g. Power=Stand by, on the original remote until the UR 820 LCD displays SUCCESS for 1 s. Then SELECT KEY is displayed and the next key can be programmed according to step 5 and 6. –If the programming fails, FAILED is displayed, then repeat reprogramming from step 5. 7. You can stop learning procedure by pressing any device key (TV, DVB etc.), when SELECT KEY is displayed. Delete Learnt/Programmed Keys Please proceed as follows, see Fig. 5: 1. Press the device key of to be controlled device, e.g. TV.

UR 820 LCD UNIVERSAL CONTROLLER

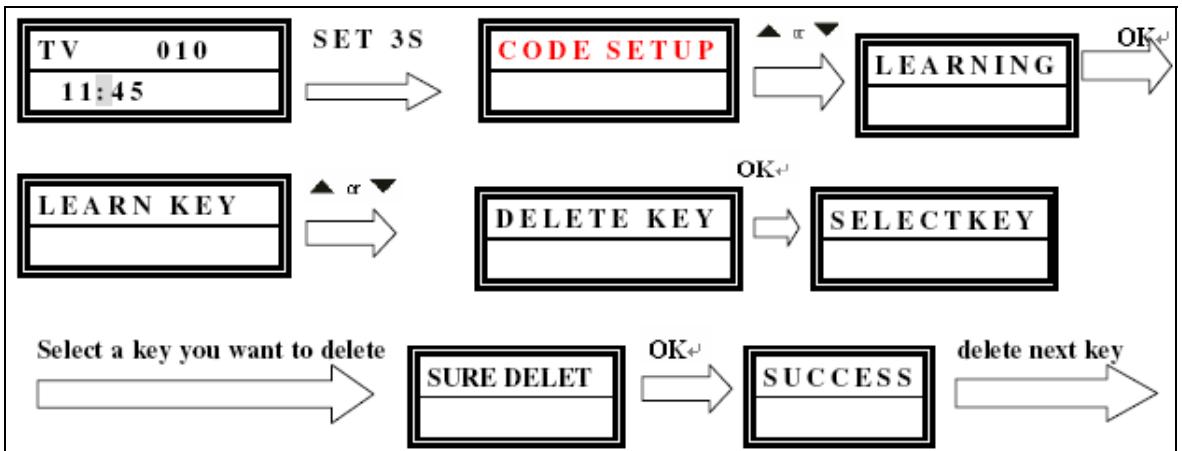

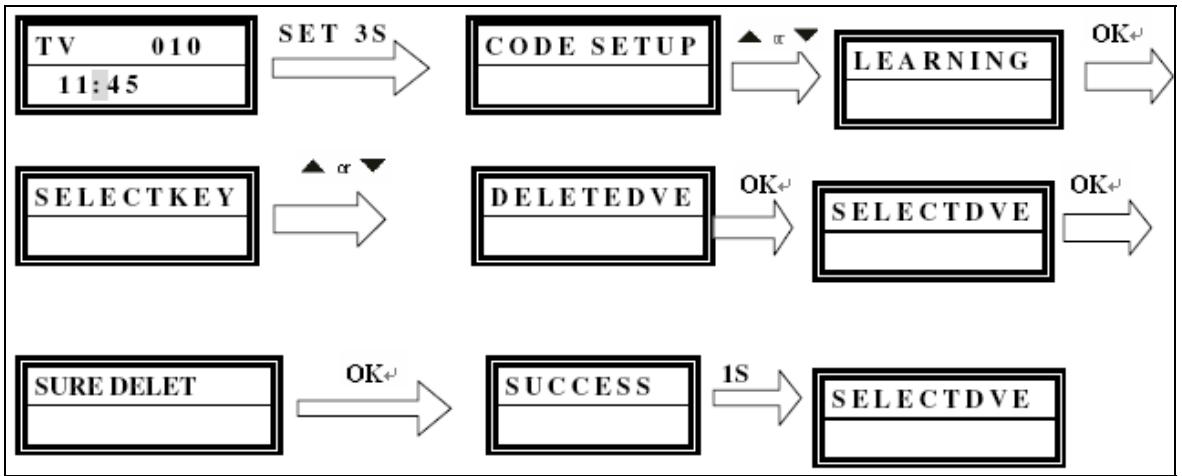

2. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed. 3. Select LEARNING by pressing ▲ or ▼ keys. 4. Press OK, LEARN KEY will be displayed. Select DELETE KEY by pressing ▲ or ▼ keys. 5. Press OK, SELECT KEY will be displayed. Then press the target key, e.g. POWER, which you like to delete. 6. SURE DELET will be displayed. Please confirm by pressing OK. UR 820 LCD displays SUCCESS for 1 s. Then SELECT KEY is displayed and the next key can be deleted according to step 5 and 6. –If the deleting fails, WAITING and FAILED are displayed, then repeat deleting from step 5. 7. You can stop deletion procedure by pressing any device key (TV, DVB etc.), when SELECT KEY is displayed. Delete Learnt/Programmed Key Sets For Single Devices Please proceed as follows, see Fig. 6: 1. Press the device key of to be controlled device, e.g. TV. 2. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed. 3. Select LEARNING by pressing ▲ or ▼ keys. 4. Press OK, LEARN KEY will be displayed. Select DELETE DEV by pressing ▲ or ▼ keys. 5. Press OK, SELECT DEV will be displayed. Then press the corresponding device key key, e.g. TV. 6. SURE DELET will be displayed. Please confirm by pressing OK. UR 820 LCD displays SUCCESS for 1 s. Then SELECT DEV is displayed and the next device key set can be deleted according to step 5 and 6. –If the deleting fails, WAITING and FAILED are displayed, then repeat deleting from step 5. 7. You can stop deletion procedure by pressing EXIT key several times. Delete All Learnt/Programmed Keys Please proceed as follows, see Fig. 7: 1. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed. 2. Select LEARNING by pressing ▲ or ▼ keys. 3. Press OK, LEARN KEY will be displayed. Select DELETE ALL by pressing ▲ or ▼ keys. 4. Press OK, SURE DELET will be displayed. Please confirm by pressing OK. UR 820 LCD displays SUCCESS for 1 s. Then menu is displayed again. 5. You can stop deletion procedure by pressing EXIT key several times.

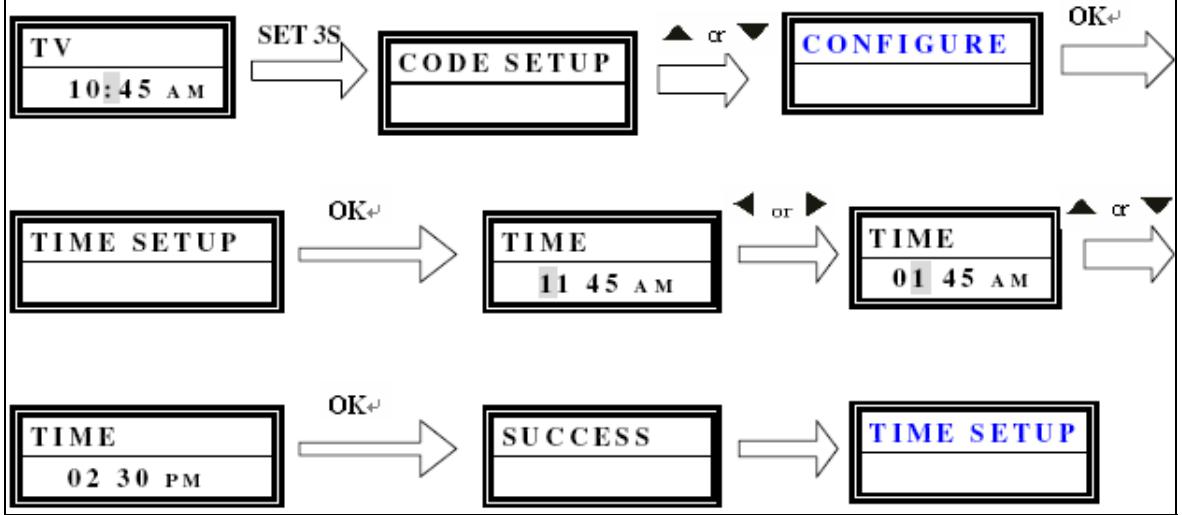

Clock Setting Please proceed as follows, see Fig. 8: 1. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed. 2. Select CONFIGURE by pressing ▲ or ▼ keys. 3. Press OK, TIME SETUP will be displayed. 4. Press OK , TIME hh:mm xx will be displayed. Please enter time and AM or PM for morning and afternoon. Use numerical and arrow keys for time input. 5. When time is displayed correctly press OK. SUCCESS and later TIME SETUP will be displayed. 6. You return to main menu by pressing EXIT key several times. Set volume control priority With this function you can determine a device exclusively for volume control, e.g. your audio amplifier. Then the buttons VOL +, VOL – and always control the amplifier, regardless of which device you are controlling. Please proceed as follows, see Fig. 9: 1 Press and hold SET for 3 seconds, then set CONFIGURE with the ▲ or ▼ button. Confirm this function by pressing OK 2 TIME SETUP appears in the display. Set VOL LOCK with the ▲ or ▼ button. Confirm this function by pressing OK. 3 Select the device button, e.g. AUX for the amplifier and set priority=ON using the ► or ◄ button. Confirm this function by pressing OK. 4 Then press EXIT several times to quit the setting mode. - You can cancel the priority setting using the same procedure. Instead of ON, set OFF for all devices.

Lock Or Unlock Device Codes

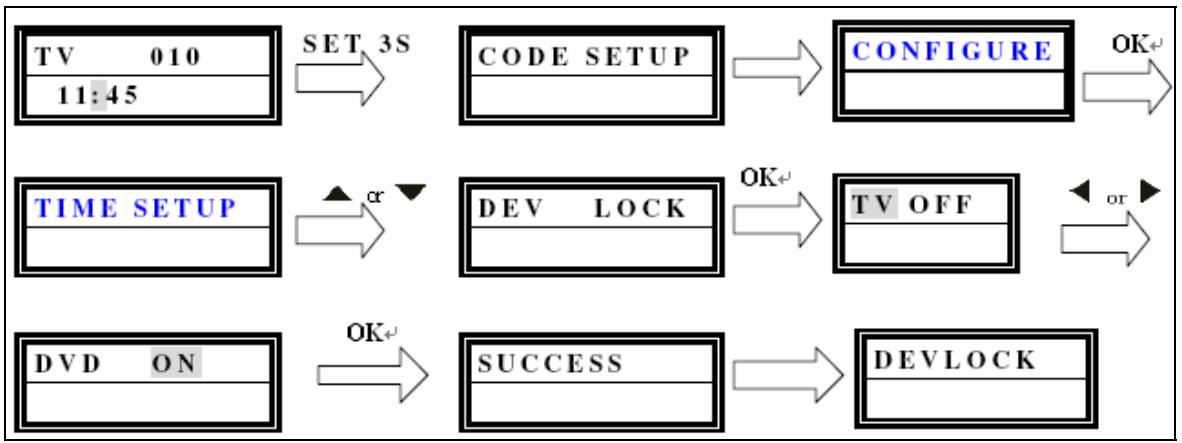

1 To prevent settings from being changed accidentally, please proceed as follows, see Fig. 10:Press and hold SET for 3 seconds, then set CONFIGURE with the ▲ or ▼ button. Confirm this function by pressing OK. 2 TIME SETUP appears in the display. Set DEV LOCK using the ▲ or ▼ button. Confirm this function by pressing OK. 3 Select the device button, e.g. DVD for the television and set lock=ON using the ► or ◄ button. Confirm this function by pressing OK. 4 Then press EXIT several times to quit the setting mode. - You can cancel the lock setting using the same procedure. Instead of ON, set OFF for all devices.

UR 820 LCD UNIVERSAL CONTROLLER Program

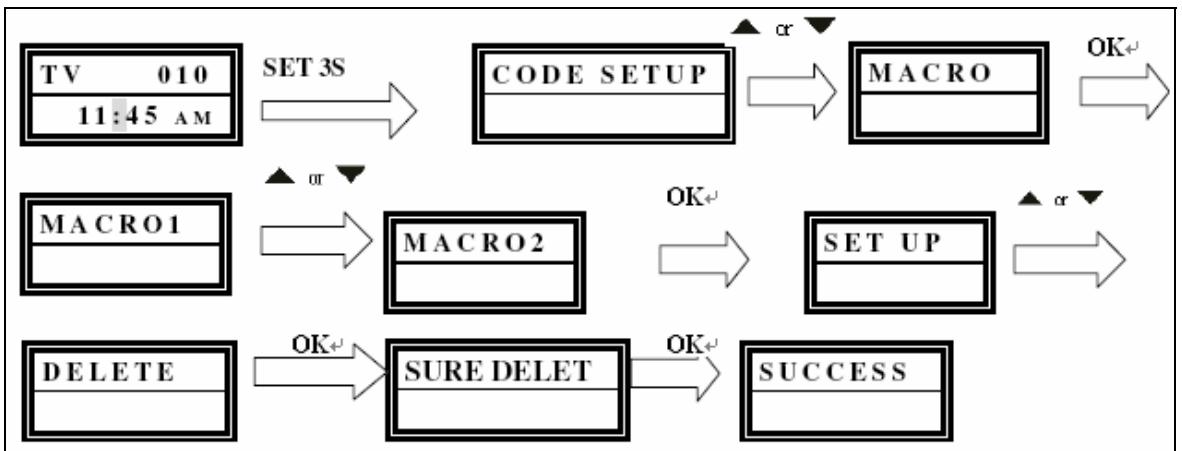

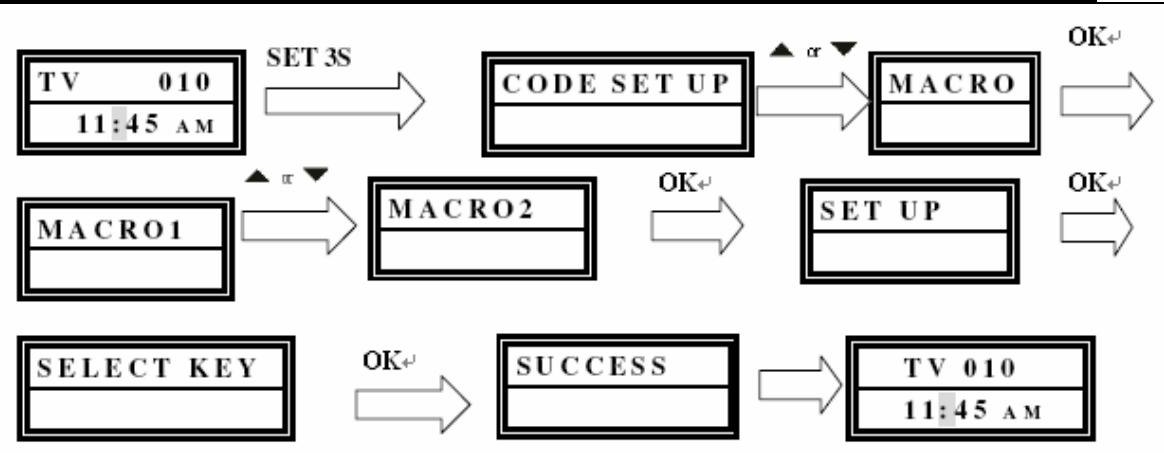

Macros (Home Cinema Application) You can program a sequence of upto 10 control commands to be output on pressing one one single key called MACRO-key. Upto 3 MACRO-keys are available. Please proceed as follows, see Fig. 11: 1 Press and hold SET for 3 seconds, then set MACRO with the ▲ or ▼ button. Confirm this function by pressing OK. 2 MACRO1 appears in the display. Set MACRO1, 2 or 3 using the ▲ or ▼ button. Confirm this function by pressing OK. 3 SET UP is displayed. Confirm this function by pressing OK. 4 SELECT KEYs is displayed. Then press a sequence of keys, which shall be output later, when you press MACRO and 1 ,2 or 3. E.g. TV, POWER, DVD, POWER, AMP, POWER for all devices power off. 5 Press OK when sequence input is finished and macro shall be stored. Delete Macros Please proceed as follows, see Fig. 12: 1 Press and hold SET for 3 seconds, then set MACRO with the ▲ or ▼ button. Confirm this function by pressing OK. 2 MACRO1 appears in the display. Set MACRO1, 2 or 3 using the ▲ or ▼ button. Confirm this function by pressing OK. 3 SET UP is displayed. Confirm this function by pressing OK. 4 Select DELETE using the ▲ or ▼ button. 5 Then press OK and SURE DELET is displayed. Confirm this function by pressing OK. SUCCESS is displayed. 6 Then press EXIT several times to quit the deletion mode. Control Any Device On AUX You can use the AUX device key to control any device. E.g. if you want to control a 2nd VCR by AUX key, please proceed as follows, see Fig. 13: 1 Press and hold SET for 3 seconds, then CODE SETUP is displayed. Confirm this function by pressing OK. 2 DEV SEARCH is displayed. Set CODE SHIFT using the ▲ or ▼ button. Confirm this function by pressing OK. 3 Any device, e.g. TV 010 is displayed. Press device key, e.g. VCR, OK and enter code number of required to be by AUX controlled device, e.g. VCR. Confirm this function by pressing OK. SUCCESS is displayed. 4 Then press EXIT several times to return to main control menu.

To save battery capacity you can switch off the LCD illumination. To do so, proceed as follows: 1 Press and hold SET for 3 seconds, then set CONFIGURE with the ▲ or ▼ button. Confirm this function by pressing OK. 2 TIME SETUP appears in the display. Set LIGHT using the ▲ or ▼ button. Confirm this function by pressing OK. 3 Switch the light ON or OFF using the ► or ◄ button. Confirm this function by pressing OK. 4 Then press EXIT several times to quit the setting mode. Adjusting the contrast You can adjust the contrast to improve readability: 1 Press and hold SET for 3 seconds, then set CONFIGURE with the ▲ or ▼ button. Confirm this function by pressing OK. 2 TIME SETUP appears in the display. Adjust the CONTRAST using the ▲ or ▼ button. Confirm this function by pressing OK. 3 Set the contrast to the desired level using the ► or ◄ button. Confirm this function by pressing OK. 4 Then press EXIT several times to quit the setting mode. Default settings You can reset your remote control to its factory default setting, e.g. to correct a malfunction, as follows. This deletes all your settings. - This function is recommended only in the event of your remote control malfunctioning seriously.

Press and hold SET for 3 seconds, then set CONFIGURE with the ▲ or ▼ button. Confirm this function by pressing OK. 2 TIME SETUP appears in the display. Set CLEAR ALL using the ▲ or ▼ button. Confirm this function by pressing OK. 3 The display then shows SURE CLEAR?. Confirm this function by pressing OK. Operation You operate your appliances basically in exactly the same way as if you were using the original remote controls, except that you must first press a device button (TV, DVD, etc.) to control the required device. As the symbols on the UR 820 LCD could differ from those on the original remote controls you may have to try out all the buttons in order to find the functions. Scanning of Programs You can scan the TV or DVB (SAT, CBL, DTT etc.) programs by: 1 Pressing TV or DVB key, 2 Press and hold the SCAN key for about 4 seconds.

UR 820 LCD UNIVERSAL CONTROLLER

3 When SCAN is displayed, release key. Then UR 820 LCD will automaticcaly scan all channels quickly. 4 Press any key to stop scanning. Use Macros: Control Home Cinema Set Ups With One Touch Only When you have programmed key code sequences, read above, then you can start output by pressing MACRO and then 1,2 or 3 simultanously. Hotline If you have any questions regarding the UR 850 LCD, please call the Vivanco Hotline: Tel: 01442 246088 Alternatively, send an e-mail to: consumer@vivanco.co.uk Technical data Batteries: 2x AAA – The UR 820 LCD indicates that the batteries need replacing by displaying a crossedout battery symbol.
