ROADSTER DUO SL - Double strollers HAUCK - Free user manual and instructions

Product Type	Double stroller (pram for two children)
Recommended Age	From birth (0 months) in reclined position, from 6 months in seated position
Maximum Capacity (stroller)	30 kg
Maximum Capacity (basket)	3 kg
Number of Children	2
Safety Standard	DIN EN 1888:2003-06
Harness System	5-point harness (pelvic belt, hip belt, shoulder straps)
Brakes	Foot-operated parking brake (rear wheels)
Backrest Adjustment	Continuous adjustment via cord at the back
Footrest Adjustment	Adjustable, two adjustment buttons
Front Wheels	Swivel with lockable option
Rear Wheels	Fixed, mounted on axle with metal clip
Folding	Locking levers and unlocking button, transport lock
Covers	Removable, washable according to label (machine washable)
Frame Maintenance	Clean with a soft cloth and soapy water
Wheel Maintenance	Regular cleaning, lubricate with Vaseline or anti-corrosion spray
Safety	Brakes applied when parked, harness mandatory, never leave unattended
Spare Parts	Use exclusively HAUCK original parts

Frequently Asked Questions - ROADSTER DUO SL HAUCK

How to assemble the HAUCK ROADSTER DUO SL stroller?

Unfold the frame by pushing forward until you hear the levers click. Mount the rear wheels on the axle, then the front wheels. Finally, attach the front bracket. Check all locks. Refer to the manual for detailed pictures.

How to fold the stroller?

Pull the locking lever to the left while pressing the unlocking button. Tilt the bracket forward and fold the stroller. Lock with the transport lock. Ensure the backrest is in the reclined position.

What is the maximum weight capacity?

The maximum load of the stroller is 30 kg for the two children. The basket must not exceed 3 kg.

From what age can the seated position be used?

The seated position is suitable from 6 months. Before this age, use the reclined position.

How to adjust the backrest and footrest?

The backrest is continuously adjustable by moving the cord at the back. The footrest is adjusted by pressing the two adjustment buttons and choosing the desired position.

How to use the safety harness?

First fasten the pelvic belt and hip belt, then the shoulder strap and hook it to the hip belt. Adjust the width. Always use the harness when the child is seated.

How to clean the stroller cover?

The covers are removable. Check the label for washing instructions. Generally, clean with a damp cloth or machine wash at medium speed. Do not tumble dry and allow to air dry.

How to maintain the frame and wheels?

Clean the frame with a soft cloth and soapy water. The wheels must be cleaned regularly and lubricated with Vaseline or an anti-corrosion spray to prevent rust, especially in winter.

What accessories can I use with this stroller?

Use only original HAUCK accessories and spare parts to ensure safety and compatibility.

How to operate the brakes?

To park the stroller, push the brake lever down with your foot. To release, lift the lever. Always apply the brakes when the stroller is stationary.

USER MANUAL ROADSTER DUO SL HAUCK

GB Comes with (Figure 1)

Please check the list of parts to ensure that all parts have been delivered:

A. Stroller frame
B. Back wheels
C. Front wheels
D. Rear axle
E. Front axle

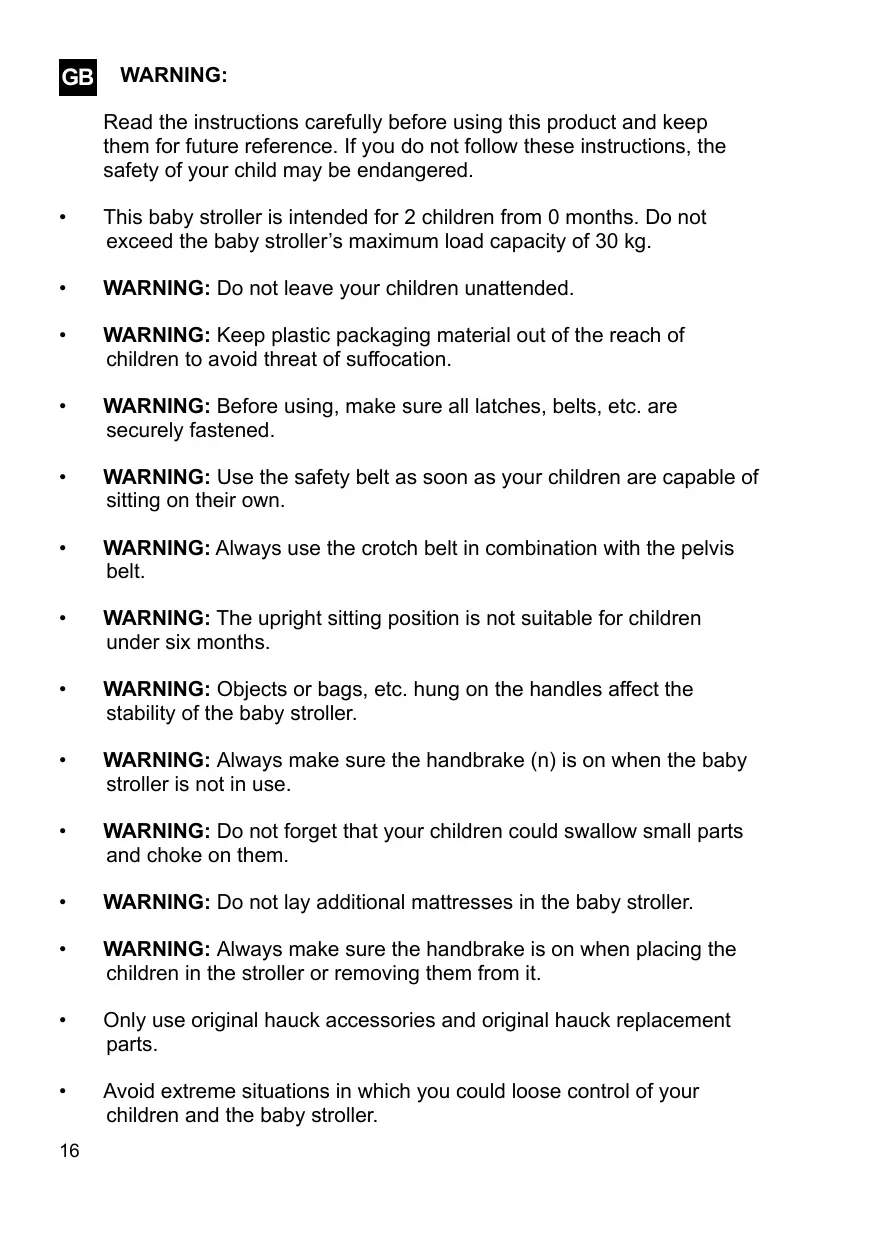

Read the instructions carefully before using this product and keep them for future reference. If you do not follow these instructions, the safety of your child may be endangered.

• This baby stroller is intended for 2 children from 0 months. Do not exceed the baby stroller's maximum load capacity of 30kg .
  WARNING: Do not leave your children unattended.
  WARNING: Keep plastic packaging material out of the reach of children to avoid threat of suffocation.
  WARNING: Before using, make sure all latches, belts, etc. are securely fastened.
  WARNING: Use the safety belt as soon as your children are capable of sitting on their own.
  WARNING: Always use the crotch belt in combination with the pelvis belt.
  WARNING: The upright sitting position is not suitable for children under six months.
  WARNING: Objects or bags, etc. hung on the handles affect the stability of the baby stroller.
  WARNING: Always make sure the handbrake (n) is on when the baby stroller is not in use.
  WARNING: Do not forget that your children could swallow small parts and choke on them.
  WARNING: Do not lay additional mattresses in the baby stroller.
  WARNING: Always make sure the handbrake is on when placing the children in the stroller or removing them from it.
• Only use original hauck accessories and original hauck replacement parts.

• Avoid extreme situations in which you could loose control of your children and the baby stroller.

• When using the baby stroller with your children in it, keep the speed at a walking tempo. Do not run, jog or skate.

• Do not use the baby stroller on escalators, stairs and always be careful using elevators when your children are in the baby stroller.
• Only use the specified space for carrying things and do not exceed the permitted maximum weight of 30kg .
  This baby stroller is built to carry two children.
• Be careful that your children do not place their hands in areas where they could be caught in folding parts when you are folding, unfolding or moving the baby stroller or parts of the stroller.
  Each basket has a maximum capacity of 3kg . Do not exceed this limit.

THIS BABY Stroller COMPLIES WITH THE DIN EN 1888:2003-06 STANDARD

1. Assembly (Figures 2a+2b)

Loosen the transport lock. Fold the stroller forwards until you hear the locking levers click into place and see that they have clicked into place.

2. Rear axle assembly (Figures 3a+3b)

Slide the rear axle onto the rear leg until you hear it click in place. Pull it to ensure it is latched in place.

3. Front axle assembly (Figures 4 a + 4b)

Remove the front axle by pushing both knobs in. Slide the front axle through the front wheel. Press the front wheel into the joint until you hear it click into place.

Check to make sure it is securely in place.

4. Rear wheel assembly (Figure 5)

Press the wheel onto the axle until you hear it click into place of the metal pin in the axle groove.

To remove the wheel, press the locking levers upwards and remove the wheel.

5. Brake (Figure 6)

To park the baby stroller, press the brake downwards with your foot. To release the brake, lift the brake with your foot.

Caution: Always make sure the brake is on when the baby stroller is parked.

6. Adjusting the reclining backrest (Figure 7)

The backrest features through adjustment. It can be adjusted with the cord drawstring located on the back of the backrest.

7. Bumper bar assembly (Figures 8a+8b)

Press the bumper bar underneath the catch on the frame until you hear it latch into place. Check to make sure it is securely in place.

8. Adjusting the foot rest (Figure 9)

Press the two adjusting buttons and move the footrest into the desired position.

9. Harness system

First, place the crotch and the pelvis belt around the child and lock in place. Then place the shoulder harness over the shoulders and hook it in the pelvis belt. Now adjust the tightness of the belt to the specific needs of your child. Make sure that the harness system is always strapped on and secure when you child is the baby stroller.

10. Folding (Figure 10a+10b+11a+11b)

Pull the upper locking lever to the left while simultaneously pressing the release button (Figures 10a+10b). When the baby stroller is released push the second locking device forwards and fold the stroller toward the front (Figure 11a+11b). Secure with the securing device. Make sure the backrest is in the reclining position.

11. Securing the front wheel in place (Figure 12)

Lock or unlock by twisting the caster as shown.

MAINTENANCE AND CARE

General

Check the functions of the baby stroller regularly. Check the stability of the frame, tightness of the screws, function of the locking devices, mount of the wheels and the function of the brakes. From time to time, check the condition of the sewn seams of the cushion covers and examine the plastic parts. Damaged or worn parts should be immediately replaced. This applies to parts that are broken, torn, faulty or worn out. Only use original hauck replacement parts. Do not expose your baby stroller to extreme sunlight, as this may cause fading of the fabric covers and plastic parts.

Cleaning the covers

Remove the cover from the frame by loosening or opening the necessary straps, snap fasteners or screws. Before washing, read the care instructions on the attached label.

To gently clean the cover, clean it uniformly with a moist cloth. If the cushion material cannot be removed from the cover, be careful not to soak the cushion when cleaning the cover. If there are no plastic, wood or metal parts on the cover, you can wash the cover in a washing machine at 30^ C and spin dry at medium speed. Hang the cover on a line to dry, but not in the direct blazing sun. Do not dry the cover in an automatic dryer, as it may shrink. Wait until the covers are completely dry before putting them back on the cushions and back in the baby stroller.

Cleaning the frame

Always dry the baby stroller with a soft cloth after using it in the rain or snow. To clean the frame use mild soapy water or lukewarm water. Dry with a soft cloth. Plastic parts can be cleaned with commonly available cleaning agents.

Maintenance of the wheels

Clean and apply petroleum jelly or anti-corrosion spray to protect against rust and build-up of corrosive residues regularly. In winter, remove salt residue immediately. Remove dirt from the wheels and axles regularly.

F

AVERTISSEMENTS:

IMPORTANT- KEEP IT FOR LATER READING

CONSERVER CE MODE D'EMPLOI POUR UN USAGE ULTERIEUR ET LE LIRE ATTENTIVEMENT

BELANGRIJK - BEWAAR ALS NASLAGWERK

CONSERVAR PARA APLICACION POSTERIOR

IMPORTANTE - MANTENHA-O PARA UMA LEITURA MAIS ATRASADA

hauck GmbH & Co KG

Tel. : [phone] / 986-0

Frohnlacher Str. 8

Fax. : [phone] / 6272

D-96242 Sonnefeld

Email : [e-mail]

Germany

Internet: http://www.hauck.de
