Paw Patrol - Toys HAUCK - Free user manual and instructions

Product type	Electric children's car (pedal toy)
Brand	Hauck
Model	Paw Patrol
Recommended age	3 years and up
Dimensions (L x W x H)	100 x 67 x 45 cm
Weight	10 kg
Maximum load capacity	30 kg
Maximum speed	4 km/h
Power supply	Rechargeable lead-acid battery 6V 4.5 Ah
Charger	Input 100-240V ~ 50/60 Hz, output 7.5V - 500 mA
Charging time	8 to 10 hours (15 hours for first charge)
Battery life	Approximately 300 charge cycles
Motor	6V
Main functions	Forward, reverse, steering wheel, simulated lights
Spare parts available	Wheels, battery (6V 4.5 Ah), charger, screw kit
Maintenance and cleaning	Clean with a soft, dry cloth. Lightly lubricate wheels and steering. Check tightness of fastenings before each use.
Safety	Adult supervision required. Always wear shoes. Do not use near roads, pools, slopes, stairs. One child at a time.
Operating temperature	0 to 40°C
Warranty	Contact Hauck customer service for any repairs
Customer service	Amerias: 1-877-428-2545 / Europe: [phone]

Frequently Asked Questions - Paw Patrol HAUCK

What is the recommended age for this vehicle?

The vehicle is suitable for children 3 years and up, depending on their height.

What is the maximum load capacity?

The maximum load capacity is 30 kg (child's weight).

How to charge the battery?

Plug the charger into a mains socket (100-240V) and connect it to the battery. Charging time is 8 to 10 hours. For first use, charge 15 hours. Do not charge for more than 15 hours.

The vehicle does not start, what to do?

Check that the battery is charged and connectors are properly plugged. Make sure the vehicle is not plugged into the charger during use. If the problem persists, contact customer service.

Can the vehicle be used on grass or gravel?

No, the vehicle is designed for use on flat, hard terrain. Avoid grass, gravel, sand or mud to prevent damage to the motor and battery.

How to clean the vehicle?

Use a soft, dry cloth. Do not use water, soap or abrasive cleaners. For plastic parts, a wax-free furniture polish can be used.

What safety precautions should be taken?

Always under adult supervision. Child must wear shoes. Do not use near roads, pools, slopes or stairs. One child at a time.

Where to find spare parts?

Spare parts (wheels, battery, charger) can be ordered by contacting Hauck customer service. Have the model and serial number (under the seat) ready.

What if the battery bubbles during charging?

This is normal and requires no action. It is due to the internal chemical reaction of the lead-acid battery.

Can the vehicle be used at night?

No, use at night or in the dark is not recommended as it increases accident risk. Always use the vehicle during daylight.

USER MANUAL Paw Patrol HAUCK

Line drawing of a futuristic sports car with visible steering wheel, dashboard, and front wheel (no text or symbols)

CE UK CA

©Spin Master Ltd.™ PAW PATROL and all related titles, logos, characters; and SPIN MASTER logo are trademarks of Spin Master Ltd. Used under license. Nickelodeon and all related titles and logos are trademarks of Viacom International Inc.

visit us at

facebook.com/haucktoys

youtube.com/haucktoys

twitter.com/#!/haucktoys

www.hauck-toys.com

hauck GmbH + Co. KG

Frohnlacher Str. 8

D-96242 Sonnefeld, Germany

www.hauck-toys.com

[e-mail]

[phone]

Hauck Hong Kong Ltd. 7/F, North Tower.

World Finance Centre, 19 Carton Road,

Kowloon, Hong Kong

hauck UK Ltd

Ash Road South

Wrexham Industrial Estate

Wrexham, LL13 9UG, UK

WARNING!

The owner's manual contains assembly, use and maintenance instructions. The vehicle must be assembled by an adult who has read and understands the instructions in this manual.

Keep the packaging away from children and dispose of all packaging before use.

Note: For best performance use on flat, hard surfaces.

The following safety hazards may result in serious injury or death to the user of the vehicle:

- This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and poly bags before assembly. Be sure to remove all packaging materials and parts from underneath the vehicle body.

- Battery posts, terminals and related accessories contain lead and lead compounds (acids) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. Never open the battery.

- Body parts such as hands, legs, hair and clothing can get caught in moving parts. Never place a body part near a moving part or wear loose clothing while using the vehicle. Always wear shoes when using the vehicle.

- Using the vehicle near streets, motor vehicles, drop-offs such as: steps, water (swimming pools) or other bodies of water, sloped surfaces, hills, wet areas, flammable vapors, in alleys, at night or in the dark could result in an unexpected accident. Always use the vehicle in a safe, secure environment with continuous adult supervision.

- Using the vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand or fine gravel may result in unexpected action such as tip over and skidding, and damage to the electrical system and battery.

- Using the vehicle in an unsafe manner. Examples include but are not limited to:

a. Pulling the vehicle with another vehicle or similar device

b. Allowing more than one rider

c. Pushing the user from the back

d. Travelling at an unsafe speed

Always use common sense and safe practices when using the vehicle.

BATTERY WARNINGS

WARNING!

The following safety hazards may result in serious injury or death to the user of the vehicle:

• Use of a battery or charger other than the supplied hauck (6V4.5Ah) rechargeable battery and charger may cause a fire or explosion. Only use the supplied hauck (6V4.5Ah) rechargeable battery and charger with the vehicle.
• Using the hauck (6V4.5Ah) rechargeable battery and charger for any other product may result in overheating, fire or explosion. Never use hauck (6V4.5Ah) rechargeable battery and charger with another product.
• Explosive gases are created during charging. Charge the battery in a well ventilated area. Do not charge the battery near heat or flammable materials.
• Contact between the positive and negative terminals may result in fire or explosion. Avoid direct contact between the terminals. Picking up the battery by the wires or charger can cause damage to the battery and may result in a fire. Always pick up the battery by it's case or handles.
• Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery and keep the battery dry.
• Contact or exposure to battery leakage (lead acid) may cause serious injury. If contact or exposure occurs immediately call your physician. If the chemical is on the skin or in the eyes, flush with cool water for 15 minutes. If the chemical was swallowed, immediately give the person water or milk. Do not give water or milk if the patient is vomiting or has a decreased level of alertness. Do not induce vomiting.
• Battery posts, terminals and related accessories contain lead and lead compounds (acid), chemicals known to the State of California to cause cancer, reproductive harm and are toxic and corrosive. Never open the battery.
• Tampering or modifying the electric circuit system may cause a shock, fire or explosion and permanently damage the system. Exposed wiring, circuitry in the charger may cause electric shock. Always keep the charger housing closed.
• Chargers used with the toy are to be regularly examined for damage to the cord, plug, enclosure and other parts, and that, in the event of such damage, the toy must not be used with this charger until the damage has been repaired.
• Rechargeable batteries are only to be charged by an adult only.
• Batteries are to be inserted with the correct polarity.

USER REQUIREMENTS AND WARNINGS

Age properly: 3+ years (depending on the size of the child).

Vehicle Size: 100 x 67 x 45 cm / 39.37" x 26.38" x 17.72"

Weight: 10 kg / 22 lbs

Temperature range: 0-40 °C / 32-104°F

Load capacity: 30kg / 66 lbs max.

Speed: 4 km/h

Motor: 6V

Charger: Input: 100-240V \~ 50/60hz 0.18A Max

Output: 7.5V - 500MA

Battery: 1 x Electrolyte Battery (6V4.5Ah)

Charging lifetime: approx. 300 times

Before using the vehicle the child should understand the vehicle controls and safety issues.

They must also demonstrate the capability to handle the vehicle and operate its controls.

It is the responsibility of the adult to educate the child and supervise the vehicles use.

Read the following safety warnings to any child using the vehicle before riding.

WARNING!

• Never leave child unattended. Always supervise the child.
  • Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
  • Always wearing shoes when using the vehicle.
• Only one rider is allowed in the vehicle at a time.
  • Children under 3 years of age cannot use the vehicle.
• Only drive on level ground.
• Do not go near swimming pools or other bodies of water, drop-off or up and down steep inclines.
• Do not drive the vehicle into loose dirt, mud, sand or fine gravel.
• Do not drive the vehicle on streets or near cars.

CARE WARNINGS

WARNINGS!

• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap and water.

RE-CHARGE INTERVAL AND TIME

Important!

• Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely.
• Check the battery and charger (supply cord, connector) for wear and damage before charging. Do not charge the battery if damage has occurred. Only replace with a hauck (6V4.5Ah) rechargeable battery and charger.

On average you will need to charge the battery between 8 to 10 hrs. Do not charge the battery for more than 15 hours. Failure to charge the battery as directed could cause permanent damage to the battery and void the warranty.

The vehicle should be checked for damage, missing or badly worn parts before use.

• Check the tightness of the fasteners before each use.
• Check the tightness of the wheels.
• Ensure the battery is securely in place before use.
• Occasionally use lightweight oil to lubricate moving parts such as wheels and steering linkage.
• Do not use oil on plastic or nylon parts. No lubrication is required.
• Store the vehicle indoors or cover it with a tarp to protect it from the wet weather. Keep it away from sources of heat, such as stoves and heaters.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do not use car wax, abrasive cleaners or wash the vehicle with soap and water. Water will damage the motor, electrical system and battery.
• hauck recommends that you take the vehicle to an authorized service center for periodic maintenance and service. hauck Consumer Relations at [phone] / 1-877-428-2545 for an authorized service center.

Service

Do not return this product to the place of purchase. If your vehicle needs service, repairs or replacement parts, call:

North & South America:

Phone: 1-877-HAUCK HK / 1-877-428-2545

Email: [e-mail]

Web: www.hauck-toys.com

Europe / Other Countries:

Phone: [phone]

Email: [e-mail]

Web: www.hauck-toys.com

For service and repairs you will be directed to an authorized service center. To order parts have the model and serial number, found underneath the seat on the battery cover.

The following is a list of available to replacement parts:

• Wheels
• Hardware bag for wheel assembly
  • 1 x hauck Battery (6V4.5Ah)
• Battery Charger

Troubleshooting

The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling hauck Consumer Relations.

If you still need help resolving the problem call [phone]/ 1-877-428-2545. hauck recommends that you take the vehicle to an authorized service center for periodic maintenance and service. Call the number listed above for the closest center to you.

Problem	Possible Cause	Remedy
Vehicle does not run	Battery low on power	Recharge battery (see Battery: Recharge Interval and Time)
	Battery connector or wires are loose	Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor call Consumer Relations at [phone] / 1-877-428-2545 for an authorized service center
	Battery is dead	Replace battery (see Battery: Replacement and Disposal)
	Electrical system is damaged / Motor is damaged	Call Consumer Relations at [phone] / 1-877-428-2545 for an authorized service center
Vehicle does not run very long	Battery is under charged	Check that the battery connectors are firmly plugged into each other when recharging (see Battery: Recharge Interval and Time)
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damaged	Call Consumer Relations at [phone] / 1-877-428-2545 for an authorized service center
Vehicle runs sluggishly or beeping occurs	Battery low on power	Recharge the battery (see Battery: Recharge Interval and Time)
	Battery is old Replace battery	(see Battery: Replacement and Disposal)
	Vehicle is overloaded Reduce weight on vehicle (see User Requirements and Safety Warnings)
	Vehicle is being used in harsh conditions	Operate the vehicle level ground and firm surfaces (see User Requirements and Safety Warnings)
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check the battery connectors are firmly plugged into each other. If wires are loose around the motor call Consumer Relations at [phone] / 1-877-428-2545 for an authorized service center
	“Dead Spot” on motor	A dead spot means the electric power is not being delivered to the terminal connection and the vehicle needs repair. Call Consumer Relations at [phone] / 1-877-428-2545 for an authorized service center
6V Battery will not recharge	Battery connector or adapter connector is loose	Check that battery connectors are firmly plugged into each other
	Charger not plugged in Check that battery charger is plugged into a working wall outlet
Battery bubbles or gurgles when charging	This is normal and not a cause for concern
Charger feels warm when recharging	This is normal and not a cause for concern

PACKAGE CONTENT

Nr.

Descrip. Pic.

Quan. Nr.

Descrip. Pic.

Quan. Nr.

Descrip. Pic.

Quan.

1.1

11Main body

2.3.

Seat Motor

4.5.

6.Wheel

4 4 1

Wheel Cap

Steering Wheel

7.8

Mock Light

1 1 1

Right Reflector

Left Reflector

10.

Right Car Window

1 1 1

Left Car Window

Right Car Door Window

13.

Left Car Door Window

1 7 4

Washer Large Nut

16.

Small Nut

1 1 2

Large Screw

Small Screw

19.

2Charger

1

Manual

1

Tools Required

2 Wrench for nut (provided)

screwdriver

IMPORTANT: The ends of the front and rear axles and the bar have protection caps. Before beginning the assembly, remove the protection caps and put them away.

Battery icon with lightning bolt symbol (no text or numbers)

Charge for 15 hrs before initial use.

After initial charge, follow the normal recommended charging time.

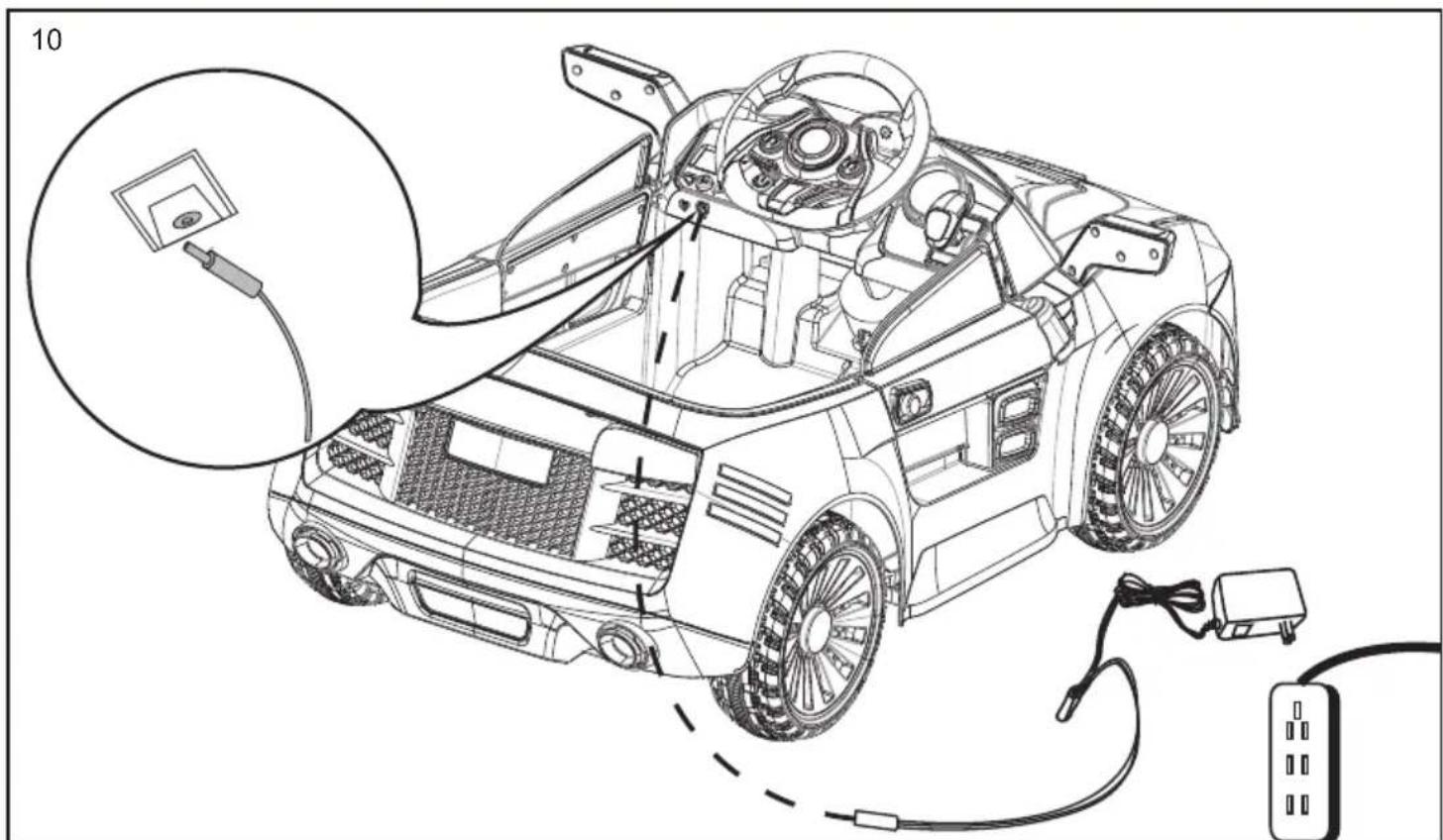

The car will not turn on while plugged into the charger. Please ensure the car is completely disconnected from the charger before attempting to start it.

Web: www.hauck-toys.com

Web: www.hauck-toys.com

Battery icon with lightning bolt symbol (no text or numbers)

Web: www.hauck-toys.com

Europa / Ander Länder:

Hotline: [phone]

Email: [e-mail]

Web: www.hauck-toys.com

Battery icon with lightning bolt symbol (no text or numbers)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3(B)/ NMB-3(B)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

DÉCLARATION DE CONFORMITÉ DE LA FCC :

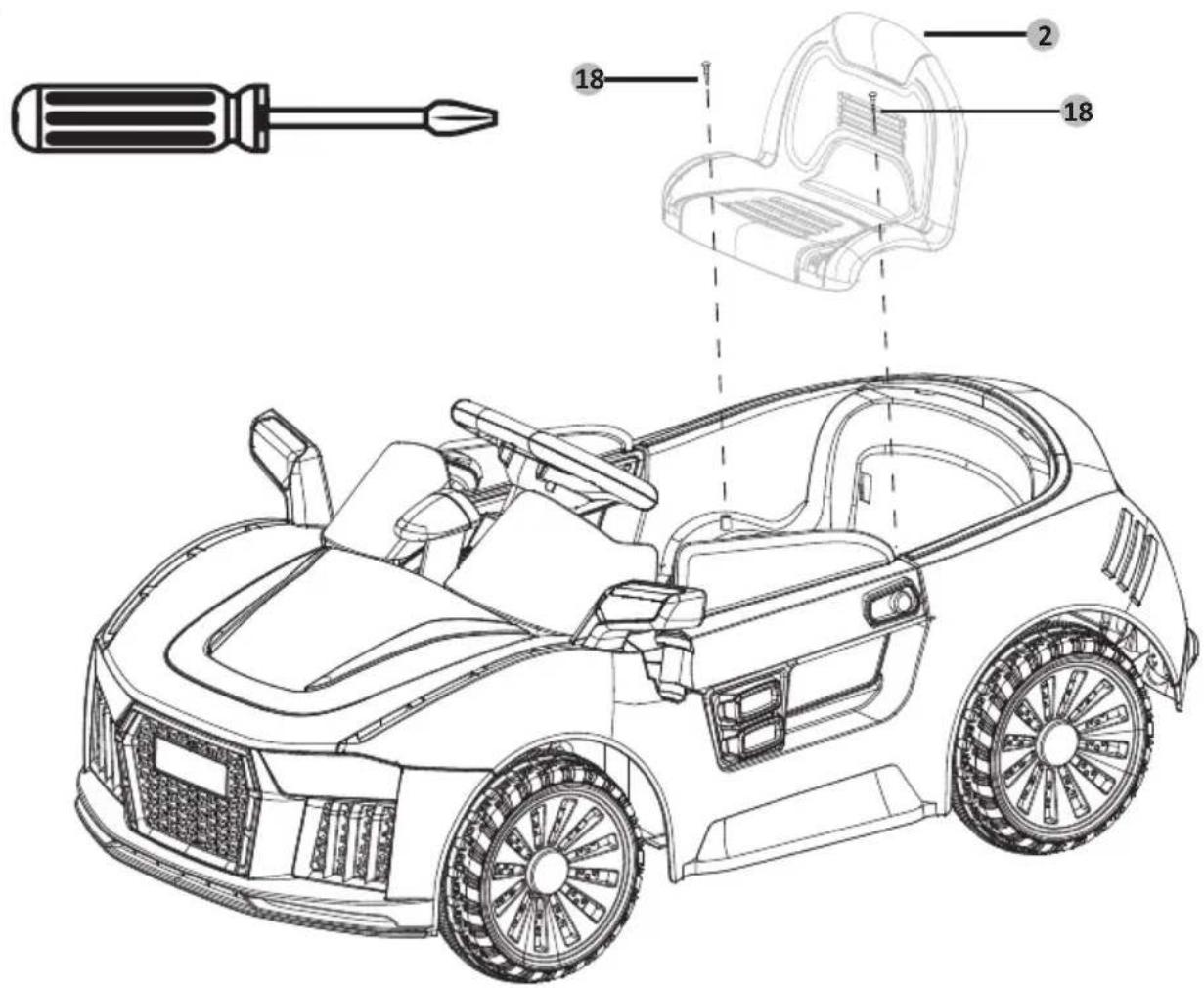

use the provided wrench to tighten the nuts

7

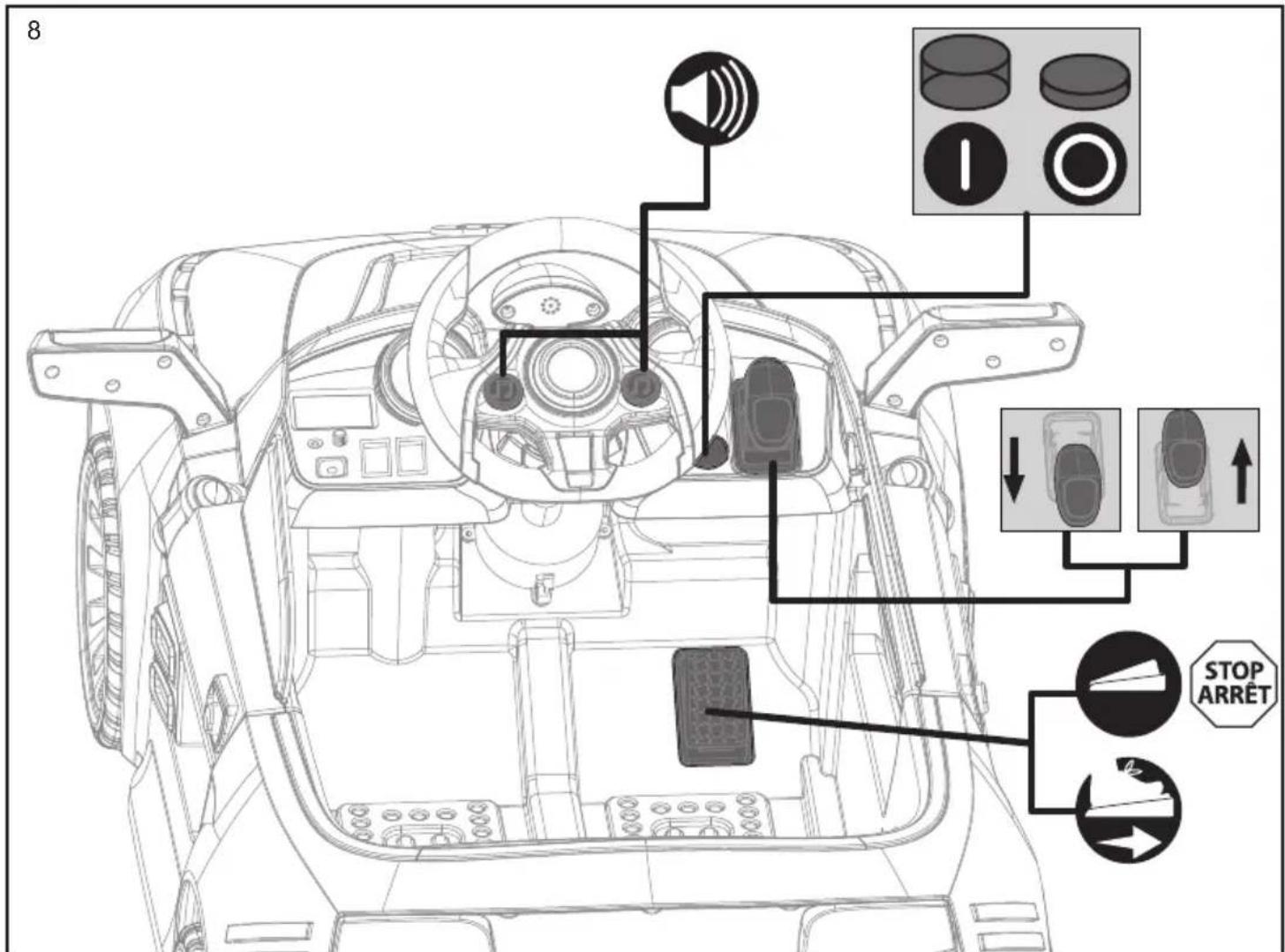

Line drawing of an electric vehicle with attached power plug and connected cable (no text or symbols)

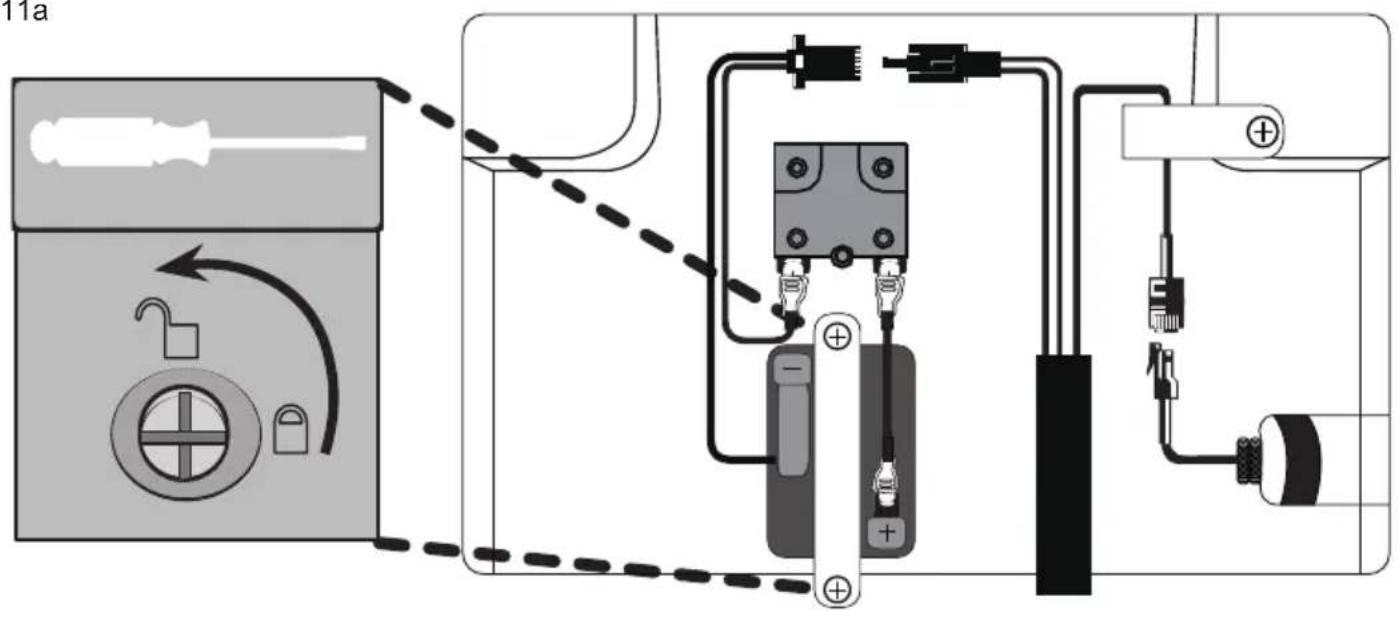

11a

11b

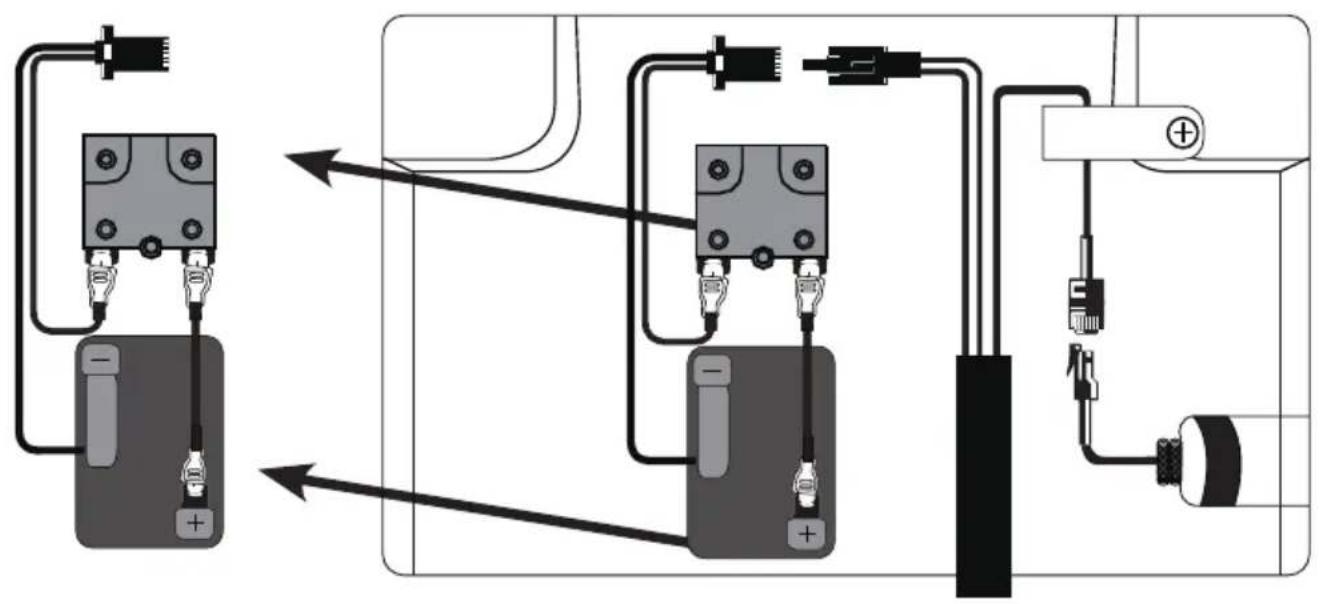

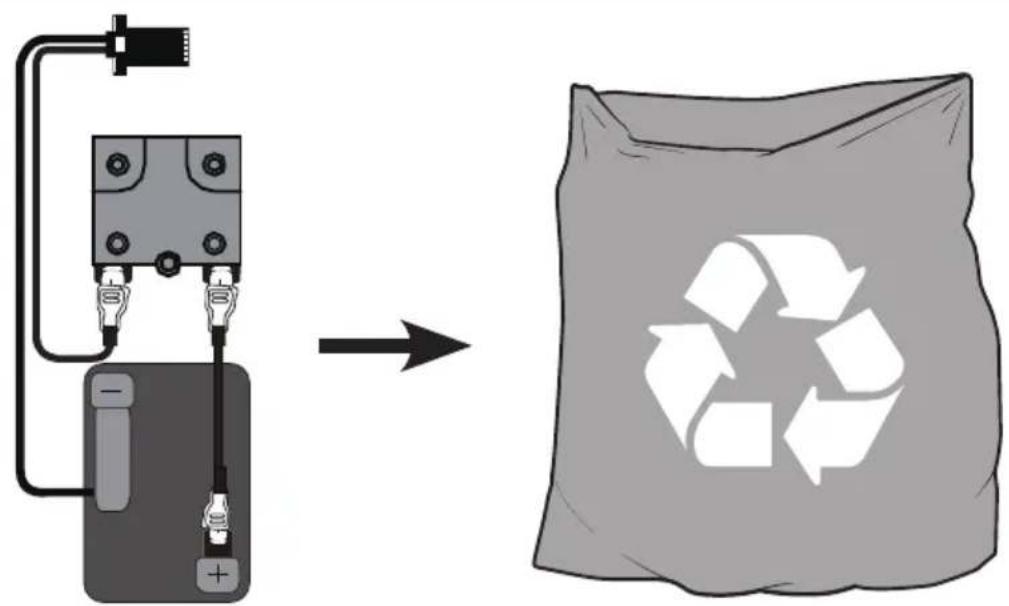

11c

CALL OR EMAIL US FIRST APPELEZ OU ENVOYEZ NOUS UN COURRIEL D'ABORD

This package contains small parts which are for adult assembly only.

WARNING:

To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than 1 rider.

ATTENTION :
