CHD 222J - Fan heater PUR LINE - Free user manual and instructions

Product type	Fan heater
Brand	PUR LINE
Model	CHD 222J
Reference type	DWF2001J
Supply voltage	220-240 V ~ 50 Hz
Power	1200 W / 2400 W (2 levels)
Rated current	10 A
Dimensions (L x W x H)	210 x 150 x 280 mm
Net weight	1.48 kg
Protection rating	IP21
Usage	Indoor, domestic; allowed in bathroom (volume 3)
Functions	Heating (2 levels: 1200 W and 2400 W) and fan-only
Thermostat	Adjustable with automatic on/off for temperature maintenance
Overheat protection	Manual reset sensor + thermal safety device
Light indicator	Power indicator (lit when operating)
Safety distance	90 cm in front, 30 cm on sides and rear
Cleaning	Rear grille: vacuum cleaner with brush; housing: soft cloth; do not immerse
Storage	Dry place, preferably in original packaging
Warranty	2 years from purchase date
Spare parts / Repairability	No user-serviceable parts; do not disassemble; damaged cord must be replaced by a professional

Frequently Asked Questions - CHD 222J PUR LINE

How to turn on and adjust the heating?

Plug the appliance into a 220-240 V socket. First set the thermostat to maximum. Then turn the switch to position I (1200 W) for moderate heat or to II (2400 W) for higher heat. The indicator light turns on to show operation.

How to use the fan-only function?

To use the appliance without heating, set the switch to the fan position (usually the fan symbol). The indicator light remains on but the heating element does not activate.

How to adjust the thermostat to maintain a constant temperature?

Start by heating the room with the thermostat at maximum. When the desired temperature is reached, slowly turn the thermostat towards minimum until the appliance stops. The appliance will then automatically maintain that temperature by cycling on and off.

What to do if the appliance suddenly stops?

This is probably due to overheating. Turn off the appliance (OFF position), unplug it and wait 5 to 10 minutes for it to cool down. Then plug it back in and turn it on again. If the problem persists, contact a professional.

How to clean the appliance?

Always unplug the appliance before cleaning. Use a vacuum cleaner with a brush to clean the rear grille (do not disassemble). Wipe the housing with a soft dry cloth. Never immerse the appliance in water and do not use alcohol or solvents.

Can I use the appliance in my bathroom?

Yes, the appliance is rated IP21 and can be used in volume 3 of the bathroom (the area farthest from the bathtub or shower). Respect the safety distances and never use it in volumes 0, 1 or 2.

What safety distance must be observed?

Place the appliance so that no combustible material (furniture, curtains, bedding) is within 90 cm in front of the appliance and within 30 cm on the sides and rear. The appliance must be on a stable and flat surface.

Can I use an extension cord?

It is best to avoid extension cords. If necessary, use an extension cord with a minimum cross-section of 1.0 mm² per wire and a rated power of at least 1890 W. Do not plug other appliances into the same extension cord.

The appliance no longer heats, what should I check?

First check that the appliance is plugged in and the socket works. Make sure the thermostat is not set too low. If the appliance overheated, it may have shut off automatically; follow the restart procedure (wait 5-10 min). If nothing works, the cord or plug may be damaged – have them checked by a professional.

How to store the appliance when not in use?

After use, turn off the appliance and unplug it. Clean it if necessary. Store it in a dry place, preferably in its original packaging, along with the user manual.

USER MANUAL CHD 222J PUR LINE

Email: [e-mail]

N^ indigo:0825.875.532

Please read carefully this manual before attempting to assemble, install, operate or maintain the heater

Email: [e-mail]

N^ indigo:0825.875.532

GENERAL SAFETY INFORMATION

1. Use this heater only as described in this manual. Any other use is not recommended by the manufacturer and could cause fire, electrical shock, or injury to persons.
2. Make certain that the power source conforms to the electrical requirements of heater (220-240V/50Hz).
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
4. To reduce the risk of electric shock, this plug is intended to fit in a correct outlet. If the plug of heater does not fit fully in the outlet, contact a qualified electrician. Do not attempt to defeat this safety feature.
5. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a fire. However, if you have to use an extension cord, the cord shall be a 2-wire, with minimum 1.0 ~mm^2 or larger and rated not less than 1890 watts. Never use a single extension cord to operate more than one heater.
6. Do not operate heater with a damaged cord or plug or after the heater malfunctions, has been

dropped or damaged in any manner. It must be changed by a qualified electrician or the manufacturer to avoid any danger

1. Always close the power switch and unplug power cord before servicing or moving the heater.

Always unplug heater when not in use.

WARNING : DO NOT DEPEND ON THE ON/OFF BUTTON OR SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE HEATER.

ALWAYS UNPLUG THE POWER CORD.

1. Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire or damage the heater.
2. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not place heater on soft surfaces, like a bed, where openings may become blocked.

3. Always place the heater on a stable, flat, level surface when operating, to avoid the chance of the heater overturning. Locate the power cord so the heater or other objects are not resting on it. Do not run power cord under carpeting. Do not cover power cord with throws rugs, runners, or the like. Arrange power cord away from room traffic and where it will not be tripped over.

4. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 0.9m from the front of the heater and keep them at least 0.3m from the sides and rear.

5. A heater has hot and arcing or sparking parts inside. It must not be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmosphere.
6. This heater is intended for general use only.
7. Do not use the heater outdoors..

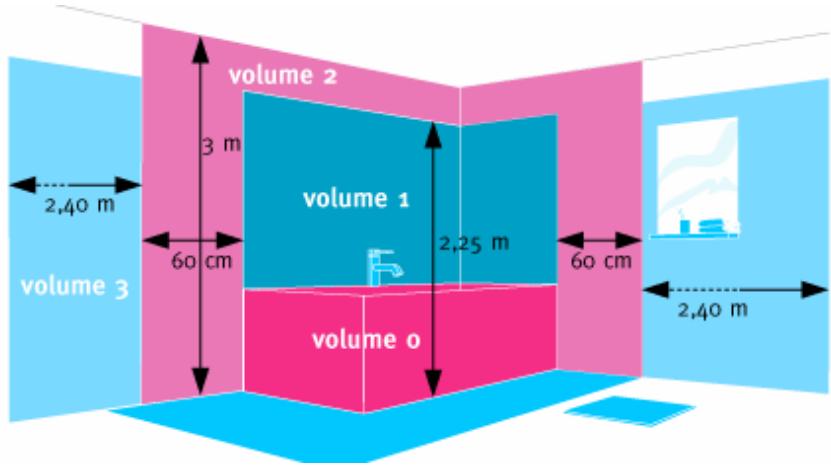

This appliance is classified IP21, its use is tolerated in volume 3 of the bathroom (see explanations below)

Volume 0 : This zone corresponds to the internal volume of the bath-tub or the receiver of shower.

Volume 1 It is the volume located at the top of the bathtub or the receiver of shower up to 2.25m in height.

Volume 2: It is the volume located around the bath-tub or the receiver or shower up to 3.0m in height.

Volume 3: It is the remaining volume of the bathroom.

WARNING : REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.

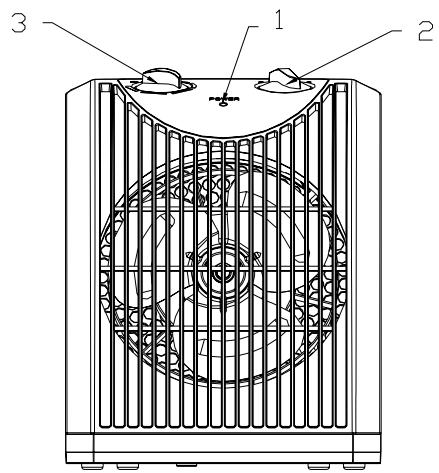

DESCRIPTION OF THE HEATER

1. Power light
2. Heater control

3. Termostat knob

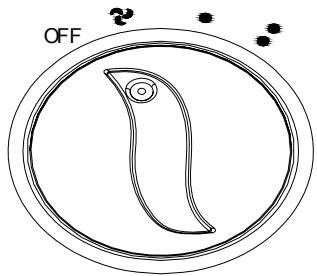

HEATER CONTROL

OFF

STOP

FAN ONLY

LOW 1200W

HIGH 2400W

OPERATION :

1. Carefully remove your heater from the box and bag.

2. Make sure that the heater is in the OFF (0) position before plugging the heater into a outlet.

3. Place the heater on a firm, level surface.
4. The power light will light up when initially plugging the heater into a outlet.
5. For heater operation, set the Thermostat knob to the maximum setting (+) .
6. Set Power knob to the desired heat setting. Low heat (1200W) is represented by the I and High heat (2400W) by the II.
7. For fan-only operation, without any heat output, turn Power knob to the fan setting represented by
8. The Power light will remain lit during operation.
9. To disconnect heater, turn Power knob to the OFF (0) operation. Then remove the plug from the outlet.

WARNING : METAL MESH IS HOT WHEN HEATER IS IN OPERATION.

THERMOSTAT KNOB

1. Before setting the thermostat, allow heater to operate and warm up the room. Set thermostat knob to the maximum setting (+) to start the heater.
2. When the desired temperature comfort level is reached, lower the thermostat setting until the heater stops operating. This is done by moving the thermostat knob towards the minimum setting (-).
3. The heater will now automatically maintain the pre-set temperature level by cycling the heater ON and OFF (0).
4. It is normal for the heater to cycle ON and OFF as it maintains the present temperature. To prevent the unit from cycling, you need to adjust the thermostat setting.

OVERHEATING SAFETY :

1. A thermal overload protector is built into the heater to prevent overheating.
2. When an overheat temperature is reached, the heater will be automatically shut off. It can only resume operation when the user resets the unit (see reset instruction)

TO RESET THE HEATER :

1. Turn the power knob to the OFF (0) position.
2. Unplug the heater and wait 5-10 minutes for the heater to cool down.
3. After the heater has cool down, plug the heater into the outlet and operate normally.

MAINTENANCE

WARNING : ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.

DO NOT IMMERSE HEATER IN WATER.

CLEANING :

Clean the heater at least once a month, more often if dirty. Clean the heater grill with the vacuum brush attachment on your vacuum cleaner. This will remove lint and dirt from the inside of the heater.

Do not attempt to take apart the heater.

Do not remove grill guard or allow heater to be operated without grill guard in place.

Clean the body of the heater with a soft cloth (NEVER USE ALCOHOL OR SOLVENTS).

STORAGE:

Store the heater with these instructions in its original carton in a cool, dry place.

SPECIFICATIONS

Modèle	CHD222J
Type	DWF2001J
Voltage	220Vac-240Vac
Frequency	50Hz
Rated output (W)	1200W-2400W
Electrical current (A)	10
Dimensions (mm)	210 x 150 x 280
Net weight	1.48 Kg
Classification	IP 21

warranty :

The warranty is valid for 2 years for a « manufacturing fault ».

To benefit from the warranty, please return the device to your dealer with POSTAGE PAID along with the document of purchase proof specifying the date of purchase.

Removal of used domestic appliances

European directive 2002/96/EC on the Electric and Electronic Equipment Waste requires that domestic appliances not be thrown out together with the rest of municipal waste. Used devices must be collected separately in order to optimize recuperation and recycling rates of the materials that make them up and so reduce the impact on human health and the environment. The symbol of the crossed out garbage can appears on all the products to remind the obligations regarding separated collection.

Consumers must contact local authorities or resellers regarding the procedure to follow for the device's removal.

(SP)

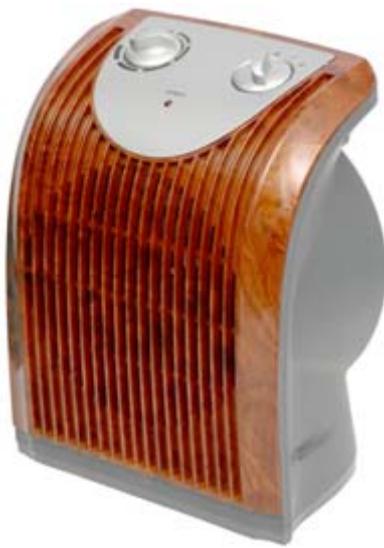

CALEFACCION SOPLANDO PURLINE
