CHD 210A - Fan heater PUR LINE - Free user manual and instructions

Brand	PUR LINE
Model	CHD 210A
Product type	Fan heater
Type	DWF2001A
Supply voltage	230 V / 50 Hz
Maximum power	2000 W
Electric current	8.7 A
Heating powers	1000 W (LOW) and 2000 W (HIGH)
Fan-only mode	Yes (FAN)
Adjustable thermostat	Yes, with automatic shut-off and restart
Overheat protection	Thermal sensor with manual reset and thermal safety device
Dimensions (W x D x H)	205 x 280 x 165 mm
Net weight	1.52 kg
Intended use	Domestic, indoor
Safety distance	90 cm in front, 30 cm on sides and rear
Power cord	Non-detachable, do not use an extension cord
Maintenance and cleaning	Clean the rear grille with a vacuum cleaner (brush) monthly; do not immerse; do not disassemble
Warranty	2 years from date of purchase
Country of origin	Not specified, likely Chinese manufacture (estimate)

Frequently Asked Questions - CHD 210A PUR LINE

What is the maximum power of the CHD 210A heater?

The maximum power is 2000 watts in HIGH position. A LOW position provides 1000 watts.

How to use the appliance as a fan only without heating?

Set the switch to the FAN position. The heating will not operate, only the fan will be active.

How to adjust the thermostat?

Turn the thermostat to maximum to start the heating. When the desired temperature is reached, gradually turn the thermostat back towards minimum until the appliance stops. It will then automatically maintain that temperature.

What to do if the appliance suddenly stops (overheating)?

Turn off the appliance (OFF position), unplug it and wait 20 minutes for it to cool down. Then plug it back in and turn it on again. If the problem persists, contact a professional.

What safety distances should be observed around the appliance?

Combustible materials (curtains, furniture, bedding) must be at least 90 cm in front and 30 cm on the sides and rear.

Can I use an extension cord with this heater?

It is not recommended, but if necessary, use a 2-wire extension cord of at least 1.0 mm² per wire and rated for 1890 watts. Do not plug other appliances into the same extension cord.

How to clean the CHD 210A heater?

Unplug the appliance. Use the vacuum cleaner brush on the rear grille to remove dust. Clean the casing with a soft cloth. Never immerse the appliance or use alcohol or solvents.

Can the appliance be used in a bathroom?

No, the appliance must not be installed in a bathroom or any damp area where it could come into contact with water. Indoor dry use only.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by a qualified person or the manufacturer to avoid any danger.

What is the warranty for this product?

The warranty is 2 years from the date of purchase. To apply it, return or send the appliance postage paid to your retailer with proof of purchase.

USER MANUAL CHD 210A PUR LINE

Email: [e-mail]

N^ indigo:0825.875.532

Please read carefully this manual before attempting to assemble, install, operate or maintain the heater

Email: [e-mail]

N^ indigo:0825.875.532

GENERAL SAFETY INFORMATION

1. Use this heater only as described in this manual. Any other use is not recommended by the manufacturer and could cause fire, electrical shock, or injury to persons.
2. Make certain that the power source conforms to the electrical requirements of heater (230V/50Hz).
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
4. To reduce the risk of electric shock, this plug is intended to fit in a correct outlet. If the plug of heater does not fit fully in the outlet, contact a qualified electrician. Do not attempt to defeat this safety feature.
5. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a fire. However, if you have to use an extension cord, the cord shall be a 2-wire, with minimum 1.0 ~mm^2 or larger and rated not less than 1890 watts. Never use a single extension cord to operate more than one heater.
6. Do not operate heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. It must be

changed by a qualified electrician or the manufacturer to avoid any danger

1. Always close the power switch and unplug power cord before servicing or moving the heater. Always unplug heater when not in use.

WARNING : DO NOT DEPEND ON THE ON/OFF BUTTON OR SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE HEATER.

ALWAYS UNPLUG THE POWER CORD.

1. Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire or damage the heater.
2. To prevent a possible fire, do not cover the unit & do not block air intakes or exhaust in any manner. Do not place heater on soft surfaces, like a bed, where openings may become blocked.
3. Always place the heater on a stable, flat, level surface when operating, to avoid the chance of the heater overturning. Locate the power cord so the heater or other objects are not resting on it. Do not run power cord under carpeting. Do not cover power cord with throws rugs, runners, or the like. Arrange power cord away from room traffic and where it will not be tripped over.
4. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use

handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 0.9m from the front of the heater and keep them at least 0.3m from the sides and rear.

1. A heater has hot and arcing or sparking parts inside. It must not be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmosphere.
2. This heater is not intended for use in wet or damp locations. Never locate a heater where it may fall into a bathtub or other water container.
3. This heater is intended for general use only.
4. Do not use the heater outdoors.

WARNING : REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.

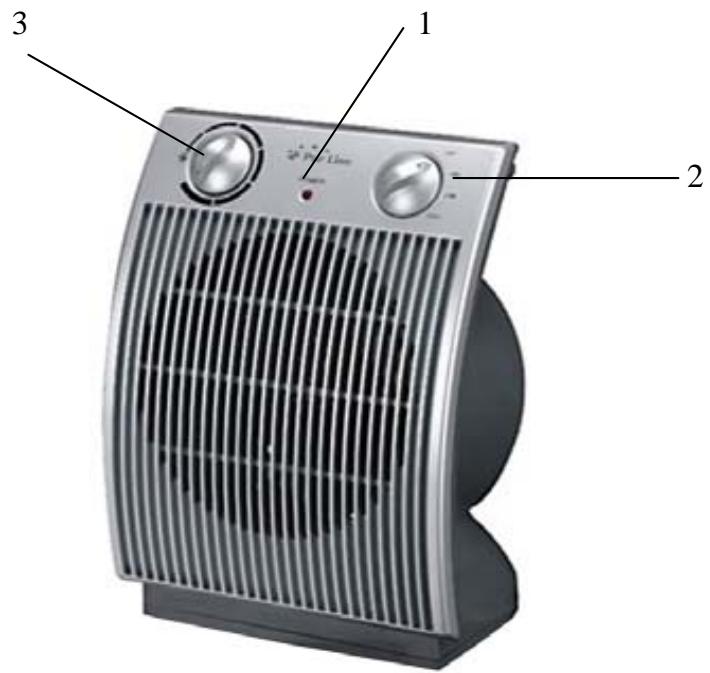

DESCRIPTION OF THE HEATER

1. Power indicator
2. Heat/fan select button
3. Temperature controlling/thermostat

HEATER CONTROL

OFF... Unit is OFF

FAN .... Fan only operation

LOW... Speed 1: 1000 watts

HIGH... Speed 2: 2000 watts

OPERATION:

1. Carefully remove your heater from the box and bag.
2. Make sure that the heater is in the OFF position before plugging the heater into a outlet.
3. Place the heater on a firm, level surface.
4. The power light will light up when initially plugging the heater into an outlet.
5. For heater operation, set the Thermostat knob to the maximum setting.

6. Set Power knob to the desired heat setting. Low heat (1000W) and High heat (2000W).

7. For fan-only operation, without any heat output, turn Power knob to the fan setting represented by FAN.

8. The Power light will remain lit during operation.
9. To disconnect heater, turn Power knob to the OFF operation. Then remove the plug from the outlet.

WARNING: METAL MESH IS HOT WHEN HEATER IS IN OPERATION.

THERMOSTAT KNOB

Before setting the thermostat, allow heater to operate and warm up the room (caution: the maximum capacity of this heating is of 2000W. That means that according to the variations in temperature and the volume of the room, its control on the ambient temperature is limited). Set thermostat knob to the maximum setting to start the heater.

1. When the desired temperature comfort level is reached, lower the thermostat setting until the heater stops operating. This is done by moving the thermostat knob towards the minimum setting.
2. The heater will now automatically maintain the pre-set temperature level by cycling the heater ON and OFF.
3. It is normal for the heater to cycle ON and OFF as it maintains the present temperature. To prevent the unit from cycling, you need to adjust the thermostat setting.

OVERHEATING SAFETY :

1. A thermal overload protector is built into the heater to prevent overheating.
2. When an overheat temperature is reached, the heater will be automatically shut off. It can only resume operation when the user resets the unit (see reset instruction)

TO RESET THE HEATER :

1. Turn the power knob to the OFF position.
2. Unplug the heater and wait 20 minutes for the heater to cool down.
3. After the heater has cool down, plug the heater into the outlet and operate normally.

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.

DO NOT IMMERSE HEATER IN WATER.

CLEANING:

Clean the heater at least once a month, more often if dirty. Clean the heater grill with the vacuum brush attachment on your vacuum cleaner. This will remove lint and dirt from the inside of the heater.

Do not attempt to take apart the heater.

Do not remove grill guard or allow heater to be operated without grill guard in place.

Clean the body of the heater with a soft cloth (NEVER USE ALCOHOL OR SOLVENTS).

STORAGE:

Store the heater with these instructions in its original carton in a cool, dry place.

SPECIFICATIONS

Modèle	CHD210A
Type	DWF2001A
Voltage	230V
Frequency	50Hz
Rated output (W)	2000W
Electrical current (A)	8.7
Dimensions (mm)	205 x 280 x 165
Net weight	1.52 Kg

Characteristics prone to change without notice

warranty :

The warranty is valid for 2 years for a « manufacturing fault ».

To benefit from the warranty, please return the device to your dealer with POSTAGE PAID along with the document of purchase proof specifying the date of purchase.

Removal of used domestic appliances

European directive 2002/96/EC on the Electric and Electronic Equipment Waste requires that domestic appliances not be thrown out together with the rest of municipal waste. Used devices must be collected separately in order to optimize recuperation and recycling rates of the materials that make them up and so reduce the impact on human health and the environment.

The symbol of the crossed out garbage can appears on all the products to remind the obligations regarding separated collection.

Consumers must contact local authorities or resellers regarding the procedure to follow for the device's removal.

(SP)

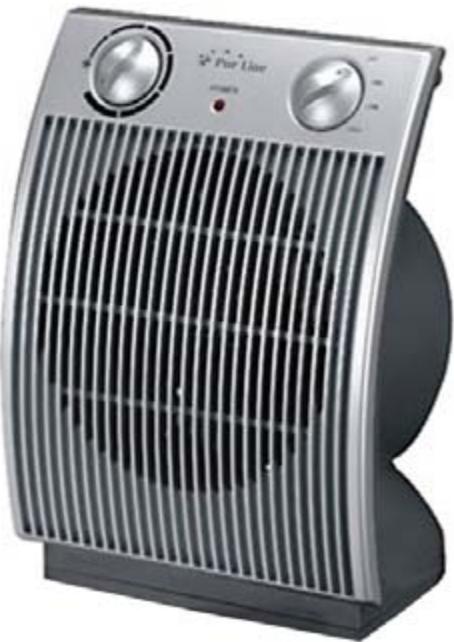

CALEFACCION SOPLANDO PURLINE
