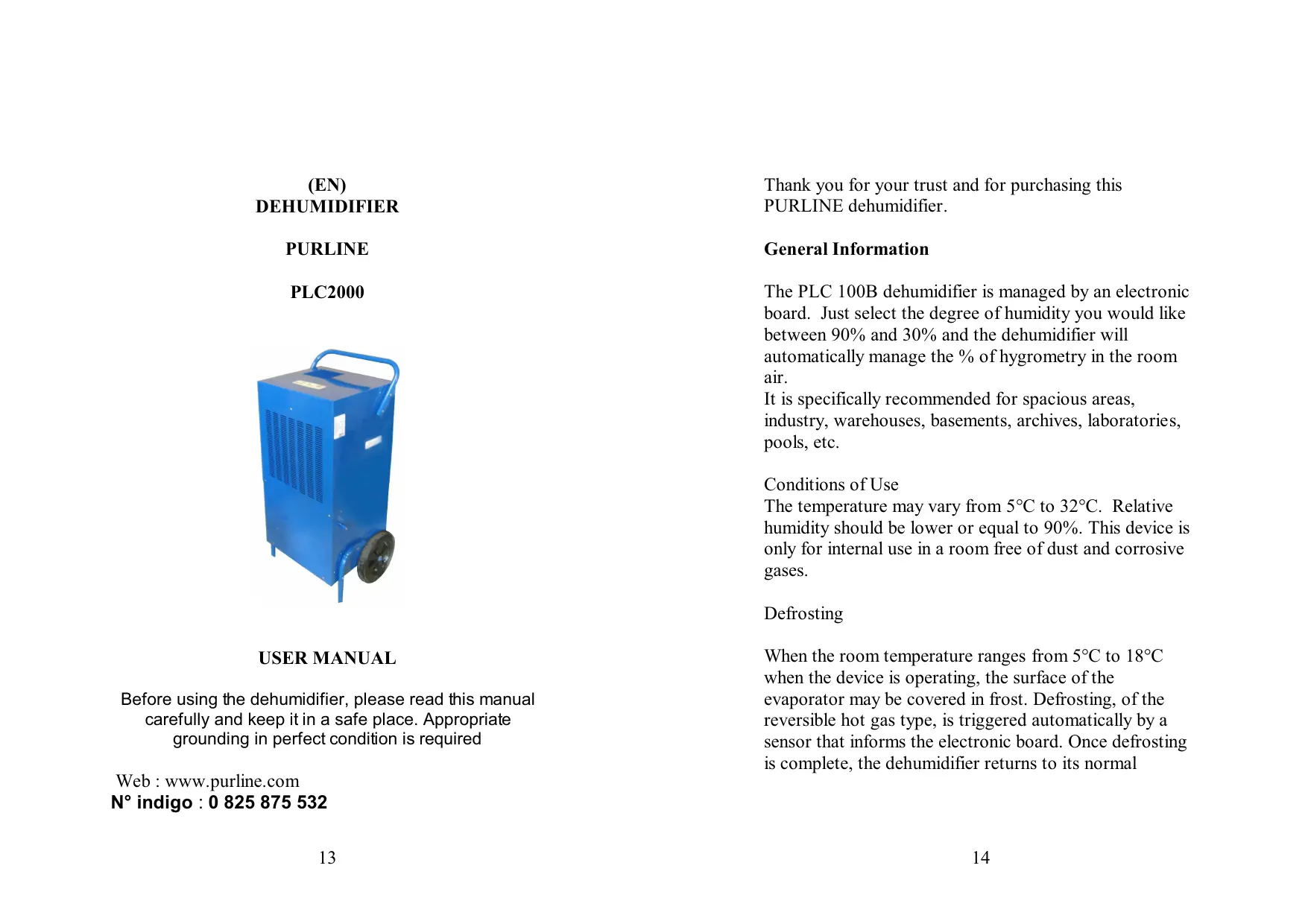

USER MANUAL PLC 2000 PUR LINE

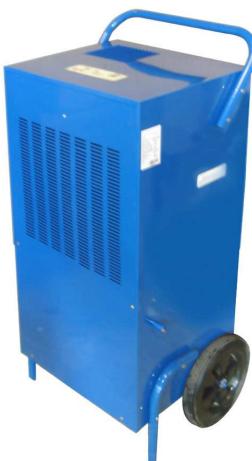

d e fro st ind ica tor o n/o ff b utt on H U M I D IT Y UP H U MI DI T Y D O W N H UM ID I T Y % Memo ry humidity up humidity down Thank you for your trust and for purchasing this PURLINE dehumidifier. PURLINE General Information PLC2000 The PLC 100B dehumidifier is managed by an electronic board. Just select the degree of humidity you would like between 90% and 30% and the dehumidifier will automatically manage the % of hygrometry in the room air. It is specifically recommended for spacious areas, industry, warehouses, basements, archives, laboratories, pools, etc. Conditions of Use The temperature may vary from 5°C to 32°C. Relative humidity should be lower or equal to 90%. This device is only for internal use in a room free of dust and corrosive gases. Defrosting USER MANUAL Before using the dehumidifier, please read this manual carefully and keep it in a safe place. Appropriate grounding in perfect condition is required When the room temperature ranges from 5°C to 18°C when the device is operating, the surface of the evaporator may be covered in frost. Defrosting, of the reversible hot gas type, is triggered automatically by a sensor that informs the electronic board. Once defrosting is complete, the dehumidifier returns to its normal operations. The device can therefore operate in relatively low room temperatures. Safety instructions : Please read the instruction carefully before operation.

Please make sure the power supply is 220240V/50Hz before operation. Please make sure the unit is grounded. - Please do not cut off the power by pulling the wire. - Please do not plug or unplug to startup or shut off the unit. - Please be careful when moving the unit. - Do not mangle the wire. - Please do not put finger or stick into the grid. - Please prohibit child to climb, stand or sit on the unit. - Please unplug the unit before cleaning or maintenance. Notice : we suggest that any reparation should be executed under professional members. - Please do not use unit in strait airproof space. - Please keep the instructions carefully. - Do not use any relay, prolonged wire or adapter. It might result in fire radiation, or get an electric shock. - Do not use the unit in sunshine, wind or rain. It is only for indoor use. - Do not use the unit in the place easily affected by dust or chemicals.

- Do not use the unit near water. Risk of electric shock. Location:

1. The device must be installed on a flat surface. There

should be at least one meter of empty space, free of large objects, around the dehumidifier.

2. The device must be placed far away from any source of

heat or inflammable gas.

3. The drained water may be discharged directly into a

container or outside of the room using a pipe of drainage.

4. It is preferable not to install the dehumidifier in a very

polluted or dusty location. Electrical source: Carefully follow the manual’s indications. Use electrical power with proper grounding in good condition. Place the device close to an electrical outlet. The device must be installed in accordance with local electrical standards. The electrical plug must be connected to a circuit equipped with a 15 A fuse. NOTE

If the electrical cord is damaged, it must be replaced by an electrician or qualified person to avoid damages. Installation:

1. Refer to qualified professionals to install the

2. The slant of the floor bearing the device must not

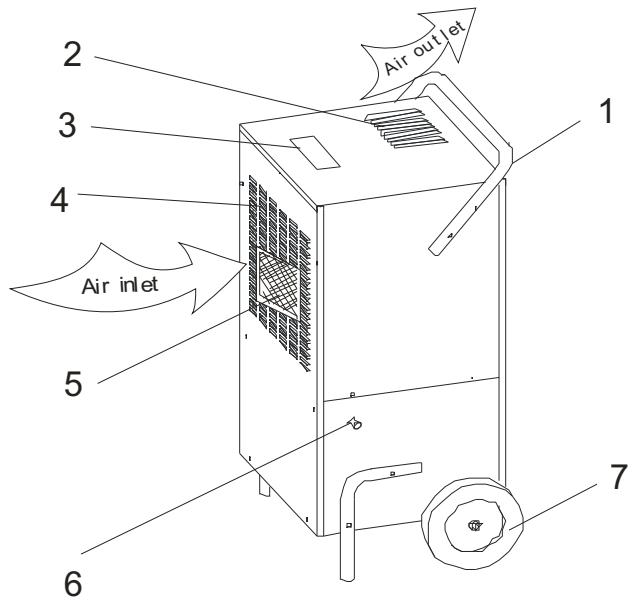

exceed 10°. Note: This device is not to be used for marine purposes. The device’s environment must not be polluted by corrosive gases. Introduction : MODELE Dehumidification capacity Voltage/Frequency Required power Noise level Cooling load Dimensions Net weight Note : - When displace the unit, do not slope over 45° to avoid any damaging of the compressor. - The unit should be operated between 5°C to 32°C - When dehumidifying, because of the heat resulted from the running compressor, the indoor temperature will rise 1°C to 3°C. It is normal. - When indoor temperature is below 10°C, and the ambient absolute humidity is quite low, it is unnecessary using the machine. - Air inlet and air outlet should be at least 10cm away from the wall. - Try to seal the room to enhance the dehumidification effect. - You should be helped by qualified technician to install the unit.

d e fro st ind ica tor o n/o ff b utt on

H U MI DI T Y D O W N H UM ID I T Y % Air inl et Memo ry humidity up humidity down

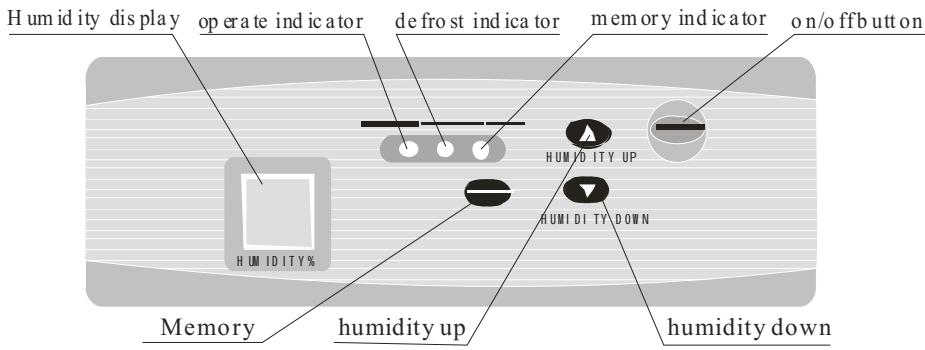

1. “ON/OFF” button. This button indicates either the

2. “Up Humidity” and “Down Humidity” buttons. By

(rapidly) pressing once on one of these buttons, the control point rises or lowers by 1%. If you press for a second and a half, the control points are displayed at the speed of 5 points per second.

3. “Memory" button. When you press on this button,

the “Memory” indicator lights up to indicate that the memory function is active when the device is turned off. Press on this button again and the light indicator will turn off, thereby deactivating the memory function when the device is off. Start-up Operations

1. Plug the device in. You will hear a sound.

2. Press on the “ON/OFF” button. The light indicator

will light up and the relative humidity display will indicate the humidity control point that was originally

entered. The degree of humidity initially displayed is 60%. Three seconds later, the display will indicate the ambient humidity.

3. Press on the “UP” or “DOWN” button to enter the

desired control point. If the ambient relative humidity is lower than 3% of the ambient degree, the device will turn on. If the ambient relative humidity is higher than 3% of the ambient degree, the device will turn off.

4. If the control point is lower than 30%, the device

will continue to dehumidify and the display will show “CO”.

4) If you press on the “Memory” button, the internal

recorder will detect the ambient humidity, even when the device is turned off.

5) The display indicates humidity from 30% to 90%.

6) Carefully press on the various buttons so as not to

7) Clean the dehumidifier with caution, as the

humidity sensor is very fragile. Have the device repaired or replaced if it no longer works.

8) When the dehumidifier is not in use, turn it off

and unplug it. DEHUMIDIFIER MAINTENANCE On/Off When the device is on, press on “ON/OFF” to turn the device off. The light indicators will turn off. Note

1) When the control point is higher than the ambient

humidity, the device will not operate.

2) In the dehumidification mode, when the

compressor is active and the fan turns, they must operate for at least 3 minutes. Do not try to restart the compressor again for 3 minutes after the device has been turned off.

3) When used in a room with a lower temperature,

the device automatically detects the defrosting operations. In the defrosting mode, the light indicator turns on, the fan continues to work, but the compressor automatically stops.

Turn the device off, then unplug it before cleaning. Because of the accumulation of dust, the air “grill” must be cleaned regularly, at least once per month. If necessary, clean it once per week or more often if required. This is essential for the dehumidifier to operate properly. Cleaning the Air Filter Use either a vacuum cleaner (cautiously) or soak the air filter in warm water at approximately 40° with a non-abrasive detergent, and clean it with a sponge, then rinse it.

Note: To avoid any deformation, the air filter must not be exposed to any source of heat. - Before plugging the device in again, properly return the air filter to its place and re-screw the front grill..

Note : To make the filter more endurable, seal it in a plastic bag when the unit keeps power off for a long time. The device does not dehumidify Water leakage To keep your dehumidifier for many years, have it cleaned and its proper operations checked regularly by a professional. - If the electrical cord is damaged, it must be replaced by the installer or another qualified person. The light indicator is flashing The defrosting does not work E1 is displayed E2 is displayed The device does not want to turn on. plugged in properly The grill is dirty The air entries and outlets are obstructed The device is placed on a slope The drain is obstructed The temperature sensor is not working The temperature sensor is loose The hygrometry sensor is not positioned properly or is defective The defrosting sensor is not positioned properly or is defective Power failure The fuse has blown The device is not plugged in properly WARRANTY: Malfunction Stand the device Clean the drain Replace it Replace the temperature sensor Check the component or positioning Check the component or positioning Replace the fuse Plug the device in carefully If the breakdown continues, please contact your reseller or technical department. When the dehumidifier starts or stops, the refrigeration cycle produces a specific sound. This sound is normal. It is also normal for the air flowing from the air outlet to be hot. Trouble shooting : The device does not want to turn on. carefully Clean the grill Analysis Power failure The fuse has blown The device is not

Solution Replace the fuse Two years from the date of purchase. Plug the device in

To use the warranty, please bring or send (PREPAID) the device to your reseller along with the proof of sale indicating the purchase date. Removal of used domestic appliances European Directive 2002/96/EC on Electric and Electronic Equipment Waste requires that domestic appliances not be thrown out with the rest of municipal waste. Used devices must be collected separately in order to optimize the recuperation and recycling rates of their materials and so as to reduce the impact on human health and the environment. The symbol of the crossed out garbage can appears on all the products as a reminder of the obligations regarding separated collection. Consumers must contact local authorities or resellers regarding the procedure to follow for the removal of the device.
