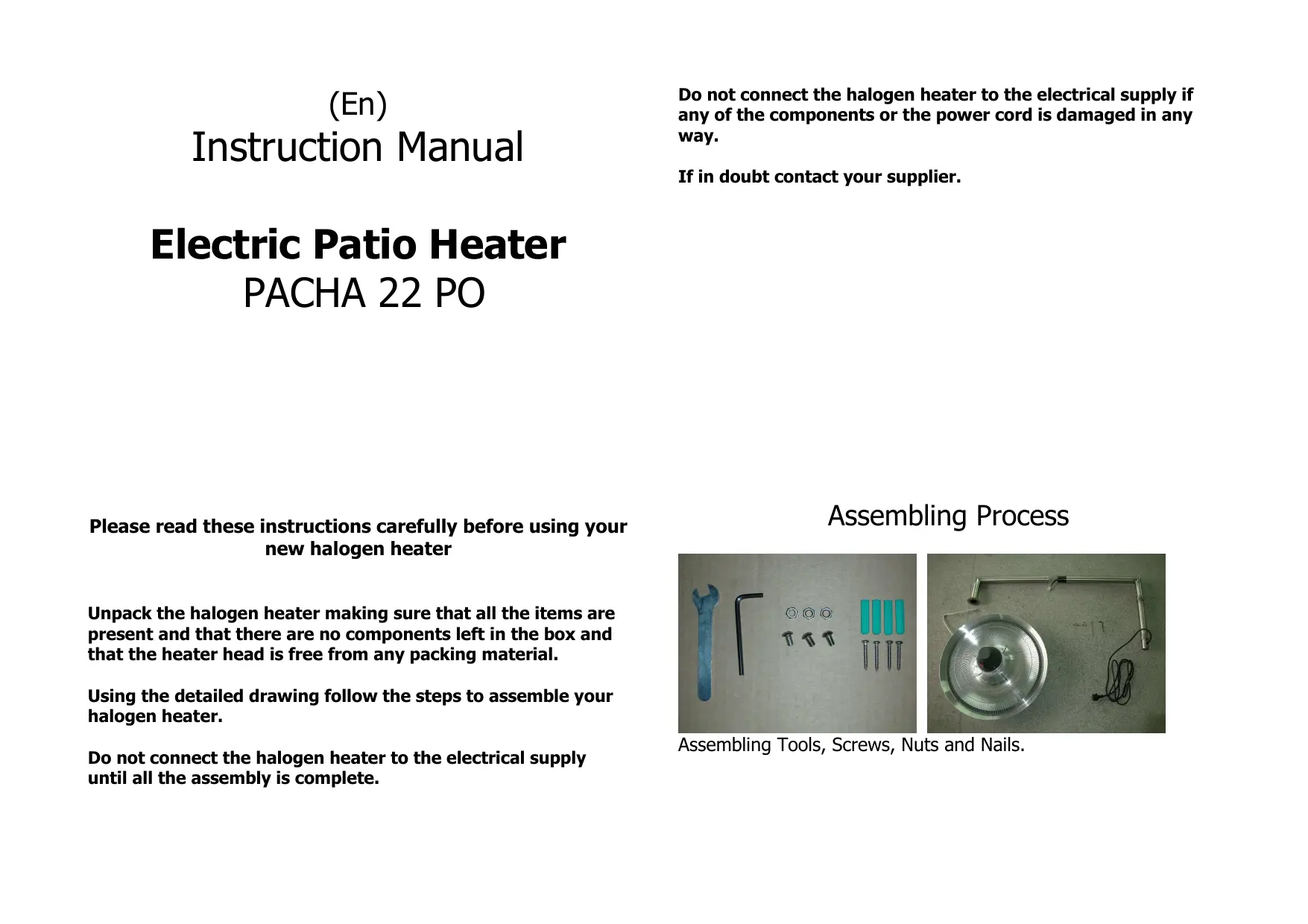

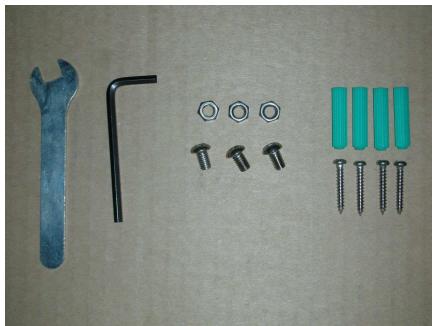

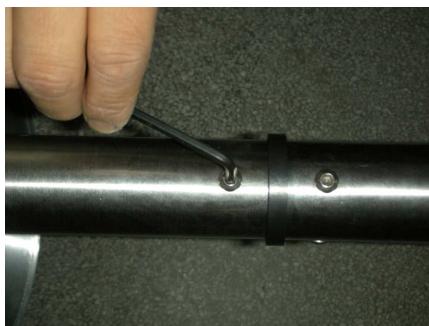

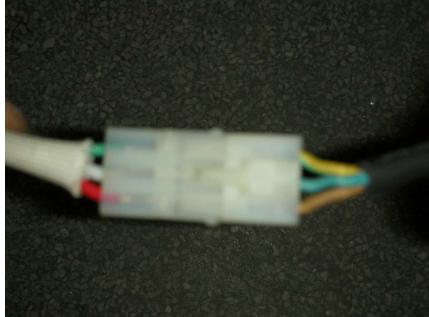

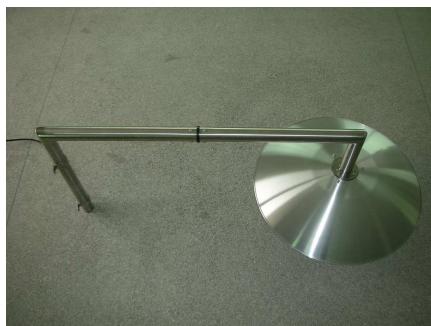

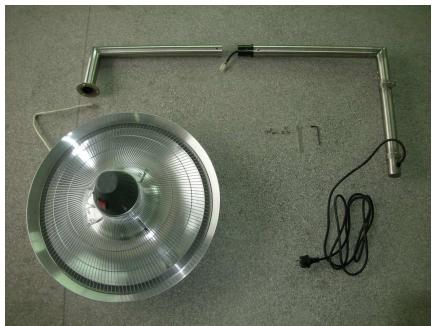

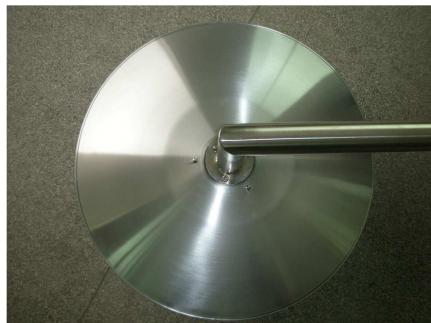

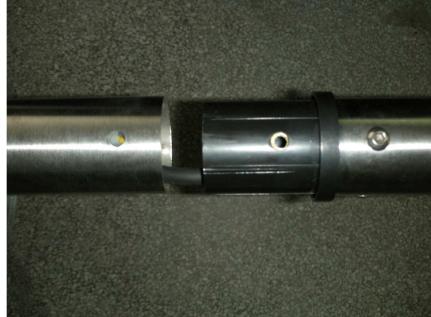

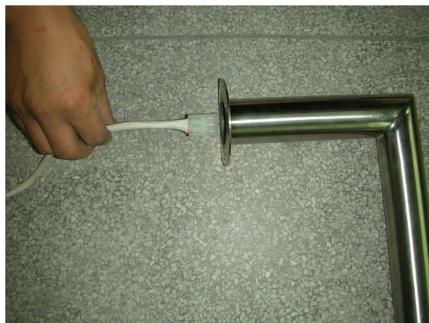

sûreté. - Alimentation : 230 V – 50 Hz - 2 100 Watts - Poids net : 7,8 kg - Classé : I DECLARATION DE CONFORMITE : La déclaration de conformité est nécessaire pour certifier que le chauffage halogène est bien conforme aux standards suivants : IEC/EN55014-1; IEC/EN 55014-2; IEC/EN61000-3-2; IEC/EN61000-3-3; IEC/ EN60335-1; IEC/EN60335-2-30 IP44D (En) Instruction Manual Do not connect the halogen heater to the electrical supply if any of the components or the power cord is damaged in any way. If in doubt contact your supplier. Electric Patio Heater PACHA 22 PO Please read these instructions carefully before using your new halogen heater Assembling Process Unpack the halogen heater making sure that all the items are present and that there are no components left in the box and that the heater head is free from any packing material. Using the detailed drawing follow the steps to assemble your halogen heater. Do not connect the halogen heater to the electrical supply until all the assembly is complete. Assembling Tools, Screws, Nuts and Nails. Step 1: Feed the power cord through the pole, and fix the pole on the heater head by using 3PCS M6 Screw Nuts. Complete! Attention: The unit must be placed with the clearance of 180cm to the floor and 30cm to the ceiling. Caution Only use the halogen heater on a firm solid vertical wall where the Mounting Bar is in contact with the wall. (Should the heater be tilted or fall over the auto cut off switch will activate) Step 2: Connect the Power Cord to the socket, and connect the pole by using 3PCS M6*10 bolts. Step 3: Fix the pole on the wall by using the 4PCS Nails.

1. Mount the heater outside or in a large open area and well away

from any obstructions such as branches or where the heater is near any objects that can be effected by heat, such as furniture, curtains or other inflammable objects (minimum distance 1 metre).

2. Do not use near bath tubs, wash areas or swimming pools.

3. Do not use in unventilated areas

4. Do not use where gas, petrol, paint or other inflammable goods

5. Do not push any items through, obstruct or cover the grill of

6. Do not position immediately above or below an electrical

7. Do not move when connected to an electrical supply and always

wait for the patio heater to cool down before storing away.

8. Do not touch the heater head when in use.

9. Do not leave turned on and unattended especially when

children and or animals are in the vicinity.

10. The indication of the different positions of switches shall be

visible from a distance of 1M.

11. The Marking concerning covering shall be visible after the

heater has been installed. It shall not be placed on the back of heaters.

12. The unit must be placed with the clearance of 180cm to the

floor and 30cm to the ceiling.

13. The unit must be correctly installed according to the

instructions. Make sure the head is at least 1.8m from the floor.

14. The unit must be securely placed on a verticall and flat wall.

15. The unit is at high temperature during operation. It keeps hot

for a period after shut down. Potential danger would occur when touching it during this period.

16. Don’t place the unit closed to curtain and/or other flammable

objects. Otherwise there will be a danger of catching fire.

17. Don’t cover the unit with anything during operation or a short

time after it’s shut down.

18. Don’t wrap the power supply cord on the unit.

19. The unit must be handled with care, and avoid vibration or

20. The unit must be securely grounded during operation.

21. If the unit gets damaged, it must be repaired by professional

22. When the power supply cord is damaged, it must be replaced

by authorized agent or other professional people to avoid danger.

23. The unit must not be positioned under a socket.

24. When assembling, keep clear from any board or flammable

25. The unit must be supervised by adults if it’s used by a child.

26. It is not safe to install the unit by a swimming pool, in a

bathroom or shower area.

27. It is not safe to use on a building site, greenhouse, barn or

stable where there’s flammable dust.

28. The head of the unit is at high temperature during operation.

Unplug the unit and wait till it cools before cleaning.

29. Don’t use this unit in place where causticity or volatile air exists,

i.e. dust, steam, gas, etc.

30. Don’t use this unit as a cloth drier or towel drier.

31. Don’t use this unit as a sauna heater.

32. Don’t use this unit as a room heater.

33. Don’t use this unit in place of animal propagating and raising.

34. Don’t immerse this unit into water for cleaning.

35. The unit should be plugged in a socket, which is easily visible

36. Two Dark points may exist on the surface of the heating

elements during the first few minutes after it is turned on. This is normal, and will not affect the performance of the unit.

37. This appliance is not intended for use by persons (including

children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

38. Children should be supervised to ensure that they do not play

with the appliance. Operation Connect the power cable to a 13 amp supply that is located in a safe, dry area.

• The switch on the heater head is used to control the three heat setting. (I) for 900w – (II) for 1200w – (I & II) for 2100W, The 0 position is off.
• Although the patio heater is shower proof, do not use when raining or in wet conditions.
• Always disconnect the power cable from the electrical supply, when the patio heater is not in use. Care and maintenance

When disconnected from the electrical supply, clean the outside

of the patio heater with a damp cloth. Never use corrosive or solvent cleaners or immerse in water. Any maintenance or repairs including replacing the halogen tube should only be carried out by a qualified electrician or by a recommended service center. Technical specification
