CHC 300D - Electric heating PUR LINE - Free user manual and instructions

Product Type	Ceramic fan heater
Brand	PUR LINE
Model	CHC 300D
Power supply	220-240 V ~ 50 Hz
Heating power	750 W (I) / 1500 W (II)
Dimensions (L x D x H)	190 x 160 x 270 mm
Net weight	1.6 kg
Main functions	2-level heating, fan-only mode without heat, adjustable thermostat
Thermostat type	Rotary mechanical thermostat
Operation indicator	Indicator light when running
Overheat protection	Manual reset heat sensor + thermal safety device
Tip-over protection	Automatic shut-off in case of tipping
Protection rating	Indoor household use only, do not use in a bathroom
Minimum safety distances	90 cm in front, 30 cm behind and on sides
Front grille material	Metal (hot during operation)
Maintenance and cleaning	Clean rear grille with a vacuum cleaner (brush) once a month; wipe housing with a soft cloth; never immerse
Spare parts	Not user-serviceable
Repairability	Contact customer service or a qualified professional
Warranty	2 years (manufacturing defect) upon presentation of proof of purchase
General information	Manual available for PDF download; customer service: 0.825.875.532

Frequently Asked Questions - CHC 300D PUR LINE

How to use the thermostat to set the temperature?

To set the temperature, first turn the thermostat to maximum (+) to heat the room. When the desired temperature is reached, gradually turn the thermostat towards minimum (-) until the unit stops. It will then automatically maintain that temperature by turning on and off.

What to do if the unit suddenly stops during operation?

This is likely due to overheating. Turn off the unit (position 0), unplug it and wait 5 to 10 minutes for it to cool down. Plug it back in and restart it. If the problem persists, contact customer service.

Can I use the unit as a simple fan without heating?

Yes, set the switch to the fan position (ventilation only). The heating will not activate and the unit will work as a fan.

How to clean the unit?

Always unplug the unit before cleaning. Use the vacuum cleaner brush on the rear grille to remove dust. For the housing, wipe with a soft, dry cloth. Never use alcohol or solvents and never immerse the unit.

The unit emits a strange odor during first use, is this normal?

Yes, it's normal. A slight odor may be emitted during first use. It disappears quickly after a few minutes of operation.

What safety distance should be maintained around the unit?

To avoid fire risk, keep a distance of at least 90 cm in front of the unit and at least 30 cm behind and on sides from combustible materials (furniture, curtains, bedding, etc.).

Can I use an extension cord with this heater?

It is not recommended to use an extension cord. If unavoidable, use an extension cord with a minimum cross-section of 1.0 mm² per conductor, with a rated power of at least 1890 watts, and do not plug other devices into the same extension cord.

The unit has fallen, what should I do?

The unit is equipped with a tip-over safety feature: it stops automatically. Unplug it, place it on a stable, hard surface, then plug it back in and turn it on.

Can I use it in a bathroom?

No, the unit is not designed for outdoor use or in damp rooms like a bathroom. It could fall into water or be exposed to moisture, posing a risk of electrocution.

What is the warranty period and how to activate it?

The warranty is 2 years from the date of purchase for any manufacturing defect. To activate it, return or ship the device to your dealer with postage paid, along with the proof of purchase (invoice) indicating the date.

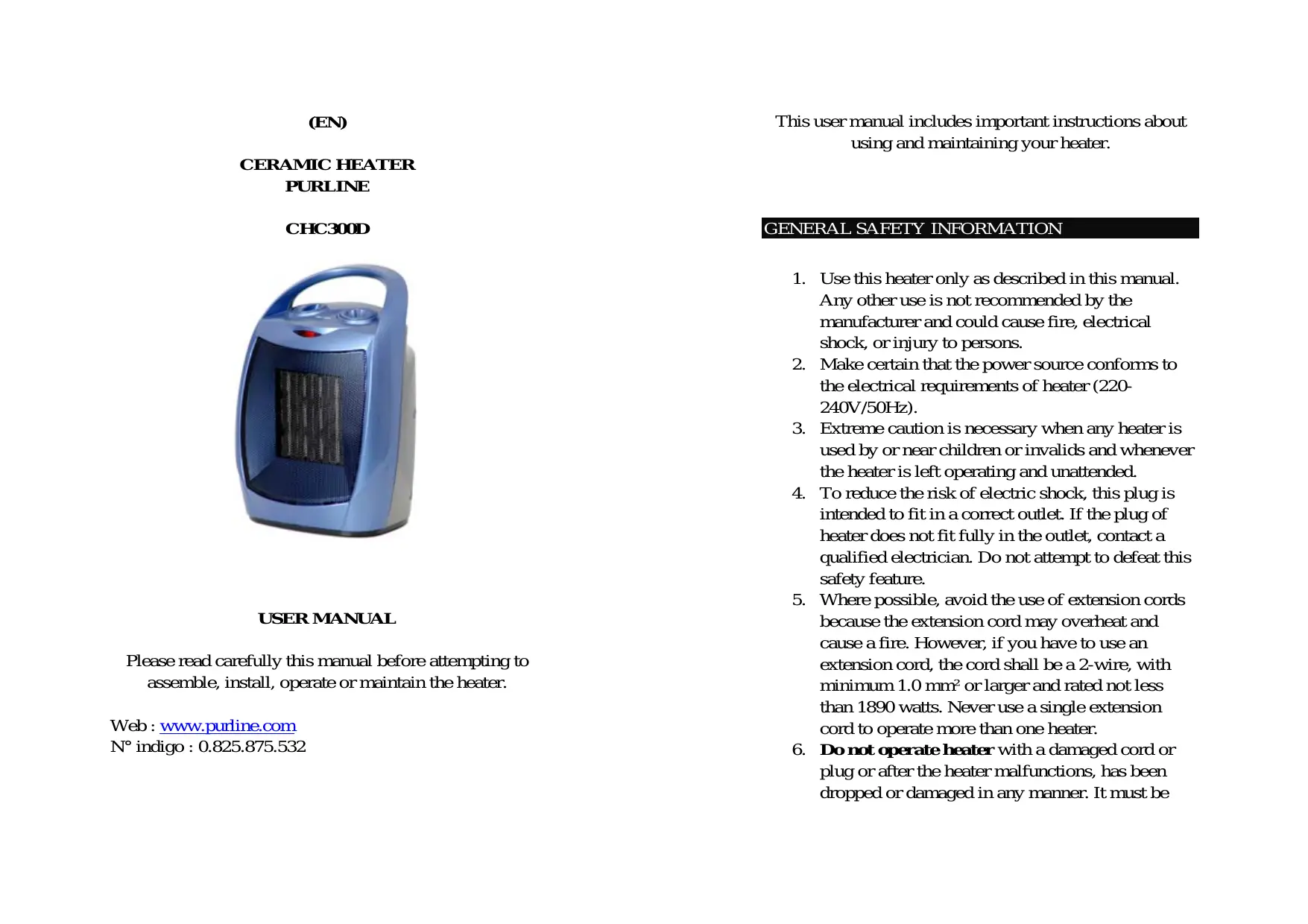

USER MANUAL CHC 300D PUR LINE

Blue electric heating pot with visible cooling panel and control handle (no text or symbols)

MANUEL D'UTILISATION

Blue electric heating pot with visible cooling panel and control handle (no text or symbols)

USER MANUAL

Please read carefully this manual before attempting to assemble, install, operate or maintain the heater.

Web : www.purline.com

This user manual includes important instructions about using and maintaining your heater.

GENERAL SAFETY INFORMATION

1. Use this heater only as described in this manual. Any other use is not recommended by the manufacturer and could cause fire, electrical shock, or injury to persons.
2. Make certain that the power source conforms to the electrical requirements of heater (220-240V/50Hz).
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
4. To reduce the risk of electric shock, this plug is intended to fit in a correct outlet. If the plug of heater does not fit fully in the outlet, contact a qualified electrician. Do not attempt to defeat this safety feature.
5. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a fire. However, if you have to use an extension cord, the cord shall be a 2-wire, with minimum 1.0 mm^2 or larger and rated not less than 1890 watts. Never use a single extension cord to operate more than one heater.
6. Do not operate heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. It must be

changed by a qualified electrician or the manufacturer to avoid any danger

1. Always close the power switch and unplug power cord before servicing or moving the heater. Always unplug heater when not in use.

WARNING : DO NOT DEPEND ON THE ON/OFF BUTTON OR SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE HEATER. ALWAYS UNPLUG THE POWER CORD.

1. Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire or damage the heater.
2. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not place heater on soft surfaces, like a bed, where openings may become blocked.
3. Always place the heater on a stable, flat, level surface when operating, to avoid the chance of the heater overturning. Locate the power cord so the heater or other objects are not resting on it. Do not run power cord under carpeting. Do not cover power cord with throws rugs, runners, or the like. Arrange power cord away from room traffic and where it will not be tripped over.
4. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use handle when moving this heater. Keep

combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 0.9m from the front of the heater and keep them at least 0.3m from the sides and rear.

1. A heater has hot and arcing or sparking parts inside. It must not be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmosphere.
2. This heater is not intended for use in wet or damp locations. Never locate a heater where it may fall into a bathtub or other water container.
3. This heater is intended for general use only.
4. Do not use the heater outdoors.

WARNING : REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.

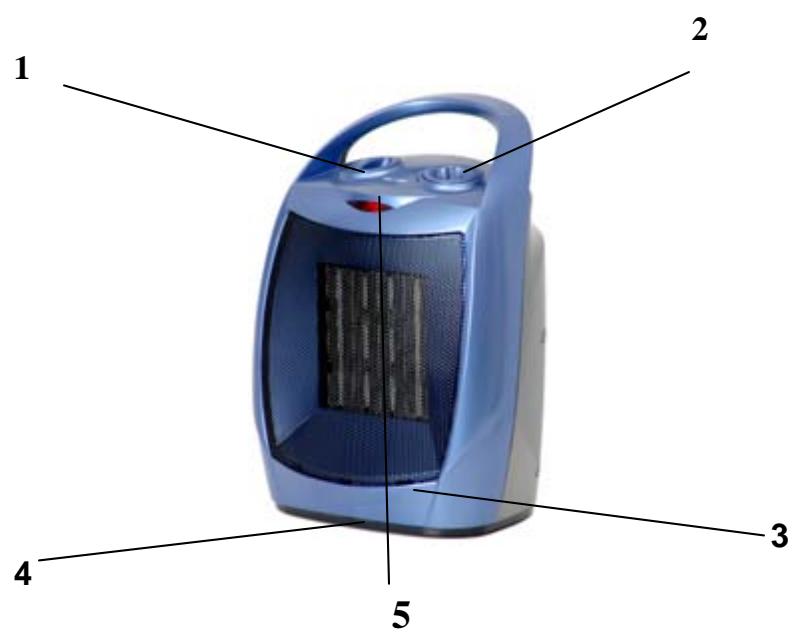

DESCRIPTION OF THE HEATER

When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. The smell will subside.

1. Thermostat.
2. Power knob.
3. Metal mesh.

4. Tip over switch.

5. Power light.

1 2 3 4 5

Power knob :

0---- STOP

---- Fan only

I---- 750 W (low speed)

II----1500 W (high speed)

Thermostat knob :

Gauche (-) : STOP

1. Carefully remove your heater from the box and bag.
2. Make sure that the heater is in the OFF (0) position before plugging the heater into a outlet.
3. Place the heater on a firm, level surface.
4. The power light will light up when initially plugging the heater into a outlet.
5. For heater operation, set the Thermostat knob to the maximum setting (+).
6. Set Power knob to the desired heat setting. Low heat (750W) is represented by the I and High heat (1500W) by the II.
7. For fan-only operation, without any heat output, turn Power knob to the fan setting represented by 🧿.
8. The Power light will remain lit during operation.
9. To disconnect heater, turn Power knob to the OFF (0) operation. Then remove the plug from the outlet.

WARNING : METAL MESH IS HOT WHEN HEATER IS IN OPERATION.

Thermostat instruction :

1. Before setting the thermostat, allow heater to operate and warm up the room. Set thermostat knob to the maximum setting (+) to start the heater.
2. When the desired temperature comfort level is reached, lower the thermostat setting until the heater stops operating. This is done by moving the thermostat knob towards the minimum setting (-).
3. The heater will now automatically maintain the pre-set temperature level by cycling the heater ON and OFF.
4. It is normal for the heater to cycle ON and OFF as it maintains the present temperature. To prevent the unit from cycling, you need to adjust the thermostat setting.

OVERHEATING SAFETY :

1. A thermal overload protector is built into the heater to prevent overheating.
2. When an overheat temperature is reached, the heater will be automatically shut off. It can only resume operation when the user resets the unit (see reset instruction)

TO RESET THE HEATER :

1. Turn the power knob to the OFF (0) position.
2. Unplug the heater and wait 5-10 minutes for the heater to cool down.
3. After the heater has cool down, plug the heater into the outlet and operate normally.

TIP OVER SWITCH :

Your heater is designed to automatically shut off when tipped forward or backward.

When returned to normal upright position, heat will automatically turn on again.

MAINTENANCE

WARNING : ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.

DO NOT IMMERSE HEATER IN WATER.

CLEANING :

Clean the heater at least once a month, more often if dirty. Clean the heater grill with the vacuum brush attachment on your vacuum cleaner. This will remove lint and dirt from the inside of the heater. Do not attempt to take apart the heater.

Do not remove grill guard or allow heater to be operated without grill guard in place.

Clean the body of the heater with a soft cloth (NEVER USE ALCOHOL OR SOLVENTS).

STORAGE :

Store the heater with these instructions in its original carton in a cool, dry place.

SPECIFICATIONS

Model	CHC300D
Type	NP-300D
Voltage	220Vac-240Vac
Frequency	50Hz
Output Power (W)	750W-1500W
Dimensions (mm)	190 x 160 x 270
Net Weight	1.6 Kg

warranty :

The warranty is valid for 2 years for a « manufacturing fault ».

To benefit from the warranty, please return the device to your dealer with POSTAGE PAID along with the document of purchase proof specifying the date of purchase.

Removal of used domestic appliances

European directive 2002/96/EC on the Electric and Electronic Equipment Waste requires that domestic appliances not be thrown out together with the rest of municipal waste. Used devices must be collected separately in order to optimize recuperation and recycling rates of the materials that make them up and so reduce the impact on human health and the environment. The symbol of the crossed out garbage can appears on all the products to remind the obligations regarding separated collection.

Consumers must contact local authorities or resellers regarding the procedure to follow for the device's removal.

(SP)

CALEFACCION CERAMICA PURLINE

CHC300D

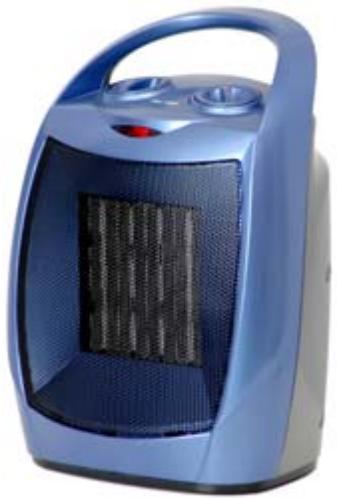

Blue electric heating power heater with visible cooling panel and control handle (no text or symbols)
