DN-C615 - Professional CD player MARANTZ - Free user manual and instructions

Product type	Professional CD player
Audio channel	2 stereo channels
Quantization	16-bit linear
Sampling frequency	44.1 kHz
Oversampling rate	8 times
Frequency response	20 – 20,000 Hz
Signal-to-noise ratio	107 dB
Channel separation	98 dB
Harmonic distortion	0.007 %
Analog output	RCA connector, level 1.8 V (0 dB), load impedance ≥ 10 kΩ
Digital output	RCA connector, SPDIF or IEC-958 Type II
Headphone output	Stereo mini-jack, 410 mV, impedance 33 Ω
Compatible discs	CD audio, CD-R/RW, CD MP3 (12 cm and 8 cm)
Playback functions	99-track programming, random, repeat (single/all), variable speed ±12%, cascade playback, external sync, auto start
Display	CD Text, ID3 Tag, folder/file, elapsed/remaining time
Mechanism lifespan	1000 hours (continuous playback)
Power supply	120 V or 230 V AC ±10%, 50/60 Hz (depending on model)
Power consumption	13 W
Dimensions (W × H × D)	482 × 88 × 280 mm
Weight	4.7 kg
Mounting	19-inch rack (2U)
Maintenance	Clean with a soft, dry cloth; do not use liquids or chemicals
Safety	Unplug before cleaning; do not insert foreign objects; use only specified power source
Spare parts and repairability	Contact authorized service center for repairs; no spare parts available to the public

Frequently Asked Questions - DN-C615 MARANTZ

How to clear a track program?

In stop mode, press the PROG./DIRECT button to cancel the program. The program is also cleared by opening the disc tray with the OPEN/CLOSE button.

What to do if the display shows 'No Disc'?

Check that a disc is inserted correctly, printed side up. Clean the disc with a soft cloth. If the problem persists, the disc may be unreadable or damaged.

Can I play CD-R or CD-RW?

Yes, the DN-C615 is compatible with CD-R and CD-RW in audio or MP3 format. Make sure the discs are finalized and burned in ISO9660 format.

How to use the cascade playback function?

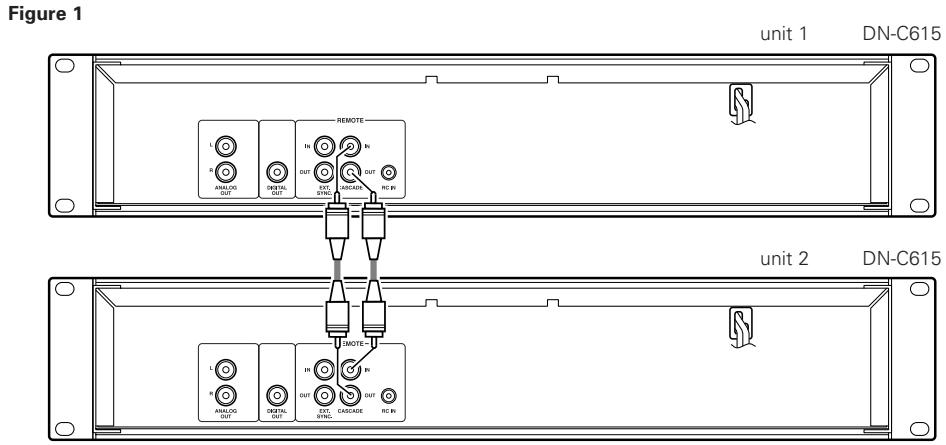

Connect multiple DN-C615 via the CASCADE IN/OUT jacks with an RCA cable. Set the cascade mode to Cas=ON in the preset functions. Playback continues automatically from one unit to the next.

How to adjust the playback speed?

Use the + and - speed control (PITCH) buttons to adjust the speed by ±12%. The display shows the percentage of variation.

How to program tracks in a specific order?

In stop mode, press PROG./DIRECT (the PROG indicator lights up). Use the numeric keys and +10 to enter the track numbers in the desired order. Press PLAY to start programmed playback.

How to play MP3 files?

Insert a CD-R/RW containing MP3 files. Use the FOLDER button to select a folder, then TITLE to choose a file. Press PLAY to start playback.

What does 'TOC Error' mean?

This message indicates that the disc's table of contents was not read correctly. The disc may be dirty, scratched, or improperly inserted. Clean the disc or try another disc.

How to clean the player?

Use a soft, dry cloth to wipe the exterior. For the disc, wipe from the center outward. Never use water, benzene, or chemicals.

Can I use special shape CDs (heart, octagonal)?

No, only use standard round CDs of 12 cm or 8 cm. Special shape discs may damage the player.

USER MANUAL DN-C615 MARANTZ

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

1. Handle the power supply cord carefully

Do not damage or deform the power supply cord. If it is damaged or deformed, it may cause electric shock or malfunction when used. When removing from wall outlet, be sure to remove by holding the plug attachment and not by pulling the cord.

2. Do not open the rear cover

In order to prevent electric shock, do not open the top cover.

If problems occur, contact your DENON DEALER.

3. Do not place anything inside

Do not place metal objects or spill liquid inside the system.

Electric shock or malfunction may result.

Please, record and retain the Model name and serial number of your set shown on the rating label.

Model No. DN-C615

Serial No.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

NOTE:

This CD/MP3 PLAYER uses the semiconductor laser. To allow you to enjoy music at a stable operation, it is recommended to use this in a room of 5^ (41^) 35^ (95^)

LABELS (for U.S.A. model only)

CERTIFICATION

THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR REFOR-MANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

1. Read Instructions - All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. HeedWarnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
11. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12. Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

NEC-NATIONAL ELECTRICAL CODE

1. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

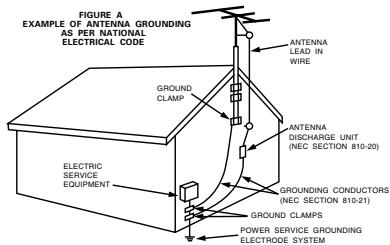

2. Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.
3. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
4. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
5. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
   a) When the power-supply cord or plug is damaged,
   b) If liquid has been spilled, or objects have fallen into the product,
   c) If the product has been exposed to rain or water,
   d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,
   e) If the product has been dropped or damaged in any way, and
   f) When the product exhibits a distinct change in performance – this indicates a need for service.
9. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
10. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
11. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
12. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

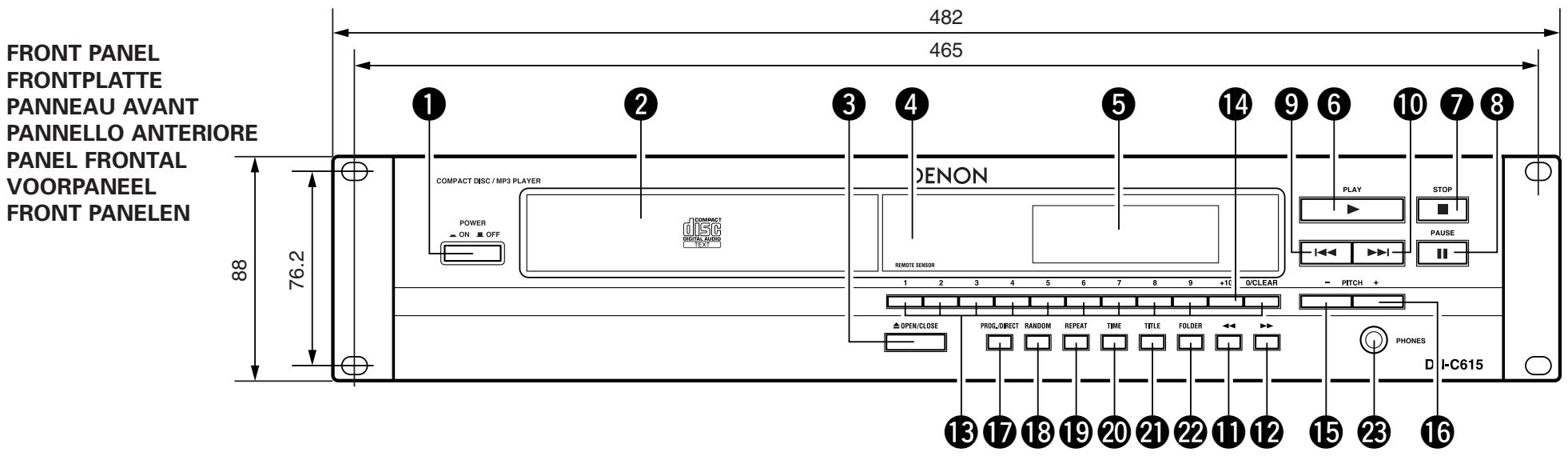

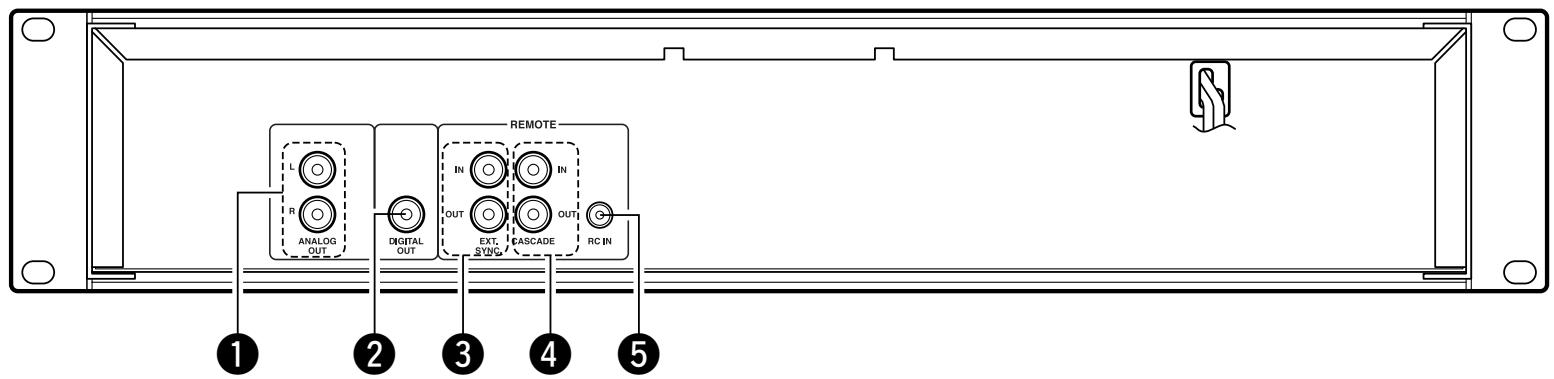

REAR PANEL

RUCKWAND

PANNEAU ARRIERE

IL PANNELLO POSTERIORE

PANEL TRASERO

ACHTERPANEL

BAKSIDAN

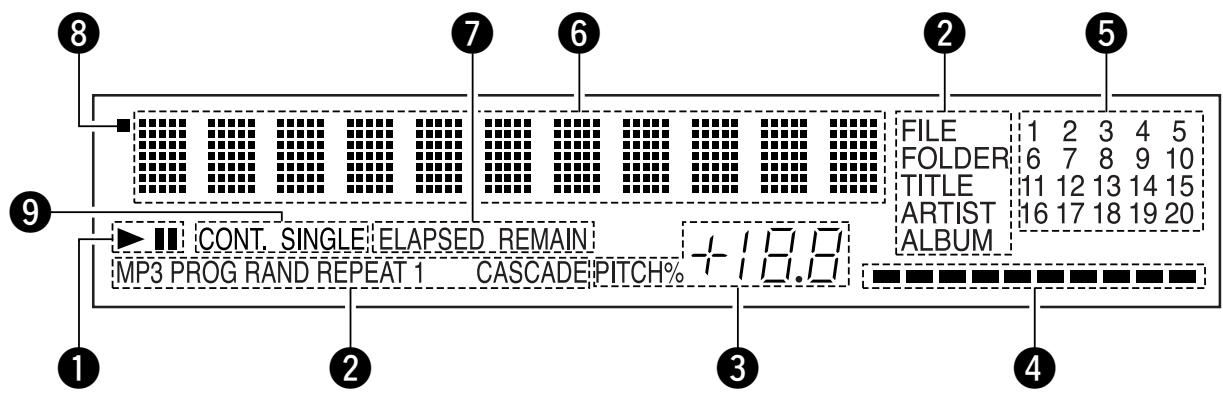

DISPLAY

DISPLAY

AFFICHAGE

DISPLAY

VISUALIZADOR

DISPLAY

DISPLAYEN

NOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L'UTILISATION / NOTE SULL'USO NOTAS SOBRE EL USO / ALVORENS TE GEBRIKEN / OBSERVERA

• Avoid high temperatures.
  Allow for sufficient heat dispersion when installed on a rack.
• Vermeiden Die hohe Temperatur.
  Beachten Sie, daß eine ausreichend Luftzirkulung gewährleistet wird, wenn das Gerat auf ein Regal gestellt wird.
• Eviter des températures élevées Tenir compte d'une dispersion de chaleur suffisante lors de l'installation sur une étagère.
  Evitate di esporre l'unità a temperature alte. Assicurative他们会 si sua un'adeguata dispersione del calorie quando installate l'unità in un mobile per componenti audio.
• Evite altas temperativas Permitte la suficiente dispersion del calor, cuando está instalado en la consola.
  Vermijd hoge temperaturen.
  Zorg voor een degelijk hitteafvoer indien het apparaat op een rek worden geplaatst.
• Undvik hoga temperaturer.
  Se till att det finns möjighet till god värmeaeldning vid montering i ett rack.

• Handle the power cord carefully.
• Hold the plug when unplugging to
• Gehen Sie vorsichtig mit dem Netzkabel um. Halten Sie das Kabel am Stecker, wenn Sie den Stecker Herausziehen.
• Manipulier le cordon d'alimentation avec précaution.
  Tenir la prise lors du débranchement du cordon.
• Manneggiate il filo di alimentazione con cura. Agite per la spina quando scollegate il cavo alla presa.
• Maneje el cordón de energia con cuidado.
  Sostenga el enchufe cuando desconecte el cordón de energia.
• Hanteer het netsnoor voorzichtig.
  Houd het sneer bij de stekerst vast wanner deze要去 worden aan- of losekoppeld.
• Hantera năkabeln vamsart.
  Hälä i kabel nār den koplas frán el-uttaget.

• Keep the set free from moisture, water, and dust.
• Halten Si des Gerat von Feuchigkeit, Wasser und Staub fern.
• Protégé l'apparil contre l'humidité, l'eau et lapousseie.
• Tenete l'unità lontana dall'umidità, dall'acqua e dall'polvere.
• Mantenga el equipo libre de humedad, agua y polvo.
• Laat geen vochtigheid, water of stof in het apparaat binnendringen.
• Utsattinte apparatenforfukt,vatten och damm.

• Unplug the power cord when not using the set for long periods of time.
• Wenn das Gerät eine längerere Zeit nicht verwendet werden soll, trennen Sie das Netzkabel vom Netzstecker.
• Débrancher le cordon d'alimentation lorsqu'ell'appareil n'est pas utilisé pendant delongues périodes.
• Disinestate il filo di alimentazione quando avee l'intenzione di non usare il filo di alimentazione per un lungo periodo di tempo.
• Desconnecte el cordón de energia cuando no utilise el equipo por是多么 tiempo.
• Neem altid het netsoer uit het stopkontakt wannier het apparat gedurende een lange periode niert worden gebruikt.
• Koppla ur natakabel om apparaten intekommenatter anvandas i lang tid.

• (For sets with ventilation holes)

• Do not obstruct the ventilation holes.

• Die Belülfungsöffnungen dürfen nicht verdeckt werden.
• Ne pas obstruer les trouss d'airation.
  Non coprite i fori di ventilazione
  No obstruya los orificios de ventilacion.
• De ventilatieopeningen mogen Niet worden beblokkekerd.
  Tapp inte till ventilationsöppningarna.

• Do not let foreign objects in the set.
  Keine fremden Gegenstände in das Gerätkommen lassen.
• Ne pas laisser des objets étrangers dans l'appareil.
  E' importante che NSSUN oggetto é inserto all'interno dell'unità.
• No deje objetos extraños dentro del equipo.
• Laat geen vreemde voorwerpen in dit apparaat vaallen.
• Se till att fremmande freml ante tränger in apparaten.

• Do not let insecticides, benzene, and thinner come in contact with the set.
• Lassen Sie das Gerät nicht mit Insektiziden, Benzor oder Verdunnungsmittel in Berührung kommt.
• NeASHINGTON:
  • Le benzene est en contact des insecticides, du benzene et un diluant avec l'appareil.
• Assicuratevchi che l'unità non venga in contatto con insetticidi, benzo e solventi.
• No permita el contacto de insecticidas, gasolina y diluyentes con el equipo.
• Laat geen insektenverdelgende middelen, benzine of verfvedunner met dit apparaat inCONTACT komen.
• Se till attinte insetktsmedel pa spraybruk, bensen och thinnerkommen i kontakt med apparatens hölje.

• Never disassemble or modify the set in any way.
  Versuchen Sie niemals das Gerät aseinander zunehmen oder auf jegliche Art zu verändern.
• Ne jamais démonter ou modifier l'appareil d'une manière ou d'une autre.
  Non smontate mai, nè modifie l'unità in nessun modo.
• Nunca desarme o modifie el equipo de ninguna manera.
• Nooit dit staat demontenter of op andere wijze modifierieren.
• Ta inte isär apparenten och förstk inte bygga om den.

CAUTION

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Please be care the environmental aspects of battery disposal.
• The apparatus shall not be exposed to dripping or splashing for use.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

- DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product, to which this declaration relates, is in conformity with the following standards:

EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3.

Following the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC Directive.

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KCLASS 1 LASERAPPARAT

"CLASS 1 LASER PRODUCT"

ADVARSEL:

USYNLIG LASERSTRALING VED ABNING, NAR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGA UDSAETTELSE FOR STRALING.

VAROITUS!

LAITTEEN KAYTTÄMINEN MUULLA KUIN TASSÄ
KAYTTOOHJESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KAYTTÄJÄN TURVALLISUUSLUOKANY
YLITTVÄLLE NAKYMÄMTTÖMÄLLE LASERSÄILEYLLE.

WARNING-

OM APPARATEN ANVÄNS PÄ ANNAT SÄTT ÄN I DENNA BRUKSANVISING SPECICERATS, KAN ANVÄNDAREN UTSÄTTAS FOR OSYNLIG LASERSTRÄLNING SOM OVERSKRIDER GRÄNSEN FÜR LASERKLASS 1.

• Use compact discs that include the

CD's with special shapes (heart-shaped CD's, octagonal CD's etc.) cannot be played on this set.

Attempting to do so may damage the set. Do not use such CD's.

• This unit can display text information on the display when playing CD text discs which contain text information in English category.

The CD text disc includes the mark shown at the right.

NOTE:

• This unit can provide a text display of the following types of characters. Other types of characters will result in " " being displayed.

• Alphabet

ABCDEEFGHIJKLMNOPORSTUULNYAZ abcdefghjklmnoorspstuwwzxy

Numbers
0123456789
- Symbols

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right. \text {中} + + - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - 1 _ {n} - $$

[ ]-SPACE

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left. \text {井} ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {\prime} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} = 0 ^ {2} + 1) \right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$

?[]

(FGHIJKLMNOPQRSTUVWXYZ)

fghijklmnoparstuvwxyz

• Númos

0123456789

• Simbolos

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left. \text {井 井} ^ {\prime} = 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, \right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$

?[]

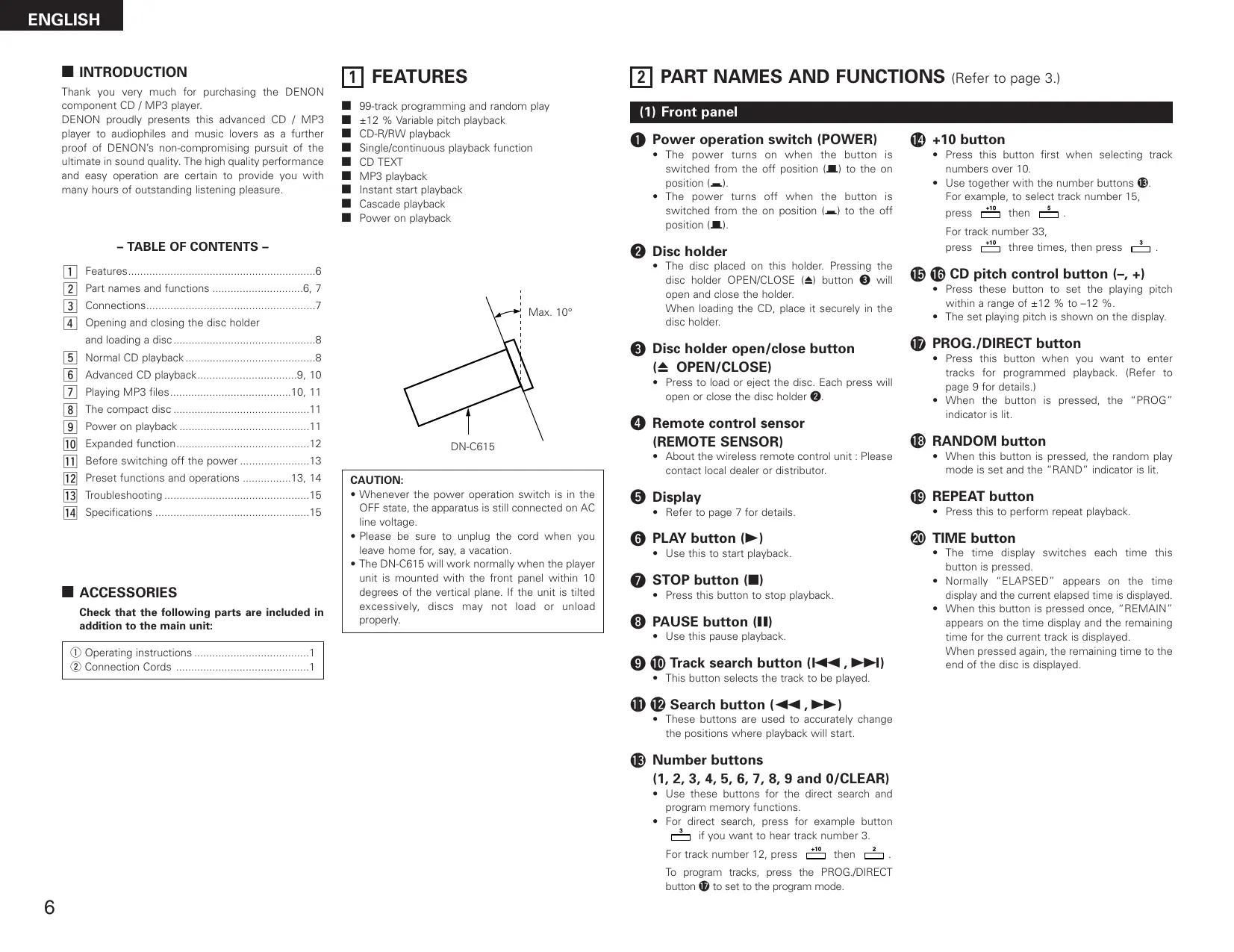

Thank you very much for purchasing the DENON component CD / MP3 player.

DENON proudly presents this advanced CD / MP3 player to audiophiles and music lovers as a further proof of DENON's non-compromising pursuit of the ultimate in sound quality. The high quality performance and easy operation are certain to provide you with many hours of outstanding listening pleasure.

TABLE OF CONTENTS

1 Features. 6
Part names and functions 6,7
3 Connections. 7
4 Opening and closing the disc holder and loading a disc. 8
5 Normal CD playback. 8
6 Advanced CD playback. 9, 10
7 Playing MP3 files. 10, 11
8 The compact disc 11
9 Power on playback. 11
10 Expanded function. 12
[11] Before switching off the power 13
12 Preset functions and operations 13, 14
13 Troubleshooting 15
14 Specifications 15

■ ACCESSORIES

Check that the following parts are included in addition to the main unit:

① Operating instructions. 1
② Connection Cords 1

1 FEATURES

99-track programming and random play
± 12% Variable pitch playback
CD-R/RW playback
Single/continuous playback function
CD TEXT
MP3 playback
Instant start playback
Cascade playback
Power on playback

DN-C615

CAUTION:

• Whenever the power operation switch is in the OFF state, the apparatus is still connected on AC line voltage.
• Please be sure to unplug the cord when you leave home for, say, a vacation.
• The DN-C615 will work normally when the player unit is mounted with the front panel within 10 degrees of the vertical plane. If the unit is tilted excessively, discs may not load or unload properly.

2 PART NAMES AND FUNCTIONS (Refer to page 3.)

(1) Front panel

Power operation switch (POWER)

• The power turns on when the button is switched from the off position (■) to the on position (■).
• The power turns off when the button is switched from the on position (■) to the off position (■).

2 Disc holder

• The disc placed on this holder. Pressing the disc holder OPEN/CLOSE (▲) button ③ will open and close the holder. When loading the CD, place it securely in the disc holder.

③ Disc holder open/close button (▲ OPEN/CLOSE)

• Press to load or eject the disc. Each press will open or close the disc holder ②.

Remote control sensor (REMOTE SENSOR)

• About the wireless remote control unit : Please contact local dealer or distributor.

⑤ Display

Refer to page 7 for details.

⑥ PLAY button (▶)

• Use this to start playback.

STOP button

• Press this button to stop playback.

PAUSE button (II)

• Use this pause playback.

9 10 Track search button (I<, >I)

• This button selects the track to be played.

11 12 Search button (▲▲, ▲▶)

These buttons are used to accurately change the positions where playback will start.

13 Number buttons

(1,2,3,4,5,6,7,8,9 and 0/CLEAR)

• Use these buttons for the direct search and program memory functions.
• For direct search, press for example button 3 if you want to hear track number 3.

For track number 12, press +10 then 2 .

To program tracks, press the PROG./DIRECT button to set to the program mode.

14 +10 button

• Press this button first when selecting track numbers over 10.
• Use together with the number buttons 13. For example, to select track number 15, press +10 then 5 .

For track number 33,

press +10 three times, then press 3

15 16 CD pitch control button (-, +)

• Press these button to set the playing pitch within a range of ± 12% to -12% .
• The set playing pitch is shown on the display.

17 PROG./DIRECT button

• Press this button when you want to enter tracks for programmed playback. (Refer to page 9 for details.)
• When the button is pressed, the "PROG" indicator is lit.

18 RANDOM button

• When this button is pressed, the random play mode is set and the "RAND" indicator is lit.

19 REPEAT button

• Press this to perform repeat playback.

20 TIME button

• The time display switches each time this button is pressed.
• Normally "ELAPSED" appears on the time display and the current elapsed time is displayed.
• When this button is pressed once, "REMAIN" appears on the time display and the remaining time for the current track is displayed.

When pressed again, the remaining time to the end of the disc is displayed.

2 TITLE button

• When the button is pressed, the text information (Disc title, track title, disc artist or track artists) is displayed.
• When the button is pressed while in the stop mode with a disc containing an MP3 ID3-Tag loaded, the file name is displayed. When pressed during playback, the display switches as shown below.

2 FOLDER button

• When disc containing MP3 format files is loaded, in the stop mode press this button then the folder select mode is possible.

Headphones jack

• For private listening, you can connect your headphones to this jack.

(2) Rear panel

1 ANALOG OUT jacks

These are unbalanced outputs using RCA type
jacks. The CD's playback signals are output from
these jacks.

DIGITAL OUT jack

• This is an coaxial output using an RCA type jack.
• Signal format: SPDIF or IEC-958 Type II

External synchronized control jacks (EXT. SYNC.)

• Connect these for synchronized recording.

4 Cascade control jacks (CASCADE)

• Connect these for continuous operation on multiple units.
• When the cascade mode is set to "ON", the start signal is output from this output jack once operation is finished. (Preset function)

RC IN control jack

• This is a stereo mini jack for wired remote control.

(3) Display

CD transport indicator

Mode display portion (CD)

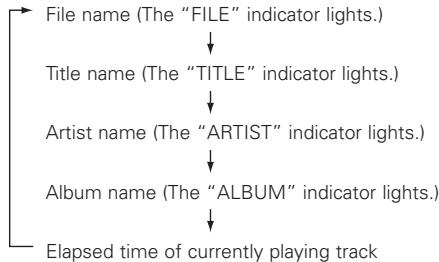

FILE :This lights when the file name of MP3 is displayed.
FOLDER :This lights in the folder selection mode.
TITLE :This lights when the title in the MP3 ID3-Tag or CD Text is displayed.
MP3 :This lights when a disc containing MP3 format file is loaded.
PROG :This lights in the program mode.
RAND :This lights in the random mode.
REPEAT, 1 :This lights in the repeat mode.
CASCADE :This lights in the cascade mode. (Preset function)
ALBUM :This lights when the album name in the MP3 ID3-Tag is displayed.
ARTIST :This lights when the artist name in the MP3 ID3-Tag is displayed.

CD pitch display

4 Playing position display

• This indicates the current position within the track's totalplaying time.
• In the MP3 play mode, it may be unable to display correctly.

20 tracks music calender

• In the single track play mode, only the specified track lights.
• In the continuous play mode, everything from the specified track to the last track lights.
• Track numbers are displayed up to track 20.
  Track 21 and on are not displayed.
• MP3 is not displayed.

6 Multiple display

• This displays Track No. of CD, playing time of CD, various operational information, text message, etc.

Time mode indicator

ELAPSED: This lights when the elapsed time is displayed.

REMAIN : This lights when the remaining time is displayed.

Infrared remote control indicator

9 Play mode indicators

• "SINGLE" lights when in the single track play mode.
• "CONT." lights when in the continuous play mode.

3 CONNECTIONS

Leave your entire system (including the DN-C615) turned off until all connections between the DN-C615 and other components have been completed.

Connection precautions

• Before proceeding with connections or disconnections of cables and power cords, be sure to turn all system components off.
• Ensure that all cables are connected properly to the L (left) and R (right) jacks.
• Insert plugs fully into the terminals.
• Connect the CD output jacks to the amplifier CD or AUX input jacks.

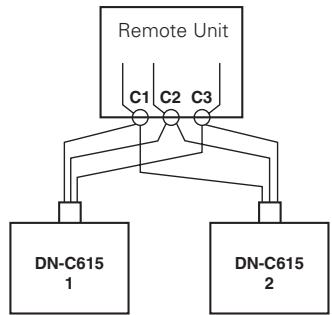

Remote control connections (RC IN)

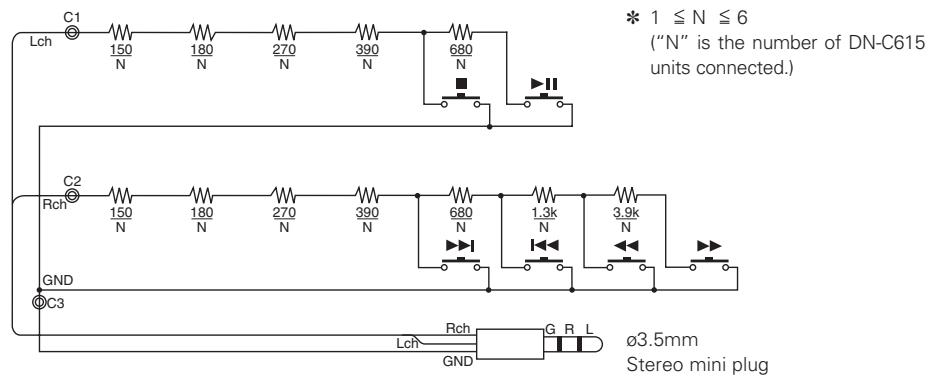

• For wired remote control, use the circuit shown on the diagram below.
• Design the circuit so that the wire resistance is 0.5 /ohms or less.

• Up to six units can be controlled simultaneously with one remote control unit.
• Wire the signal and ground lines as shown on the diagram below and connect at the remote control inputs (C1, C2 and C3).
• Design the circuit so that the resistance of the individual wires is 0.5 /ohms or less.

Connecting two DN-C615 units (N = 2)

Installation precautions

• If the DN-C615 is placed near an amplifier, tuner or other components, noise (induced hum) or beat interference may result (especially during AM or FM reception).

If this occurs, separate the DN-C615 from other components or reorient its position.

NOTE:

• Use this unit in a horizontal orientation.

When the unit is used with the front panel facing upward (and the unit us in a vertical orientation) or when the front panel is on an incline, the unit will not operate properly.

4 OPENING AND CLOSING THE DISC HOLDER AND LOADING A DISC

Opening and closing the disc holder

This operation only works while the power is on.

1. Press the power operation switch 1 to turn on the power.
2. Press the OPEN/CLOSE button 3

How to load a disc

• Make sure the disc holder is completely open.
• Hold the disc by the edges and place it on the disc tray. (Do not touch the signal surface, i.e., the glossy side.)
• When using 12cm diameter discs, make sure the outer edge matches the tray guide circumference and when using CD signals (8 cm. diameter) match the outer edge with the inner tray guide circumference.
• Press the OPEN/CLOSE button ③ to close the disc holder ②.
• When the disc holder is open and a disc is loaded, you may also press the PLAY (▶) button ⑥ to close the disc holder. (If the PLAY (▶) button is pressed, playback will start immediately upon the disc contents having been read.)

CAUTIONS:

• If you finger should get caught in the disc holder when it closes, press the OPEN/CLOSE button.
• Do not place any foreign objects on the discard tray, and do not place more than one disc on the tray at a time. Otherwise malfunction may occur.
• Do not push in the disc tray manually when the power is off as this may cause malfunction and damage the CD player.
• This player can play CD-R/RW discs, but only if they are finalized. Note however that depending on the recording quality, the player may not be able to play some finalized CD-R/RW discs.

■ Messages

Messages may appear on the display while using the DN-C615. The meanings of these messages are explained below.

Message	Meaning
No Disc	No disc inserted, disc unreadable or disc inserted upside down.
TOC Error	The disc information has not been read properly.
Invalid CD	The disc is a CD-ROM that does not contain MP3 files.
Tray Error	The disc holder could not be opened or closed properly.

5 NORMAL CD PLAYBACK

(1) Starting playback

1. Press the power operation switch ① to turn on the power.
2. Load the disc you want to play.

3. Make the presettings according to the usage purpose. (See page 13.)

4. Select the play finish mode. (Preset functions)

Finish stop :

The stop mode (the servo functions turn off) is set when playback finishes.

Finish next :

The standby mode is set at the beginning of the next track when playback is finished.
* After the final track is played, the standby mode is set at the beginning of the first track.

Finish recue :

When playback is finished, the standby mode is set at the position at which playback was started.
- To standby at the point where the sound begins. (Preset functions)

Set the "C Det" level.

When a track is selected, the position at which the sound begins is found when a track is cued and the standby mode is set at that point.
- Select the play mode. (Preset function)

SINGLE: (single track play mode)

The stop mode is set after the specified track is played.

CONT.: (continuous play mode)

The stop mode is set after the last track is played.

1. Press the PLAY (▶) button 6.

(2) Pausing playback at any point

(Pause)

Playback can be temporarily halted and then continued from the same point in the track.

1. Press the PAUSE (I) button 8 during playback.
2. To continue playback, press the PLAY (▶) button 6

(3) Stopping playback

1. Press the STOP (■) button 7.

Auto Cue (Preset functions)

• Auto Cue is automatically cued to the point where audio starts.

Cueing takes place at the point where audio starts rather than where the track starts. The level at which sound is first detected can be set between -36 to -48 dB (3 steps).

End of Message (EOM) (Preset functions)

• At the end of the track, the time display flashes, providing a visual warning to the operator that the track will end shortly. The point at which the flashing beings can be set within a range of 0 to 60 seconds (7 steps) prior to the end of the track.

Sleep mode (Preset functions)

• The sleep mode is set if no operation is performed for set-up time in the standby, pause or manual search mode.

When in the sleep mode, if the PLAY/PAUSE button is pressed, playback will be started from the beginning of the track in which the sleep mode was set. If the CUE button is pressed, it will standby for the beginning of the track in which the sleep mode was set.

(1) Playing a specific track

(Direct search)

1. Use the number buttons 13 and the +10 button 14 to input the number of the desired track.

For example, to play track number 4, press 4 , and to play track number 12, press +10 and 2 .

Playback will begin from that track.

(2) Advancing to the next track during playback

(Automatic search)

1. Press the button 10 during playback.

2. The pickup will advance to the beginning of the next track and playback will continue. Pressing the button several times will forward the pickup to the corresponding number tracks.

(3) Returning to the beginning of the current track during playback

(Automatic search)

1. Press the 1 button during playback.

2. The pickup will return to the beginning of the current track and playback will continue. Pressing the button several times will return the pickup to the corresponding number tracks.

(4) Audible quick search

(Manual search)

• Using this function, you can search for a desired point quickly with in a track in the both forward or reverse direction.
• Release the search button (▲ or ▲) 11 12 when the desired point has been reached. Normal playback then continues.
• When a search button (← or →) 11 12 is pressed during the pause mode and the button is released, the pause mode is set at that point with the sound being output.

Manual search forward

1. Press the search button (forward) ( ) 12 during playback.
2. Playback of the track is sped up.

Manual search in reverse

1. Press the search button (reverse) (▶) 11 during playback.
2. Reverse playback of the track is sped up.

(5) Playing in random order

(Random play)

With this function, the tracks recorded on the disc can be played in a completely random order.

• When the RANDOM button 18 is pressed, the "RAND" indicator lights and random play begins automatically.
• If the RANDOM button 13 is pressed when the repeat function is set, the tracks will be played through once in random order, then played through again in a different order, etc..

NOTE:

• The random play mode cannot be set while in the play mode or the program mode.

(6) Repeating playback of a desired interval

(Single track repeat)

1. Set the play mode to the single play mode. (Preset function)

2. Press the REPEAT button 19

3. The "REPEAT 1" indicators light on the display and the single track repeat mode is set.

3.Use the automatic search buttons (Iand 1) 9 10 to select the track to be played repeatedly.
4. Press the PLAY button (▶) 6.

• Playback starts.
• Once the selected track ends, it is played again from the beginning.
• The single track repeat mode can also be set by pressing the REPEAT button 19 during playback. The current track is played repeatedly.
• To cancel the single track repeat mode, press the REPEAT button repeatedly until the "REPEAT 1" indicator turns off.

(All track repeat)

1. Set the play mode to the continuous play mode. (Preset function)
2. Press the REPEAT button 19
3. The "REPEAT" indicators light on the display and the all track repeat mode is set.
4. Press the PLAY button () 6
   The disc is played repeatedly.
5. The all track repeat mode can also be set by pressing the REPEAT button 15 during playback.
6. If the REPEAT button is pressed during programmed playback, the tracks are played repeatedly in the programmed order.
7. To cancel the all track repeat mode, press the REPEAT button repeatedly until the "REPEAT" indicator turns off.

(7) Playing specific tracks in a specific order

(Programmed play)

• With this function, you can choose any of the tracks on the disc and program them to play in any order.
• Programming is possible when the disc holder is open.
• Up to 99 tracks can be programmed.

■ Programming

• Programming is possible when the CD is in the stop mode.
• Press the PROG./DIRECT button 17 so that the "PROG" indicator lights, then use the number buttons 18 and the +10 button 19 to program the tracks.

For example, to program track 3, 12, and 7, press PRUG.EMECT 3 +10 2 and 7 .
Each time a track is programmed, the number of that track is displayed on the track number display, and the total program time is displayed on the time display. If the total program time exceeds 99 minutes, only the first two digits of the minutes are displayed. (The third and / or fourth digits are not displayed.)

• "01--00m00s" appears on the time display if the PROG./DIRECT button is pressed when no program is set.
• "Full" appears on the time display if you attempt to program more than 99 tracks.

Playing the programmed tracks

1. Press the PLAY (▶) button 6 to play the tracks in the programmed order.
2. "01:Tr", "02:Tr", etc., appears on the time display when tracks are selected with the 1口 or button 9 10.

Clearing the program

1. The entire program is cleared when the PROG./DIRECT button 17 is pressed again. The program is also cleared when the OPEN/CLOSE button 2 is pressed.

Presetting program

• Programs can be stored in the preset memory. When a disc for which a program is preset is loaded, the programmed playback mode is set automatically.

• Programs can be stored for up to three discs.

• Follow the instructions under "Programming" to input the program.

• Follow the instructions under "(2) Presetting Procedure" to set the preset mode. (See Page 13.)

• Press the 14 or 15 button 9 to select "02:Pr-91" (or "03:Pr-92" or "04:Pr-93").

• Press the PLAY (▶) button 6

The character display changes as follows: [Before change] [After change]

$$ \Pr \text {g} 1 \quad O F F \quad \Rightarrow \quad \Pr \text {g} 1 \quad O N $$

$$ \Pr \text {g 2} O F F \Rightarrow \Pr \text {g 2} O N $$

$$ \Pr \text {g 3} O F F \Rightarrow \Pr \text {g 3} O N $$

1. Press the STOP (■) button 7

2. The preset setting mode is canceled and the set return to the normal mode.
   To play a preset disc : Load a disc for which a program is preset.

3. Press the PLAY (▶) button 6

NOTES:

• Programming is not possible with the disc holder open.
  During programmed playback, tracks not in the program can be played by pressing number buttons 13 and 14.

(8) Editing the program

(Call)

When tracks have been programmed, they can be called and displayed on the time display.

1. When the or button 11 is pressed, the programmed track is selected.

2. The displayed track can be cleared from the program by pressing the 0/CLEAR button twice at this time. In addition, if a number button is pressed, the track corresponding to that number is inserted in the program before the displayed track.

3. If a track is inserted when there are already 99 tracks in the program, the last track in the program is cleared.

(9) Playing at a different pitch

(PITCH)

1. Press the CD pitch control + and - button 15 to set the playing pitch.

2. Playback begins at the set pitch, and the "PITCH%" indicator lights.

NOTE:

• When the play speed is changed, the sampling frequency of the digital output signal also changes, so it may not be possible to receive digital signals.

7 PLAYING MP3 FILES

There are many sites on the Internet from which you can download music files in MP3 format. These files can be downloaded following the instructions on the site and stored on CD-R/RW discs which can then be played on the DN-C615.

The music on commercially available music CDs can be converted into MP3 files on a computer using MP3 encoding programs. When this is done, the data is reduced to approximately 1/10 the original size. This MP3 data can then be stored on a CD-R/RW disc, allowing you to create a single 12cm CD-R/RW disc containing about 10 times more music than a normal music CD, that is some 100 tracks or more (^*)

• This is an approximately value for MP3 files of tracks about 5 minutes long converted at a standard bit rate (128 kbps) and stored on a CD-R/RW disc with a capacity of 650 MB.

• Recordings you make are for your personal use and should not be used in ways infringing upon the copyright holder as per copyright laws.

NOTES :

• The DN-C615 is compatible with "MPEG-1 Audio Layer-3", "MPEG-2 Audio Layer-3" and "MPEG-2.5 Audio Layer-3". It is not compatible with MP1 or MP2 standards.

SAMPLING FREQUENCY

MPEG 1	48 kHz	44.1 kHz	32 kHz
MPEG 2	24 kHz	22.05 kHz	16 kHz
MPEG 2.5	12 kHz	11.03 kHz	8 kHz

• When writing MP3 files on a CD-R/RW disc, set the writing program's format to "ISO9660 level 1" or "ISO9660 level 2", "Joliet" or "Romeo". MP3 files written in other formats may not play properly. With some writing programs it is not possible to record in "ISO9660" format. Use an "ISO9660" format writing program.
• Generally speaking, the higher the MP3 file's bit rate, the better the sound quality. With the DN-C615 it is recommended to use MP3 files written with a bit rate of 128 kbps or greater.
• The writing program may change the positions of the folders and files when writing the MP3 files on the CD-R/RW disc, so the files may not be played in the expected order.
• Make sure to give MP3 files the extension ".MP3". Files with extensions other than ".MP3" or without extensions cannot be played. (On Macintosh computers, MP3 files can be played by adding the extension ".MP3" after the file name consisting of a maximum of 8 Roman capital letters and / or numerals when recording them on CD-R/RW discs.)

• To protect copyrights, no digital signals are output when playing MP3 files.

• A maximum of 255 folders can be played on the DN-C615. Folders over 8 layers down, however, cannot be played. The maximum number of files is also 999. If there are 1,000 files, only the first 999 are played. (Files other than those with the extension ".MP3" are not counted.)

• On the DN-C615, folder and file names can be displayed like titles. Roman capital letters and/or numerals and "_" (underscores) are scrolled. (However, a maximum of 31 characters can be displayed.) In addition, folder and file names using other symbols will not be displayed properly.
• The DN-C615 is compatible with ID3-tag (Ver. 1.*, Ver. 2.0).
• It may not be possible to play some CD-R/RW discs due to dirt, scratches or the disc's properties.
• Do not apply seals or tape to the label or signal side of CDs or CD-R/RW discs. The glue could get on the disc surface, making the disc get stuck inside the set.
• The DN-C615 is multi-session compatible. Only music CDs can be played if the first session is a music CD, and only MP3 files can be played if the first session consists of MP3 files.
• The DN-C615 is compatible with play lists. (.m3u of WINAMP Form) (Preset functions)

NOTES:

• With some writing programs it may not play properly. In this case, please set to "PLSt=OFF".
• Play List may require time for reading.
• The maximum number of play lists is also 255. If there are over 255 play lists, only the first 255 are performed.

(1) Playing folders or files

1. Load a disc containing MP3 files.

Example

When the number of folders is "120" and the number of files is "512"

1. [To select a folder]

① In the stop mode, press the FOLDER button ② to turn on the "FOLDER" indicator.
② Press the 14 or 24 button 9 to select the folder you want to listen to.

• The folder name scrolls on the display.

③ When the TITLE button 2 is pressed at this time, files in the folder can be selected.
- Operate following the procedure under "To select a file".

[To select a file]

① In the stop mode, press the TITLE button ② to turn on the "FILE" indicator.
* This operation is only necessary when the "FOLDER" indicator is lit.
② Press the or button 9 to select the file you want to listen to.
- The file name scrolls on the display.

1. Press the PLAY (▶) button 6.

2. When the TIME button 20 is pressed during playback, the “FOLDER” or “FILE” indicator turns off and the track number of elapsed track time are displayed.

3. The display switches as follows each time the TITLE button is pressed during playback :

(2) Programmed playback of folders or files

Use this function to select certain tracks from the disc and program them to play in a certain order.

A maximum of 99 files and folders can be programmed.

(Programs can included both files and folders.)

■ Programming

1. In the stop mode, press the PROG./DIRECT button 17.

2. The "PROG" indicator lights.

3. [To select a folder]

① Press the FOLDER button 2 to turn on the "FOLDER" indicator.
② Press the number buttons 13 14 to select the folder you want to program.

Example: When folder "5" is programmed in the first place

[To select a file]

① Press the TITLE button ② to turn on the "FILE" indicator.
* This operation is only necessary when the "FOLDER" indicator is lit.
② Press the number buttons 13 14 to select the file you want to program.
Example: When the 21st track is programmed in the second place

1. Press the PLAY (▶) button 6

2. The tracks are played in the programmed order.

3. When the TIME button 20 is pressed during playback, the "FOLDER" or "FILE" indicator turns off and the track number of elapsed track time are displayed.

■ Editing program

* The programmed tracks appear in the programmed order on the display each time the or button 11 is pressed.
* To clear part of a program

① Use the search buttons (▲▲, ▲▶) 11 2 to select the file or folder to be cleared. When selected, the contents of that program are displayed.
② Press the 0/CLEAR button 13 twice to clear the displayed file or folder.

* Adding to programs

① Use the search buttons (▲▲, ▲▶) 11 12 to select the file or folder to be added.
② Follow the procedure under "To select a folder" or "To select a file" to select a file or folder and add it to the program.

* To clear the entire program, press the PROG./DIRECT button 7 while in the stop mode.
* To use the direct play function, first press the PROG./DIRECT button 17 while in the stop mode to cancel the program mode.

NOTE:

• Programming is not possible in the play or pause mode.

Preseting Programs

• Programs can be stored in the preset memory. When a disc for which a program is preset is loaded, the programmed playback mode is set automatically.

• Programs can be stored for up to three discs.

• Follow the instructions under "Programming" to input the program.

• Follow the instructions under "(2) Presetting Procedure" to set the preset mode. (See Page 13.)

• Press the 1 or 2 button 9 to select "02:Pr91" (or "03:Pr92" or "04:Pr93").

• Press the PLAY (▶) button 6.

The character display changes as follows : [Before change] [After change]

Prg1 OFF Prg1 ON

Pr92 OFF Pr92 ON

Pr93 OFF Pr93 ON

1. Press the STOP (■) button 7

2. The preset setting mode is canceled and the set return to the normal mode.

3. To play a preset disc : Load a disc for which a program is preset.

4. Press the PLAY (▶) button 6.

(3) Random playback

All-track random

Use this function to play all the tracks on the disc once in random order.

1. Set the play mode to the continuous play mode. (Preset function)

2. In the stop mode (The "FOLDER" indicator turns off), press the RANDOM button 13.

3. The "RAND" indicator lights.

4. Press the PLAY (▶) button 6.
   Tracks are automatically played in random order.

5. To cancel the all-track random mode, press the RANDOM button 18 again.

1 folder random

Use this function to play all the tracks in a single folder once in random order.

1. Set the play mode to the single play mode. (Preset function)

2. In the stop mode, press the FOLDER button

3. The "FOLDER" indicator lights.

4. Press the 14 or 15 button 9 to select the folder to be played in random order.

5. The folder name scrolls on the display.

6. Press the RANDOM button 18 once.

7. The "RAND" and "FOLDER" indicator lights.

8. Press the PLAY (▶) button 6

9. A track in the selected folder is selected automatically and playback starts.

10. The stop mode is set automatically once all the tracks in the folder have been played.

11. When the TIME button 29 is pressed during playback, the track number of elapsed track time are displayed. (The "FOLDER" indicator do not turns off.)

12. To cancel the 1 folder random mode, press the RANDOM button again.

NOTE:

• The random play mode cannot be set while in the play or Program mode.

(4) Repeat playback

1 folder all-track repeat

1. Set the play mode to the single play mode. (Preset function)

2. In the stop mode, press the FOLDER button

3. The "FOLDER" indicator lights.

4. Press the 1 or 2 button 9 to select the folder you want to listen to.

5. The folder name scrolls on the display.

6. Press the REPEAT button 19

7. The "REPEAT 1" indicators light on the display and the single track repeat mode is set.

8. Press the PLAY (▶) button 6.

9. Playback starts from the first track in the selected folder.

10. Once the last track in the selected folder has been played, playback resumes from the beginning of the first track in the selected folder and the tracks are repeated.
11. When the TIME button 20 is pressed during playback, the track number of elapsed track time are displayed. (The "FOLDER" indicator do not turns off.)

All track repeat

1. Set the play mode to the continuous play mode. (Preset function)

2. In the stop mode, press the TITLE button to turn on the "FILE" indicator.

3. Press the REPEAT button 19.

4. The "REPEAT" indicators light on the display and the all track repeat mode is set.

5. Press the PLAY (▶) button 6.

The disc is played repeatedly.
- Once the last track on the disc is played, playback continues from the beginning of the first track.

Single track repeat

1. Set the play mode to the single play mode. (Preset function)
2. Press the REPEAT button 19

3. The "REPEAT 1" indicators light on the display and the single track repeat mode is set.
   3.Use the automatic search buttons (I and 1) 9 to select the track to be played repeatedly.

4. Press the PLAY button (▶) 6

5. Playback starts.

6. Once the selected track ends, it is played again from the beginning.

7. The single track repeat mode can also be set by pressing the REPEAT button 19 during playback. The current track is played repeatedly.

8. To cancel the single track repeat mode, press the REPEAT button 19 repeatedly until the "REPEAT" indicator turns off.

8 THE COMPACT DISC

Precautions on handling compact discs

• Do not allow fingerprints, oil or dust on the surface of the compact disc. If the signal surface is dirty, wipe it off with a soft, dry cloth. Wipe in circular motions from the center and out.
• Do not use water, benzene, thinner, record sprays, electrostatic proof chemicals, or silicone-treated cloth to clean discs.
  Always use care when handling discs to prevent damaging the surface, in particular when removing a disc from the case and returning it.
• Do not bend compact discs.
• Do not apply heat to compact discs.
• Do not enlarge the hole in the center of the disc.
• Do not write on the disc and do not attach any labels.
• Condensation will from on the disc surface if it is brought into a warm room from a cold area, such as outdoors during winter. Wait until the condensation disappears. Never dry discs with hair dryers, etc..

Precautions on storage

After playing a disc, always return it to its case.
- Keep discs in the cases when they are not to be played. This will protect them from dust and dirt and prolong their service life.
- Do not store discs in the following places:

1) Places exposed to direct sunlight for a considerable time.
2) Places subject to accumulation of dust or high humidity.
3) Places exposed to high temperatures, such as close to heater outlets.

9 POWER ON PLAYBACK

Playback starts automatically when the power is turned on.

• The power on playback function can be set with the "PRESET FUNCTIONS AND OPERATIONS" (See page 13).

10 EXPANDED FUNCTION

Multiple units of the DN-C615 or other DENON products (DN-780R etc.) can be used together for longer play time, simultaneous recording and other functions.

■ CASCADE (MULTIPULE CONTINUOUS) OPERATION

Refer to figure 1 to connect the equipment.
- Use a single RCA cable to connect the units' CASCADE OUT jacks with the units' CASCADE IN jacks.
- When the first and last units are connected as shown in figure 1, playback is performed endlessly.
- If the first and last units are not connected, operation stops at the last unit.

Cascade playback

1. Set the cascade mode of all unit to the "Cas=ON". (Preset function)

2. Press the PLAY (▶) button ⑥ on unit 1. Playback starts.

3. Playback on unit 1 ends, playback starts on unit 2.

4. Playback stops when the stop button on the unit currently playing is pressed.

External synchronized recording

The synchronized recording can be use when the DN-C615 is used in combination with DENON other product (DN-780R etc.).

When the CD player's play button is pressed, a synchronized signal for starting is output from the EXT. SYNC. jack. When the STOP buttons on the CD player is pressed, a synchronized signal for stopping is output from the EXT. SYNC. jack.

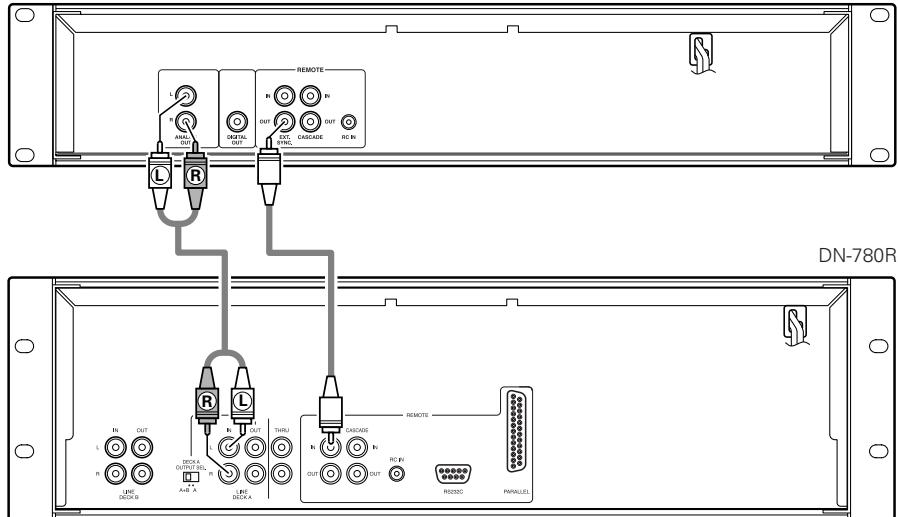

Refer to figure 2 to connect the equipment.
- Use a single RCA cable to connect the units' EXT. SYNC. OUT jacks with the units' EXT. SYNC. IN jacks.
* Set the infrared remote sensors of all the units to "OFF" when using this function. Also set the same infrared remote control codes for all the units. (Refer to "PRESET FUNCTIONS AND OPERATIONS" (See page 13).) Failure to make these settings could result in malfunction.

1. Load the CD into DN-C615. Load unrecorded cassette tapes into all decks.
2. Set the reverse mode and Dolby NR of all decks.
3. Adjust the twin recording level of DN-780Rs. (Master/Slave switch set to OFF.)
4. Press the Twin recording button of DN-780R.
5. Press the PLAY button 6 of DN-C615. Recording starts all decks.

NOTE:

• Use tapes of the same times (lengths) as far as possible.

• Press the STOP (■) button 7 of the DN-C615 to stop recording on all the connected units.

DN-C615

Figure 2

11 BEFORE SWITCHING OFF THE POWER

When you have finished using the CD player, before switching off the power be sure that the disc holder has been closed with the OPEN/CLOSE (▲) button.

CAUTION:

• Do not forcibly close the disc holder when the power is off. It may damage the unit when it is transported.

12 PRESET FUNCTIONS AND OPERATIONS

(1) List of Preset Functions

• Functions can be preset using the buttons on the front panel. These preset settings are stored in a permanent memory, so they are not cleared even when the power is turned off.
• The functions shown on the table below can be preset. Set the functions according to the usage purpose to efficiently achieve even higher quality playback.
• One of the preset functions can be used to display information on this set (microprocessor version).

Preset function type	Description	Set upon shipment from factory	No.
Preset type	Selection of preset type.	Preset Type 1	1
Program 1	Setting of whether or not to play program 1.	Program 1 OFF	2
Program 2	Setting of whether or not to play program 2.	Program 2 OFF	3
Program 3	Setting of whether or not to play program 3.	Program 3 OFF	4
Power on mode	Setting of operation when power is turned on.	Power On Stop	5
Time mode	Setting of play mode when power is turned on.	Time ELAPSED	6
Random	Setting of time mode when power is turned on.	Random OFF	7
Finish mode	Setting of operation when playback ends.	Finish Stop	8
Next Track Reserve	Setting of operation when select knob is turned during playback.	Reserve. OFF	9
Play lock	Selection of whether or not to inhibit the panel switches during playback.	Play Lock OFF	10
Panel lock	Selection of whether or not to enable the panel buttons.	Panel OFF	11
Auto cue	Setting of whether or not to perform the auto cue operation and the audio startup level.	CueDet. OFF	12
Play speed	Standard playing speed setting.	Normal Speed	13
Text display	Selection of time or text display.	Text OFF	14
Frame display	Selection of whether or not to display frames.	FR Disp ON	15
E.O.M.	Setting of whether or not to display the EOM and display time setting.	E.O.M. 10 s	16
Auto stop	Setting of whether or not to automatically stop the servo functions.	Sleep 30min	17
RC cord	RC cord setting.	RC DENON	18
IR remote	Infrared remote control sensor setting.	IR ON	19
Play mode	Setting of play mode when power is turned on.	Play CONTINUE	20

Preset function type	Description	Set upon shipment from factory	No.
Cascade	Selection of whether or not to output cascade signal.	Cascade OFF	21
Preset clear	Setting for clearing presets and setting them to the initial values.	Ini. Preset	22
Set information	Microprocessor version display.	Ver. *** (* = number)	23
Play list (MP3)	Setting of whether or not to perform the play list.	Play List OFF	24

(2) Presetting procedure

1 Press the STOP (■) button 7 while presetting the TITLE button 21.
2 Press the 1 or 2 button 9 10 and select the preset item.
3 Press the PLAY (▶) button 6 to change the setting.
4 The preset mode is canceled when the STOP (■) button 7. The setting are written at this time.

(3) Detailed Description of Preset Functions

(^* = initial setting)

1) "Preset Type (*)" (Three different sets (types) of presettings can be made and used for different purposes.)

*01: P No=1 : Set to preset type 1

01:P No=2 : Set to preset type 2.

01:P No=3 : Set to preset type 3.

2) "Program 1 OFF (ON)"

02:Prg 1 : Store the contents of program 1 when on. (Initial setting - OFF)

3) "Program 2 OFF (ON)"

03:Prg 2 : Store the contents of program 2 when on. (Initial setting - OFF)

4) "Program 3 OFF (ON)"

04:Prg 3 : Store the contents of program 3 when on. (Initial setting - OFF)

5) "Power On (****)"

05:P On=Stb : Standby mode is set at specified track after TOC is read.

05:P On=Ply :Playback begins in the all repeat mode after TOC is read.

*05: P On=Stp : Stop mode is set after TOC is read.

6) "Time Mode"

*06:Time=ELA : Time display is elapsed time when power is turned on.

06:Time=REM : Time display is remaining time when power is turned on.

7) "Random ON/OFF"

*07:Rand=OFF : Playback mode is normally when power is turned on.

07:Rand=ON : Random playback mode is set when power is turned on.

8) "Finish Mode"

*08:Fin=Stop : Stop mode is set after playback ends.

08:Fin Next Standby mode is set at next track after playback ends.

08:Fin=Recue : Standby mode is set at playback start position after playback ends.

9) "Next Track Reserve"

*09:Rsv=OFF : Specified track is searched for immediately when select knob is turned during playback.

09:Rsv=ON : Track to be searched for is scheduled after playback of current track ends when select knob is turned during playback.

10) "Play Lock"

10:Lock=ON :Inhibit all operations other than the▶,■,TIME,■,PITCH +,- and TITLE buttons during playback.

*10:Lock=OFF : Enable all functions during playback.

11) "Panel Lock ON/OFF"

*11:Pane=OFF : Enable operation of all the buttons on the front panel.

11:Pane=OFF : Inhibit operation of all panel buttons other than those use for presetting operations and OPEN/CLOSE button.

12) "CueDet. Level"

12:CDet.=-**

*12:CDet.=OFF

13) "CD Pitch"

*13:Pit=Norm : Play at normal speed.

13: Pit = + / - ^.^ :Play at variable speed. ± (0.2 / 0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.4 / 1.6 / 1.8 / 2.0 / 2.2 / 2.4 / 2.6 / 2.8 / 3.0),0Fix

14) "Text Display"

14:Text=OFF :Display is set time mode when power is turned on.

14:Text=ON :Display is set text mode when power is turned on.

15) "Frame Display"

*15:Frm=ON : Display the frames on the time display during playback.

15:Frm=OFF : Do not display the frames on the time display during playback. (The frames are displayed in the manual search, standby, pause and end monitor modes.)

16) "EOM Time"

16:EOM = ^**s : Set the EOM time. (5 / * 10 / 15 / 20 / 30 / 60)

16:EOM=OFF : Do not use the EOM function.

17) "Sleep ON (OFF)"

17:Sleep= : Automatically turn the servo functions off if no button is operated for ** minutes in the pause, standby or manual search mode. (1 / 2 / 5 / 10 / 15 / 30)

17:Slp=OFF : Do not automatically turn the servo functions off.

18) "IR Code"

*18:RC=DENON : Receive denom codes.

18:RC=RC5 : RC-5 codes can be received.

19) "IR Remote"

*19:IR=ON : Accept infrared remote control signals.

19:IR=OFF : Do not accept infrared remote control signals.

20) "Play Mode"

*20:Play=CON : Play mode is continuous when power is turned on.

20:Play = SIN : Play mode is single when power is turned on.

21:Cas=ON : Output the cascade signal (Cascade operation possible)

*21:Cas=OFF : Do not output the cascade signal.

22) "Preset Clear (Ini. Preset)"

22:P Init? : Clear the presettings (set to the initial factory values).

23) "Ver = xxxx" : Display the microprocessor version. ("xxxx" is a number.)

24) "Play List"

*24:PLst=OFF : Play List does not perform.

24:PList=ON : MP3 is performed according to Play List.

13 TROUBLESHOOTING

Make sure of the followings before you consider as any malfunctions :

1. Are all the connections correct?
2. Are all system components being operated correctly in accordance with the operating instructions?
3. Are the speakers and amplifier/receiver functioning correctly?
   If the tape deck still does not function properly, check the symptom against the list below. If the symptom does not correspond to the check list, please contact your DENON dealer.

Problem	Cause	Remedy
Disc holder does not open/close.	•Power operation switch is not turned on.	•Turn the power operation switch on.
When a disc is loaded, "TOC Error" or "No Disc" is displayed.	•Disc is not properly loaded.	•Reload the disc.
When the PLAY (▶) button is pressed, playback does not start.	•Disc is dirty or scratched.	•Clean the disc.
There is no sound, or it is distorted.	•Output cord is not properly connected. •Amplifier adjustment is inappropriate.	•Connect the output cord properly. •Readjust the amplifier.
A specific section of the disc will not play.	•Disc is dirty or scratched.	•Clean the disc.
Programmed playback does not work.	•Programmed playback operation has been performed improperly.	•Restart programmed playback.

14 SPECIFICATIONS

CD SECTION

Type :

Audio Channel :

Quantization :

Sampling Frequency :

Oversampling Ratio :

Frequency Response :

Total Harmonic Distortion :

Signal-to-noise Ratio :

Dynamic Range :

Channel Separation :

Analog Output :

Output Level :

Load Impedance :

Digital Output :

Signal Format :

Variable Pitch Control :

Frame Search Accuracy :
Discs :
CD Mechanism Service Life :

■ REMOTE

GENERAL

Headphone Output :

Outputs Level

Load Impedance :

Power supply :

Single-mechanism compact disc player

2 channel stereo

16-bit Liner

44.1 kHz at Normal Pitch

8 times

20 to 20,000 Hz

0.007%

107 dB

98 dB

90 dB

RCA jack

2.0 V at 0 dB disc

10k / kohms or more

RCA jack

SPDIF or IEC-958 Type II

± 12% max.

1/75 second

Standard compact discs (12 cm and 8 cm)

1000 hours (continuous playback)

Wired Remote Control Connection (Stereo mini jack)

Remote Control Sensor

Stereo
410 mW
33 Ω / ohms
120 V AC ±10 %, 60 Hz (for U.S.A. & Canada models)
230 V AC ±10%, 50 Hz (for European & U.K. models)
13W
482 (W) x 88 (H) x 280 (D) mm
19-inch rack mountable (2U)
4.7 kg

EINFUHRUNG

2) "Program 1 OFF (ON)"

3) "Progam 2 OFF (ON)"

4) "Program 3 OFF (ON)"

9) "Next Track Reserve"

*09:Rsv=OFF

09:Rsv=ON

11) "Panel Lock ON/OFF"

*11:Pane=OFF

11:Pane=ON

17) "Sleep ON (OFF)"

17:Sleep=*

17:Slp=OFF

2 Prises DIGITAL OUT

Pr92 OFF Pr92 ON

Pr93 OFF Pr93 ON

9 LECTURE A LA MISE SOUS TENSION

2) "Program 1 OFF (ON)"

3) "Program 2 OFF (ON)"

03:Prg 2

4) "Program 3 OFF (ON)"

9) "Next Track Reserve"

*09:Rsv=OFF

11) "Panel Lock ON/OFF"

*11:Pane=OFF

17) "Sleep ON (OFF)"

17:Sleep=*

Signal-to-noise Ratio :

Gamme dynamique :

(1,2,3,4,5,6,7,8,9e0/CLEAR)

Pr92 OFF Pr92 ON

Pr-g3 OFF Pr-g3 ON

8) "Finish Mode" (CD)

*08:Fin=Stop

9) "Next Track Reserve" (CD)

*09:Rsv=OFF

11) "Panel Lock ON/OFF" (CD)

*11:Pane=OFF

17) "Sleep ON (OFF)" (CD)

17:Sleep=*

2) "Program 1 OFF (ON)"

3) "Program 2 OFF (ON)"

03:Prg 2

4) "Program 3 OFF (ON)"

04:Prg 3

9) "Next Track Reserve"

*09:Rsv=OFF

11) "Panel Lock ON/OFF"

11:Pane=OFF

17) "Sleep ON (OFF)"

17:Sleep=*

5 NORMALE CD-WEERGAVE

(1) De weergave starten

Pr92 OFF Pr92 ON

Prg3 OFF Prg3 ON

9 WEERGAVE BIJ INSCHAKELING

9) "Next Track Reserve"

*09:Rsv=OFF

09:Rsv=ON

11) "Panel Lock ON/OFF"

*11:Pane=OFF

11:Pane=ON

17) "Sleep ON (OFF)" (CD)

17:Sleep=*

Kwantisering: 16-bits lineair

Pr92 OFF Pr92 ON

Pr93 OFF Pr93 ON

Pr92 OFF Pr92 ON

Pr93 OFF Pr93 ON

Mapindikatorn "FOLDER" tands.

2) "Program 1 OFF (ON)"

3) "Program 2 OFF (ON)"

4) "Program 3 OFF (ON)"

9) "Next Track Reserve"

11) "Panel Lock ON/OFF"

17) "Sleep ON (OFF)" (CD)

17:Sleep=*
