USER MANUAL GS-108A ZYXEL

ZyXEL Unieash Networking Power

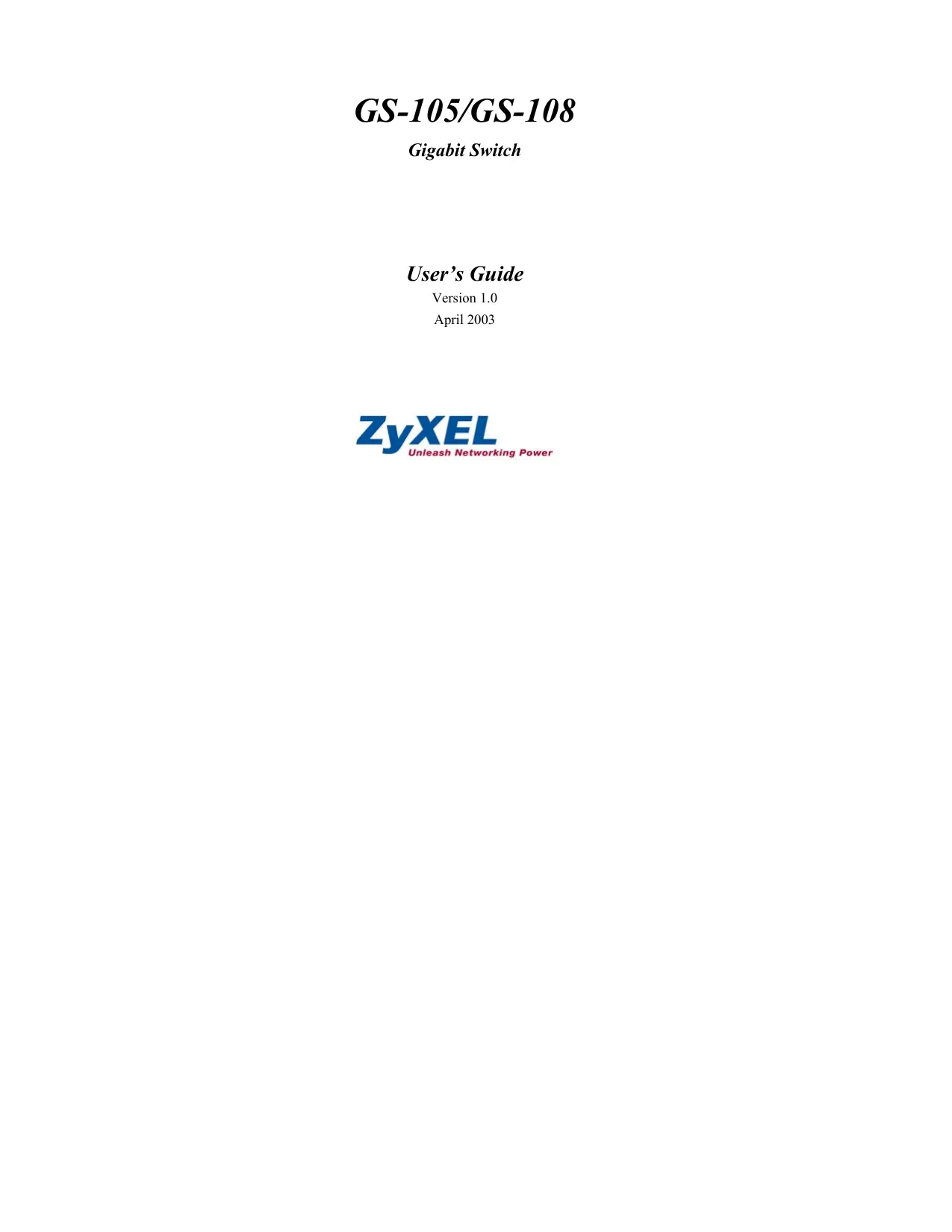

GS-105/GS-108 Gigabit Switch

Interference Statements and Warnings

FCC Interference Statement

This device complies with Part 15 ofthe FCC rules. Operation is subject t the following two conditions:

(1) This device may not cause harmfül interference.

(2) This device must accept any interference received, including interference that may cause undesired operations.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely 10 cause harmful interference in which case the user will be required to correct the interference at his own expense.

This is a class À product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures

Taiwanese BSMI (Bureau of Standards, Certifications Metrology and Inspection) À Warning Refer to the product

este page at RARE, FESSES ARR. ms zxeLeom.

RSS RER GS-105/GS-108 Gigabit Switch

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two (2) years from the date of purchase. During the warranty period and upon proof of purchase, should the product have indications of failure due 0 faulty workmanship and/or materials, ZyXEL will at its discretion, repair or replace the defective products or components without charge for either parts or labor and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind of character to the purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center for your Return Material Authorization number (RMA). Products must be retumed Postage Prepaid. It is recommended that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage Paid. This warranty gives you specific legal rights, and you may also have other rights that vary from country to country.

GS-105/GS-108 Gigabit Switch

Getting to Know Your Switch

The switch is a multi-port switch that can be used to build high- performance switched networks. The switch is a store-and-forward device that offers low latency for high-speed networking, The switch is designed for SOHO (Small Office Home Office) businé

Standalone Workgroup Application

The switéh can be used as a standalone switch to which computers, servers and print server are directly connected to form a small workgroup.

Standalone Workgroup Example

Hardware Installation and Connection

The switch is suitable for an office environment where it can be placed on a desktop.

GS-105/GS-108 Gigabit Switch

Desktop Installation Step 1. Make sure the switch is clean and dry.

Step 2. Setthe switch on a smooth, level flat space strong enough to support the weight of the switch and the connected cables. Make sure there is a power outlet nearby.

Step 3. Use the supplied power adapter to connect your switch to a power source. Refer to the label on the power adapter for more information.

Do not block the ventilation holes.

Rear Panel Power Connection Connect one end of the supplied power adaptor to the power port on the rear panel of the switch and the other end to the appropriate power source. The PWR LED turns on.

For GS-105, the Ethernet ports are located on the rear panel. For GS-108, the Ethernet ports are located on the front panel.

Figure 1 Rear Panel: GS-108

Figure 2 Rear Panel: GS-105

GS-105/GS-108 Gigabit Switch

RJ-45 Auto-negotiating Ports

Your switch comes with 5 or 8 10/100/1000M RJ-45 ports depending on the model of your switch. The auto-negotiation feature allows the switch 10 detect the speed of incoming transmission and adjust appropriately without manual intervention. It allows data transfers of 10 Mbps, 100 Mbps or 1000 Mbps in either half-duplex or full-duplex mode depending on your Ethernet network.

Auto-sensing (MDI/MDIX) Ethernet Ports

Each Ethernet port allows you to connect to a computer or to a hub using either a straight-through or a crossover Ethernet cable.

The following table describes the types of network cable used for the different connection speeds

Table 1 Ethernet Cable Type

SPEED NETWORK CABLE TYPE 10 Base-T 1000 2-pair UTP/STP Category 3, 4 or 5 100 Base-TX 1000 2-pair UTP/STP Category 5 1000 Base-T 1000 4-pair UTP/STP Category 5

Cable length between connections must not exceed 100 meters (328 feet).

The LEDs on the front panel indicate the real-time status of the switch.

Figure 3 Front Panel LED: GS-108

The following table gives descriptions of the LEDS.

GS-105/GS-108 Gigabit Switch

Table 2 Front Panel LED Descriptions

LED [COLOR|STATUS] DESCRIPTION PWR [Green [on [The switch is on and receiving power. C1 [The switch is not receiving power. 100/1000 [Green [on [The por is operating at 1000Mbps. C1 [The port is operating at 10Mbps or no device is attached [orange [on [The por is operating at 100Mbps. C1 [The port is operating at 10Mbps or no device is attached LNKACT Green [on [The por is connected to an Ethernet network C1 [The port is not connected to an Ethernet network Binking___|The port is receiving or transmitting data: FDX/COL [orange [on [The port is operating in full-duplex mode. Binking__ |Packet collision occurred on this pont. oi The port is operating in half-duplex mode or no Ethernet

device is connected to this port.
