USER MANUAL 775I65GV ASROCK

No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

ASRock Website: http://www.asrock.com

Published July 2004
Copyright©2004 ASRock INC. All rights reserved.

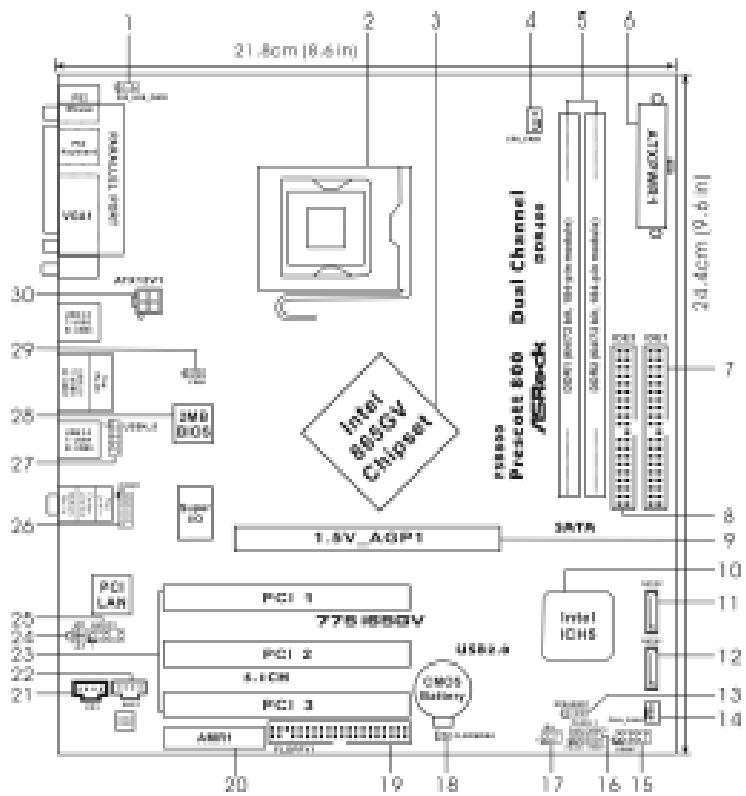

Motherboard Layout

1 PS2_USB_PWR1 Jumper
2 775-Pin CPU Socket
3 North Bridge Controller
4 CPU Fan Connector (CPU_FAN1)
5 184-pin DDR DIMM Slots (DDR1-2, Dual Channel)
6 ATX Power Connector (ATXPWR1)
7 Primary IDE Connector (IDE1, Blue)
8 Secondary IDE Connector (IDE2, Black)
9 ASRock Graphics Interface Slot (1.5V_AGP1)
10 South Bridge Controller
11 Secondary Serial ATA Connector (SATA2)
12 Primary Serial ATA Connector (SATA1)
13 Chassis Speaker Header (SPEAKER 1)
14 Chassis Fan Connector (CHA_FAN1)
15 USB 2.0 Header (USB67, Blue)

16 System Panel Header (PANEL1)
17 Infrared Module Header (IR1)
18 Clear CMOS Jumper (CLRCMOS0)
19 Floppy Connector (FLOPPY1)
20 AMR Slot (AMR1)
21 Internal Audio Connector: CD1 (Black)
22 Internal Audio Connector: AUX1 (White)
23 PCI Slots (PCI1-3)
24 JR1 Jumper/JL1 Jumper
25 Front Panel Audio Header (AUDIO1)
26 COM Port Header (COM1)
27 Shared USB 2.0 Header (USB4_5, Blue)
28 BIOS FWH Chip
29 FSB Select Jumper (FSB1)
30ATX 12V Connector (ATX12V1)

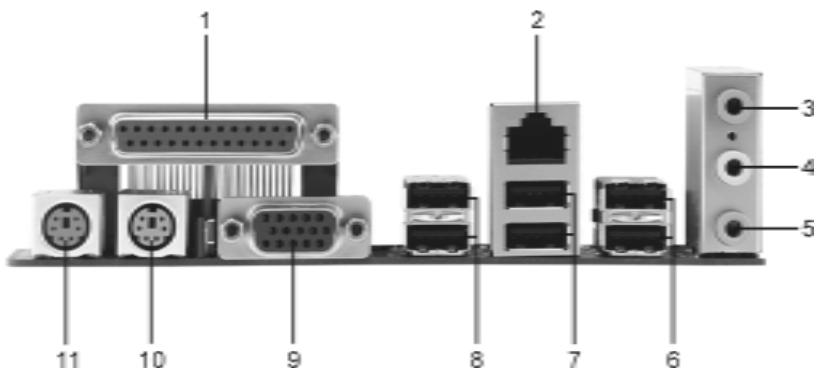

ASRock I/O PlusTM

1 Parallel Port
2 RJ-45 Port
3 Line In (Light Blue)
4 Line Out (Lime)
5 Microphone (Pink)
6 Shared USB 2.0 Ports (USB45)

7 USB 2.0 Ports (USB01)
8 USB 2.0 Ports (USB23)
9 VGA Port
10 PS/2 Keyboard Port (Purple)
11 PS/2 Mouse Port (Green)

1. Introduction

Thank you for purchasing ASRock 775i65GV motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-step installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest memory and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com

1.1 Package Contents

ASRock 775i65GV Motherboard

(Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm)

ASRock 775i65GV Quick Installation Guide

ASRock 775i65GV Support CD (including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One Serial ATA (SATA) Data Cable

One Serial ATA (SATA) HDD Power Cable (Optional)

One ASRock I/O Plus™ Shield

One COM Port Bracket

One ASRock MR Card (Optional)

1.2 Specifications

Platform: Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm

CPU: 775-Pin Socket

supporting Intel® Pentium® 4 / Celeron® processor (in 775-land LGA package)

Chipsets: North Bridge:

Intel® 865GV chipset, FSB @ 800 / 533 MHz,

supports Hyper-Threading Technology (see CAUTION 1)

South Bridge:

Intel® ICH5, supports SATA 1.5Gb/s

Memory: 2 DDR DIMM slots: DDR1 and DDR2

supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 2GB (see CAUTION 2)

Dual Channel Memory Technology support

(see CAUTION 3)

IDE: IDE1: ATA 100 / Ultra DMA Mode 5

IDE2: ATA 100 / Ultra DMA Mode 5

Supports up to 4 IDE devices

Serial ATA: Supports up to 2 SATA devices at 1.5Gb/s data transfer rate.

(No Support for "RAID" and "Hot Plug" functions)

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC'97 Audio

PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor:CPU temperature sensing

Motherboard temperature sensing

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 4)

CPU fan tachometer

PCI slots: 3 PCI slots with PCI Specification 2.2 (see CAUTION 5)

AMR slot: 1 slot, supports ASRock MR card (Optional)

AGI slot: 1 AGI [ASRock Graphics Interface] slot (see CAUTION 6)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 7)

ASRock I/O PlusTM: 1 PS/2 mouse port, 1 PS/2 keyboard port,

1 VGA port, 1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ-45 port,

Audio Jack: Line In / Line Out / Microphone

COM Port: 1 COM Port Header to support a COM port module

BIOS: AMI legal BIOS, Supports "Plug and Play",

ACPI 1.1 compliance wake up events,

CPU frequency stepless control

(only for advanced users' reference, see CAUTION 8)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of "Hyper Threading Technology", please check page 27 of "User Manual" in the Support CD.
2. Please check the table below for the memory support frequency and its corresponding CPU FSB frequency.

CPU FSB Frequency	Memory Support Frequency
800	DDR266, DDR320*, DDR400
533	DDR266, DDR333
400	DDR266

• When you use an FSB800-CPU on this motherboard, it will run at DDR320 if you adopt a DDR333 memory module.

• This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 12 for proper installation.

• While CPU overheat is detected, the system will automatically shutdown. Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system.
• Because the installed AMR card will occupy the same external connecting position with the PCI card that are installed in "PCI3" slot, you will not be able to install any PCI card in "PCI3" slot if an AMR card has already been installed in the AMR slot.
• The AGI [ASRock Graphics Interface] slot is a special design that only supports compatible AGP VGA cards. For the information of the compatible AGP VGA cards, please refer to the "Supported AGP VGA Cards List" on page 7 and page 8. For the proper installation of AGP VGA card, please refer to the installation guide on page 13.
• Power Management for USB 2.0 works fine under Microsoft® Windows® XP SP1 / 2000 SP4. It may not work properly under Microsoft® Windows® 98/ ME. Please refer to Microsoft® official document at http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx
• Although this motherboard offers stepless control, it is not recommended to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU.

1.3 Supported AGP VGA Cards List

(for Windows 2000/Windows XP)

I. AGP 4X

Graphics Chip Vendor	Model Name
n-VIDIA	ASUS AGP-V7100
	ASUS AGP-V7100PRO
	ASUS AGP-V7100 MAGIC / 32M
	ASUS AGP-V7700Ti
	ASUS AGP-V8170DDR
	ASUS AGP-V8170SE / LP
	ASUS AGP-V8200 T2
	ASUS AGP-V8200 T5
	ASUS AGP-V8440
	ASUS AGP-V8460 Ultra
	GAINWARD-GF3-TI500/64M
	GAINWARD-GF3-TI500/128M
	Inno3D GeForce2 MX400
	Leadtek WinFast A170 TH
	Leadtek WinFast A170 DDR
	Leadtek WinFast A250LE TD
	Leadtek WinFast GeForce2 MX MX64
	Leadtek WinFast GeForce2 H MX400
	MSI-GF4-MX440SE
	PROLINK GF4-MX440
	SPARKLE GF4-MX440
ATI	Gigabyte GV-AP64D
	Gigabyte GV-AP64D-H
	Gigabyte GV-AR64S-H
	POWERCOLOR RADEON 9000
	POWERCOLOR RADEON 9100
	TRANSCEND TS64MVDR7
SiS	SYNNEX GCM-SiS315EA32

For the latest updates of the supported AGP VGA cards list, please visit ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

II. AGP 8X

Graphics Chip Vendor	Model Name
n-VIDIA	ALBATRONGF4-MX440 64M
	AOPEN Aeolus FX5600S-DV128
	AOPEN Aeolus FX5200-V128
	ASUS AGP-V9180
	ASUS AGP-V9280 VIEDO SUITE
	ASUS AGP-V9520 MAGIC/T
	ASUS V9900
	ASUS V9900 ULTRA
	ELSA-GLADIC 518
	ELSA-GLADIC 518 P
	Inno3D GeForce FX5600
	LEADTEK A280 LE
	LEADTEK A340TDH
	MSI Ti4800SE-VTD8X
	PALIT GF4 MX440 8X 64MB
	PROLINK GeForceFX5900
	PROLINK GF4-TI4200
	SPARKLE GF4-MX440-8X
ATI	CLUB3D ATI R9800
	Gigabyte GV R9000 PRO
	Gigabyte RADEON 9500
	Gigabyte RADEON 9700 PRO
	POWER COLOR 9200
	SAPHIRE RADEON 9200-128MB
SiS	POWER COLOR XABRE600

For the latest updates of the supported AGP VGA cards list, please visit

ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

2. Installation

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.
2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antstatic pad or in the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 CPU Installation

For the installation of Intel 775-Pin CPU, please follow the steps below.

775-Pin Socket Overview

Before you insert the 775-Pin CPU into the socket, please check if the CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing down and out on the hook to clear retention tab.

Step 1-2. Rotate the load lever to fully open position at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open position at approximately 100 degrees.

Step 2. Insert the 775-Pin CPU:

Step 2-1. Hold the CPU by the edges where are marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated Heat Sink) up. Locate Pin1 and the two orientation key notches.

For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to support the load plate edge, engage PnP cap with right hand thumb and peel the cap from the socket while pressing on center of PnP cap to assist in removal.

It is recommended to use the cap tab to handle and avoid kicking off the PnP cap.

Step 4. Close the socket:

Step 4-1. Rotate the load plate onto the IHS.

Step 4-2. While pressing down lightly on load plate, engage the load lever.

Step 4-3. Secure load lever with load plate tab under retention tab of load lever.

2.2 Installation of CPU Fan and Heatsink

For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 775-Pin CPU.

Step 1. Apply thermal interface material onto center of IHS on the socket surface.

Step 2. Place the heatsink onto the socket. Ensure fan cables are oriented on side closest to the CPU fan connector on the motherboard (CPU_FAN1, see page 10, No. 4).

Step 3. Align fasteners with the motherboard throughholes.

Step 4. Rotate the fastener clockwise, then press down on fastener caps with thumb to install and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan connector on the motherboard.

Step 6. Secure excess cable with tie-wrap to ensure cable does not interfere with fan operation or contact other components.

2.3 Installation of Memory Modules (DIMM)

775i65GV motherboard provides two 184-pin DDR (Double Data Rate) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chiptype) memory modules in the DDR DIMM slots to activate Dual Channel Memory Technology. Otherwise, it will operate at single channel mode.

If you install only one memory module or two non-identical memory modules, it is unable to activate the Dual Channel Memory Technology.

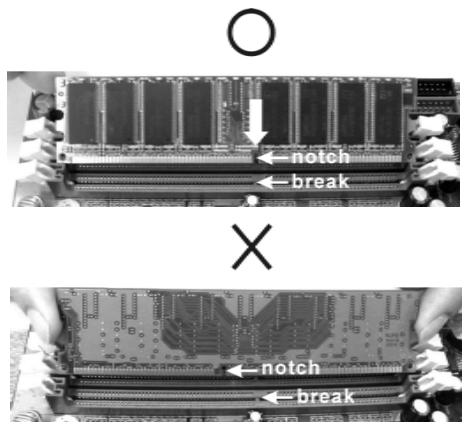

Installing a DIMM

Please make sure to disconnect power supply before adding or removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated.

2.4 Expansion Slots (PCI, AMR, and AGI Slots)

There are 3 PCI slots, 1 AMR slot, and 1 AGI slot on this motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface.

Because the installed AMR card will occupy the same external connecting position with the PCI card installed in "PCI3" slot, you will no be able to install any PCI card in "PCI3" slot if an AMR card has already been installed in the AMR slot.

AMR slot: AMR slot is used to insert an ASRock MR card (optional) with v.92 Modem functionality.

AGI slot: The AGI [ASRock Graphics Interface] slot is a special design that only supports compatible AGP VGA cards. For the information of the compatible AGP VGA cards, please refer to the "Supported AGP VGA Cards List" on page 7 and page 8.

To install the system with an add-on AGP VGA card, you must make sure to install the driver of add-on AGP VGA card before you install the onboard VGA driver. If the onboard VGA driver has already been installed before you install the add-on AGP VGA card, the system will automatically set the onboard VGA as the primary graphics adapter. In that case, if you want to install the add-on AGP VGA card, you need to remove the onboard VGA driver first, and then install the add-on AGP VGA card and its driver. For the detailed instruction, please refer to the documents in the Support CD, "AGI Slot Installation Guide (for Windows 2000)" and "AGI Slot Installation Guide (for Windows XP)", which are located in the folder at the following path:

Easy Dual Monitor

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws for later use.
Step 3. Align the card connector with the slot and press firmly until the card is completely seated on the slot.
Step 4. Fasten the card to the chassis with screws.

2.5 Easy Dual Monitor Feature

Thanks to ASRock patented AGI8X Technology, this motherboard supports Easy Dual Monitor upgrade. With the internal onboard VGA and the external add-on AGP VGA card, you can easily enjoy the benefits of Dual Monitor feature. For the detailed instruction, please refer to the document at the following path in the Support CD: ..\ Easy Dual Monitor

2.6 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is "SHORT". If no jumper cap is placed on the pins, the jumper is "OPEN". The illustration shows a 3-pin jumper whose pin1 and pin2 are "SHORT" when jumper cap is placed on these 2 pins.

Short

Open

Jumper

PS2 USB_PWR1

(see p.2 No.1)

+5V

+5VSB

Description

Short pin2, pin3 to enable

+5VSB (standby) for PS/2

or USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power supply.

FSB Select Jumper

(see p.2 No. 29)

NORMAL

TEST

Note: The default setting of the FSB Select jumper is "NORMAL" (short pin1, pin2). For the system's stability, please keep the default setting.

JR1 / JL1 Jumpers

(see p.2 No. 24)

JL1

Note: If JR1 and JL1 Jumpers are short, both the front panel and the rear panel audio connectors can work.

Clear CMOS

(CLRCMOSO)

(see p.2 No.18)

2-pin jumper

Note: CLRCMOS0 allows you to clear the data in CMOS. The data in CMOS includes system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the Clear CMOS jumper for 5 seconds. After shorting the Clear CMOS jumper, please remove the jumper cap. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action.

2.7 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

FDD connector

(33-pin FLOPPY1)

(see p.2 No.19)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 7)

Secondary IDE connector (Black)

(39-pin IDE2, see p.2 No. 8)

connect the blue end to the motherboard

connect the black end to the IDE devices

80-Conductor ATA 66/100 cable

Note: If you use only one IDE device on this motherboard, please set the IDE device as "Master". Please refer to the instruction of your IDE device vendor for the details. Besides, to optimize compatibility and performance, please connect your hard disk drive to the primary IDE connector (IDE1, blue) and CD-ROM to the secondary IDE connector (IDE2, black).

Serial ATA Connectors

(SATA1: see p.2 No. 12)

(SATA2: see p.2 No. 11)

SATA1

These two Serial ATA (SATA) connectors support SATA data cables for internal storage devices. The current SATA interface allows up to 1.5 Gb/s data transfer rate.

Serial ATA (SATA)

Data Cable

Either end of the SATA data cable can be connected to the SATA hard disk or the SATA connector on the motherboard.

Serial ATA (SATA)

Power Cable

(Optional)

connect to the SATA HDD power connector

connect to the powersupply

Please connect the black end of SATA power cable to the power connector on each drive. Then connect the white end of SATA power cable to the power connector of the power supply.

USB 2.0 Header

(9-pin USB67)

(see p.2 No.15)

ASRock I/O Plus™ accommodates 6 default USB 2.0 ports. If those USB 2.0 ports on the I/O panel are not sufficient, this USB 2.0 header is available to support 2 additional USB 2.0 ports.

Shared USB 2.0 Header

(9-pin USB4_5)

(see p.2 No. 27)

This USB4_5 connector is shared with the USB 2.0 ports 4,5 on ASRock I/O Plus™. When using the front panel USB ports by attaching the front panel USB cable to this connector (USB4_5), the USB ports 4,5 on ASRock I/O Plus™ will not be able to function.

Infrared Module Header

(5-pin IR1)

(see p.2 No. 17)

This header supports an optional wireless transmitting and receiving infrared module.

Internal Audio Connectors

(4-pin CD1, 4-pin AUX1)

(CD1: see p.2 No. 21)

(AUX1: see p.2 No. 22)

CD1

AUX1

These connectors allow you to receive stereo audio input from sound sources such as a CD-ROM, DVD-ROM, TV tuner card, or MPEG card.

Front Panel Audio Header

(9-pin AUDIO1)

(see p.2 No. 25)

This is an interface for front panel audio cable that allows convenient connection and control of audio devices.

System Panel Header

(9-pin PANEL1)

(see p.2 No.16)

Chassis Speaker Header

(4-pin SPEAKER 1)

(see p.2 No. 13)

Chassis Fan Connector

(3-pin CHA_FAN1)

(see p.2 No. 14)

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.2 No. 4)

This header accommodates several system front panel functions.

Please connect the chassis speaker to this header.

Please connect a chassis fan cable to this connector and match the black wire to the ground pin.

Note: If you use a 3-pin CPU fan cable, insert it to the connector by aligning it with the pins "GND", "+"12V", and "CPU_FAN_SPEED".

ATX Power Connector

(20-pinATXPWR1)

(see p.2 No. 7)

You may connect either a 3-pin or a 4-pin CPU fan cable to this connector, then match the black wire to the ground pin.

COM Port Header

(9-pin COM1)

(see p.2 No. 23)

This COM port header is used to support a COM port module.

ATX 12V Connector

(4-pin ATX12V1)

(see p.2 No.30)

Please note that it is necessary to connect a power supply with ATX 12V plug to this connector so that it can provide sufficient power. Failing to do so will cause the failure to power up.

2.8 Serial ATA (SATA) Hard Disks Installation

This motherboard adopts Intel ICH5 south bridge chipset that supports Serial ATA (SATA) hard disks. You may install SATA hard disks on this motherboard for internal storage devices. This section will guide you to install the SATA hard disks.

STEP1: Install the SATA hard disks into the drive bays of your chassis.

STEP2: Connect the SATA power cable to the SATA hard disk.

STEP3: Connect one end of the SATA data cable to the motherboard's SATA connector.

STEP4: Connect the other end of the SATA data cable to the SATA hard disk.

Before you install OS into the SATA hard disk, you need to check and ensure the configuration of the OnBoard IDE Operate Mode option in BIOS setup is correct according to the condition of your system. For the configuration details, please refer to the instruction on page 27 of "User Manual" in the Support CD.

3. BIOS Information

The BIOS Setup Utility is stored in the BIOS FWH chip. When you start up the computer, please press during the Power-On-Self-Test (POST) to enter the BIOS Setup Utility; otherwise, POST continues with its test routines. If you wish to enter the BIOS Setup Utility after POST, please resume the system by pressing + + , or pressing the reset button on the system chassis. For the detailed information about the BIOS Setup Utility, please refer to the User Manual (PDF file) contained in the Support CD.

4. Software Support CD information

This motherboard supports various Microsoft® Windows® operating systems: 98 SE/ ME / 2000 / XP. The Support CD that came with the motherboard contains necessary drivers and useful utilities that will enhance motherboard features.

To begin using the Support CD, insert the CD into your CD-ROM drive. It will display the Main Menu automatically if "AUTORUN" is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the file "ASSETUP.EXE" from the "BIN" folder in the Support CD to display the menus.

"PC-DIY Live Demo"

ASRock presents you a multimedia PC-DIY live demo, which shows you a step-by-step guide to install your own PC system. To see this demo program, you can run Microsoft Media Player to play the file, which can be found through the following path:

MPEGAV \ AVSEQ01.DAT

"LGA 775 CPU Installation Live Demo"

This motherboard is equipped with Intel LGA 775 socket, which is a new CPU socket interface that Intel has released. Since it has several tiny pins, which are easily to be damaged by improper handling, ASRock sincerely presents you a clear installation guide through this "LGA 775 CPU Installation Live Demo". We hope you may check this live demo program before you start the installation of LGA 775 CPU in order to reduce the risks of CPU and motherboard damages caused by any improper handling. To see this Live Demo, you can run Microsoft Media Player to play the file. You may find this Live Demo in the motherboard's Support CD through the following path: ..MPEGAV\LGA775INST.DAT

1. Einführung

2.1 CPU Installation

...Easy Dual Monitor

2.5 "Easy Dual Monitor"

...Easy Dual Monitor

(4-Pin CD1, 4-Pin AUX1)

1 port VGA, 1 port parallele: Support ECP/EPP,

BIOS: BIOS AMI, Support du "Plug and Play",

(Orifices des attaches ressortant)

2.5 "Easy Dual Monitor"

(CD1 br. 4, AUX1 br. 4)

(Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm)

Chipset: North Bridge:

Chipset Intel® 865GV, FSB @ 800/533 MHz,

BIOS: Supporta AMI legal BIOS, Supporta "Plug and Play",

Compatible con ACPI 1.1 wake up events,

2.5 "Easy Dual Monitor"

...Easy Dual Monitor

2.6 Setup del Jumpers

(4-pin CD1, 4-pin AUX1)

CD1:vedip.2 Nr.21

(AUx1: vedip.2 Nr.22)

Chipset: North Bridge:

Intel® 865GV chipset, FSB @ 800 / 533 MHz,

...Easy Dual Monitor

2.5 "Easy Dual Monitor"

...Easy Dual Monitor

2.6 Setup de Jumpers

La",[3]La,[4]La,[5]La,[6]La,[7]La,[8]La,[9]La,[10]La,[11]La,[12]La,[13]La,[14]La,[15]La,[16]La,[17]La,[18]La,[19]La,[20]La,[21]La,[22]La,[23]La,[24]La,[25]La,[26]La,[27]La,[28]La,[29]La,[30]La,[31]La,[32]La,[33]La,[34]La,[35]La,[36]La,[37]La,[38]La,[39]La,[40]La,[41]La,[42]La,[43]La,[44]La,[45]La,[46]La,[47]La,[48]La,[49]La,[50]La,[51]La,[52]La,[53]La,[54]La,[55]La,[56]La,[57]La,[58]La,[59]La,[60]La,[61]La,[62]La,[63]La,[64]La,[65]La,[66]La,[67]La,[68]La,[69]La,[70]La,[71]La,[72]La,[73]La,[74]La,[75]La,[76]La,[77]La,[78]La,[79]La,[80]La,[81]La,[82]La,[83]La,[84]La,[85]La,[86]La,[87]La,[88]La.[89] La[90], La[91], La[92], La[93], La[94], La[95], La[96], La[97], La[98], La[99], La[100], La[101], La[102], La[103], La[104], La[105], La[106], La[107], La[108], La[109], La[110], La[111], La[112], La[113], La[114], La[115], La[116], La[117], La[118], La[119], La[120], La[121], La[122], La[123], La[124], La[125], La[126], La[127], La[128], La[129], La[130], La[131], La[132], La[133], La[134], La[135], La[136], La[137], La[138], La[139], La[140], La[141], La[142], La[143], La[144], La[145], La[146], La[147], La[148], La[149], La[150], La[151], La[152], La[153], La[154], La[155], La[156], La[157], La[158], La[159], La[160], La[161], La[162], La[163], La[164], La[165], La[166], La[167], La[168], La[169], La[170], La[171], La[172], La[173], La[174], La[175], La[176], La[177], La[178], La[179], La[180], La[181], La[182], La[183], La[184], La[185], La[186], La [ 8 ], L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a , L a ,

Short

Open

Jumper

Setting

Descripción

PS2_USB_PWR1
(vea p.2, N. 1)

Ponga en cortocircuito pin 2, pin 3 para habilar +5VSB (standby) para PS/2 o USB wake up events.

(4-pin CD1, 4-pin AUX1)

(CD1:vea p.2,N.21)

(AUX1:vea p.2,N.22)

CD1

AUX1
