Ready Warm 3500 Curved Flames - Heating CECOTEC - Free user manual and instructions

Product type	Wall-mounted electric radiator with flame effect
Brand	Cecotec
Model	Ready Warm 3500 Curved Flames
Heating power	2 levels: 1000 W and 2000 W
Power supply	220-240 V ~ 50 Hz
Visual effect	Curved flames with adjustable brightness
Thermostat	Temperature adjustment with clock (day and time)
Timer	Programming of turning on and off
Open window detection	Automatic shutdown in case of temperature drop
Brightness	Adjustment of the intensity of the flame effect
Remote control	Yes, included
Installation	Wall-mounted with mounting bracket provided
Safety distances	Minimum 30 cm from the floor and 100 cm from the ceiling
Frost protection	Automatic shutdown between 5 and 10 °C
Hot surface	Do not touch during and after use
Maintenance	Clean with a soft, dry cloth
Technical support	Official Cecotec service for repairs
Spare parts	Available through Cecotec after-sales service

Frequently Asked Questions - Ready Warm 3500 Curved Flames CECOTEC

How to install the Cecotec Ready Warm 3500 Curved Flames radiator on a wall?

To install the radiator, use the mounting bracket provided. Drill 4 holes of 8 mm diameter and 26 mm depth at the marked locations, insert the wall plugs, screw the wall bracket, then hang the appliance on the bracket. Make sure the wall is solid. Keep a minimum distance of 30 cm from the floor and 100 cm from the ceiling.

What safety distances must be observed?

The appliance must be installed at least 30 cm from the floor and 100 cm from the ceiling. It is recommended to leave 60 cm between the bottom of the appliance and the floor for an optimal visual effect. Furniture, curtains, and other flammable materials must be at least 1 meter away from the appliance.

How to adjust the heating power?

The radiator has two heating power levels: 1000 W (power 1) and 2000 W (power 2). Selection is made via the control panel or the remote control. Level 1 is ideal for gentle heating, while level 2 provides fast heating.

How to program the timer?

The timer can be programmed to automatically turn the appliance on and off at set times. Use the Timer on and Timer buttons on the control panel or the remote control. First set the current time (day and hour), then define the desired time ranges.

What does the open window indicator mean?

The open window indicator detects a rapid drop in room temperature, indicating that a window is likely open. In this case, the radiator automatically turns off to avoid energy waste. It turns back on when the temperature stabilizes.

How to adjust the brightness of the flame effect?

The curved flame effect offers a brightness adjustment. Use the Brightness function on the control panel or the remote control to increase or decrease the visual intensity of the flame, even when the heating is off.

Is this radiator suitable for small rooms?

This radiator does not have a room temperature control device. It is not recommended for small rooms if persons who cannot leave alone reside there. Make sure the room is sufficiently ventilated and do not exceed the power appropriate for the area.

What to do if the appliance does not turn on?

Check that the plug is properly connected and that the mains voltage matches the one indicated on the label. Make sure the main switch is in the on position. If the problem persists, contact the official Cecotec technical support service. Do not attempt to repair the appliance yourself.

How to clean and maintain the appliance?

Before any cleaning, turn off the appliance and unplug it. Clean the outside with a soft, dry cloth. Never use abrasive products or solvents. Make sure no object obstructs the air vents. Never cover the appliance while it is operating.

What does the Cecotec warranty cover?

The Cecotec warranty covers manufacturing and operating defects under normal domestic use. It does not cover damage due to misuse, normal wear, or unauthorized interventions. For any repair, contact the Cecotec after-sales service with the proof of purchase.

USER MANUAL Ready Warm 3500 Curved Flames CECOTEC

Ready Warm 3500 Curved Flames

Chimenea eléctrica decorativa/Decorative electric fireplace

1. Safety instructions 07
2. Parts and components 29
3. Before use 36
4. Product assembly 36
5. Operation 37
6. Cleaning and maintenance 38
7. Technical specifications 39
8. Disposal of old electrical appliances 39
9. Technical support service and warranty 39

SOMMAIRE

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• This appliance is intended for household use only. Do not use for industrial or commercial purposes. Not suitable for outdoor use.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• Furniture, curtains or flammable materials should be at least 1 m away from the device.
• Do not place the powercord in front of the fireplace.
• Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids.
• Do not place the appliance immediately below a power socket.
  • Always unplug the device when not in use.
• To disconnect the device, first turn all controls off, then remove the plug from the power supply. Pull from the plug, not the cord.
• Ensure the walls where the device is going to be installed present no damage and that they are in good and safe conditions.
• The fireplace must be used under an AC voltage rating.
  • The product must be connected to the ground.
• Warning: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms

when occupied by persons not capable of leaving a room on their own, unless constant supervision is provided.

- Do not disconnect the device from the cord, use the plug instead.

- Do not move the appliance while it is operating to avoid damage and risk of fire.

- Do not leave the device operating and unattended for long periods of time. In that case, ensure it is turned off and disconnected from the power supply.

- The device will reach high temperatures during use. Avoid touching its surface while it is operating and immediately after.

- Do not cover the device in order to avoid overheating.

- Keep the appliance clean. Do not allow objects to enter any ventilation or exhaust opening.

- Do not handle the element with bare or wet hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

- This product is designed for indoor use only. Do not operate the appliance in direct sunlight.

- Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.

- Do not wind the power cord around the unit.

- Do not use this device with other timers or separate remote-control systems.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Allows a safety distance of 30 cm from the ground and 100 cm from the ceiling. Avoid contact with furniture, cushions,

bedding, paper, clothes, curtains etc.

- Do not operate the device if it has fallen on the floor or is damaged in any way. Contact the official Technical Support Service of Cecotec for reparation.

- Keep the packaging materials out of the reach of children, the could be dangerous.

- The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

- This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

1. INSTRUCTIONS DE SÉCURITÉ

1. ON/OFF

2. Heat level 1 1000W

3. Heat level 2 2000W

4. Temperature

5. Day of the week

6. Timer ON

7. Timer OFF

8. Open window indicator

9. Brightness

10. Time (Hour/Min)

FR

NOTE: The controls are located at the top of the fireplace. It takes some time for the receiver to respond to the transmitter. Do not press the buttons more than once within two seconds for correct operation.

4

6

5. FUNCIONAMIENTO

Panel de control

• Take the product out of the box.
- Remove all packaging materials. Keep the original box.
• Leave a minimum distance of 30 cm between the bottom of the device and the floor.
• Leave a minimum distance of 100 cm between the top of the device and the ceiling.
• Make sure all the components are included and in good conditions, otherwise, contact immediately the official Technical Support Service of Cecotec.

NOTE: The device will automatically switch off when the temperature suddenly decreases between 5 and 10 °C.

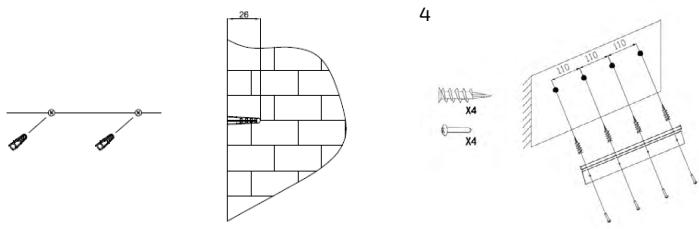

4. PRODUCT ASSEMBLY

Wall installation

A distance of at least 60 cm is recommended from the bottom of the heater to the floor for an optimum visual effect.

1. The wall bracket is fixed to the back of the device. Unscrew it from the back of the device before fixing.
2. Select the mounting place and draw a horizontal line using a leveling ruler, marking the 4 holes where the mounting bracket will be hung.

1

1. Drill 4 holes with a thickness of 8 mm and a depth of 26 mm in the 4 marks of the previous point. Insert the expansion screws in the holes until they're at level with the wall.

2. Screw the wall bracket onto the wall with the 4 screws provided. Make sure it is properly fixed onto the wall.

3

1. Hang the device on the wall using the slots on the back of the device. Make sure that the device is completely fixed to the wall bracket.
2. Fix the bottom of the device to the wall using to additional bolts to avoid this from balancing.

5

6

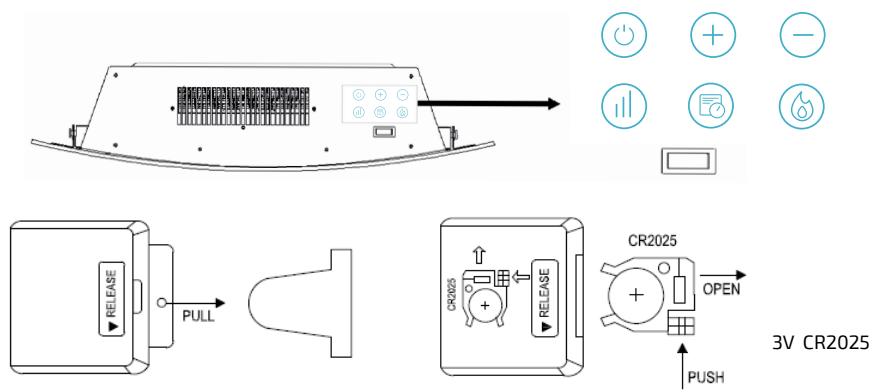

5. OPERATION

Control panel

Power Switch.

ON(I). Switch device on.

OFF(0). Switch device off.

Standby Button: Press this button once to turn the device on. The device will allow you to select one of its functions. Press this button again to turn the device off.

Timer: Press the timer button and "+" or "-" to set up the real-time/date.

Flame: Press this button to increase or decrease the brightness of the flame.

|| Temperature adjustment: Press this button once to activate the low temperature mode. Press this button again to activate high temperature mode. Press this button three times to deactivate the heating function.

Operation from the remote control

ON/OFF: Press this button to switch the device on/off..

DAY Day: This button allows you to select the current day and time.

HHour: Press this button to select the timer by hours.

Min: Press this button to select the timer by minutes.

Week: Press this button to activate the weekly timer.
Set up button: Press this button to adjust the timer. Select the day with the week button.
Flame: Press this button to increase or decrease the brightness of the flame.
Heater button: Press this button to select the operating temperature. The temperature can be adjusted in 15-30 °C intervals using the "+" and "-" buttons.

1. Low heat function
2. High heat function

6.CLEANING AND MAINTENANCE

• Turn heater OFF and unplug from electrical outlet before any cleaning or maintenance is performed. Wait at least 10 minutes to allow all components to cool down properly.
  • Use a vacuum cleaner or duster to keep heater and vent area clean from dust and dirt.
  • The exterior of the fireplace should be cleaned with a damp cloth or duster.
  • Do not use abrasive cleaners or liquid sprays.

7. TECHNICAL SPECIFICATIONS

Model: Ready Warm 3500 Curved Flames

Reference: 05367

1750 - 2000 W , 220-240 V\~ 50 Hz IP20

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

9. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
  • Faults deriving from the normal wear and tear of its parts, due to use.
• The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

Information requirement for the electric local space heaters
05367 Ready Warm 3500 Curved Flames
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.0	kW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0.9	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	2.0	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	1.837	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0.915	kW	Single stage heat output and no room temperature control	No
In standby mode	eISB	0.00035	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	Si
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	Yes
				With distance control option	No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)
