USER MANUAL BARBECUES GRILL CONCEPT LAGRANGE

CONDITIONS DE GARANTIE

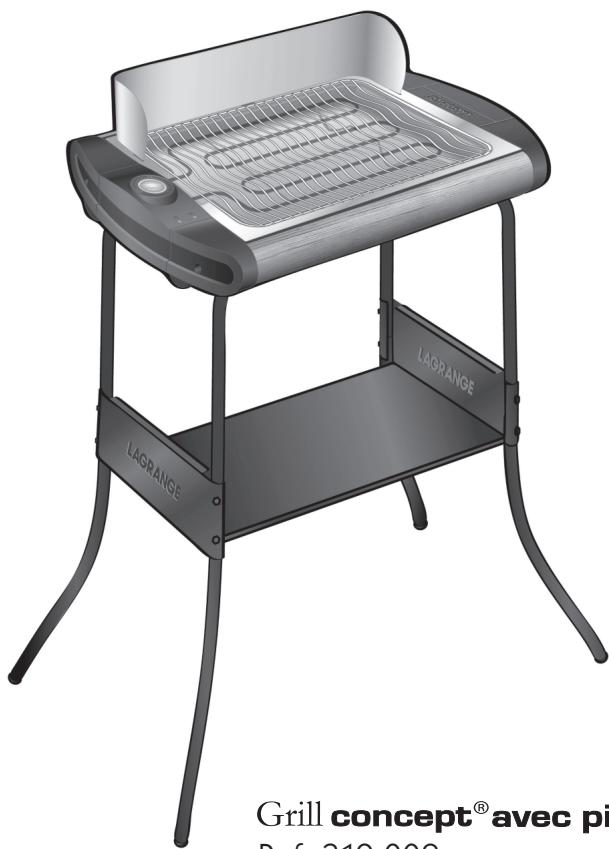

Grill concept® Deluxe

Ref: 319003

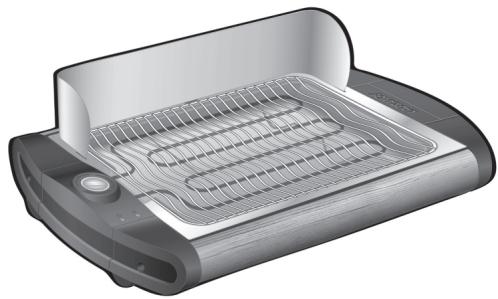

Grill concept® de table

Ref: 319001

- BESCHRIJVING VAN HET APPARAAT -

Grill concept® Deluxe

Ref: 319 003

Grill concept® de table

Ref: 319 001

Grill concept® Deluxe

Ref: 319003

Grill concept® de table

Ref: 319001

- DESCrizIONE DELL'APPARECCHIO -

ACCENSIONE ED UTILIZZO

Primoutilizzato

Grill concept® Deluxe

Ref: 319003

Grill concept® de table

Ref: 319001

- DESCRIPICION DEL APARATO -

(for models 319 902, 319 903)

Assemble 9 and 10 using provided nuts, bolts and wrench

Assemble 12 and (9/10) using provided nuts, bolts and wrench.

Position shelf 13 between the base supports, spreading them slightly if necessary.

Clip the barbecue onto the two frame pieces (9).

- ASSEMBLING THE SHELVES

(model 319 903 only)

Attach shelves to main assembly using chrome-plated rods.

Grill concept® Deluxe

Ref: 319003

Grill concept® de table

Ref: 319.001

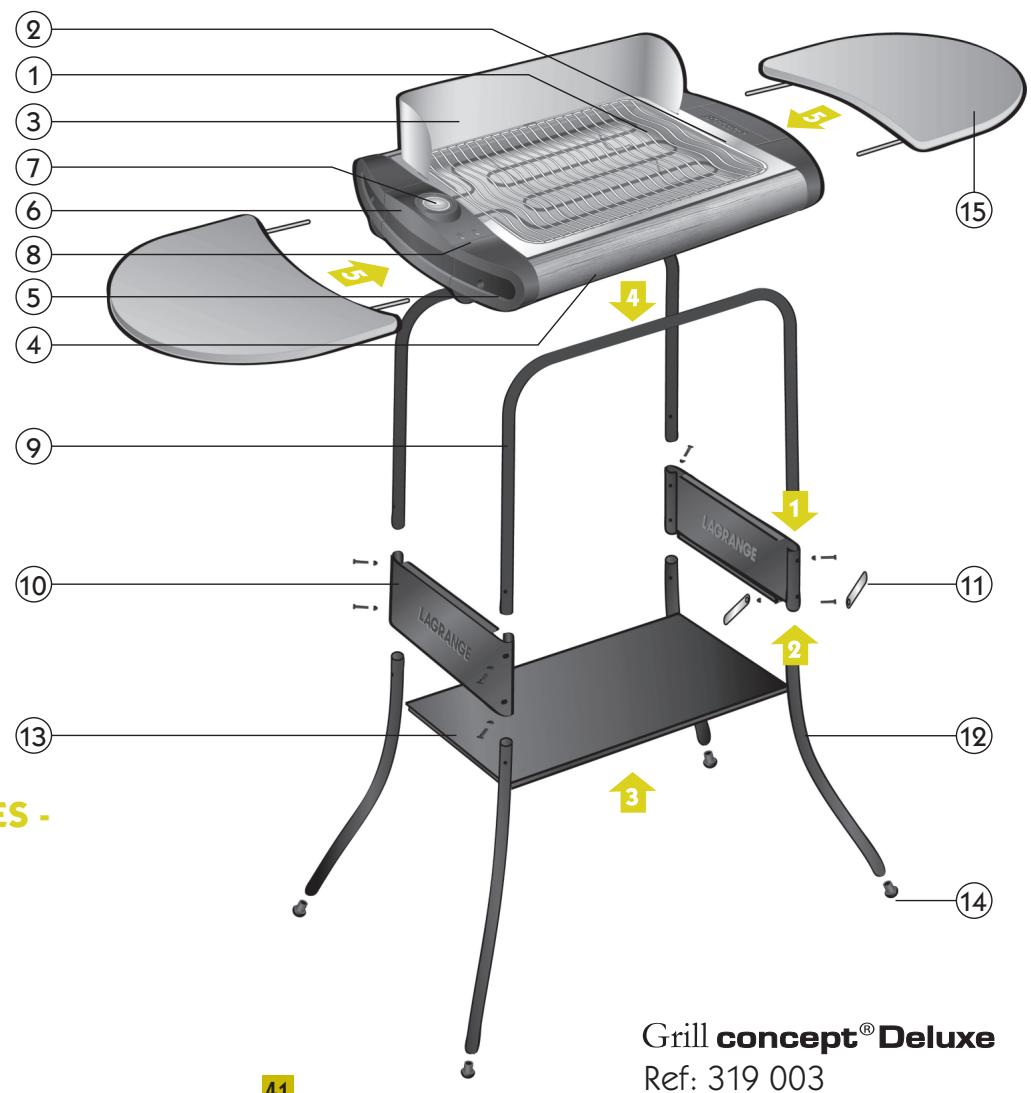

- DESCRIPTION OF APPLIANCE -

1. Chrome-plated steel cooking grill
2. Stainless steel pan
3. Stainless steel wind shield
4. Varnished wood cross-bars
5. Thermoplastic side handles
6. Heating element
7. Adjustment knob

8. Lighted indicators

9. Two curved frame pieces (319 002, 319 003 only)

10. Two base supports (319 002, 319 003 only)
11. Nuts/bolts and assembly wrench (319 002, 319 003 only)
12. Four curved legs (319 002, 319 003 only)
13. Extra shelf (319 002, 319 003 only)
14. Four rubber feet (319 002, 319 003 only)
15. Wooden side shelves (319 003 only)

Thermoplastic side handles
- Varnished wood cross-bars
- Stainless steel pan
- Chrome-plated steel grill

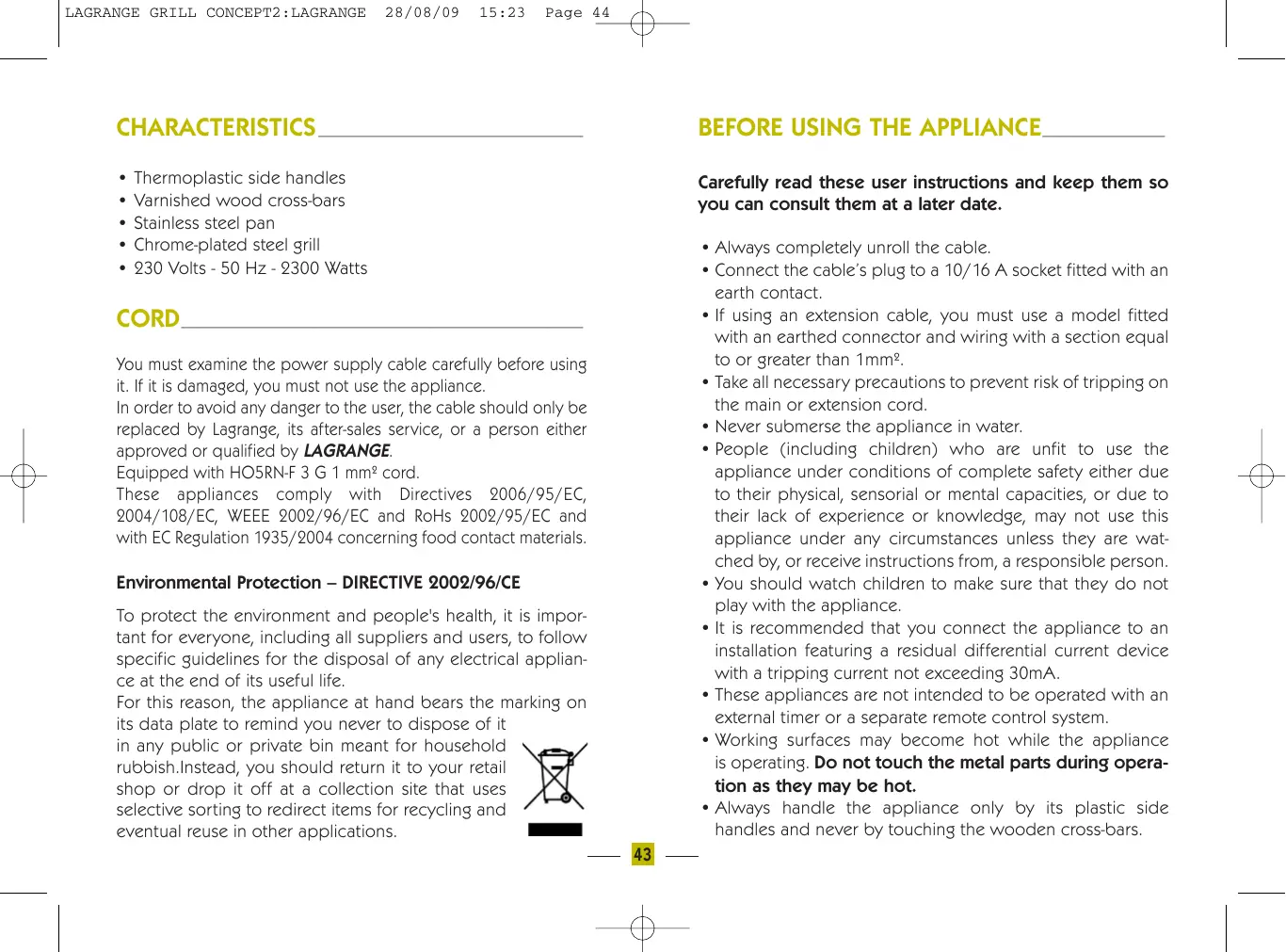

230 Volts - 50 Hz - 2300 Watts

CORD

You must examine the power supply cable carefully before using it. If it is damaged, you must not use the appliance.

In order to avoid any danger to the user, the cable should only be replaced by Lagrange, its after-sales service, or a person either approved or qualified by LAGRANGE.

Equipped with HO5RN-F 3 G 1mm^2 cord.

These appliances comply with Directives 2006/95/EC, 2004/108/EC, WEEE 2002/96/EC and RoHs 2002/95/EC and with EC Regulation 1935/2004 concerning food contact materials.

Environmental Protection - DIRECTIVE 2002/96/CE

To protect the environment and people's health, it is important for everyone, including all suppliers and users, to follow specific guidelines for the disposal of any electrical appliance at the end of its useful life.

For this reason, the appliance at hand bears the marking on

its data plate to remind you never to dispose of it in any public or private bin meant for household rubbish. Instead, you should return it to your retail shop or drop it off at a collection site that uses selective sorting to redirect items for recycling and eventual reuse in other applications.

BEFORE USING THE APPLIANCE

Carefully read these user instructions and keep them so you can consult them at a later date.

Always completely unroll the cable.
- Connect the cable's plug to a 10/16 A socket fitted with an earth contact.
- If using an extension cable, you must use a model fitted with an earthed connector and wiring with a section equal to or greater than 1mm^2 .
- Take all necessary precautions to prevent risk of tripping on the main or extension cord.
- Never submerge the appliance in water.
- People (including children) who are unfit to use the appliance under conditions of complete safety either due to their physical, sensorial or mental capacities, or due to their lack of experience or knowledge, may not use this appliance under any circumstances unless they are watched by, or receive instructions from, a responsible person.
- You should watch children to make sure that they do not play with the appliance.
- It is recommended that you connect the appliance to an installation featuring a residual differential current device with a tripping current not exceeding 30mA .
- These appliances are not intended to be operated with an external timer or a separate remote control system.
- Working surfaces may become hot while the appliance is operating. Do not touch the metal parts during operation as they may be hot.
- Always handle the appliance only by its plastic side handles and never by touching the wooden cross-bars.

• Before any cleaning operation, disconnect the appliance and leave it to cool down completely.
• For your safety, it is recommended that you never use or leave your appliance in a place that is exposed to bad weather or humidity.
• Never use the appliance for additional heating.
• Never place cooking dishes or aluminium foil between food and the cooking grill.
• Never plug in the heating element while it is removed from the appliance. The element is designed for use exclusively with this appliance and any other use is prohibited.
• Never operate the appliance without water in the pan. This appliance is designed for use with a minimum volume of water. The purpose of this water is to minimise smoking and prevent overheating of the pan and work areas. Food drippings fall into the water.

IMPORTANT: This is an electric grill and should never be used with charcoal or any other fuel.

• Avoid cooking excessively fatty foods. The heating element reaches temperatures similar to those of conventional charcoal barbecues. Food drippings may ignite spontaneously from time to time.

SET-UP AND USE

First use

• When unpacking the appliance, take care to remove and check all packing for parts.
• We recommend cleaning the stainless steel pan and grill before the first use.
• A new unit may smoke slightly during the first use. To reduce the chance of smoking, allow the appliance to heat for 10 minutes, and then cool for approximately 30 minutes.

Set-up and use

• Assemble the appliance as illustrated on page 41.
• To use the wind shield, place both ends of the wind shield in the stainless steel pan, and then tilt the back piece of the wind shield and insert its tab into the pan's middle slot. It is not necessary to use the wind shield when cooking indoors.
• Pour 1.6 litres of water into the stainless steel pan.
• Insert the heating element base into the provided bracket. Ensure that the element is inserted correctly. If the red indicator lights up, the element has been inserted incorrectly.

IMPORTANT: never operate the appliance without water in the pan. During use, it is important to watch the water level and add more water as needed, taking care to pour in the water slowly to prevent hot water from splashing out. If you inadvertently allow the water pan to go dry, unplug the appliance immediately and allow it to cool

completely before pouring more water into the pan to prevent sudden vaporisation and ignition of any greasy residue on the heating element.

• Put the grill in place.
• Unroll the cord completely.
• Plug in the appliance and turn the knob to the desired setting; the green indicator lights up.
• After pre-heating for 5 to 15 minutes, you may begin cooking.
• Place the food on the grill.
• If cooking meat, grease the meat pieces before cooking. Turning over meat pieces before they are cooked may cause the meat to stick slightly to the grill.
• Cooking time depends on the food and your personal taste.

Assembling the base (may vary by model)

• Assemble the components as illustrated on page 41.
• Ensure that the barbecue grill is attached securely to both curved frame pieces (see Figures 1 and 2 below).

Assembling the shelves (may vary by model)

• Insert the rods of the wooden shelves into the designated holes on the main barbecue unit, taking care to push them all the way in (the shelf edges should touch the plastic handles). Important: the total weight of items placed on either wooden shelf should not exceed 4kg .

CLEANING

IMPORTANT: Never submerse the heating element or its base or cord into the water.

Always unplug the appliance and allow to cool completely before cleaning.

• Turn the dial to '0'.
• Unplug the appliance and allow it to cool completely.
• Remove the grill.
• Remove the heating element.

• Clean the appliance as follows:

• Stainless steel pan: clean with a damp sponge and, if necessary, mild detergent. (May be placed in dishwasher).

• Cooking grill: soak for 15 - 30 minutes in hot water containing mild detergent. Rub with a sponge or, if necessary, a scouring pad. Drain and dry thoroughly before next use. (May be placed in dishwasher).
• Heating element: The element does not generally require cleaning. If necessary, use a small brush with hard plastic bristles.
• Wood cross-bars: Clean with a damp sponge and dry thoroughly.

GENERAL WARRANTY CONDITIONS

Your appliance is subject to a 2-year warranty.

In order to benefit from an additional year of warranty coverage free of charge, register on the LAGRANGE Web site (www.lagrange.fr)

The warranty covers parts and labour and also covers manufacturing defects.

The product warranty does not cover damage caused by improper use or failure to follow instructions or by dropping the appliance.

THIS WARRANTY APPLIES TO DOMESTIC USE; UNDER NO CIRCUMSTANCES DOES IT COVER PROFESSIONAL USE.

The vendor's legal warranty obligations in no way exclude the Manufacturer's legal warranty obligations relating to faults or manufacturing defects in accordance with Article 1641 and subsequent articles of the French Civil Code.

In the event of a breakdown or malfunction, contact your retailer.

In the event of a technical fault occurring within 8 days of purchase, the appliance may be exchanged. After this period, it is repaired by LAGRANGE's after-sales service.

RECIPES

- STARTER -

STUFFED PRUNES

Preparation time: 15 min - Cooking time: 18 min max

- Serves 4

• 850 g of prunes
• 200 g of smoked bacon cut into very thin slices
• 350 g of pork stuffing
• Salt, pepper. - 2 tablespoons of oil.

Pit 850 g of prunes using a small, sharp knife, taking care to open them lengthways. Fill each prune with pork stuffing using a teaspoon. Then wrap each prune in a slice of smoked bacon, thread them onto skewers and brush lightly with oil. Season with salt and pepper. Grill for 3 to 4 minutes on each side.

- GRILLED MEATS -

BEEF RIBS

Preparation time: 15 min - Cooking time: 18 to 25 min

- Serves 4

-1kgofbeefribs
- Salt and pepper.
- Mixed herbs

Season the ribs and cook for approximately:

• 4 to 5 minutes on each side for rare,
• 7 to 9 minutes on each side for medium rare.

RIB STEAKS WITH MUSTARD SAUCE

Preparation time: 5 min - Cooking time: 10 to 15 min

• Serves 2 -
• 1 rib steak, 200g - Salt and pepper.
• 1 teaspoon of mustard

Brush the meat with mustard, season and grill.

• For rare: 4 min on each side
• For medium rare: 5 min on each side
• For medium doneness: 6 min on each side
• For well done: 7 min on each side.

BEEF TOURNEDOS

Preparation time: 5 min - Cooking time: 10 min

• Serves 2 -
• 2 beef fillet tourneds, 200 g each
• Salt and pepper
• Béarnaise sauce.

Place the steaks on the preheated grill. Cook for 5 min on each side. Eat with bearnaise sauce or any other condiment of your choice.

CALF'S LIVER WITH LEMON

Preparation time: 5 min - Marinade: 30 min

Cooking time: 8 to 12 min - Serves 4 -

• 4 calf's liver escalopes, 120 g each - 5 cl of oil
• 3 lemons - Salt and pepper.
• 2 tablespoons of honey

Squeeze the 3 lemons. Mix the juice with the honey, the oil, the salt and the pepper. Arrange the calf's liver escalopes in a deep dish. Cover them with this mixture and leave them to marinate in a cool place for 30min . Drain the calf's livers and place them on the grill for 4 minutes on each side (depending on the thickness).

- BROCHETTS -

THREE PORK BROCHETTS WITH ORANGE

Preparation time: 15 min - Marinade: 2 hrs - Cooking time: 15 to 20 min

- Serves 4

• 500 g of pork fillet - Paprika and oil
• 4 chipolatas - 2 pork kidneys - Salt and pepper.
• The juice of 3 oranges -4 cloves of garlic
• 1 liqueur glass of rum (5cl) - 2 limes

Cut the pork fillets into 3 cm cubes. Cut each chipolata into 3. Divide the kidneys into four pieces and cut the limes into 1/2 cm thick slices. Mix the orange juice, rum, crushed garlic, salt, pepper and paprika in a mixing bowl.

Marinade the meat pieces in this mixture for 2 hours in a cool place. Drain the meat pieces and thread them onto the skewers alternately, together with the occasional slice of lime. Lightly brush the brochettes with oil and cook them on the grill for 20 min at a fairly high temperature, turning them over frequently.

VEAL AND KIDNEY BROCHETTS

Preparation time: 15 min - Cooking time: 15 to 20 min

- Serves 4

• 500 g of veal fillet
  -1 defatted veal kidney
• 200 g of smoked bacon
• Olive oil, salt and pepper
• Chopped chives.

Cut the veal fillet and the veal kidney into 2 cm cubes. Cut the smoked bacon into 2 cm pieces. Thread the veal, kidney and bacon alternately onto skewers. Season with salt and pepper. Brush lightly with oil. Grill for 15 min, turning the brochettes frequently. Sprinkle with chives and serve hot.

-FISH-

GRILLED SALMON STEAK WITH DILL

Preparation time: 15 min - Cooking time: 12 to 15 min

- Serves 4

• 4 salmon steaks
• 4 tablespoons of chopped dill
• Oil
• Salt and pepper
• 75 g of softened butter

Season the salmon steaks with salt and pepper. Brush them with oil and cook them on the grill for 7 min on each side. In the meantime, grind together the softened butter, the dill, the salt and the pepper. Eat the grilled steaks while still hot. Place a knob of dill butter on each one. Serve with steamed potatoes, also garnished with a little dill butter.

GRILLED SOLE

Preparation time: 20 min - Cooking time: 12 to 15 min

- Serves 3

• 3 large soles
  -1 lemon
• 150 g of breadcrumbs
• Parsley
• 30 g of flour
• 40 g of butter
  -2 eggs
• 1/2 teaspoon of paprika
• Salt and pepper.

Gut the soles. Remove the heads. Gently beat the eggs with the paprika, salt and pepper. Pour the breadcrumbs into a deep dish and mix with the flour. Clean the soles and wipe them dry. Dip them in the egg and then roll them in the breadcrumbs. Place the soles on the grill. Leave to cook for around 6 min on each side.

During cooking, regularly sprinkle with melted butter to which a few drops of lemon have been added. When the soles are cooked and nicely browned, sprinkle with chopped parsley and a pinch of paprika.

- DESSERT -

CARAMELISED AUTUMN FRUIT BROCHETTS

Preparation time: 30 min - Marinade: 1 hr

Cooking time: 10 min

- Serves 4

• 200 g of apples (pippin)
• 200 g of purple plums
• 200 g of pears
• 1 pinch of powdered cinnamon
• 4 tablespoons of sweet white wine (Sauternes for example)
• 4 tablespoons of brown sugar
• 30 g of butter.

Wash the plums, cut them in half and remove the stones. Peal the apples and pears and cut them into regular cubes. Macerate the fruit in the wine and cinnamon for an hour. Drain the pieces of fruit and thread them onto wooden skewers to make small brochettes. Place your brochettes on the grill and brown the fruit for a few minutes.
