USER MANUAL 5855 SKIL
- do not force the tool; apply light and continuous pressure
- after completing the cut switch off tool by releasing trigger V
! ensure that the blade has come to a complete standstill, before you lift the tool from the workpiece
APPLICATION ADVICE
Always face the good side of the workpiece down to ensure minimum splintering
- Only use sharp saw blades of the correct type ⑦
- quality of cut improves by the number of teeth
- carbide tipped blades stay sharp up to 30 times longer than ordinary blades
Rip fence W ⑧
- for making exact cuts along a workpiece edge
-
can be inserted in either side of foot Adjusting rip fence
-
loosen knob X
- adjust to desired cutting width by using rip fence scale (use saw line visor P as 0-reference)
-
tighten knob X
-
Plunge cutting ⑨
-
set desired cutting depth
- tilt tool forward with saw line visor P lined up with desired line of cut marked on the workpiece

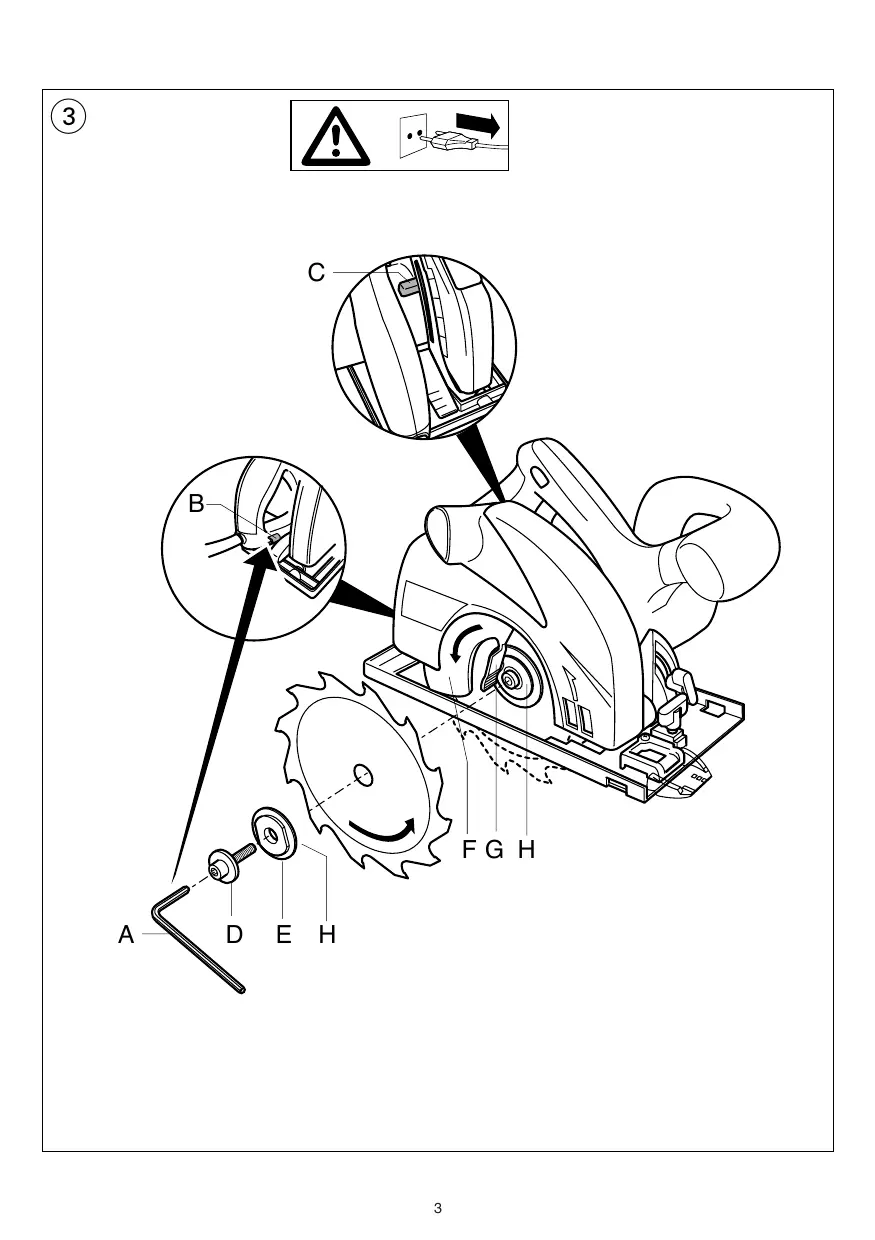

open lower guard F with lever G - just before blade enters workpiece, switch on tool and gradually lower back end of tool using front end of foot as hinge-point
- gradually move tool downward as well as forward
- as soon as blade enters the material, release lever G
! never pull tool backwards
Cutting large panels 10
- support panel close to the cut either on floor, table or workbench
! set cutting depth so that you cut through panel and not through support - in case rip fence does not allow desired width of cut, clamp or nail straight piece of wood to workpiece as a guide, and use the right side of the foot against this guide
For more tips see www.skileurope.com
GUARANTEE / ENVIRONMENT
Always keep tool and cord clean (especially the ventilation slots)
! disconnect the plug before cleaning
- Clean saw blade immediately after use (especially from resin and glue)
- This SKIL product is guaranteed in accordance with statutory/country-specific regulations; damage due to normal wear and tear, overload or improper handling will be excluded from the guarantee
-
In case of a complaint, send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)
-
Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)
-
in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
symbol 11 will remind you of this when the need for disposing occurs
