USER MANUAL 4370AD SKIL

Two identical grayscale illustrations of a skil with labeled components, shown from different angles (no text or symbols beyond branding)

GB INSTRUCTIONS page 9
F INSTRUCTIONS page 11
D HINWEISE Seite 14
NL INSTRUCTIES bladz. 17
s INSTRUKTIONER sida 20
DK INSTRUKTION side 22
N ANVISNING side 25
FIN OHJEET sivu 27
E INSTRUCCIONES pág. 30
P INSTRUÇÕES pág. 33
I ISTRUZIONI pag. 35
(H) LEÍRÁS oldal 38
(cz) POKYNY strana 41
TR KILAVUZ sayfa 44

PL INSTRUKCJA strona 46
RU ИНСТРУКЦИИ страница 49
UA ІНСТРУКЦІЯ страница 52
GR OΔΗΓΙΕΣ σελιδα 55
RO INSTRUCTIUNI pagina 59
BG УКАЗАНИЕ страница 61
SK POKYNY strana 65
(HR) UPUTE stranica 67
SCG UPUTSTVA stranica 70
(SLO) NAVODILA stran 72
EST KASUTUSJUHEND lehekülg 75
LV INSTRUKCIJA lappuse 77
LT INSTRUKCIJA puslapis 80

www.skileurope.com

1

4270

500 W

2,1 kg

4370

550 W

2,1 kg

2

4270

D A B C CURVE TURBO SKIL E

4370

A B C D E F SKIL

③

4

Diagram showing hand positioning technique with tool and directional arrow indicating movement

STOP

5

Illustration of a hand pressing down on a device component with an upward arrow (no text or symbols)

Illustration of a hand pressing down on a curved surface with a directional arrow (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Diagram of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram illustrating human body posture with numbered zones and directional indicators

⑥

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

⑦

Diagram illustrating a mechanical device with a gear and a checkmark indicating approval or confirmation.

Diagram illustrating a sewing machine tool and its corresponding mechanical part with a cross symbol, showing mechanical assembly and alignment.

⑧

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

0° 15° 30° 45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the arm (no text or symbols present)

⑨
4270
4370
CURVE

TURBO

CURVE D TURBO

all/curve metal plastic hard wood soft wood D

10

E 1 2 3

11

Technical diagram showing mechanical assembly with labeled component E and directional arrows

Diagram of a sewing machine needle stitching a component, with no visible text or symbols

12 F 4370

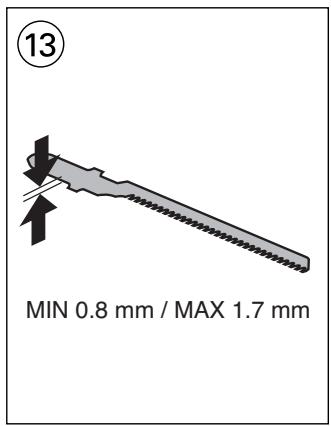

⑬ MIN 0.8 mm / MAX 1.7 mm

14 "T"

Line drawing of a hand using an electric shaver to cut electrical components, with a light bulb symbol nearby (no text or labels)

16 750 TAXI

⑰ 17

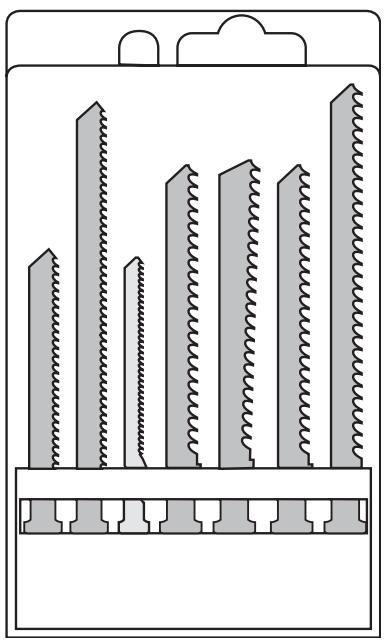

ACCESSORIES

SKIL nr.

Diagram of a battery pack with six vertical slots and a grid of slots, no text or symbols present.

2610388138

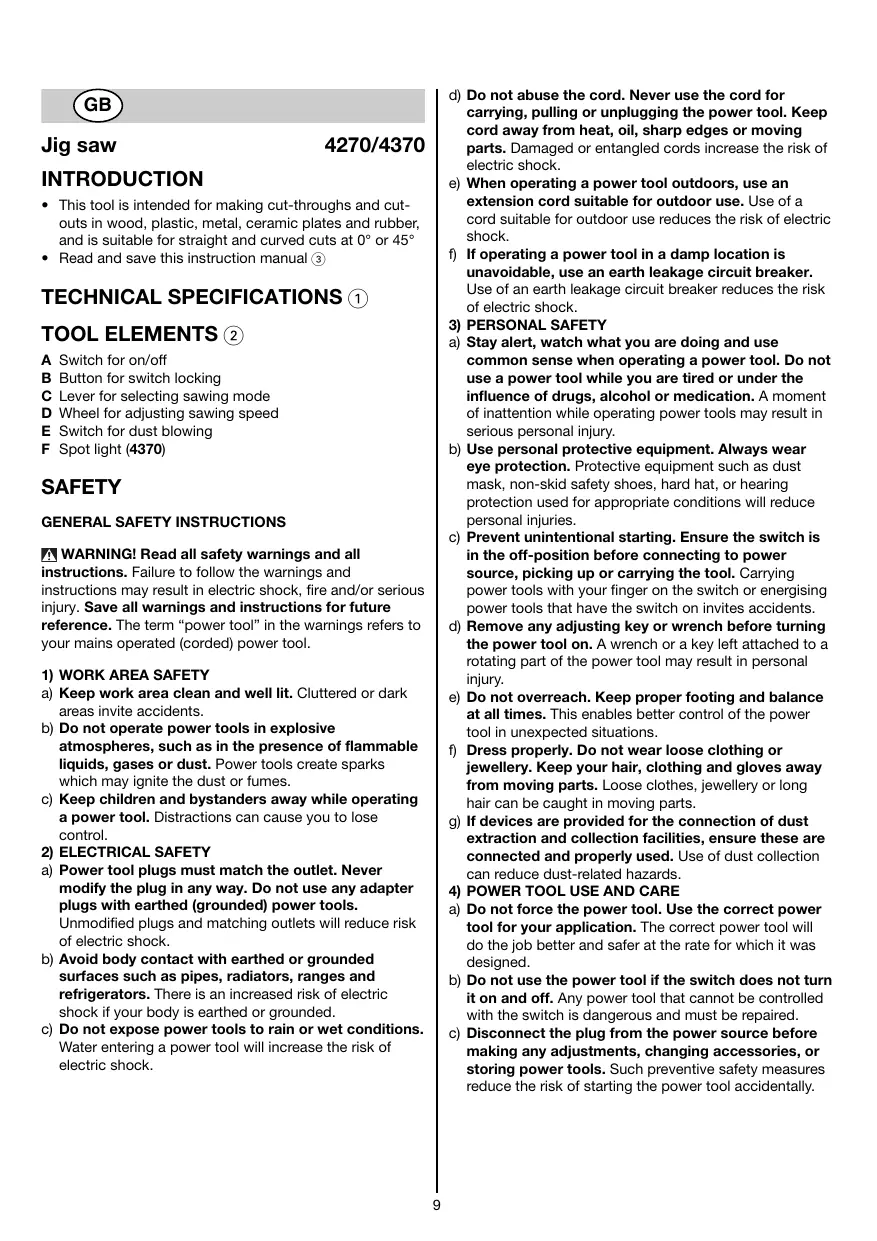

GB

Jig saw

4270/4370

INTRODUCTION

• This tool is intended for making cut-throughs and cut-outs in wood, plastic, metal, ceramic plates and rubber, and is suitable for straight and curved cuts at 0° or 45°
• Read and save this instruction manual ③

TECHNICAL SPECIFICATIONS ①

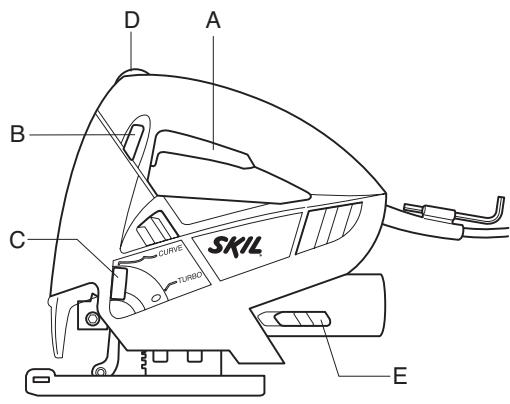

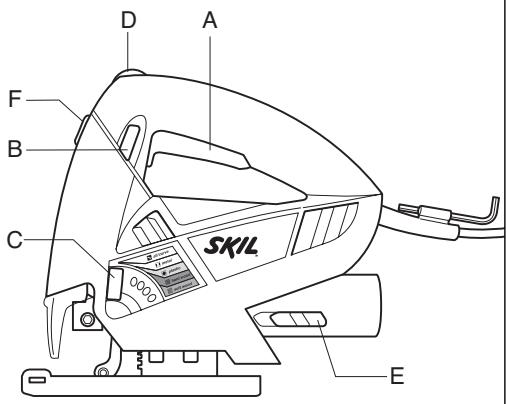

TOOL ELEMENTS ②

A Switch for on/off
B Button for switch locking
C Lever for selecting sawing mode
D Wheel for adjusting sawing speed
E Switch for dust blowing
F Spot light (4370)

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR JIG SAWS

• Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• Never use tool when cord is damaged; have it replaced by a qualified person

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Take protective measures when during work dust can develop that is harmful to one's health, combustible or explosive (some dusts are considered carcinogenic); wear a dust mask and work with dust/chip extraction when connectable

- Do not use a saw blade which is cracked, deformed or dull

- Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

- Keep hands away from the saw blade while the tool is in use

- Remove all obstacles on top of as well as underneath the cutting path before you start cutting

- Always disconnect plug from power source before making any adjustment or changing any accessory

- Wear protective goggles when working with materials which produce chips

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Check the functioning of the tool before each use and, in case of a defect, have it repaired immediately by a qualified person; never open the tool yourself

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)
• When used outdoors, connect the tool via a fault current (FI) circuit breaker with a triggering current of 30 mA maximum, and only use an extension cord which is intended for outdoor use and equipped with a splashproof coupling-socket
• The noise level when working can exceed 85 dB(A); wear ear protection
• When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill
• SKIL can assure flawless functioning of the tool only when original accessories are used
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• This tool should not be used by people under the age of 16 years

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

• On/off ④
• Switch locking for continuous use ⑤

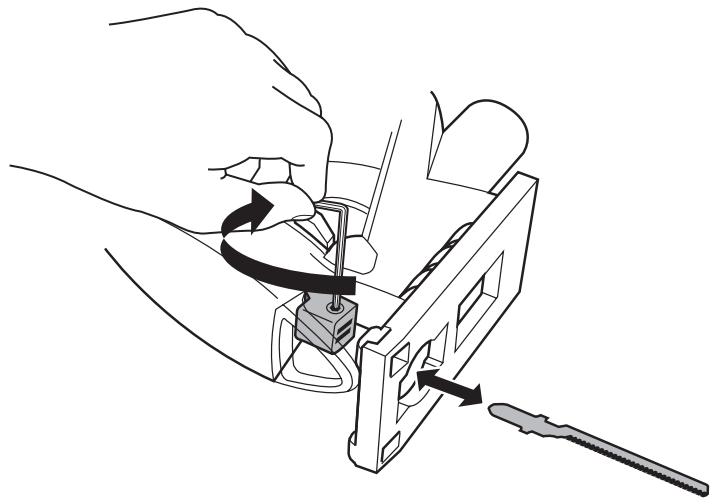

• Changing saw blades ⑥

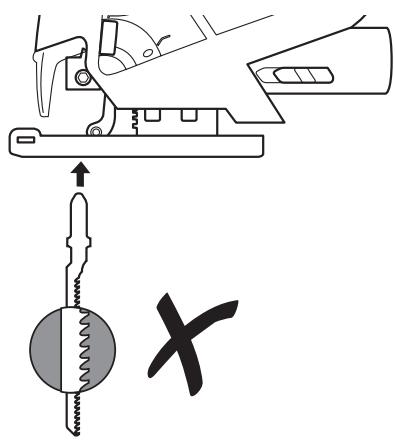

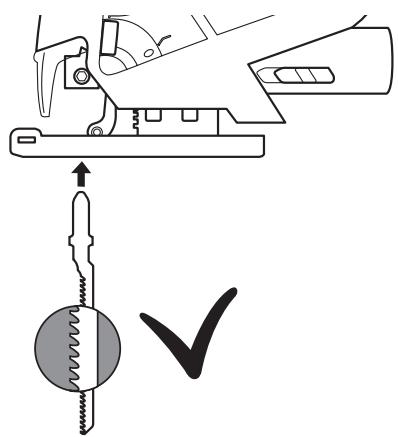

! insert blade to full depth with teeth facing forward ⑦

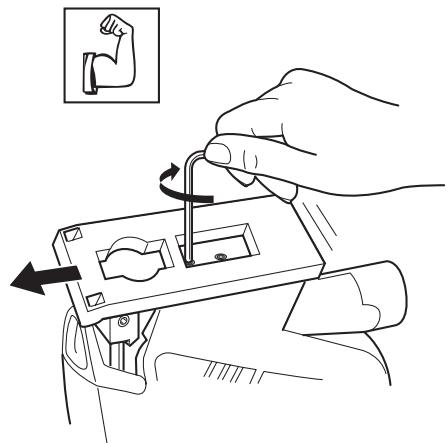

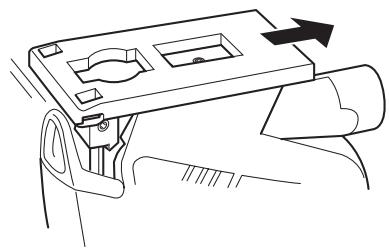

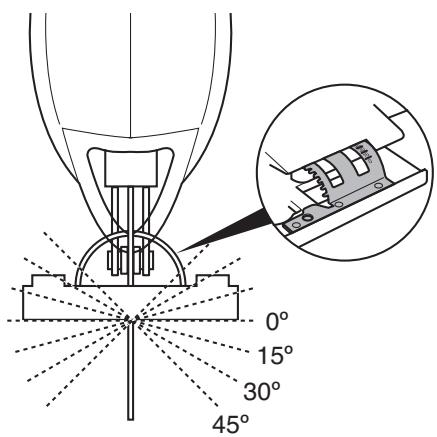

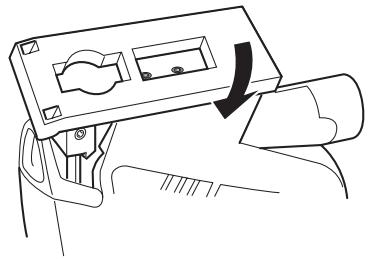

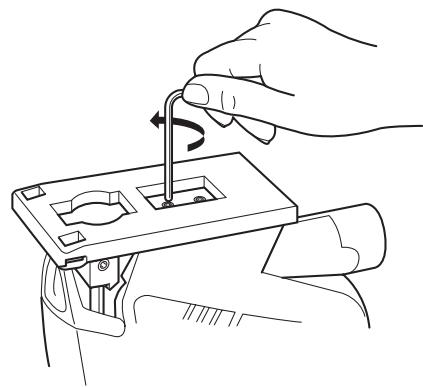

- Sawing at 45^ ⑧

- for best results select "CURVE" (4270) / "all/curve" (4370) sawing mode

! ensure that footplate rests flat against tool housing (⑧a or ⑧b)

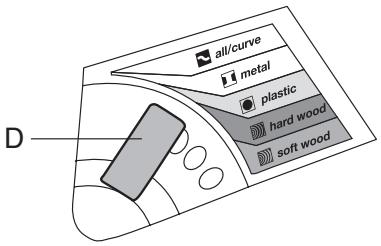

- Selecting sawing mode ⑨ 4270

• “CURVE” for accurate cutting, straight + curved
• “TURBO” for fast cutting, straight cuts only

! always select "CURVE" when sawing splinter-sensitive material

4370

• 1 setting (“all/curve”) for accurate cutting in all materials, straight + curved
• 4 settings for fast cutting in different materials, straight cuts only

grey = metal

blue = plastic

brown = hard wood

green = soft wood

! always select "all/curve" when sawing splinter-sensitive material

• Adjusting sawing speed to material used ⑩
  ! if the tool does not run with wheel D in position 1, select a higher sawing speed and lower the sawing speed while the tool runs
• Dust suction ⑪a
  ! do not use vacuum cleaner when cutting metal

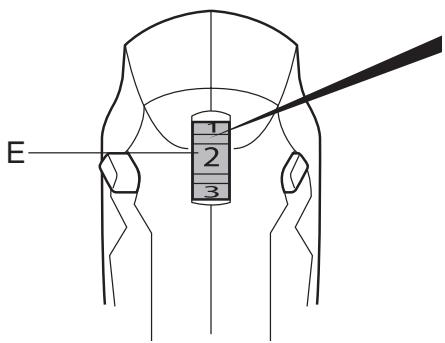

• Dust blowing ⑪b

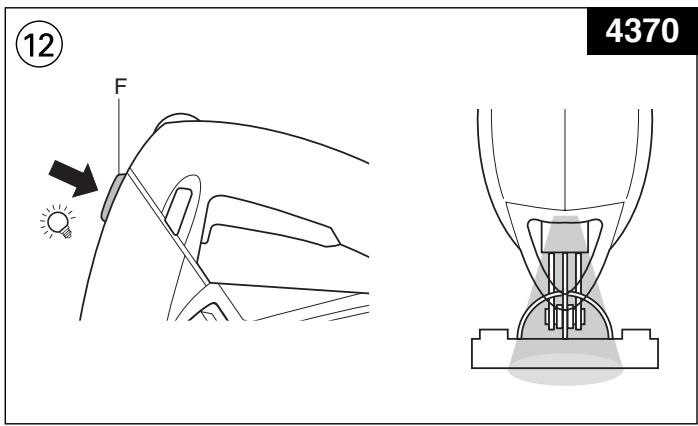

• Spot light ⑫ (4370)
• Operating the tool
• before switching on the tool, ensure that front end of footplate rests flat on the workpiece
• hold tool firmly with both hands, so you will have full control of the tool at all times
• ensure that complete surface of footplate rests firmly on the workpiece
• ensure that the blade has come to a complete standstill, before you lift the tool from the workpiece

APPLICATION ADVICE

• Use the appropriate saw blades ⑬

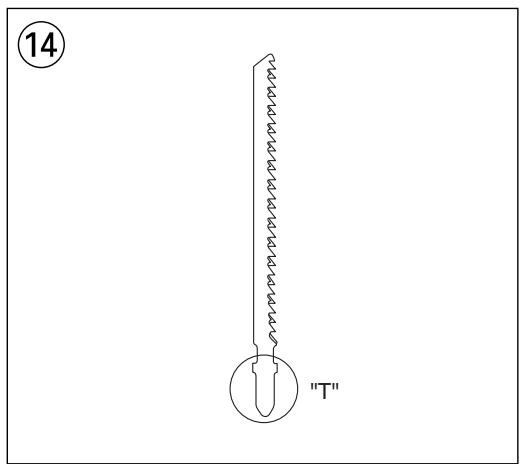

  ! use T-shank blades only ⑭
• When cutting metals, lubricate saw blade regularly with oil

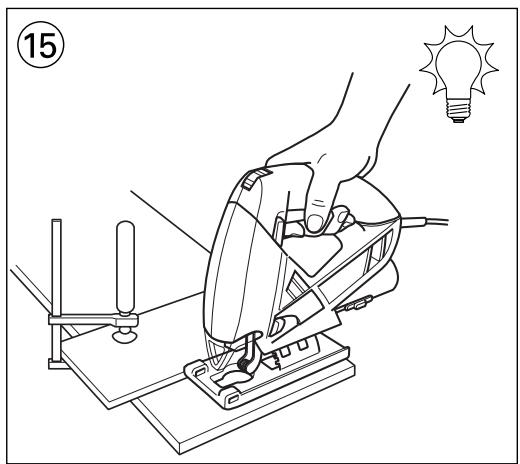

• For an accurate straight cut, guide tool with footplate along the edge of a straight piece of wood ⑮

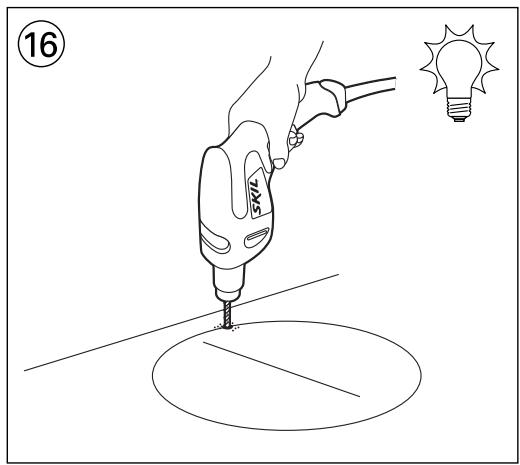

• Pre-drill a hole before making cut-outs ⑯
• Splinter-free cutting

- cover cutting-line with several layers of wide tape before cutting

- always face the good side of the workpiece down

- For more tips see www.skileurope.com

GUARANTEE / ENVIRONMENT

• Always keep tool and cord clean (especially the ventilation slots)
  ! disconnect the plug before cleaning
• This SKIL product is guaranteed in accordance with statutory/country-specific regulations; damage due to normal wear and tear, overload or improper handling will be excluded from the guarantee
• In case of a complaint, send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)
• Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑰ will remind you of this when the need for disposing occurs

Scie sauteuse

4270/4370

INTRODUCTION

CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60 745, EN 55 014, in accordance with the provisions of the directives 73/23/EC, 2004/108/EC, 98/37/EC.

NOISE/VIBRATION Measured in accordance with EN 60 745 the sound pressure level of this tool is 90 dB(A) and the sound power level 101 dB(A) (standard deviation: 3 dB), and the vibration * m/s ^2 (hand-arm method).

Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
