USER MANUAL COOKYOO100 YOO DIGITAL

ENGLISH ENGLISH I M P ORTA N T : s a fe ty a dvi c e When using electrical appliances especially when children are present, basic safety precautions should always be followed, including the following :

• Read all instructions before using.
• To protect against electrical shock, do not submerge the mixer or allow AC cord to come in contact with water or other liquids.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any matter. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
• Always unplug the appliance before assembling, disassembling, cleaning.
• Blades are sharp. Handle carefully.
• Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
• Don’t plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
• Don’t allow children to use the blender without supervision.
• Don’t let the motor unit, cord, or plug get wet.
• Don’t place the appliance in the hot ingredients.
• The appliance is constructed to process normal household quantities.
• Short-time operating. Use the appliance for no longer than 1 minute, and don’t operate hard food for no longer than 10 seconds.
• If you press switch I, you can run the inching switch to meet your request. But the switch II is immutable.
• Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.
• It shall warn of potential injury from misuse
• They shall state that care shall be take when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.
• This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them form using it safely.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance has a polarized plug (one blade is wider than the other).To reduce the risk of electric shock, this plug will fit in a polarized outlet .reverse the plug. If it still does not fit. Contact a qualified electrician. Do not modify the plug in any way.
• Keep hands and utensils out of the container while blending / away from the cutting blade while chopping food to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the unit is not running.

Your safe t y a n d t h e s a fe t y o f o t h e rs a re very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: DANGER You can be killed or seriously injured if you don’t immediately follow instructions. WARNING You can be killed or seriously injured if you don’t follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. ELEC TRI CA L R E QU IR E MENTS Volts:220/240 V.A.C. Hertz: 50/60 Hz The wattage rating for your hand blender multifunction is printed on a tag under the mixer base. It is also listed on the trim band. If the power cord is too short, have a qualifi ed electrician or serviceman install an outlet near the appliance. The maximum rating is based on the attachment that draws the greatest load (power). Other recommended attachments may drawsignifi cantly less power. WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

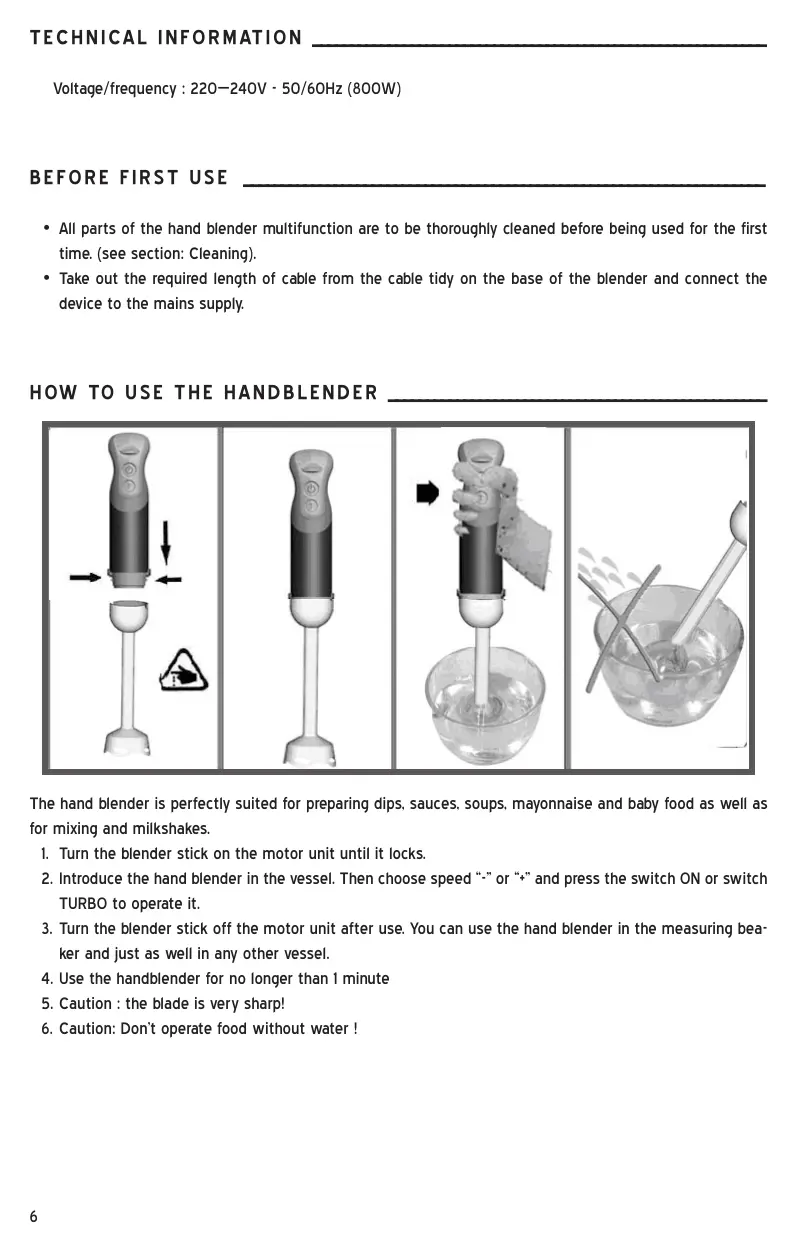

Technical in f ormation ____________________________________________________________ Voltage/frequency : 220—240V - 50/60Hz (800W) Before first use _____________________________________________________________________

• All parts of the hand blender multifunction are to be thoroughly cleaned before being used for the first time. (see section: Cleaning).
• Take out the required length of cable from the cable tidy on the base of the blender and connect the device to the mains supply. H ow to use the handblender __________________________________________________ The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Turn the blender stick on the motor unit until it locks.

2. Introduce the hand blender in the vessel. Then choose speed “-” or “+” and press the switch ON or switch

TURBO to operate it. 3. Turn the blender stick off the motor unit after use. You can use the hand blender in the measuring beaker and just as well in any other vessel.

4. Use the handblender for no longer than 1 minute

5. Caution : the blade is very sharp!

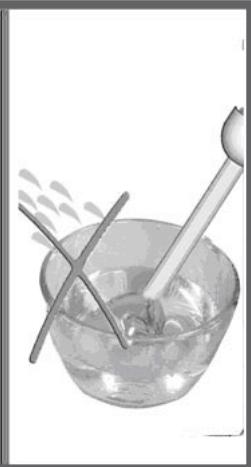

6. Caution: Don’t operate food without water !

1. Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots,

walnuts, almonds, prunes etc.

2. Don’t chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

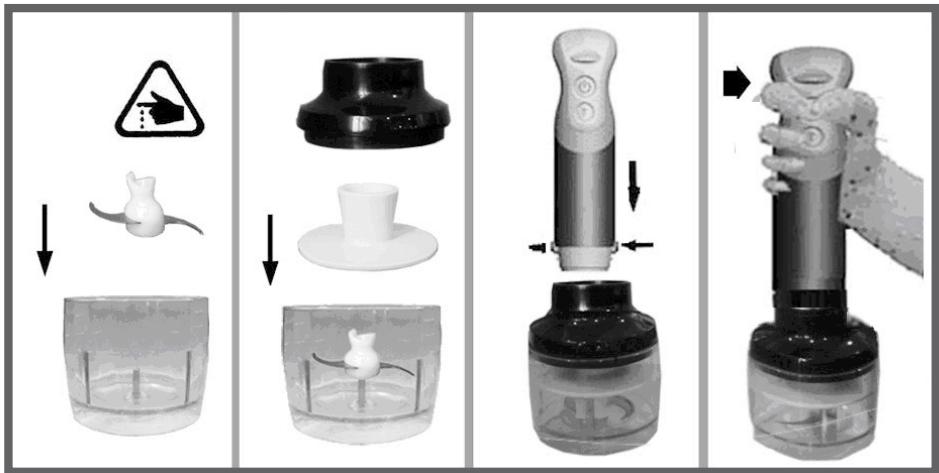

1. Carefully remove the plastic cover from the blade. Caution: the blade is very sharp! Always hold it by the

2. Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place

the chopper bowl on the anti-slip base.

3. Place the food in the chopper bowl.

4. Place the chopping bowl lid on the chopper bowl.

5. Turn the motor unit on the chopping bowl lid until it locks.

6. Choose speed “-” or “+” and press switch ON or switch TURBO to operate the chopper. During processing,

hold the motor unit with on hand and the chopper bowl the other.

7. After use, turn the motor unit off the chopping bowl lid.

8. Then remove the chopping bowl lid. Carefully take out the blade.

9. Carefully take out the blade.

10. Remove the processed food from the chopper bowl.

11. Don’t operate hard food for no longer than 10 seconds.

WARNING Keep hands and utensils out of the container while blending / away from the cutting blade while chopping food to prevent the possibility of severe injury to persons or damage to the unit.

ENGLISH H ow to use the chopper _________________________________________________________ H ow to use the whisk _____________________________________________________________ Use the whisk only for whipping cream, beating egg whites and mixing sponges and Ready-mix desserts.

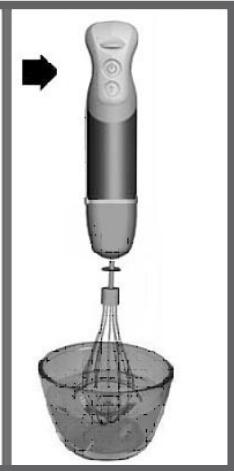

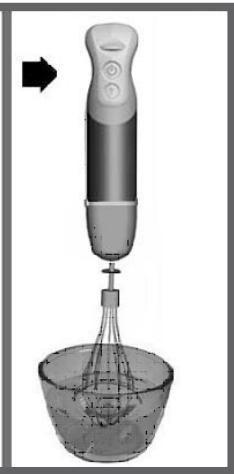

1. Inset the whisk into the whisk holder, and then turn the gear box on the motor unit until it locks.

2. Place the whisk in a vessel and only then. Choose speed “-” or “+” and press the switch ON or switch

TURBO to operate it.

3. Use the whisk for no longer than 2 minute.

4. Turn the gear box off the motor unit after use. Then pull the whisk out of the gear box.

WARNING Injury Hazard Unplug mixer before touching beaters. Failure to do so can result in broken bones, cuts or bruises. NOTE : The hand blender multifunction may warm up during use. Under heavy load with extended mixing time, you may not be able to comfortably touch the top of the hand blender multifunction. This is normal.

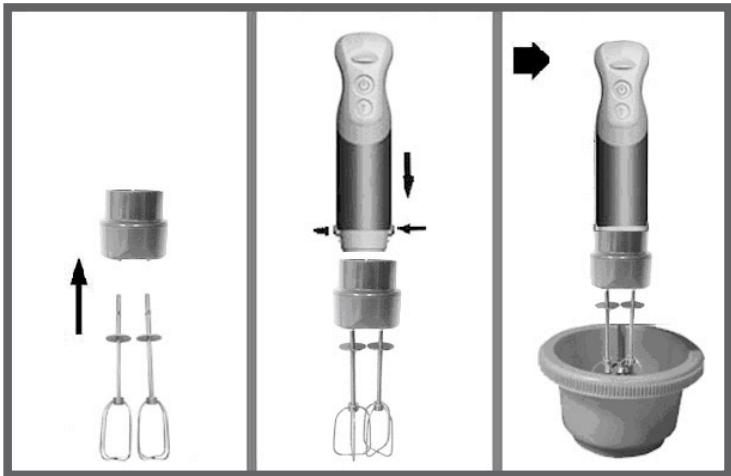

Use the double beater accessories you can easily make the preparation such as cake dough, omelet, crepe dough and mayonnaise.

1. Mount the beater accessories firstly by pushing until it fits well in its place in order to use the beater

2. Turn the beater adapter to the motor block to mount without tightening too much.

3. Place the double beaters in a vessel and only then choose speed “-” or “+” and press the switch ON or

switch TURBO to operate it.

4. Use the double beater accessories for no longer than 2 minute.

5. Turn the gear box off the motor unit after use. Then pull the double beaters out of the gear box.

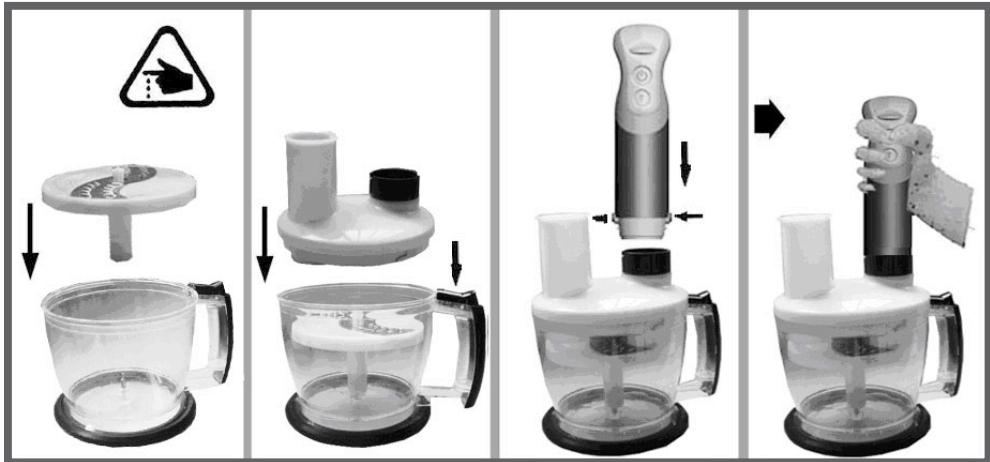

H ow to use the slicing /Grating _____________________________________________ For preparing a maximum of 500g of foodstuffs at once (no meat) Blade Slicing : potatoes for gratins dauphinois, carrots, cucumbers, etc

ENGLISH H ow to use the double beater accessories __________________________ Blade Grating : grated carrots, celery.

1. Silde the blade “S”into the blade –holder disc. place the spindle drive onto the spindle in the middle of the

bowl, then the blade –holder disc onto the spindle drive , and then the blender lid adaptor on the lid .

2. Position and lock the lid.

3. Put the motor unit in place on the adaptor then start the appliance.

4. Put the foodstuffs into the feeder tube and guide them using the pudher ,never your fingers, or a utensil.

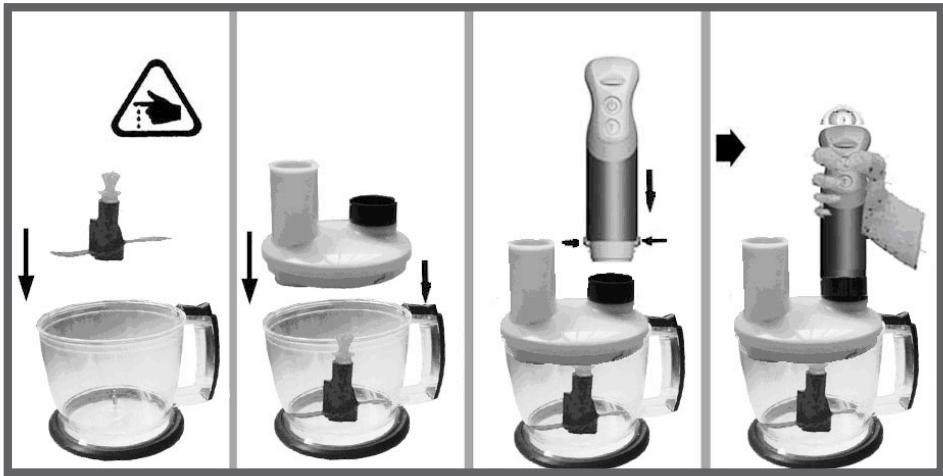

H ow to use the “ S ” blade ________________________________________________________

1. Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots,

walnuts, almonds, prunes etc.

2. Don’t chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

1. Carefully place the blade onto the central spindle in the bowl, holding it by the plastic part. Caution: the

blade is very sharp! Always hold it by the upper plastic part.

2. Put the foodstuffs into the bowl .never fill the bowl above the maximum limit indicated.

3. Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place

the chopper bowl on the anti-slip base. Operation of the direction, please see the figure as show.

4. Place the food in the chopper bowl.

5. Place the chopping bowl lid on the chopper bowl.

6. Turn the motor unit on the chopping bowl lid until it locks.

7. Choose switch ON to operate the chopper. During processing, hold the motor unit with on hand and the

chopper bowl the other.

8. After use, turn the motor unit off the chopping bowl lid.

9. Then remove the chopping bowl lid. carefully take out the blade.

10. Don’t operate hard food for no longer than 10 seconds.

1. Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots,

walnuts, almonds, prunes etc.

2. Don’t chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

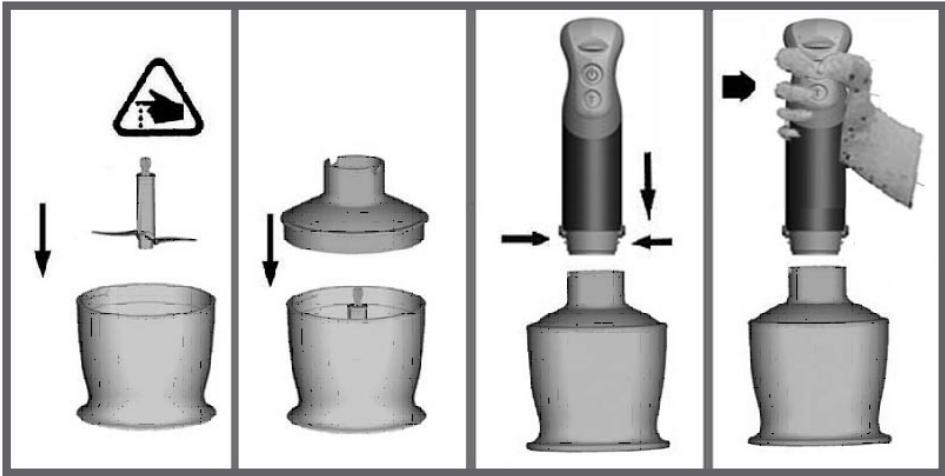

1. Carefully place the blade onto the central spindle in the bowl, holding it by the plastic part. Caution : the

blade is very sharp ! Always hold it by the upper plastic part.

2. Put the foodstuffs into the bowl, never fill the bowl above the maximum limit indicated.

3. Place the inner lid into the bowl and then put the lid in place, making sure that the lid drive system is

properly positioned on the blade, put the motor unit in place on the lid.

4. To dismantle the appliance after use, remove the motor unit from the lid, lift off the lid and the inner lid,

then carefully remove the food before lifting off the blade, holding it at the top...

5. Choose switch ON to operate the chopper. During processing, hold the motor unit with on hand and the

chopper bowl the other.

6. After use, turn the motor unit off the chopping bowl lid.

7. Don’t operate hard food for no longer than 10 seconds.

WARNING Keep hands and utensils out of the container while blending / away from the cutting blade while chopping food to prevent the possibility of severe injury to persons or damage to the unit.

ENGLISH H ow to use the small bowl ____________________________________________________ Cleaning __________________________________________________________________________________ Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit in water !

1. All other parts can be cleaned in the dish washer. However, after processing

very salty food, you should rise the blades right away.

2. Also, be careful not to use an overdose of cleaner or decalcifier in your

3. When processing food with color, the plastic parts of the appliance may

become discolored Wipe these parts with vegetable oil before placing them in the dishwasher.

4. The blades are very sharp, please attention.

5. Unplug the appliance before cleaning.

Processing G uide ( for chopping bowl) __________________________________ Food Meat Herbs Nut Cheese Bread Onions Biscuits Soft fruit Flour Barm Water Sugar Salt 250g 50g 100g 100g 80g 150g 150g 200g

Food Meat Herbs Nuts, almonds Bread Onion

Operation time Gratin/silic bowl 15sec 8sec 15sec 8sec 8sec Preparation 1~2cm 2cm 1/2 demi 150g 200g 4 eggs 8sec 10sec 15sec ENGLISH Biscuits Soft fruit Egg frost 1cm 1~2cm 150ml bowl Parsley Garlic Onion Pork 10g 40g 40g 80g 60sec 60sec 60sec 60sec 1cm 1cm 1cm 1cm Pac k ing list ____________________________________________________________________________

Multifunction motor 3 feet : blender, beat, beat double Large mixing bowl graduated (800ml) Grate, slice, chopper bowl (1250ml) Mini chopper bowl (500ml) «Baby Food» bowl 3 blade S Storage Rack User’s manual Warranty card hand blender multi function WHEN YO U N EED SERVI CE ______________ WARNING Electrical Shock Hazard Unplug before servicing. Failure to do so can result in death or electrical shock. Please read the following before calling your service center.

1. The hand blender multifunction may warm up during use. Under heavy loads with extended mixing time

periods, you may not be able to comfortably touch the top of the unit. This is normal.

2. The hand blender multifunction may emit a pungent odor, especially when new. This is common whit

electric motors. If your Stand Mixer should malfunction or fail to operate, please check the following :

• Is the hand blender multifunction plugged in?
• Is the fuse in the circuit to the hand blender multifunction in working order ? If you have a circuit breaker box, be sure the circuit is closed.

• Turn the hand blender multifunction off for 10-15 secons, then turn it back on. If the mixer still does not star, allow it to cool for 30 minutes before turning it back on.
• If the problem is not due to one of the reasons above, please contact the dealer or distribiteur YOO DigitalTM HOME.
