USER MANUAL YooTab 5001 YOO DIGITAL

YCC DIGITAL

Yootab5001

INTERNET TABLET

MANUEL D'UTILISATION

SOMMAIRE

Music Video Picture Ebook

SURFER SUR INTERNET

Go Bookmarks New window Refresh Forward More

Wi-Fi Wi-Fi Network notification Wi-Fi network RK01 1x001 RK013 Add Wi-Fi network

Set up your Google account QUICK HELP You have covered an application that requires you to file a Google account to your phone. It's easy and only takes a few steps. Google app requests will always be in order between plus phone and computer. Bened "Think" to continue or press that has been done on next.

A young girl with a straw hat blowing a green object, set against a green grassy background (no text or symbols visible)

Computer window displaying a blank blue sky with clouds and a turquoise ocean background (no text or symbols visible)

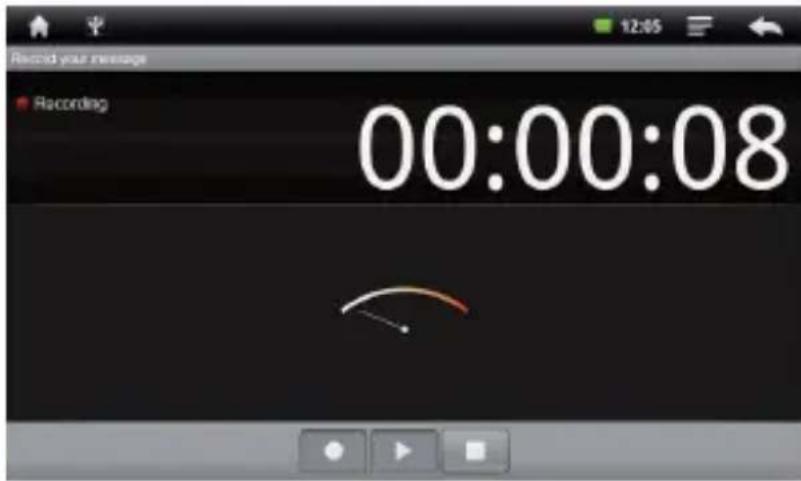

Record your message Recording 00:00:08

[Codec]: Ver. 3.95, 3.97, 3.98, 3.99, normal and fast

[Canaux]: 2

[Echantillonnage]: 8-48KHz

[Conteneur]: APE

OGG AUDIO

[Codec]: Q1-Q10
[Canaux]: 2
[Echantillonnage]: 8-48KHz
[Exceptionnel]: Non
[Conteneur]: OGG/OGA

FLAC AUDIO

[Codec]: FLAC
[Canaux]: 2
[Echantillonnage]: 8-48KHz
[Exceptional]: Non
[Conteneur]: FLAC

AAC AUDIO

[Codec]: ADIF ,ATDS	Header AAC-LC - AAC-HE
[Canaux]: 2
[Echantillonnage]: 8-48KHz
[Conteneur]: AAC/M4A

Picture:

[Codec]: JPEG
[Compressed]: niveau de référence
[Resolution]: 8000*8000
[Exceptional]: Non
[Conteneur]: JPG/JPEG

BMP

[Codec]: BMP
[Resolution]: tous
[Exceptional]: Non
[Conteneur]: BMP

GIF

[Codec]: GIF
[Resolution]: 1000*1000
[Exceptional]: Non
[Conteneur]: GIF

Video

AVI

[Codec Video]: MPEG4, XVID, DIVX4/5/6

[Max Resolution]: 1280x720

[Cadence]: 30fps

[Codec Audio]: MPI, MP2, MP3, AC3, AAC

3GP/MP4

[Codec Video]: H.264, MPEG4, XVID, DIVX4/5/6

[Max Resolution]: 1280x720

[Cadence]: 30fps

[Codec Audio]: MP2, MP3, AAC, AMR

RM/RMVB

[Codec Video]: Realvideo 8/9/10
[Max Resolution]: 1280x720
[Cadence]: 30fps
[Codec Audio]: MP3, AAC

FLV

[Codec Video]: Sorenson H.263, H.264

[Max Resolution]: 720x480(H.263), 1280x720(H.264)

[Cadence]: 30fps

[Codec Audio]: MP3, AAC

MKV

[Codec Video]: H.264, MPEG4, XVID, DIVX4/5/6

[Max Resolution]: 1280x720

[Cadence]: 30fps

[Codec Audio]: MPI, MP2, MP3, AC3, AAC

MOV

[Codec Video]: MPEG4, H.264

[Max Resolution]: 1280x720

[Cadence]: 30fps

[Codec Audio]: MP2, MP3, AC3, AAC, AMR

Warning sign depicting a human ear with lightning bolt symbol, commonly used in safety or hazard prevention.

Yootab5001 INTERNET TABLET

USER'S MANUAL

CONTENT

Main functions 38

Precautions 39

About the MID 41

Basic operations 42

Home screen 44

Surf on Internet 47

System settings 49

Apk installer 50

Market 50

Email 51

Google Maps 51

Video player 51

Audio player 53

Photo browser 55

Ebook 56

Sound recorder 57

Advanced task Manager 57

Other functions 58

Troubleshooting 58

Technical specifications 60

MAIN FUNTIONS

4.8 inch touch screen with high resolution of 800*480.

Support MP3/WMA/FLAC/AAC/OGG /WAV/APE music format. •

- Support HD 720P video of AVI/3GP/MP4/FLV/MKV/MOV/RM RMVB format and HD 480P video of FLV format.

Support lyric (.lrc) synchronization.

Support TF card.

Support picture auto browse in JPG/BMP/JPEG/GIF format•

Energy-saving setting, brightness control, auto power off and LCD • off.

Built-in MIC, ultra long record.

Support multi languages.

Support Win2000 /Win XP/Vista system.

Support downloading files from internet.

• USB2.0 high speed transfer
• Support E-book reading.'
• Support APK program installation.
• Portable disk.

Multi task handling function, you can listen to music while reading • E-book or viewing pictures.

- Support firmware upgrade.

- G-Sensor function.

PRECAUTIONS

All warranty information, product features and specifications are subject to change without notice!

Please read the manual carefully before using the player to avoid unexpected damage.

I. Do not use the MID in extremely hot, cold, dusty or damp environments.
2. Do not drop the MID when using it.
3. The usage life of battery is subject to the operating condition and environment.
4. Please charge the battery in the following instances:

A. The icon of battery level shows low.
B. System powers off automatically and powers off again after restarting.
5. During the formatting or uploading/downloading, do not disconnect the MID from the PC. Disconnection during updating or data transfer may damage files or the MID.
6. Static discharge to the cable during connection to the computer may corrupt files or the storage area of the MID.
7. The images in this manual may vary slightly from actual product.
8. Dismantling the MID and will void the warranty. Please check the trouble shooting section of this manual if experiencing problems
9. Our company reserves the right to improve the product. Different

software and hardware versions might affect the product performance and functions, therefore the product shall be subject to change without further notice

1. Please respect the copyright laws in your area.

I I. The MID is equipped with the touch screen, so keys on machine surface are for assistance only.

ABOUT THE MID

MID : Mobile Internet Device.

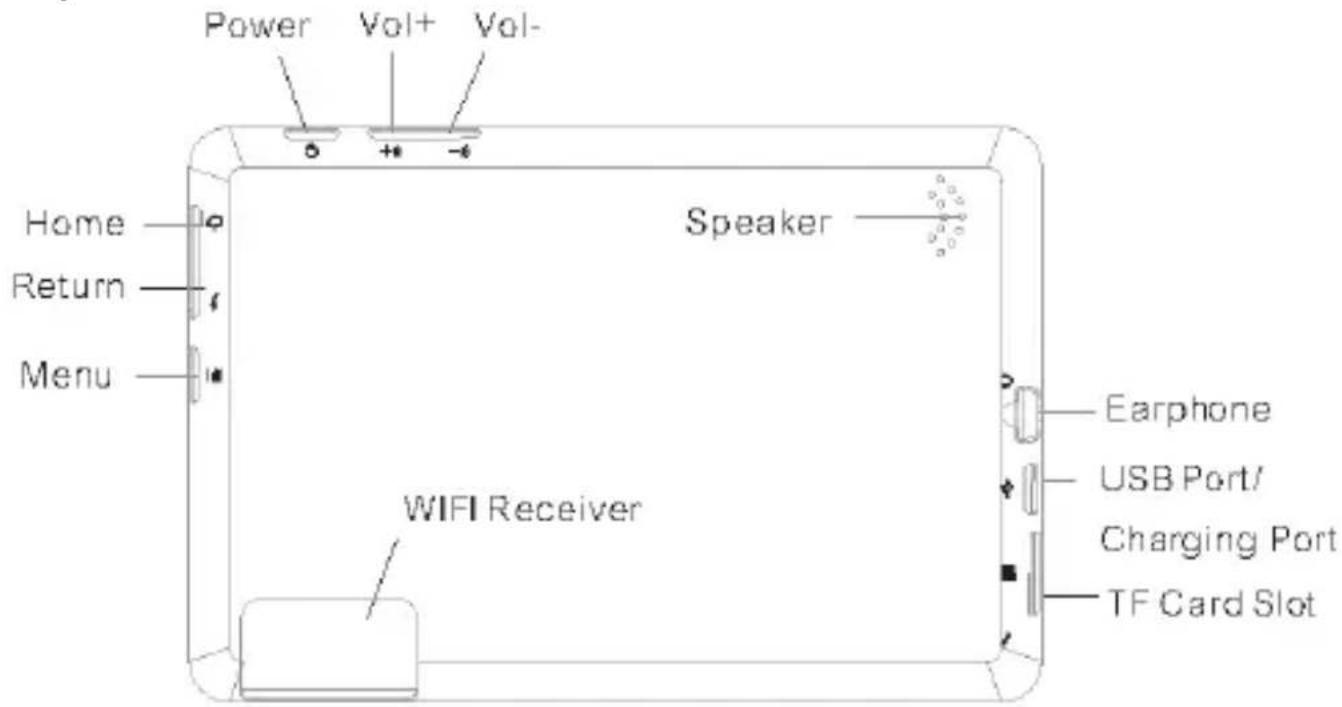

Keys and interfaces on machine surface have functions shown below :

Power Vol+ Vol- Home Return Menu Speaker WIFI Receiver Earphone USB Port/ Charging Port TF Card Slot

There are five function keys located on the machine surface.

Power key : long press to turn on/off the Mid. When the MID was turned on, user can turn on/off the screen by pressing this key.

Volume key : press to increase/decrease the system volume.

Return key : press to return the previous screen.

Menu key : press to popup the submenu of some interface. When the screen is locked, pressing the menu key can unlock it.

Home Key : press to return the home screen.

To your MID, keys home, return, menu on the touch screen and that on the machine surface have the same function.

BASIC OPERATIONS

• How to Power On/Off the MID?

To power on/off the MID, please press power key and hold for 3S.

This period will need several seconds, please wait patient.

• How to turn on/off the LCD?

After powering on the MID, if you are not watching video, you can short press power key to turn off the LCD to save power. To turn on the LCD, please short press power key again.

Note : The screen is locked also when the screen is turned off, to unlock the screen, please press the menu key on machine surface after turn on the LCD screen.

• The operation of touch screen

The MID screen can be operated by skin touch only. There are three methods to operate the screen:

a) Touch : touching any function icon on the screen can enter the corresponding interface.
b) Touch and hold : touching any icon on home screen and hold it can do more operations. For example, touching an icon on home screen and

hold it, when the recycle bin icon is shown on the right screen, dragging the selected icon to this icon can delete it from the home screen.

c) Drag : Dragging your finger on the screen can scroll the screen.

• How to reset the MID?

If your MID cannot response to any function key, please press the power key and hold for 10S to reset the MID

• How to save power?

The battery icon on the screen shows the rest volume of electricity. To save the power, in system setting interface, please set Brightness and Screen timeout to a reasonable level.

• How to charge the MID?

Please charge the MID timely before the battery icon shows blank. The MID can be charged via the commanded DC charger or the USB interface. When the MID is on, the battery icon shows pulse under the charging state and shows full when the charging is finished. If charge the MID when it is off, the MID will be turned on firstly. The charging period via DC charger is more effective than that via USB port. The whole charging period need 4 hours. It is normal to find that the machine surface is warm under charging state.

• G-sensor

If do settings setting>Sound & display>Display settings>Orientation>on, the MID will switch the screen orientation automatically when it is being rotated.

- Connect to Computer and File Transfer

Start your computer and connect the MID using the supplied USB cable, interface is shown for your choice, on which if touch Don't Mount, the N enters the charging mode, if touch Mount, then the player enters the US connection mode.

In the USB connection mode, the MID will be detected as standard removable disks by your computer and allows the transfer and management of on the player without the need for the instillation of 3rd party software.

HOME SCREEN

Press power key and hold for 3S to power on the MID, then the default home screen is shown as the below :

There are 4 home screens. You can switch them by dragging your

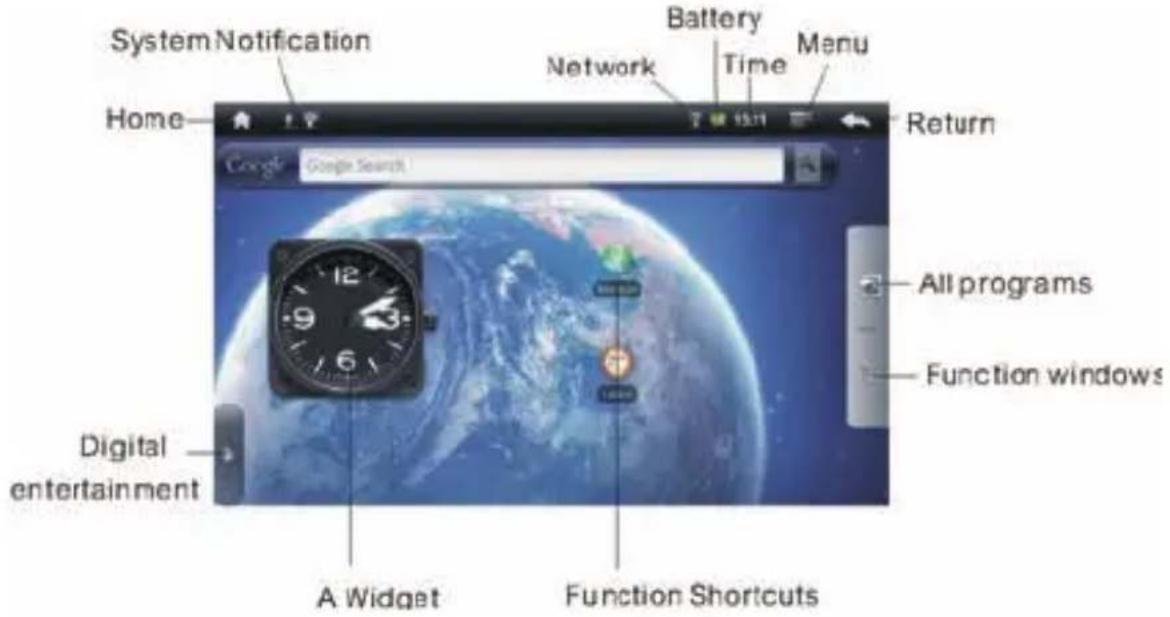

System Notification Home Network Battery Time Menu Return Google Search All programs Function windows Digital entertainment A Widget Function Shortcuts

fingers on the home screen left or right and do operations shown below :

home screen : touch to back to the home screen.

system notice : drag it down to see the system notifications.

status bar : it is used to show the current status of network connection, battery volume and system time.

Menu : touch to popup submenu shown below:

A00 Wallpaper Search Notifications Settings

: touch to add program shortcuts, Widget, Folders or Wallpapers to the home screen.

: touch to set the wallpaper.

: touch to activate the search function.

: touch to view the system notifications.

: touch to enter system setting interface.

Return : touch to return the previous screen.

: Short cut to Google Search.

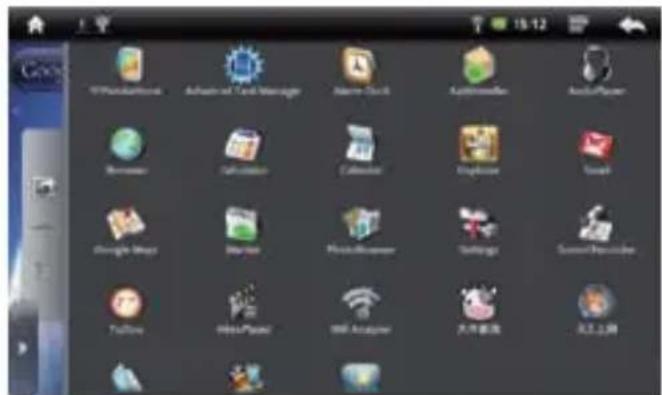

All programs: touch to view all programs and functions applied in your MID as the below:

Windows Android and Card Manager Adobe Teams AutoCADs Android Player Google Maps Microsoft Microsoft Teams Settings Current Digital Tunes Wipro Files WIFI Apps 大屏游戏 iOS 2.00

On the system function interface shown above, user can touch each icon to enter its application interface directly.

Function windows: touch to enter the 4 function window management interface, on which Users can reset the title of each window according to their own needs as follows: Press any of the window title to pop-up the new title inputting frame, then click the space of the frame to pop-up keyboard, last click «OK» or «Cancel» button to confirm whether rename this window.

On function windows management interface, clicking any window icon can enter this window. User can add Shortcuts, Widgets, and Folders to each window add them to the home screen.

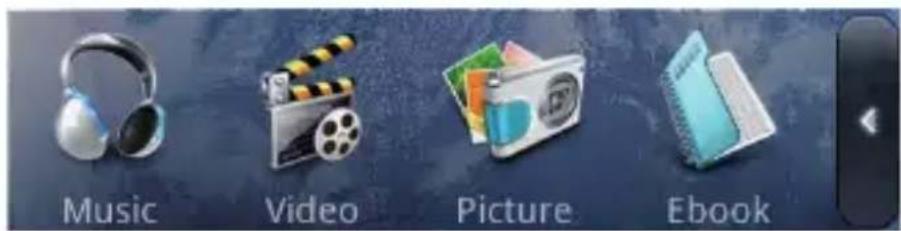

Touch to shown the digital entertainment shortcuts shown below:

Music Video Picture Ebook

SURF ON INTERNET

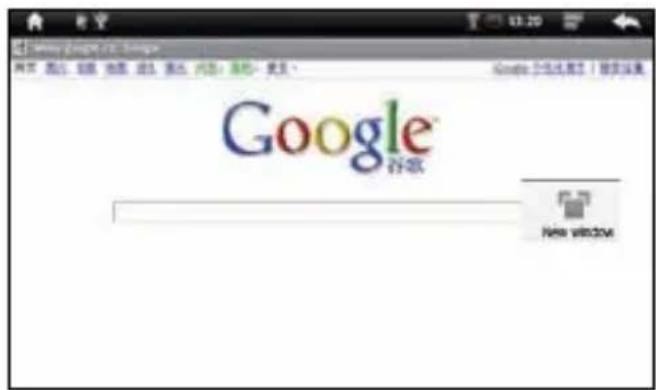

On the system function interface, touch function icon internet browser shown below :

to open

Google 谷歌 NEW VOLUME

: Touch it to popup the text input keyboard, and long press to popup a frame, on which user can switch text input method.

: Touch to pop submenu shown below:

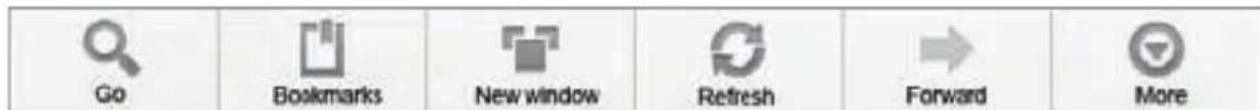

Go Bookmarks New window Refresh Forward More

: touch to enter new website input interface.

: touch to add bookmarks and view website most visited and web page memorized in history. To clear history, please touch menu key 📄 to popup the history clearing item.

: touch to open another new window.

: touch to refresh the current screen.

: touch to view the web page just closed.

: touch to do operations Find on page, Select text, Page info, Share page, Downloads and Settings on current web page.

SYSTEM SETTINGS

On the system function interface, touch function icon 📁 to enter the system setting interface, on which user can do settings shown below :

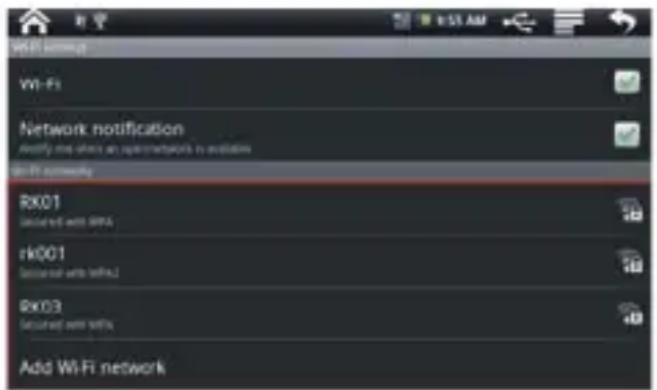

a) Wireless controls: touch to enter Wi-Fi managing interface, on which user can view current Wi-Fi connection under item Wi-Fi. On Wi-Fi managing interface, if user touch item Wi-Fi settings, then your MID will scan all Wi-Fi networks available and list them on the screen as the below:

Wi-Fi network Wi-Fi Network notification Modify one offers an upstream network to availability Upstream network Rx01 Decided with RPA rk001 Decided with RPA Rx03 Decided with RPA Add Wi-Fi network

On the above interface, touching any Wi-Fi network scanned can view its signal status and select whether connect it or not, and touching menu key

can select do operations scanning network again and doing more advanced settings.

b) Sound & display: touch to set ringtones, notifications and screen brightness.
c) Security & location: touch to set my location and password.
d) Applications: touch to enter applications managing interface.
e) SD card & MID storage: touch to view SD card & MID storage.
f) Date & time: touch to set system time and date.
g) Locale & text: touch to set the system language.

h) About MID: touch to view basic information about your MID.

Note : it is important to do system setting, please enter the setting interface of your Mid to view each setting items carefully before using your MID.

APK INSTALLER

Your MID support managing APK program.

On the system function interface, touch function icon ApkInstaller

to enter the corresponding interface, on which user can manage APK programs on your MID.

MARKET

On the system function interface, touch function icon Market

to enter the market interface. If you are a new user to the market, you will be required to create your user name and others.

You can find there are many free APK programs on the market. Your MID supports installing APK programs downloaded from Market or other ways.

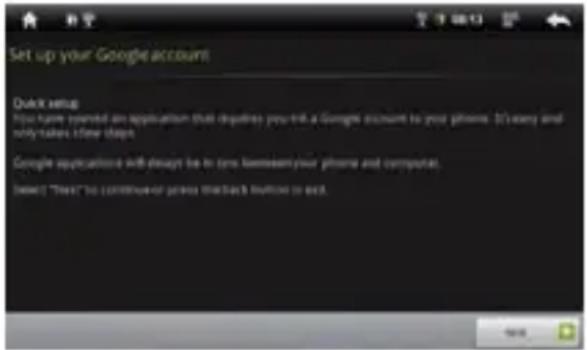

Set up your Google account Quick setup You have pointed an application that depairs you to ask a Google account to your phone. It's easy and only takes other steps. Google applications will always be to care between your phones and computers. [book] "This" to continue or press that each button is set.

EMAIL

Your can receive and send Email on your MID directly.

On the system function interface, touch function icon Gmail to enter the corresponding interface. After well setting your account, you can receive and send Email through your MID directly.

GOOGLE MAPS

On the system function interface, touch function icon Google Maps to view the world maps.

Touching menu key ☐ can popup the submenu.

VIDEO PLAYER

On the system function interface, touch function icon Video Player to enter the video fie listing interface. Drag your finger on the screen up and down to view the list and touch any one to enter video playing interface like the below :

A young girl wearing a knitted hat, holding a green object, outdoors on grass (no visible text or symbols)

Icons in the tool bar shown on the above interface have functions shown below:

Volume: touch to decrease/increase the volume.

Progress bar : it is used to view video playing progress. Dragging it can fast reverse/forward the video.

: touch to add the current point to be a bookmark.

: touch to set the screen brightness.

/ : touch to play the previous/next video.

/ : long press to fast reverse/forward the current video.

/ pause/play: touch to pause/ resume the normal play.

: touch to play video in different size.

: touch to return thee previous directory.

: touch to show sub menu which includes items Play from beginning(this will delete bookmark), Delete bookmark, Help, Version and Return.

To hide/show the toolbar, please touch the screen centre directly.

Note1: If a bookmark is set, then, then if a movie had not been played completely last time, the MID will remember the pause point. User can select whether play this movie from the pause point next time.

Note 2 : On the video file list, long pressing a file can popup the file delete frame, on which user can select whether delete the selected file.

Note 3: Your MID can't play the video file which size is larger than 2G.

AUDIO PLAYER

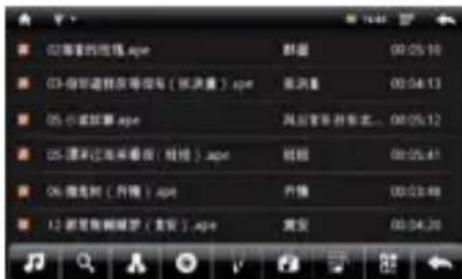

On the system function interface, touch function icon Audio Player to enter the audio fie listing interface shown below :

: touch to list all music files on screen.
: touch to enter song search & download interface.
: touch to sort song by singer.
: touch to sort song by album.
: touch to sort song by genre.
: touch to sort song by location.
: touch to create and delete play list.
: touch to play the selected song.
: touch to return the previous screen.

Drag your finger on the screen up and down to view the list a touch any one to enter audio playing interface like the below:

Icons in the tool bar shown on the above interface have functions shown below :

Progress bar : it is used to view video

playing progress. Dragging it can fast reverse/forward the video.

/ : touch to play the previous/next song.

/ : long press to fast reverse/forward the currentsong.

/ pause/play :touch to pause/ resume the normal play.

EQ : touch to set sound effect to Normal, Rock, Popular, Classical, Heavy bass, Jazz and My effect.

A-B : touch to set the repeat point A, touch it again to set the repeat end point B, then music part between point a and B will be played repeatedly. To exit the repeat mode, please touch this icon the third time.

: touch to set the song repeat mode to intro, single once, single repeat, all once, all repeat.

: touch to add the current song to my Playlist.

: touch to display/hide the song tag.

Volume : touch to decrease/increase the volume.

touch to return the previous screen.

Note 1: The folder LYRIC located in the root directory is designed to save the lyric file (.lrc). Please make sure the name of the lyric file is so that of the corresponding song, and make sure the lyric files are saved in the folder LYRIC, if so, then the lyrics will be synchronized to demonstrate when listening music.

Note 2 : Has few code very special MP3/WMA audio frequency document, has the possibility to be unable on this aircraft to broadcast, after please use the audio frequency transformation tool transforms, to duplicate on this aircraft to broadcast again.

PHOTO BROWSER

On the system function interface, touch function icon

PhotoBrowser to enter photo file explorer interface, on which scroll your fingers on the screen left and right to 4view the file list, then touch a photo file to enter the photo play below:

Computer window displaying a blank blue sky with clouds and a turquoise ocean background (no text or symbols visible)

Icons in the tool bar shown on the above interface have functions shown below :

: touch to zoom in/out the current picture.

: Touch to set the screen brightness.

: touch to right/left revolve the picture.

: touch to start photo slideshow. To exit photo slideshow, please ch the screen.

: touch to do screen settings, slideshow settings, setting wallpa- and view machine information.

: touch to return the previous screen.

To hide/show the toolbar, please touch the screen centre directly.

EBOOK

On the digital entertainment menu, touch function icon Ebook to enter the corresponding interface, on which user can select a text file (.txt) to read.

SOUND RECORDER

On the system function interface, touch function icon Sound Recorder to enter the voice recording interface shown below:

Record your message Recording 00:00:08

Touching can start record, after finish the record, touching can popup the record saving dialogue, this time touching can listen to record just recorded.

All the record files (VXXXX.3gpp) are saved in folder Record, which is located in the root directory. User can play the record file like play songs.

ADVANCED TASK MANAGER

On the system function interface, touch function icon Advanced Task Manager to enter the corresponding interface, on which user can view and select closing programs being run.

Remember touching menu key ■ can popup submenu contained.

OTHER FUNCTIONS

• Alarm Clock: unusable when the MID is powered off.
• Calculator
• Calendar
• Global Time

TROUBLESHOOTING

• The MID cannot be turned on.

Please charge it via the DC charger to check if the battery is low. If not, then please reset the MID.

- No sound can be heard from the earphones.

I. Check if the volume is set as 0. Adjust the volume as required.
2. Check the volume of the file attempting to be played.
3. Confirm the earphone is properly connected.

- Noise through earphones.

I. Check if the earphone plug is clean, foreign particles can cause static to be heard through the earphone during playback.
2. Check if the music file is damaged. Confirm by playing other music. The damaged file might create serious noises or voice dithering.

- Incorrect language displayed.

Please make sure that you have selected the correct language. Set language in (Setting) => (System Setting) => (Language Selection)

- Files cannot be downloaded.

I. Make sure the proper connection between computer and MID.

1. Check if the memory is full.
2. Check if the USB cable is damaged and replace if necessary.

• Audio files not playable.

This MID cannot play audio files that are copy protected. Please ensure that only files that contain no copy protection are transferred to the MID.

- Lyric cannot display in Music play.

I. Check if have the lyric file match for the playing music file and both of them saved in the same catalogue file.
2. Check if the lyric file is LRC format and the lyric name is same as the playing music file.

• Video files not playable.

Please check that the video files transferred to the MID are in the correct size and format. Some file may need to be re encoded to be played on this MID.

- Fail to open the web page.

Please check whether successfully create the Wi-Fi connection.

TECHNICAL SPECIFICATIONS

Audio

MP3 AUDIO

[Codec]: MPEG1/2/2.5 Audio Layer 1/2/3
[Channel]: High speed USB 2.0
[Bitrate]: 8~320Kbps,	CBR and VBR
[Sample]: 8-48KHz
[Exceptional]: No
[Container]: MPI/MP2/MP3

WMA AUDIO

[Codec]: Version 4, 4.1, 7, 8, 9

[Channel]: High speed USB 2.0

[Bitrate]: 8Kbps~320kbps

[Sample]: 8-48KHz

[Exceptional]: WMA Pro and WMA lossless

[Container]: WMA

WAV AUDIO

[Codec]: MS-ADPCM - IMA-ADPCM - PCM
[Channel]: High speed USB 2.0
[Bitrate]: 4bit MS-ADPCM,IMA-ADPCM
[Sample]: 8-48KHz
[Exceptional]: No
[Container]: WAV

APE AUDIO

[Codec]: Ver. 3.95, 3.97, 3.98, 3.99, normal and fast

[Channel]: High speed USB 2.0

[Sample]: 8-48KHz

[Container]: APE

OGG AUDIO

[Codec]: Q1-Q10
[Channel]: 2
[Sample]: 8-48KHz
[Exceptional]: No
[Container]: OGG/OGA

FLAC AUDIO

[Codec]: FLAC
[Channel]: 2
[Sample]: 8-48KHz
[Exceptional]: No
[Container]: FLAC

AAC AUDIO

[Codec]: ADIF ,ATDS	Header AAC-LC - AAC-HE
[Channel]: 2
[Sample]: 8-48KHz
[Container]: AAC/M4A

Picture:

[Codec]: JPEG
[Compressed]: Baseline
[Resolution]: 8000*8000
[Exceptional]: No
[Container]: JPG/JPEG

BMP

[Codec]: BMP
[Resolution]: All
[Exceptional]: No
[Container]: BMP

GIF

[Codec]: GIF
[Resolution]: 1000*1000
[Exceptional]: No
[Container]: GIF

Video

AVI

[Video Codec]: MPEG4, XVID, DIVX4/5/6
[Max Resolution]: 1280x720
[Frame Rate]: 30fps
[Audio Codec]: MPI,	MP2, MP3, AC3, AAC

3GP/MP4

[Video Codec]: H.264, MPEG4, XVID, DIVX4/5/6
[Max Resolution]: 1280x720
[Frame Rate]: 30fps
[Audio Codec]: MP2,	MP3, AAC, AMR

RM/RMVB

[Video Codec]: Realvideo 8/9/10
[Max Resolution]: 1280x720
[Frame Rate]: 30fps
[Audio Codec]: MP3, AAC

FLV

[Video Codec]: Sorenson H.263, H.264

[Max Resolution]: 720x480(H.263), 1280x720(H.264)

[Frame Rate]: 30fps

[Audio Codec]: MP3, AAC

MKV

[Video Codec]: H.264, MPEG4, XVID, DIVX4/5/6

[Max Resolution]: 1280x720

[Frame Rate]: 30fps

[Audio Codec]: MPI, MP2, MP3, AC3, AAC

MOV

[Video Codec]: MPEG4, H.264
[Max Resolution]: 1280x720
[Frame Rate]: 30fps
[Audio Codec]: MP2, MP3, AC3, AAC, AMR
System Inner Flash 1-16 GB internal memory
Expansion Slot Micro SC Slot (512mb-16GB)
Working Temp -5 ~ 40°C
Display Screen Type 4.8-inch touch panel	resolution:800*480 (VGA)
Resolution 800*480
Input/ Output USB High speed USB2.0 socket
Earphone 3.5mm Stereo socket
Audio Playback Formats MPI/MP2/MP3/MP3/WMA/FLAC/AAC/OGG/OGA/WAV/APE/M4A
S/N & distortion S/N : ≥85B distortion:≤0.6%
Freq Response 20HZ/20KHZ
Bit Rate	MP3-48kbps~320kbps WMA48kbps~320kbps
Video Playback	Formats AVI/ 3GP/MP4/FLV/MKV/ MOV /RM/RMVB
Supportable Systems

Warning sign depicting a human ear with lightning bolt symbol, commonly used in workplace safety or emergency services.

Use only the earphones supplied with the product, or a having model even characteristic.

In full power, the prolonged listening of the player can damage the • ear of the user.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Recyclage

YOC DIGITAL

YooMove 6001

All rights reserved.
