USER MANUAL CookYoo 1800 YOO DIGITAL

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

When using this electrical appliance, basic safety precautions should always be followed, including the following:

Read all instructions.1.

Before using check that the voltage indicated on the product corresponds with the voltage of you electrical outlet.

Do not let cord hang on hot surface or over edge of table or counter.3.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunction or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

1. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Close supervision is necessary when any appliance is used by or near children.6.

Avoid contacting moving parts.7.

Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or 8 damage to the blender. A scraper may be used but must be used only when the blender is not running.

The use of attachments, including jar, jar cover, blade assembly, not recommended or sold by manufacture may cause fire, electric shock or injury.

The appliance can not be used for blending hard and dry substance, otherwise the blade could be blunted.

Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.11.

1. To reduce the risk of injury, never place blade assembly on motor unit without the jar properly attached.
   This appliance is not intended for use by persons (including children) with reduced physical, sensory or 13. mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
2. Do not leave the machine on unattended.
3. When removing the blender from the motor unit, wait until the blades have completely stopped.
4. Always operate blender with cover in place.
   17Always use the appliance on a secure, dry level surface.
5. Never place this appliance on or near a hot gas or an electric burner or where it could touch a heated appliance.
6. Do not use outdoors.
   20Warning: never use hot liquids or run the appliance empty.

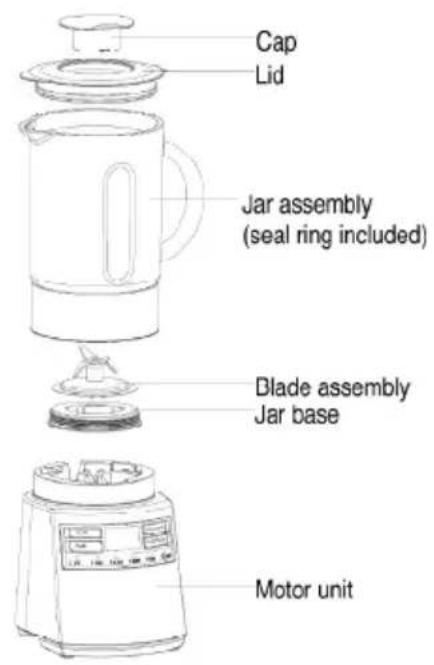

KNOW YOUR BLENDER

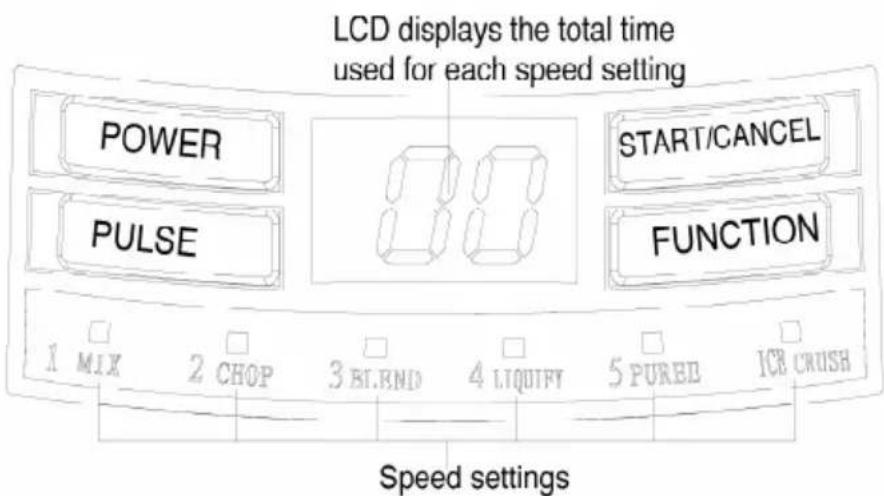

CONTROL PANEL

BLENDER JAR ASSEMBLY

Before first use, unpack the appliance and place all parts on a horizontal surface.1.

The cap. lid, jar assembly, blade assembly, and jar base have already been assembled into the motor unit. 2

Disassemble to wash all parts except the motor unit. Refer to the latter chapter CARE AND CLEANING.

Once all pieces have been cleaned and dry thoroughly, reassemble.3.

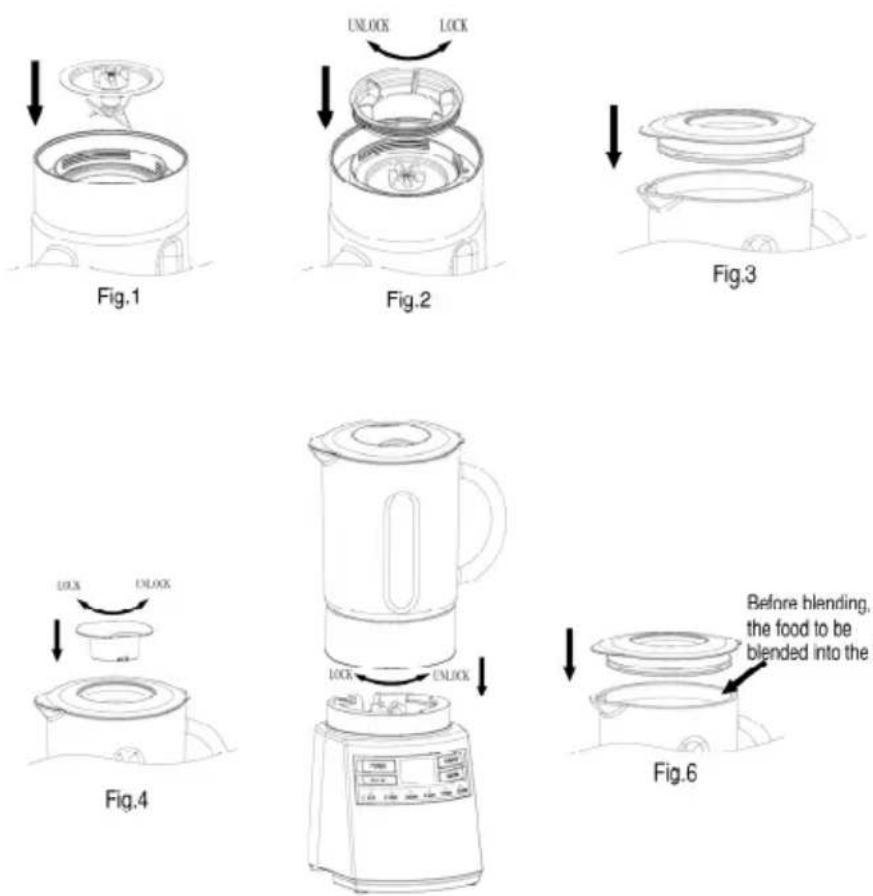

Place the blade assembly into the jar assembly (See Fig.1).4.

Put the jar base onto the blade assembly, holding the jar handle, thread the jar base into the bottom of 5.

the jar assembly and turn it counterclockwise until tight. (as shown in Fig.2)

Put the lid onto the jar assembly. (See Fig.3)6.

Place the cap into the lid and lock in the direction as shown in Fig.47.

Finally, place the assembled jar onto the motor unit and turn it clockwise until tight. (See Fig.5)8.

WARNING

Jar is now secure. Do not try to twist jar onto motor unit

Fig.5

This unit comes with a Liquid Crystal Display (LCD) screen that shows the total operation time of 2 minutes (120s) for each speed setting selected. To use:

Place the food to be blended into the jar and put the lid on the jar before blending. (See Fig.6)

Be sure the cap is in place.

When crushing ice or hard food, keep one hand on the lid.

Note : The mixture in the jar never exceed the max capacity of jar (1200ml)

Plug in the unit, press the key POWER, a beep sound is heard, the LCD comes on and displays "00". (See 1. "CONTROL PANEL") The indicator of POWER key blinks and other indicators of three keys are illuminated. And the default function is MIX, namely the indicator of MIX is lighting.

Press the key FUNCTION consecutively to select the speed setting you want. MIX(1), CHOP(2), BLENDER(3), LIQUIFY(4), PUREE(5) or ICE CRUSH. The light of selected setting is illuminated on the control panel and the LCD displays the total operation time of 2 minutes for each setting.

Press the key START/CANCEL to start the unit and the START/CANCEL key begins blinking. 3. The POWER key stops blinking and becomes illuminated, the LCD will count down.

Note: During operation, you can press and hold PULSE button at any time to achieve the highest speed. Once the time has run, namely the operation has completed, beeps will be 4.
heard, the appliance will stop automatically, namely the POWER key turns to blink, and the START/CANCEL key stops blinking and becomes illuminated.

Note : during operation, if desired effect has obtained, you can press the START/CANCEL key to stop operating. The POWER key will blink and the START/CANCEL key stops blinking and becomes illuminated. After use, Press the POWER key to disconnect the unit from the mains supply.

Note : Minimum 1 minutes rest period is required between two consecutive cycles.

IMPORTANT OPERATING TIPS

• For quick or delicate blending tasks, use the PULSE key for a few seconds, then release. For best result when crushing ice, use the ICE CRUSH setting.

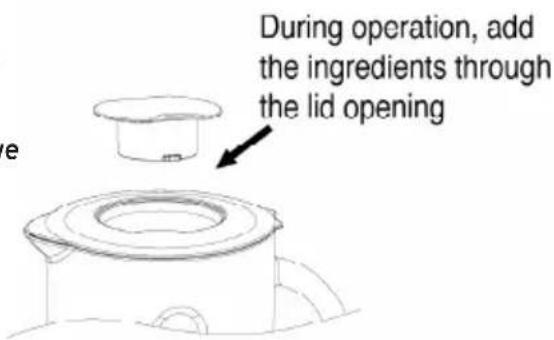

If you want to add ingredients while the blender is on, remove the cap and place through the lid opening. (See Fig.7)

To remove the jar assembly, unlock it from the motor unit in the direction as shown in Fig.5. Remove the lid before pouring.

Fig.7

To prepare fruit smoothies using fresh or frozen fruit, peel, core and then cut fruits into pieces.
- For best circulation of food that are to be blended with some liquids, pour the liquid into the jar first, then add solids.
- Some of the tasks that cannot be performed efficiently with a blender are: beating egg white, whipping cream, mashing potatoes, mixing dough, extracting juice from fruit and vegetable
- The following items should never be placed in the unit as they may cause damage: bones, large pieces of solid, or tough foods such as turnips.
- To crush ice, add proper size cubes. Hold one hand firmly on the lid; use the ICE CRUSH setting. If more ice is needed, remove the cap and add cubes one by one through the lid opening.

WARNING

Keep hands and utensils out of the container while blending / away from the cutting blade while chopping food to prevent the possibility of severe injury to persons or damage to the unit.

WARNING

This product contains no user serviceable parts.

Refer service to qualified service personnel.

CARE AND CLEANING

Before cleaning, press the START/CANCEL key to end all functions and push the POWER key to turn off 1. the unit. Unplug the blender.

Always wash immediately after use for easier cleaning. Don't let food dry onto the jar assembly as this 2. will make cleaning difficult.

Pour a little warm soapy water into the jar and press the PULSE key for a few seconds. And then empty 3. the jar.

Dismantle all detachable parts. Unlock the assembled jar from the motor unit, then unlock the jar base 4. from the jar assembly, take the blade assembly out, finally remove the cap and the lid.

Rinse the cap, lid, jar assembly, and jar base by hands or in a dishwasher then dry. They are dishwasher 5. safe components, but the temperature setting shall not exceed 70^ .

Brush the blade clean using warm soapy water, then rinse thoroughly under the tap. Don't touch the 6. sharp blades, handle carefully. Don't immerse the blade assembly in water. Leave to dry upside down away from children.

Wipe the motor unit with a damp cloth and dry thoroughly. Remove the stubborn spots by rubbing with 7. a damp cloth and non-abrasive cleaner.

1. If liquids spill into the motor unit; first unplug the unit, then wipe with a damp cloth and dry thoroughly.

WARNING

Do not immerse the motor unit in liquid to prevent the risk of electric shock.

Do not use rough scouring pads or cleansers on parts or finish.

METHODE

Function Food Amount	Operation
Pulse	Breadcrumbs	1 slice, torn in 8 pieces and 1/2-cup (125 ml) water	pulse 1-4 times
	Cheese	1-cup (250 ml) water and 1-inch (2.5 cm) pieces	pulse 5 times
Mix Milk powder		1-cup (250 ml) water and 10g milk powder	continuously mix 20s
Chop Meat boneless cooked 30x30x50mm.total 300g			continuously chop 2 minutes
Blend Carrot		720g water and 480g carrots, cut into small pieces	continuously blend 2 minutes
Liquefy	Mandarin 400g, without water	water	continuously liquefy 2 minutes
	Orange	400g cut into four pieces, without water	continuously liquefy 2 minutes
	Egg yolk 6pcs eggs		continuously liquefy 2 minutes
Puree Cooked potato		480g cooked potato cut into pieces and 20g salad oil	continuously puree 30s
Ice crush Ice cubes 350g	ice cubes		automatically crush ice until operation finished
