Introduction - 1 -

Main Features - 1 -

Connecting to a PC - 3 -

Operation.... - 4 -

Controls.... - 5 -

Using your Remote Control.... - 6 -

Inserting Memory Cards.... - 7 -

Main menu - 8 -

Viewing Pictures....- 9 -

Previous....- 10 -

Play or Pause.... - 10 -

Next - 10 -

Rotate - 10 -

Stop - 10 -

Zoom.... - 10 -

Watching video....- 11 -

Previous....- 12 -

Fast Forward.... - 12 -

Play or Pause.... - 12 -

Fast Backward - 12 -

Next - 12 -

Stop - 12 -

Zoom....-12-

Listening to MP3 music ...... - 13 -

File Option - 14 -

Playing a slideshow with music ...... - 14 -

Previous....- 15 -

Play or Pause.... - 15 -

Next - 15 -

Rotate - 15 -

Stop - 15 -

Zoom....-15-

VOL.... - 15 -

Copying and Deleting Files...... - 16 -

Using the SETUP option ...... - 18 -

Technical Support ...... - 19 -

Frequently asked questions.... - 19 -

Specifications ...... - 21 -

Introduction

Congratulations on your purchase of 13 inch Digital Picture Frame, model DP-1320

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

This manual will help you use many of the exciting and useful features that will make your Digital Picture Frame viewing more enjoyable.

This Digital Picture Frame lets you view digital pictures directly from your camera's memory cards. You will be able to create a slideshow using multiple transition effects or display one picture at a time. No computer, digital camera or Internet connection is required.

This Digital Picture Frame is compatible with the following popular memory card formats: CompactFlash®, SD™, XD, MultiMediaCard™, and Memory Stick®.

It can also read files stored on a USB Flash drive using the USB host port.

Main Features

• Displays digital pictures (JPEG) without a computer
• Simply insert a compatible memory card into the Digital Picture Frame to show photos, play MP3 music or supported video files (memory card not included).
• Compatible memory cards include Secure Digital Card (SD), MultiMedia Card (MMC), Memory Stick (MS), XD Cards & Compact Flash
• Able to read files located on a USB Flash drive
• Instantly plays MP3 music with the integrated speakers.
• Instantly plays MPEG1 2 4 files stored on supported memory cards*.
  • Supports up to 12 Mega Pixels image files (JPEG format).
• Compatible with most digital cameras' stored JPEG images and motion JPEG files.
• Includes a credit card style remote control
• Bright 13" TFT active matrix LCD screen.
  • Automatic slide show with multiple transition effects.
• Plays slide show with MP3 music on the background.
• User-friendly on-screen display lets you access all controls easily.

*Video files may not play properly if stored on a low speed card.

Getting Started

Package Contents

Digital Picture Frame and stand

User Guide

AC/DC Adapter

Remote

USB cable

Installing your unit

• Open the package and remove the protective foam. Remove the protective sleeve from the unit.
  • Install the Digital Picture Frame stand as the back of the unit.
• Plug in the AC adapter into power outlet. Plug the other end into the unit.
• After the content is stored on the target flash media; insert the media into the correct slot.
• Turn power to ON position via the ON/OFF switch.

Connecting to a PC

The Digital Picture Frame has a USB port for connection to a PC (USB Slave) and a second USB port for connection to other devices such as a Flash Drive, USB card reader, or a camera (USB Host). When connected to the PC you can drag-and-drop content from the PC to the internal memory or memory card. You can also delete content from the internal memory.

NOTE: USB Slave and USB Host can not be used at the same time.

Operation

This Digital Frame is extremely easy to operate:

1. Remove memory card from camera:

Close-up of hands holding a DSLR camera with a partially visible card, no text or symbols visible.

1. Insert memory card into the frame with face away from the unit:

Close-up of a white electronic device with a black sensor or indicator block, enclosed in a circular frame (no visible text or symbols)

1. when power on the frame, the picture would displayed automatically.

Black-and-white photo of a woman's face within a circular frame, no visible text or symbols

Controls

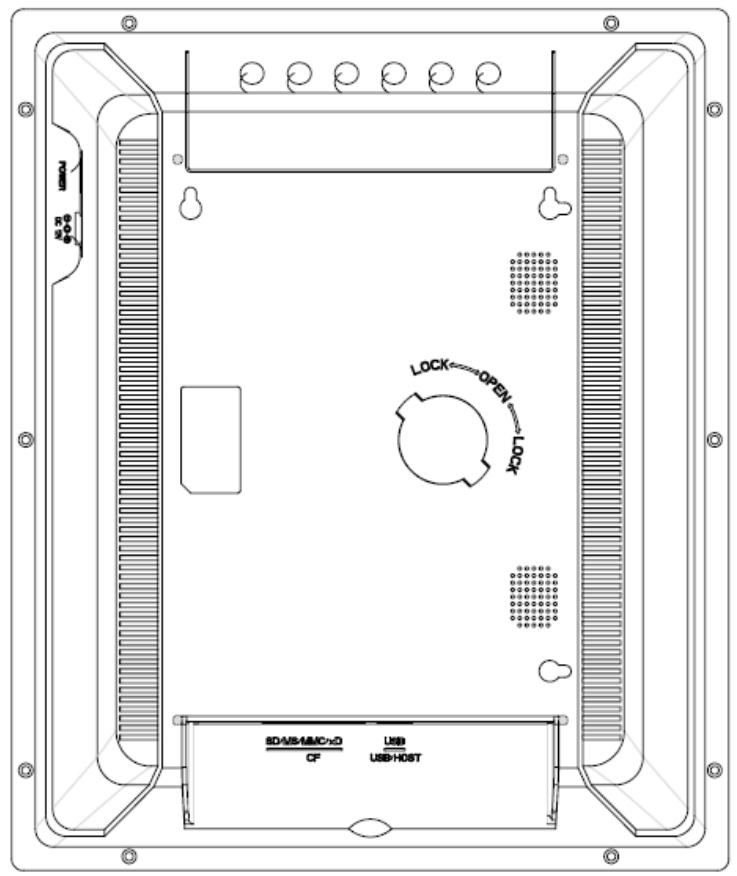

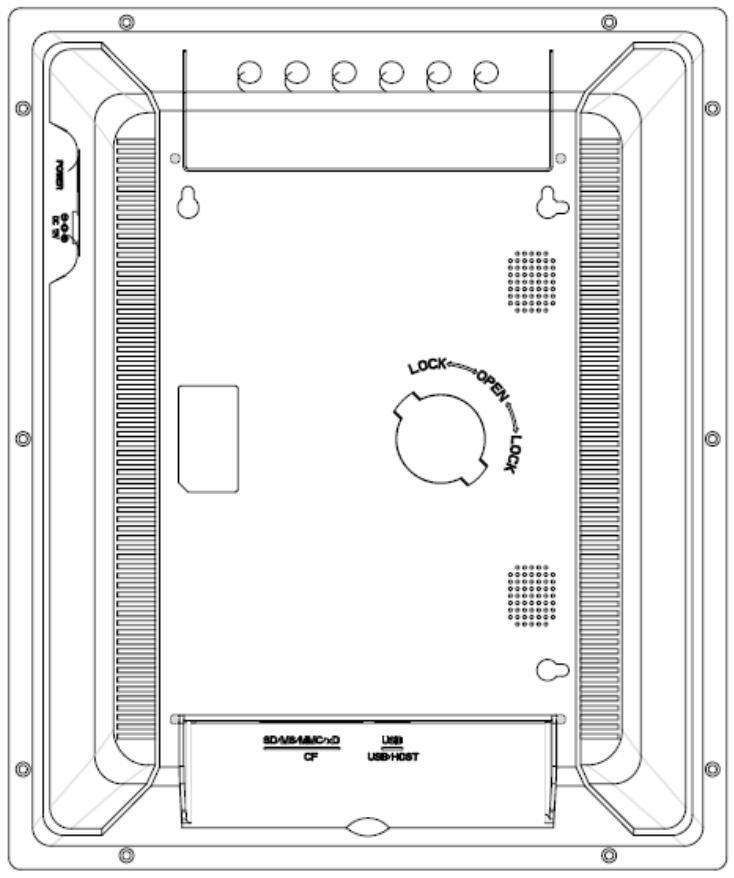

Pure technical line drawing of a vertical panel with circular features and diagonal lines (no text or symbols)

SD/USB-MEMCnD CF USB USB-HOST LOCK→OPEN→ LOCK

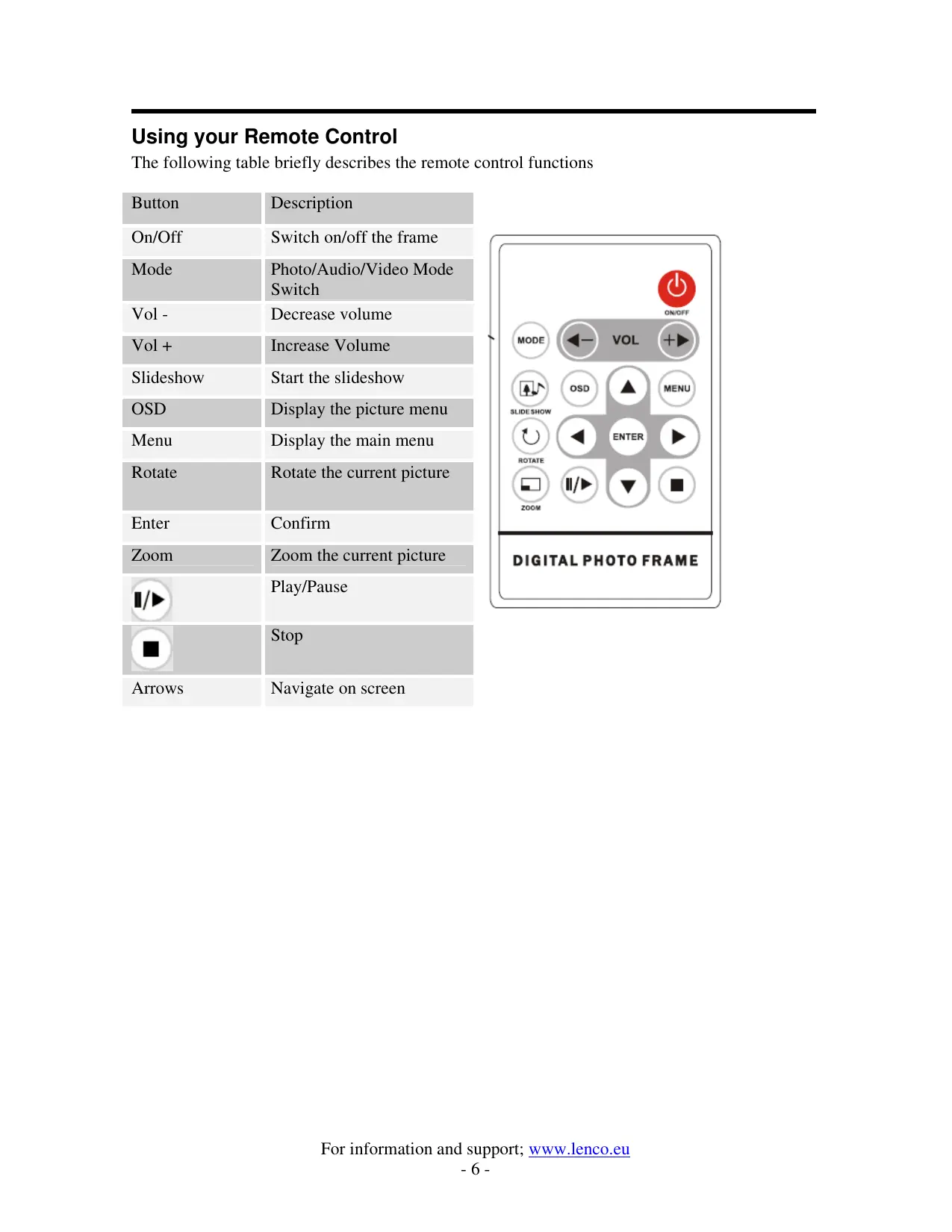

Using your Remote Control

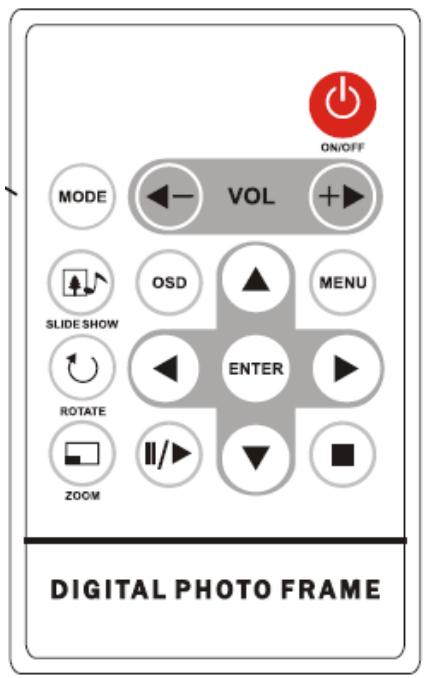

The following table briefly describes the remote control functions

Button	Description
On/Off	Switch on/off the frame
Mode	Photo/Audio/Video Mode Switch
Vol -	Decrease volume
Vol +	Increase Volume
Slideshow	Start the slideshow
OSD	Display the picture menu
Menu	Display the main menu
Rotate	Rotate the current picture
Enter	Confirm
Zoom	Zoom the current picture
	Play/Pause
	Stop
Arrows	Navigate on screen

ON/OFF MODE ← VOL + SLIDE SHOW OSD ▲ MENU ROTATE ENTER ZOOM 1/▶ ▼ ■ DIGITAL PHOTO FRAME

Inserting Memory Cards

The Digital Picture Frame is compatible with the following memory cards:

• Secure Digital™ Card (SD)
  • MultiMedia™ Card (MMC)
• Memory Stick™
• CompactFlash™ (CF) Card
• XD Picture Cards

Insert the memory card with the front label facing AWAY from you. Do not force the memory card into the memory slot. If you are not able to easily insert the memory card completely, you may have inserted it the wrong way.

Note:

The Digital Picture Frame will ONLY recognize digital pictures stored in JPEG format. Digital pictures stored in other formats will be ignored by the device.

Make sure you have at least one picture stored on the memory card. The frame will not function properly without a stored picture.

You also can use a USB flash drive in the exact same way as you would use a memory card. Simply copy files on the flash drive and insert it at the right side of the unit in the USB Host plug.

Main menu

Upon turning on the Digital Picture Frame, you will go straight to the MENU screen. To set the Auto Start feature Choose the SETUP screen. Use the left/right arrow to go to the “Set up”. Press the Enter button to enter the options screen. Use the Up / down arrows to choose your auto start option. Press the “MENU” button to show the following menu:

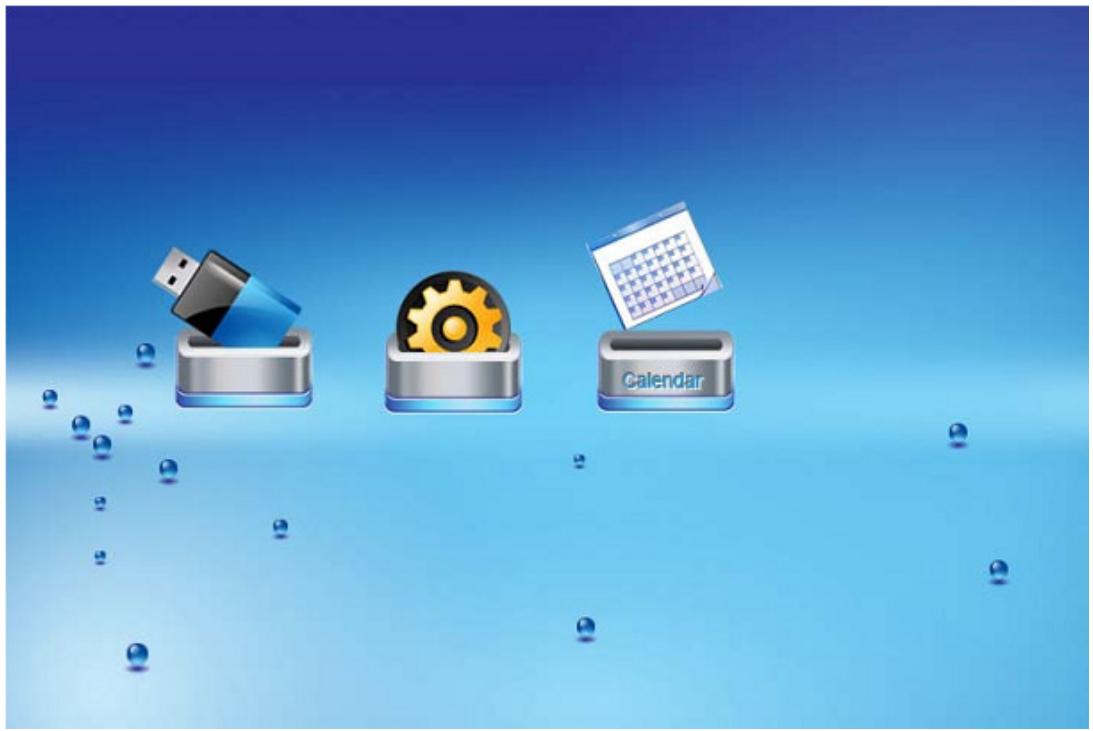

Three icons on a blue gradient background: USB, gear, and calendar with floating spheres (no text or symbols)

Use the left and right arrows to move inside the menu and then press “Enter” to continue

Note: In all menus, pressing the “Menu” button will bring you back to the main menu

Function	Description
Nand	Play files in internal memory
Setup	Set system menu
Calendar	Display calendar, clock, alarm
SD/MMC/MS/xD	Play files on SD/MMC/MS/xD memory card
CF	Play files on CF memory card
USB	Play files on USB flash drive

NOTE: Icons of above functions shall appear automatically on MENU screen when certain memory card is inserted. Icons shall disappear when correspondent card is removed from card slot.

Viewing Pictures

Make sure you have at least one picture on your memory card or your USB flash drive. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory)
• Select the “PHOTO” option from the menu and press “ENTER”

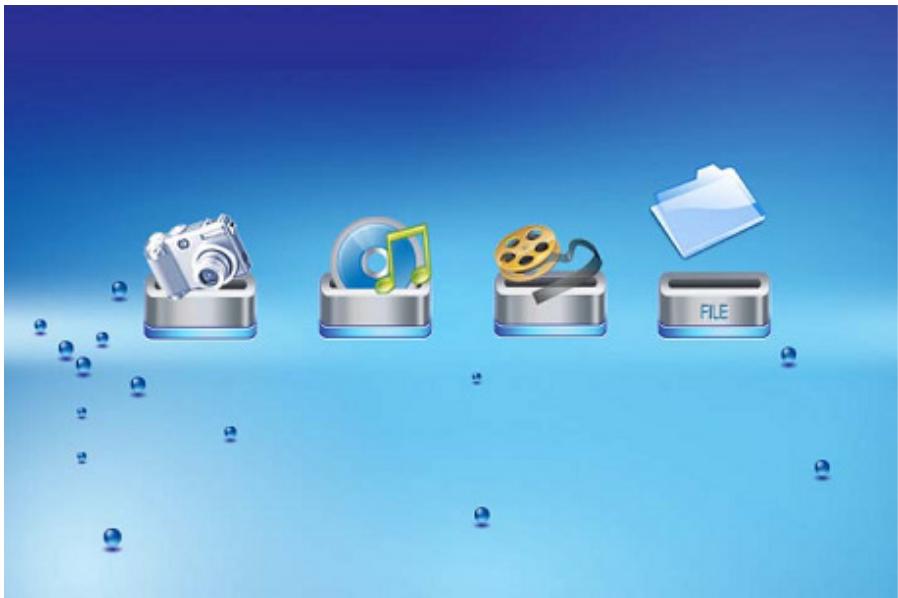

Four icons on a blue gradient background: camera, music note, film reel, and folder (no text or symbols)

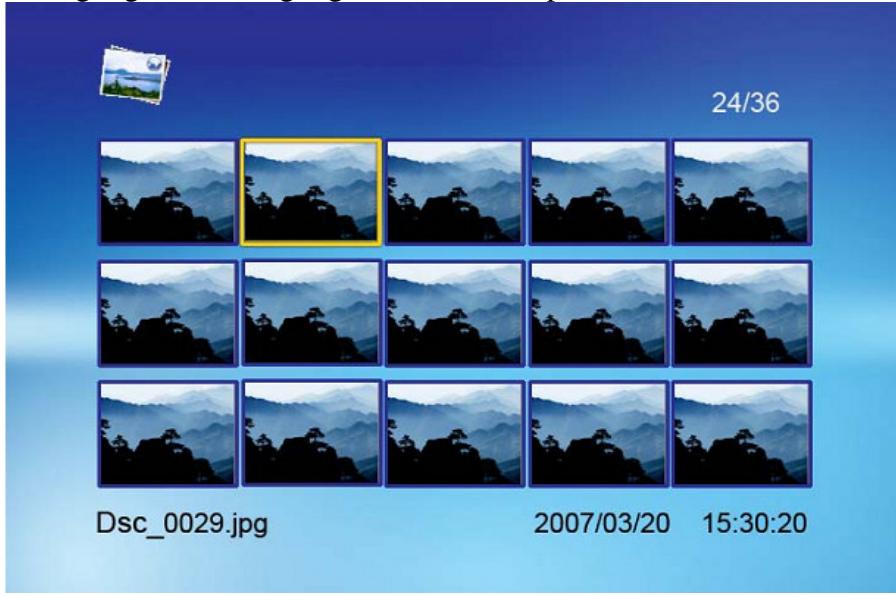

- A Photo thumbnail will appear. User UP/DOWN/LEFT/RIGHT arrows can move the highlight. If the highlighted is a folder, press Enter to enter the folder.

Grid of 16 identical mountain landscape photos with a yellow highlighted region, displayed against a blue gradient background (no text or symbols on the images themselves)

• Otherwise press Enter to enter the full screen photo (pause mode) and press Play to enter into slideshow mode.

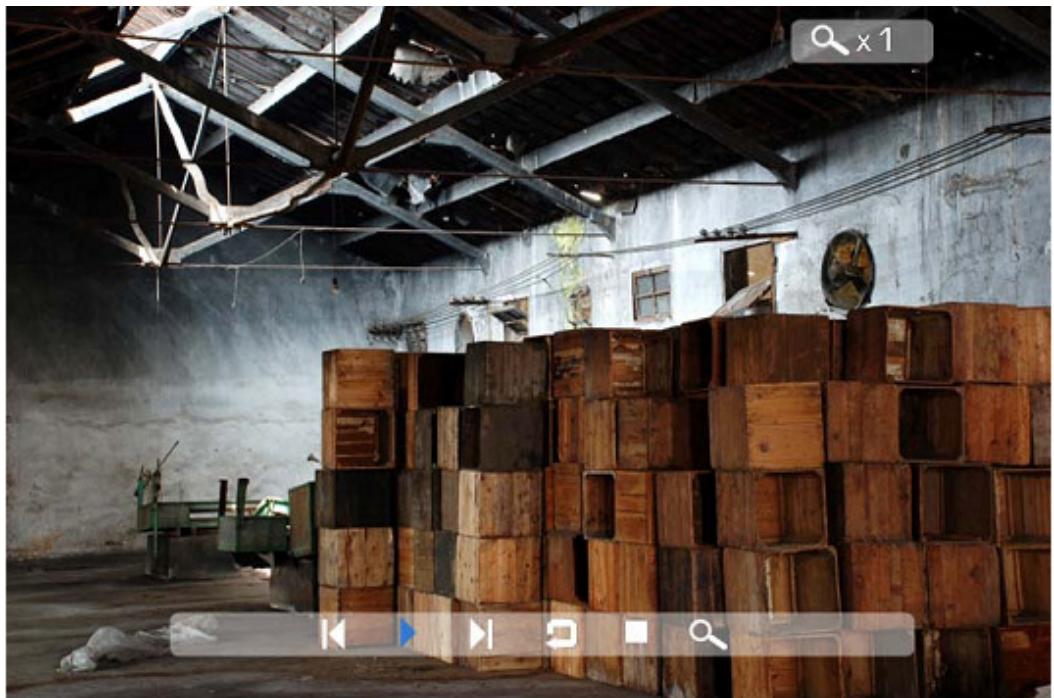

• Once a slideshow is playing or a picture is being shown, press the OSD button. The following menu will appear:

Interior view of an industrial warehouse with stacked wooden crates and overhead beams (no visible text or symbols)

Previous

Play previous picture in the picture list

Play or Pause

Play or pause the current slideshow.

Next

Play next picture in the picture list

Rotate

Use the rotate function to change the picture orientation to either portrait or landscape.

Stop

Stop slideshow and return to photo thumbnail.

Zoom

Choose the Zoom function to magnify the iamge, Repeat this operation several times to further zoom in.

Watching video

The Digital Picture Frame supports the following video formats:

• Motion JPEG (*avi): video format used by most digital cameras MPEG-I &MPEG-2 -w/layer I,II,III(*MPG,*MPEG,*DAT)
  • MPEG 4-W/MP3 audio (*avi)

Make sure you have at least one video on your memory card or your USB flash drive. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory)
• Select the “MOVIE” option from the menu and press “ENTER”

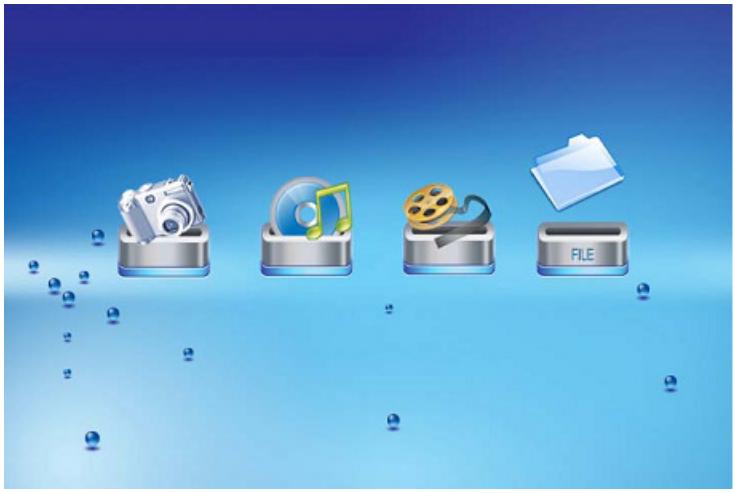

Four icon buttons (camera, musical note, film reel, file) arranged vertically on a blue gradient background with floating spheres (no text or symbols)

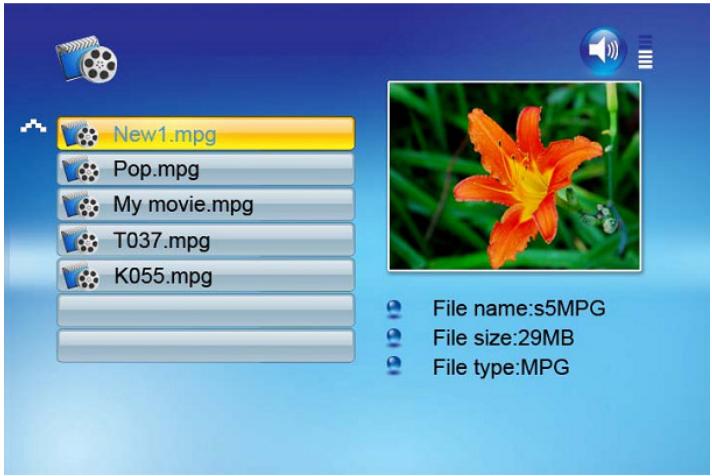

- A list of all movie files will be listed on the left side of the screen. The right side consists of the movie preview window and information display of the current movie. Use Up/Down arrows to select the movie and press Enter to play.

New1.mpg Pop.mpg My movie.mpg T037.mpg K055.mpg File name:s5MPG File size:29MB File type:MPG

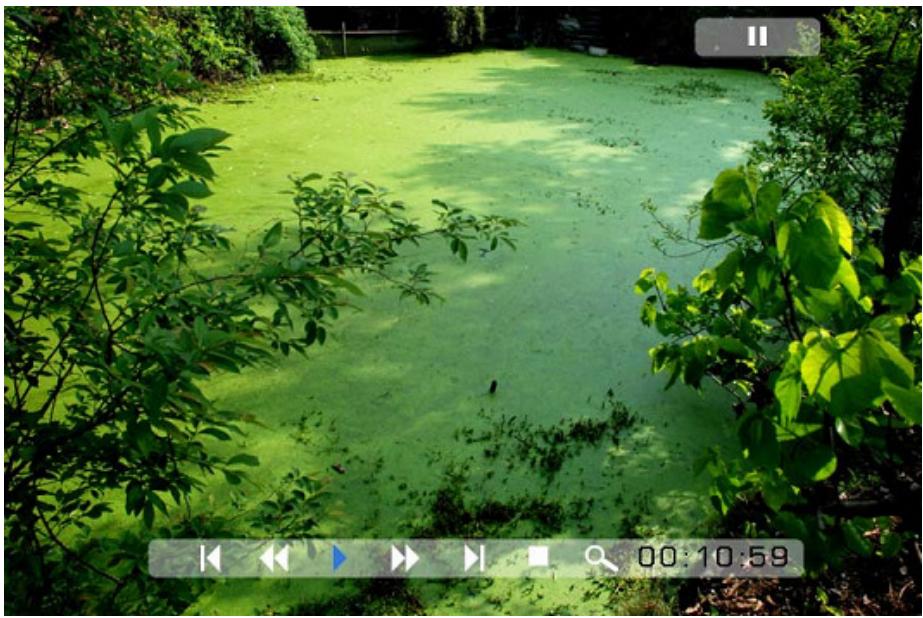

Once a movie is playing, press the OSD button on the remote control. The following menu will appear:

Aerial view of a greenish water body surrounded by dense foliage, captured in a park setting with no visible text or symbols.

Previous

Play previous movie in the play list

Fast Forward

Play forward the movie by 2/3/4 times speed.

Play or Pause

Play or Pause the movie.

Fast Backward

Play backward the movie by 2/3/4 times speed.

Next

Play next movie in the play list

Stop

Stop the movie and return to the play list

Zoom

Increase the size of the picture by 2/3/4/1 times.

Listening to MP3 music

Make sure you have at least one MP3 file on your memory card or your USB flash drive. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory)
• Select the “MUSIC” option from the menu and press “ENTER”

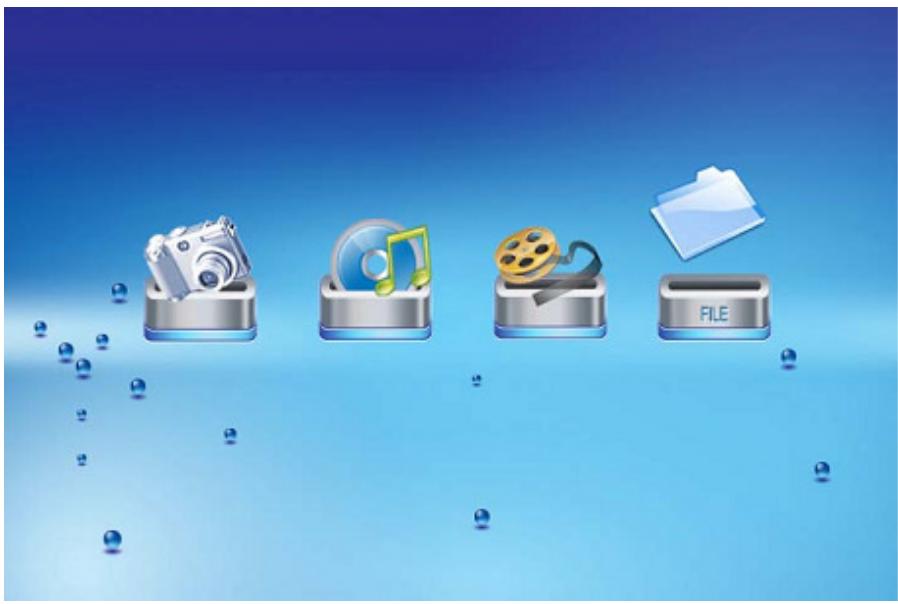

Four icons on a blue gradient background: camera, music note, film reel, and folder (no text or symbols)

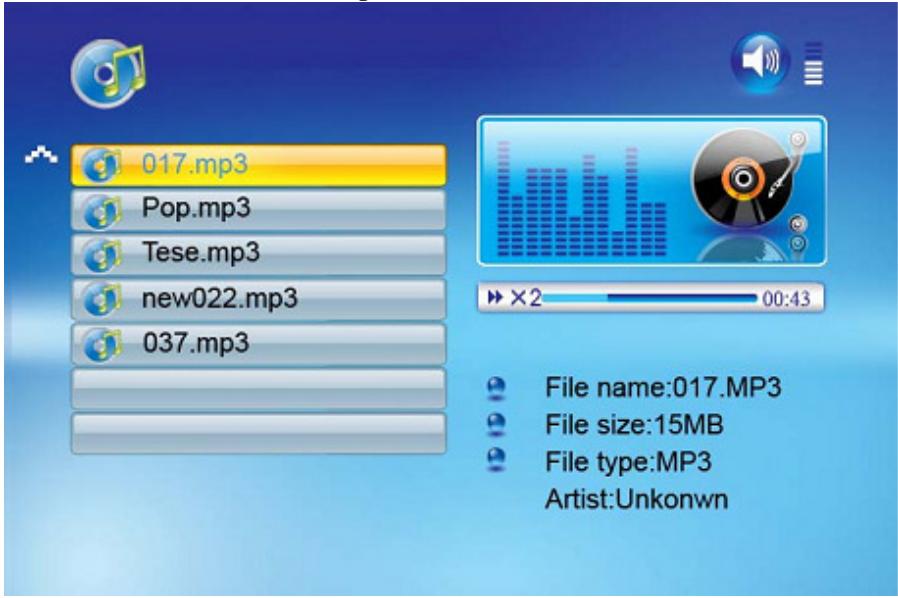

- A list of music files will be listed on the left side of the screen. The right side consists of the frequency chart and information status bar. The song information area is below the status bar. Use the Up/Down arrows to select the music file and press Enter to play.

017.mp3 Pop.mp3 Tese.mp3 new022.mp3 037.mp3 File name:017.MP3 File size:15MB File type:MP3 Artist:Unkonwn

• Press VOL+ to increase the volume or VOL- to decrease the volume.
• Press the Play/Pause button on remote control to play or pause the music file.
• Press the Stop button on the remote control to return to the list of music files.

File Option

Playing a slideshow with music

Ensure you have at least one picture on your memory card or your USB flash drive. Additionally, you must have one MP3 file saved on the selected memory card/USB/Internal Memory. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory)
• Select the “FILE” option from the menu and press “ENTER”

Four icons on a blue gradient background: camera, vinyl record, film reel, and folder (no text or symbols)

- A list of all files on the selected memory card or internal memory will be listed on the left side of the screen. The right side consists of the file information. Use Up/Down arrows to select a picture file and press Enter to enter a full screen photo (pause mode). Press Play button on the remote control, an audio slideshow will begin automatically.

Once an audio-slideshow is playing, press the OSD button. The following menu will appear:

Interior view of an industrial warehouse with stacked wooden crates and exposed beams (no visible text or symbols)

Previous

Play previous picture in the picture list

Play or Pause

Play or pause the current slideshow.

Next

Play next picture in the picture list

Rotate

Use the rotate function to change the picture orientation to either portrait or landscape.

Stop

Stop slideshow and return to photo thumbnail.

Zoom

Increase the size of the picture by 2/4/8/16/1 times.

VOL

Press VOL+ or VOL- on remote control to increase or decrease the volume

Copying and Deleting Files

To copy and delete files on your memory card, USB drive or internal memory.

Copy

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory)
• Select the “FILE” option from the menu and press “ENTER”
• A list of available files will be displayed. Use the up and down arrows to highlight your required file and press the right arrow to highlight the desired file. Repeat for all files that you want to copy

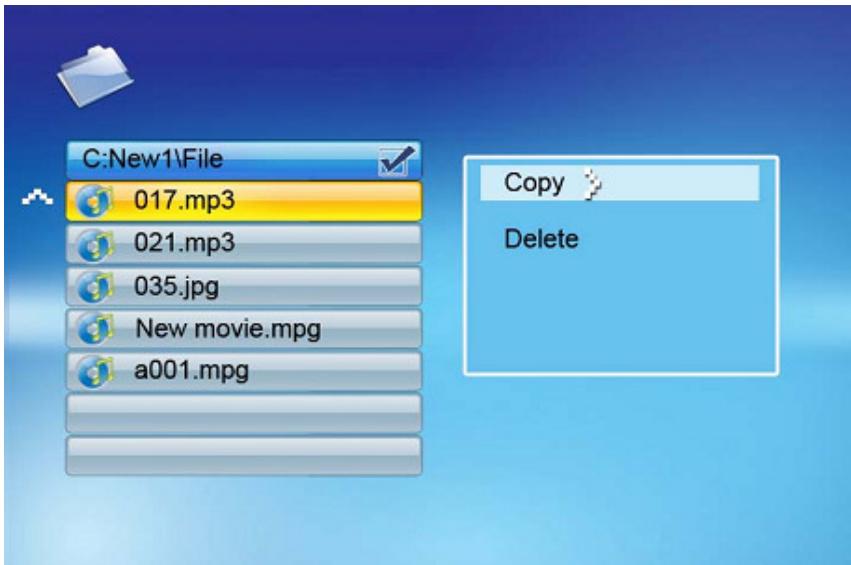

• Press the “OSD” button to display the Copy and Delete menu. Select Copy function and Enter.

C:\New1\File 017.mp3 021.mp3 035.jpg New movie.mpg a001.mpg Copy Delete

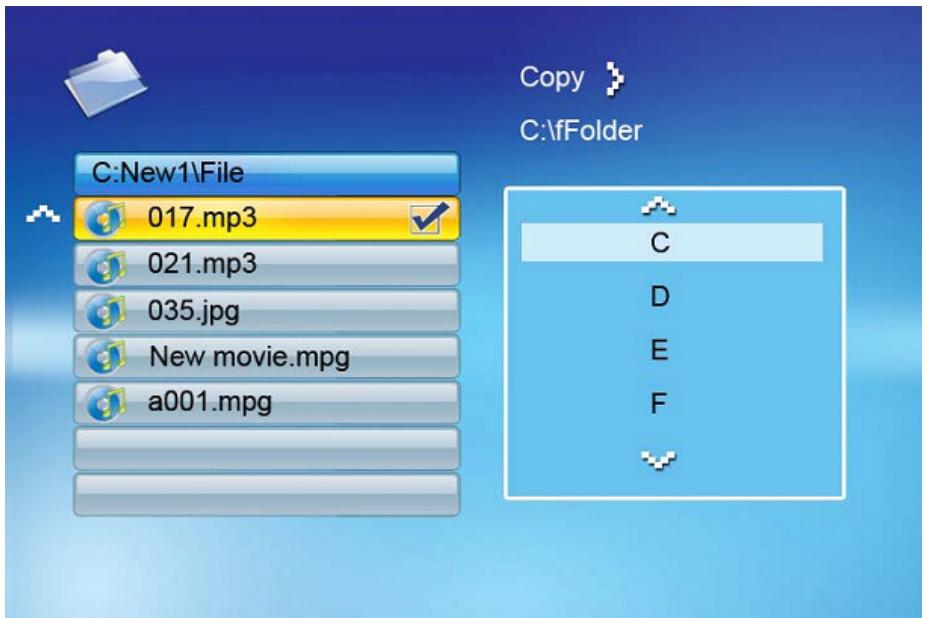

- Use the Up/Down arrows to select the file destination folder. Press Right button to confirm.

C:New1农业生产资料 017.mp3 021.mp3 035.jpg New movie.mpg a001.mpg Copy C:\fFolder C D E F

- Press Enter to start copying the file.

Delete

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory)
• Select the “FILE” option from the menu and press “ENTER”
• A list of available files will be displayed. Use the up and down arrows to highlight your required file and press the right arrow to highlight the desired file. Repeat for all files that you want to copy
• Press the “OSD” button to display the Copy and Delete menu. Select Delete function and press Enter. File will be deleted.

Using the SETUP option

The following options can be changed by using the “SETUP” option from the main menu:

Function	Description
Language	Includes English, French, Spanish Deutsch, Swedish, Greek, Italian, Turkce.
Slideshow time	Slideshow duration: 3s/5s/15s/1mins/15mins/1hour
Slideshow mode	Off, Random, Fading, Bottom_to_top, Top_to_bottom, Left_to right, Right_to_left, Door_close, Door_open, Hori_cross, Verti_cross
Music Repeat Mode	Repeat one, Repeat all, Repeat off
Movie Repeat Mode	Repeat one, Repeat all, Repeat off
Display mode	Crop, Stretch, Cinema
Time	Year/Month/Date/Time setup
Alarm	Alarm Time/Alarm Music/Alarm On/off setup
Default	Recover the factory default setup

Calendar/Clock Display

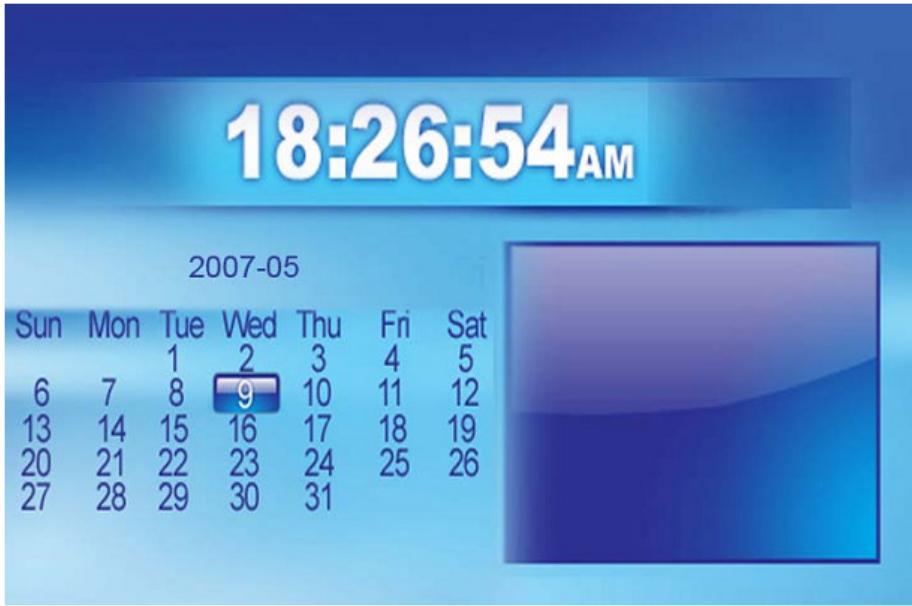

Upon turning on the Digital Picture Frame, you will go straight to the MENU screen. If you select the Calendar/Clock and press Enter, you will go to Calendar/Clock screen. If the Alarm is turned on, it will also show the alarm time. A picture slideshow will begin at the picture preview window at the right part of the screen.

18:26:54AM 2007-05 Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Technical Support

Frequently asked questions

1) Q: Can I use touch-enabled technology for my Digital Picture Frame?

A: The LCD screen does not support touch-enabled technology. Please use the buttons or remote control to control the Digital Picture Frame.

2) Q: If I keep showing the same photo for a long time, will it damage the LCD screen?

A: No. The Digital Picture Frame can display the same photo continuously for a long time. But it is recommended not to show the same picture continuously for more than 1 month.

3) Q: How do I store music files?

A: First, use a personal computer and popular audio editing software to convert your music to MP3 format. The Digital Picture Frame will only play MP3 files so all Windows Media Player ^™ and/or iTunes ^™ files will have to be converted first. You can use a card reader or your digital camera to transfer those files to your memory card.

4) Q: Does the Digital Picture Frame have built-in memory?

A: Yes. The Digital Picture Frame has 128 MB built-in memory to store your files.

5) Q: What is the maximum picture size?

A: The Digital Picture Frame is able to display pictures up to 12 Mega Pixels.

7) Q: How come the Digital Picture Frame does not show some of my photos?

A: The Digital Picture Frame is designed to show photos following the same camera industry standards format as digital cameras. This format is a JPEG format. Images, such as web images, scanned images, or photos in RAW format, are not stored according to camera industry standards and therefore cannot be displayed correctly on the Digital Picture Frame. Please use your PC applications to convert such images into standard JPEG format before viewing them on the Digital Picture Frame.

Troubleshooting

Symptom	Cause	Corrective Actions
Digital Picture Frame doesn’t power on	The POWER connector to the unit is not securely inserted.	Make sure you connect the AC adapter to the frame properly. When you connect the AC adapter to the frame and power up the unit, even without a memory card, you should see a blank screen. If you don’t see the lit screen, check if the power is connected to the Digital Picture Frame and make sure it is securely attached.
No Start-up screen	Memory card is not inserted correctly.	Insert a supported memory card
The File doesn’t play	Incompatible File Format	Make sure there is at least one supported photo file on the memory card.Compatible Photo format: Compatible Photo format: JPEGCompatible Music format: MP3 Compatible Video format: Motion JPEG (avi), MPEG1, MPEG2, MPEG4.
Video doesn’t play properly	Slow Memory Card	Make sure you use a high-speed memory card to play video files.
Small video size on the screen	Low Video Resolution	The best supported resolution of a photo or video is 1024x768 Use the Zoom button on the remote control to enlarge it.

Specifications

Type	13 inch Digital Picture Frame
Internal Memory	128 MB
Resolution	640x480
Alimentation	12 V
Consumption	24 Watts
Working Temperature	-20 to +5 degrees
Luminosity	450cd/m^2 max.
Contrast	450:1
Viewing Angle	60/60/45/45 (CR=10)
Response Time	10ms
Display Mode	4:3
File Format	JPEG, MPEG1, MPEG2, MP3, MPEG4
Photo Size	12 Mega Pixels
Current	AC110—240V (50HZ—60HZ)
Cards	SD/MMC/MS/CF/XD/USB
USB ports	USB Host, USB Slave
Package Contents	Digital Picture FrameAC/DC AdapterUser GuideRemote controlUSB CableStand

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

Inhouds opgave

Inleiding....23

Specifications....41

Inleiding

Helder 13" TFT active matrix LCD scherm.

Close-up of hands holding a DSLR camera with a 40+ memory card, no visible text or symbols on the device itself.

Close-up of a white electronic device back panel with visible indicator lights and a small black component, enclosed in a circular frame (no text or symbols)

Black-and-white photo of a person's face within a circular frame, no visible text or symbols

Bediening

Pure technical line drawing of a vertical panel with circular and rectangular features (no text or symbols)

SD/USB-MEMC>0 CF USB USB-HOST LOCK OPEN LOCK

Secure DigitalTM Card (SD)

MultiMediaTM Card (MMC)

Memory StickTM

CompactFlashTM (CF) Card

XD Picture Cards

Three icons on a blue gradient background: USB eraser, gear with wrench, and calendar (no text or symbols)

Four icon buttons (camera, music note, film reel, file) on a blue gradient background with floating spheres and droplets (no text or symbols)

Grid of 12 identical mountain landscape photos with a yellow highlighted region, displayed against a blue gradient background (no text or symbols on the images themselves)

Interior view of an industrial warehouse with stacked wooden crates and overhead beams (no visible text or symbols)

Vorige

Four icons (camera, music note, film reel, file) on a blue gradient background with floating spheres and droplets (no text or symbols)

Landscape photo of a pond surrounded by lush green vegetation, with no visible text or symbols.

Vorige

Four icons on a blue gradient background: camera, music note, film reel, and folder (no text or symbols)

Four icons on a blue gradient background: camera, vinyl record, film reel, and folder (no text or symbols)

Interior view of an industrial warehouse with stacked wooden crates and overhead metal beams (no visible text or symbols)

Vorige

C:\New1\File 017.mp3 021.mp3 035.jpg New movie.mpg a001.mpg Copy Delete

Support technique - 61 -

Close-up of a hand holding a DSLR camera with a visible card and logo, no text or symbols present.

Close-up of a white electronic device back panel with a black sensor module and ventilation grille (no visible text or symbols)

Black-and-white photo of a woman's face within a circular frame, no visible text or symbols

Commandes

Pure technical line drawing of a vertical panel with circular features and diagonal lines (no text or symbols)

SF R S OPEN LOCK SD/84/MC/D CF USB USB/HOST

Three icons on a blue gradient background: USB drive, gear, and calendar (no text or symbols)

Four icons on a blue gradient background: camera, music note, film reel, and file, with floating spheres below (no text or symbols)

Grid of 12 identical mountain landscape photos with a highlighted yellow region, displayed against a blue gradient background (no text or symbols on the images themselves)

Interior view of an industrial warehouse with stacked wooden crates and overhead steel beams (no visible text or symbols)

Précédent

Four icons on a blue gradient background: camera, music note, film reel, and folder (no text or symbols)

Aerial view of a greenish water body surrounded by dense foliage, captured in a park setting with no visible text or symbols.

Précédent

Four icons (camera, music note, film reel, file) on a blue gradient background with floating spheres and droplets (no text or symbols)

Four icons on a blue gradient background: camera, music note, film reel, and folder (no text or symbols)

Interior view of an industrial warehouse with stacked wooden crates and overhead beams (no visible text or symbols)

Précédent

C:\New1\File 017.mp3 021.mp3 035.jpg New movie.mpg a001.mpg Copy Delete

Close-up of hands holding a DSLR camera with a partially visible card, no text or symbols visible.

Close-up of a white electronic device with a black sensor or connector, shown in a circular frame (no visible text or symbols)

Black-and-white photo of a woman's face within a circular frame, no visible text or symbols

Tastenfeld

Pure technical line drawing of a vertical panel with circular and rectangular features (no text or symbols)

R M R S LOCK OPEN LOCK SD/USB/MIC/D+ CF USB USB-HOST

Three icons on a blue gradient background: USB, gear, and calendar with floating spheres (no text or symbols)

Four icons (camera, CD, film reel, folder) on a blue gradient background with floating water droplets (no text or symbols)

Grid of 12 identical mountain landscape photos with a yellow highlighted region, displayed against a blue gradient background (no text or symbols on the images themselves)

Interior view of an old industrial warehouse with stacked wooden crates and overhead beams (no visible text or symbols)

Zurück

Four icons (camera, music note, film reel, file) on a blue gradient background with floating spheres and droplets (no text or symbols)

Aerial view of a greenish water body surrounded by dense foliage, captured in a park setting with a play button and time stamp (no text or symbols on the main scene)

Zurück

Four metallic icons (camera, music note, film reel, file) on a blue gradient background with floating bubbles and dots (no text or symbols)

Four icon buttons on a blue gradient background: camera, music note, film reel, and folder (no text or symbols)

Interior view of an industrial warehouse with stacked wooden crates and overhead beams (no visible text or symbols)

Zurück

C:\New1\File 017.mp3 021.mp3 035.jpg New movie.mpg a001.mpg Copy Delete

Close-up of hands holding a DSLR camera with a partially visible card and display (no text or symbols on the device)

Close-up of a white electronic device back panel with a black integrated circuit chip, enclosed in a circular frame (no visible text or symbols)

Black-and-white photo of a woman's face within a circular frame, no visible text or symbols

Controles

Pure technical line drawing of a vertical panel with circular and rectangular features (no text or symbols)

R M R S LOCK OPEN LOCK SD/USB/MIC/D+ CF USB USB-HOST

Three icons on a blue gradient background: USB drive, gear, and calendar (no text or symbols)

Four icons (camera, music note, film reel, file) on a blue gradient background with floating spheres and droplets (no text or symbols)

Grid of 12 identical mountain landscape photos with a yellow highlighted region, displayed against a blue gradient background (no text or symbols on the images themselves)

Interior view of an industrial warehouse with stacked wooden crates and overhead metal beams (no visible text or symbols)

Anterior

Four icon buttons (camera, musical note, film reel, file) arranged vertically on a blue gradient background with floating spheres below (no text or symbols)

Landscape photo of a pond surrounded by lush green vegetation, with no visible text or symbols.

Anterior

Four icons (camera, music note, film reel, file) on a blue gradient background with floating bubbles and dots, no text or symbols present.

Four icons (camera, music note, film reel, file) on a blue gradient background with floating spheres and droplets (no text or symbols)

Interior view of an old industrial warehouse with stacked wooden crates and overhead structural beams (no visible text or symbols)

Anterior

C:New1\File 017.mp3 021.mp3 035.jpg New movie.mpg a001.mpg Copy Delete
