USER MANUAL IPD-5200 LENCO

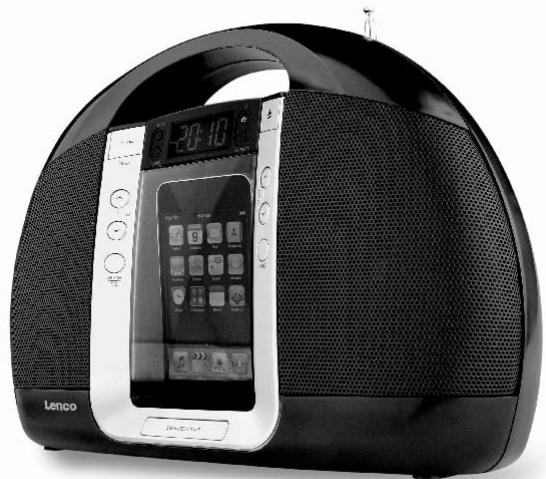

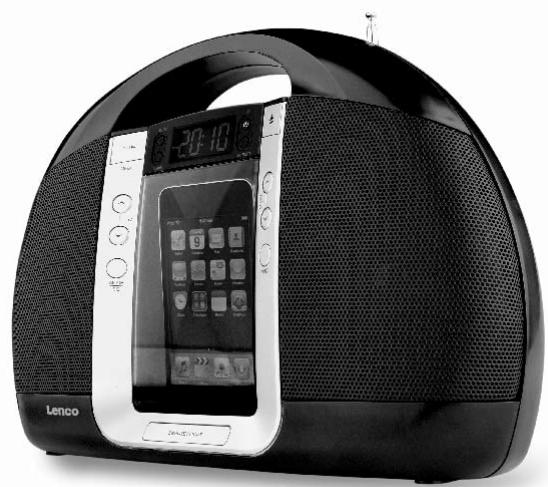

PORTABLE RADIO WITH iPod DOCKING IPD-5200 For information and support www.lenco.eu IPD5200 iB.indd EN12-EN13 Table of content Important Safety Instructions When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

1. Water and Moisture

The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a set basement.

2. Ventilation

The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.

3. Heat & Flame

The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.

4. Power Source

The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. Where the AC/DC Adaptor is used as the disconnect device, the disconnect device shall remain readily operable.

5. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cord exits the unit to where it is plugged into an AC outlet.

6. Cleaning

The unit should be cleaned only as recommended. See the section "Care and Maintenance" of this manual for cleaning instructions.

7. Object and Liquid Entry

Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

8. Attachments

Do not use attachments no recommended by the product manufacturer.

9. Lightning and Power Surge Protection

Unplug the unit from the wall outlet and disconnect the periods of time. This will prevent damage to the product due to lightning and power-line surges.

10. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire of electric shock.

2010-10-11 8:22:44 Eng

11. Damage Requiring Service

This unit should be serviced by qualified service personnel when: A.The power supply cord or plug has been damaged. B.Objects have fallen into or liquid has been spilled into the enclosure. C.The unit has been exposed to rain. D.The unit has been dropped or the enclosure damaged. E.The unit exhibits a marked change in performance or does not operate normally.

12. Periods of Nonuse

If the unit is to be left unused for an extended period of time, such as a m onth or longer, the power cord should be unplugged from the unit to prevent damage or corrosion.

13. Servicing

The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Features Thank you for purchasing the PORTABLE RADIO iPod DOCKING. This model incorporates following features : Different iPod models Player / Re-charger FM receiver with digital read out on LCD Clock and Alarm timer function Wake up to Alarm (Buzzer), Radio or iPod with Snooze function Sleep timer function LCD display with back-light Audio line-in (AUX) for connecting other digital audio player Built-in 2 High Fidelity Speakers Preset EQ effect Eng Installation Clock setting battery back-up A backup battery compartment located at rear of the unit. (1) Open the main battery compartment lid then open the inner clock battery compartment lid as well. (2) For clock setting backup, follow the polarity diagram shown inside the compartment and install 2 x AAA (UM-4) batteries (purchase separately). (3) Close the clock battery compartment lid. Install main battery (4) For radio, iPod and AUX operation, follow the polarity diagram shown inside the compartment and install 6 x AA (UM-3) batteries (purchase separately). (5) Close the main battery compartment lid. AC-DC Adaptor Connection The unit can be powered by an external AC-DC Adaptor, required the output DC 9V 1250mA (included). (1) Firmly and securely plug the adaptor's AC plug into AC main outlet. (2) Connect the adaptor's DC output plug to the DC-in jack of the unit. Warnings: Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. iPod, iPod mini, iPod nano, iPod touch, iPod classic and iPod shuffle are trademarks of Apple Computer Inc., registered in the U.S. and other countries. iPod is not included.

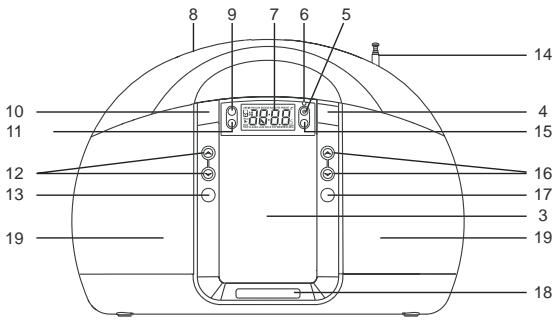

IPD5200 iB.indd EN14-EN15 Description of Parts Description of Parts Main Unit Main Unit Top View

IPD5200 iB.indd EN16-EN17

1. iPod docking compartment

2. iPod docking connector

3. iPod docking compartment door

4.OPEN button ---- To open the iPod compartment door 5.POWER button ----- To turn the unit on and off

6. Power Status indicator: LED

7. LCD display

8. Handle

9. SLEEP button ---- Select the time duration of the sleep timer

10. iPod / MEM button ---- iPod Play / Pause function ;

Save radio preset station

11. ALARM button ---- Turn the alarm on and off ; Set alarm time and

12. V

button ----- Adjust volume level up or down

13. MODE / EQ button ---- In power off mode : Select clock setting and

12/24 hour format In power on mode: Select EQ preset (CLASSIC/ JAZZ/ROCK/POP) and Treble / Bass setting

14. FM rod antenna

15. PRESET button ---- Select preset radio station

16. T/CH

button ---- In radio mode: Tune the radio frequency up/down In iPod mode : Skip tracks Forward / Backward; perform high-speed search

17. FUNC button ---- Select FM stereo / FM mono / iPod / AUX modes

18. SNOOZE / LIGHT -----Activate the snooze function ; turn LCD backlight

DIM / BRIGHT / OFF

19. Speakers

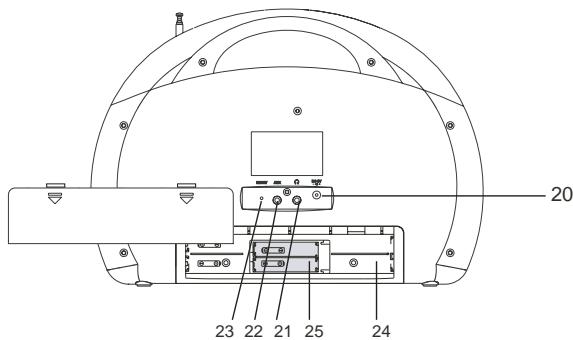

20. DC-in jack -----For the connection of external DC power supply

21. Stereo Phones jack

22. AUX jack ---- Auxiliary audio signal input

23. RESET button ---- For resetting the unit

24. Main battery compartment

25. Inner Clock battery compartment

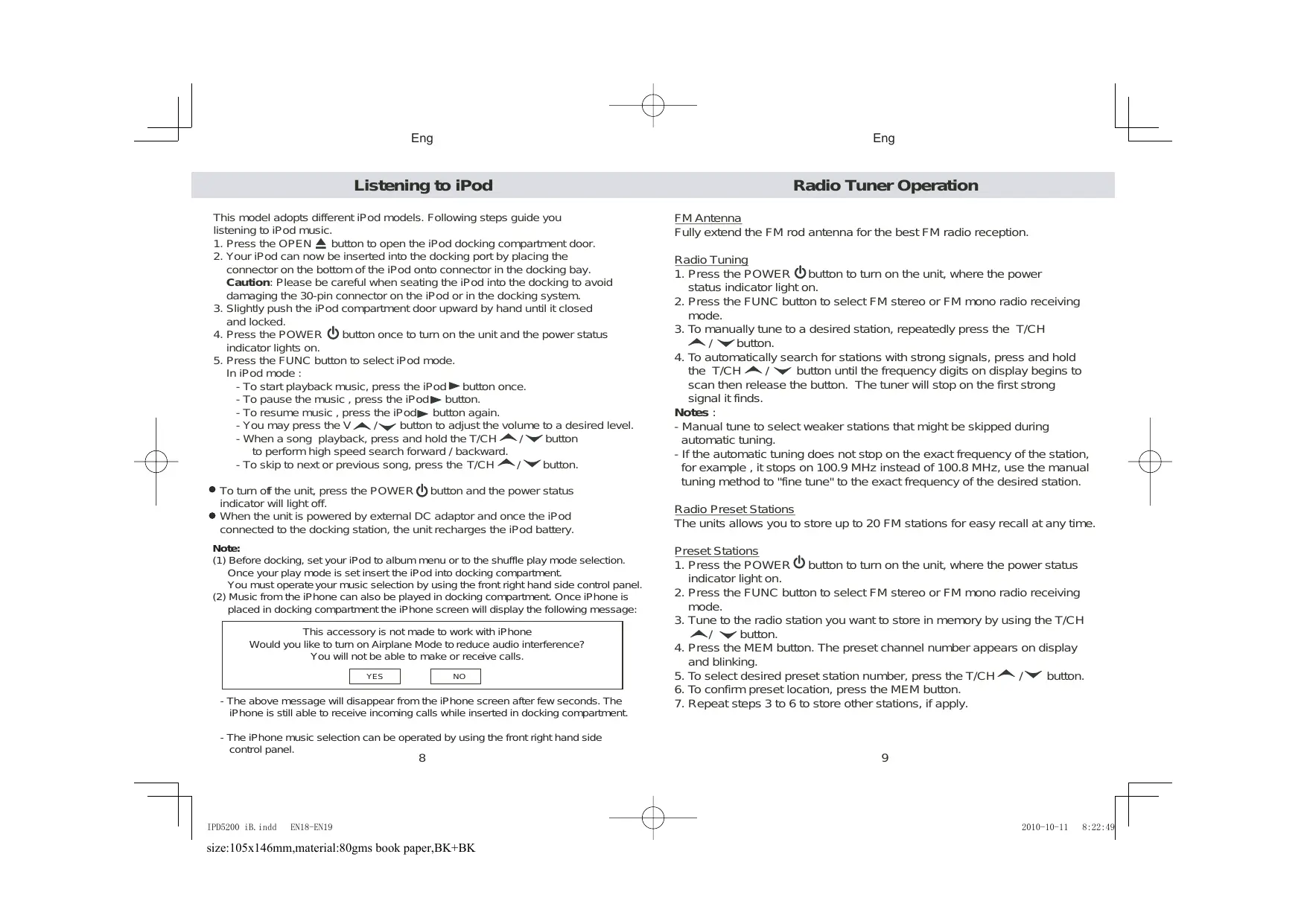

2010-10-11 8:22:47 Eng Eng Listening to iPod Radio Tuner Operation This model adopts different iPod models. Following steps guide you listening to iPod music.

1. Press the OPEN

button to open the iPod docking compartment door.

2. Your iPod can now be inserted into the docking port by placing the

connector on the bottom of the iPod onto connector in the docking bay. Caution: Please be careful when seating the iPod into the docking to avoid damaging the 30-pin connector on the iPod or in the docking system.

3. Slightly push the iPod compartment door upward by hand until it closed

4. Press the POWER

button once to turn on the unit and the power status indicator lights on.

5. Press the FUNC button to select iPod mode.

In iPod mode : - To start playback music, press the iPod button once. - To pause the music , press the iPod button. - To resume music , press the iPod button again. - You may press the V button to adjust the volume to a desired level. - When a song playback, press and hold the T/CH button to perform high speed search forward / backward. - To skip to next or previous song, press the T/CH button. To turn off the unit, press the POWER button and the power status indicator will light off. When the unit is powered by external DC adaptor and once the iPod connected to the docking station, the unit recharges the iPod battery. Note: (1) Before docking, set your iPod to album menu or to the shuffle play mode selection. Once your play mode is set insert the iPod into docking compartment. You must operate your music selection by using the front right hand side control panel. (2) Music from the iPhone can also be played in docking compartment. Once iPhone is placed in docking compartment the iPhone screen will display the following message: This accessory is not made to work with iPhone Would you like to turn on Airplane Mode to reduce audio interference? You will not be able to make or receive calls. YES

- The above message will disappear from the iPhone screen after few seconds. The iPhone is still able to receive incoming calls while inserted in docking compartment. - The iPhone music selection can be operated by using the front right hand side control panel.

IPD5200 iB.indd EN18-EN19 FM Antenna Fully extend the FM rod antenna for the best FM radio reception. Radio Tuning

1. Press the POWER button to turn on the unit, where the power

status indicator light on.

2. Press the FUNC button to select FM stereo or FM mono radio receiving

3. To manually tune to a desired station, repeatedly press the T/CH

4. To automatically search for stations with strong signals, press and hold

the T/CH button until the frequency digits on display begins to scan then release the button. The tuner will stop on the first strong signal it finds. Notes : - Manual tune to select weaker stations that might be skipped during automatic tuning. - If the automatic tuning does not stop on the exact frequency of the station, for example , it stops on 100.9 MHz instead of 100.8 MHz, use the manual tuning method to "fine tune" to the exact frequency of the desired station. Radio Preset Stations The units allows you to store up to 20 FM stations for easy recall at any time. Preset Stations

1. Press the POWER button to turn on the unit, where the power status

2. Press the FUNC button to select FM stereo or FM mono radio receiving

3. Tune to the radio station you want to store in memory by using the T/CH

4. Press the MEM button. The preset channel number appears on display

5. To select desired preset station number, press the T/CH

6. To confirm preset location, press the MEM button.

7. Repeat steps 3 to 6 to store other stations, if apply.

2010-10-11 8:22:49 Eng Eng Radio Tuner Operation Listening to an External Audio Source Notes :

1. There is a few seconds delay when programming, after this delay time,

the unit will automatically switch back to normal tuner mode.

2. You can overwrite a preset station by overwriting and storing the new

frequency in its place. Recalling Preset Station

1. Press the POWER

button to turn on the unit, where the power status indicator light on.

2. Press the FUNC button to select FM stereo or FM mono radio receiving

3. Press the PRESET button. The preset channel number and PRESET

indicator appear on display.

4. To select desired preset station, press the T/CH

button. EQ preset , Treble and Bass Setting Bass setting :

1. Press and hold the EQ button entering Bass setting mode, the "BASS"

indicator appears on display.

2. To select desired bass level, press the T/CH

button. Treble setting :

3. Press the EQ button again entering Treble setting mode, the "TRE" indicator

4. To select desired treble level, press the T/CH

5. Press the EQ button to exit bass/treble setting mode.

1. Connect an audio cable (not included) with 3.5mm stereo plug from

an auxiliary audio device to the AUX jack of the unit.

2. Press the POWER button to turn on the unit.

3. To select auxiliary audio input, press the FUNC button. The "AUX"

indicator show on display.

4. Turn on the external auxiliary audio device.

5. The volume and preset equalizer can now be controlled through the unit.

Operate all other functions on the external device as usual. Notes: Press the POWER button to turn off the unit when you finish listening. Don't forget to switch off the power of the external audio device as well. Clock Setting When the unit is OFF (power off mode): Set Clock

1. Press the MODE button until the clock digits blink.

2. Press the V

3. Press the T/CH

button to set minute. Set 12/24 Hour format

4. Press the MODE button again entering 12/24 hour format setting mode.

5. Press the T/CH

button to select 12 or 24 hour display format. Exit setting mode

6. To save all settings and exit the setting mode, press the SNOOZE button.

EQ setting : The unit is designed to have four EQ presets for your selection , the CLASSIC , JAZZ, ROCK and POP . You can select the desired effect by pressing the "EQ" button repeatedly at following sequence : CLASSIC JAZZ ROCK POP OFF (or BASS/TREBLE, if previously set)

IPD5200 iB.indd EN110-EN111 Wake to iPod or Radio When the alarm time is reached, the selected alarm source (iPod or Radio) will automatically turn on. It starts softly and gradually becomes louder. It plays for 30 minutes then shuts off and resets itself for the following day. During the activation of the alarm source, you may press the SNOOZE button to activate the snooze function. The alarm stops for the snooze time (around 10 minutes) then turns on again. To cancel the snooze before it expires, press the ALARM button. This manual snooze operation can be repeated three times. Each time the alarm turns on, it plays for 30 minutes (without pressing the snooze button). To stop the alarm immediately after the alarm sounds, you may also press the ALARM button. It resets itself for the following day. When the unit is OFF (power off mode): Select wake up alarm source

1. Press and hold the ALARM button until the alarm source indicator blink.

2. Press the T/CH

button to select alarm source BUZ (buzzer) , iPod or RAD (radio). Setting the alarm time

3. Press the ALARM button again, alarm time digits blink.

4. Press the V

button to set alarm hour.

5. Press the T/CH

button to set alarm minute. Save settings and activate alarm

6. To save all settings and exit the setting mode, press the SNOOZE button.

7. To activate the daily alarm, press the ALARM button and the

corresponding alarm source indicator appears on the LCD display. Notes : ---If "Wake to iPod" is selected but your iPod has not been docked, the alarm source will be redirected to the Alarm Buzzer automatically when the alarm is reached. ---When "Wake to Radio" is selected, make sure the radio station which you want to wake to is tuned. Wake to Buzzer When the alarm time is reached, the buzzer alarm will sound for 3 Minutes. It goes into Auto-snooze mode if no further button has been pressed. The display shows the "SNOOZE" indicator. The buzzer turns off for the snooze time (around 10 minutes) then comes on again. This operation will be repeated three times. After the fourth alarm is finished, the alarm will shut off until the same alarm time on the next day. You may also activate the snooze function manually after the alarm sounds by pressing the SNOOZE button. The buzzer stops for the snooze time then comes again. To cancel the snooze before it expires, press the ALARM button. The snooze operation (including auto-snooze and manual snooze) can be repeated by 3 times only. To stop the alarm immediately after the buzzer sounds, you can also press the ALARM button. It resets itself for the following day.

IPD5200 iB.indd EN112-EN113 Sleep Timer Function Sleep to timer This feature allows you to fall asleep to the radio or iPod for up to 120 Minutes. The unit shuts off automatically when the time expires.

1. Press the POWER

button to turn the unit on.

2. Either tune to the desired radio station in radio mode or playback music

3. To select the sleep timer to turn the unit off after 15, 30, 45, 60, 90 or

120 minutes, press the SLEEP button repeately. The display show the indicator . The unit plays for the selected length of time then automatically turns off.

4. To turn the unit off before the sleep timer counts down to zero, press

the POWER button at any time. Notes : If you are falling asleep to music from an external device connected to the AUX input, the sleep timer will shut off the power to this system but it will not turn off the external device.

2010-10-11 8:22:53 Eng Eng Care and Maintenance Specifications - Do not subject the unit to excessive force, shock, dust or extreme temperature. - Do not tamper the internal components of the unit. - Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used. - Avoid leaving your unit in direct sunlight or in hot, humid or dusty places. - Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors. Power Supply Power Adaptor Resetting the Unit If the unit experiences a power surge or electric shock, it is possible that the internal micro-controller may lock up and the unit will not respond to any commands from the front panel controls. 1.In this event, unplug and then reconnect the AC power plug into the wall outlet. 2.Use a straightened paper clip, toothpick or similar objects to press the RESET button located at the rear of the main unit (see the below figure). The reset operation clears the system memory and all of your previous settings will be erased. CAUTION: DO NOT USE SHARP, POINTED OBJECT TO PRESS THE RESET BUTTON. IT MAY DAMAGE THE RESET SWITCH INSIDE THE UNIT. Speaker Output Power consumption 2W+2W (Max.) 1 W (Standby) 16 W (Max.) Dimensions Weight Operating Temperature and Humidity Battery Back-up for clock / memory: DC3V--- AAA (UM-4)type x 2 (not included) Battery for operating the unit: DC9V --- AA (UM-3) type x 6 (not included) THE SPECIFICATION AND EXTERNAL APPEARANCE OF THE SET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. Warranty: If you have questions regarding the warranty, the length of warranty and the working method of it, you can find the information on our site www.lenco.eu or you can directly contact your retailer. For information and support www.lenco.eu

IPD5200 iB.indd EN114-EN115 OFF (or BASS/TREBLE, if previously set) This accessory is not made to work with iPhone Would you like to turn on Airplane Mode to reduce audio interference? You will not be able to make or receive calls. YES

OFF (or BASS/TREBLE, if previously set) 2W+2W (Max.) 1 W (Standby) 16 W (Max.) This accessory is not made to work with iPhone Would you like to turn on Airplane Mode to reduce audio interference? You will not be able to make or receive calls. YES

OFF (or BASS/TREBLE, if previously set) OFF (or BASS/TREBLE, if previously set)
