Product type	Safety combination valve (pressure reducer, check valve, shut-off valves, safety valve)
Brand	HONEYWELL
Model	SG150 (SG150D with pressure reducer)
Connection sizes	1/2" and 3/4" (threaded)
Max. upstream pressure	16 bar
Response pressure (safety valve)	6, 8 or 10 bar (factory set, non-adjustable)
Adjustable downstream pressure	Min. 1 bar below upstream pressure
Max. operating temperature	40 °C
Min. pressure drop	1 bar
Fluid	Water
Mounting position	Horizontal and vertical
Delivery contents	Casing with G1/4" monitoring sleeves, shut-off valves, pressure reducer (SG150D) with fine filter (0.16 mm), non-return device, spare valve set, flow cone, insulating jacket
Main functions	Downstream pressure regulation, check valve, shut-off and drain, safety valve protection
Maintenance and cleaning	Actuate the purge device every 6 months; clean the filter and settling bowl if necessary; annual maintenance by a professional
Periodic maintenance	Every 1 to 3 years depending on operating conditions, by a professional
Safety	Diaphragm safety valve; do not close the drain outlet; strict safety instructions for installation
Spare parts and repairability	Spare valve set, O-rings, filter element, strainer bowl, check valve, accessories (pressure gauge, polygonal wrench ZR06K)
Materials	Dezincification-resistant brass housing, transparent plastic for strainer bowl, textile-reinforced NBR diaphragm
Recommended use	Closed water heater up to 200 L (conforms to DIN 4753 and DIN 1988)

Frequently Asked Questions - SG150 HONEYWELL

What to do if the safety valve drips constantly?

Actuate the purge device several times to flush out dirt particles. If dripping persists, replace the check valve or the valve assembly.

How to adjust the downstream pressure of the reducer?

Close the shut-off valves, depressurize the outlet side, loosen the slotted screw (do not remove it), turn the adjustment handle to the left until it stops, then slowly open the inlet and adjust to the desired value. Retighten the screw.

What is the maximum upstream pressure?

The maximum upstream pressure is 16 bar for the SG150D model. Refer to the variant table.

What are the recommended maintenance intervals?

The safety valve should be tested every 6 months. The decompressor and check valve once a year. Full maintenance by a professional every 1 to 3 years.

Can the valve be mounted vertically?

Yes, the mounting position can be horizontal or vertical, provided the flow direction is respected and easy access for maintenance is guaranteed.

How to clean the valve filter?

Close the water supply, depressurize, unscrew the strainer bowl using the polygonal wrench ZR06K, remove the filter, clean it and reassemble. Do not use solvents or alcohol.

What to do if the downstream pressure is unstable?

Clean the replacement strainer. If the problem persists, check the condition of the nozzle or sealing washer and replace the valve trim assembly if necessary.

What tools are needed for maintenance?

A double polygonal wrench ZR06K is required to disassemble the spring cover and the filter strainer bowl. A pressure gauge can be used for calibration.

Is the valve suitable for hot water?

Yes, the maximum operating temperature is 40 °C. It is suitable for closed water heaters up to 200 L.

How to know if the check valve is defective?

Close the outlet valve and open the check valve. If water continues to flow instead of stopping after a few seconds, the check valve is defective and must be replaced.

USER MANUAL SG150 HONEYWELL

Keep instructions for later use!

TUV·SV··-617-1/2"+3/4"W·p

Bauteilprufnummer

TUV·SV··-700-1/2"+3/4"W·p

6 bar 1/2" A152-1/2AA

3/4" A152-3/4AA

8 bar 1/2" A152-1/2AB

3/4" A152-3/4AB

10 bar 1/2" A152-1/2AC

3/4" A152-3/4AC

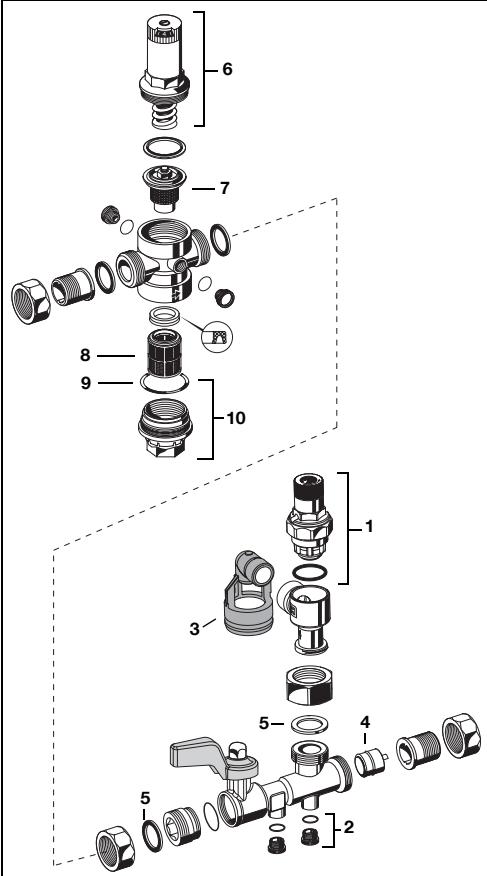

8 Ersatzsbie 1/2" + 3/4" ES06F-1/2A

9 O-Ring Satz 1 / 2^ + 3 / 4^ 0901246

(10 Stuck)

10 Klarsichtsbiebasse 1 / 2'' + 3 / 4'' SK06TG-1/2

13. Zubehör

fur SG150
M08M

D150/D160S

VST06-A

VST06-B

M08M Manometer

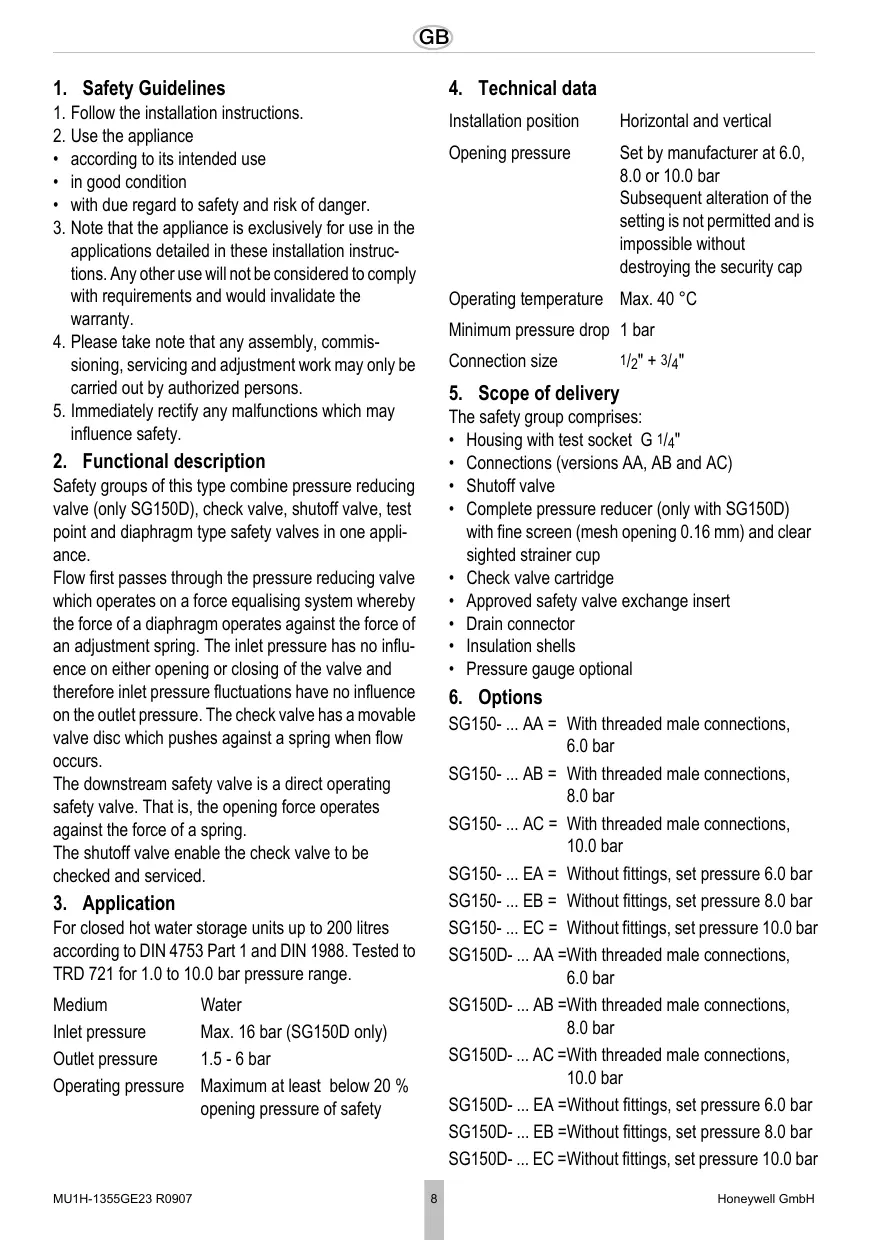

1. Follow the installation instructions.
2. Use the appliance
   according to its intended use
3. in good condition
   with due regard to safety and risk of danger.
4. Note that the appliance is exclusively for use in the applications detailed in these installation instructions. Any other use will not be considered to comply with requirements and would invalidate the warranty.
5. Please take note that any assembly, commissioning, servicing and adjustment work may only be carried out by authorized persons.
6. Immediately rectify any malfunctions which may influence safety.

2. Functional description

Safety groups of this type combine pressure reducing valve (only SG150D), check valve, shutoff valve, test point and diaphragm type safety valves in one appliance.

Flow first passes through the pressure reducing valve which operates on a force equalising system whereby the force of a diaphragm operates against the force of an adjustment spring. The inlet pressure has no influence on either opening or closing of the valve and therefore inlet pressure fluctuations have no influence on the outlet pressure. The check valve has a movable valve disc which pushes against a spring when flow occurs.

The downstream safety valve is a direct operating safety valve. That is, the opening force operates against the force of a spring.

The shutoff valve enable the check valve to be checked and serviced.

3. Application

For closed hot water storage units up to 200 litres according to DIN 4753 Part 1 and DIN 1988. Tested to TRD 721 for 1.0 to 10.0 bar pressure range.

Medium Water

Inlet pressure Max. 16 bar (SG150D only)

Outlet pressure 1.5 - 6 bar

Operating pressure Maximum at least below 20% opening pressure of safety

4. Technical data

Installation position

Horizontal and vertical

Opening pressure

Set by manufacturer at 6.0, 8.0 or 10.0 bar

Subsequent alteration of the setting is not permitted and is impossible without destroying the security cap

Operating temperature

Max. 40^

Minimum pressure drop

1 bar

Connection size

1/2" + 3/4"

5. Scope of delivery

The safety group comprises:

Housing with test socket G 1/4"
- Connections (versions AA, AB and AC)
- Shutoff valve
- Complete pressure reducer (only with SG150D) with fine screen (mesh opening 0.16mm ) and clear sighted strainer cup
- Check valve cartridge
Approved safety valve exchange insert
- Drain connector
Insulation shells
Pressure gauge optional

6. Options

SG150- ... AA = With threaded male connections, 6.0 bar

SG150-...AB = With threaded male connections, 8.0 bar

SG150- ... AC = With threaded male connections, 10.0 bar

SG150- ... EA = Without fittings, set pressure 6.0 bar

SG150-...EB = Without fittings, set pressure 8.0 bar

SG150- ...EC = Without fittings, set pressure 10.0 bar

SG150D- ... AA =With threaded male connections, 6.0 bar

SG150D- ... AB =With threaded male connections, 8.0 bar

SG150D- ... AC =With threaded male connections, 10.0 bar

SG150D-...EA = Without fittings, set pressure 6.0 bar

SG150D-...EB = Without fittings, set pressure 8.0 bar

SG150D-...EC=Without fittings, set pressure 10.0 bar

7. Assembly

7.1 Installations Guidelines

• Safety group must be fitted in the cold water supply to the hot water storage unit
• Installation in horizontal or vertical pipeline possible
• The installation must be carried out so that:

o There are no shutoff valves or fittings, narrowing of the pipework or strainers between the water heater and the safety valve
o Good access is provided for service and maintenance
o The safety valve is fitted above the top of the water heater to avoid the need for draining down when exchanging the safety valve insert

• If there is no drainage facility in the room where the heater is installed, then the safety valve may be fitted in an adjacent area. DIN 1988, part 2 is to be observed
• Distance to the water heater approx. 1m
• While heating, water must escape in the discharge line for safety reasons. Do not close off!
• The drain line of the membrane safety valve must be viewable!
• If the drain guide is not connected directly with the safety group, a discharge line must be installed between the safety group and the drain guide!
• The discharge line must be performed to the size of the safety valve discharge cross-section and may not have more than 2 elbows and or be longer than 2m !
• If, for compelling reasons, more elbows or a greater length becomes necessary, then the entire discharge line must be designed to a larger nominal width. More than 3 elbows, as well as lengths over 4m are not permitted!
• The discharge line must be installed with an incline!

7.2 Assembly instructions

1. Blow out or rinse pipe line out well
2. Install safety group in the cold water line o Note flow direction o Install without tension or bending stresses

8. Commissioning

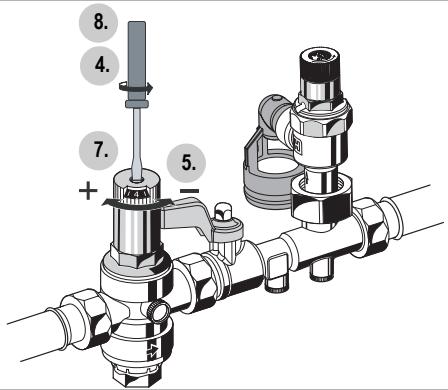

8.1 Setting outlet pressure

Set outlet pressure min. 1 bar under inlet pressure.

1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet
4. Loosen slotted screw o Do not remove slotted screw
5. Slacken tension in compression spring o Turn control handle to the left (-) until it does not move any more
6. Slowly open shutoff valve on inlet
7. Turn control handle until the setting scale shows the desired value
8. Retighten slotted screw
9. Slowly open shutoff valve on outlet

9. Maintenance

DIN 1988, Part 8 specifies that the following operations be carried out regularly.

A scheduled maintenance scheme is recommended.

9.1 Inspection

9.1.1 Pressure reducing valve

Interval: once a year

1. Close shut off valve on outlet
2. Check back pressure using a pressure meter when there is zero through-flow

o If the pressure is increasing slowly, the valve may be dirty or defective. In this instance, carry out servicing and cleaning

1. Slowly open shutoff valve on outlet

9.1.2 Check valve

Interval: once a year

1. Close shut off valve on outlet
2. Open check valve o Until the pressure is released, some water will flow out of the check valve. After a short period of time the water flow should stop. If the water continues to drip or run, then the backflow preventer must be replaced - see servicing of backflow preventer
3. Close check valve again
4. Open shut-off valve again

9.1.3 Safety valve

Frequency: every 6 month

1. Actuate lifting device
2. Release lifting device
3. Shut-off valve closes
4. available water flows completely off

Malfunction:

1. Actuate lifting device multiple times, if necessary initiate repairs

9.2 Maintenance

9.2.1 Pressure reducing valve

Frequency: every 1-3 years (depending on local operating conditions)

To be carried out by an installation company

1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet
4. Loosen slotted screw

o Do not remove slotted screw

There is a spring in the spring bonnet. It may cause injuries if the spring is derailing.

• Make sure tension in compression spring is slakkened!

• Slacken tension in compression spring
  o Turn control handle to the left (-) until it does not move any more

• Unscrew spring bonnet
  o Use double ring wrench ZR06K

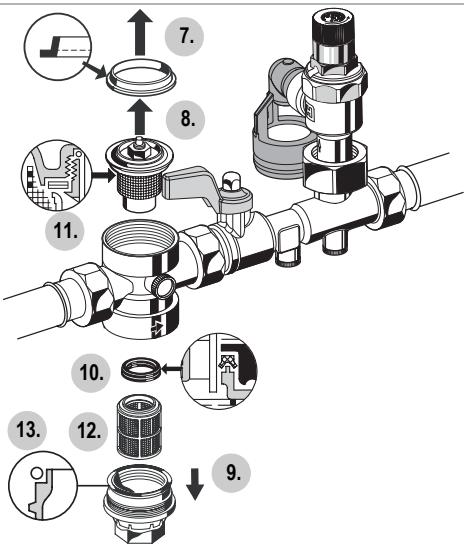

• Remove slip ring
• Remove valve insert with a pair of pliers
• Unscrew filter bowl

o Use double ring wrench ZR06K

10.Remove slotted ring
11. Check that sealing ring, edge of nozzle and slotted ring are in good condition, and if necessary replace the entire valve insert
12.Remove filter, clean and reinsert
13. Place O-ring onto filter bowl
14.Reassemble in reverse order

Press in diaphragm with finger before inserting slip ring

Screw in filter cup hand-tight (without tools)

1. Adjust setting scale and set outlet pressure

9.2.2 Check valve

To be carried out by an installation company

1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet
4. Replace check valve

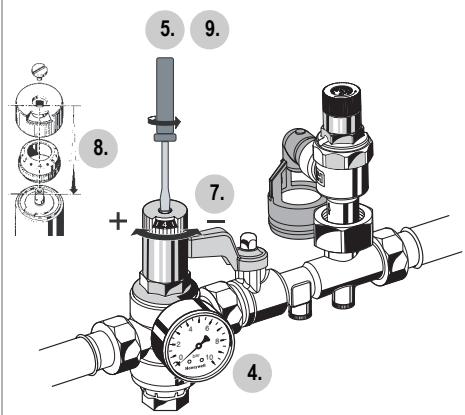

9.3 Adjusting the setting scale

If the adjustment knob is removed, this setting is lost.

A new setting can be achieved using a pressure gauge.

1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet

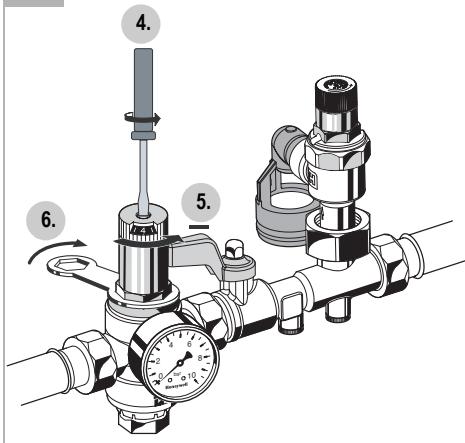

4. Fit manometer
5. Loosen slotted screw o Do not remove slotted screw
6. Slowly open shutoff valve on inlet
7. Set desired outlet pressure (e.g. 4 bar)
8. Align scale (e.g. 4) in middle of viewing window
9. Retighten slotted screw
10. Slowly open shutoff valve on outlet

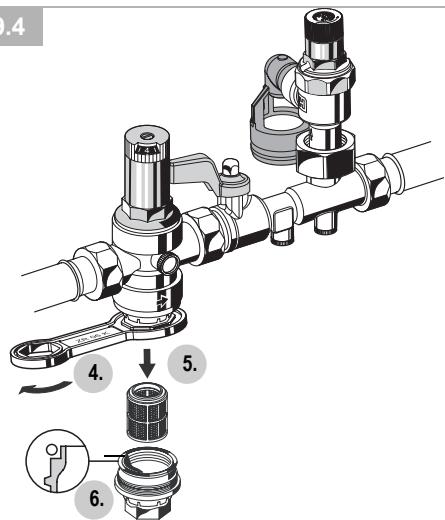

9.4 Cleaning

Caution!

Do not use any cleaning agents containing solvents and/or alcohol to clean the plastic parts!

If necessary, the filter bowl and the filter can be cleaned.

To be carried out by an installation company or the operator.

Detergents must not be allowed to enter the environment or the sewerage system!

1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet
4. Unscrew filter bowl o Use double ring wrench ZR06K
5. Remove filter, clean and reinsert
6. Place O-ring onto filter bowl
7. Screw in filter cup hand-tight (without tools)
8. Slowly open shutoff valve on inlet
9. Slowly open shutoff valve on outlet

10. Disposal

• Dezincification resistant brass housing
• Brass threaded connections
• Stainless steel filter mesh on pressure reducing valve
• Transparent synthetic material filter bowl on pressure reducing valve
• High grade synthetic material pressure reducing valve insert, spring bonnet with adjuster knob,

shutoff valves, test socket, check valve, safety valve insert and drain connector

• Fibre-reinforced NBR diaphragm
  NBR seals
  EPP insulation shells

Observe the local requirements regarding correct waste recycling/disposal!

1. Troubleshooting

Problem	Cause	Remedy
SG150 and SG150D
Drips	During the heating up of the water heater	no error, normal function
	Continually drips from soiling	Actuate lifting grip multiple times so that dirt particles are flushed out, or replace as necessary
Backflow stopper does not close off tightly in the front pressure area.	Pressure increase in the front pres-sure area	Replace backflow stopper
	Seal surfaces dirty or worn	Replace backflow stopper
Too little or no water pressure	Cut-off fixtures before or after the safety group not opened entirely	Open the shutoff valves fully
	Safety group not installed in the flow direction	Install safety group in flow direction (observe arrow direction on housing)
only SG150D
Water is escaping from the spring bonnet	Diaphragm in valve insert is faulty	Replace valve insert
Too little or no water pressure	Pressure reducing valve is not set to the desired outlet pressure	Set outlet pressure
	Filter in pressure reducing valve is contaminated	Clean or replace filter
The outlet pressure set does not remain constant	Filter in pressure reducing valve is contaminated or worn	Clean or replace filter
	Valve insert, sealing ring or edge of nozzle is contaminated or worn	Replace valve insert
	Rising pressure on outlet (e.g. in boiler)	Check check valve, safety group etc.
	Expansion water from the hot water purifier	Inspect backflow stopper before the hot water purifier and single-lever mixing valve if necessary.
		Close shut-off valves to the hot water puri-fier supply line. Open hot water tap connec-tion. Does pressure remain constant? Expansion water of the hot water purifier. Does pressure increase? Pressure reducer defect.

12. Spare Parts

No.Description Dimension Part No.

1 Safety valve exchange insert

$$ \begin{array}{l} \text {A p p r o v a l N o .} - \mathrm {T U V} \cdot \mathrm {S V} \dots^ {} - 6 1 7 - 1 / 2 ^ {\prime \prime} + 3 / 4 ^ {\prime \prime} \cdot W \cdot p \ \text {A p p r o v a l N o .} - \mathrm {T U V} \cdot \mathrm {S V} \dots^ {} - 7 0 0 - 1 / 2 ^ {\prime \prime} + 3 / 4 ^ {\prime \prime} \cdot W \cdot p \ \end{array} $$

$$ \begin{array}{l} 6 \text {b a r} \quad 1 / 2" \quad A 1 5 2 - 1 / 2 A A \ 3 / 4 ^ {\prime \prime} \quad A 1 5 2 - 3 / 4 A A \ 8 \text {b a r} \quad 1 / 2" \quad A 1 5 2 - 1 / 2 A B \ 3 / 4 ^ {\prime \prime} \quad A 1 5 2 - 3 / 4 A B \ 1 0 \text {b a r} \quad 1 / 2" \quad A 1 5 2 - 1 / 2 A C \ 3 / 4 ^ {\prime \prime} \quad A 1 5 2 - 3 / 4 A C \ \end{array} $$

..* valid approval No.

2 Blanking plug with O-ring R1/4" (5 pcs.) S06K-1/4
3 Discharge tundish TA160S
4 Check valve insert 1 / 2^ 2166200 3 / 4'' 2110200
5 Sealing ring 1/2" 0901443 (10 pcs.) 3/4" 0901444
6 Spring bonnet 1 / 2^ + 3 / 4^ 0901515 complete with setting scale
7 Valve insert 1 / 2^ + 3 / 4^ D06FA-1/2 complete (without filter)
8 Replacement filter 1 / 2'' + 3 / 4'' ES06F-1/2A
9 O-ring (10 pcs.) 12'' + 34'' 0901246
10 Filter bowl 1 / 2^ + 3 / 4^ SK06TG-1/2

13. Accessories

fur SG150
M08M

D150/D160S

VST06-A

VST06-B

M08M Pressure gauge

Housing 50mm , connecting pin above G1/4"

Partition: 0-16 bar

D150 Pressure reducing valve

Pressure reducer D150-1/2 for completion of the safety group SG 150 with connection size 1/2"

D160S Pressure reducing valve

Pressure reducer D160S-3/4 for completion of the safety group SG 150 with connection size 3 / 4^

VST06-A Connection set

Threaded connections

VST06-B Connection set

Solder connections

für SG150D
FN09S

M07M

M08M

ZR06K

VST06-A

VST06-B

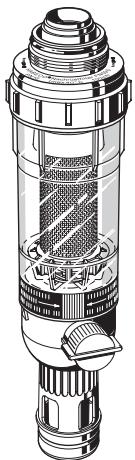

FN09S HABEDO® Retrofit filter

Reverse-rinsing filter for retro-conversion to a filter combination unit of pressure reducing valves

M07M Pressure gauge

Housing diameter 63mm ,rear connection thread

G1/4". Ranges: 0 - 4, 0 - 10, 0 - 16 or 0 - 25 bar. Please indicate upper value of pressure range when ordering

M08M Pressure gauge

Housing 50mm , connecting pin above G1/4"

Partition: 0-16 bar

ZR06K Double ring wrench

For removal of spring bonnet and filter bowl

VST06-A Connection set

Threaded connections

VST06-B Connection set

Solder connections

6 bar 1/2" A152-1/2AA

3/4" A152-3/4AA

8 bar 1/2" A152-1/2AB

3/4" A152-3/4AB

10 bar 1/2" A152-1/2AC

3/4" A152-3/4AC

TUV·SV··* - 617 - 1/2" + 3/4" ·W·p

TUV·SV··* - 700 - 1/2" + 3/4" ·W·p

6 bar 1/2" A152-1/2AA

3/4" A152-3/4AA

8 bar 1/2" A152-1/2AB

3/4" A152-3/4AB

10 bar 1/2" A152-1/2AC

3/4" A152-3/4AC

Automation and Control Solutions

Honeywell GmbH

Hardhofweg

D-74821 Mosbach

Phone: [phone]

Fax: [phone]

http://europe.hbc.honeywell.com

www.honeywell.com

Manufactured for and on behalf of the

Environmental and Combustion Controls Division of

Honeywell Technologies Sàrl, Ecublens, Route du

Bois 37, Switzerland by its Authorised Representative Honeywell GmbH

MU1H-1355GE23 R0907

Subject to change

© 2007 Honeywell GmbH

Honeywell

8.1

9.2.1

9.3

9.4

D

1. Safety Guidelines.. 8
2. Functional description 8
3. Application 8
4. Technical data 8
5. Scope of delivery 8
6. Options 8
7. Assembly 9
8. Commissioning 9
9. Maintenance 9
10. Disposal 10
11. Troubleshooting 11
12. Spare Parts 12
13. Accessories 13

1
